5 hp Bauer Gear Motor BG90Z-11/D11SA4-S/ESX070A9/AV-SP Electric Driver
Listing ID:
IH-68092
Description
Caterpillar Motor GP-GR P/N 467-3767 — Bauer 5 HP, 575 V, 13.5 RPM Inline Helical Gearmotor
Notes:
Description

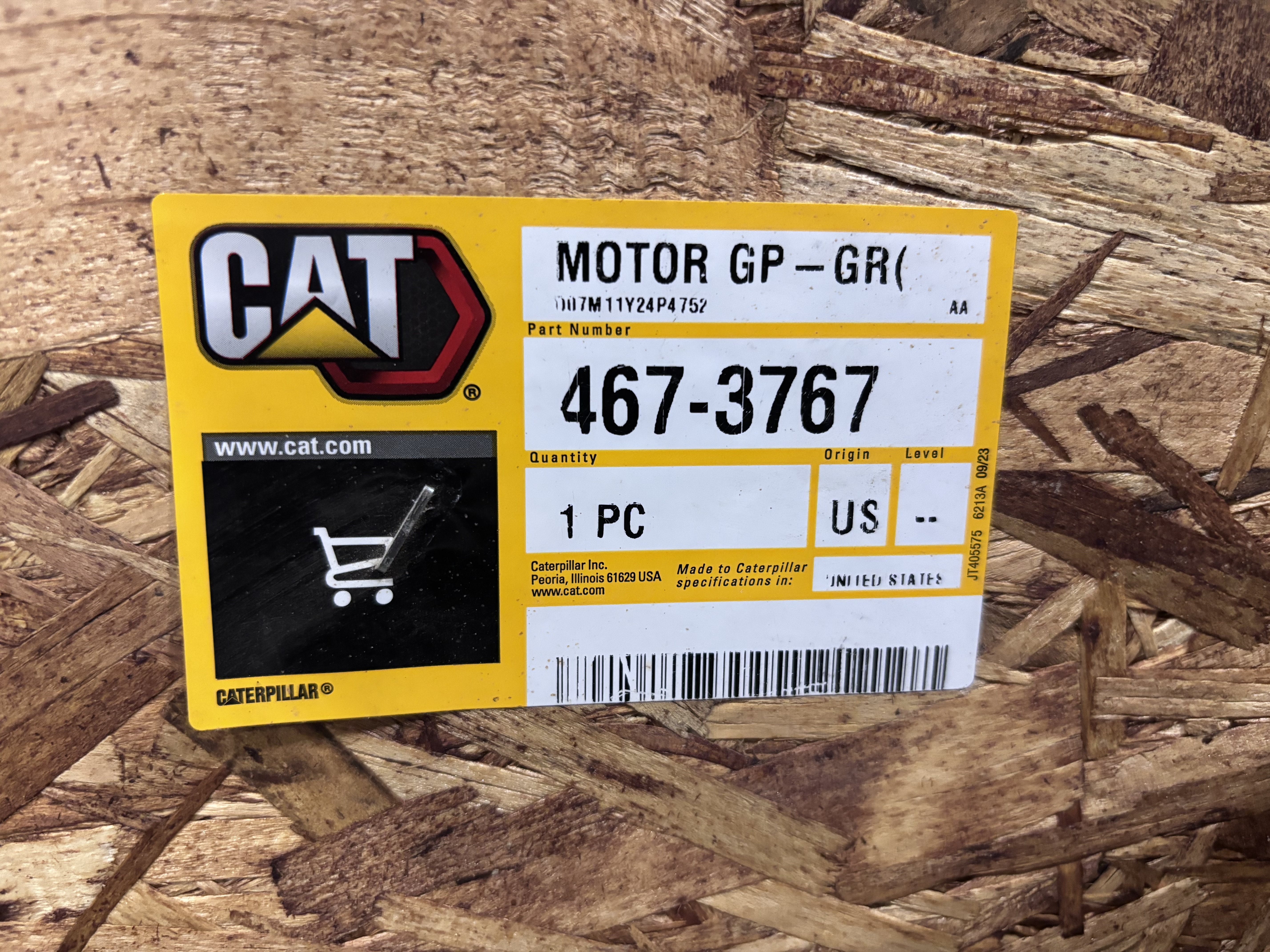

Available is one Caterpillar Motor GP-GR, P/N 467-3767, incorporating a Bauer BG Series inline helical gearmotor. The Caterpillar crate label identifies the item as Motor GP-GR P/N 467-3767, and the physical Bauer nameplate on the installed unit carries the same Caterpillar part number.

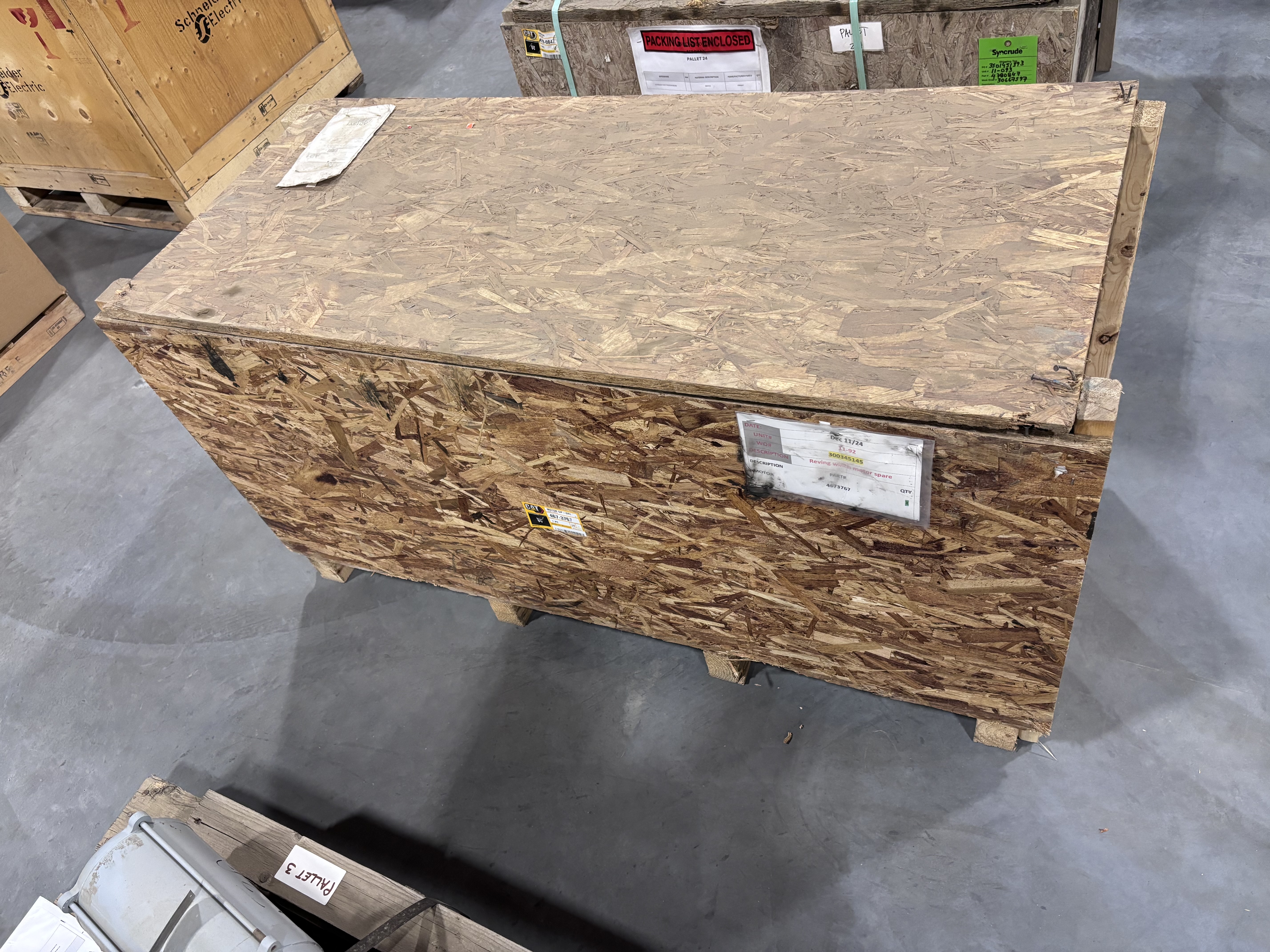

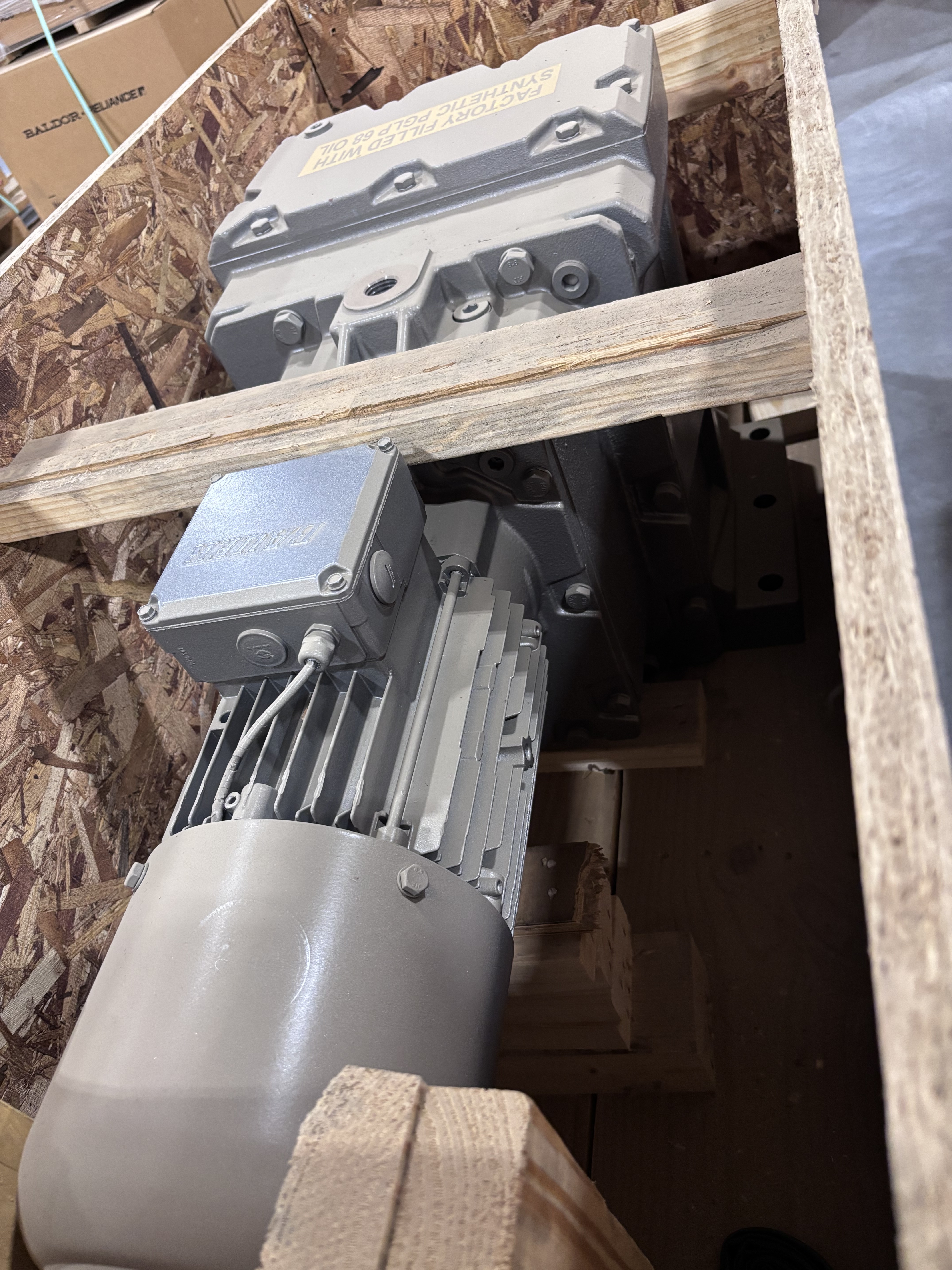

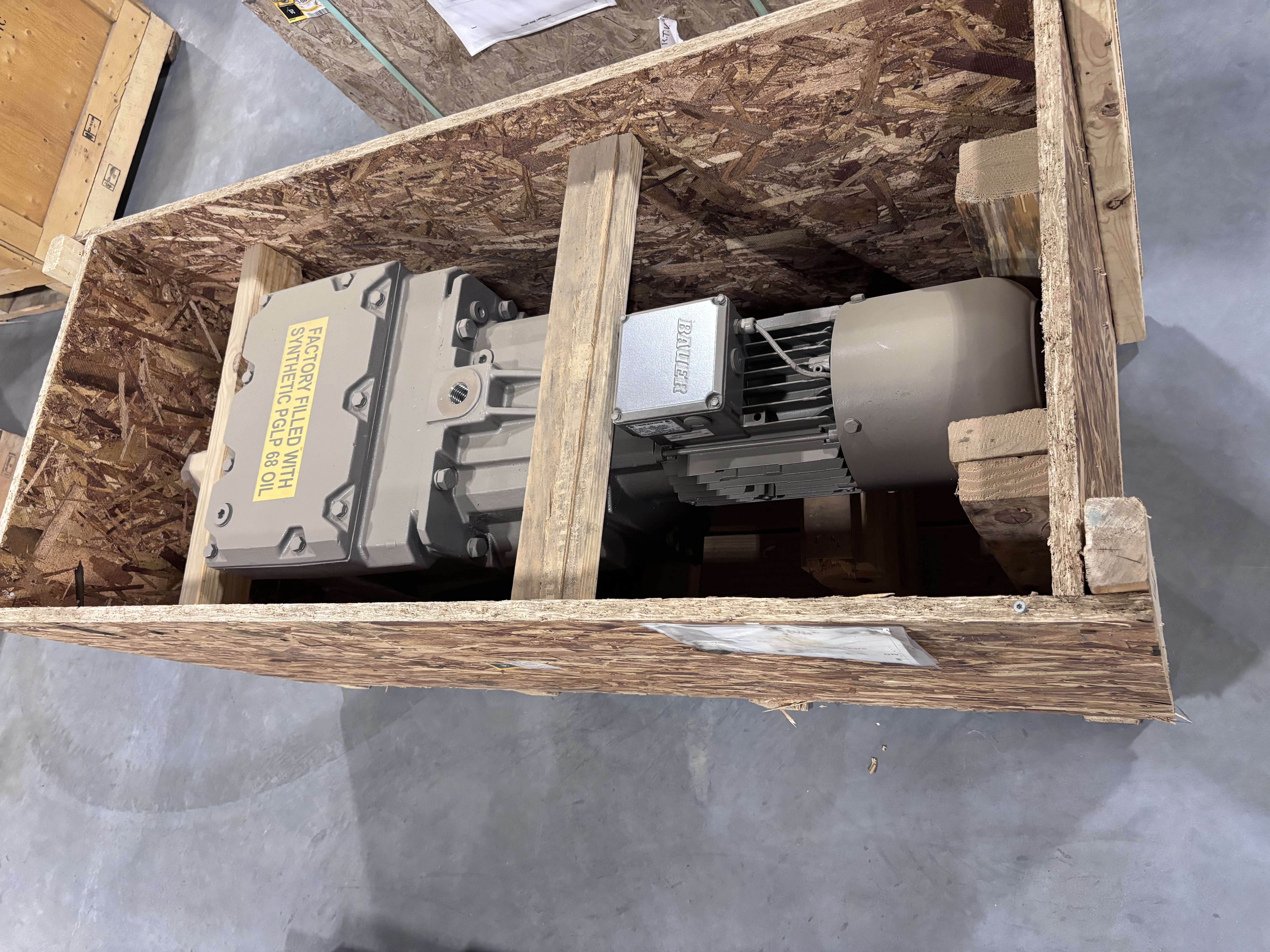

This complete motor-and-reduction-gear assembly is factory preserved in its wooden crate, with the output shaft protected. The housing is labelled as factory filled with synthetic PGLP 680 oil. The unit is offered exactly as presented, including the installed Bauer motor, gearbox, and visible mounting/base arrangement.

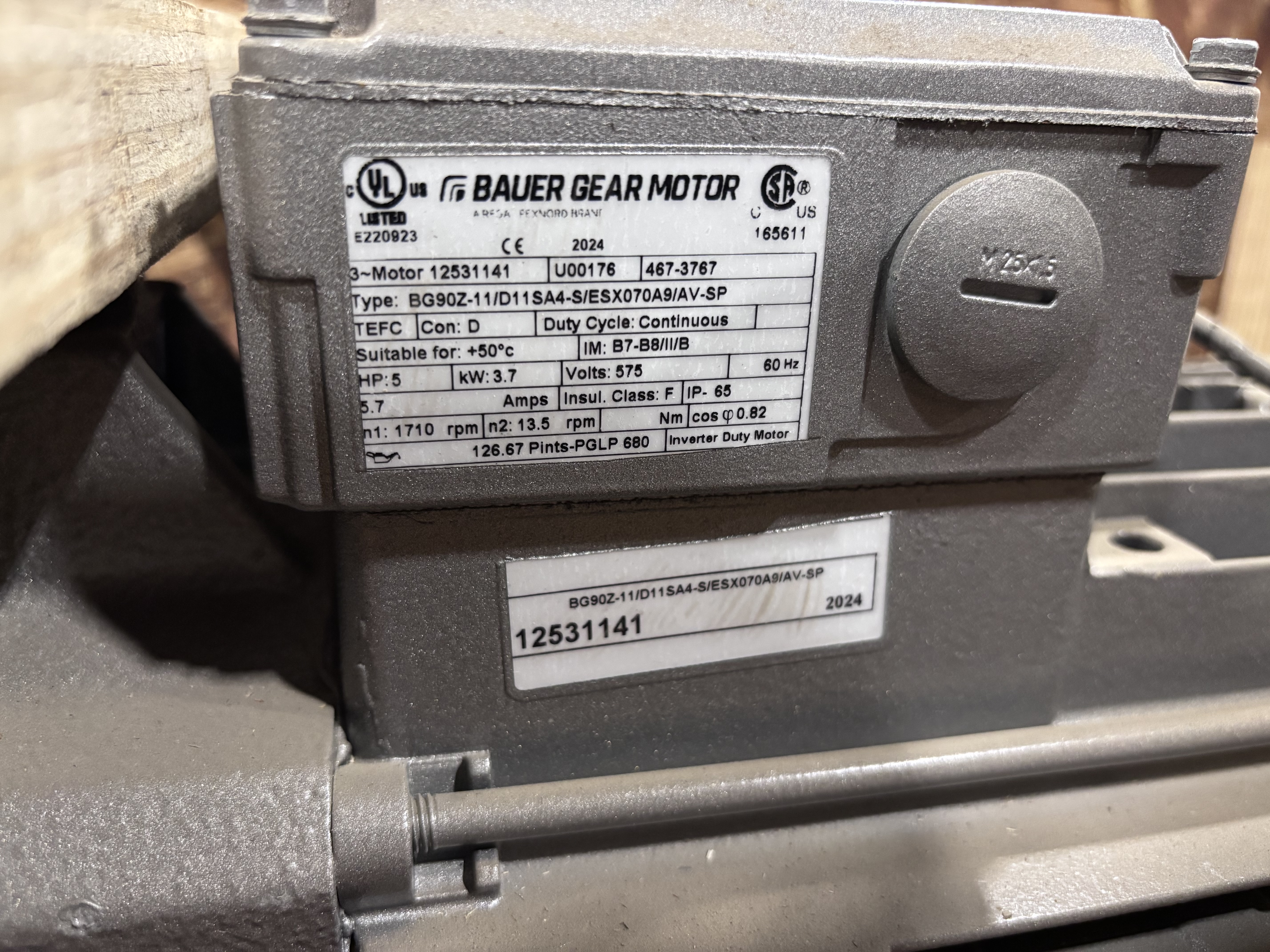

Verified Nameplate Data
| Specification | Verified detail |
| Caterpillar part number | 467-3767 |
| Bauer type | BG90Z-11/D11SA4-S/ESX070A9/AV-SP |
| Bauer identification | 12531141 |
| Year | 2024 |
| Motor output | 5 HP / 3.7 kW |
| Voltage / phase / frequency | 575 V / 3-phase / 60 Hz |
| Current | 5.7 A |
| Motor input speed | 1710 RPM |
| Gearmotor output speed | 13.5 RPM |
| Reduction ratio | 126.67:1 |
| Enclosure / IP protection | TEFC / IP65 |
| Duty / ambient / insulation | Continuous / +50°C / Class F |
| Power factor | 0.82 |
| Nameplate configuration | IM B7-B8III/B marking shown |
| Motor marking | Inverter duty motor |
| Agency markings shown | UL Listed, CSA, and CE markings visible |
