• The system consists of three (3) identical 50 MMSCFD trains.
• The system is designed to treat 150 MMSCFD (3x50) with CO2 content to a product gas with less than 2.0 mole%. Design inlet CO2 content is 12%
• Feed pressure 900 to 1200 psig. Feed temperature 41F to 60F.
• Two stage Membrane Unit with Standard Pretreatment:
  • Membrane Preheater and Compression not included
•  Each Train Consists of:
  • 1. First stage = 2 banks, end feed:
    • First bank = 21 tubes
    • Second bank = 21 tubes but can be reduced by blind to 17 tubes
  • 2. Second stage = 2 banks, end feed:
    • First bank = 4 tubes
    • Second bank = 3 tubes
• Estimated Skid Dimensions:
  • First Stage Pretreatment: 4420 mm x 6100 mm
  • First Stage Membrane Skid: 4420 mm x 19800 mm
  • Second Stage Pretreatment & Membrane: 4420 mm x 13700 mm
•  Estimated Skid Weights:
  • First Stage Membrane Lower Skid: 56.6 metric tons
  • First Stage Membrane Upper Skid: 57.8 metric tons
  • Combined Pre-treatment & Second Stage: 45.6 tons

Equipment Overview

Newly refurbished in 2020, this 36” OD x 12’ Sour 1440psi 3 Phase Horizontal Separator Package is ready to be redeployed.

Video Tour

Watch a guided video tour of this package below or by click on the "Video" tab.

Matterport 3D Scan

Explore this package in rich detail through a virtual 360 degree walkthrough below.

Vessel

V-100  (x1)  36” OD x 12’- 0” S/S x 1440 PSI MAWP HORIZONTAL VESSEL

• •   Manufactured in 2008 by Bromley Mechanical Services Inc.
  •   Reconditioned in 2020 by CAPE Manufacturing
  •   CRN: U5080.21
  •   A#: 589926
  •   “U” Stamped

•   1/8” Corrosion Allowance
•   130°F Design Temperature
•   M.D.M.T.-20°F @ 1440 Psig
•   RT-1
•   PWHT
•   Designed 3 Phase, Dressed 3 Phase

VESSEL CONNECTIONS: N1  Inlet  1  -  4” NPS  CL600 RFLWN N2  Gas Outlet  1  -  4” NPS  CL600 RFLWN N3  Water Drain  1  -  2” NPS  CL600 RFWN N4  Water Out  1  -  2” NPS  CL600 RFWN N5  Water LLC  1  -  3” NPS  CL600 RFLWN N6  PSV  1  -  3” NPS  CL600 RFLWN N7  Oil LLC  1  -  3” NPS  CL600 RFLWN N8  Oil Out  1  -  2” NPS  CL600 RFWN N9  LDSH  1  -  3” NPS  CL600 RFLWN N10 a/b  Water LLG  2  -  2” NPS  CL600 RFWN N11 a/b  Oil LLG  2  -  2” NPS  CL600 RFWN N12  TI   1  -  2” NPS  CL600 RFWN N13  PI  1  -  2” NPS  CL600 RFWN M1   Manway  1  -  18” NPS  CL600 RFHB c/w blind & Davit arm

Instrumentation

LC-1001/2  (x2)  NORRISEAL 1001A LEVEL CONTROLLERS

•   Model# 1001A
•   2" NPT, Sour Service
•   L.H. or R.H. Mount, Direct
•   Snap Acting
•   C/w 1-7/8" x 12" PVC Displacer

LCV-1001  (x1)  NORRISEAL LIQUID CONTROL VALVE

•   Model # 2220
•   2" CL600 RF Process Connection, LCC Body
•   3/8" SST Trim, LCC Body
•   Fail Closed
•   Standard Sour Service

LCV-1002  (x1)  NORRISEAL LIQUID CONTROL VALVE

•   Model # 2220
•   2" CL600 RF Process Connection, LCC Body
•   3/4" SST Trim, LCC Body
•   Fail Closed
•   Standard Sour Service

LG-1001  1  QUALITY OR EQUAL LEVEL GAUGE

•   Q5T20 Transparent
•   ½” NPT, 1500 Psi @ 100°F
•   Visual Length 7 7/8”, Nace Service
•   C/w Model 330J Gauge Valves, ¾” x ½” NPT

LG-1002  (x1)  QUALITY OR EQUAL LEVEL GAUGE

•   Q6R20 Reflex
•   ½” NPT, 2375 Psi @ 100°F
•   Visual Length 9 1/8”, Nace Service
•   C/w Model Q146 Gauge Valves, ¾” x ½” NPT

FM-1002  (x1)  PRIMARY FLO TURBINE METER

• FQIT-1002  2” CL600 Process Connections
•   1/2" Metering
•   0.75 - 7.5 GPM Capacity
•   C/w Magnetic Pickup
•   C/w NUFLO TOTALIZER MC-III Flow Analyzer
•   Explosion Proof, 4-20mA Output

FE-1000  (x1)  DANIELS OR EQUAL SENIOR METER RUN

• (Reconditioned)   4” CL600 RF, Sch. 80, Nace Service Trim
•   Built to AGA 2000 SPEC
•   One (1) 1” CL3000 TOL and One (1) 3/4” CL3000 TOL Downstream
•   1 1/2 Hour Hydro Test, 100% X-Ray, PWHT, 85” OAL
•   C/w Pin Style Conditioner

BPCV-1000  (x1)  MANUAL GLOBE BACK PRESSURE CONTROL VALVE

•   3" CL600 RF Globe Valve, Nace Service

PSV-1000  (x1)  TAYLOR OR EQUAL PRESSURE RELIEF VALVE

•   Model 8200
•   2" CL600 Inlet x 3” CL150 Outlet
•   Nace Service Trim, WCB Body
•   “G” Orifice, 1253 Psig Set Pressure

PI-1001  (x1)  WGI OR EQUAL PRESSURE GAUGE

•   Silicone Filled
•   4” dia. Face x 1/2” NPT Bottom Mount End Connection
•   SS Case and Internals
•   0 to 1,500 Psi Dual Scale

TI-1001  (x1)  MASTER-TEMP 300 OR EQUAL TEMPERATURE GAUGE

• TW-1001  1/2” NPT Back Connection
•   3” Dial, 9” Stem
•   -40 to 160°F Range - Dual Scale
•   C/w ½” FNPT x ¾” MNPT x 9.25” OAL, 7.5" U, 316 SST Thermowell

Skid & Building Specifications

SK-100  (x1)  SKID BASE, 10’- 0” W X 18’- 6” L

•   Checker Plate
•   Two (2) End Rolls

B-100  (x1)  SELF FRAMER BUILDING

•   10’-0” Wide x 16’-0” Long
•   Shed Style Roof
•   One (1) 3’-0” x 7’-0” Foam Panel Door, Window, Check Chain, Panic-
•   Hardware, Lock, and Weather-Stripping
•   Two (2) Sliding Window c/w Screen
•   Two (2) Louvers c/w Screen

BH-1080/82  (x2)  CATADYNE 24” x 24” MK BUILDING HEATERS

•   Sweet Natural Gas
•   12 VDC Starting Element with 30’ Cables
•   C/w Grill, Vent Hood, Safety Shutoff, 912 Regulator, Maxitrol   Regulator and Thermostat

Manual Valves

• (x6)  2" CL600 RF RP, Ball Valves, Nace Service
• (x5)  1" CL3000 NPT RP, Ball Valves, Nace Service
• (x4)  3/4" CL3000 NPT RP, Ball Valves, Nace Service
• (x4)  1/2" CL3000 NPT RP, Ball Valves, Nace Service
• (x5)  1/2" CL6000 NPT, Needle Valves, SS
• (x1)  2" CL600 RF, Y Strainer, Nace Service

Fuel Gas System

V-1010  (x1)  8” OD X 36” OAL 150 PSI MAWP FUEL GAS SCRUBBER

•   Mechanical HLSD (Reduces Outlet to 1" NPT)
•   1/16” Corrosion Allowance
•   -20/200°F Design Temperature
•   Registered in Alberta, BC, Sask.

PRV-1010  (x1)  FISHER 627 PRESSURE REGULATOR

•   1" NPT, Body Material: WCC Steel
•   Spring Case Material: Aluminum
•   1/8" Orifice Aluminum Nylon Disk
•   Spring Range 70‐150 Psi
•   Maximum Inlet Pressure: 2000 Psi

PSV-1010  (x1)  TAYLOR OR EQUAL PRESSURE RELIEF VALVE

•   Model 8250
•   1" MNPT Inlet x 1” FNPT Outlet
•   Nace Service Trim, WCB Body
•   “E” Orifice, 150 Psig Set Pressure

PI-1000/10  (x2)  WGI OR EQUAL PRESSURE GAUGES

•   Silicone Filled
•   2-1/2” dia. Face x 1/4” NPT Bottom Mount End Connection
•   SS Case and Internals
•   One (1) 0 to 60 Psi Dual Scale
•   One (1) 0 to 200 Psi Dual Scale

PRV-1000  (x1)  FISHER OR EQUAL 67CFR INSTRUMENT REGULATOR

•   1/4” FNPT Connections
•   Sweet Service Trim
•   250 Psig MAWP
•   0 to 35 Spring Range

Electrical System

Electrical equipment is supplied and installed by others.

Drawings

>Drawings available in documents area.

ALL OFFERS SUBJECT TO SELLER'S APPROVAL

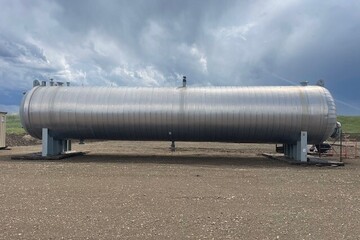

12ft X 85ft Treater

Treater = 85' x 14' x 14'

Skid only = 107' x 23' x 8'

10 Bays available - 448 MMBTU/hr total

3 x 50HP (575/3/60) Electric Motors per Bay

Dimentions: 494.72′ L x 53′ W

Complete - Needs assembly
Anti-Rotation devices and bolting not included as these have been removed.

Located in Saskatchewan

Waukesha Driver Model-7042GL

Ariel Compressor Model- JGK-4

AIr-X-hemphill AXH air-cooler model- 156 EF

Cylinder info

     - 9.625” C-74246

     - 6.250” C-74243

     - 14.125” C-74248

     - 14.125” C-74247

CRN- .231
3 ton roof hoist
Heated building

EMERGENCY POWER GENERATION PACKAGE CAT C27 GENSET DIESEL 1214 [email protected] 800 KW STANDY 600 VAC 400 KW load bank 1500USG DIESEL FUEL TANK

Units come complete with Two years of spares and all special tools.

Complete engineering data package available.

Recent inspection Data from Siemens

Full installation and commissioning available to buyer.

See attached document for technical specification

**Units must be exported - Cannot be used in USA**

DRIVER:
Frame: 710B
Volts: 4000
Amps: 382
Hz: 60
Phase: 3

COMPRESSOR:
ONE (1) New Surplus Ariel JGC-4 frame, balanced opposed reciprocating compressor, four (4)
throw, 6
1/2” stroke, rated at 4140 Hp at 1000 RPM. Maximum total rod load 114,000 lb ( 60,000
compression - 57,000 tension). Frame is equipped with a forged steel crankshaft with integral
counterweights.
Pressurized Lube system utilizes a frame-driven lube oil pump which provides oil circulation
through a full flow oil filter to all moving parts to the frame. A divider block distribution system
supplies metered oil to cylinder bores and rod packing. Stainless Steel tubing is used
throughout the cylinder lubrication system.

COOLER IS NOT INCLUDED

This 1MW package will be sold READY-TO-START with overhaul/repairs for ease of redeployment or can alternatively be purchased AS-IS.

Ready for prime or stand-by power, this Waukesha L7042GL powered package makes 1 MW / 1000 kW of power with only 34,000 hours on overhauled components. The engine has been preserved, features a 62 kW black start generator and an air compressor system for a complete facility. It’s currently disconnected in a yard beside highway #22, which is high-load corridor for easier logistics.

View a virtual 3D tour of this package here: https://my.matterport.com/show/?m=xDwH477y6MB

Waukesha L7024GL

• VHP, 12 cylinder
• Rated 1472 HP – 1097 kW @ 1200 RPM
• Rated Continuous Service
• Fuel – Natural Gas

Propak Fin Tube Aerial Cooler Assembly

• Jacket water section
• After-cooler section
• Belt Driven Fan from Engine

KATO 1000 kW Generator Assembly

• 6P6-1900 1000Kw/1250 KVA
• 277/480/3/60 VAC
• 1504 Amps
• Rated Continuous Service

Thompson MEC-20 Micro Controller Panel

• Synchronous Generator/Engine Controller
• Woodward Governor Control
• Main Breaker
• Engine Monitoring Annunciator

Kohler 60 kW Black Start Unit

• Engine – John Deere 4045TF150C
• Fuel – Diesel
• Generator – Kohler 60REQZI
• 62 kW
• 277/480/3/60 Vac
• 71 Amps

Eagle Instrument Air Compressor

• Qty. 2 screw compressors
• Qty. 2 TECO 20 HP, 480/3/60 VAC motors
• 100 Gallon Storage tank
• Automated air dryer assembly

Building & Skid

• Length 40’
• Width 20’
• Height 22’
• Weight 100,000 lbs.
• Qty. 4 Lifting lugs on each side of the skid/building assembly.

Additional Cooler Dimensions

• Width 20’
• Length 10’
• Height 12’

Highlights for 1 MW Generator Redeployment

Whether you’re going to redeploy this generator in its original configuration, with minor adjustments or alternatively convert it to a multi-stage pump package with our help – we have the knowledge and expertise to get this package producing for your needs.

Engine – Engine has 34,000 hours on it since major overhaul. It requires a head swing and turbos. The full scope of work can be completed in one week prior to leaving yard with detailed pricing available on request. Engine has been preserved.

Electrical – The panel & complete electrical system has received a detailed inspection and scope of work required by DJA Electrical Services. Unit electrical requires $2700 worth of parts to be 100% operational and current.

The stabilizer is designed to handle 275 bbl/d (43.7 m3/d) of condensate at steady state when the plant is operating at 120 MMscfd (3400 E3m3/d). This includes a 10% contingency. The package has a minimum inlet flow of 137 bbl/d (21.9 m3 /d) of condensate. If thecondensate rate drops below this level the package will be operated in a batch mode until the minimum flow is reached again. The stabilizer tower can only be turned down to 2:1 and meet the guaranteed product spec from the vendor.

Note: The connective piping for the cooler is missing.
