Compressor Motor

1. Motor 3512 Cat    800Hp
2. Ser# INJ00868
3. Arrangement # P-8328
4. Total Hrs 109897 Hrs after last overhaul. 67073

Ariel Compressor

1. Frame   Model # JGH/4
2. Frame Ser# F-16953
3. Stroke 4.5”
4. Maximum Rated Speed RPM 1200
5. Minimum Rated Speed RPM 600
6. Maximum Rod Load Tension 2400LBS
7. Ariel Shipping Date Sept 2001
8. Normal Lube Oil Pressure 60psi
9. Maximum Lube Oil Temperature 180F
10. Lube Oil Pressure Shutdown Setting 35psi
11. Stage 1 Suction Scrubber A# 0497491 Ser# C30446-01 30” X56”
    1st Stage suction dampener Ser# C30446-04 A# 497494    16” X 72” 1st stage discharge dampener Ser# 030446-05 A# 497495   18” X 60”
12. Stage 2 Suction Scrubber  A# 0497493  Ser# 030446-02  20” X 54”   Suction dampener Ser# 030446-06   A# 497496  14” X 30” Discharge dampener Ser# 030446-07   A# 497497   12” X48”
13. Stage 3 Suction Scrubber   A# 0497516  Ser# 030446-03   18” X 54” Suction Dampener Ser# 030446-08 12” X 30” Discharge Dampener Ser# 030446-09  A# 497492   10” X 40”

   Building and Cooler Fan

1. Compressor Building 35’ X 20’
2. Cooler Fan 9’ X 18’  Modle # 120EH

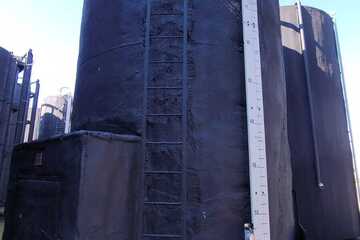

1 bolted tank with rusted floor

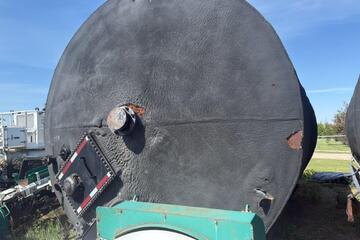

2 storage tank capacity unknown
