7.5 hp Baldor-Reliance Severe Duty 841XL Electric Driver QTY 3
Listing ID:
IH-68089
Description
Baldor-Reliance 7.5 HP Severe-Duty Motors — 575 V, 3510 RPM, 3-Unit Matching Lot
Notes:
Description

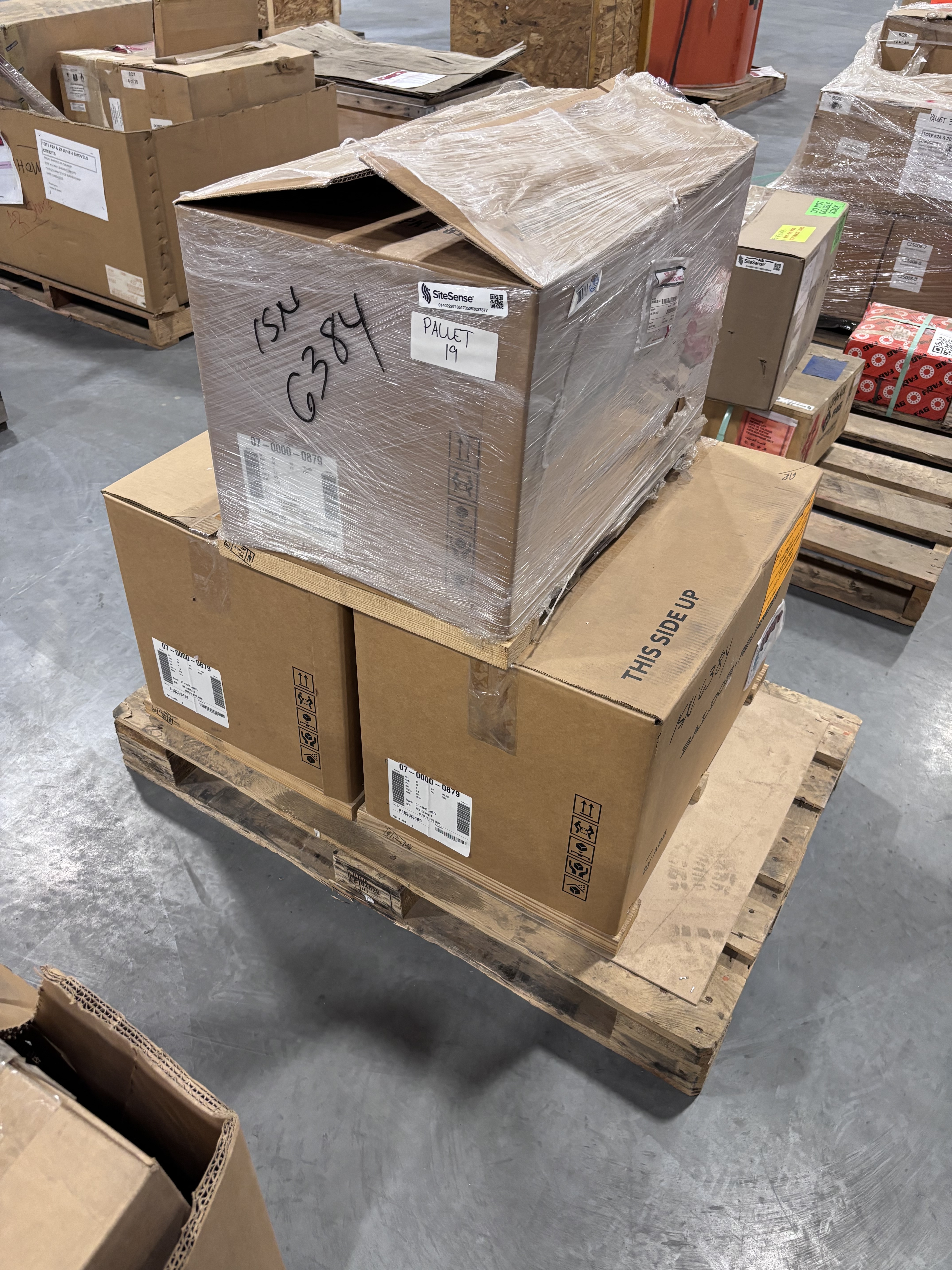

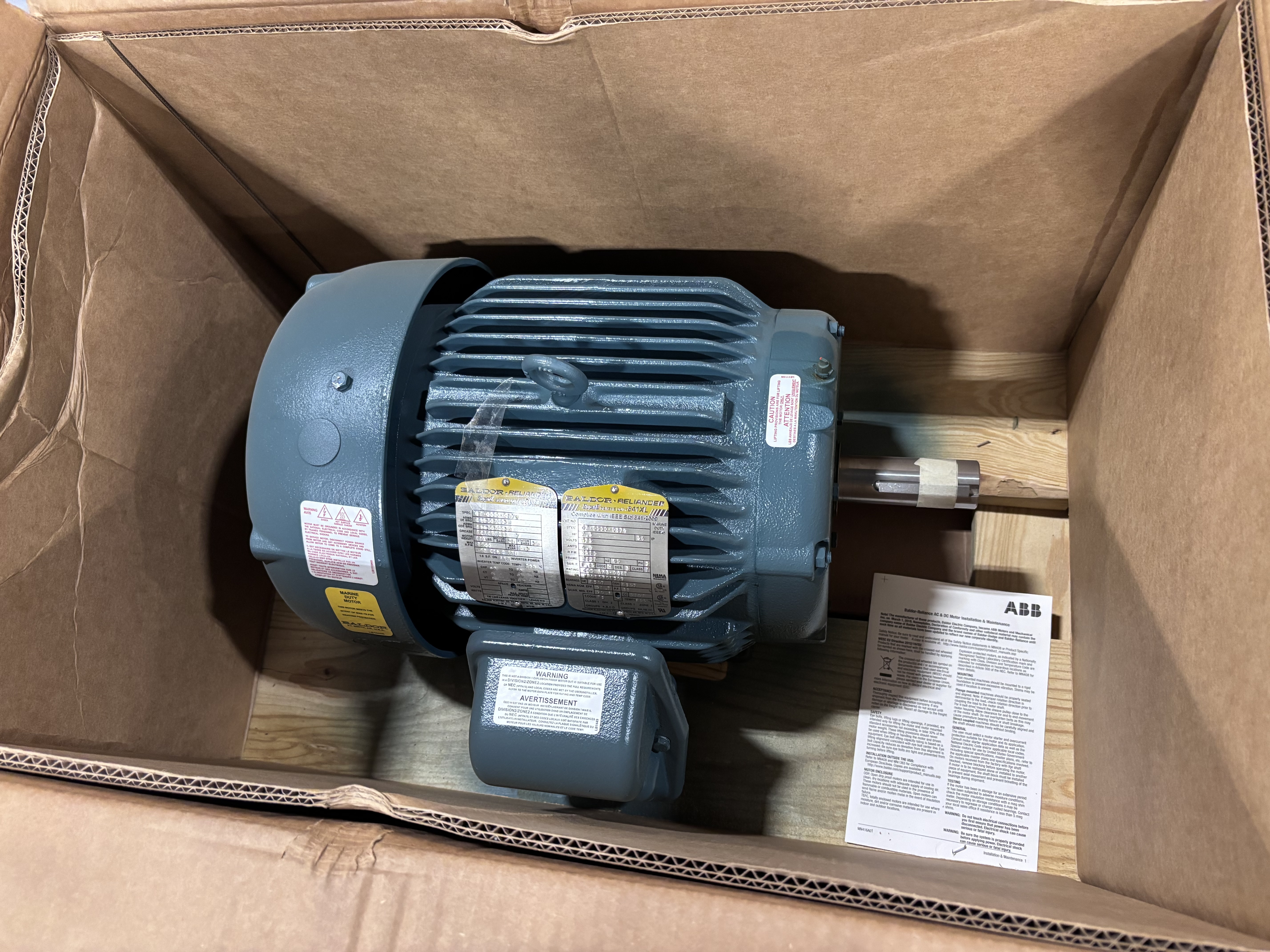

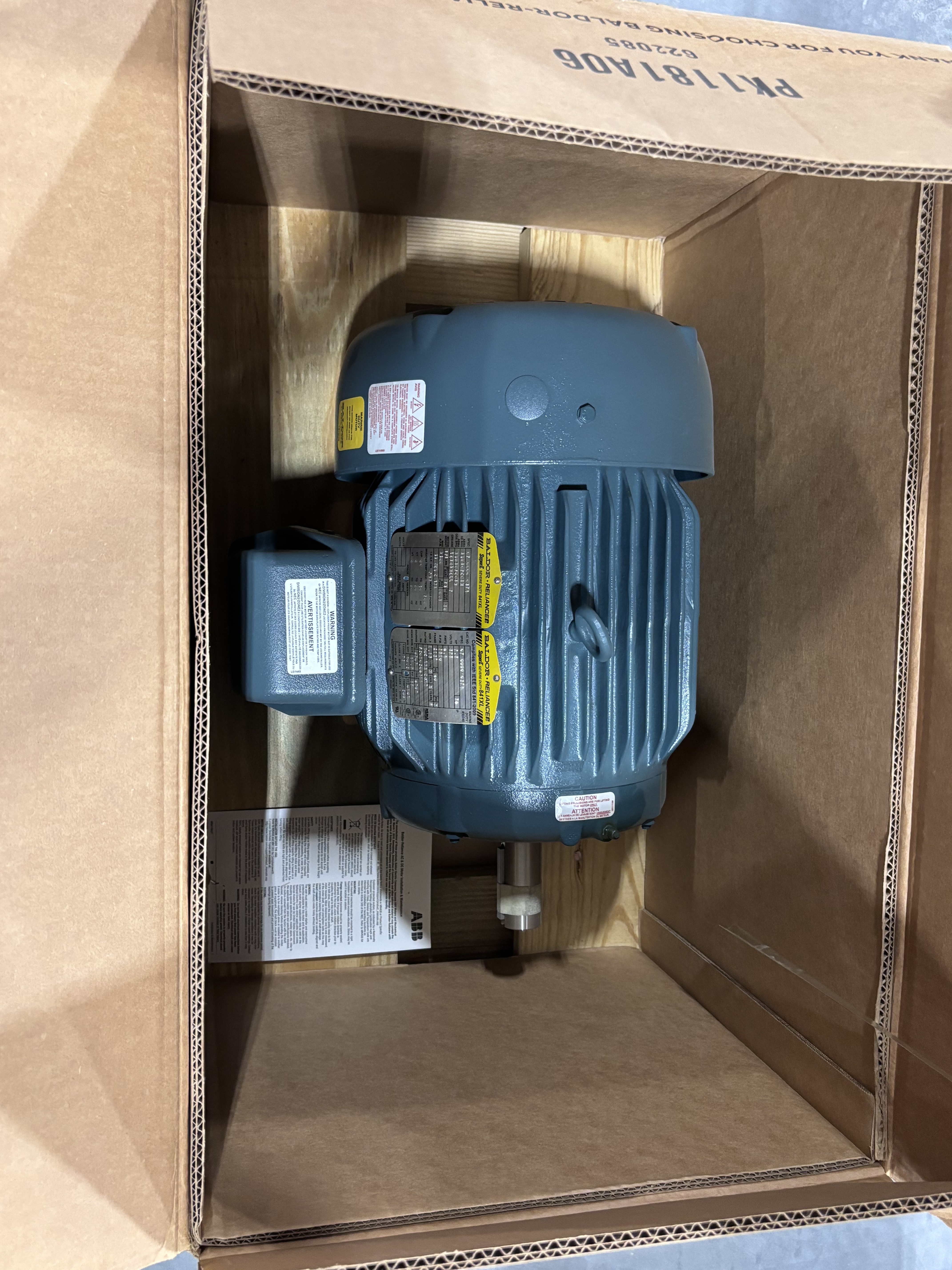

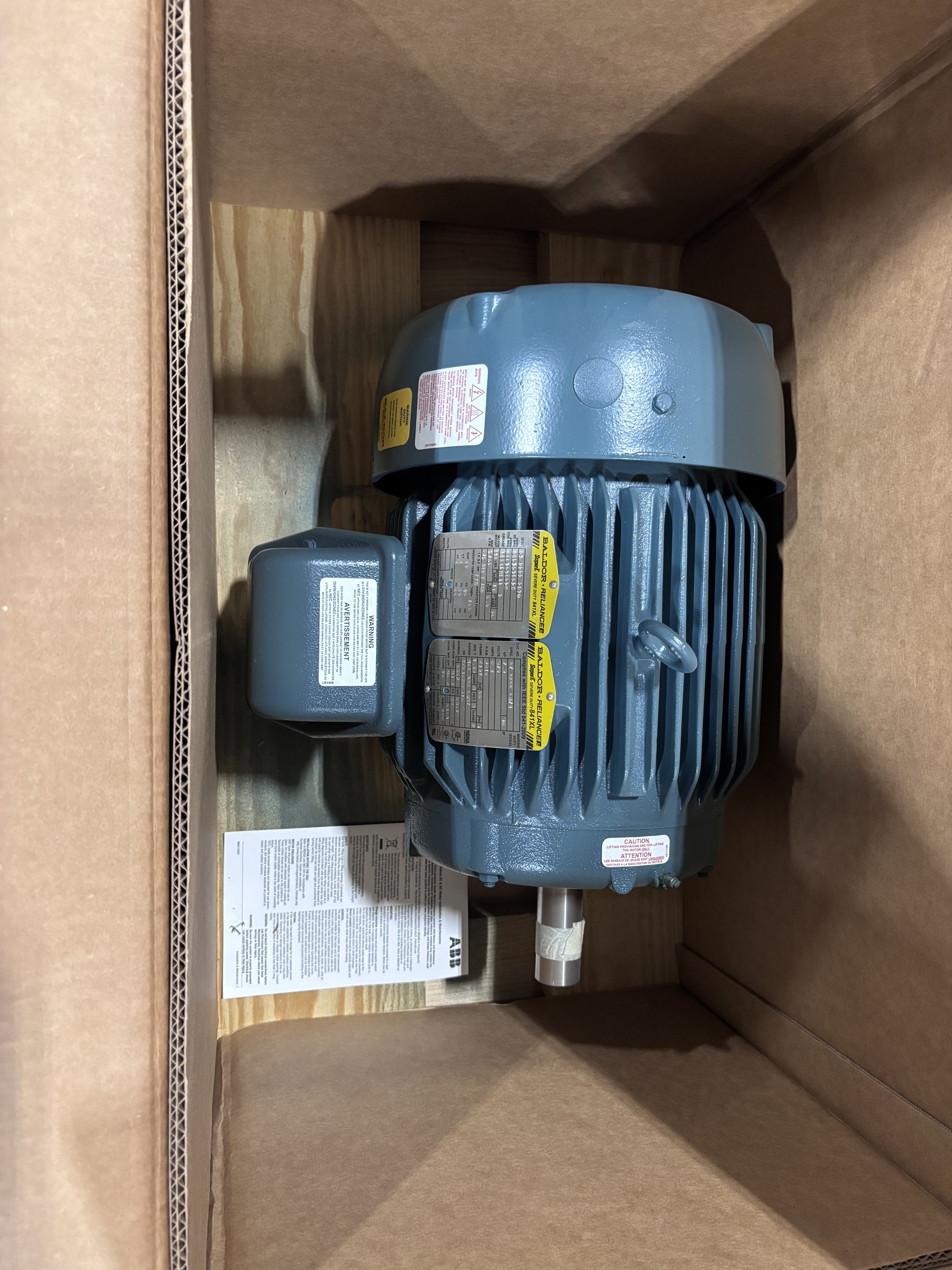

Available is a matching lot of three Baldor-Reliance Super-E Severe Duty 841XL motors. Each motor is a 7.5 HP, 3510 RPM, 575 V, three-phase, 213T-frame, TEFC unit and remains in its individual factory carton. The three cartons are wrapped together on one pallet.
The physical motor nameplates identify all three units under specification 07-0000-0879. This configuration corresponds to the current Baldor-Reliance ECP83769T-5 catalog configuration; the physical specification and nameplate data remain controlling. Buyer must confirm all mechanical, electrical, hazardous-location, and application fitment requirements before purchase.
Individual Motor Identification

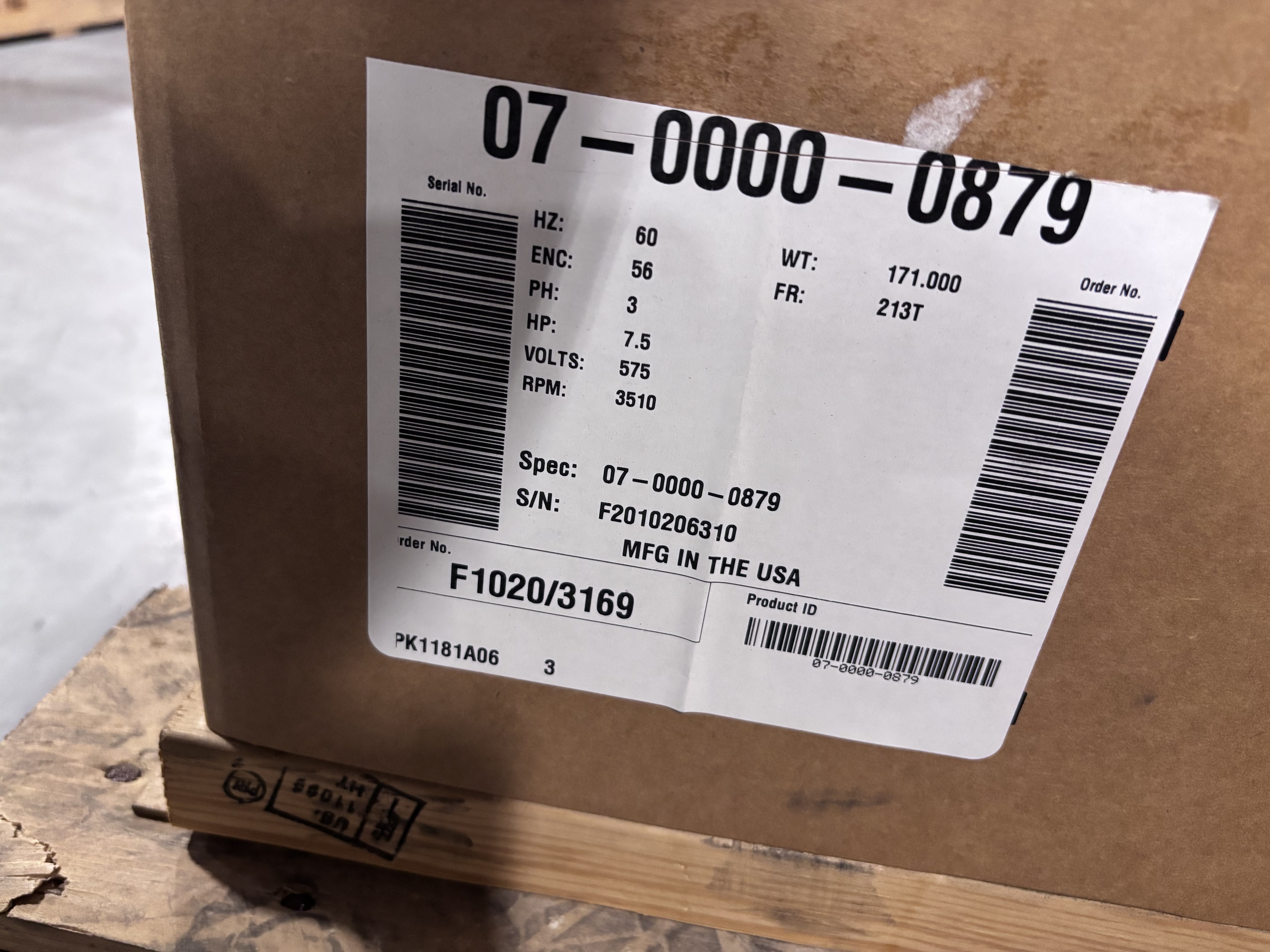

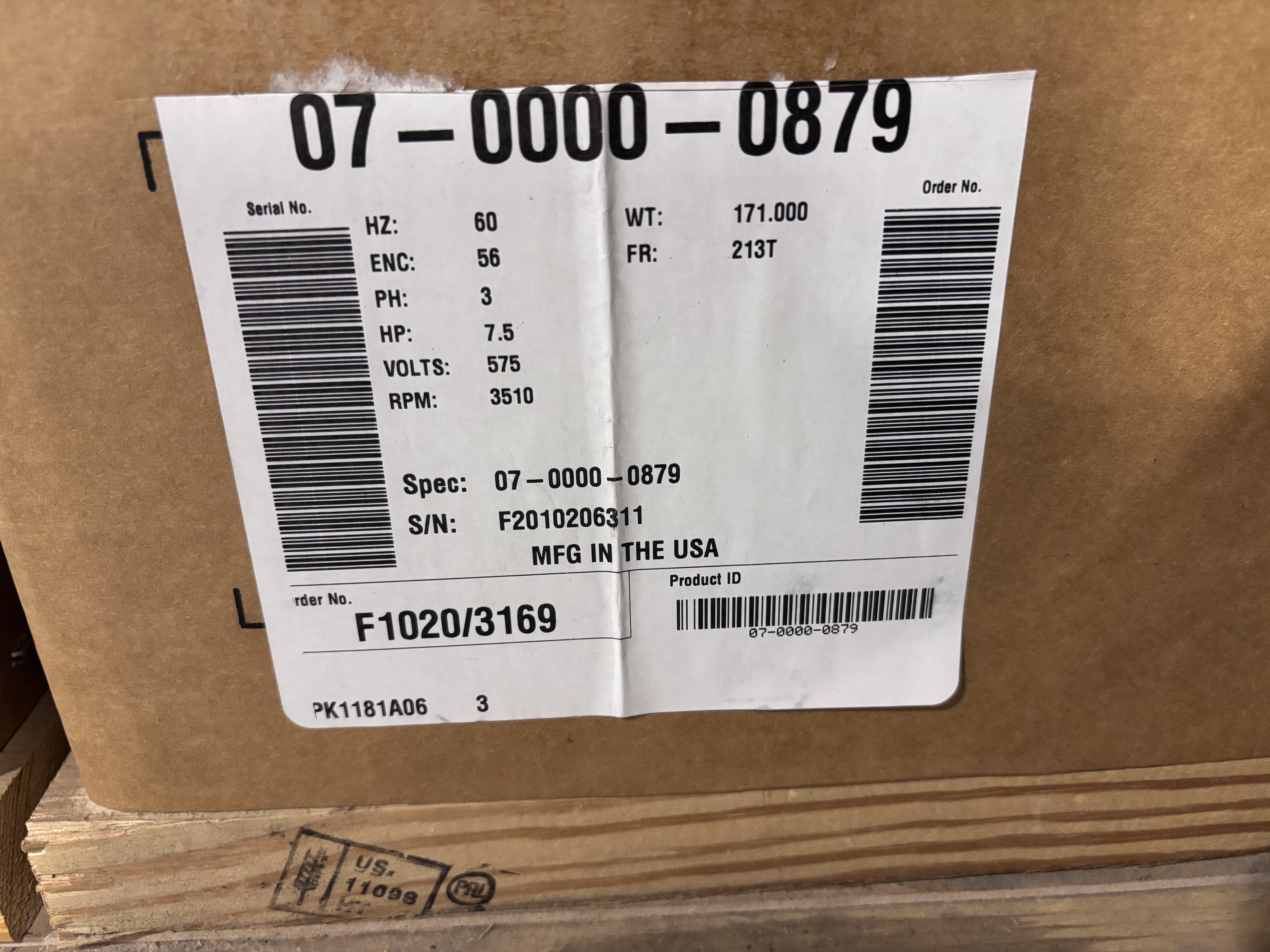

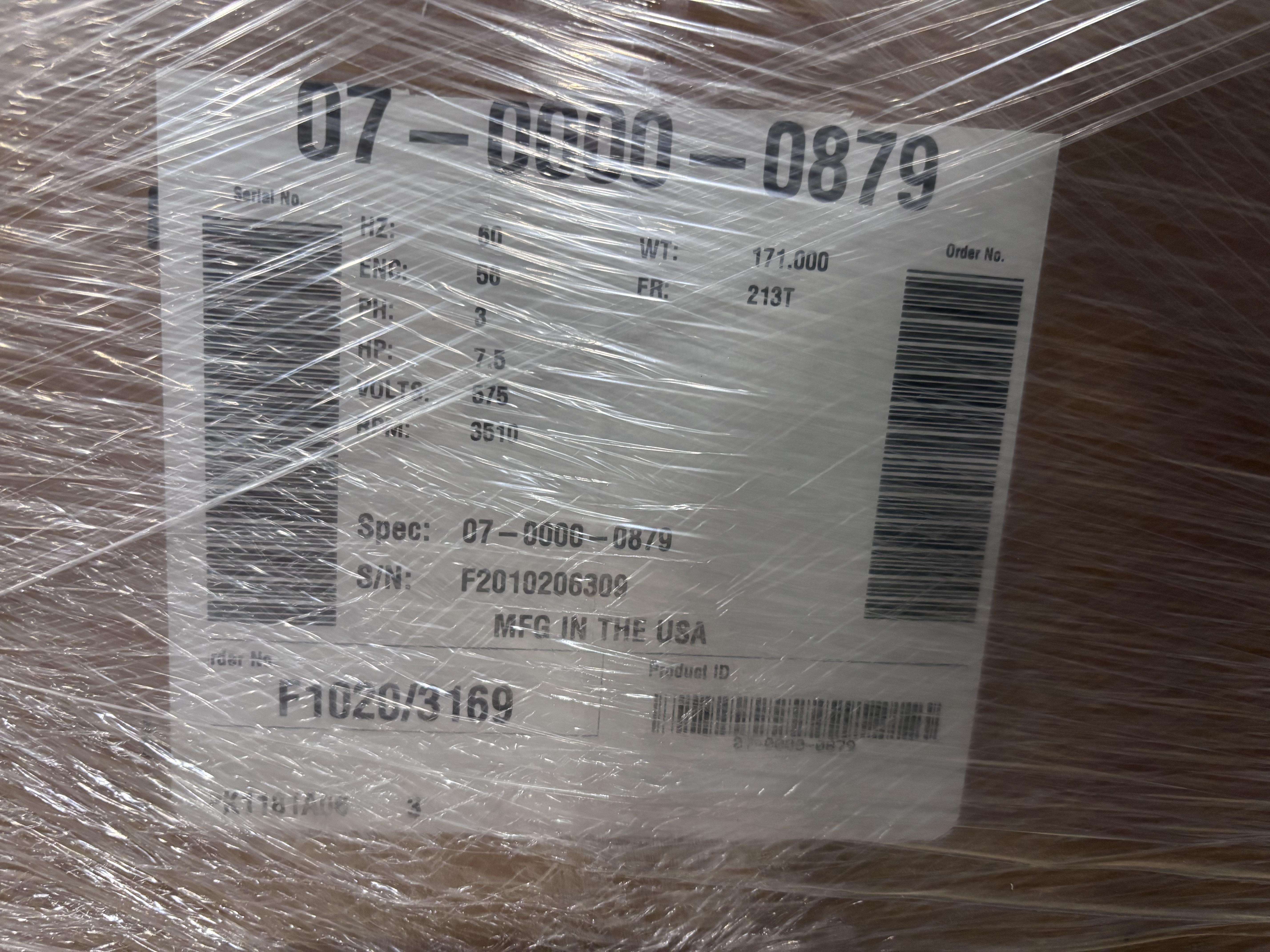

| Unit | Physical specification | Serial number | Condition presentation |
| 1 | 07-0000-0879 | F2010206310 | Factory carton; unused presentation |
| 2 | 07-0000-0879 | F2010206311 | Factory carton; unused presentation |
| 3 | 07-0000-0879 | F2010206309 | Factory carton; unused presentation |

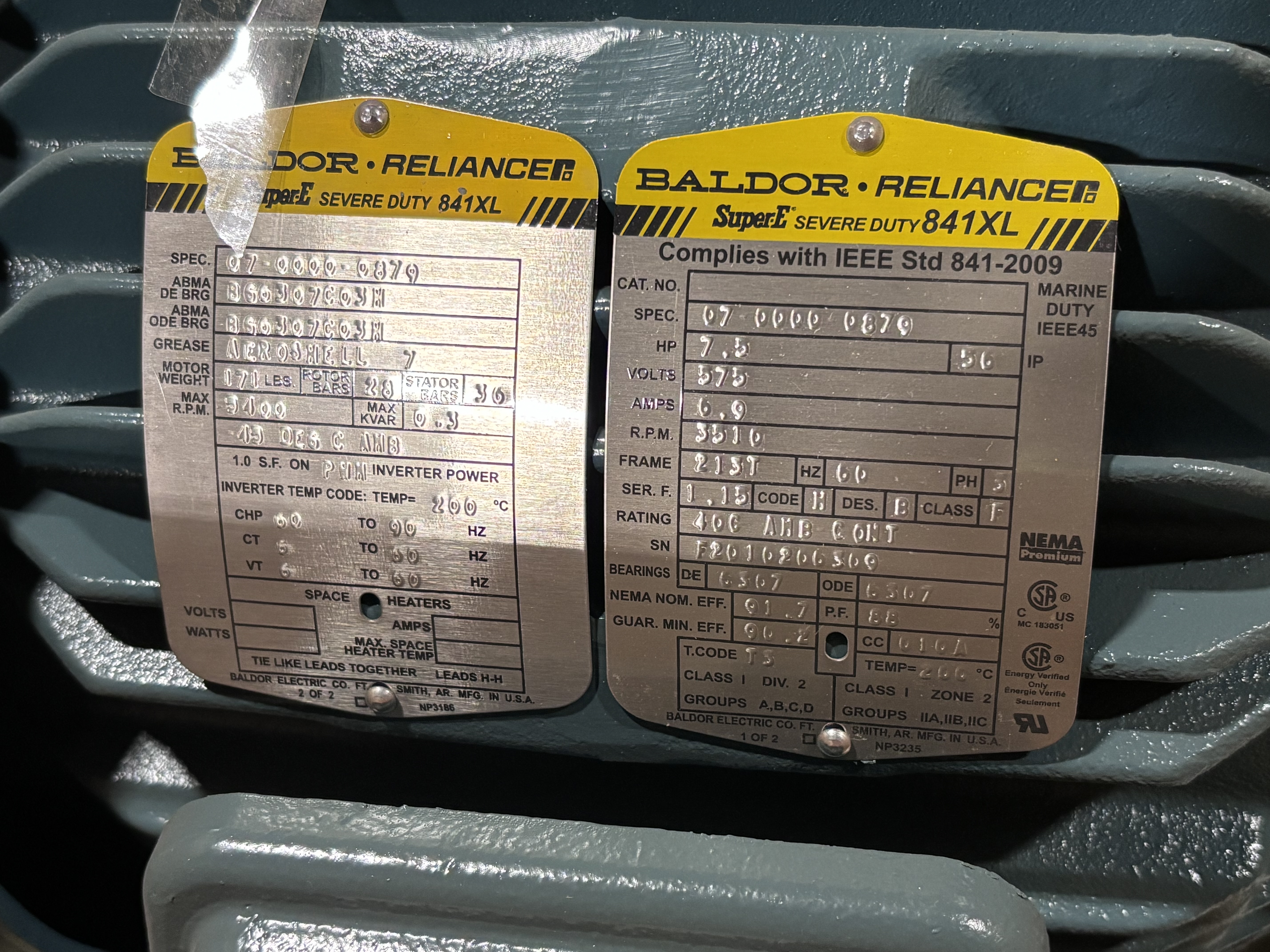

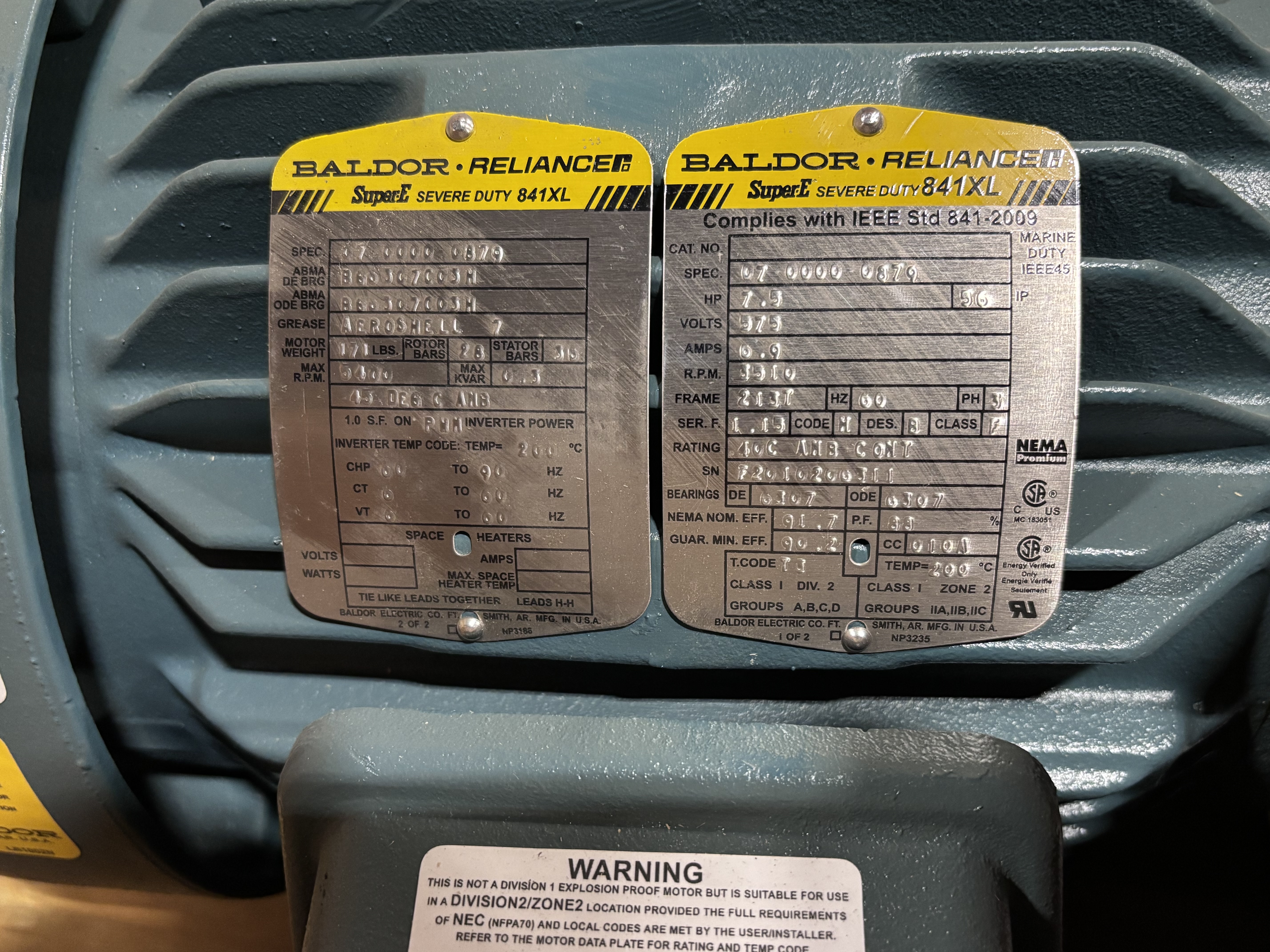

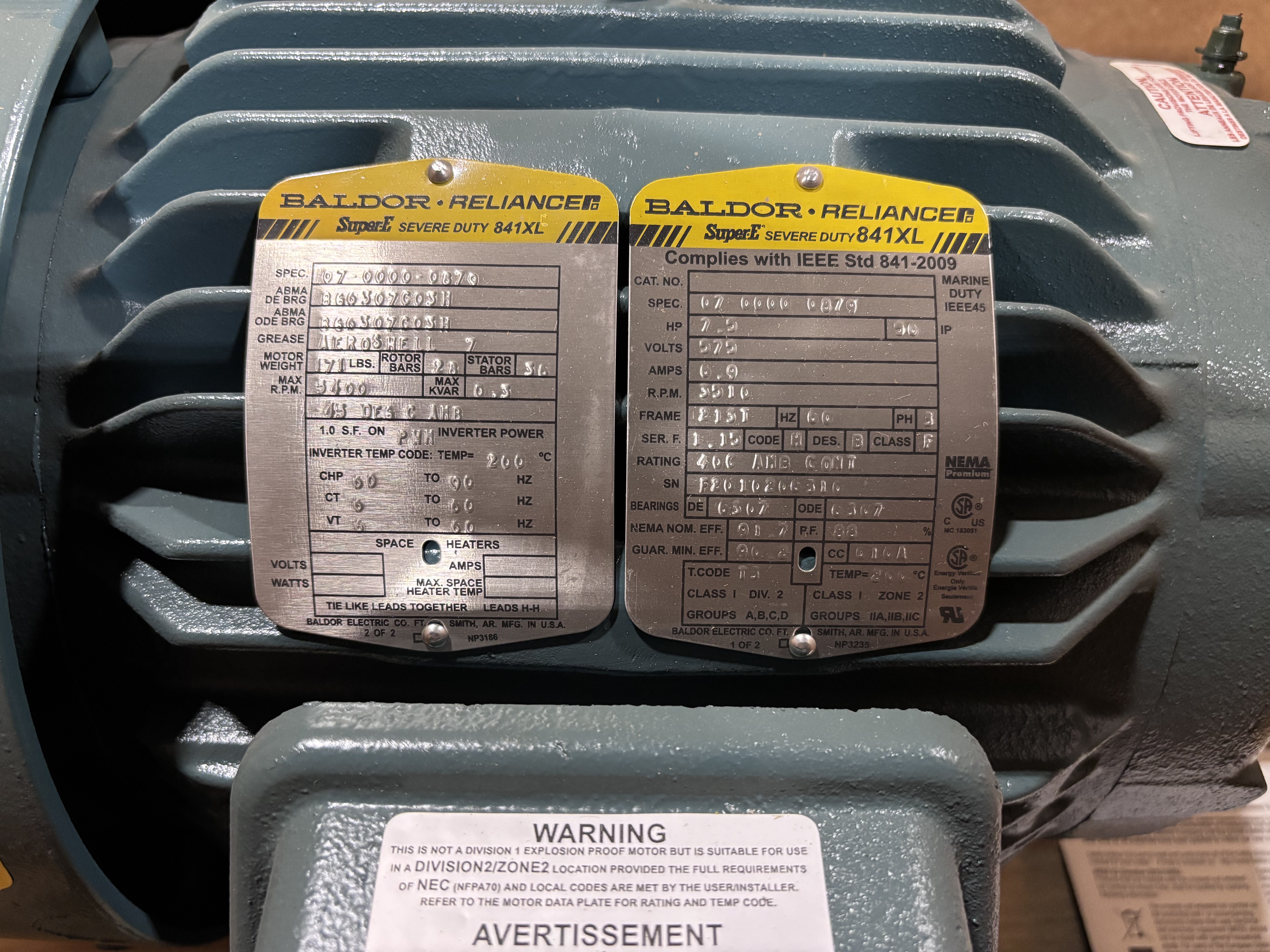

Verified Nameplate Configuration
| Specification | Verified detail |
| Manufacturer / series | Baldor-Reliance Super-E Severe Duty 841XL |
| Output | 7.5 HP |
| Speed | 3510 RPM |
| Voltage / phase / frequency | 575 V / 3-phase / 60 Hz |
| Full-load current | 6.9 A |
| Frame | 213T |
| Enclosure | TEFC |
| Motor standard | IEEE 841-2009 marking visible |
| Duty / ambient | Continuous / 40°C ambient |
| Insulation / design / service factor | Class F / NEMA Design B / 1.15 service factor |
| Bearings | 6307 DE / 6307 ODE |
| Nameplate hazardous-location marking | Class I, Division 2, Groups A/B/C/D; Class I, Zone 2, Groups IIA/IIB/IIC; T3 |
| Inverter nameplate marking | 10:1 inverter power; 200°C inverter-temperature code shown |
| Motor weight | 171 lb each as marked |
