FAG 32238-A Tapered Roller Bearings - QTY 2
FAG 32238-A Tapered Roller Bearings — 2-Unit Lot
Description

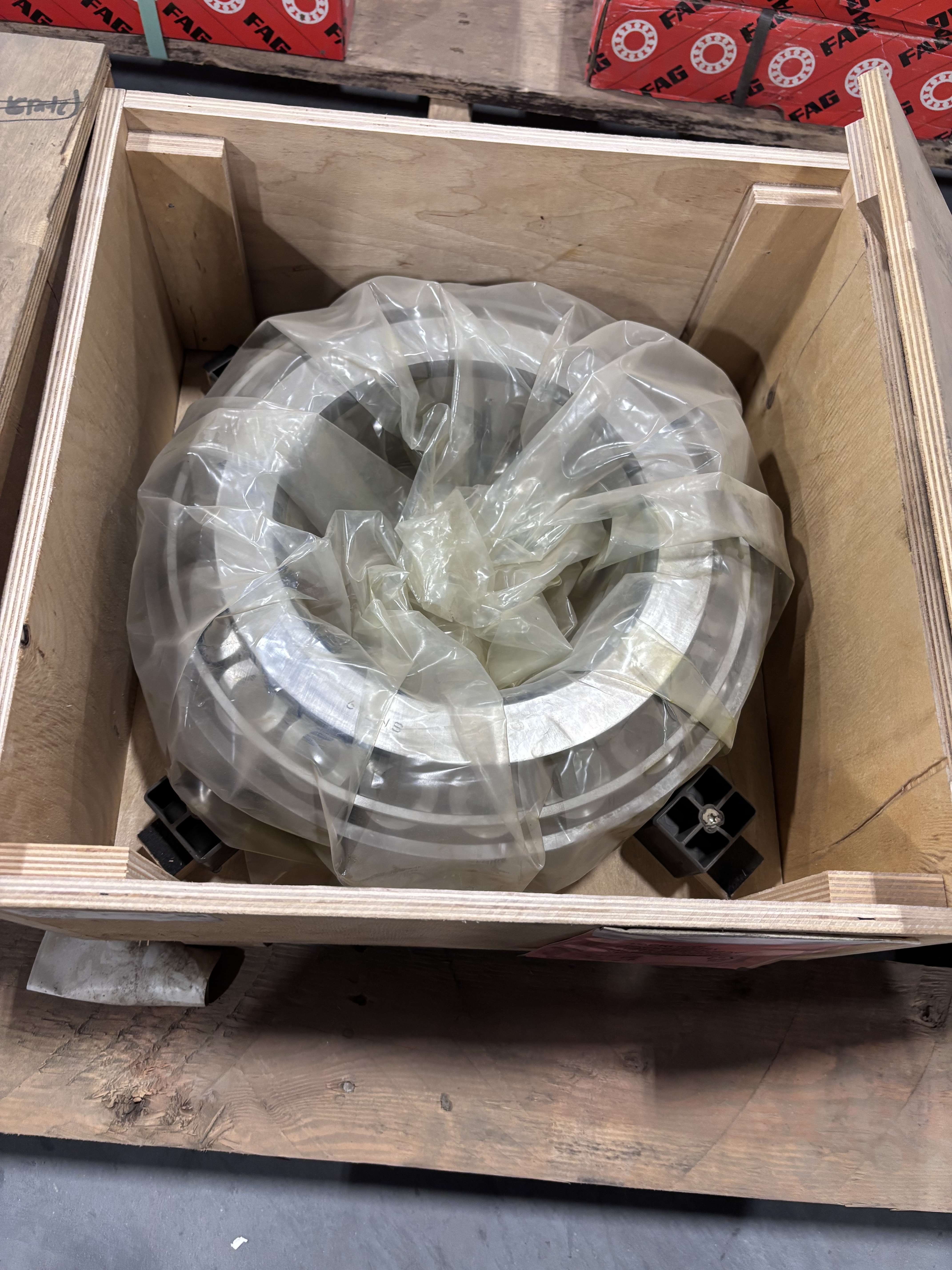

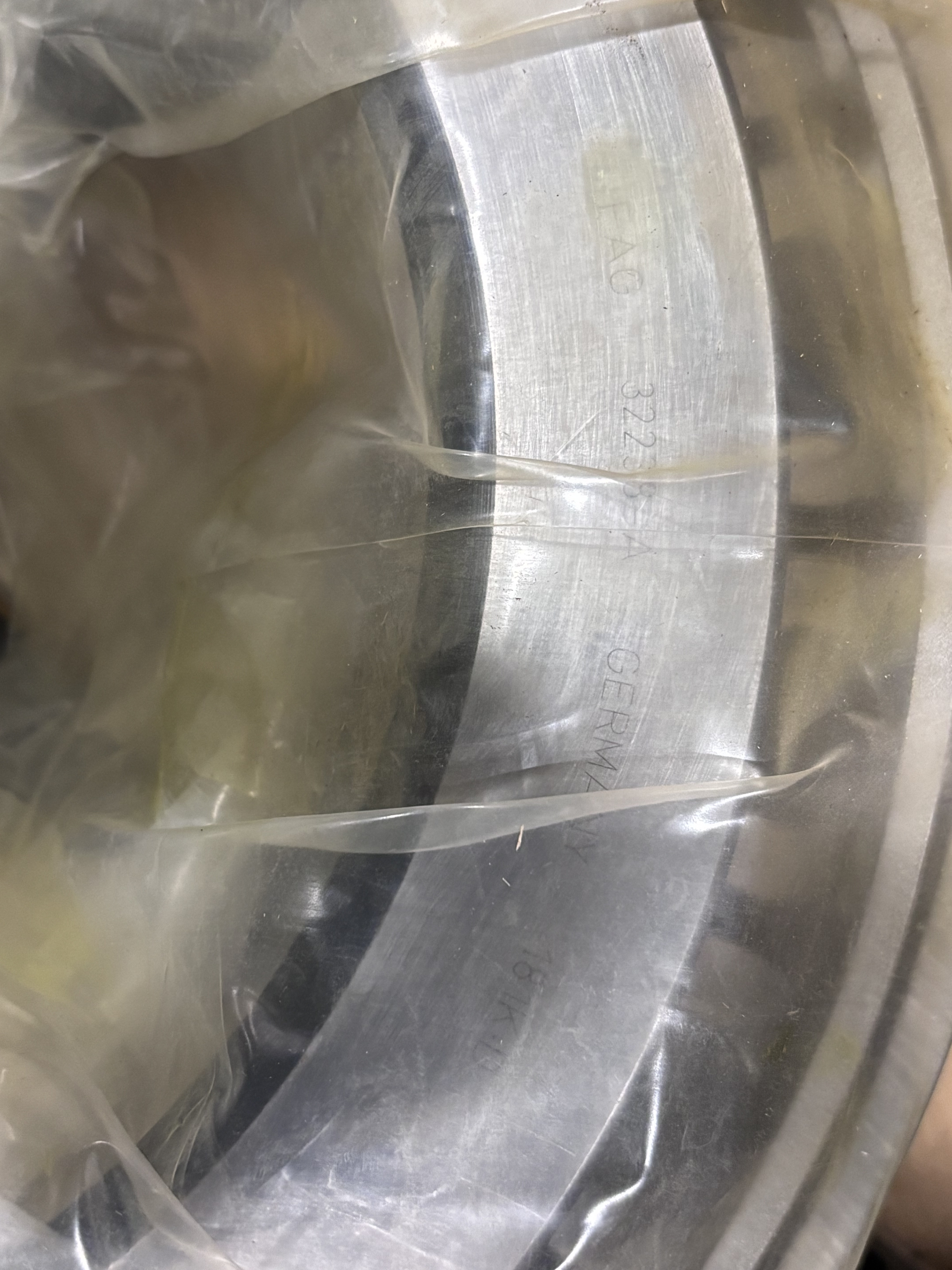

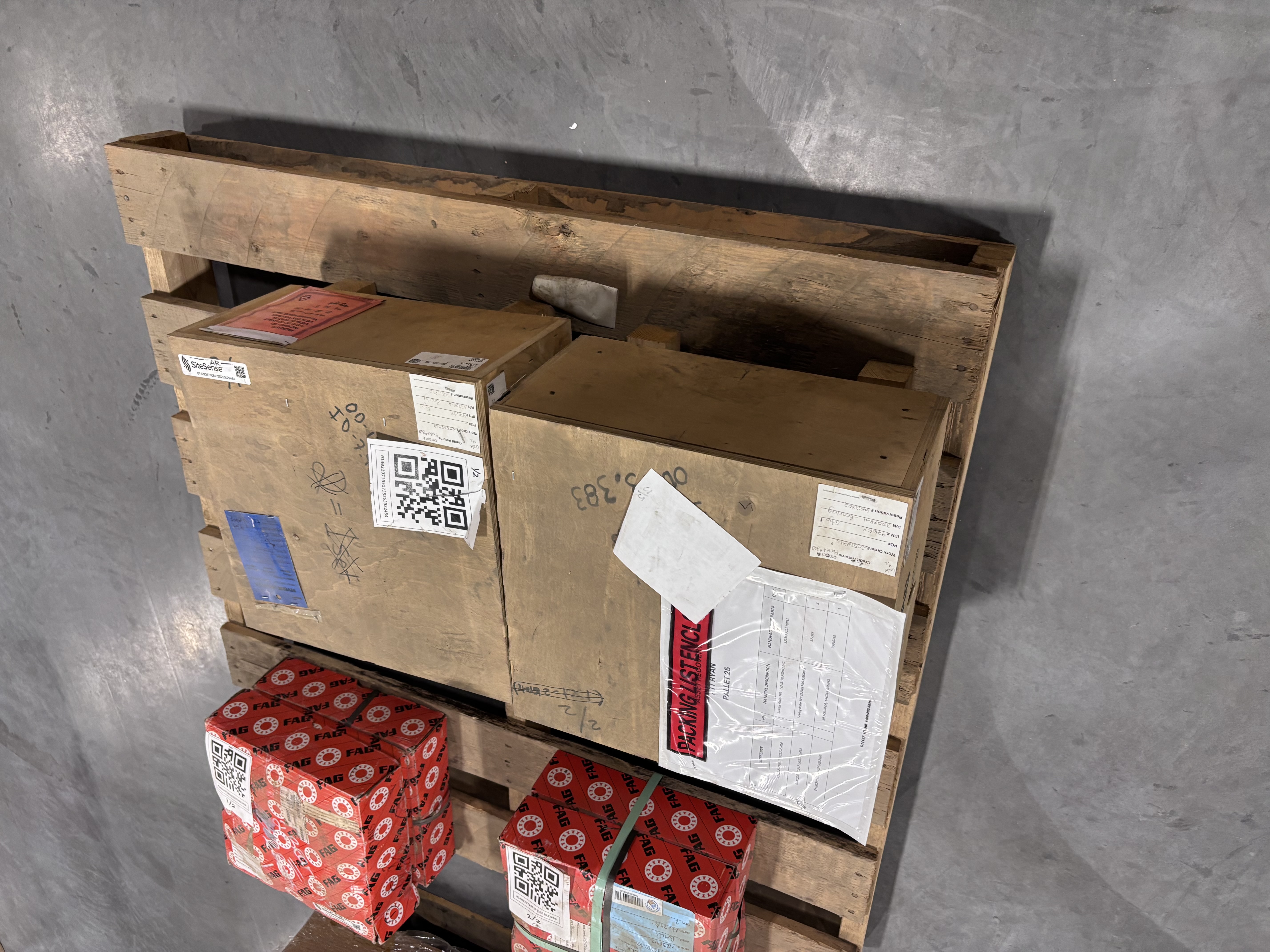

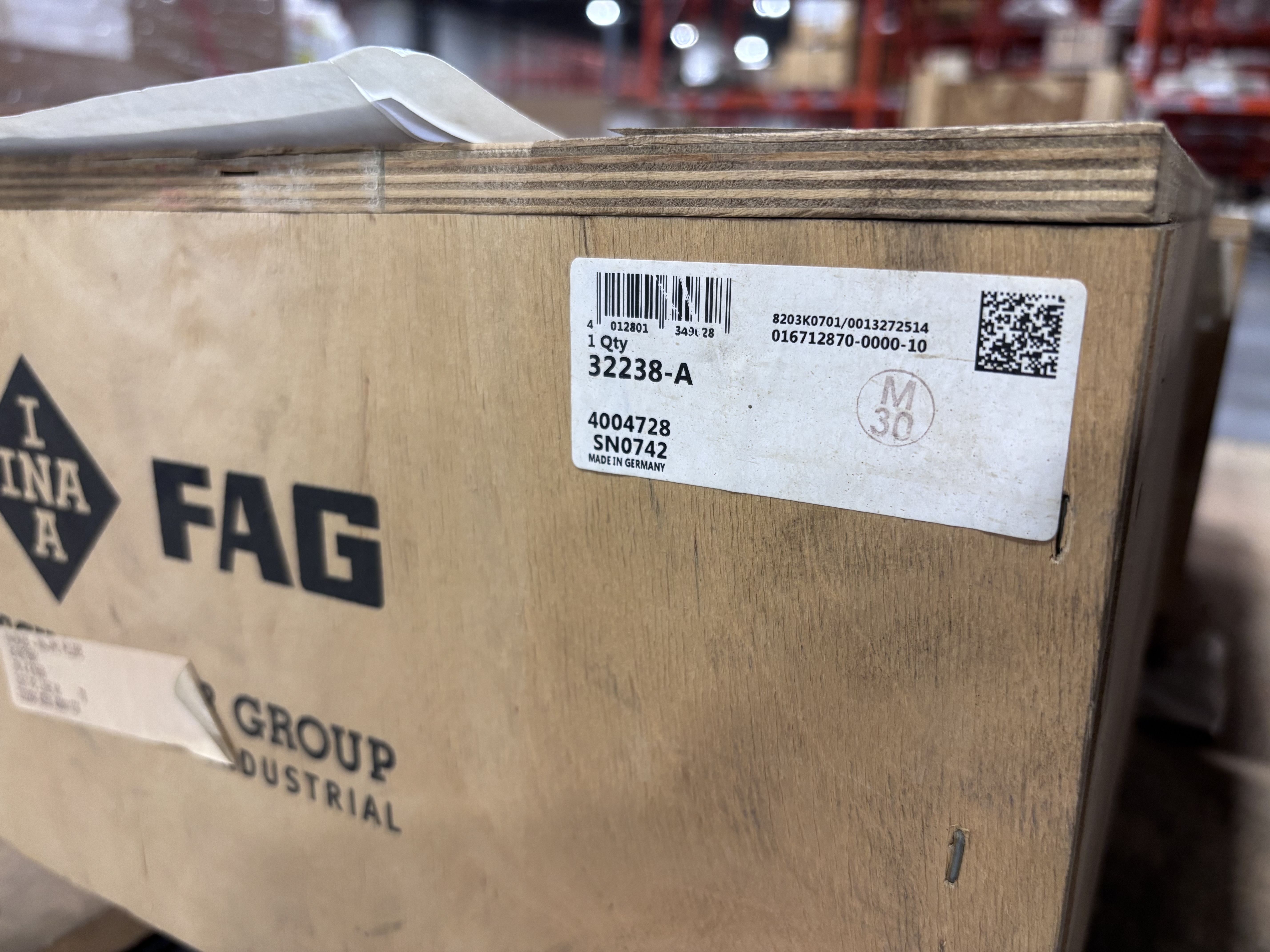

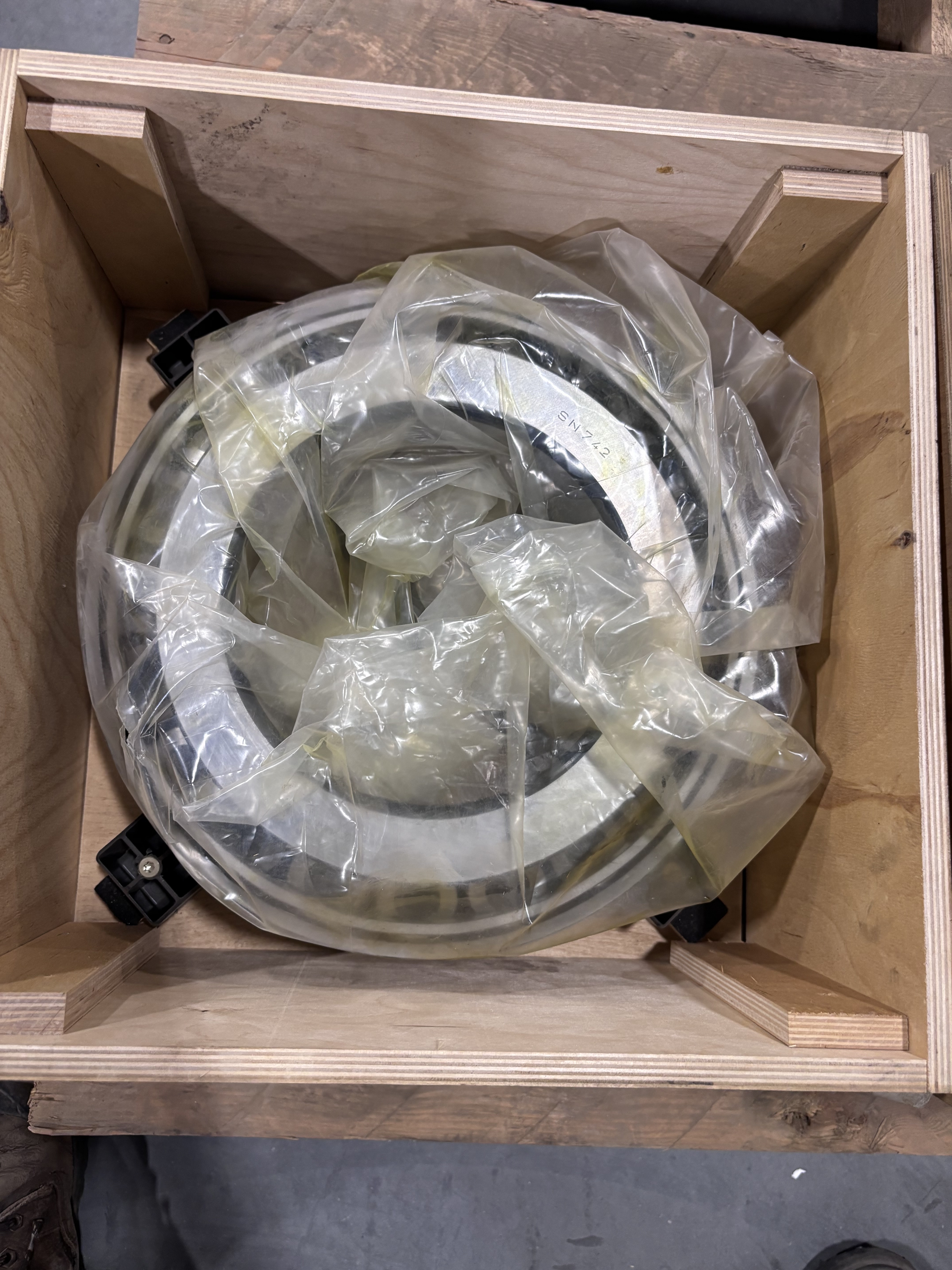

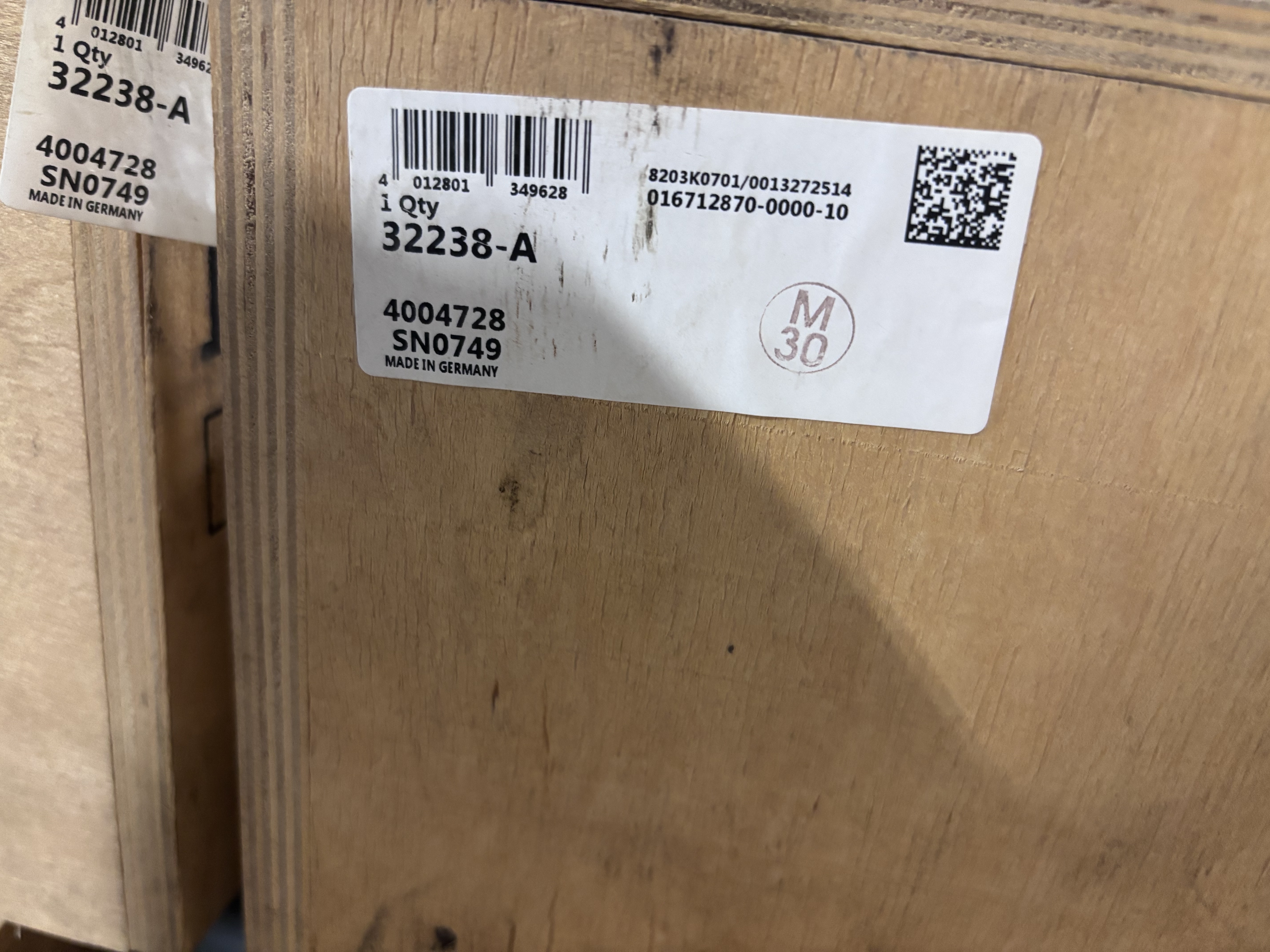

Available is a two-unit lot of matching FAG 32238-A tapered roller bearing assemblies. The wooden-crate labels identify both units as 32238-A, and the bearing designation is visibly marked on a photographed bearing through its protective bag.
Each 32238-A is a complete open, single-row tapered roller bearing assembly comprising a cone and cup. The bearing is separable, allowing the cone assembly and cup to be mounted independently. Published data for this designation gives a 190 mm bore × 340 mm outside diameter × 97 mm total width envelope.
The two same-designation bearings are offered together as one lot. Single-row tapered roller bearings are normally adjusted against a second bearing in a mirror arrangement, so this two-unit quantity may be useful for a buyer-verified paired arrangement. This lot is not represented as a factory-matched or precision-paired set. The buyer must confirm all tolerances, preload or clearance requirements, and original-equipment specifications before installation.
Verified Identification and Published Reference Data
| Specification | Details |
| Manufacturer / brand | FAG (Schaeffler) |
| Bearing designation | 32238-A |
| Bearing type | Open, single-row tapered roller bearing assembly |
| Bore (d) | 190 mm |
| Outside diameter (D) | 340 mm |
| Total width (T) | 97 mm |
| Inner-ring width (B) | 92 mm |
| Published dynamic radial load rating | 1,140 kN |
| Published static radial load rating | 1,820 kN |
| Published limiting speed | 1,930 RPM |
| Published reference speed | 1,150 RPM |
| Published mass | Approximately 39 kg / 86 lb each |
Published data is provided as a reference for the stated bearing designation only. The buyer must confirm the exact designation, current catalogue revision, installation drawing, cone-and-cup completeness, dimensional and tolerance requirements, bearing arrangement, operating clearance or preload, lubrication, load and speed calculation, and suitability for the proposed service.
