KSB GIW SupremeServ Cartridge Bearing Assembly
KSB GIW SupremeServ 8244C-02 Cartridge Bearing Assembly
Description

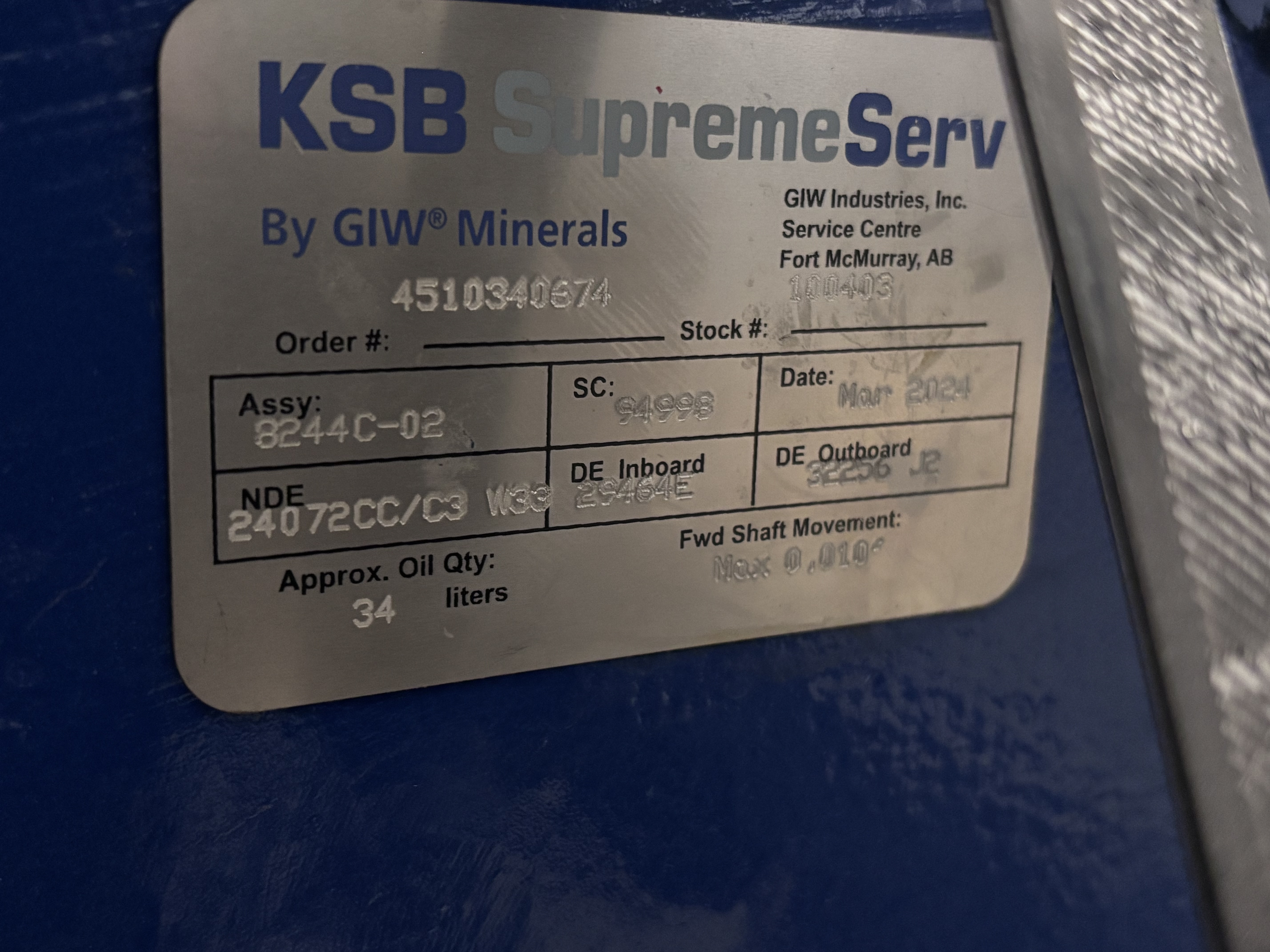

Available is one KSB GIW SupremeServ 8244C-02 cartridge bearing assembly, serial SC 94998. The physical service plate identifies the KSB GIW SupremeServ service identity, assembly designation, serial number, March 2024 service-plate date, NDE/drive-end bearing markings, an approximate oil quantity of 34 L, and a maximum 0.010 in. forward shaft-movement marking.

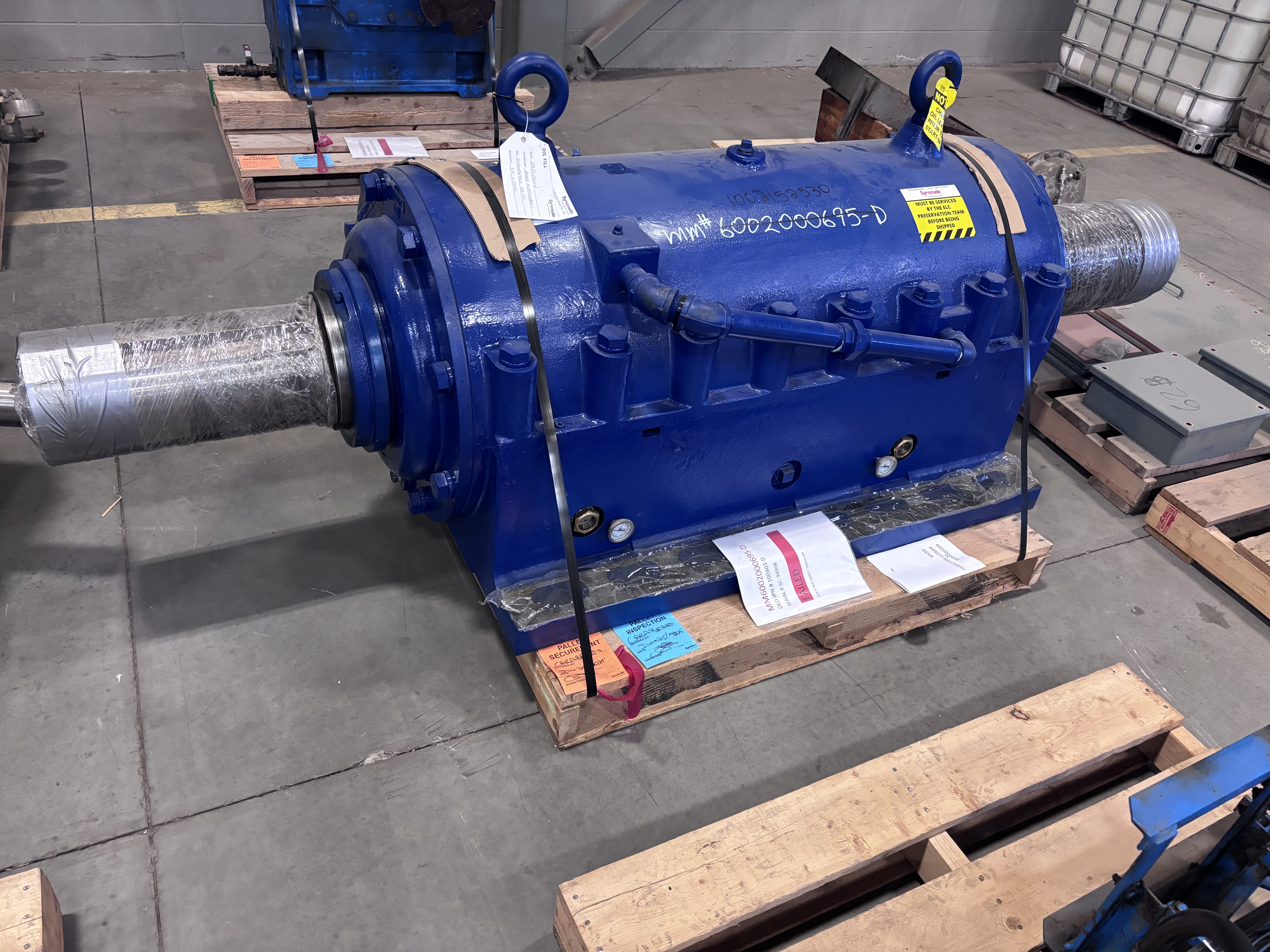

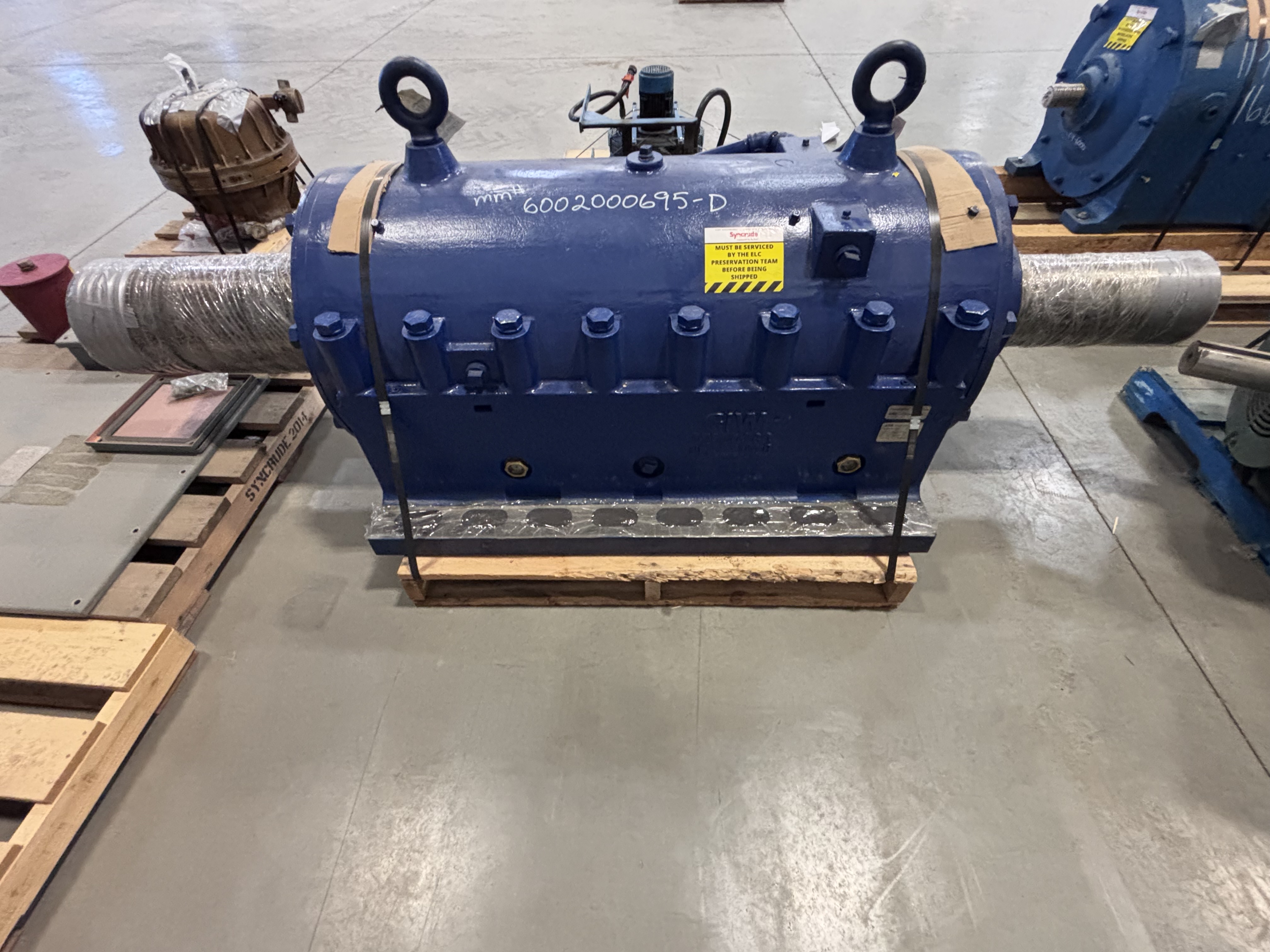

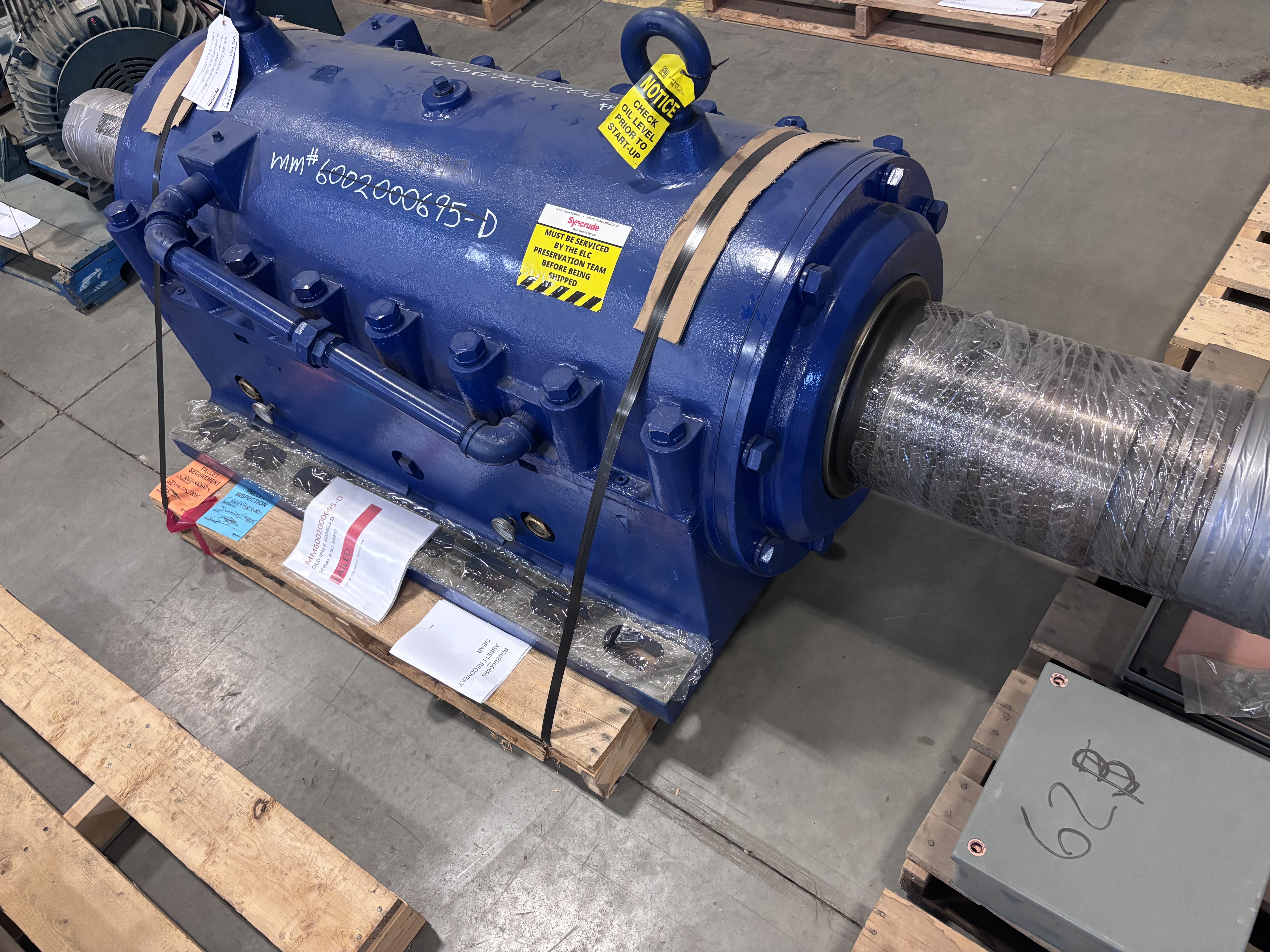

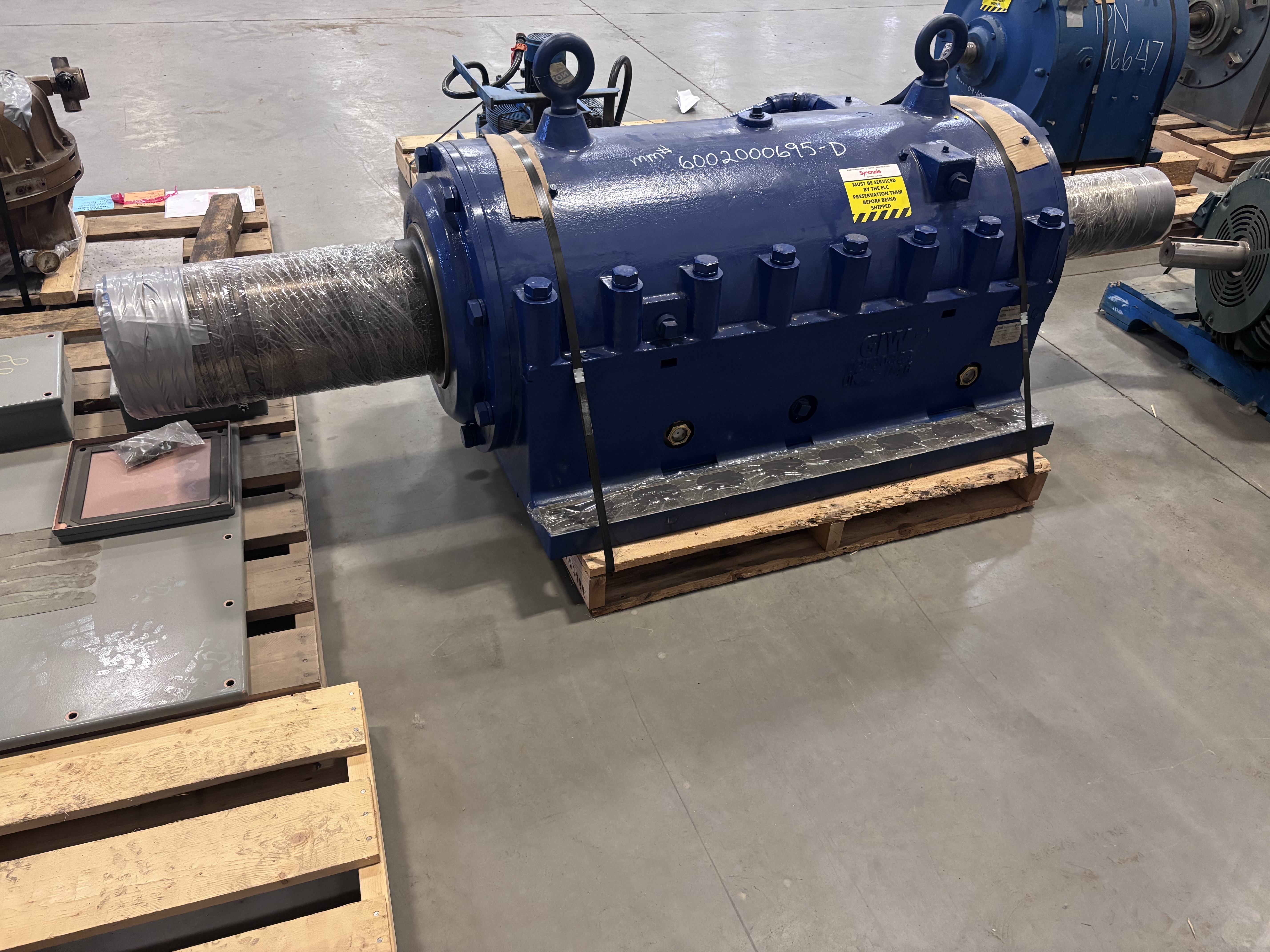

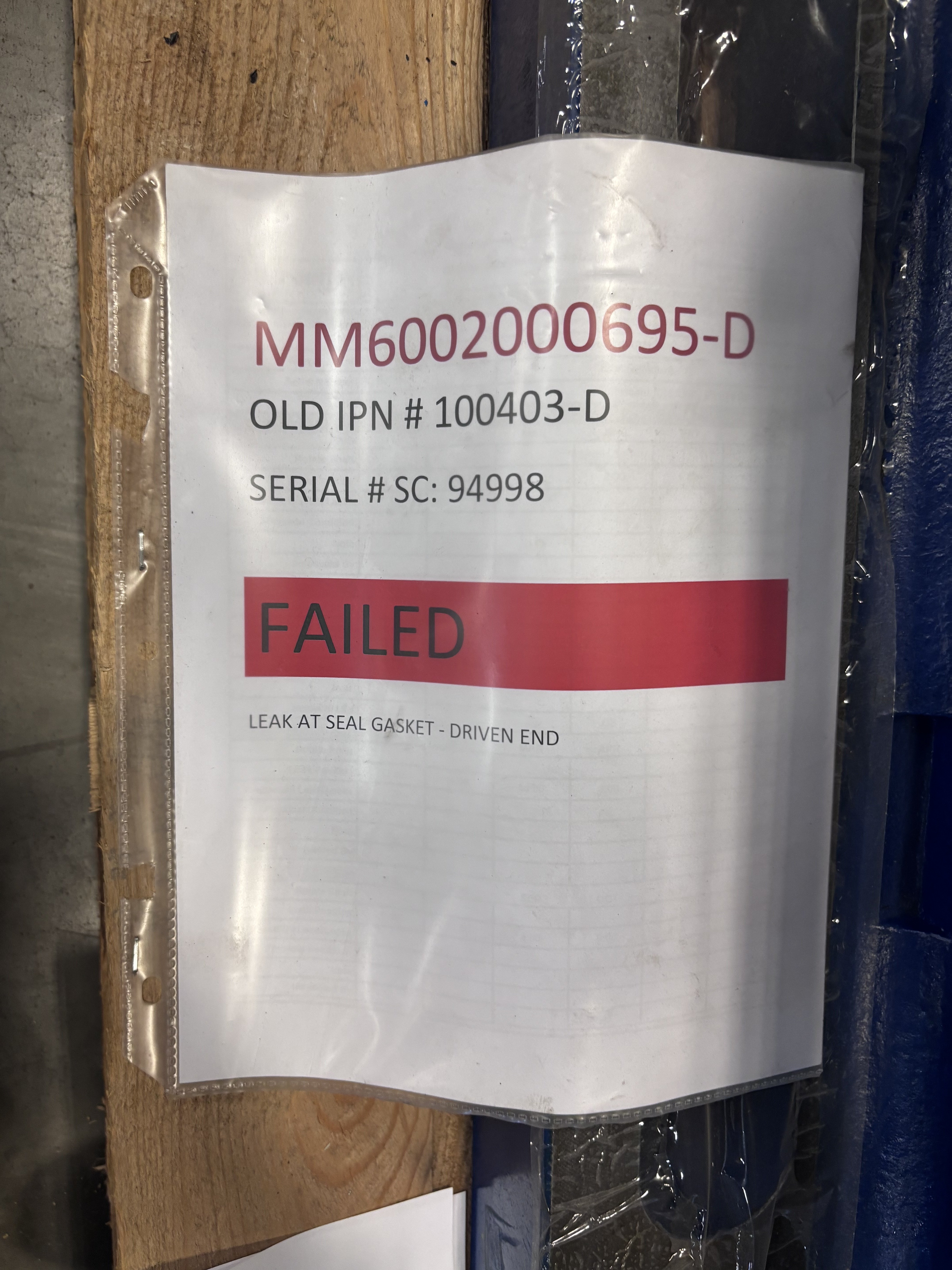

The photographed assembly consists of a large blue cast bearing housing on an integral base, a through shaft with protected extensions at both ends, bolted end covers, lifting lugs, external oil piping, and multiple oil sight or access points. A visible condition tag identifies a leak at the driven-end seal gasket. This specific defect is disclosed; however, no repair report, leak-test record, failure analysis, dimensional inspection, or detailed condition record has been provided.
The assembly is offered strictly as-is for buyer inspection, repair, rebuild, component recovery, or other non-service use until a qualified party completes the required assessment and repair. It is not represented as a service-ready spare, pressure-tight assembly, or completed factory rebuild.
Verified Identification and Visible Configuration
| Item | Buyer-facing information |
| Manufacturer / service identity | KSB GIW / GIW SupremeServ |
| Assembly designation | 8244C-02 |
| Serial number | SC 94998 |
| Service-plate date | March 2024; service-plate date only |
| Assembly configuration | Cartridge bearing assembly with through shaft, base, end covers, lifting lugs, and visible external oil piping |
| Non-drive-end bearing marking | 24072CC/C3 W33, per the physical service plate |
| Drive-end inboard bearing marking | 29464E, per the physical service plate |
| Drive-end outboard bearing marking | 32230, per the physical service plate |
| Oil quantity marking | Approx. 34 L, per the physical service plate |
| Forward shaft-movement marking | Maximum 0.010 in., per the physical service plate; no current shaft-movement measurement is represented |
| Included material | Only components physically attached to the assembly at inspection are included; no loose hardware, couplings, seals, bearings, guards, drawings, inspection records, repair records, test records, or accessories are represented unless physically present and confirmed at inspection |
