16" 150# Butterfly Valve
Supporting Documents (1)
library_books
DeZURIK BHP 16 in. Class 150 High-Performance Butterfly Valve — Manual Handwheel
Description

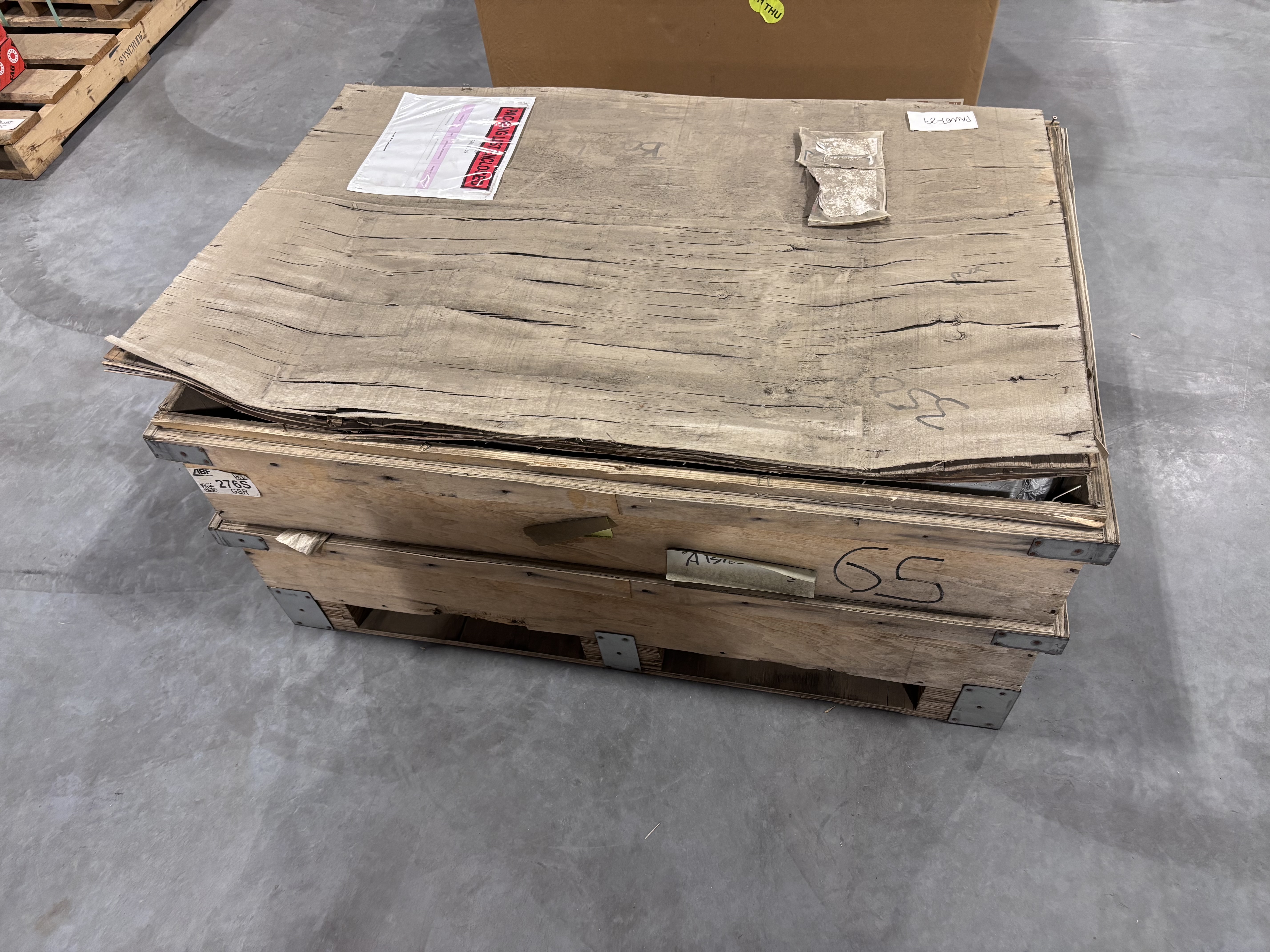

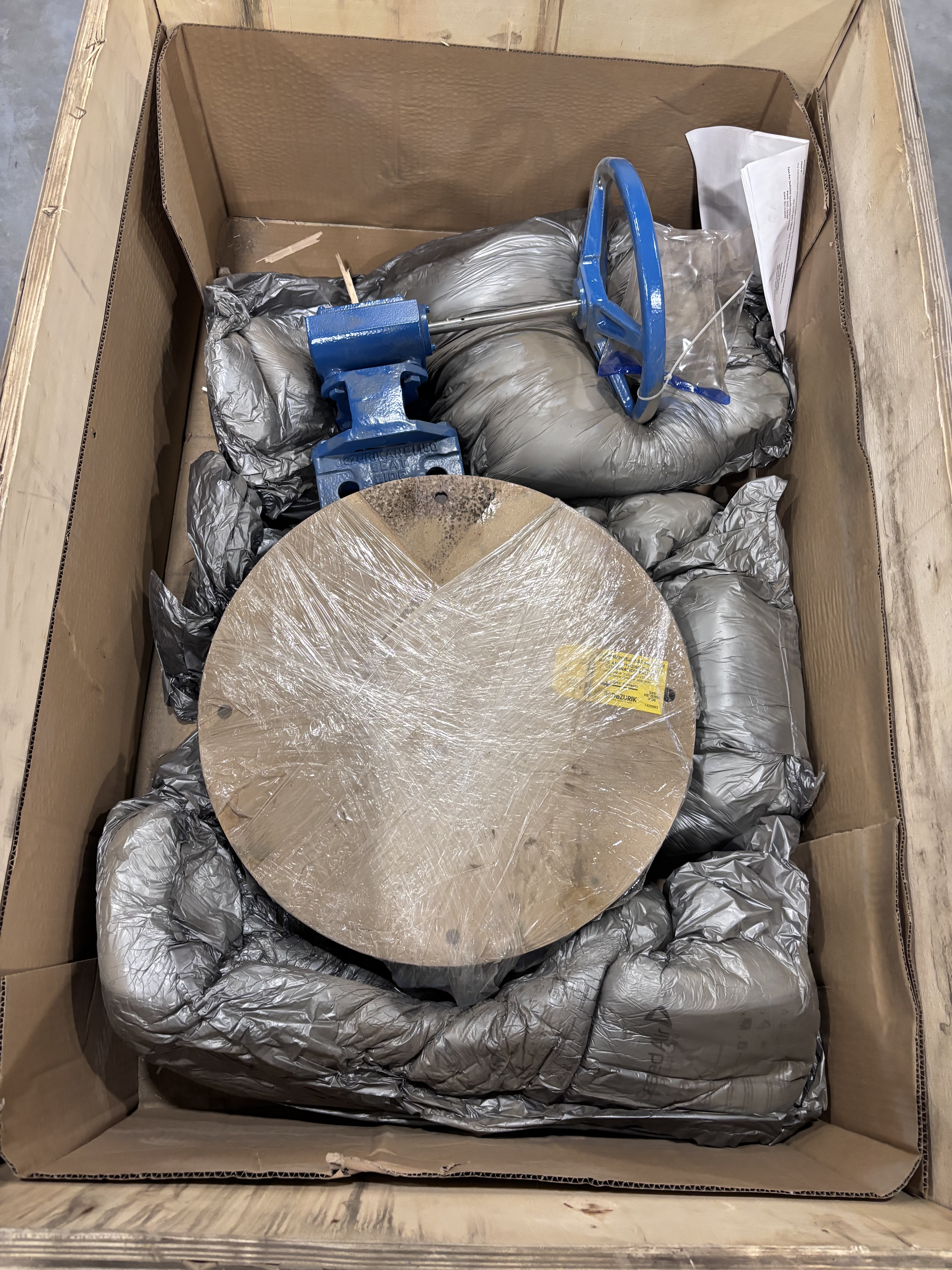

Available is one DeZURIK BHP 16 in. Class 150 high-performance butterfly valve, part number 9684326R005, serial number S25162420. The valve is supplied with a manual handwheel/gear operator and remains protected in its wooden shipping crate.
The BHP is DeZURIK’s high-performance butterfly-valve family, offered in wafer and lugged configurations for industrial isolation and throttling duties. This particular valve is identified as not for dead-end service on its nameplate and is therefore offered for wafer-style, between-flange installation only. Buyer must verify the exact end connection, face-to-face, flange drilling, pressure-temperature suitability, and all installation requirements before purchase.

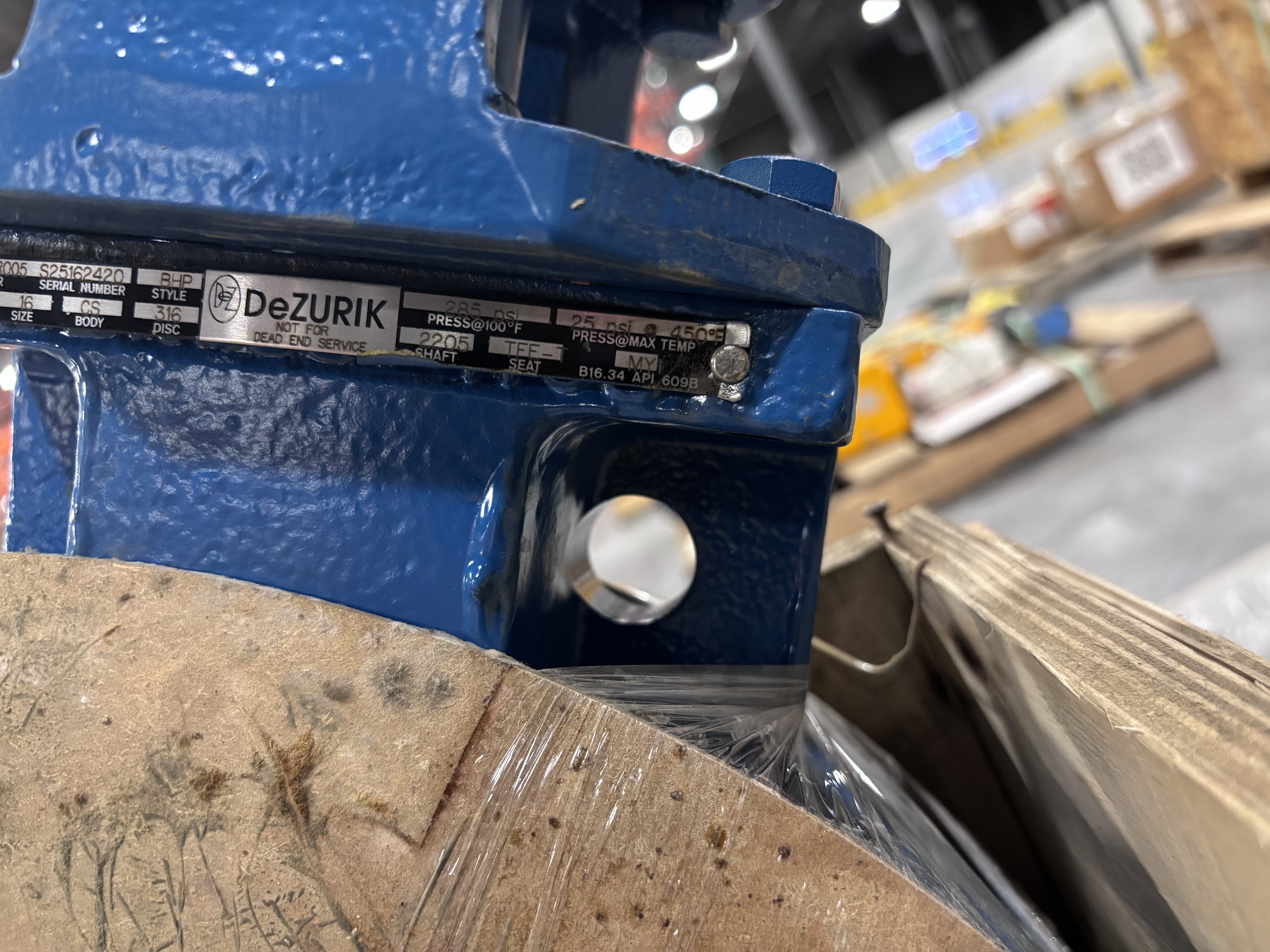

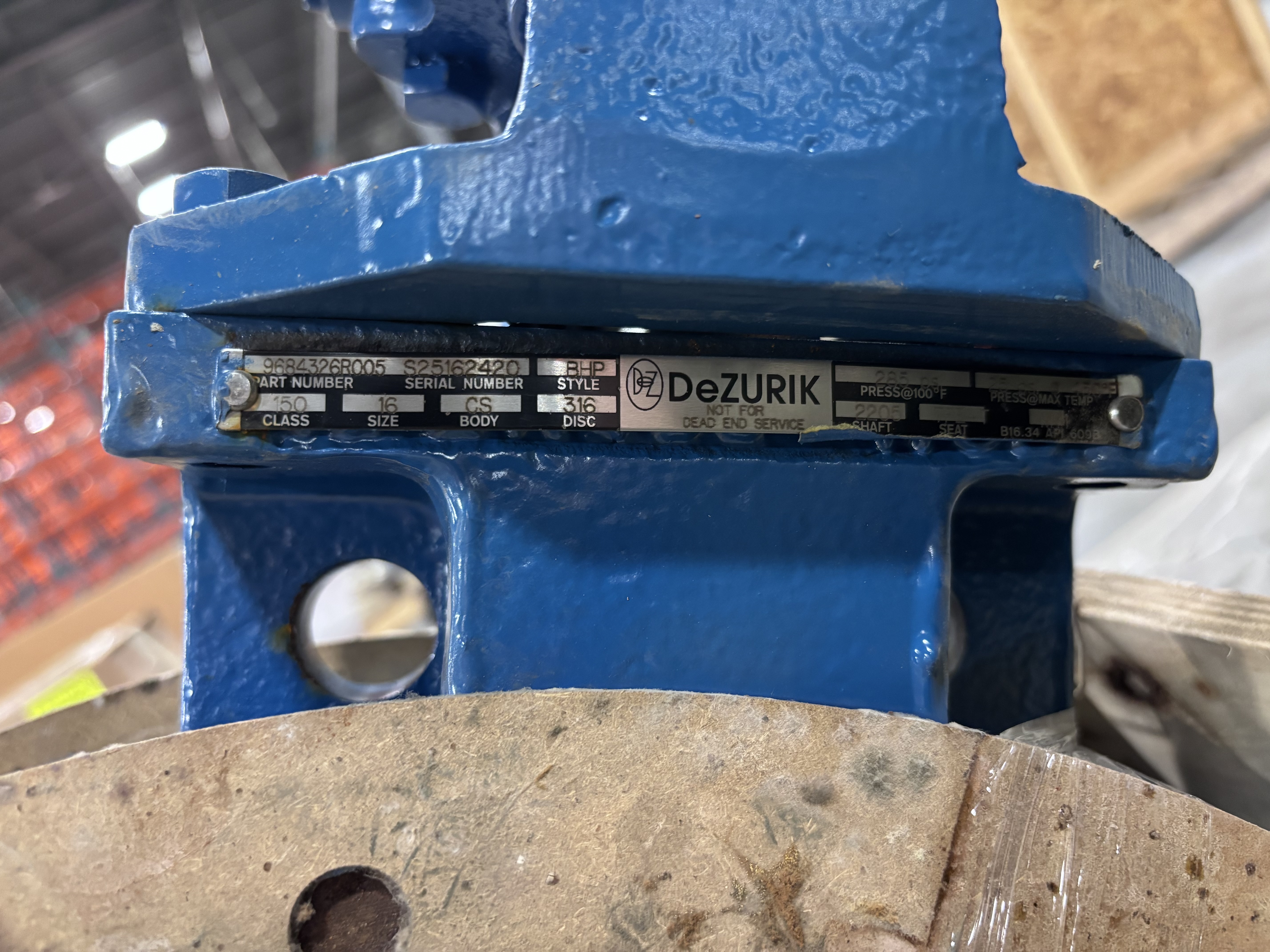

Verified Construction and Nameplate Data
| Specification | Verified detail |
| Manufacturer / series | DeZURIK BHP |
| Part number | 9684326R005 |
| Serial number | S25162420 |
| Nominal size | 16 in. |
| Pressure class | ASME Class 150 |
| Body | Carbon steel |
| Disc | 316 stainless steel |
| Shaft | 2205 duplex stainless steel |
| Seat marking | TFE |
| Nameplate pressure at 100°F | 285 psi |
| Nameplate pressure at maximum temperature | 25 psi at 450°F |
| Standards marked on valve | ASME B16.34; API 609B |

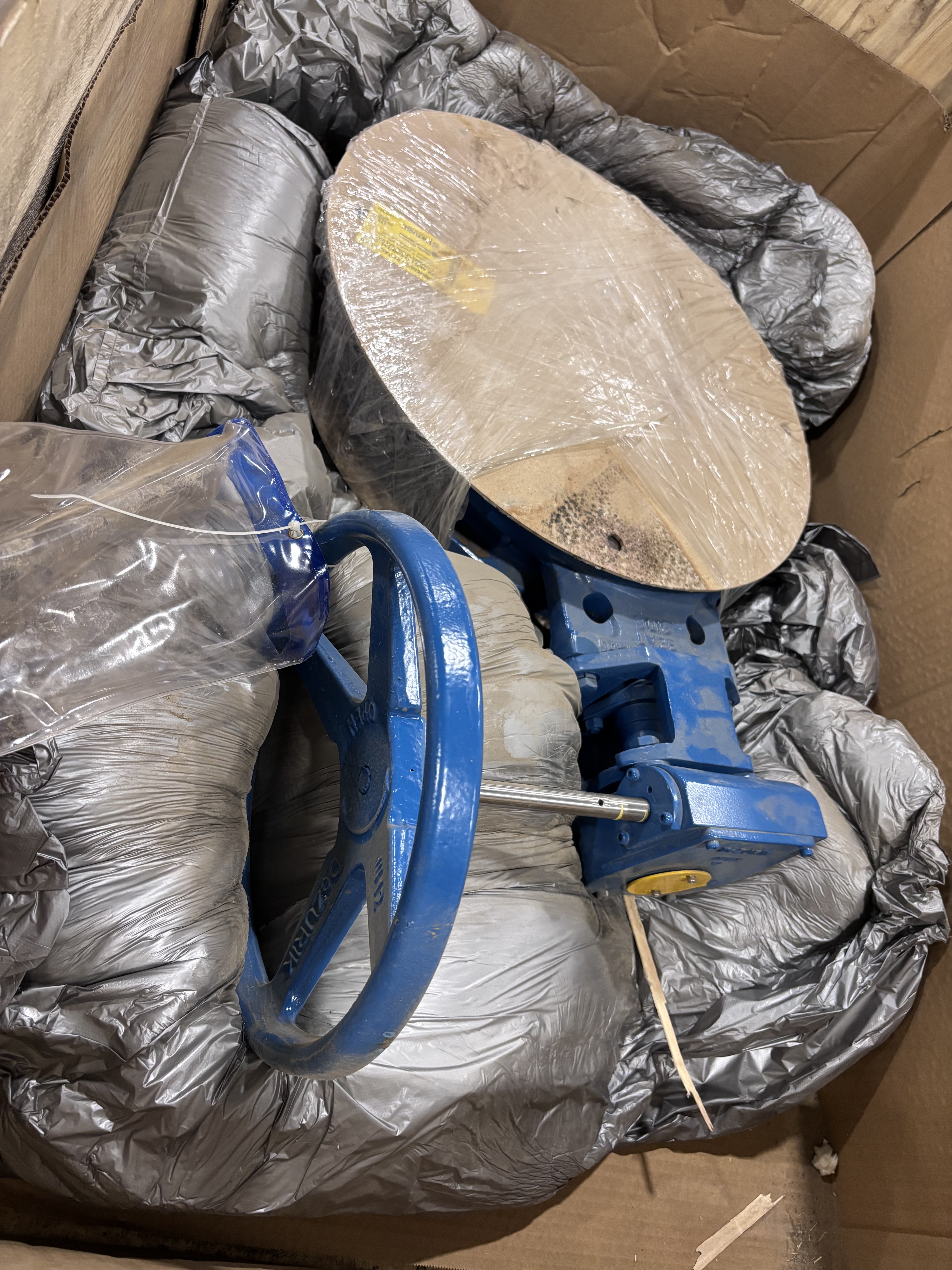

| Operator | Manual handwheel/gear operator, installed |
| Service limitation | Not for dead-end service |
Factory Production-Test Record

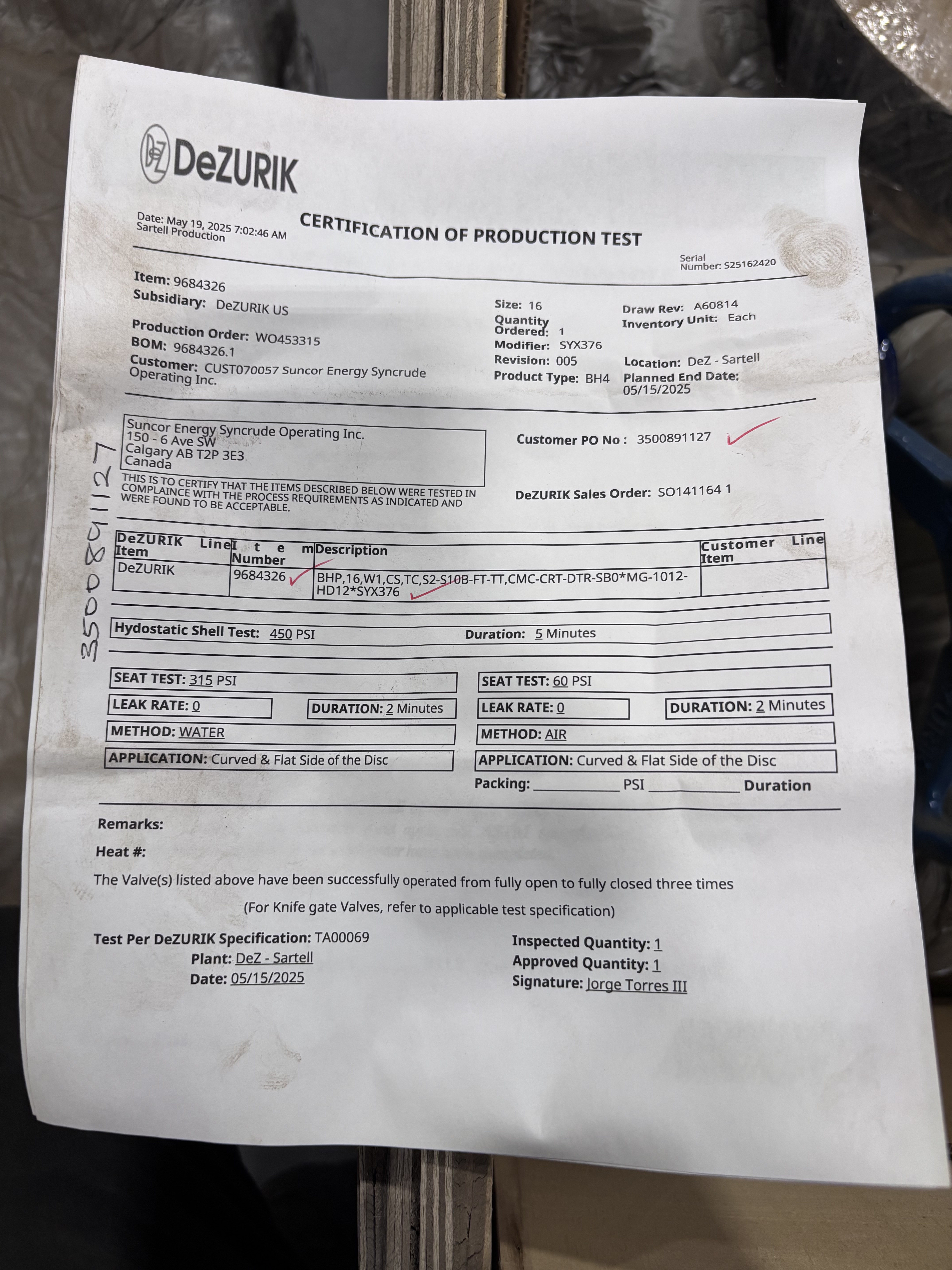

A DeZURIK factory production-test certificate accompanies the valve and identifies the same serial number. The certificate records the following May 2025 factory tests:
| Test | Recorded result |
| Hydrostatic shell test | 450 psi water test for 5 minutes |
| Seat test — water | 315 psi for 2 minutes; recorded leak rate 0 |
| Seat test — air | 60 psi for 2 minutes; recorded leak rate 0 |
| Disc sides tested | Curved and flat sides of disc |
