Endurance 10 in. and 16 in. Knife Gate Valves — 21-Unit Lot
Supporting Documents (11)
library_booksfile_download Download All in ZIP

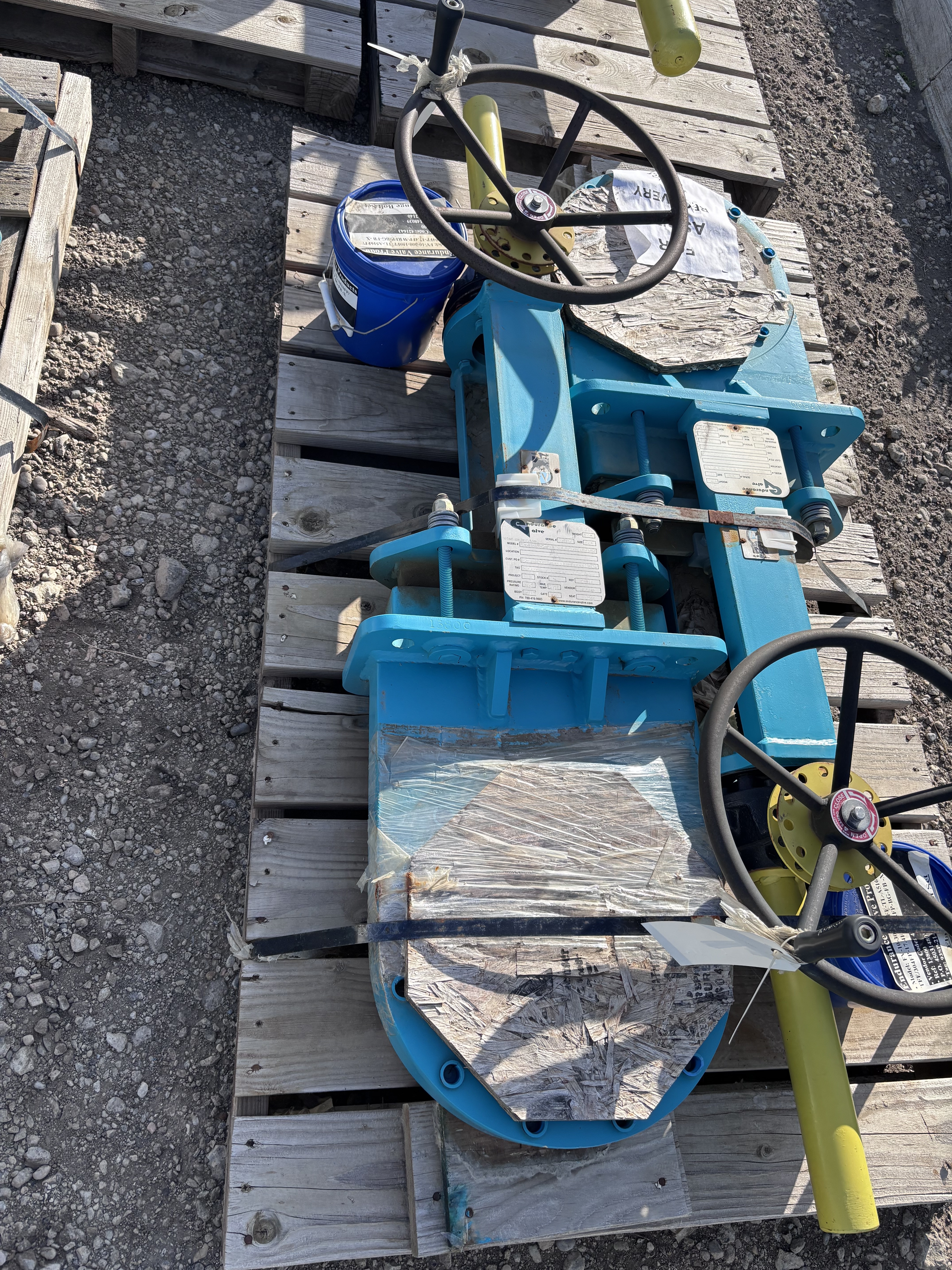

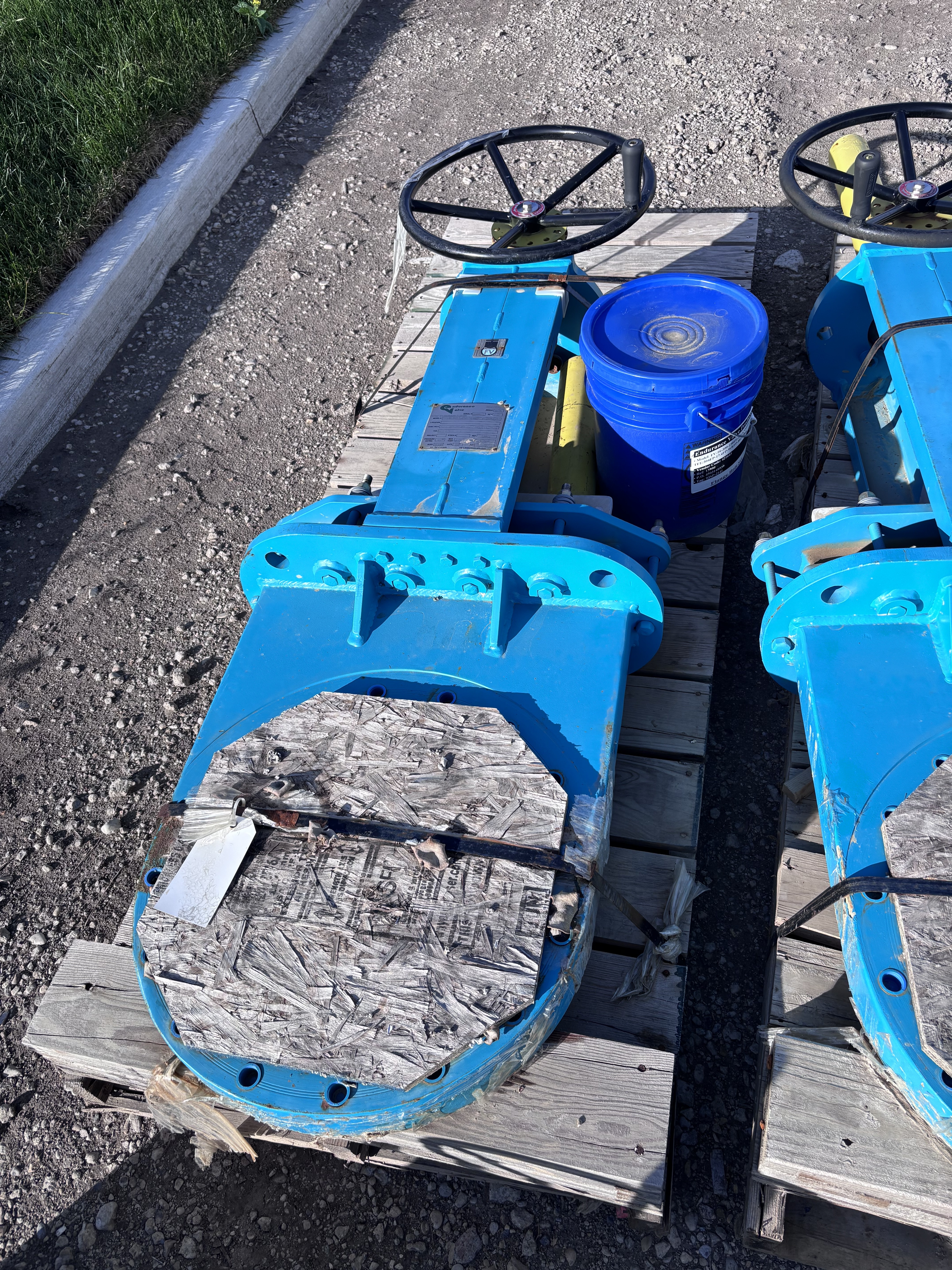

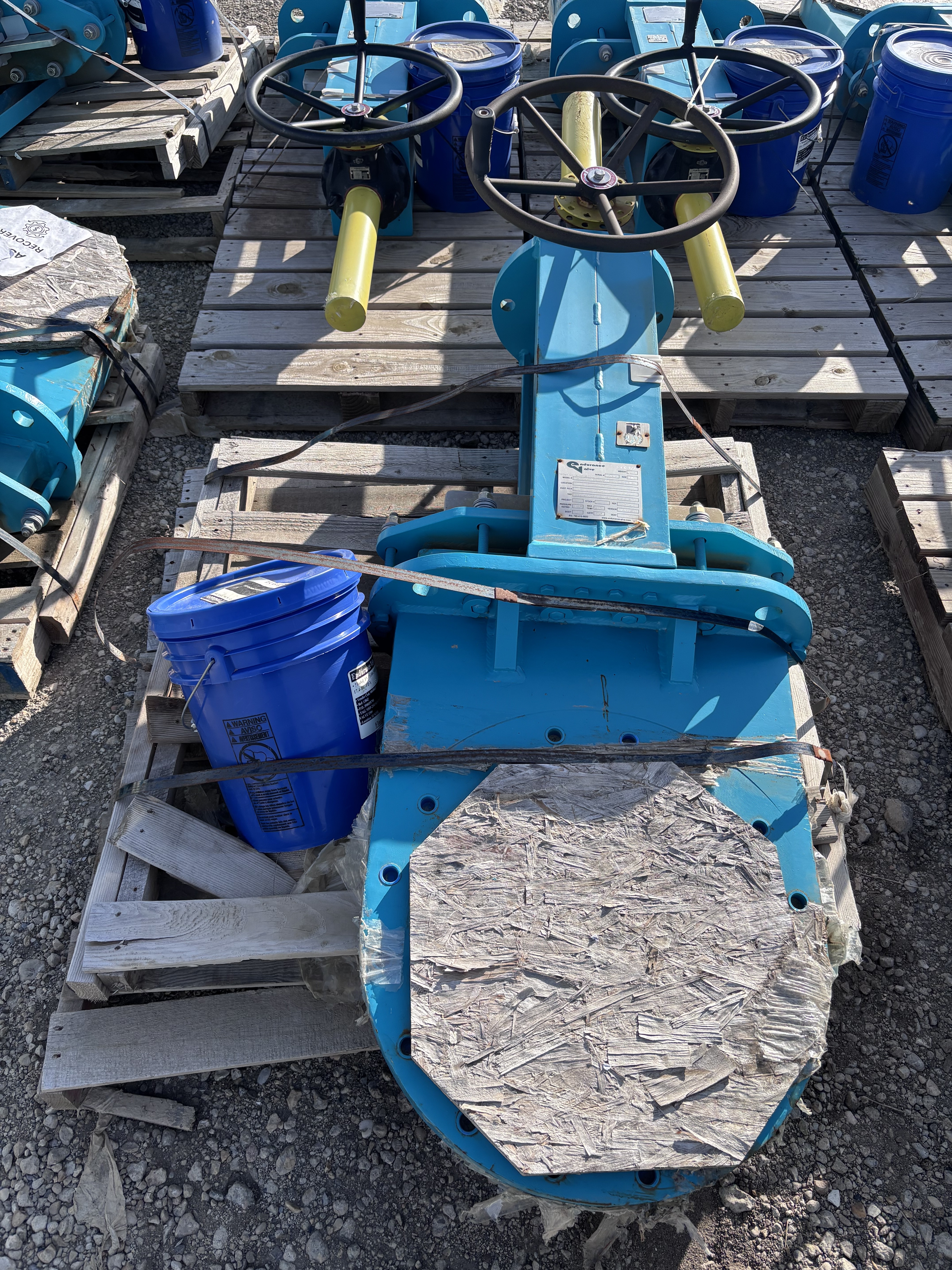

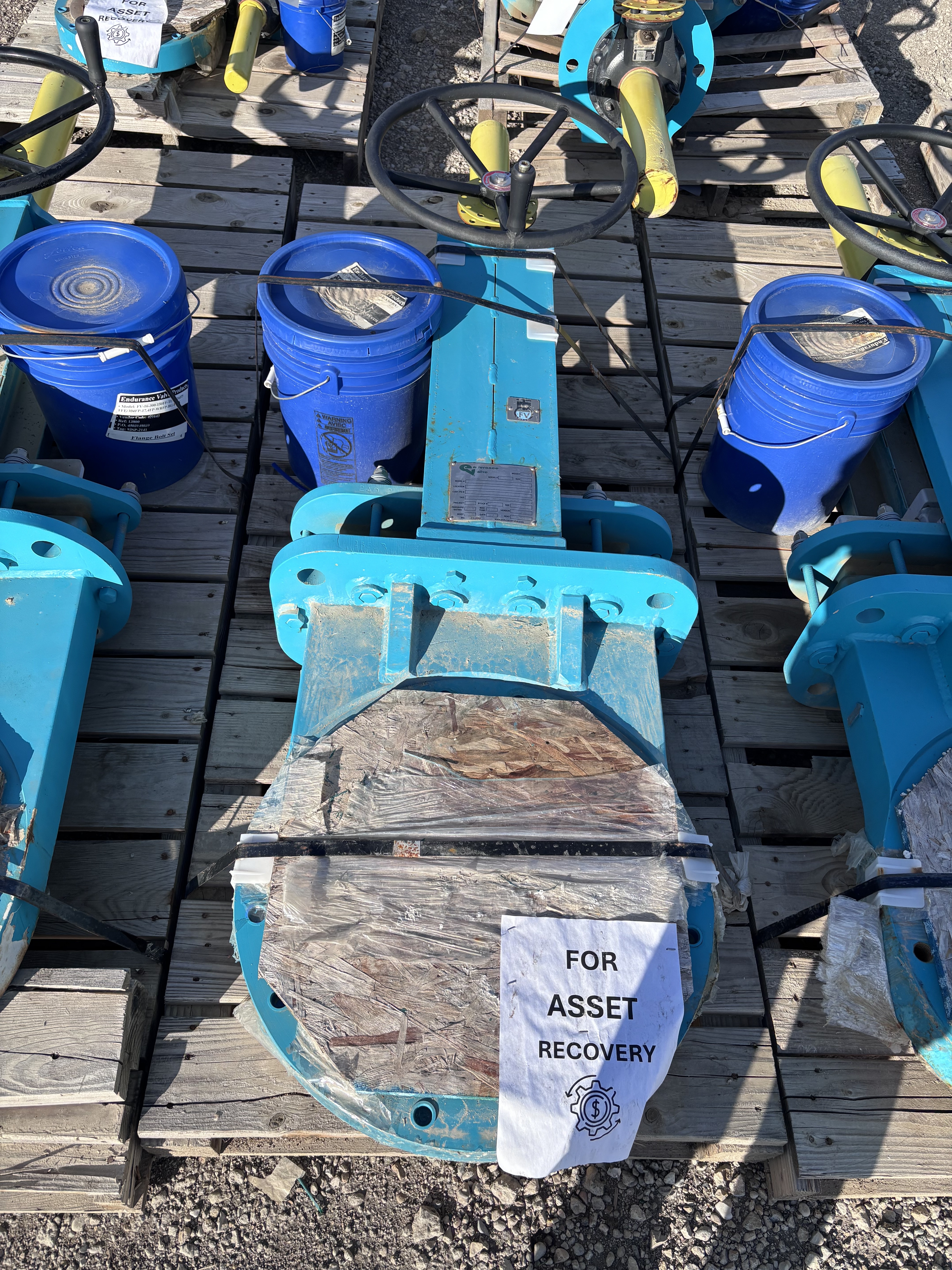

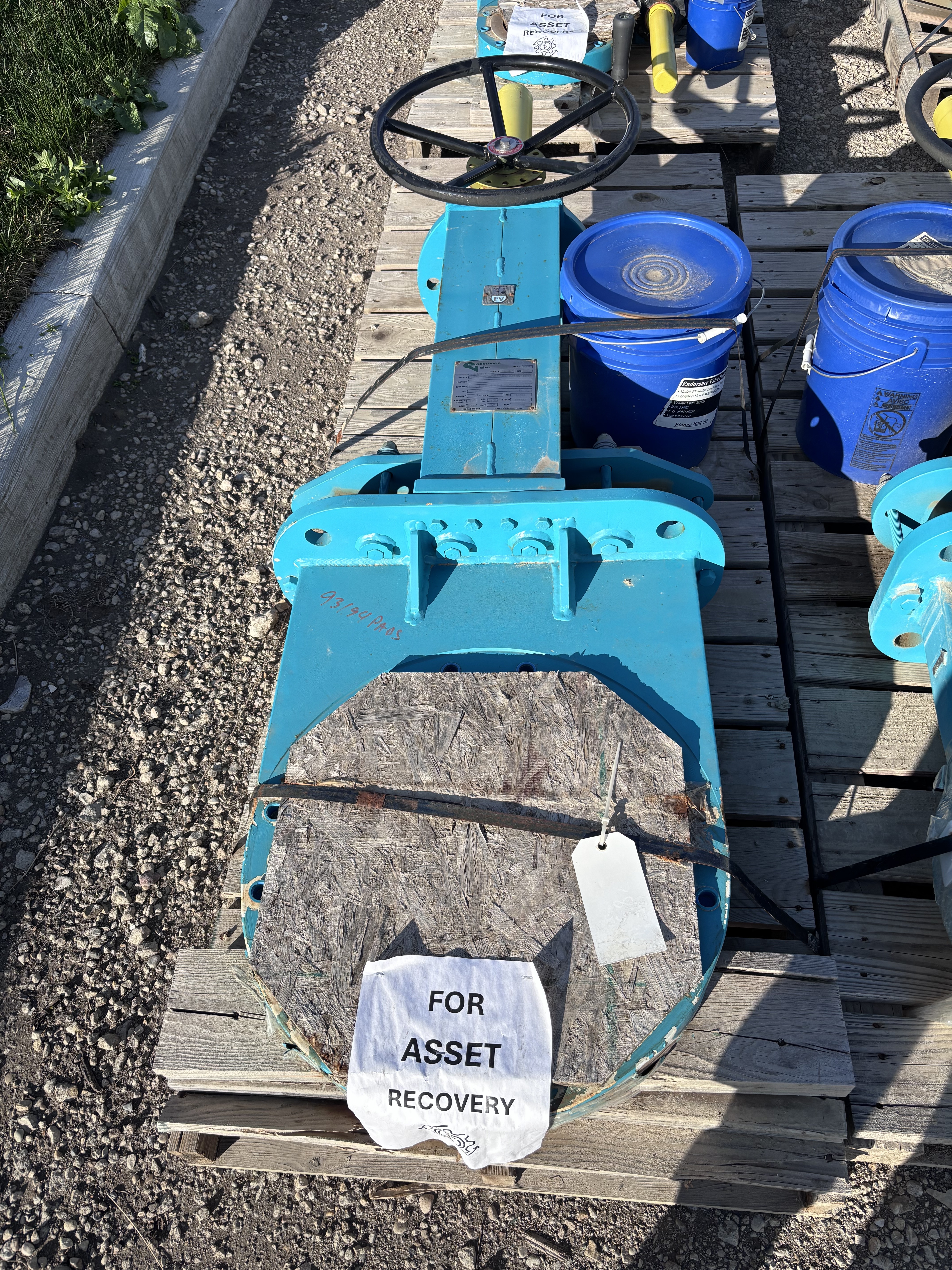

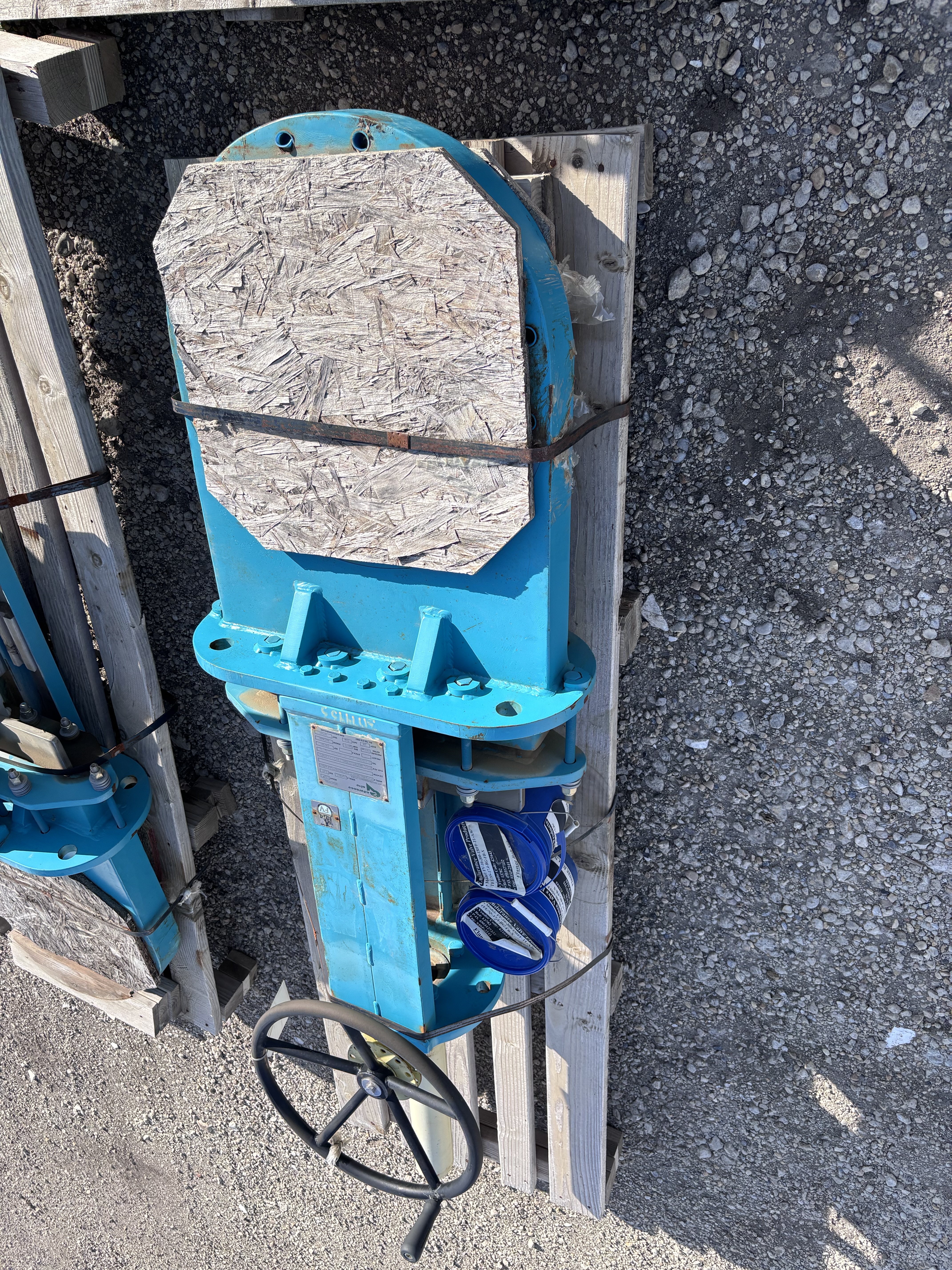

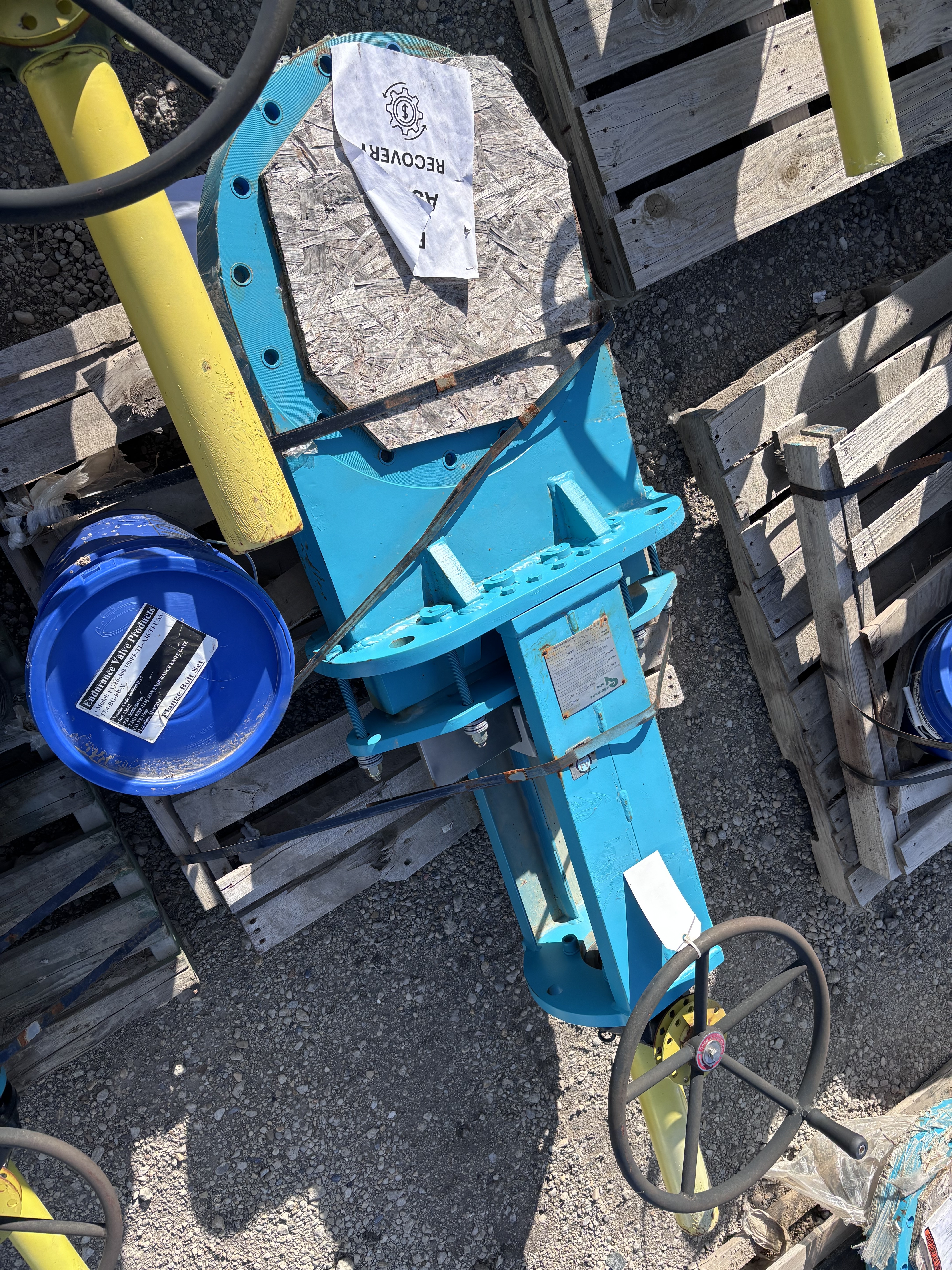

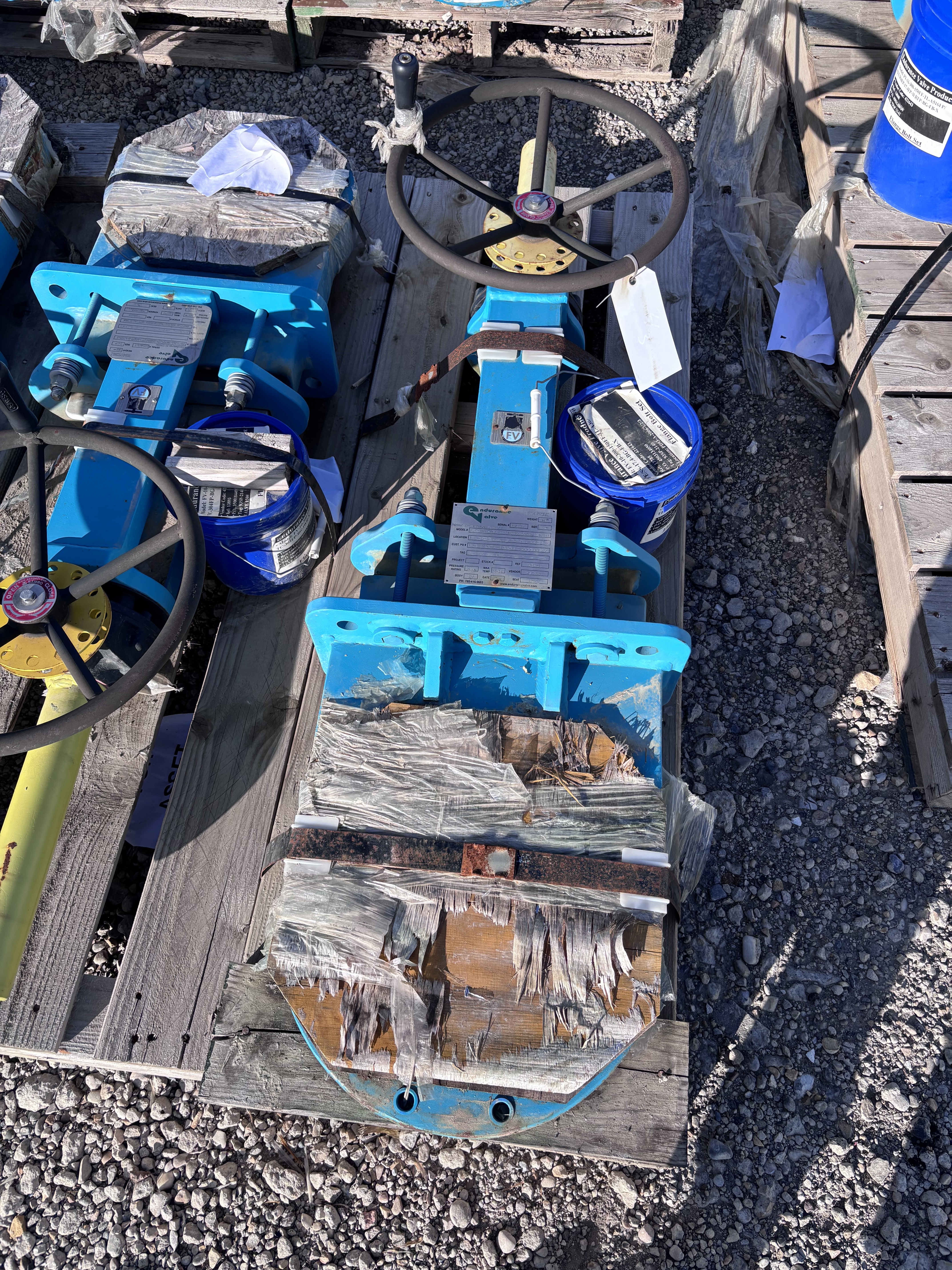

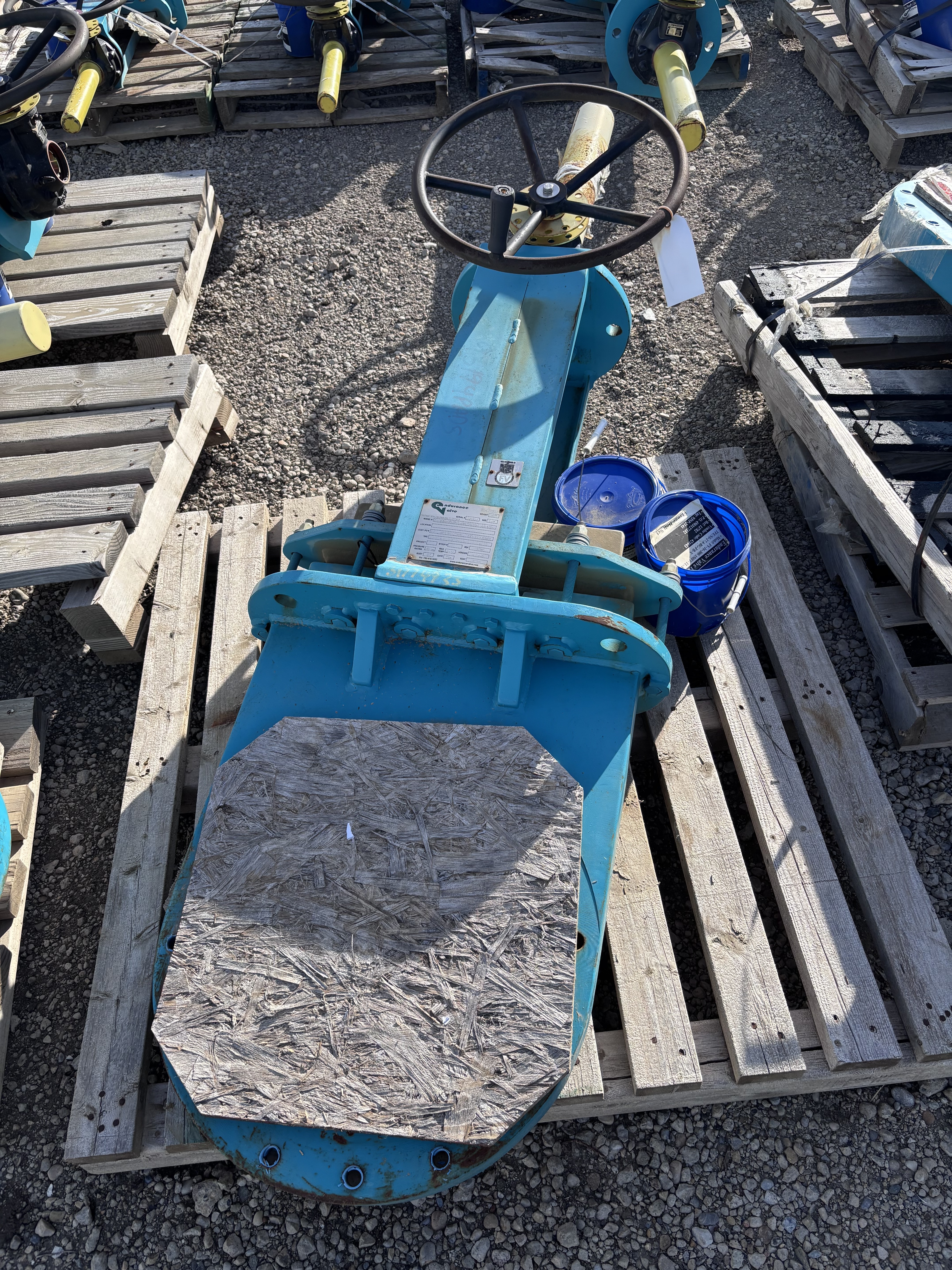

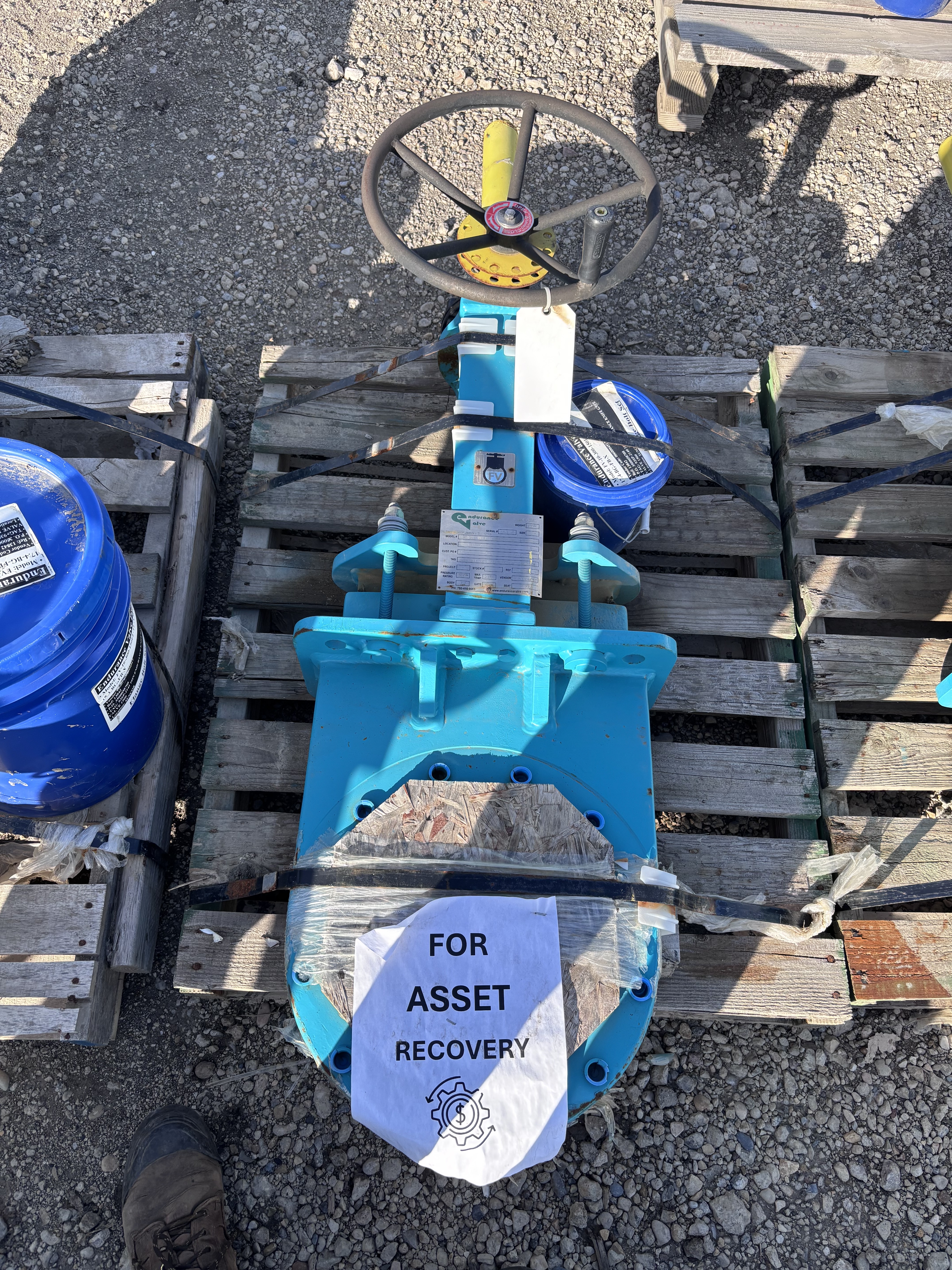

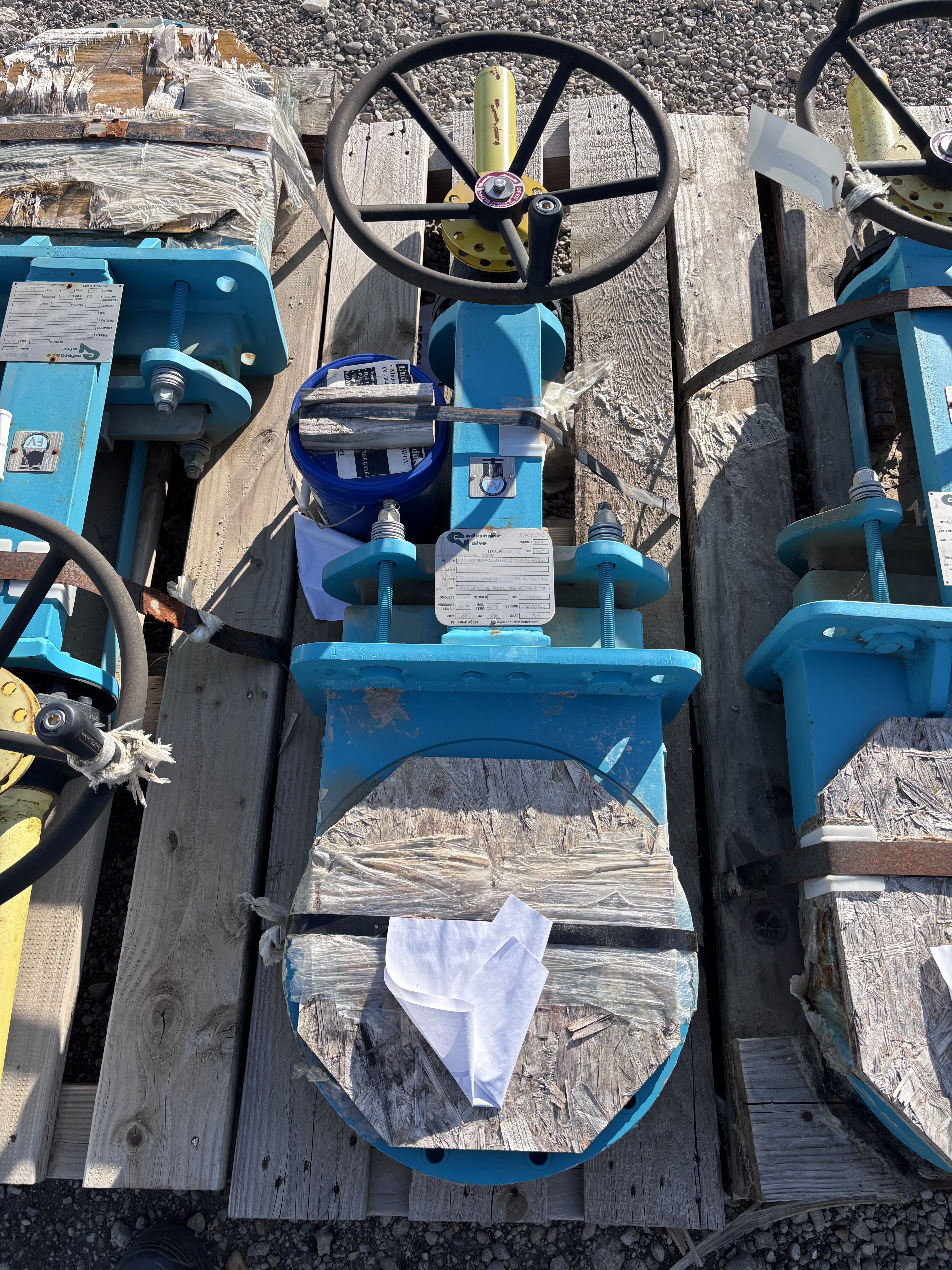

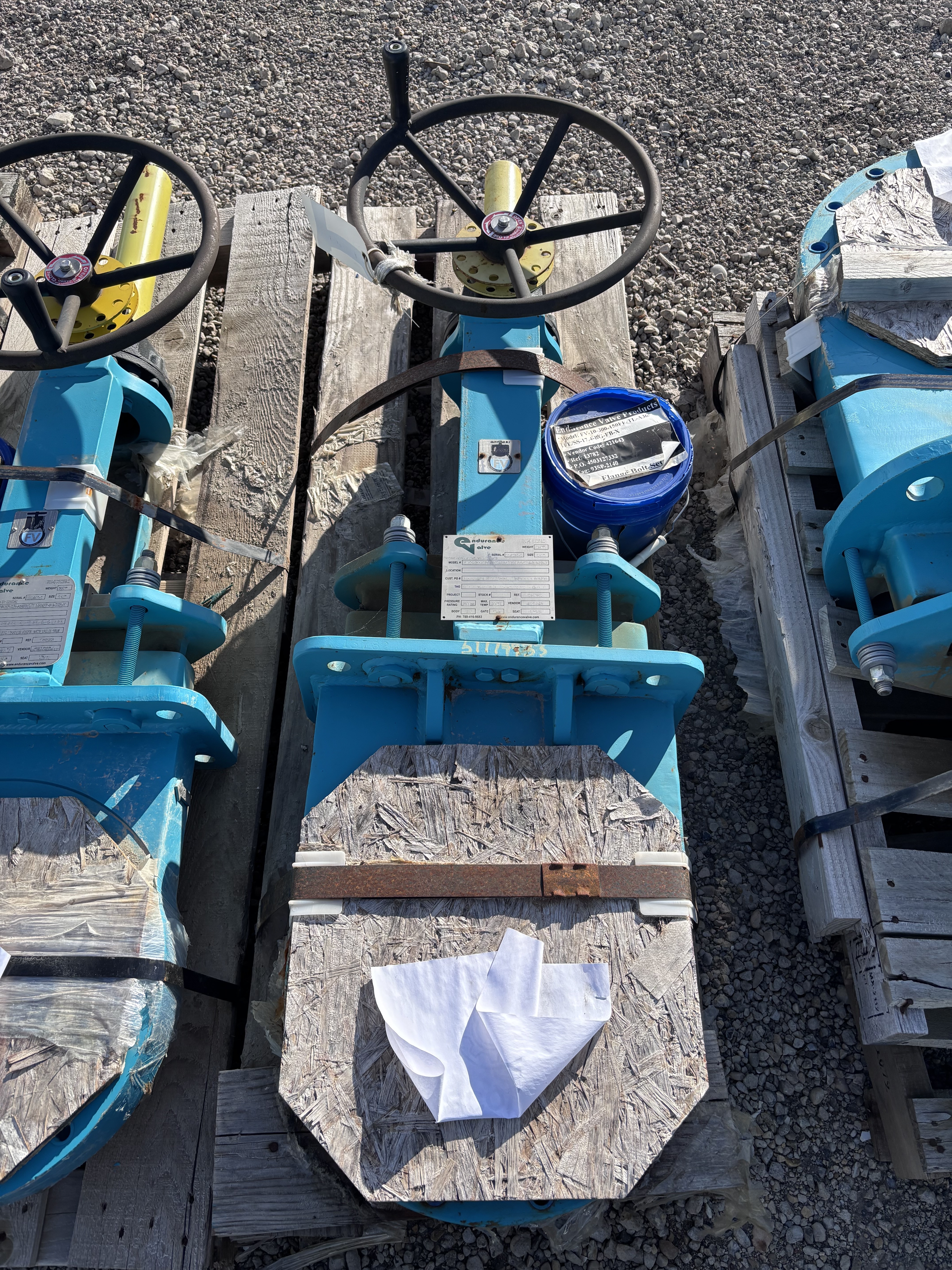

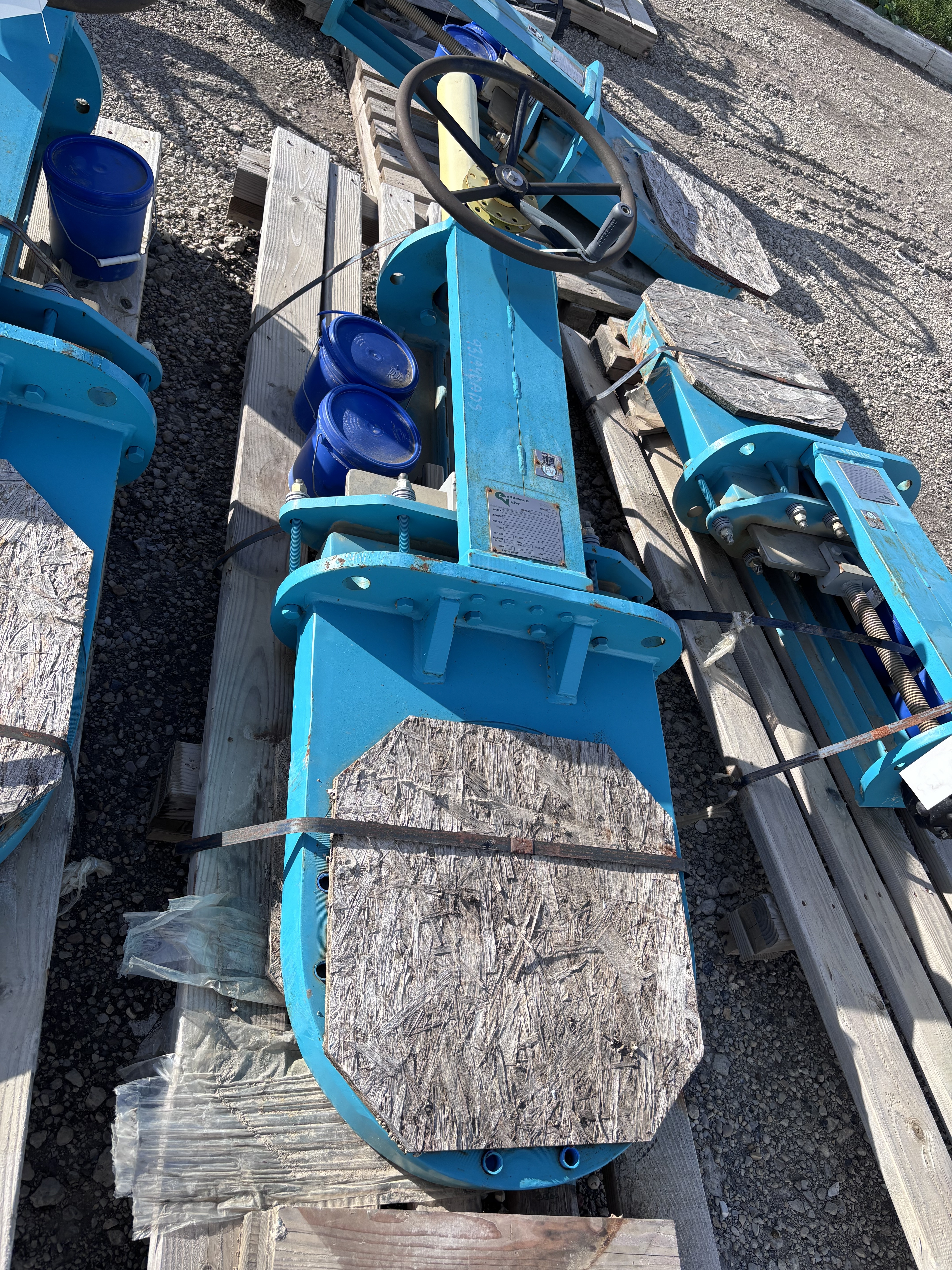

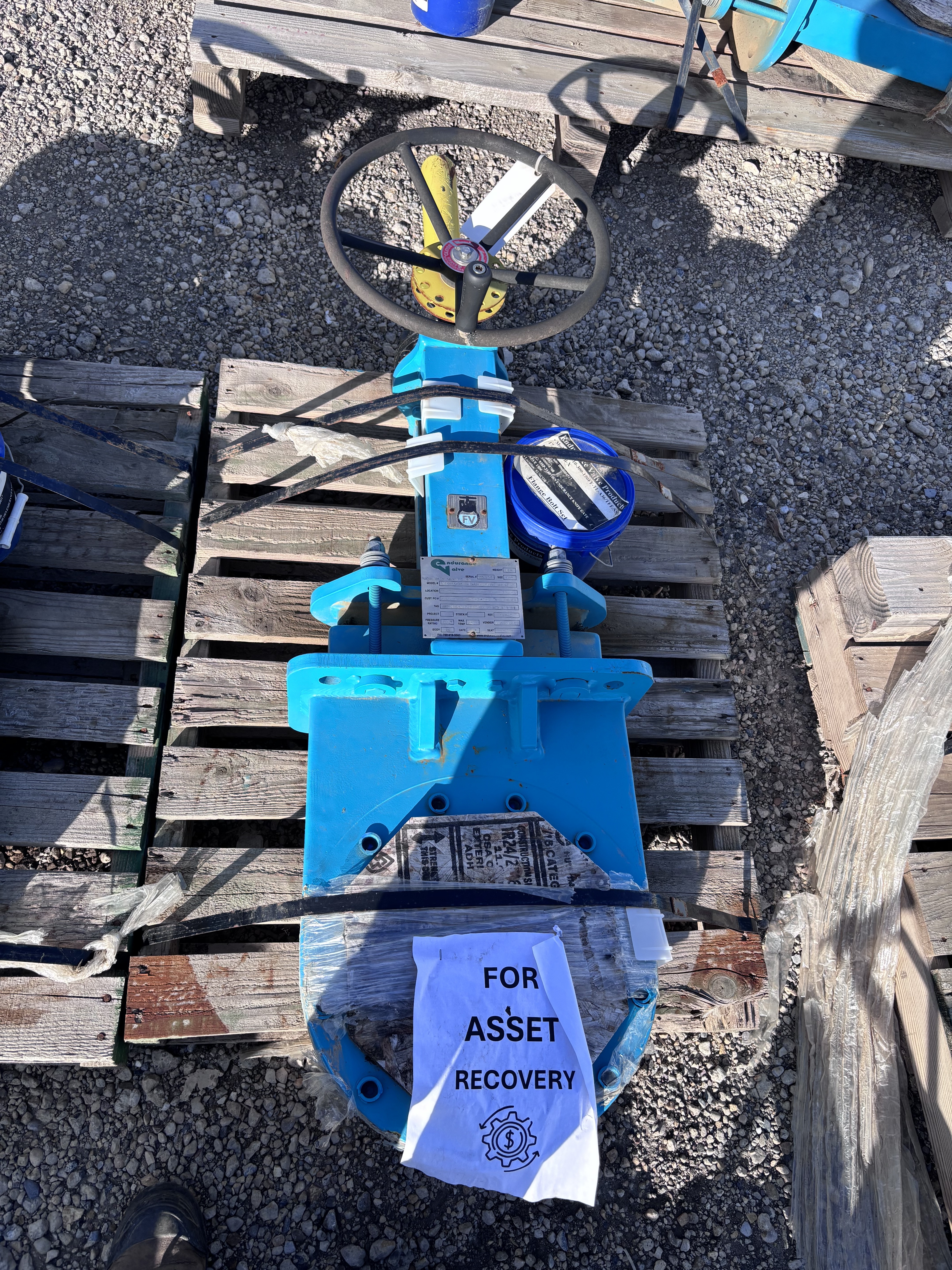

Offered as one 21-unit lot of Endurance knife gate valves: seven 10 in. valves and fourteen 16 in. valves. Complete list & MTRs provided.
Listing Summary
Offered as one 21-unit lot of Endurance knife gate valves: seven 10 in. valves and fourteen 16 in. valves. The lot is supported by close-up primary nameplate photographs for every valve. Please see the attached spreadsheet and MTRs for further detail on unit-level serial numbers, full model codes, plate materials, plate ratings, nameplate weights.

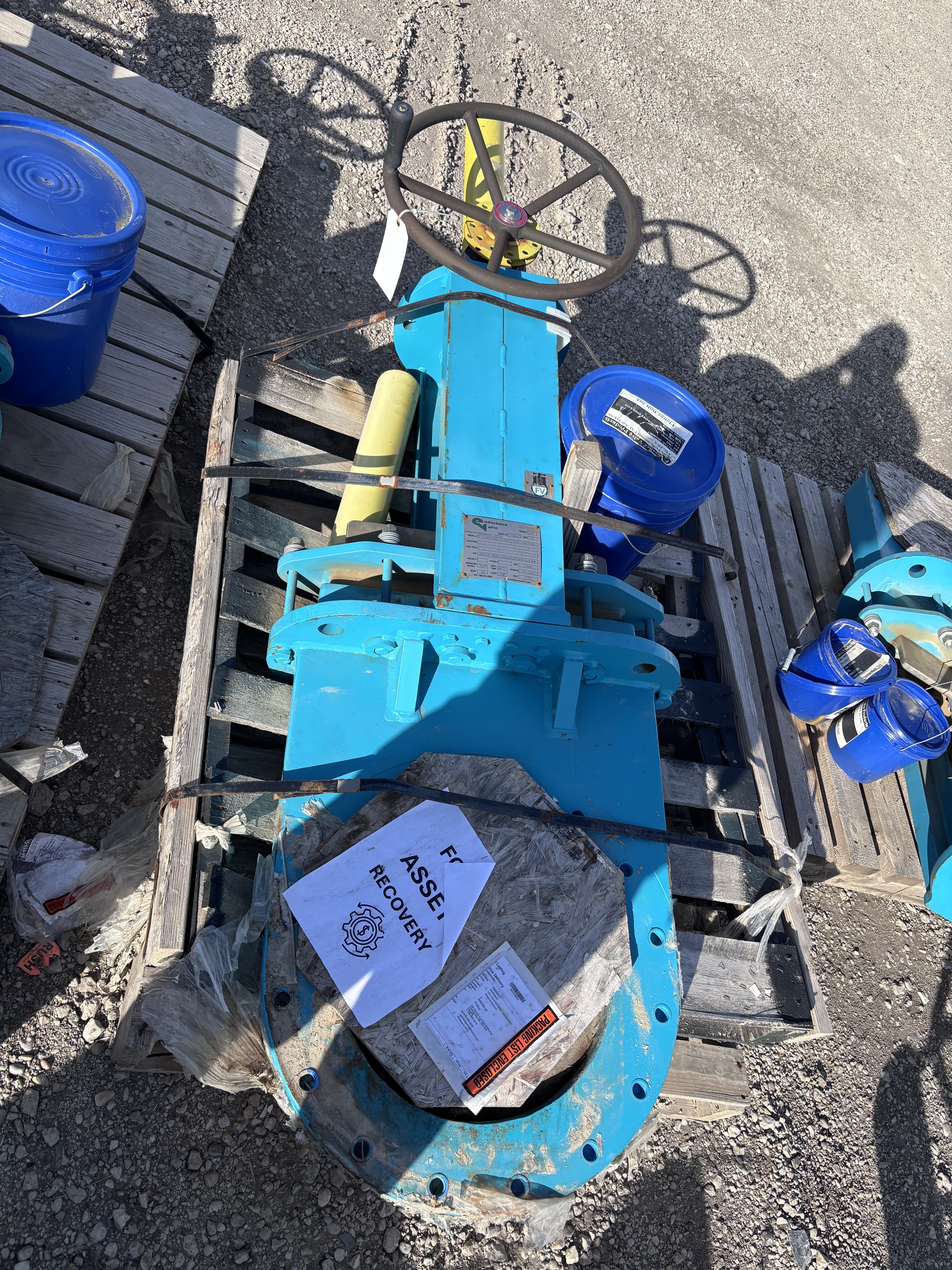

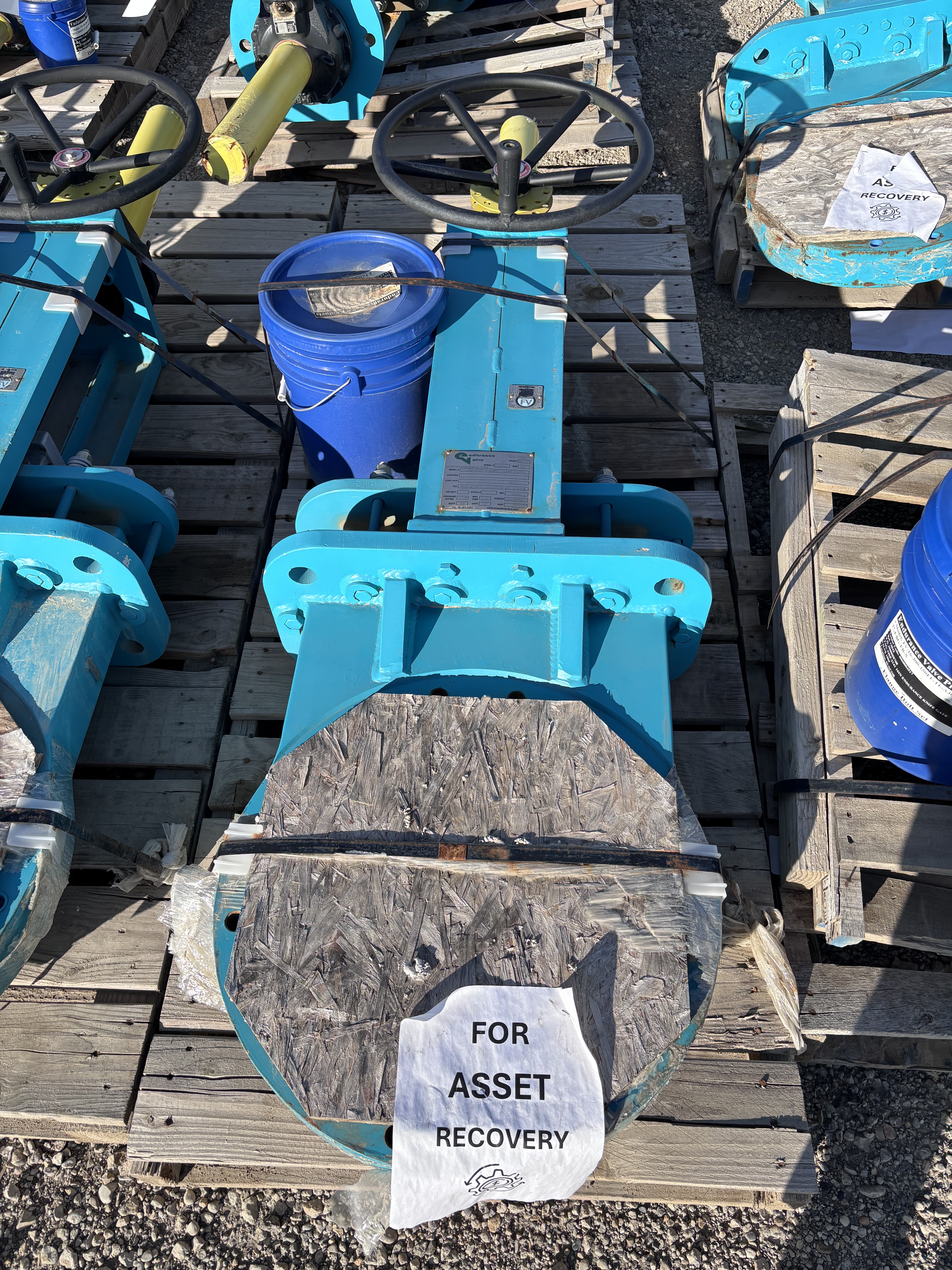

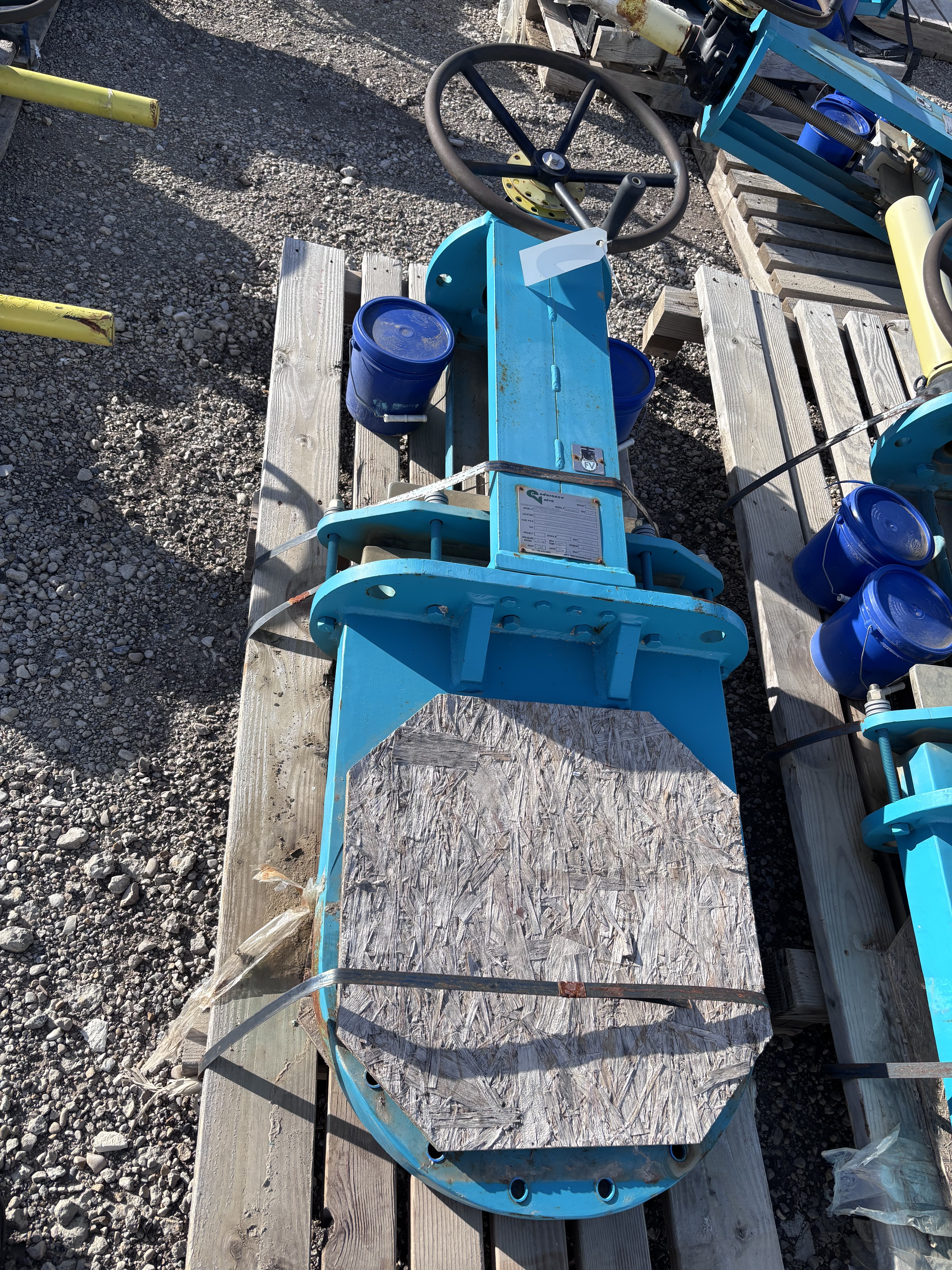

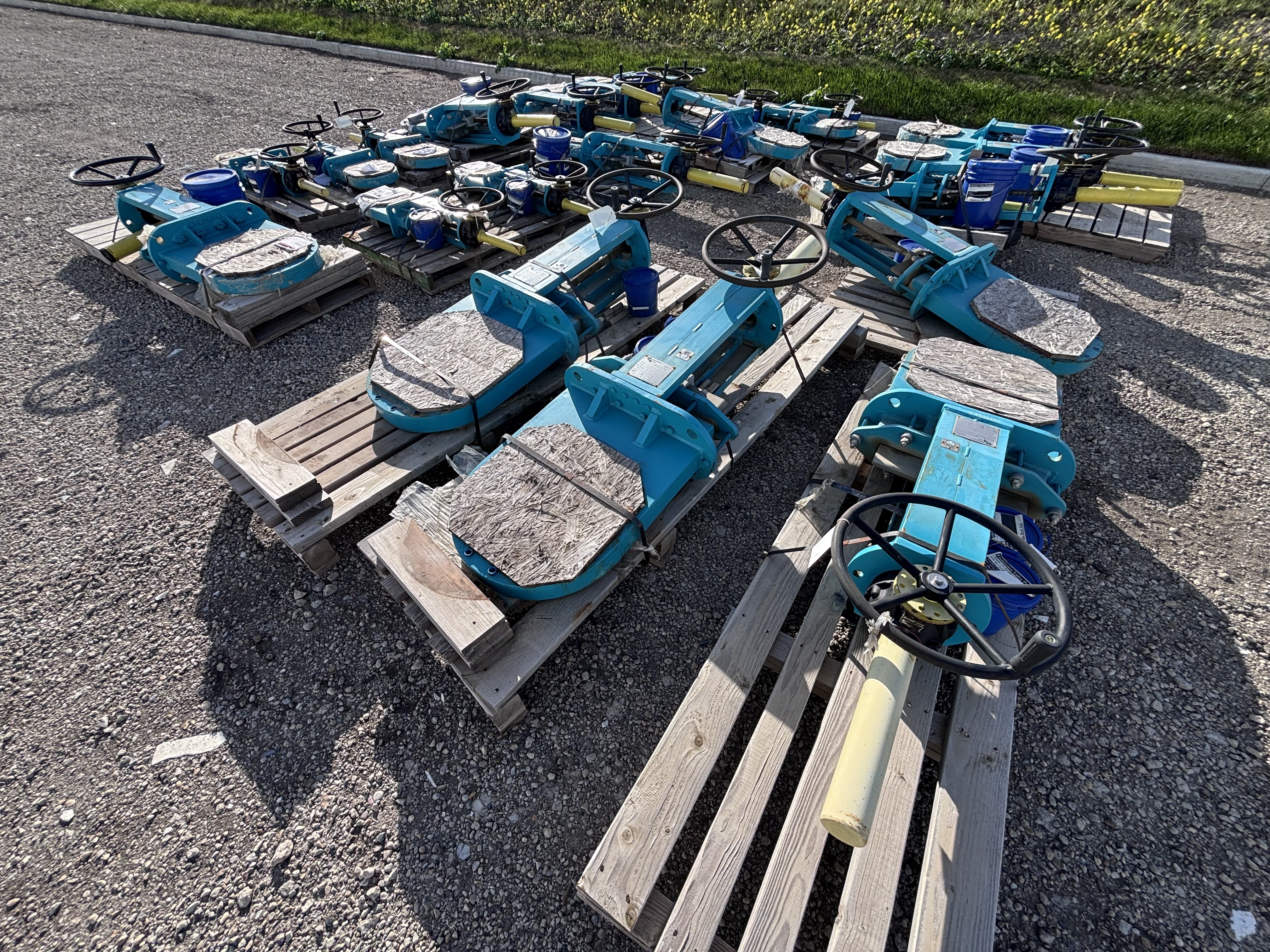

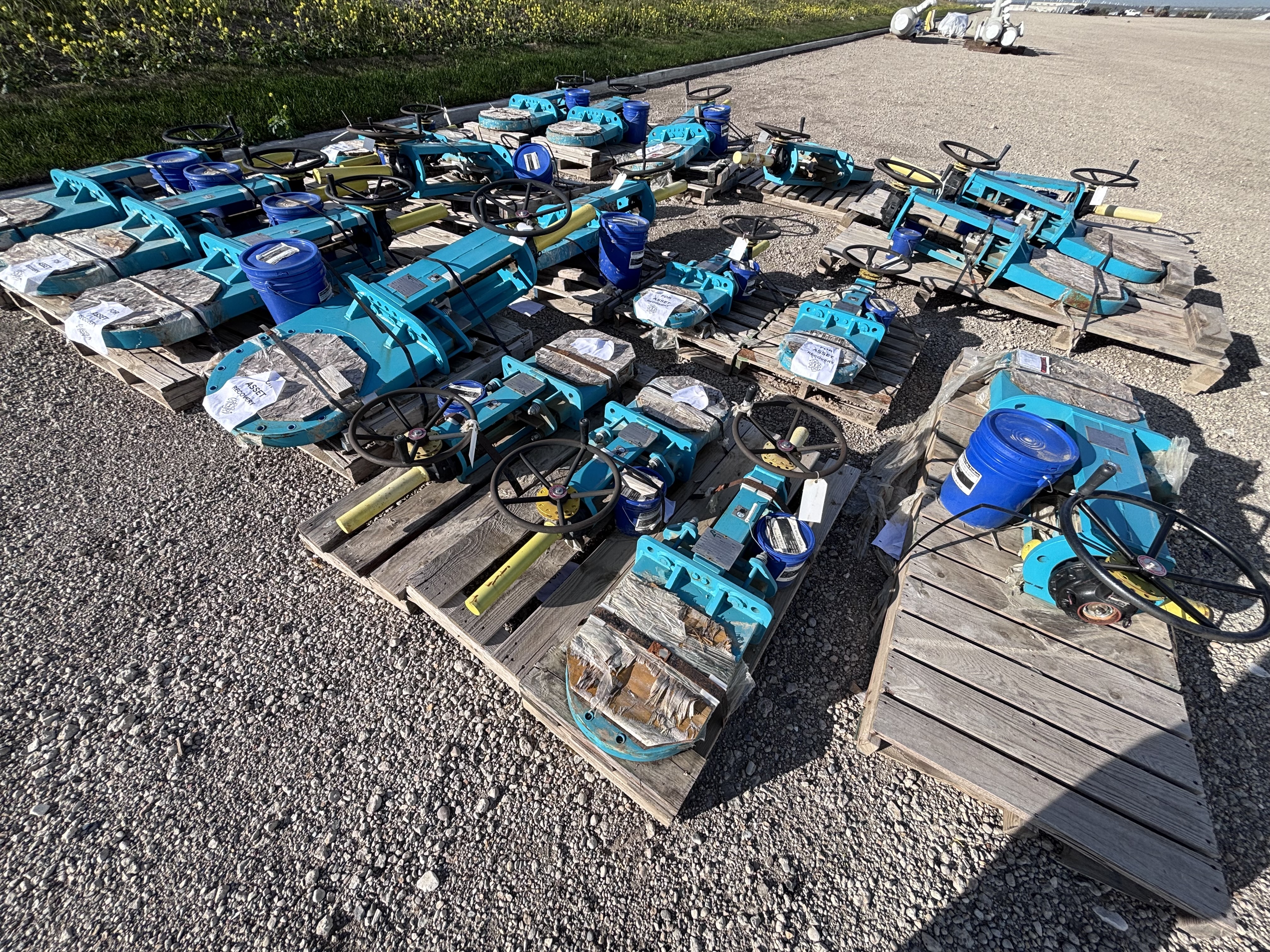

Lot Composition
| Lot group | Quantity | Primary-valve nameplate weight |
| 10 in. Endurance knife gate valves | 7 | 2,100 lb |
| 16 in. Endurance knife gate valves | 14 | 13,600 lb |
| Total package | 21 | 15,700 lb / approximately 7,121 kg |
The total is the sum of the primary-valve nameplate weights. It excludes pallets, protective covers, loose hardware, rigging, and unrecorded accessories.

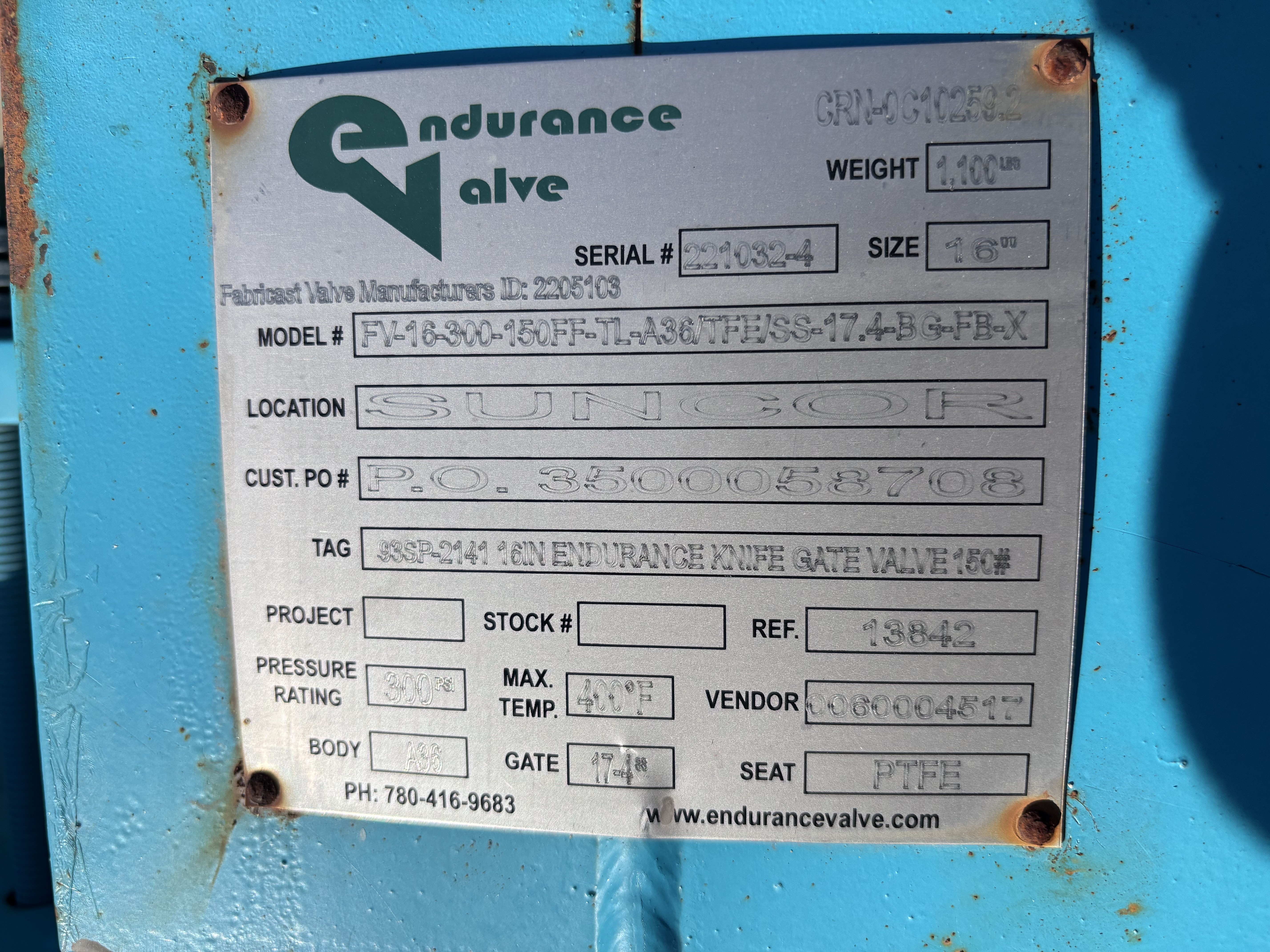

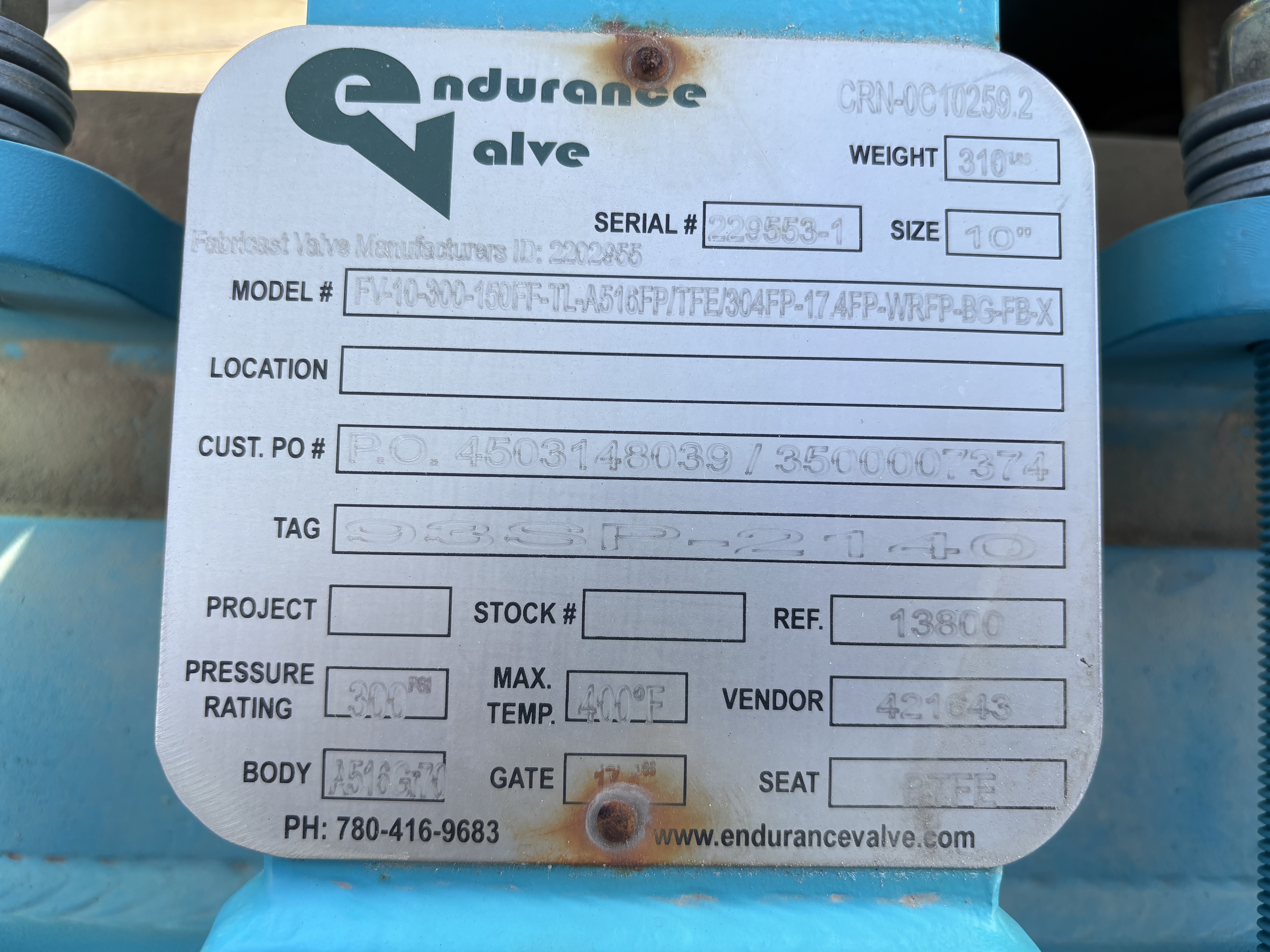

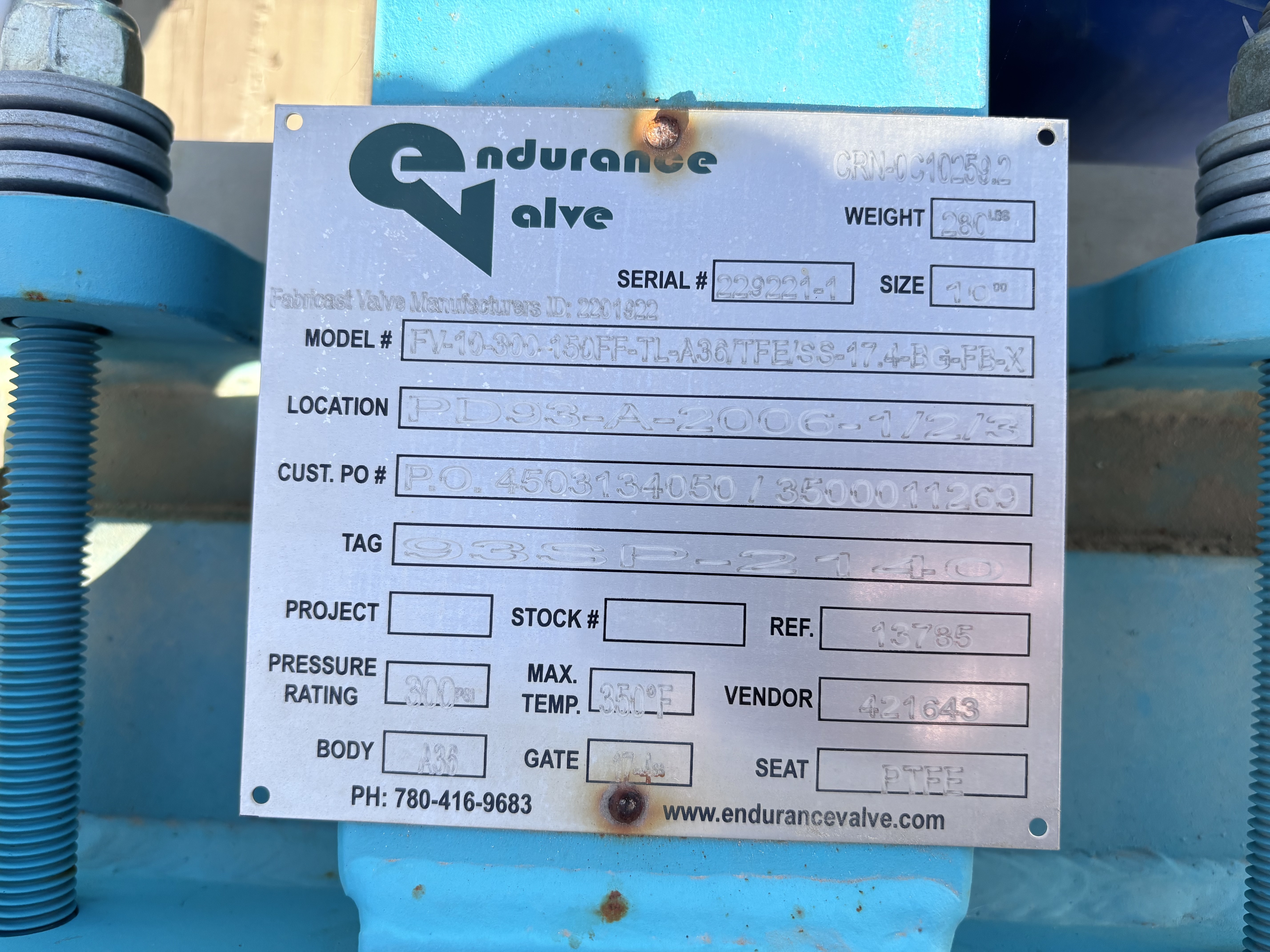

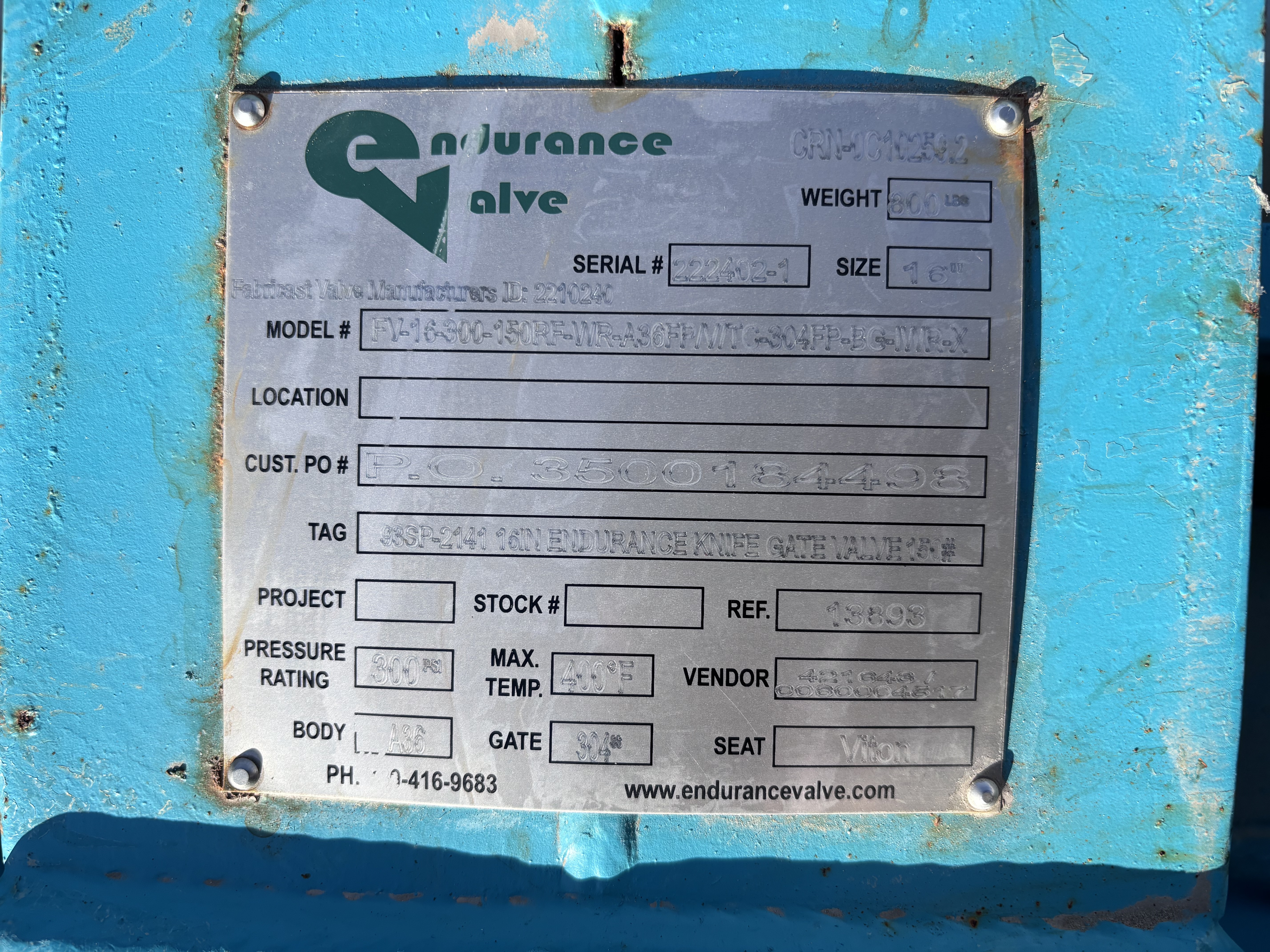

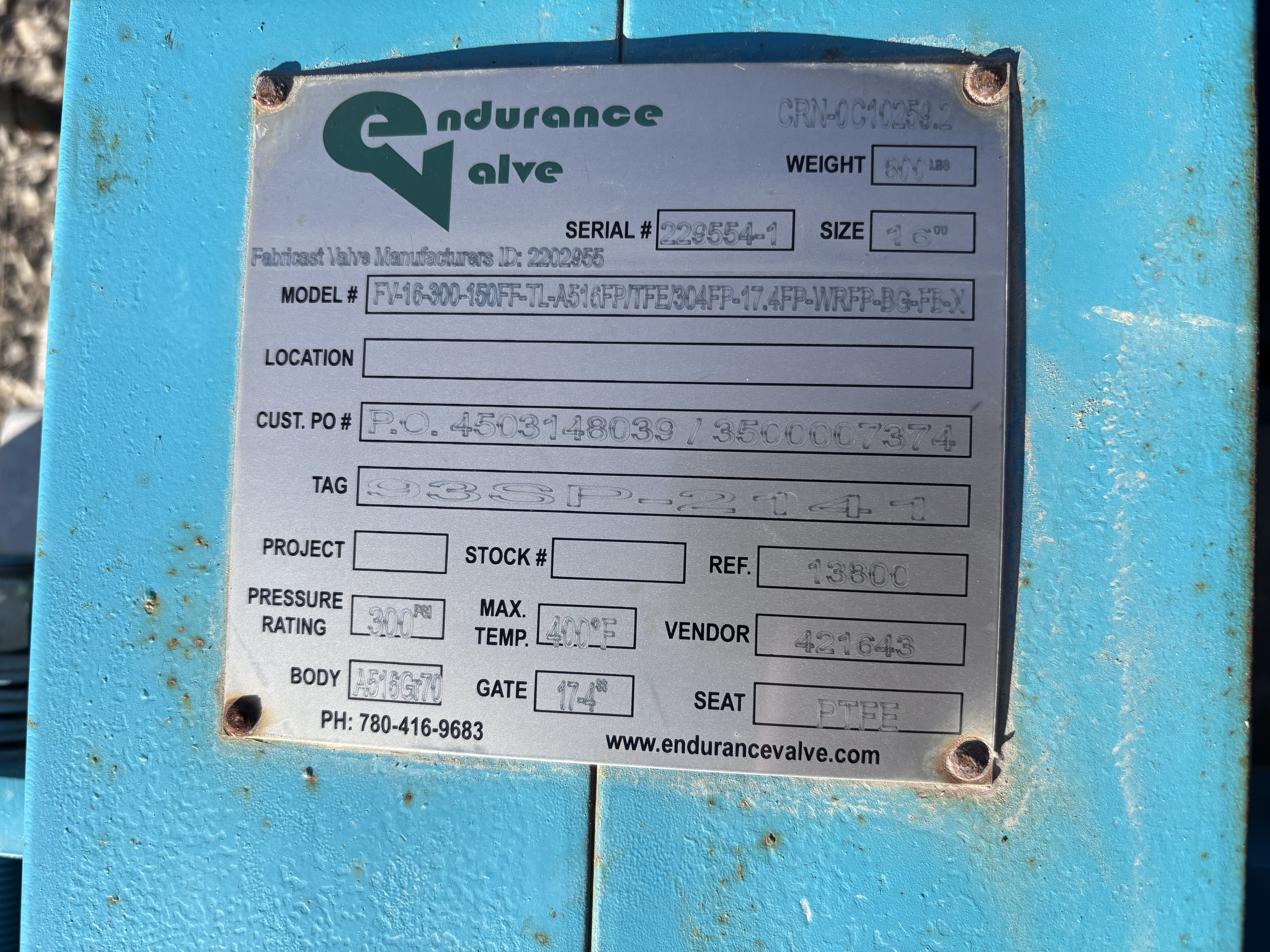

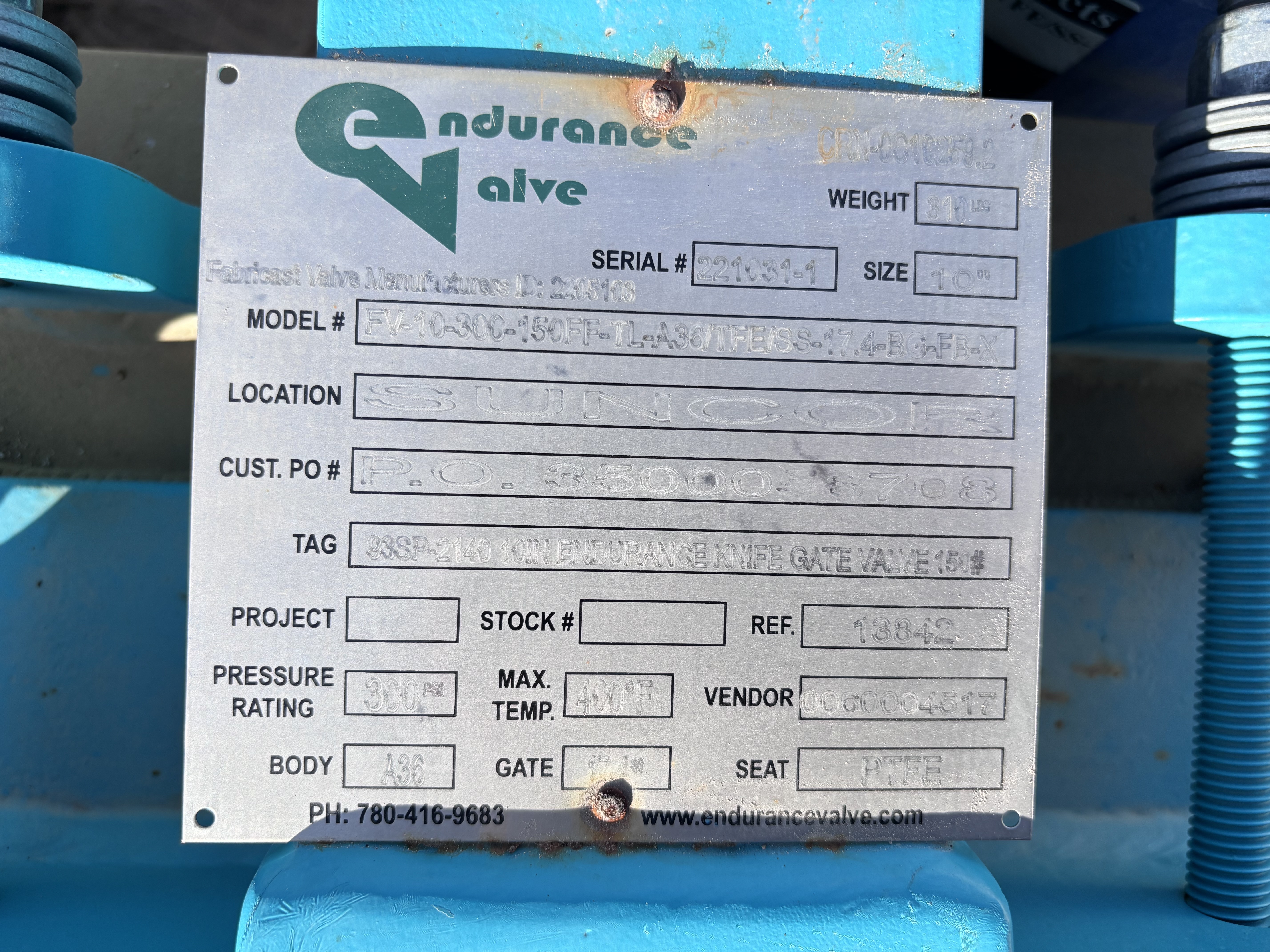

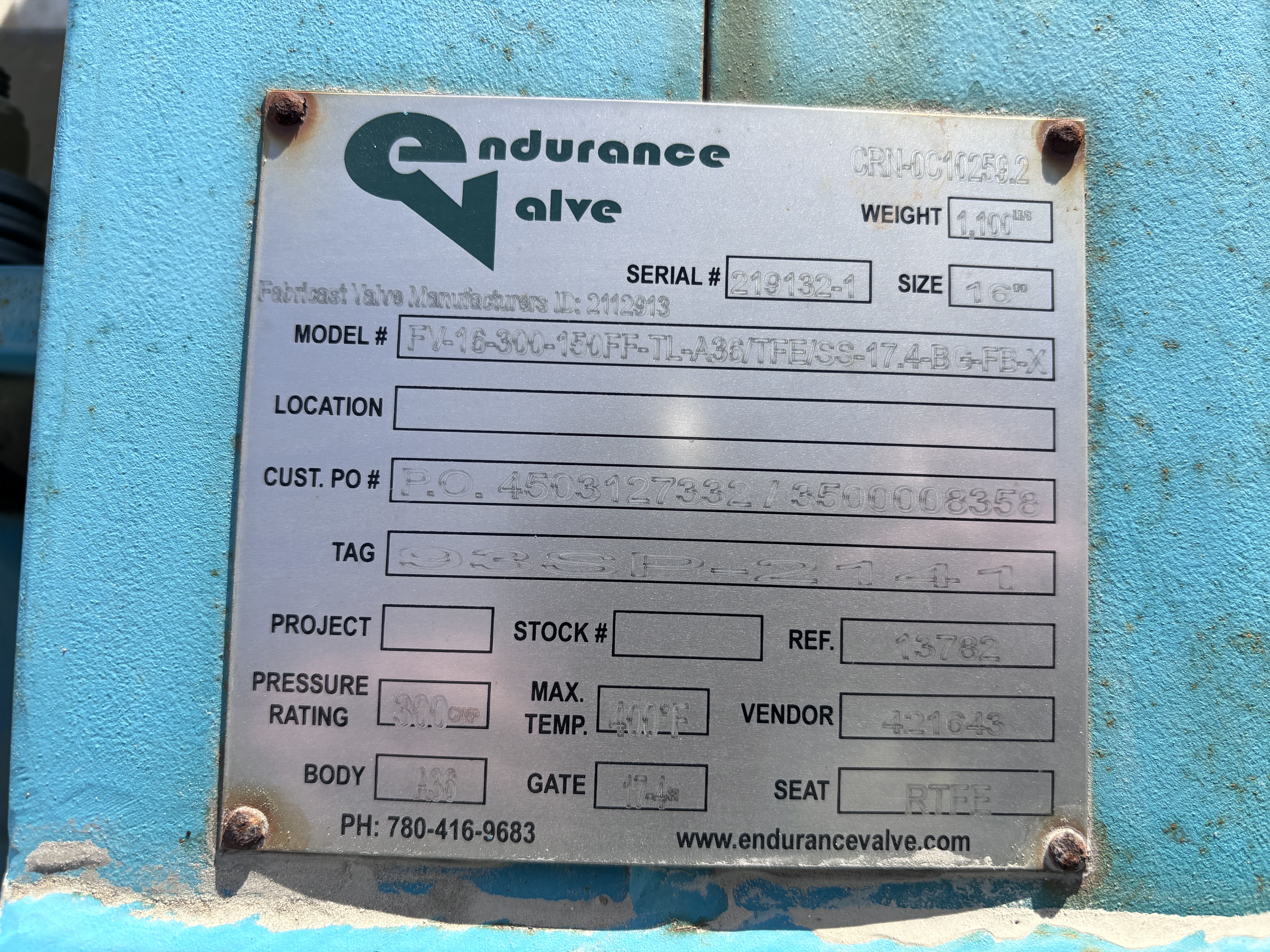

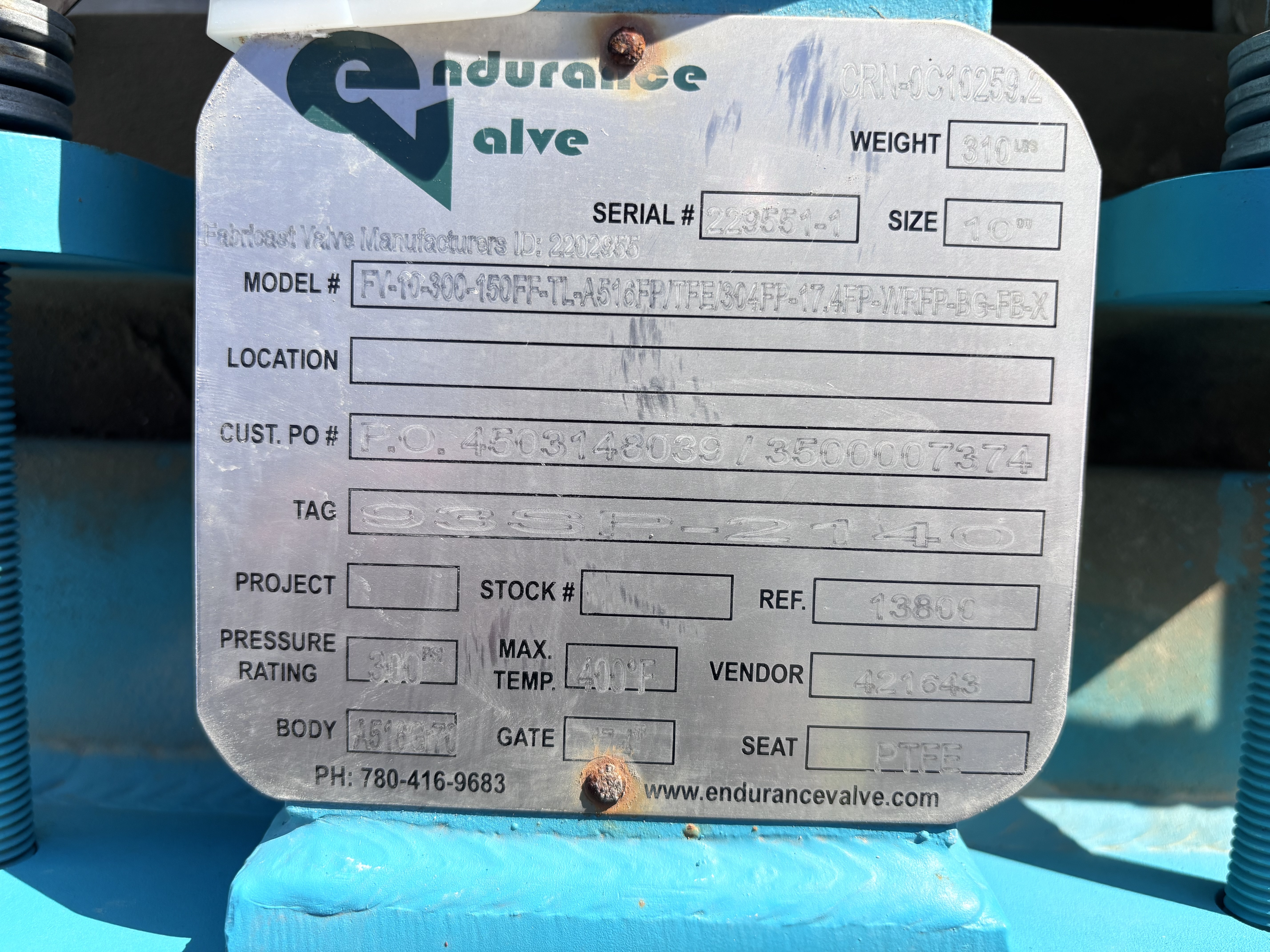

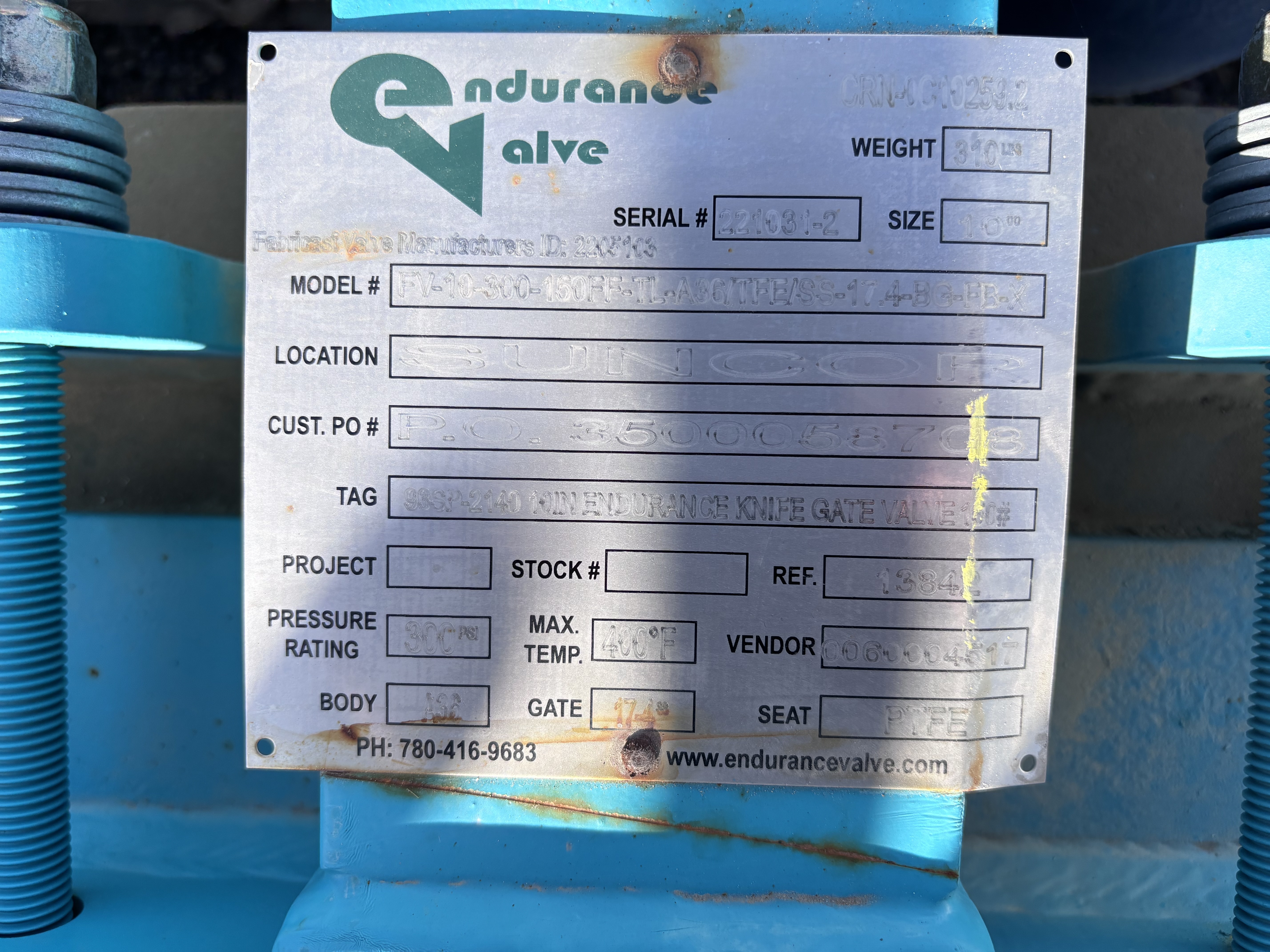

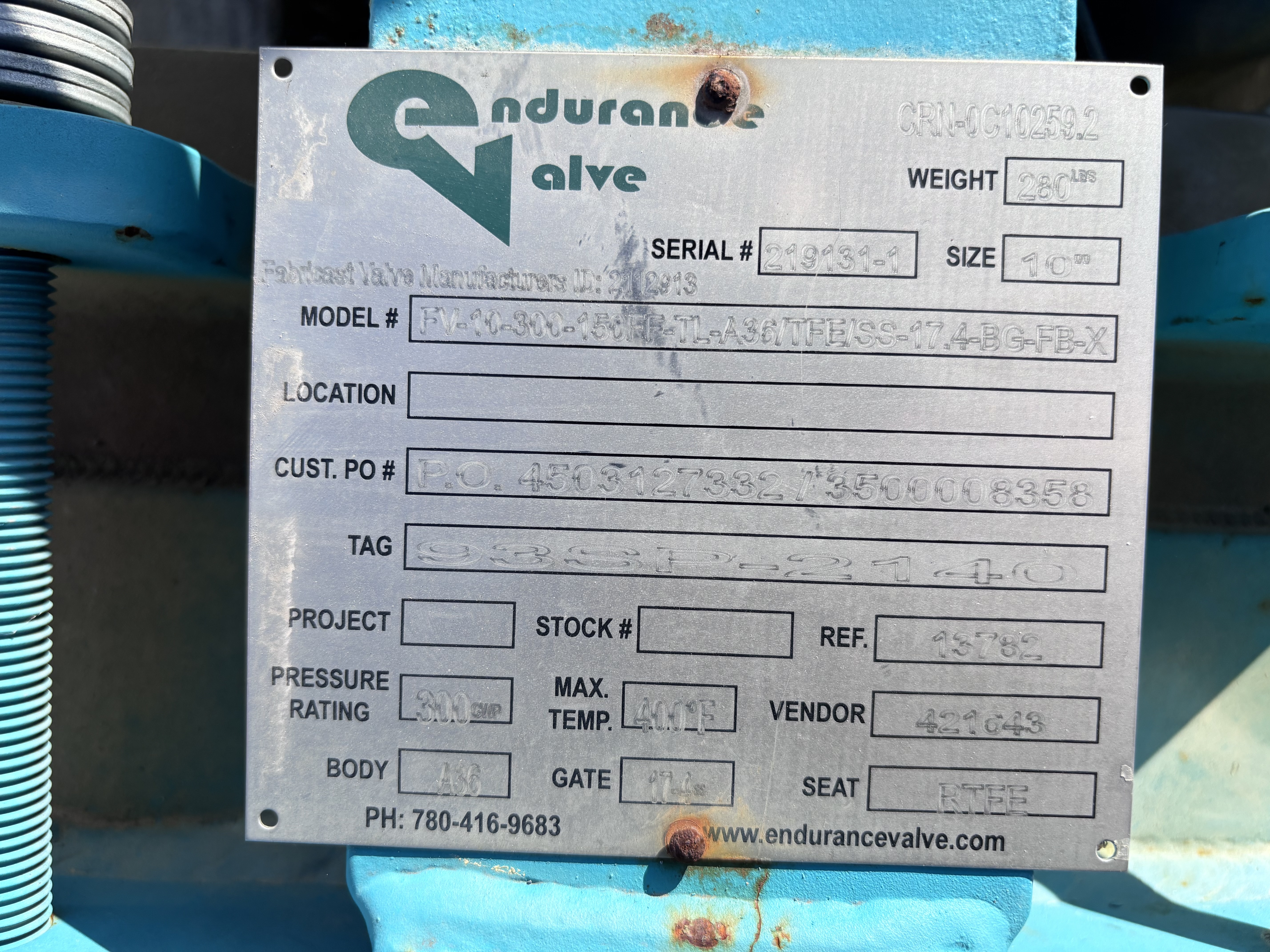

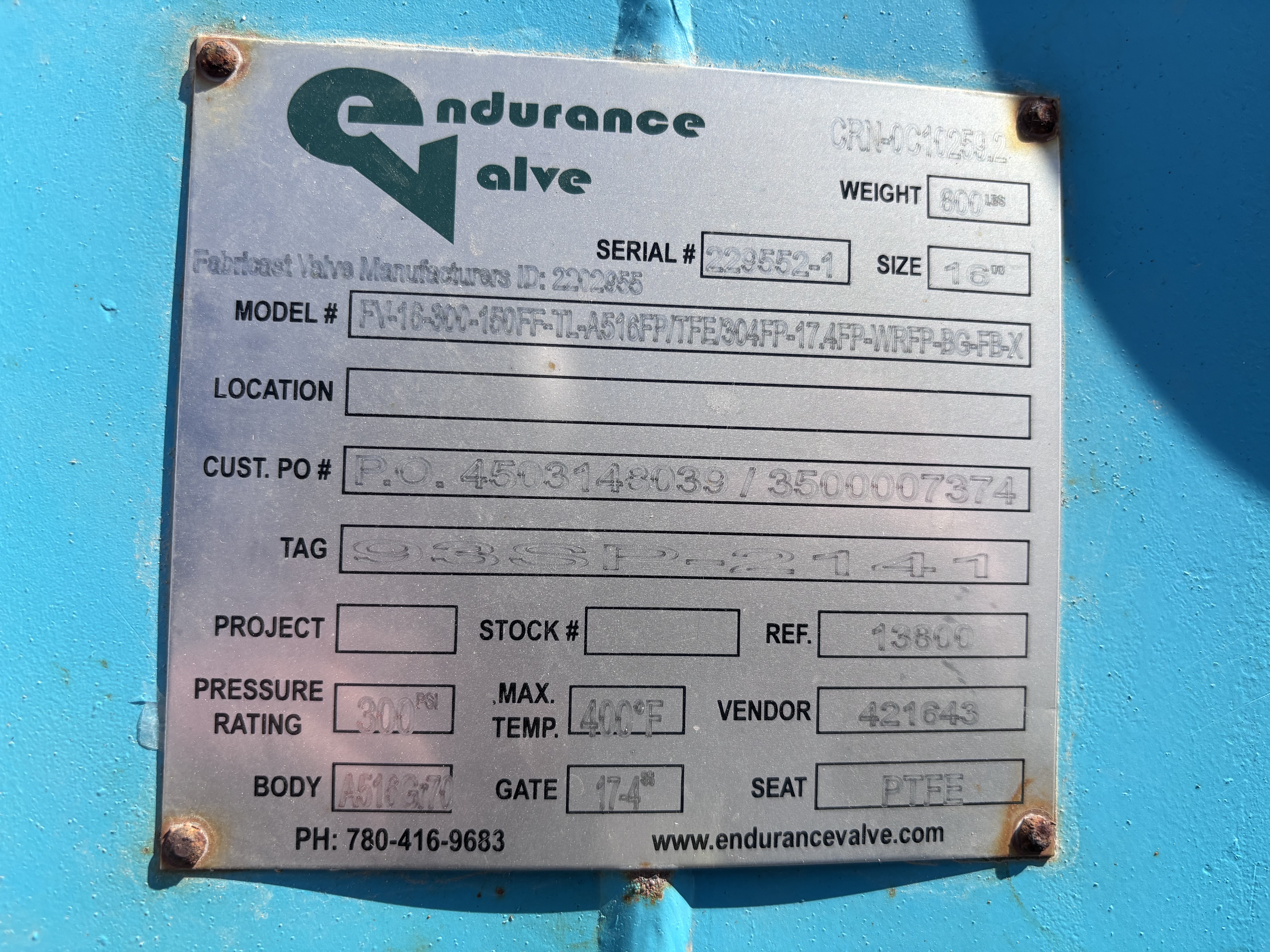

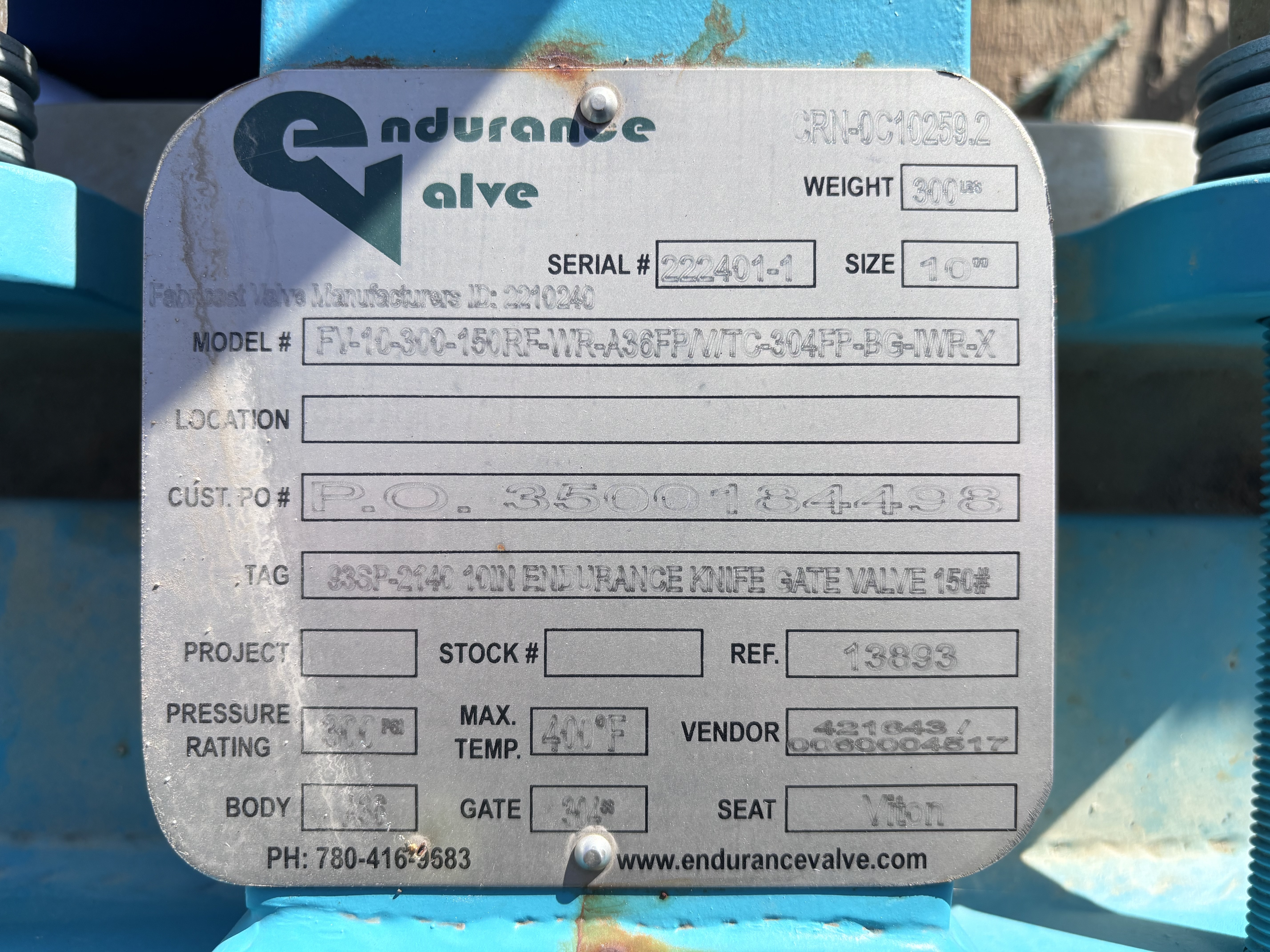

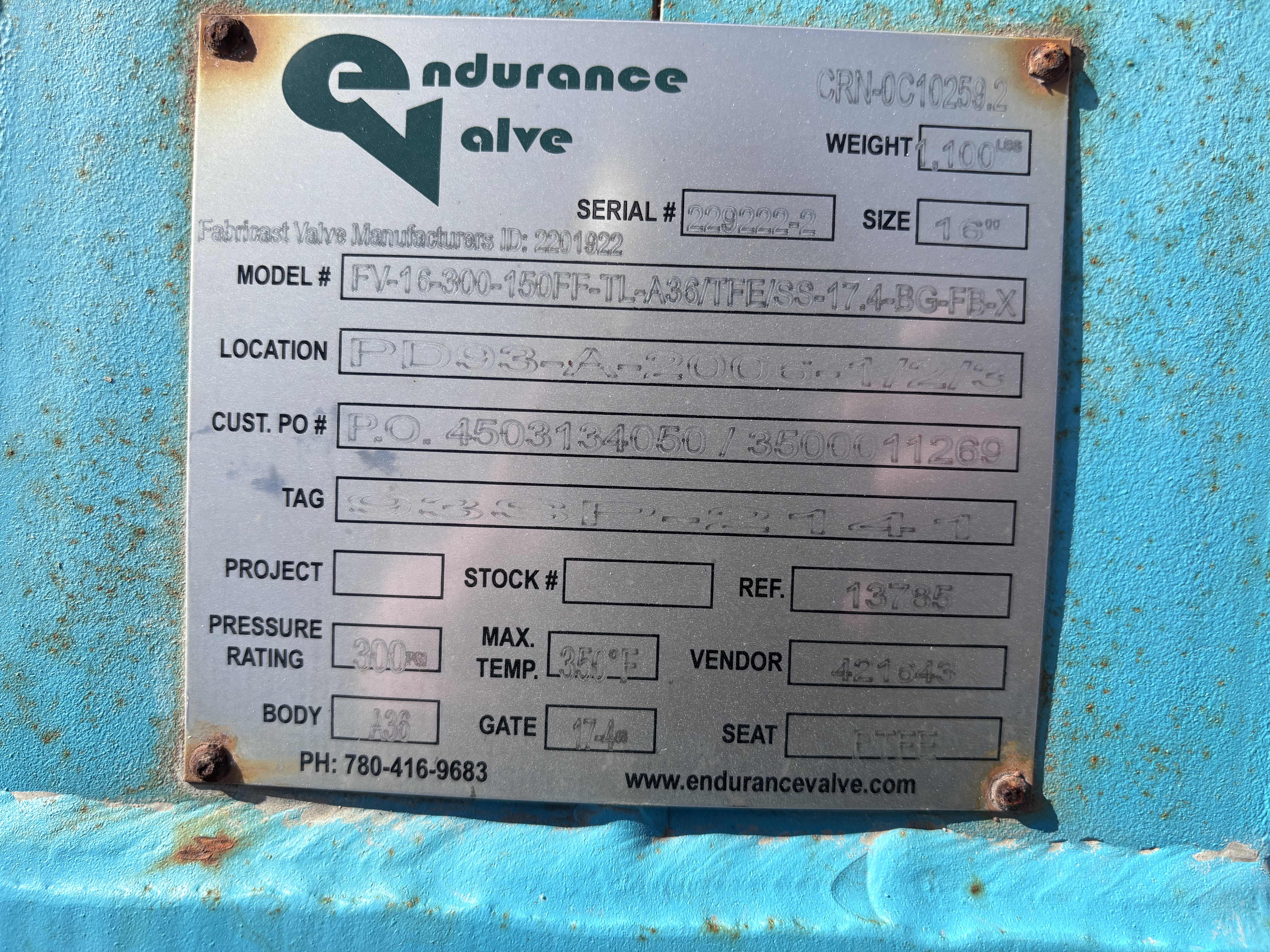

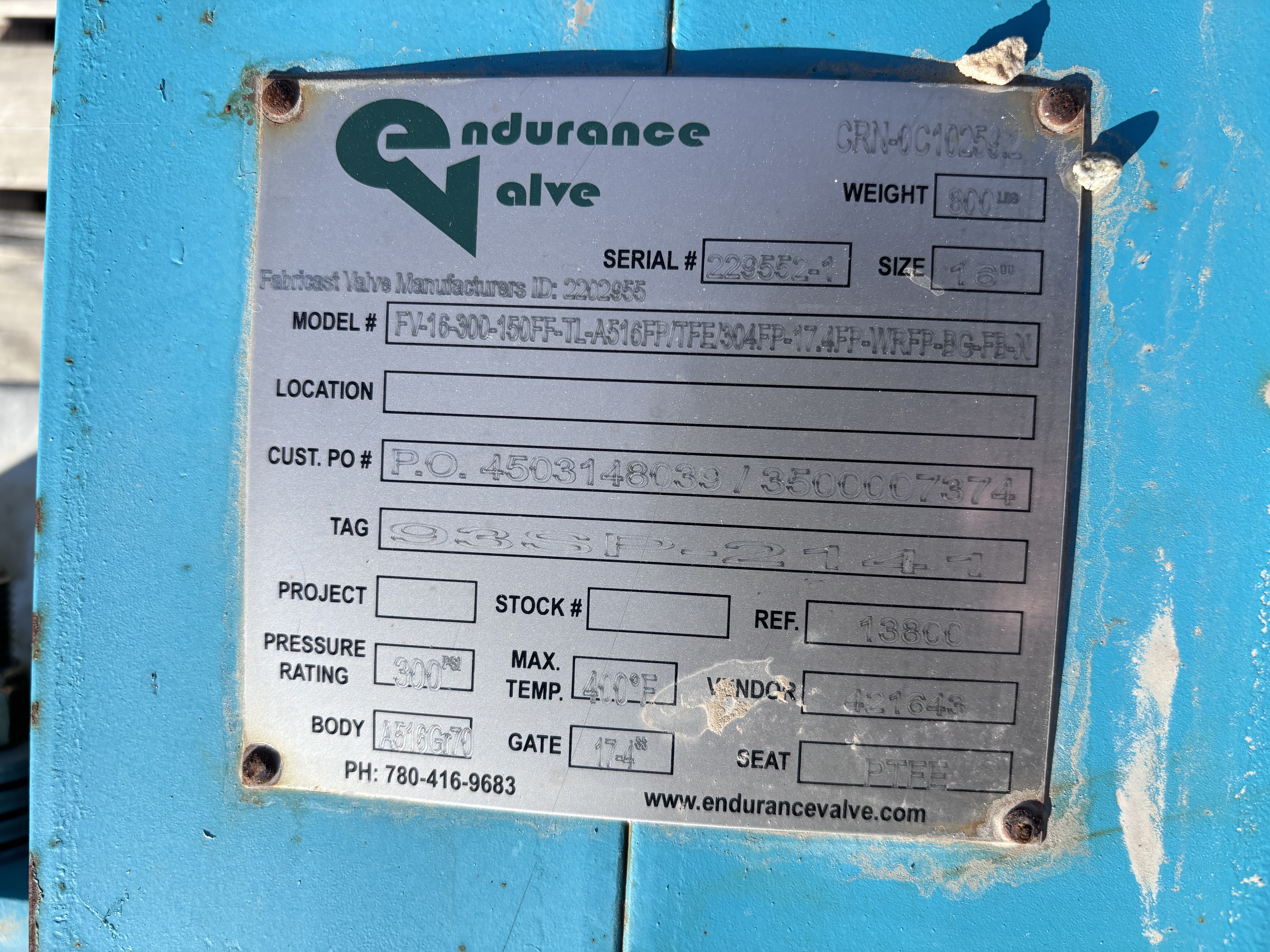

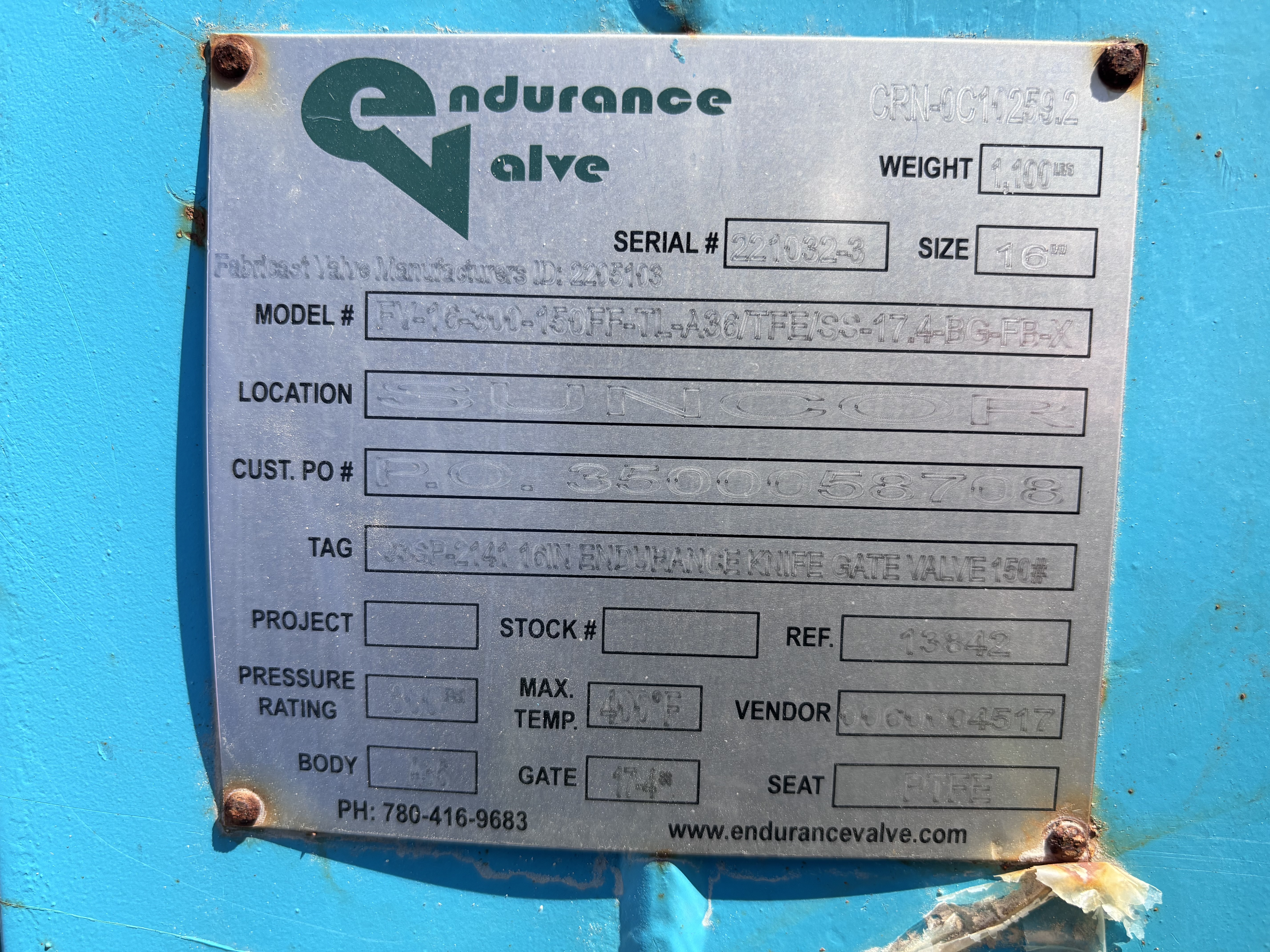

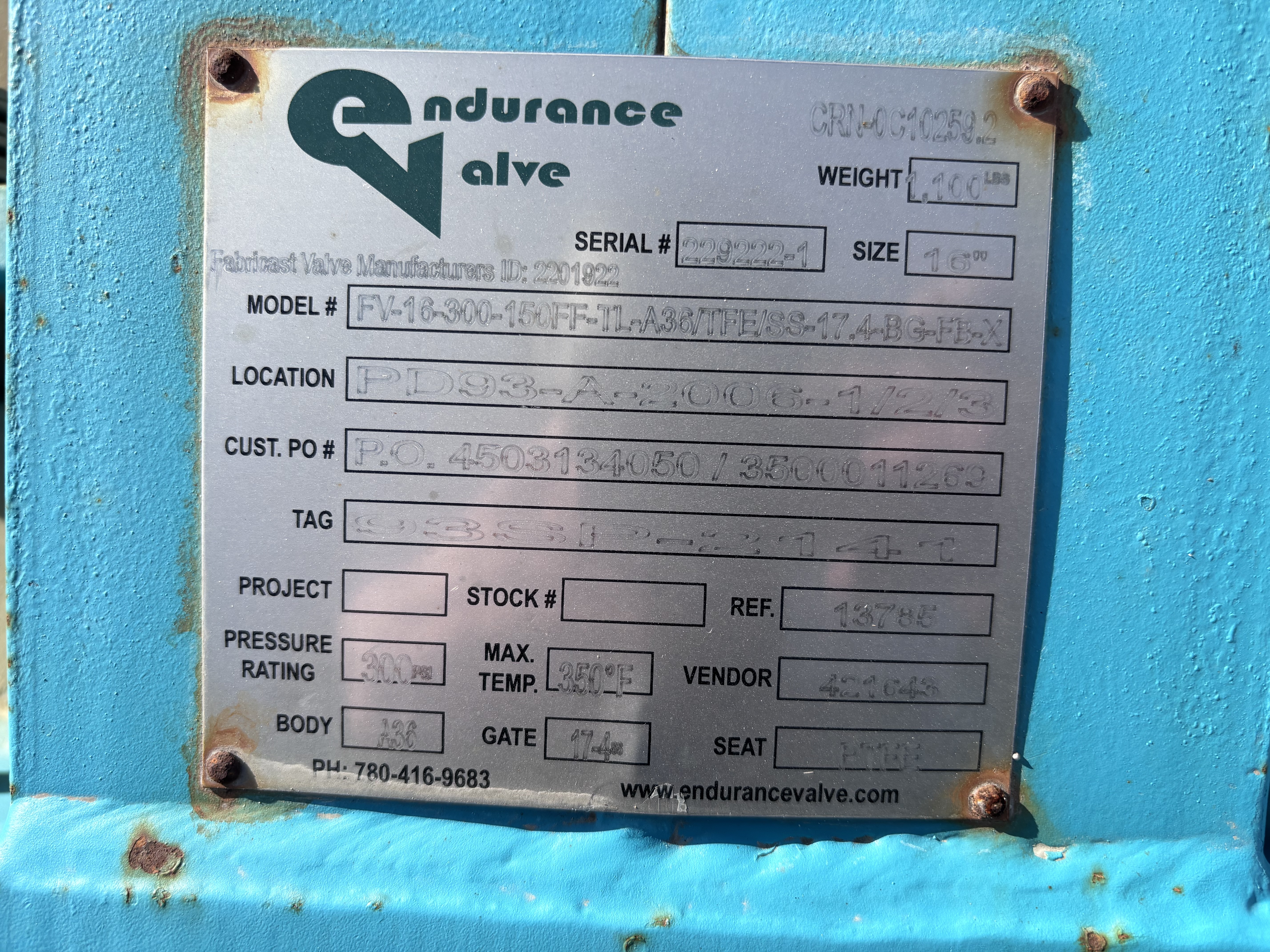

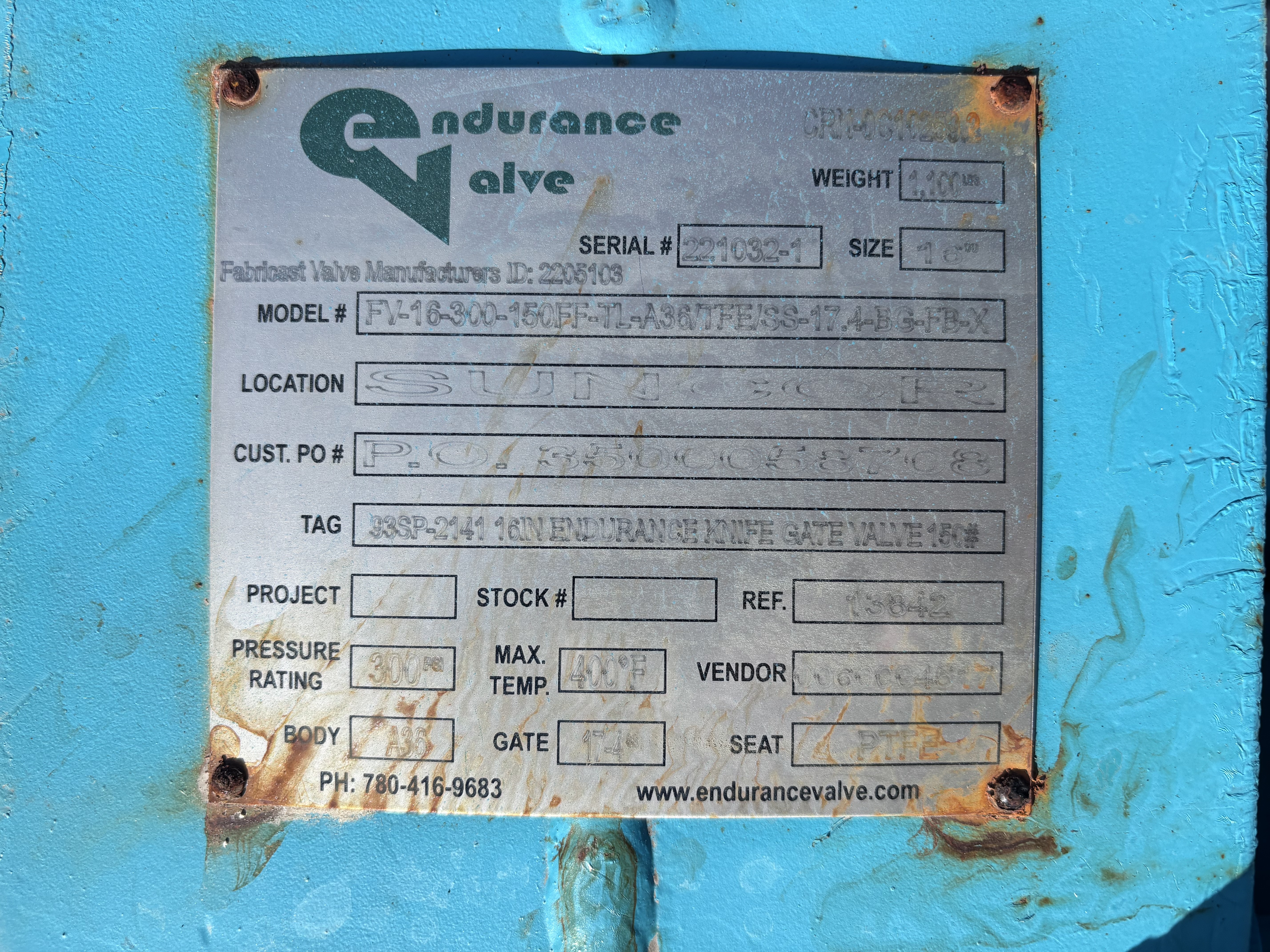

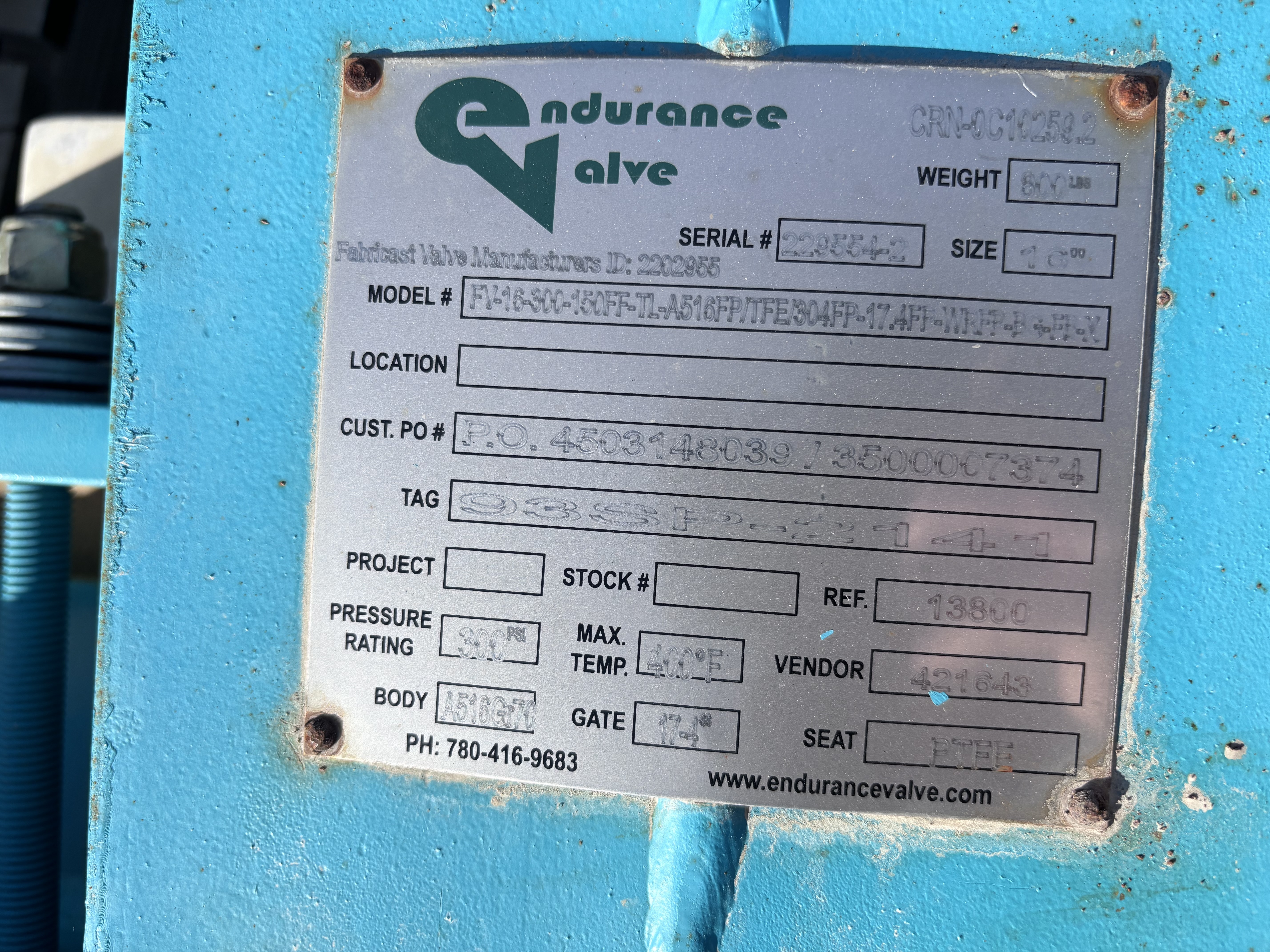

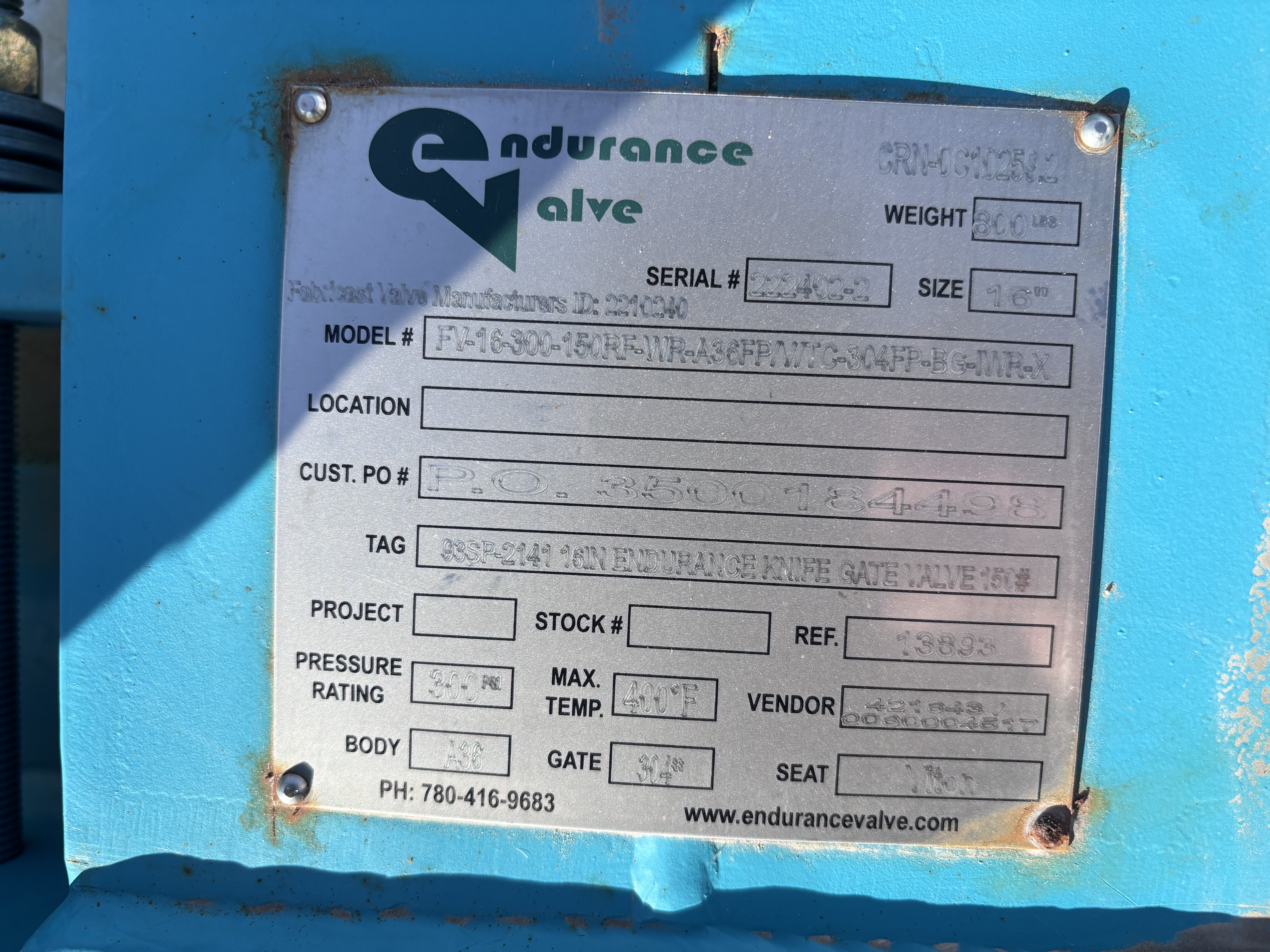

Verified Nameplate Data
The supplied plate data varies by unit and includes:
•Sizes: 10 in. and 16 in.
•Pressure fields: 18 × 300 PSI and 3 × 300 CWP.
•Maximum-temperature fields: 3 × 350 °F, 17 × 400 °F, and 1 × 400 °F.
•Body-material markings: A36, A516 Gr70, A516Gr70.
•Gate-material markings: 17-4, 17-4 SS, 17-4PH, 17-4SS, 17-4ss, 17.4, 17.4 ss, 17.4ss, 304SS, 304ss.
•Seat-material markings: PTFE, RTFE, Viton.
Model-Code Mix
| Full model code | Quantity |
| FV-10-300-150FF-TL-A36/TFE/SS-17.4-BG-FB-X | 4 |
| FV-10-300-150FF-TL-A516FP/TFE/304FP-17.4FP-WRFP-BG-FB-X | 2 |
| FV-10-300-150RF-WR-A36FP/V/TC-304FP-BG-IWR-X | 1 |
| FV-16-300-150FF-TL-A36/TFE/SS-17.4-BG-FB-X | 8 |
| FV-16-300-150FF-TL-A516FP/TFE/304FP-17.4FP-WRFP-BG-FB-X | 4 |
| FV-16-300-150RF-WR-A36FP/V/TC-304FP-BG-IWR-X | 2 |

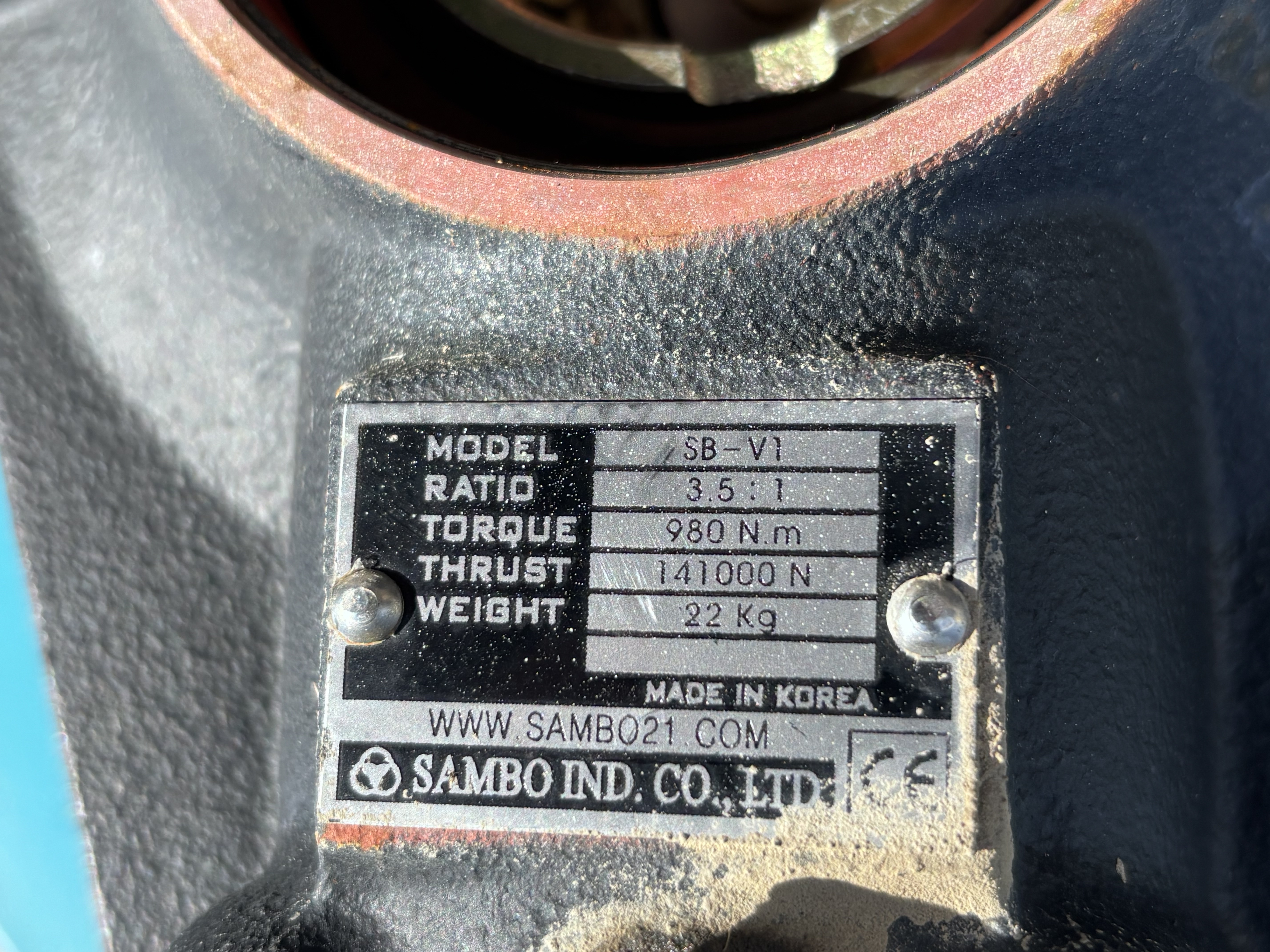

Supplemental Handwheel-End Operator Plates
Two supplemental SAMBO operator/gearbox plates are included in the close-up source set. They are associated in the record with the following valves:
| Associated valve serial | Operator/gearbox plate data |

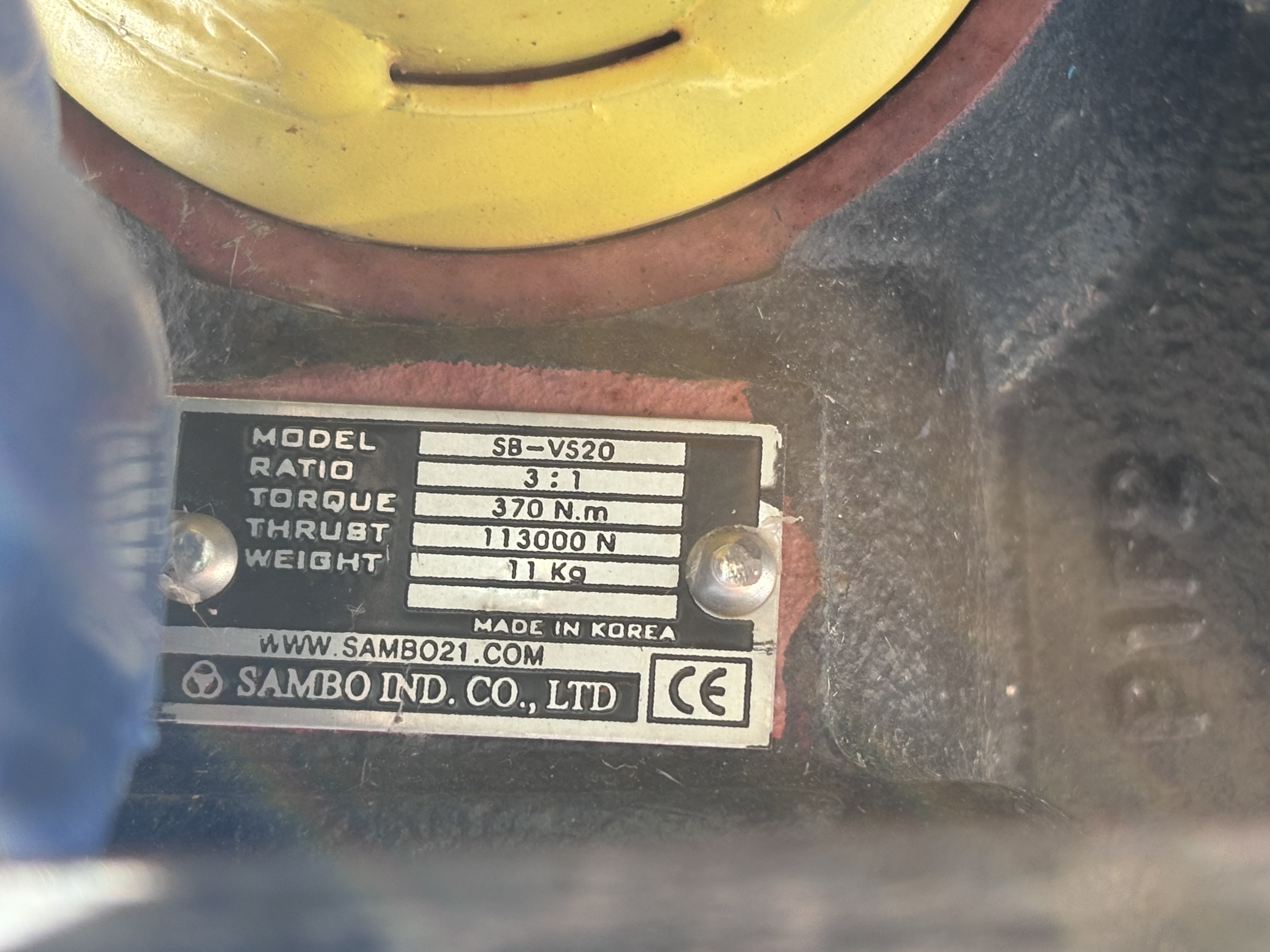

| 229553-1 | SAMBO SB-VS20; 3:1 ratio; 370 N·m torque; 113,000 N thrust; 11 kg plate weight. |
| 229222-1 | SAMBO SB-V1; 3.5:1 ratio; 980 N·m torque; 141,000 N thrust; 22 kg plate weight. |
