Philadelphia Gear 1400DHVT Gear Drive & Associated Spares — 8-Item Lot
Supporting Documents (1)
library_books
Offered as one 8-item surplus package: a physically identified Philadelphia Gear 1400DHVT gear drive together with seven separately inventoried associated gear-drive components.
Listing Summary

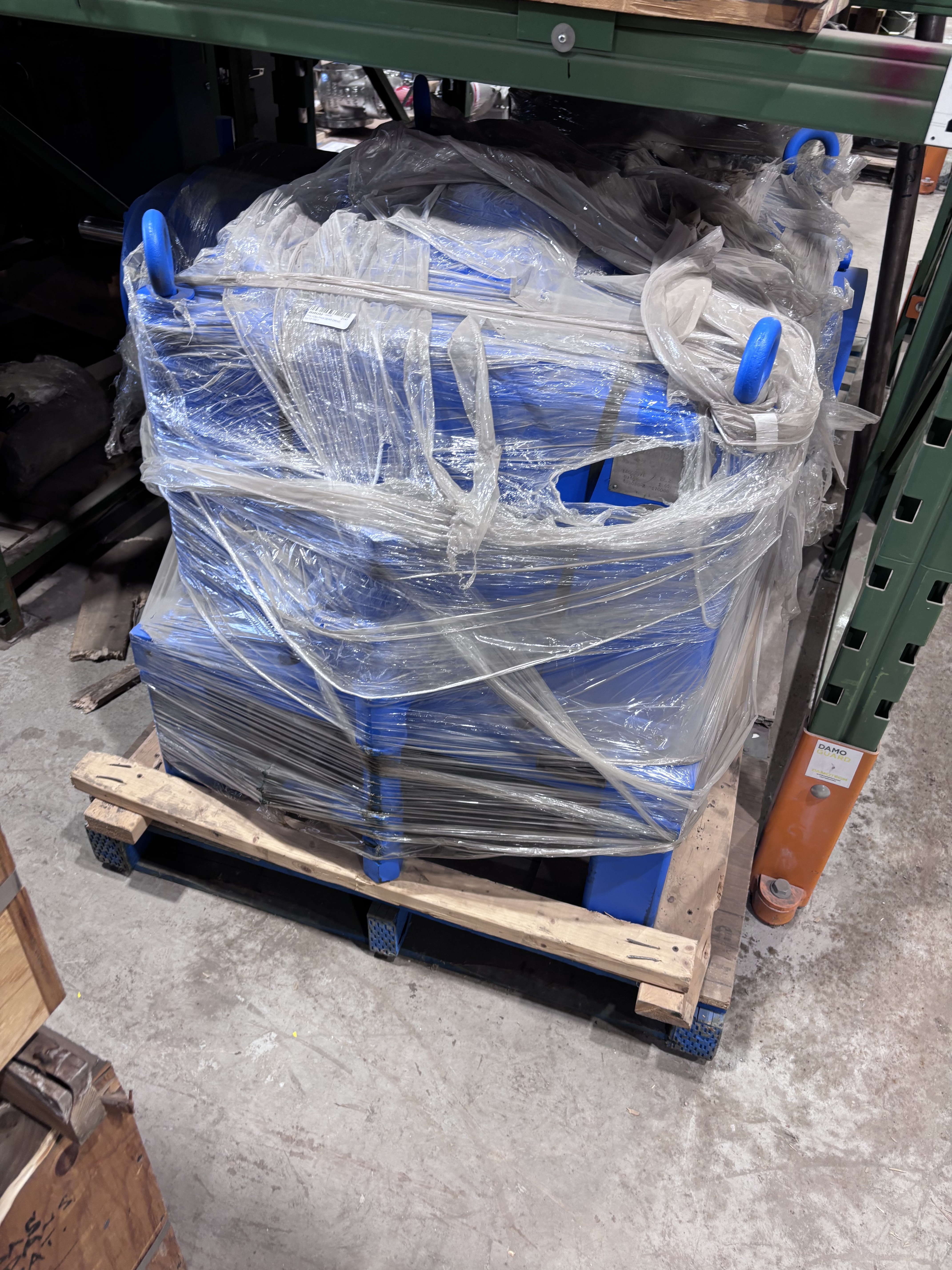

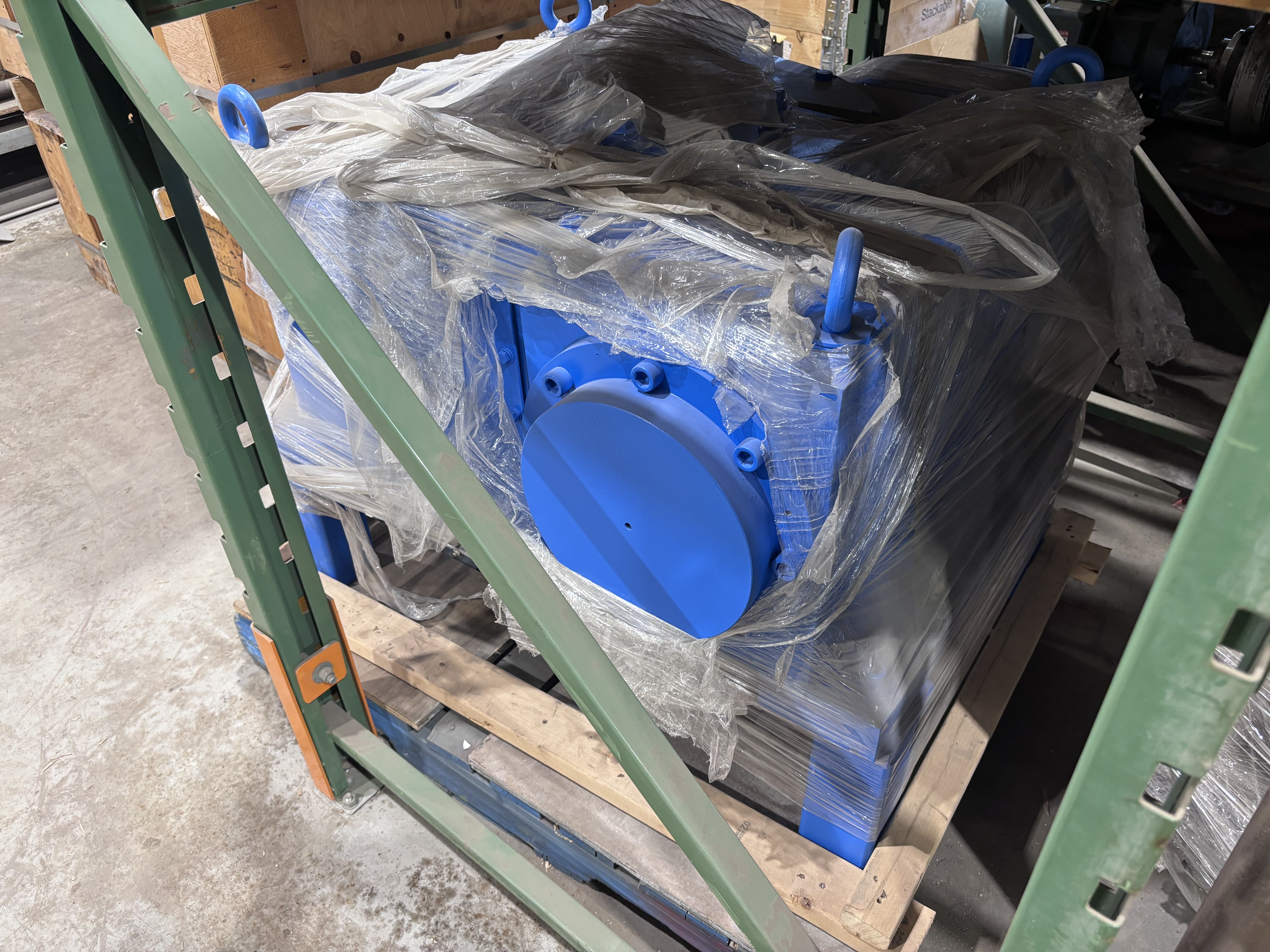

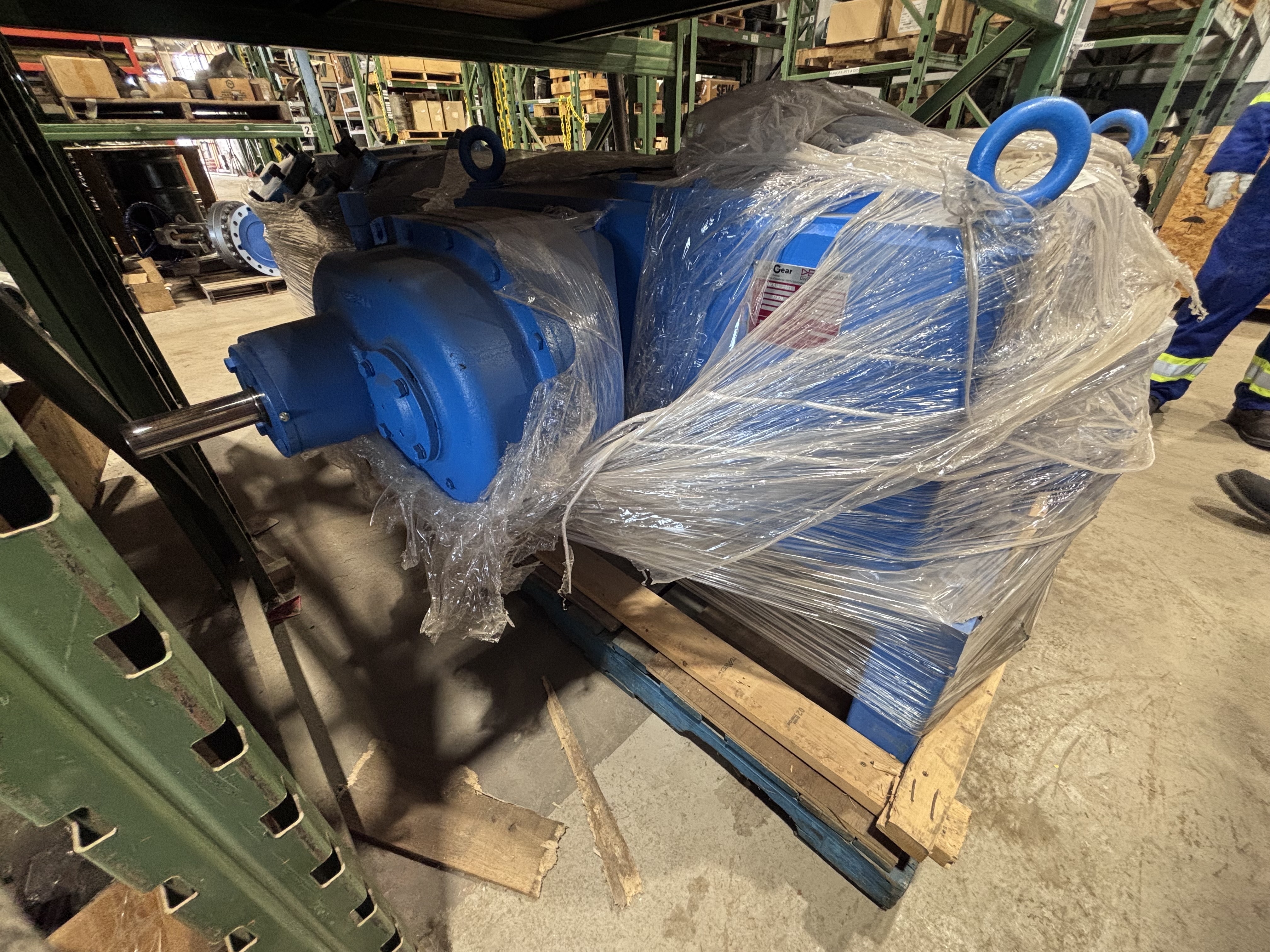

Offered as one 8-item surplus package: a physically identified Philadelphia Gear 1400DHVT gear drive together with seven specifically identified drivetrain spare components. The photographed drive is skidded and wrapped. The complete package is stored in a temperature-controlled warehouse.

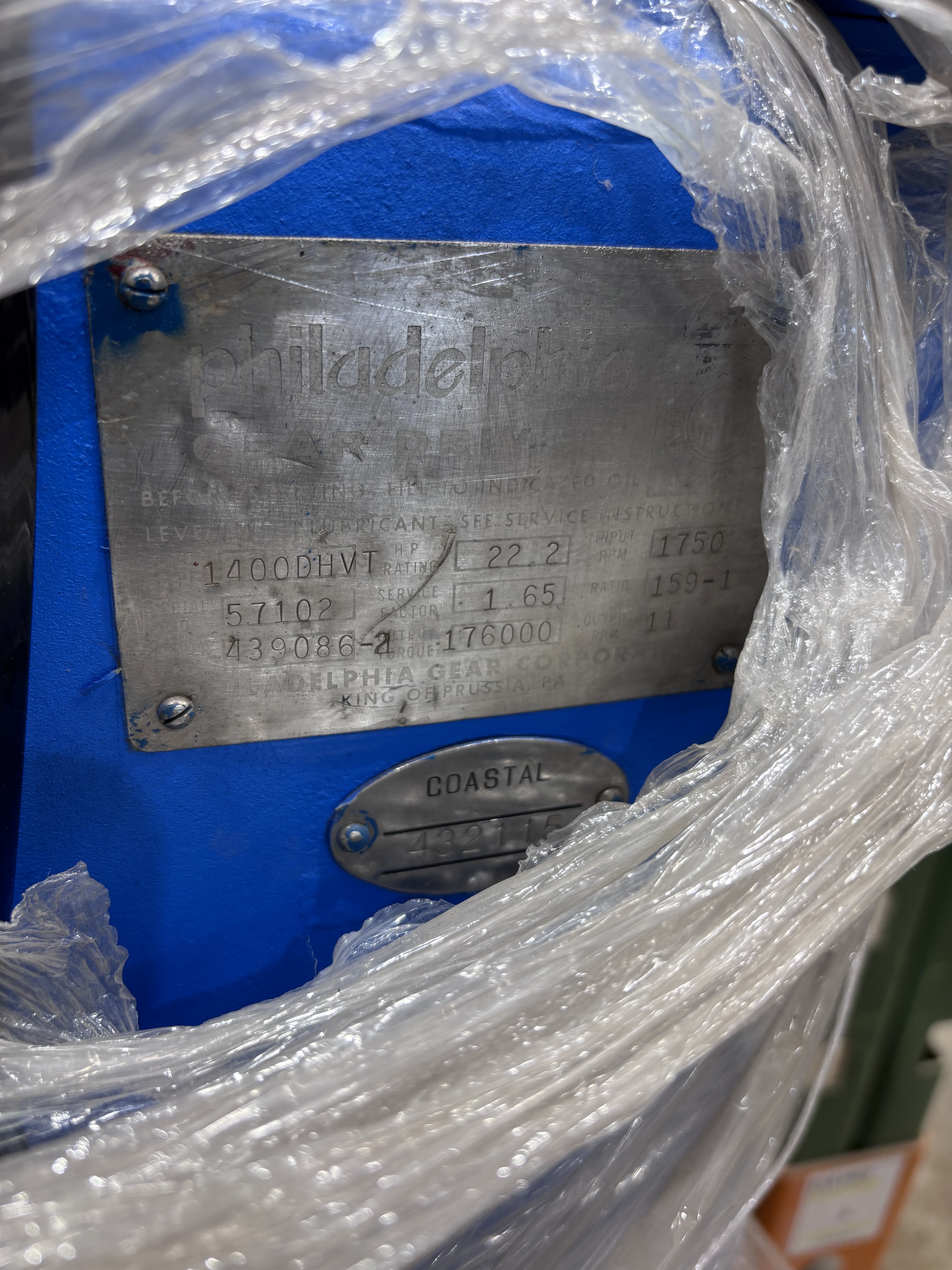

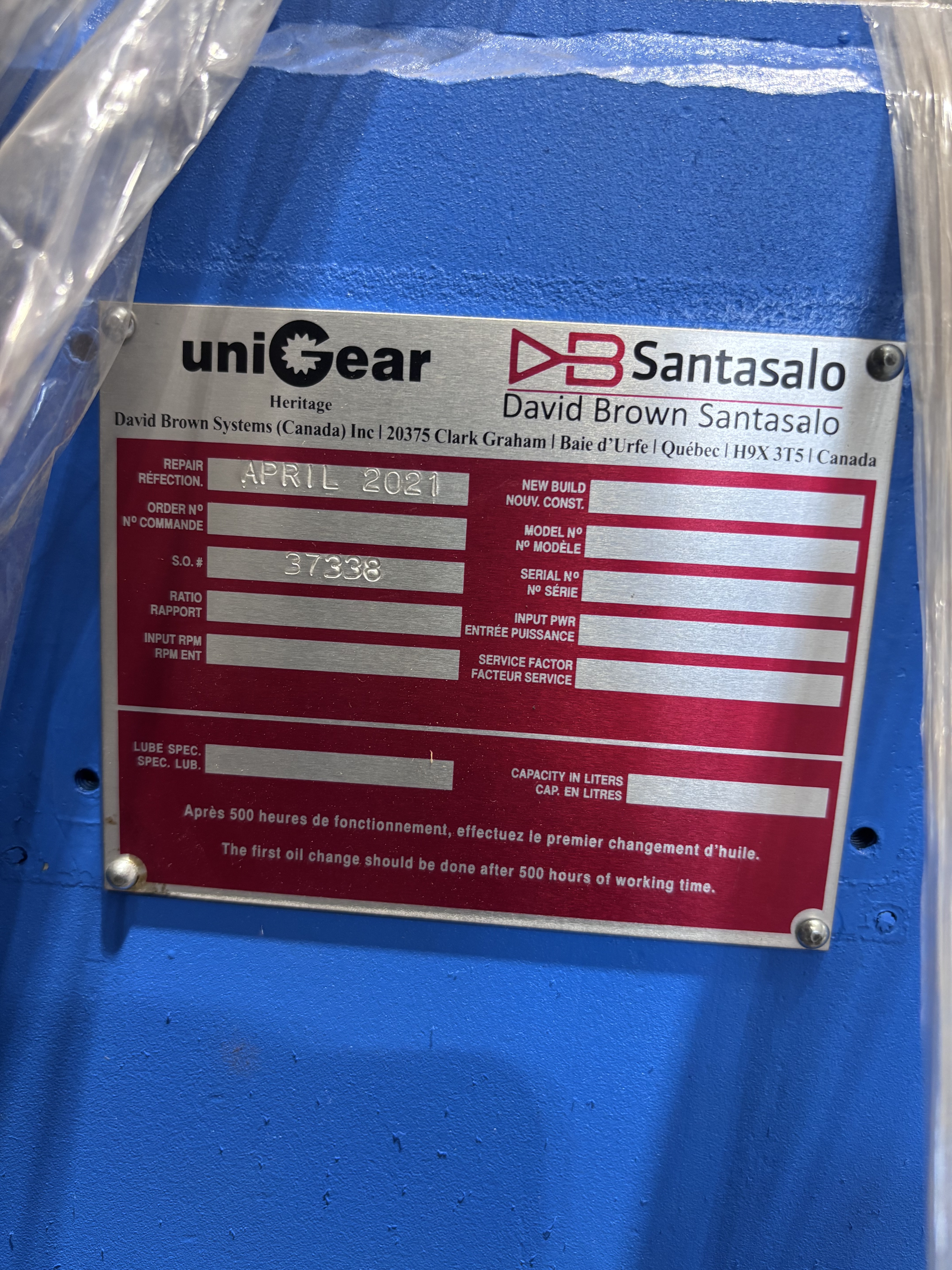

The drive nameplate identifies Model 1400DHVT, Serial 57102, with a 159:1 ratio, 22.2 HP rating, 1,750 RPM input, 176,000 in-lb rated torque, and 1.65 service factor. A repair plate on the drive records April 2021. The seven listed spares are available only as part of this lot; they have not been individually photographed for this listing.
Package Contents
| Qty. | Item | Part number | Description |
| 1 | Gear drive | Philadelphia Gear 1400DHVT, S/N 57102 | 159:1, high-torque industrial speed reducer; 22.2 HP rating; 1,750 RPM input; approximately 11 RPM calculated output. |
| 1 | Worm gear | 50135-0237 | Worm gear for the 1400DHVT reducer configuration. |
| 1 | Worm shaft | 50500-0209 | Worm shaft for the 1400DHVT reducer configuration. |
| 1 | Intermediate helical gear | 50105-0560 | Intermediate helical gear identified for the double-helical attachment configuration. |
| 1 | High-speed helical right-hand gear | 46035-7673 | Right-hand high-speed helical gear identified for the double-helical attachment configuration. |
| 1 | Intermediate helical pinion shaft | 46025-2810 | Intermediate helical pinion shaft identified for the double-helical attachment configuration. |
| 1 | High-speed shaft | 46046-6660 | High-speed shaft for the 1400DHVT reducer configuration. |
| 1 | High-speed helical pinion | 46024-7634 | High-speed helical pinion identified for the double-helical attachment configuration. |
Gear Drive Nameplate Data
| Specification | Verified detail |
| Manufacturer | Philadelphia Gear Corporation |
| Model / size-type | 1400DHVT |
| Serial number | 57102 |
| Ratio | 159:1 |
| Rated power | 22.2 HP |
| Input speed | 1,750 RPM |
| Calculated output speed | Approximately 11 RPM (1,750 ÷ 159) |
| Rated torque | 176,000 in-lb |
| Service factor | 1.65 |
| Repair plate | April 2021, David Brown Santasalo / UniGear Heritage branded plate |
