Komatsu Genuine Parts Wiring Harness
Komatsu Genuine Parts Wiring Harness — P/N 419-06-A2201
Item Overview

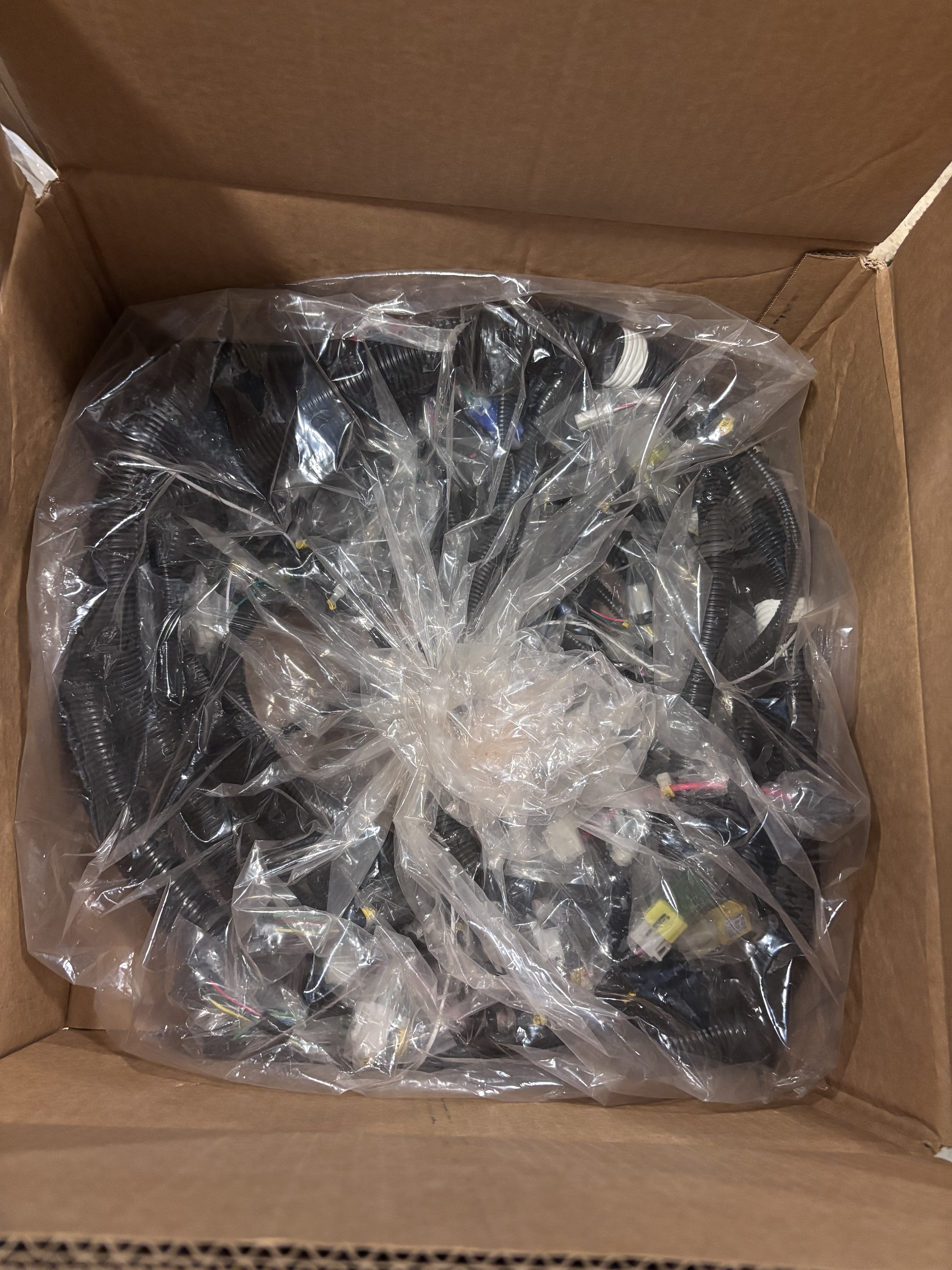

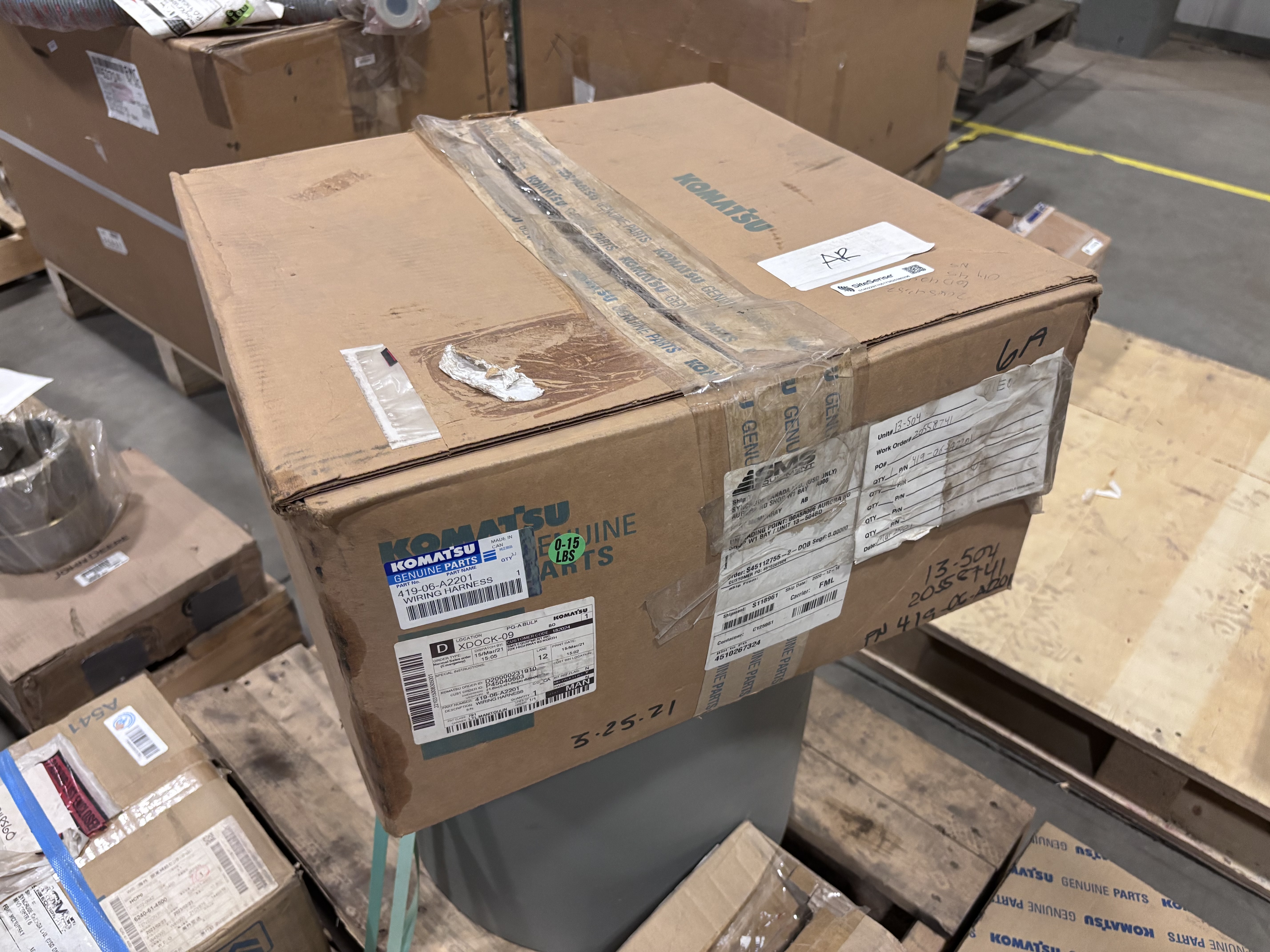

This is a new, factory-sealed Komatsu Genuine Parts Wiring Harness, part number 419-06-A2201, manufactured in Canada and ordered through SMS Equipment Inc. (Fort McMurray, Alberta) in March 2021. The harness is a full machine wiring assembly — a large coiled bundle of corrugated-sheathed wire looms with multiple multi-pin connectors, packaged in a 21" × 21" × 5" Komatsu OEM carton.
The part is confirmed in the Komatsu parts catalogue under the WA320-3MC (S/N A31001-UP) and WA420-3 wheel loader electrical system (Floor Wiring, Fig. K-A). The 419-06 prefix is standard across the Komatsu WA-series wheel loader electrical harness family. Buyers with WA320-3, WA380-3, or WA420-3 machines should verify fitment against their machine's serial number via the Komatsu parts catalogue or SMS Equipment.
Specifications
| Attribute | Detail |
| Part Number | 419-06-A2201 |
| Part Name | Wiring Harness (Harness, Wiring) |
| Manufacturer | Komatsu Genuine Parts |
| Country of Origin | Canada (Made in CAN) |
| Compatible Models | Komatsu WA320-3MC (S/N A31001-UP), WA420-3 Wheel Loaders |
| Application | Floor / Main Machine Wiring Harness |
| Box Dimensions | 21.0 in (L) × 21.0 in (W) × 5.0 in (H) |
| Weight | 0–15 lbs |
| Condition | New in OEM packaging |
| Komatsu Order ID | D20000231910 |
| Order Date | March 15, 2021 |
