200 gpm Single Stage Centrifugal Transfer Pump
Gorman-Rupp 82H52-B Basic Pedestal Self-Priming Centrifugal Pump | 2" x 2" | New in Box
Description

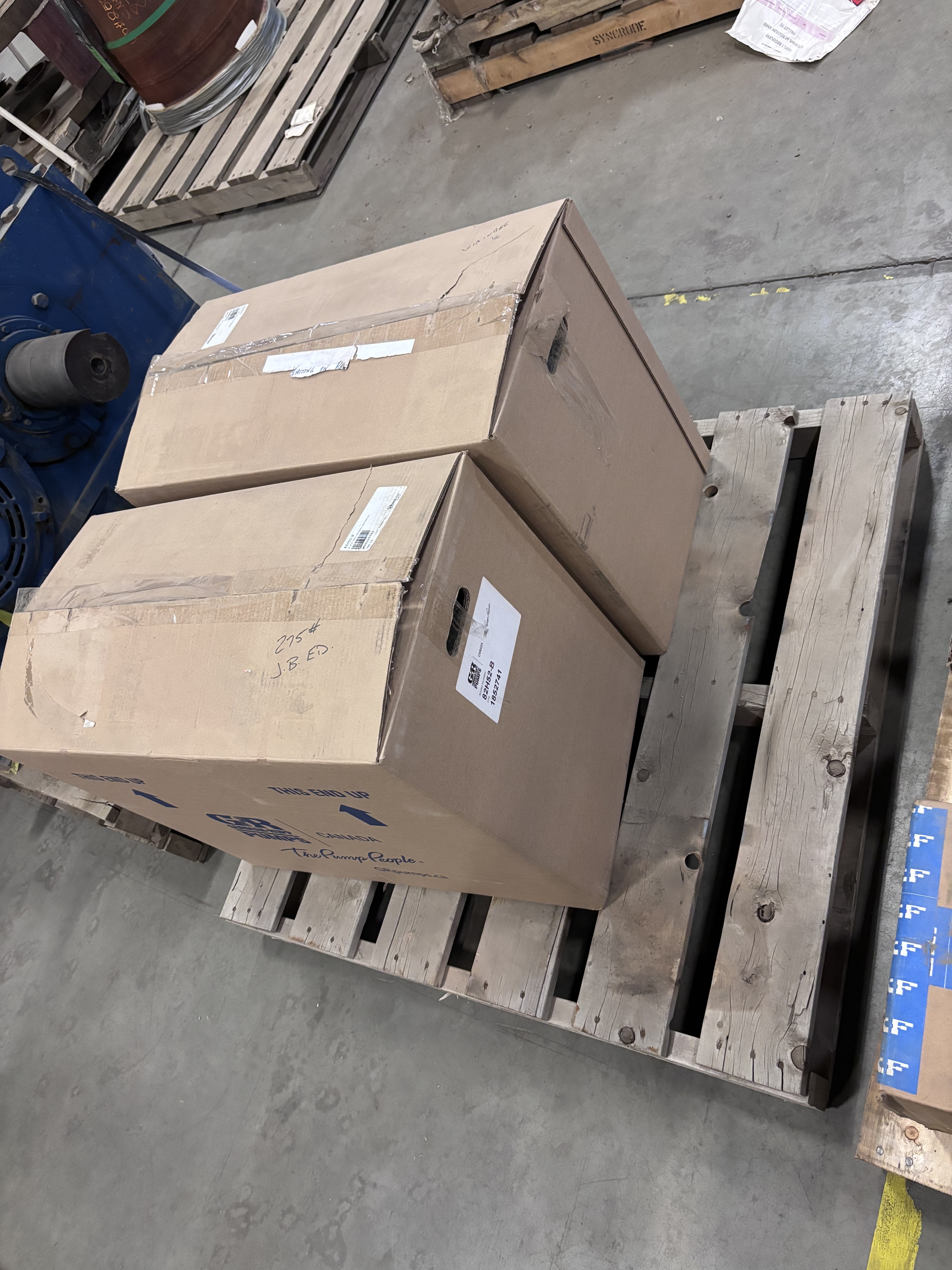

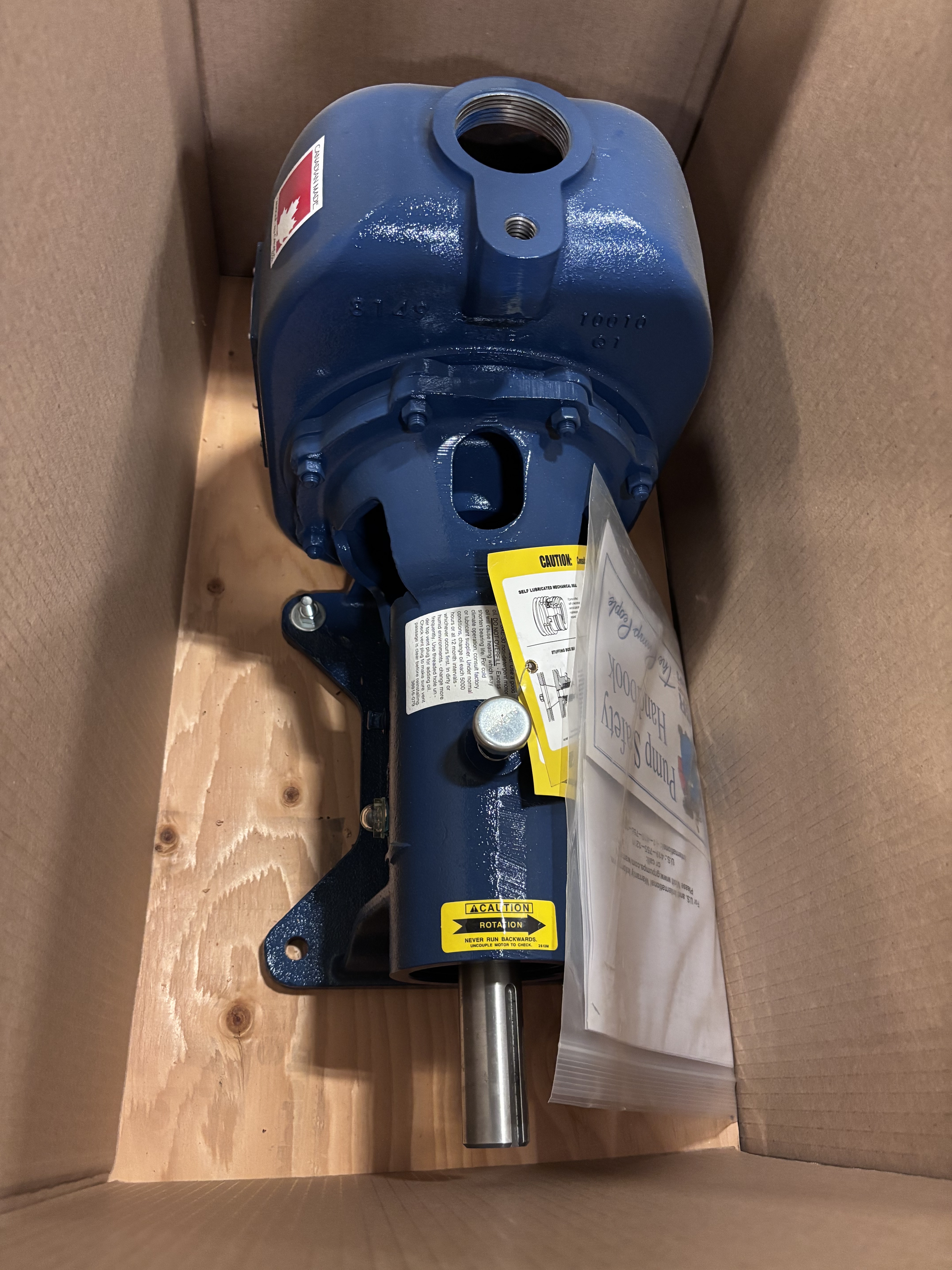

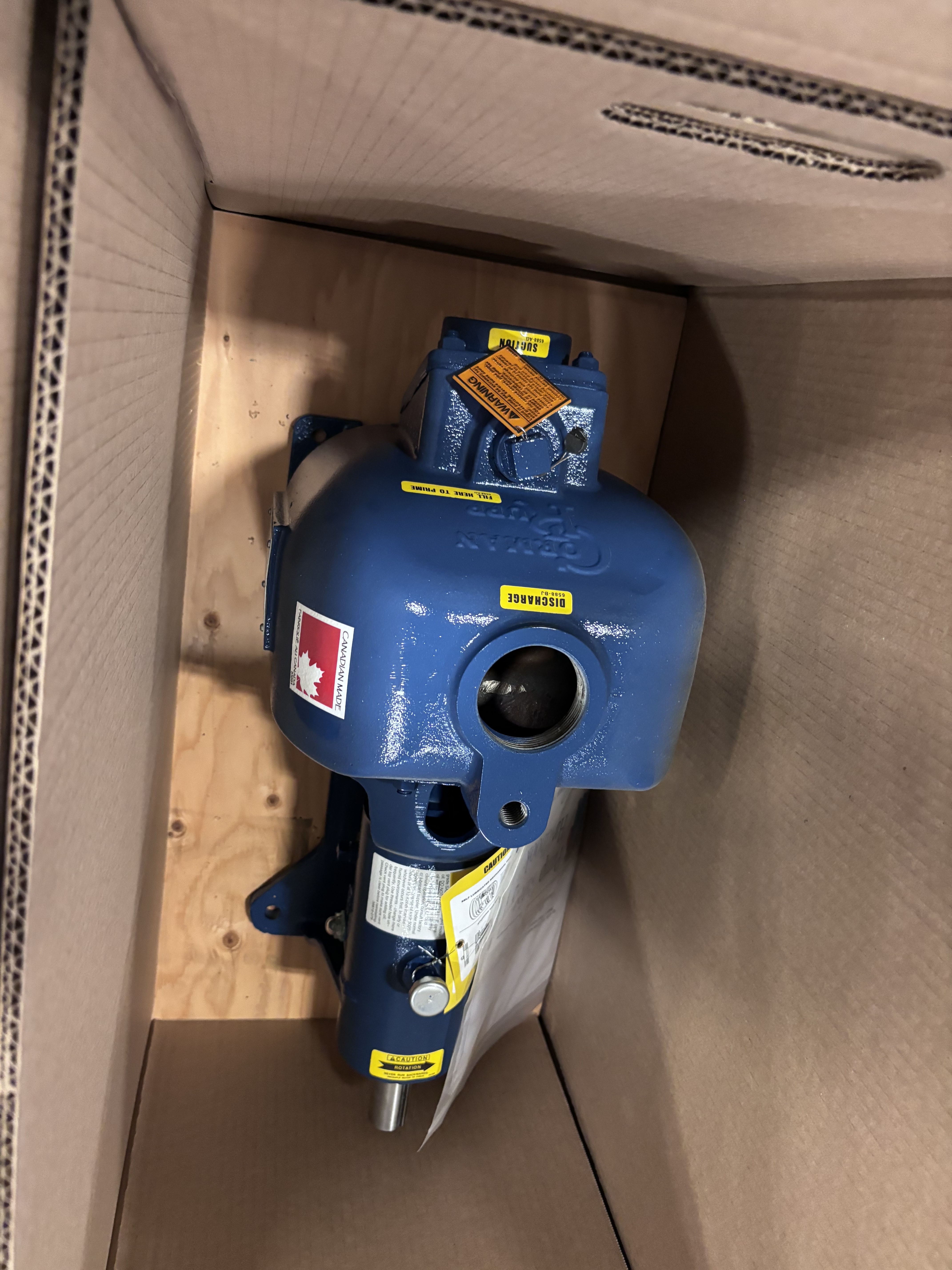

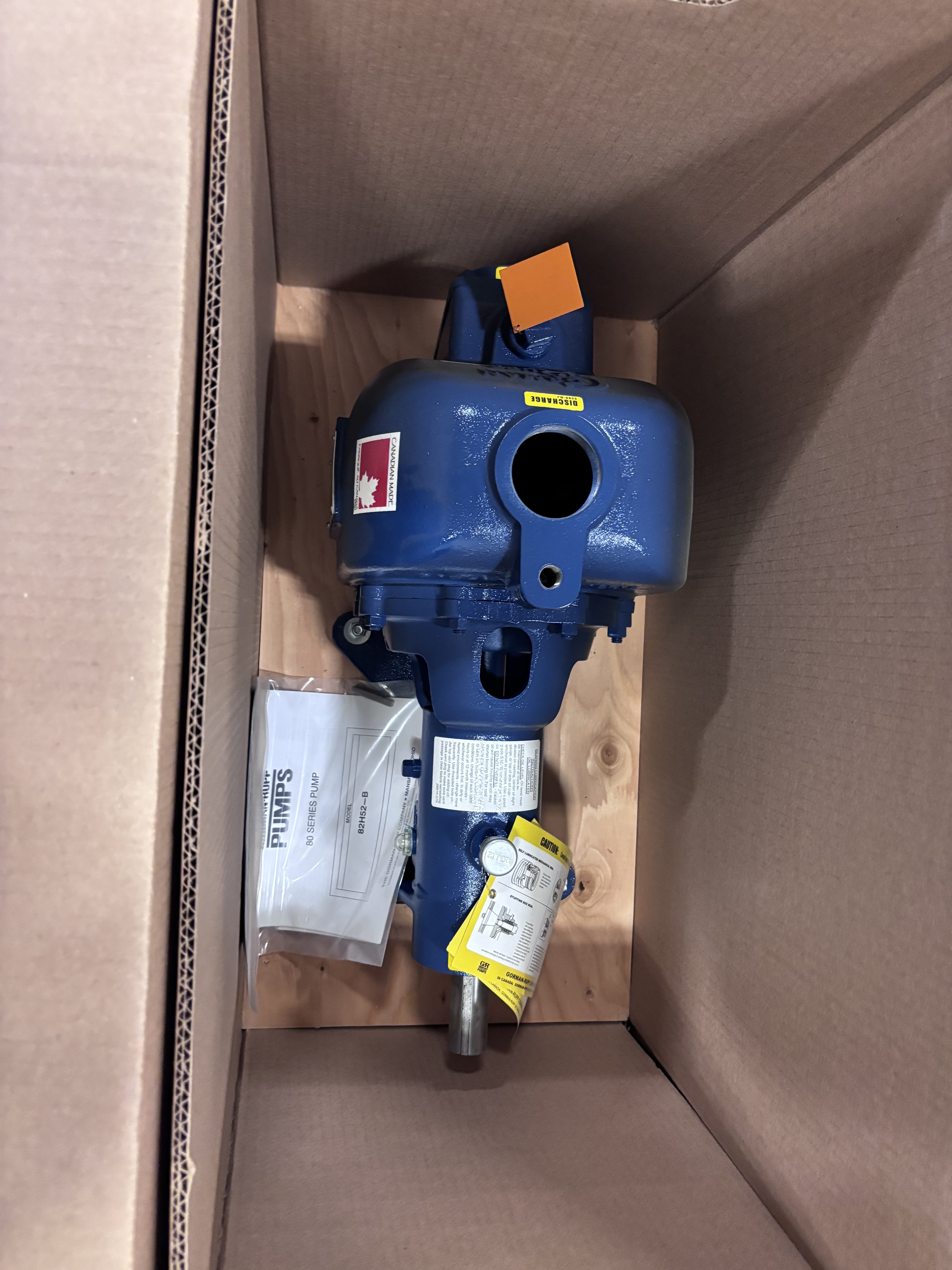

For sale are two (2) Gorman-Rupp 82H52-B Basic Pedestal Self-Priming Centrifugal Pumps, new in their original factory packaging. These are bare-shaft pedestal pumps (no motor included) ready to be coupled to your choice of electric motor or engine drive.
The Gorman-Rupp 80 Series is the industry standard for medium-head, mild solids-handling, self-priming centrifugal pumps. Designed for non-stop workloads, the straight-in-suction design guarantees quick, positive priming and allows operation at higher suction levels than most other self-priming pumps. The liquid enters directly into the eye of the impeller, and a built-in suction check valve prevents in-line return flow when the pump is shut off.
These 2" x 2" cast iron pumps are ideal for industrial, construction, mining, agricultural, and municipal fluid handling applications where reliable self-priming capability is required.
Full Specifications
| Attribute | Value |
| Manufacturer | Gorman-Rupp |
| Series | 80 Series |
| Model | 82H52-B |
| Pump Type | Self-Priming Centrifugal (Basic Pedestal) |
| Suction Size | 2" (50 mm) NPT Female |
| Discharge Size | 2" (50 mm) NPT Female |
| Max Solids Handling | 0.75" (19 mm) |
| Casing Material | Gray Iron |
| Impeller Material | Cast Iron |
| Seal Type | Mechanical (Silicon Carbide) |
| Max Operating Pressure | 146 psi (1007 kPa) |
| Max Temperature | 160°F (71°C) |
| Drive Type | Bare Shaft (Keyed) |
| Max Flow Rate | ~200 GPM (at 3450 RPM, 60 Hz) |
| Max Head | ~225 ft (69 m) at 3450 RPM |
| Typical Operating Range | 80–160 GPM at 75–175 ft head |
| 50 Hz Performance (2900 RPM) | ~160 GPM max, ~180 ft max head |
