FAG Spherical Roller Bearings - QTY 2
FAG 23252-E1A-MB1-C3 Spherical Roller Bearings — 2-Unit Lot
Description

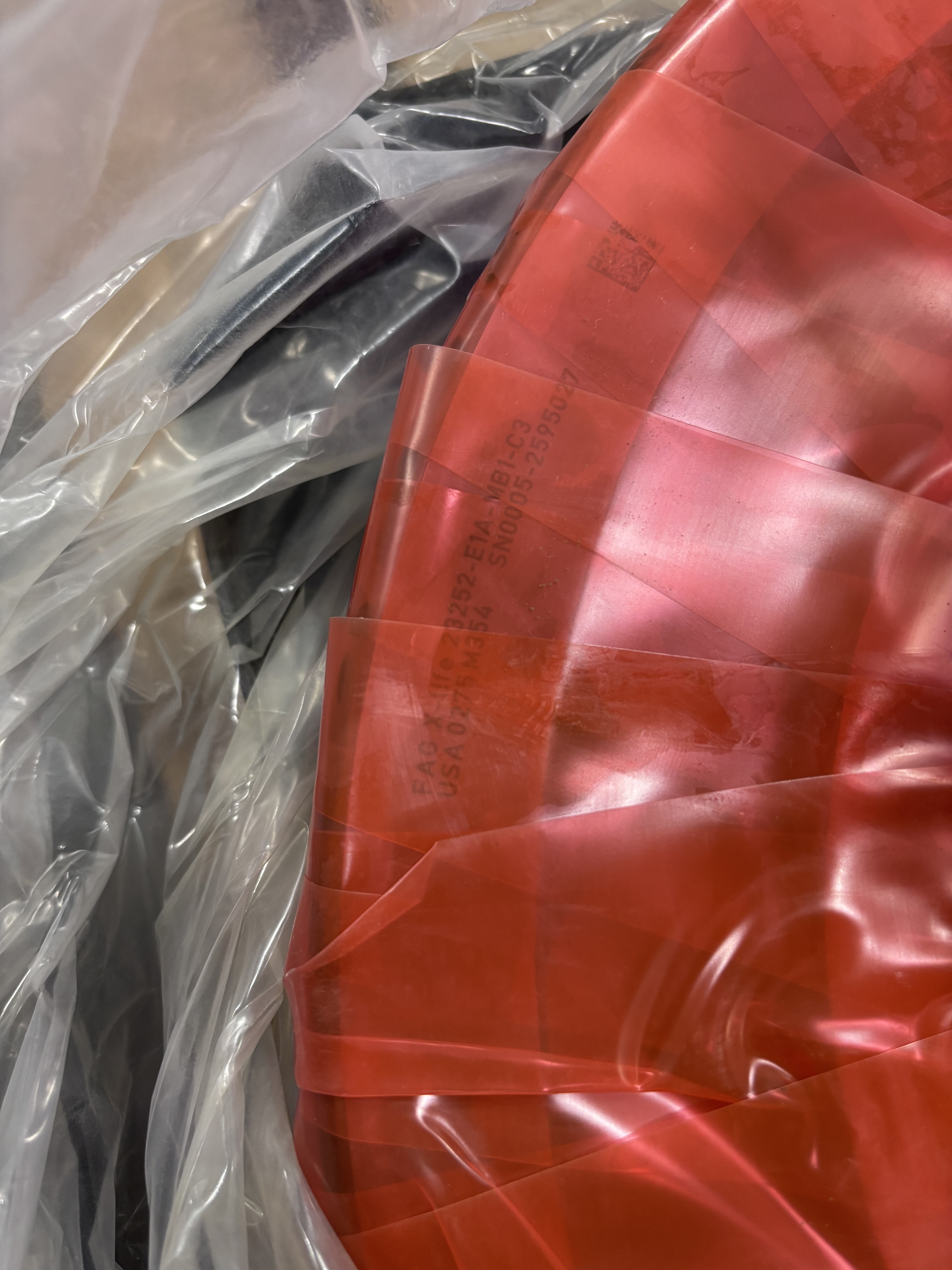

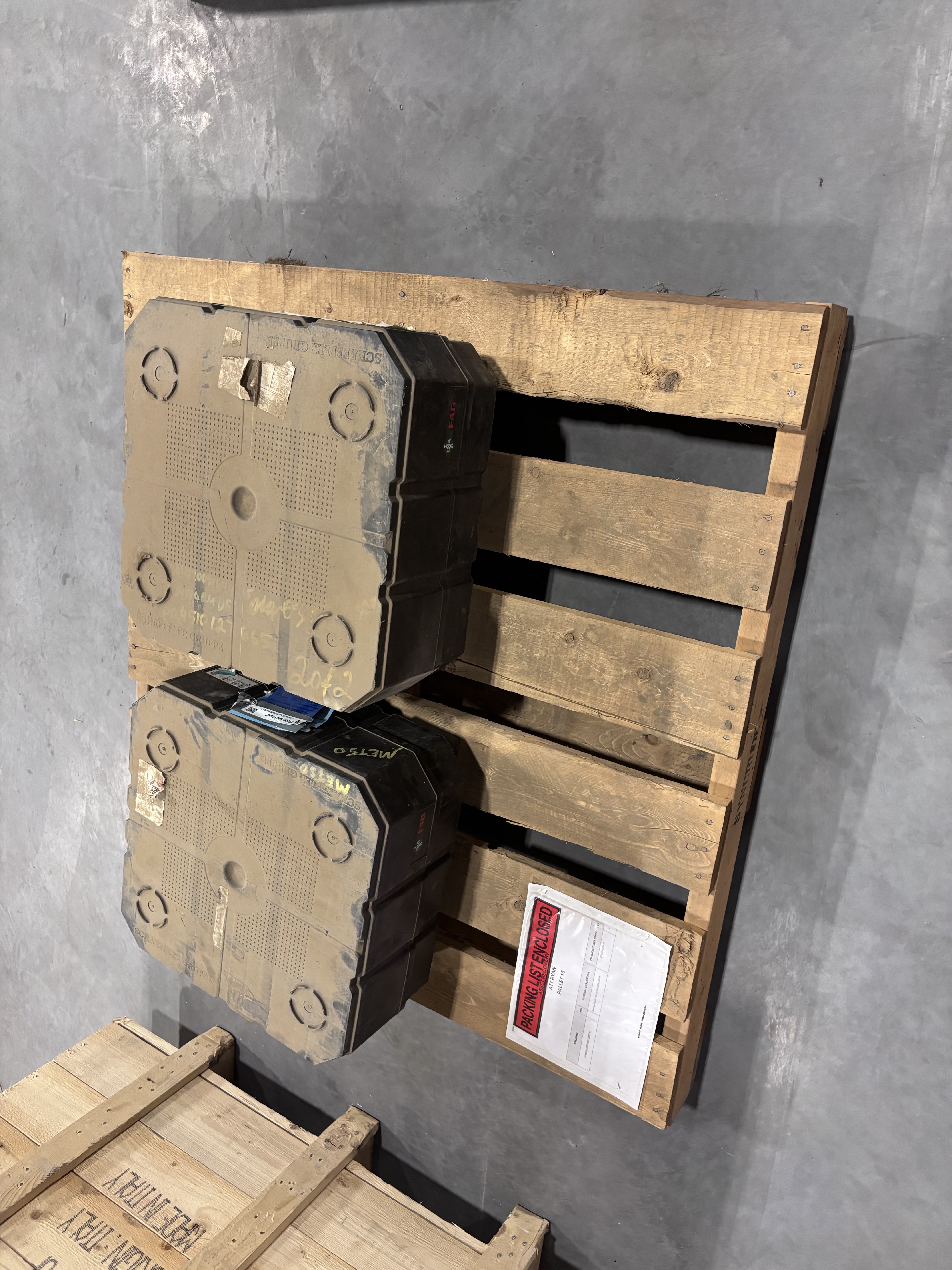

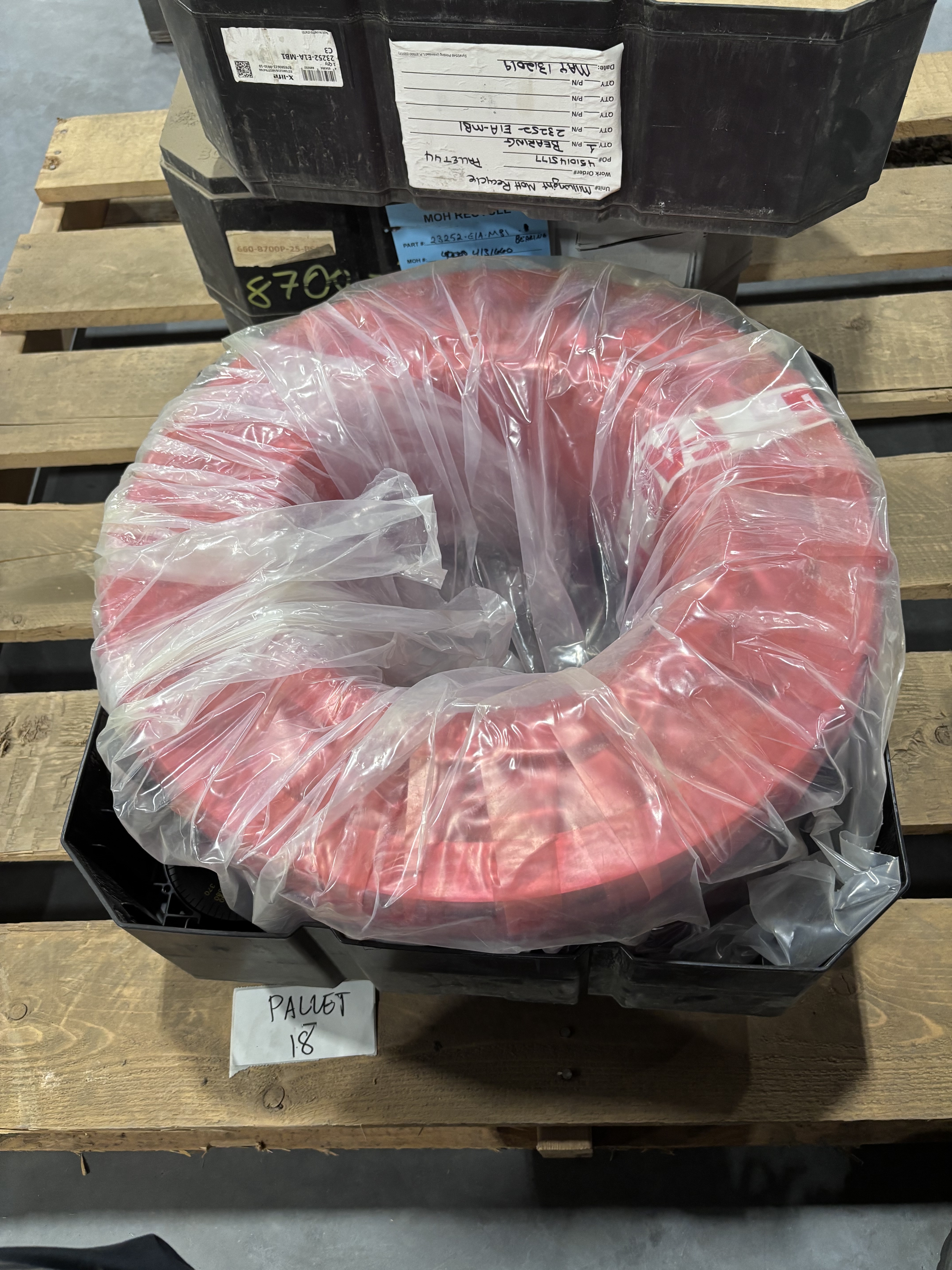

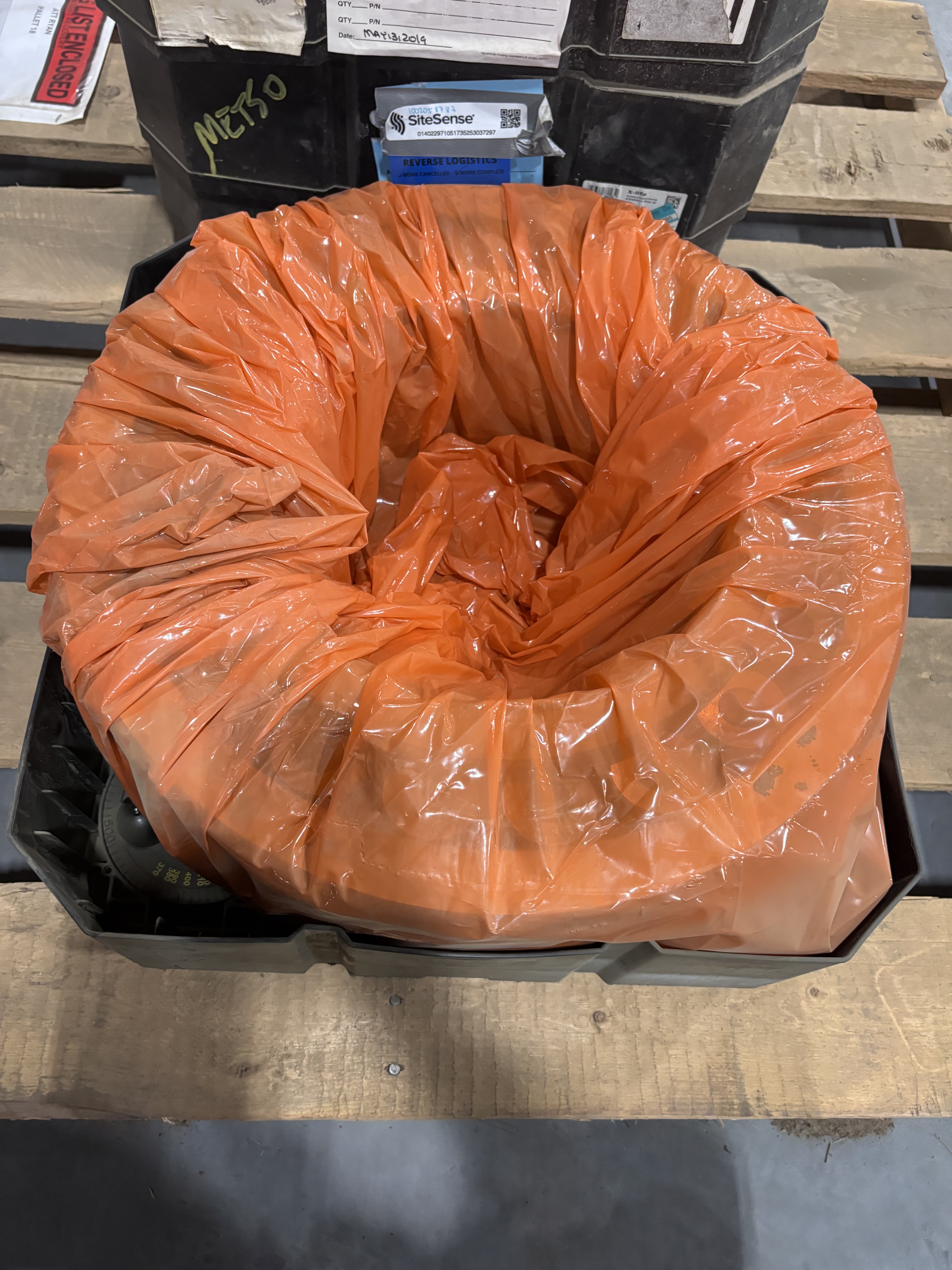

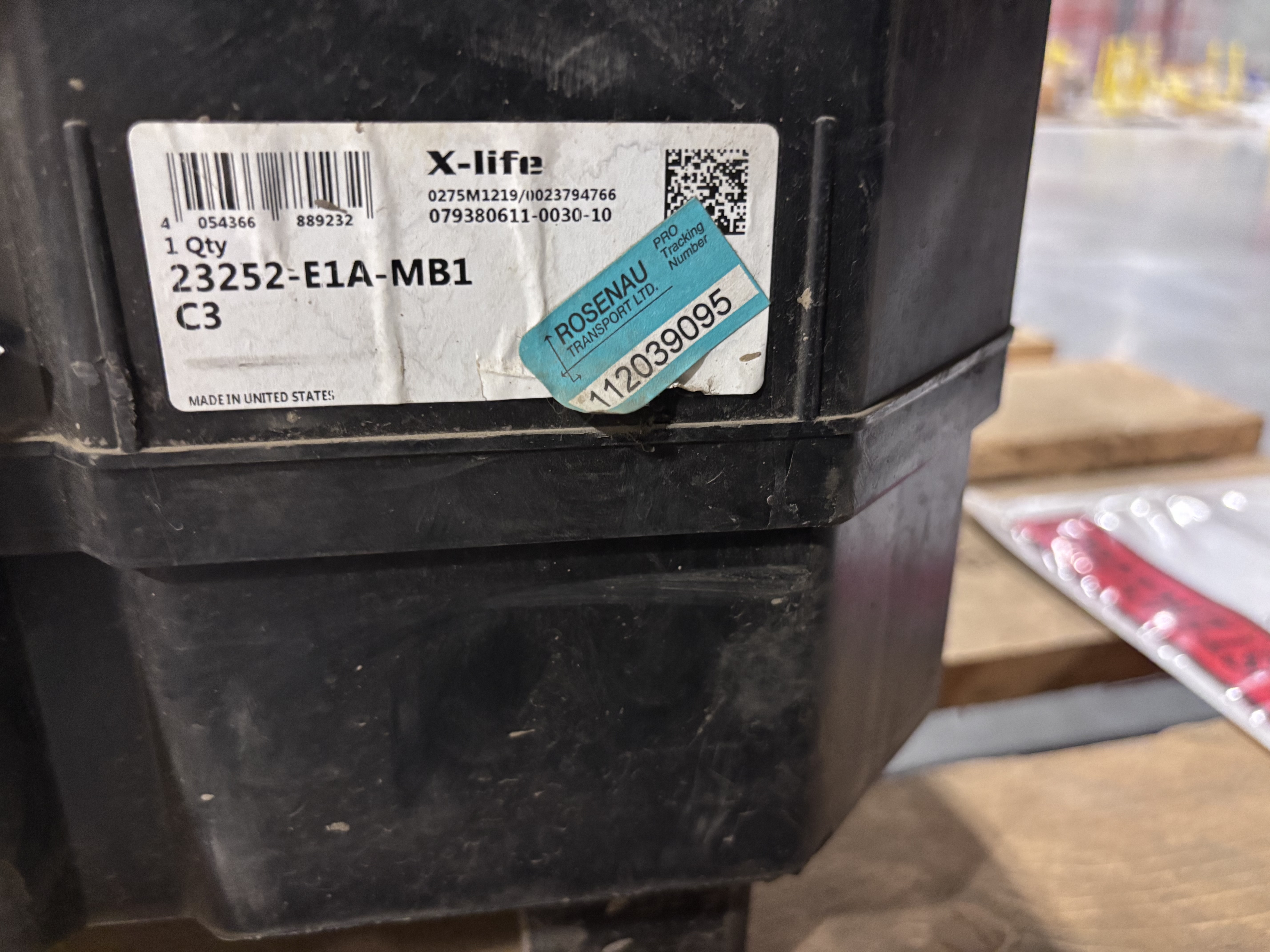

Available is a two-unit lot of matching FAG 23252-E1A-MB1-C3 spherical roller bearings. Both bearing outer rings are visibly marked FAG 23252-E1A-MB1-C3. The bearings are supplied in their protective wrapping and hard plastic containers as shown.
FAG spherical roller bearings are predominantly double-row, heavy-duty bearing solutions that accommodate radial and axial loading and are designed to compensate for shaft deflection and angular misalignment. The exact part designation is published as a 260 mm bore × 480 mm outside diameter × 174 mm width open spherical roller bearing with a brass cage and C3 internal clearance.
The bearings are being offered together as one matched two-unit lot. No mounting sleeves, adapters, locknuts, seals, lubricants, certificates, installation tools, or other accessories are represented unless physically present and confirmed at inspection.
Verified Identification and Published Reference Data
| Specification | Details |
| Manufacturer / brand | FAG (Schaeffler) |
| Bearing designation | 23252-E1A-MB1-C3 |
| Bearing type | Open spherical roller bearing |
| Rows | Double row, as applicable to the FAG spherical-roller bearing family |
| Bore (d) | 260 mm |
| Outside diameter (D) | 480 mm |
| Width (B) | 174 mm |
| Cage designation | MB1 — brass cage, per published designation data |
| Internal clearance | C3 — greater than normal, per published designation data |
| Published dynamic load rating | 3,350 kN |
| Published static load rating | 4,750 kN |
| Published limiting speed | 690 RPM |
| Published reference speed | 1,360 RPM |
Published data is provided as a reference for the stated bearing designation only. The buyer must confirm the exact designation, current catalogue revision, internal clearance requirement, mounting arrangement, load/speed calculation, lubrication, environmental conditions, and suitability for the proposed service.
