6" 900# Gate Valve
Supporting Documents (1)
library_books
4510276143_20260610145044.864_X.pdf
Listing ID:
IH-64893
Notes:
Listing Summary

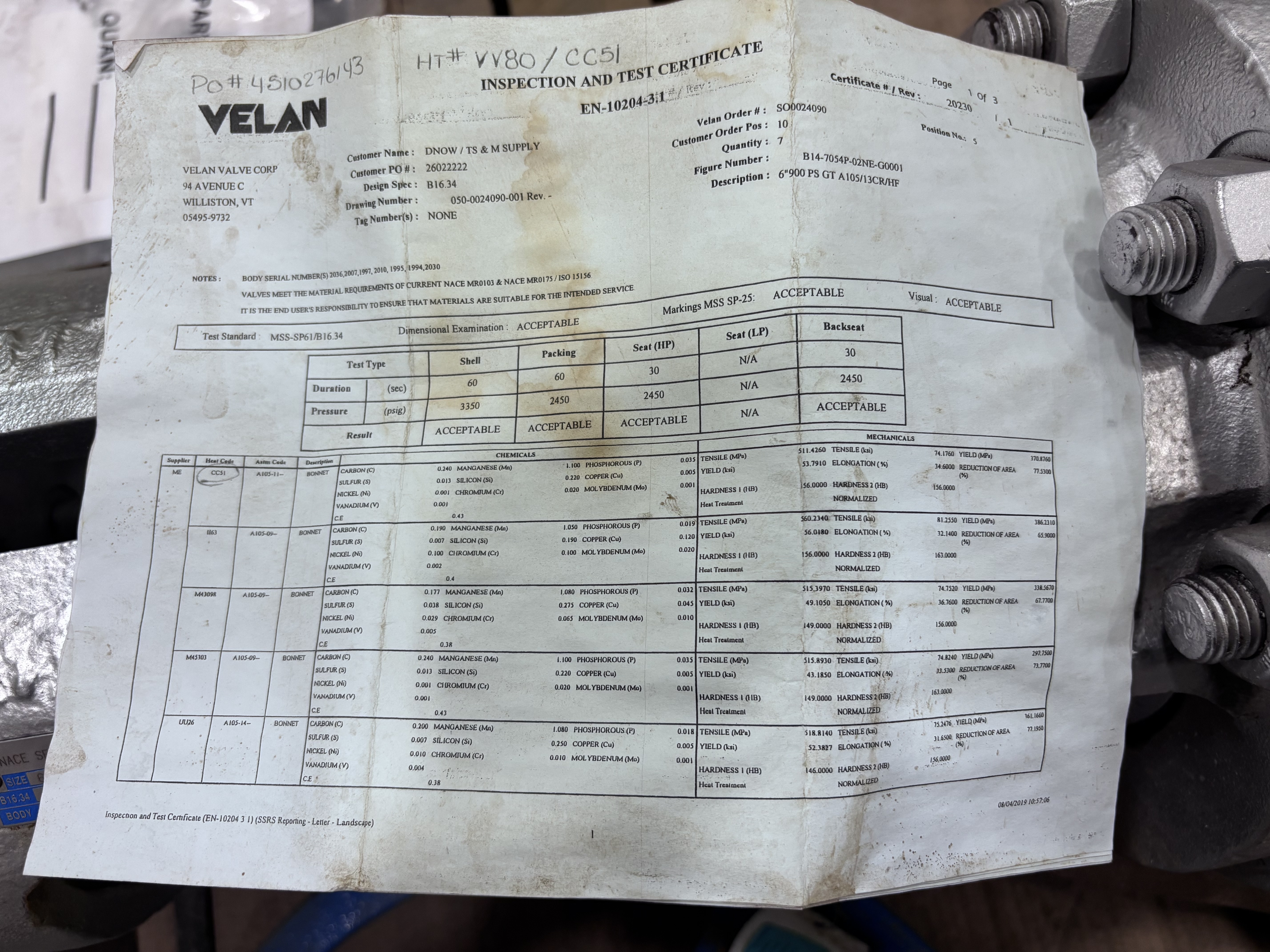

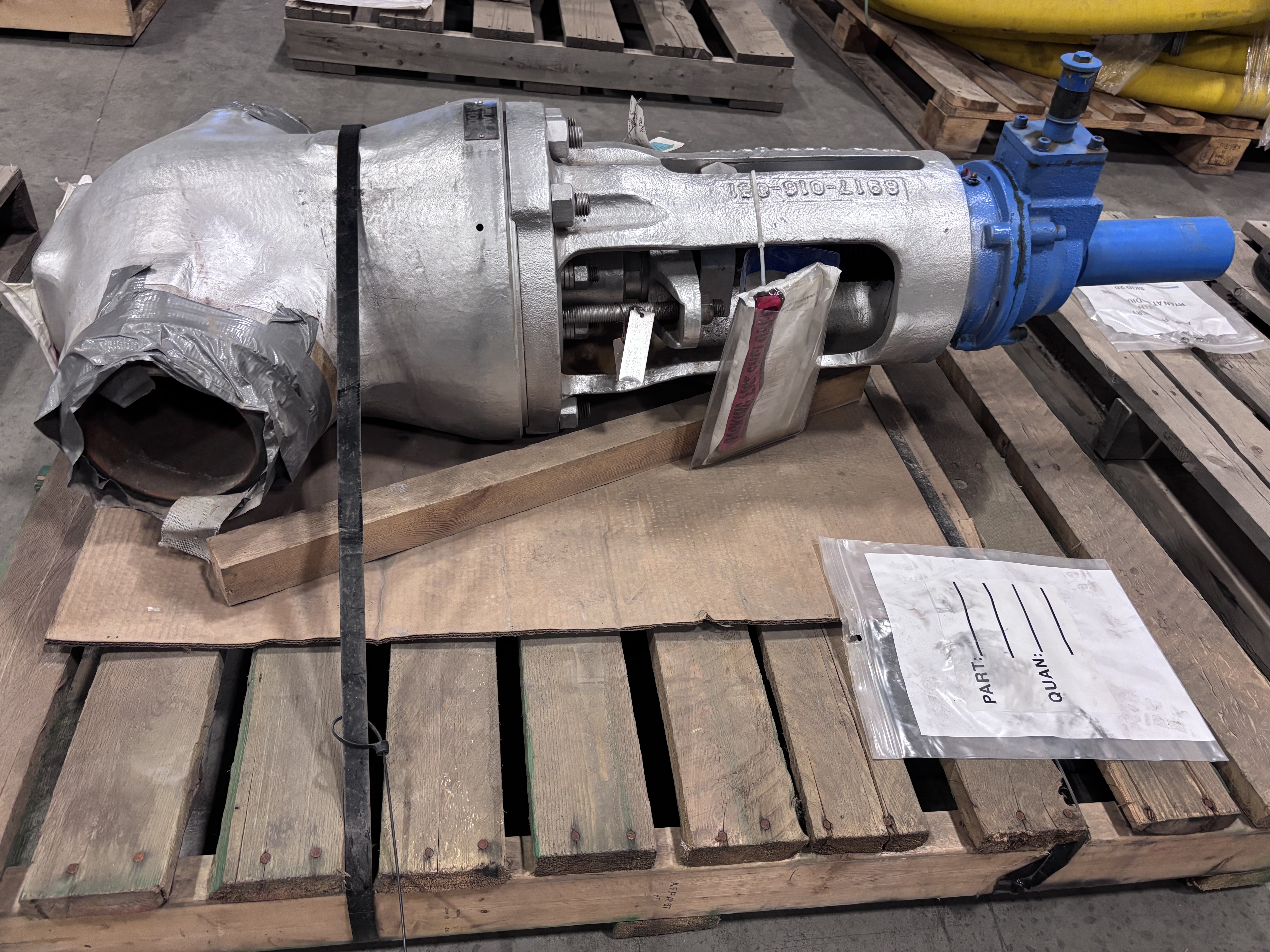

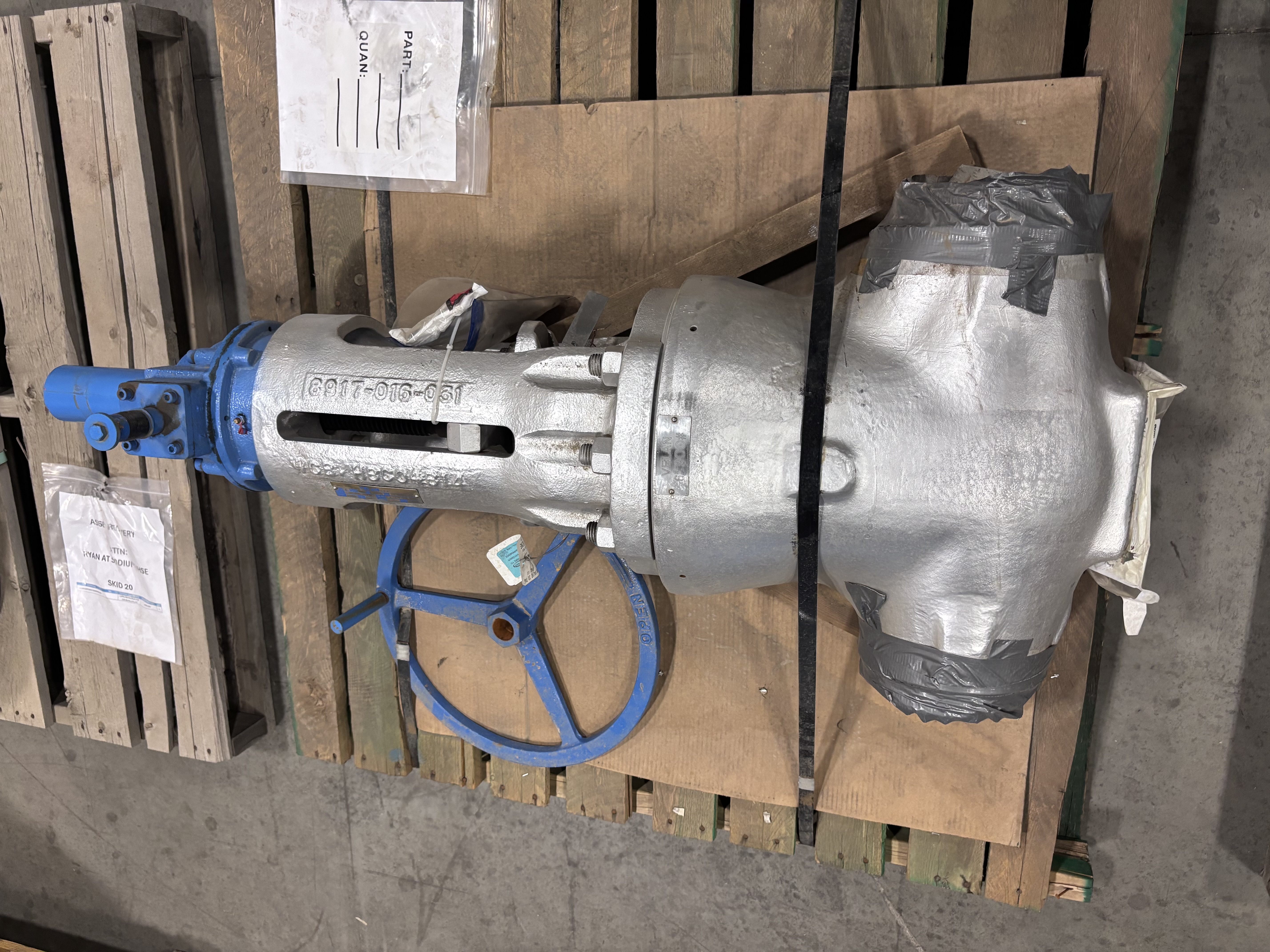

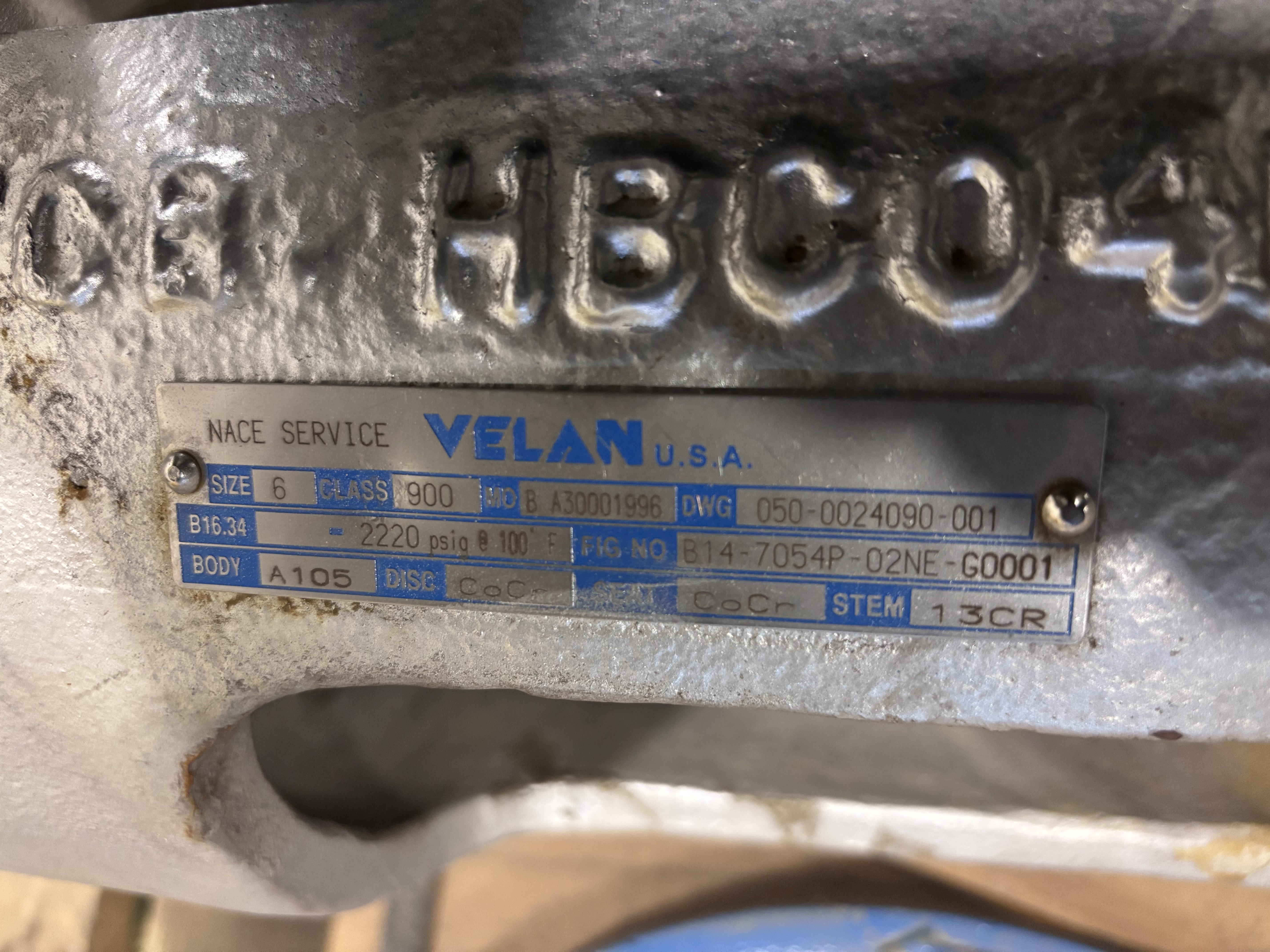

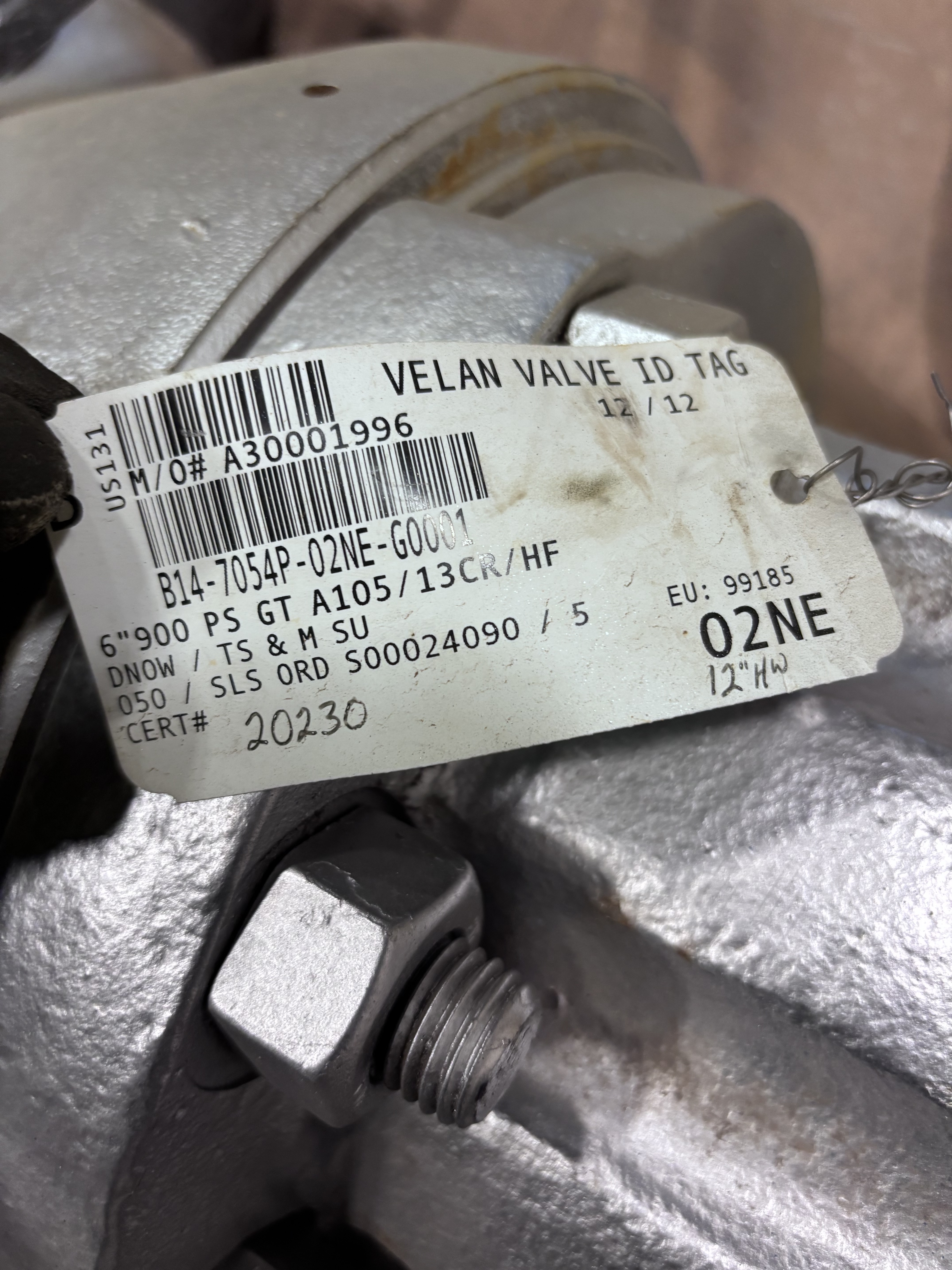

This listing is for one Velan 6 in Class 900 A105 pressure-seal gate valve with visible NACE Service marking and supporting inspection/test certificate documentation. The visible Velan U.S.A. nameplate identifies the valve as Size 6, Class 900, Body A105, Stem 13Cr, with B16.34 marking and pressure/temperature marking of 2220 psig @ 100°F. The visible certificate describes the item as 6"900 PS GT A105/13CR/HF, supporting a conservative listing description as a pressure-seal gate valve.
Key Specifications
| Specification | Listing Detail |
| Manufacturer | Velan U.S.A. / Velan Valve Corp |
| Valve type | Pressure-seal gate valve |
| Quantity | 1 |
| Nominal size | 6 in |
| Pressure class | Class 900 |
| Body material | A105 |
| Stem material | 13Cr |
| Disc / seat trim | Visible markings indicate CoCr / hardfaced trim |
| Service marking | NACE Service |
| Design standard | B16.34 visible on nameplate and certificate |
| Figure number | B14-7054P-02NE-G0001 |
| Drawing number | 050-0024090-001 |
| Nameplate valve number | B A30001996 |
| Pressure/temperature marking | 2220 psig @ 100°F |

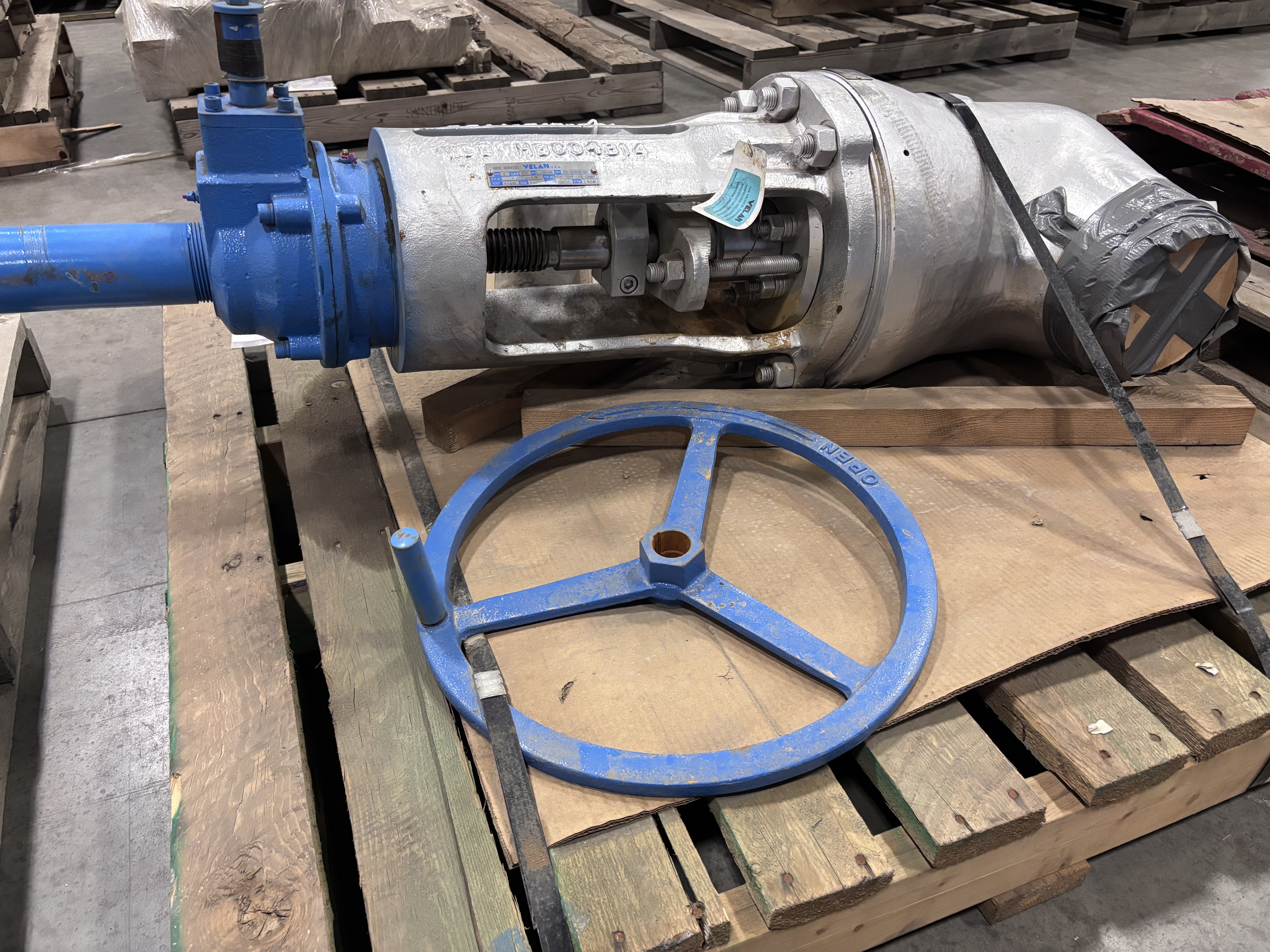

| Operator | Manual handwheel/operator components shown |
| End connection | BW |
| Certificate number / revision | 20230 / Rev. 1 |
| Velan order number | S00024090 |
| Customer / PO shown on certificate | DNOW / TS & M Supply, PO 26022222 |
