Allen-Bradley Full Voltage Non-Reversing Starter
Allen-Bradley CENTERLINE 2100 Full Voltage Non-Reversing Starter with FDS — Cat. No. 2112B-CAC-4LRG-6P (+ options)
Item Overview

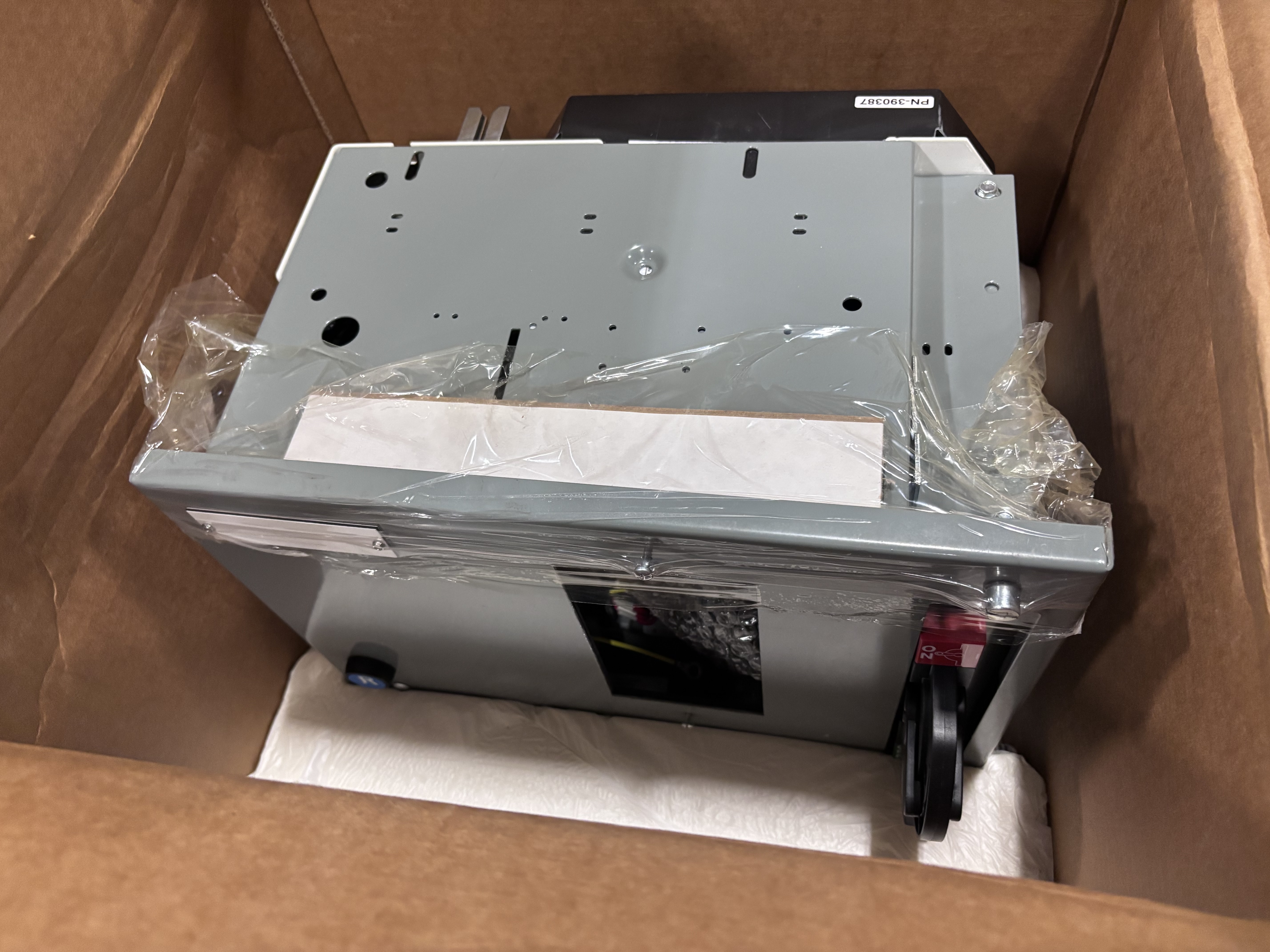

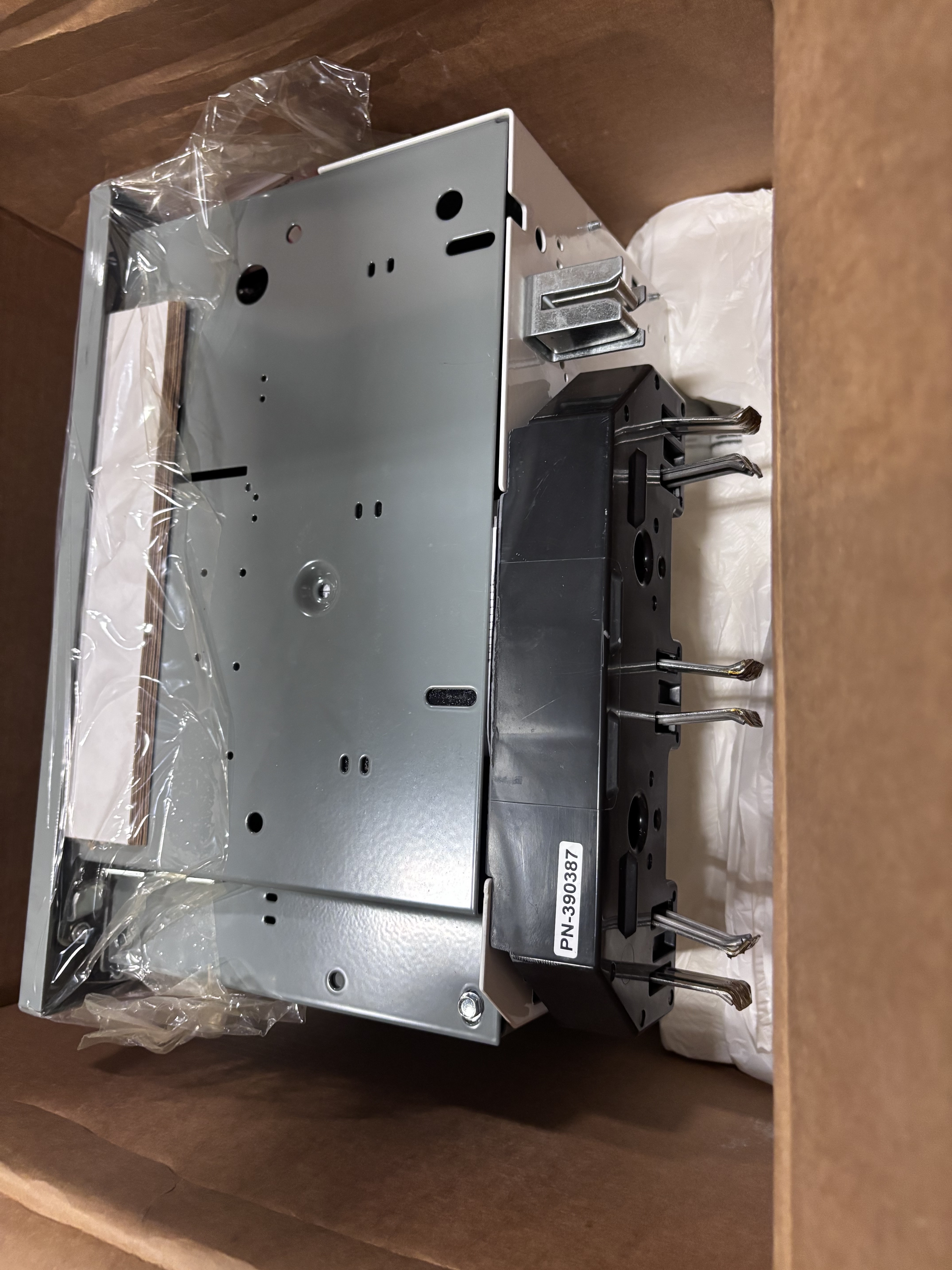

This is a new, factory-built Allen-Bradley Bulletin 2112B Full Voltage Non-Reversing (FVNR) Motor Starter with Fusible Disconnect Switch (FDS), designed for plug-in installation into an Allen-Bradley CENTERLINE 2100 Motor Control Center (MCC). This is a complete, ready-to-install MCC bucket — the entire motor starting and protection assembly in a single self-contained unit.
The catalog number decodes as follows:
| Segment | Code | Meaning |
| Bulletin | 2112B | Full Voltage Non-Reversing Starter, CENTERLINE 2100 MCC |
| Enclosure/Voltage | CAC | 600V class, standard enclosure |
| Starter Size | 4 | NEMA Size 4 (up to 100 HP @ 480V / 125 HP @ 600V) |
| Overload Relay | LRG | E300 Electronic Overload Relay with ground fault |
| Control Voltage | 6P | 120V AC control voltage, with pilot light |
| Options | 7FE3DCN6CR | DeviceNet communications module (7FE3D), with additional I/O and communication options |
| Additional Options | 18M-20J-43GT | 18M: 120VAC control transformer; 20J: auxiliary contacts; 43GT: additional control options |
| Feeder Options | 79GD-79UT-750-751S | Feeder disconnect and cable options |
| Other | 911-9000-Z | Special/application-specific options, Series Z |
NEMA Size 4 is a large motor starter, rated for motors up to 100 HP at 480V or 125 HP at 600V in a three-phase application. This is a heavy-duty, high-amperage starter suitable for large pump, compressor, fan, or conveyor drive applications.
The E300 Electronic Overload Relay (LRG variant) includes built-in ground fault protection and is the current-generation Rockwell Automation electronic overload — replacing the older E1 Plus and E3 Plus relays. It provides motor protection, diagnostics, and (with the DeviceNet module) full remote monitoring capability.
The DeviceNet communications option (7FE3D) enables the starter to communicate with a ControlLogix or CompactLogix PLC over a DeviceNet network, providing remote start/stop, status monitoring, fault diagnostics, and energy metering without additional external hardware.
Key Specifications
| Parameter | Value |

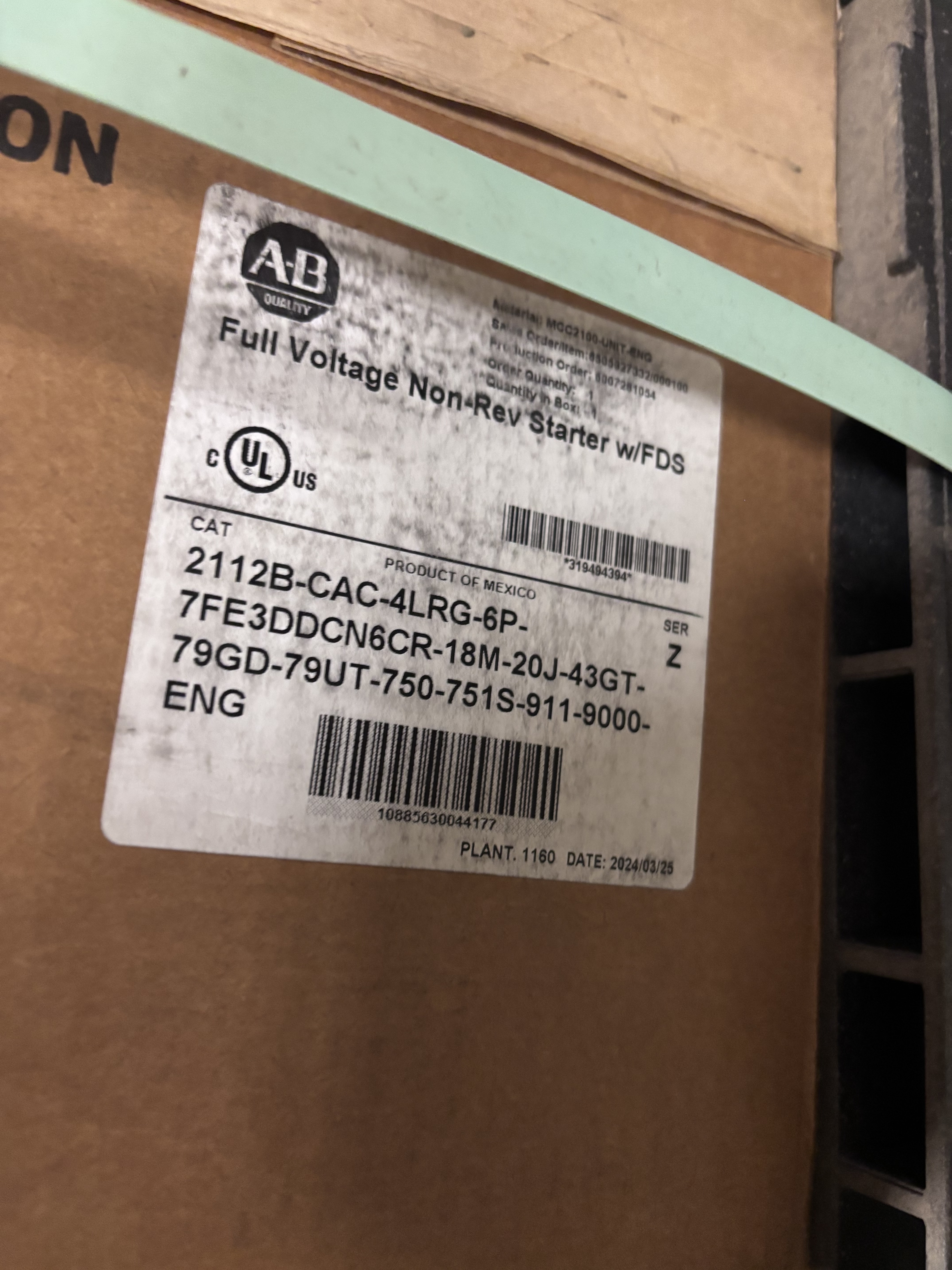

| Catalog Number | 2112B-CAC-4LRG-6P-7FE3DCN6CR-18M-20J-43GT-79GD-79UT-750-751S-911-9000-Z |

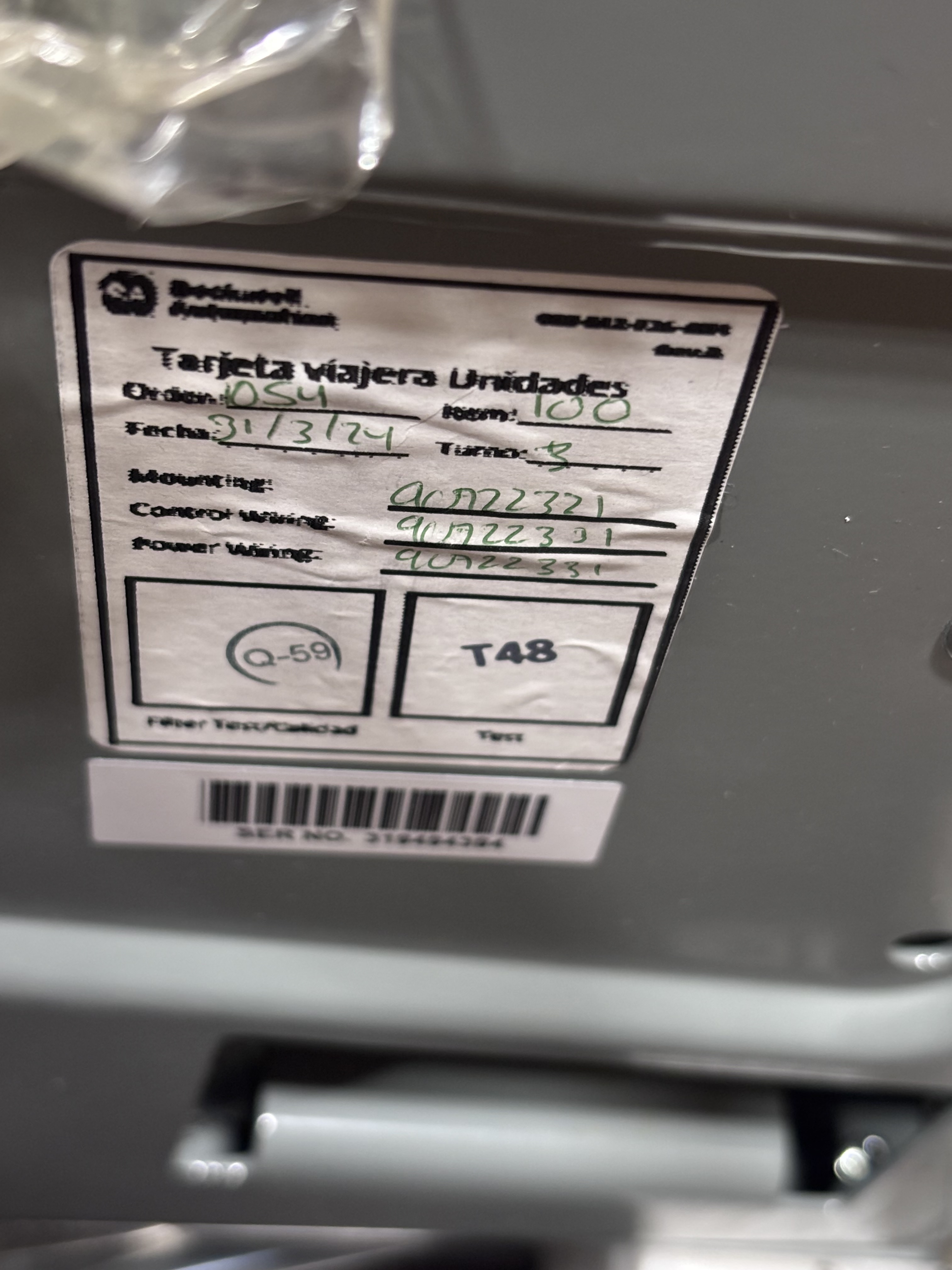

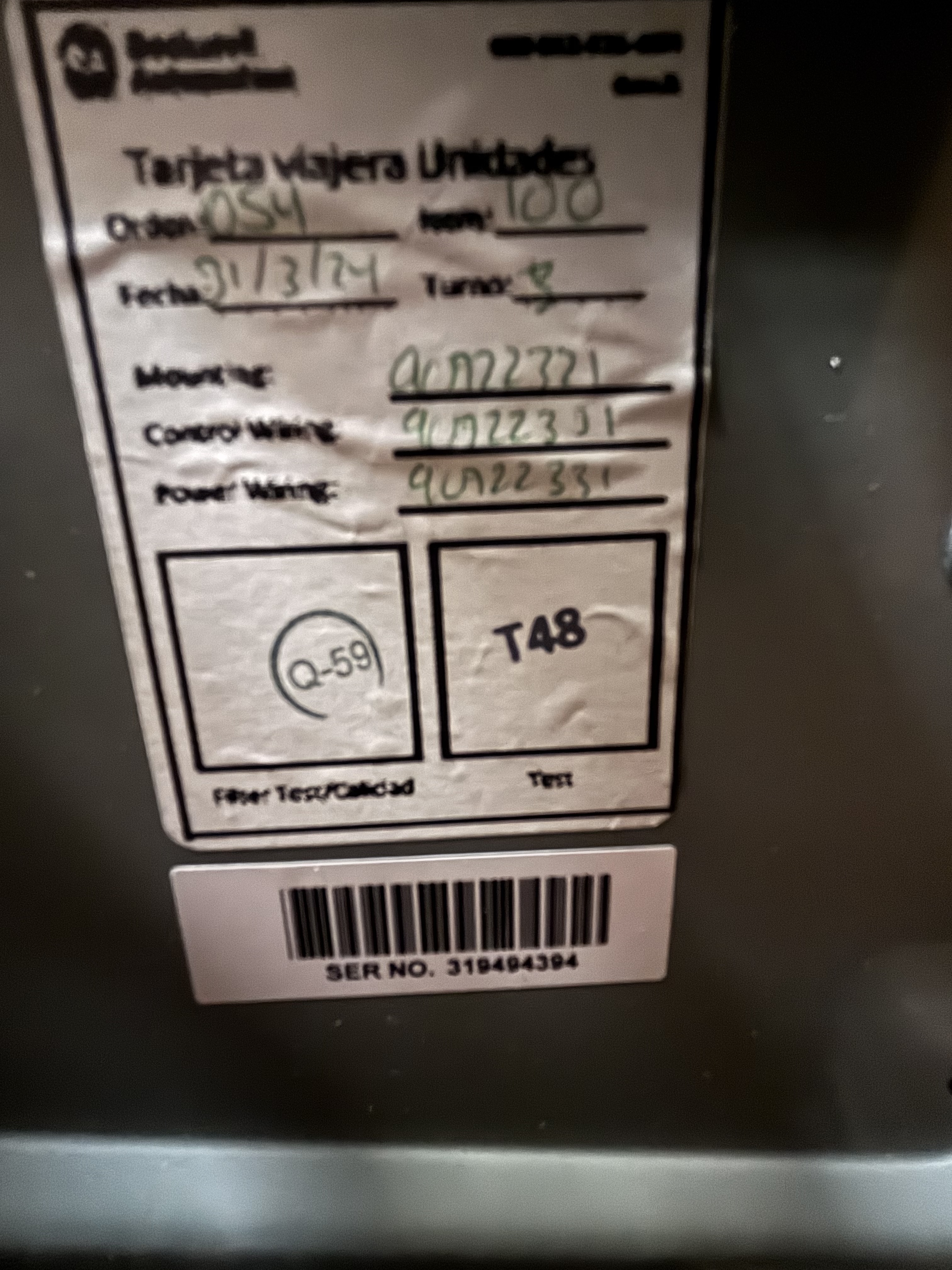

| Serial Number | 319494394 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Series | Z |
| MCC Platform | CENTERLINE 2100 |
| Bulletin | 2112B — Full Voltage Non-Reversing Starter with FDS |
| NEMA Starter Size | 4 |
| Voltage Class | 600V (CAC) |
| Max HP (480V) | 100 HP |
| Max HP (600V) | 125 HP |
| Overload Relay | E300 Electronic Overload Relay with Ground Fault (LRG) |
| Control Voltage | 120V AC (6P) |
| Communications | DeviceNet (7FE3D) |
| Control Transformer | Included (18M) |
| Date of Manufacture | March 25, 2024 |
| UL Listed | Yes (cULus mark) |
| Country of Origin | Mexico (Product of Mexico) |
