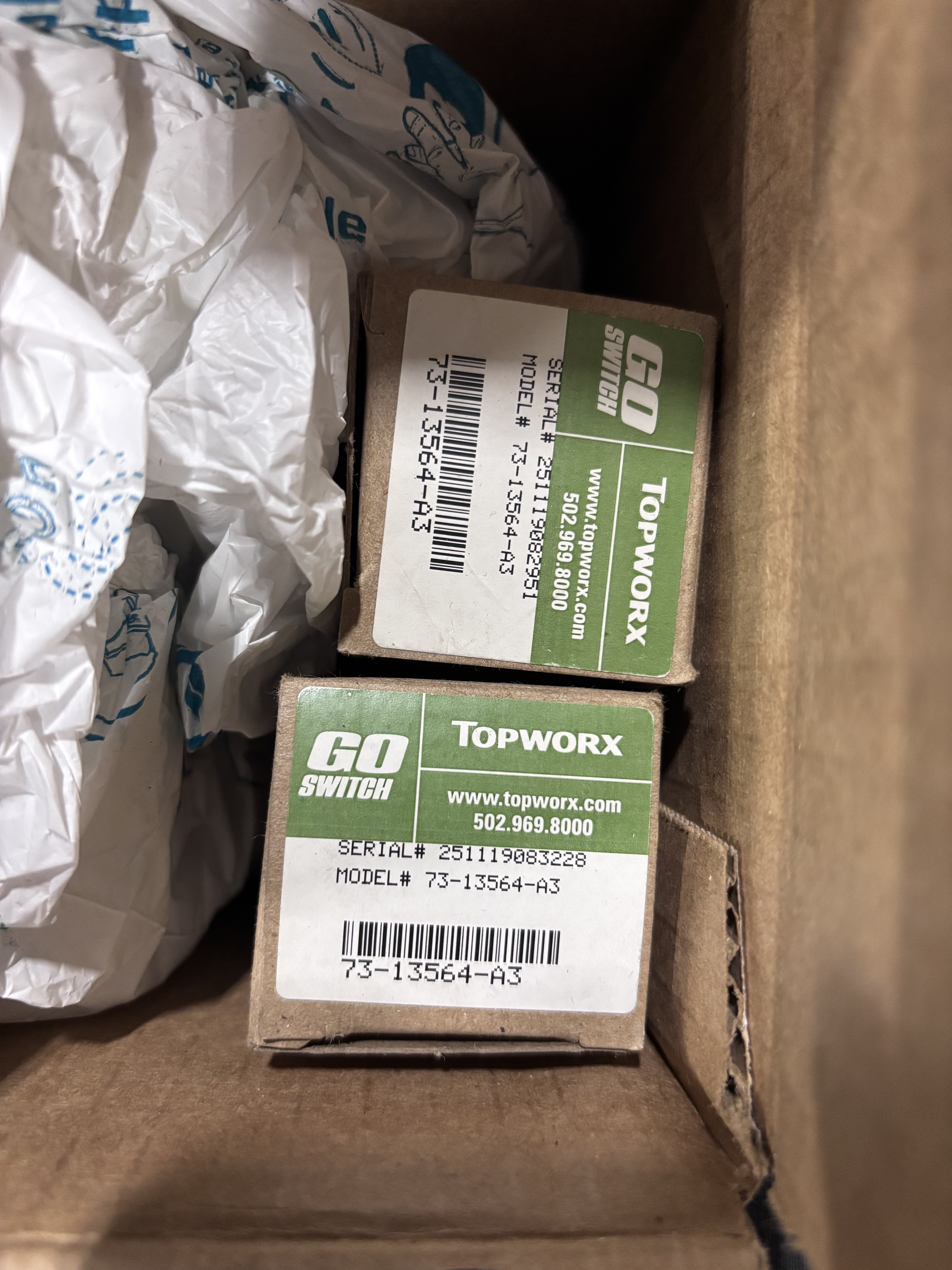

Cameron GENERAL VALVE 4 in. Class 150 DBB/DIB-1 Plug Valve with Two TopWorx GO Switches

Listing Summary

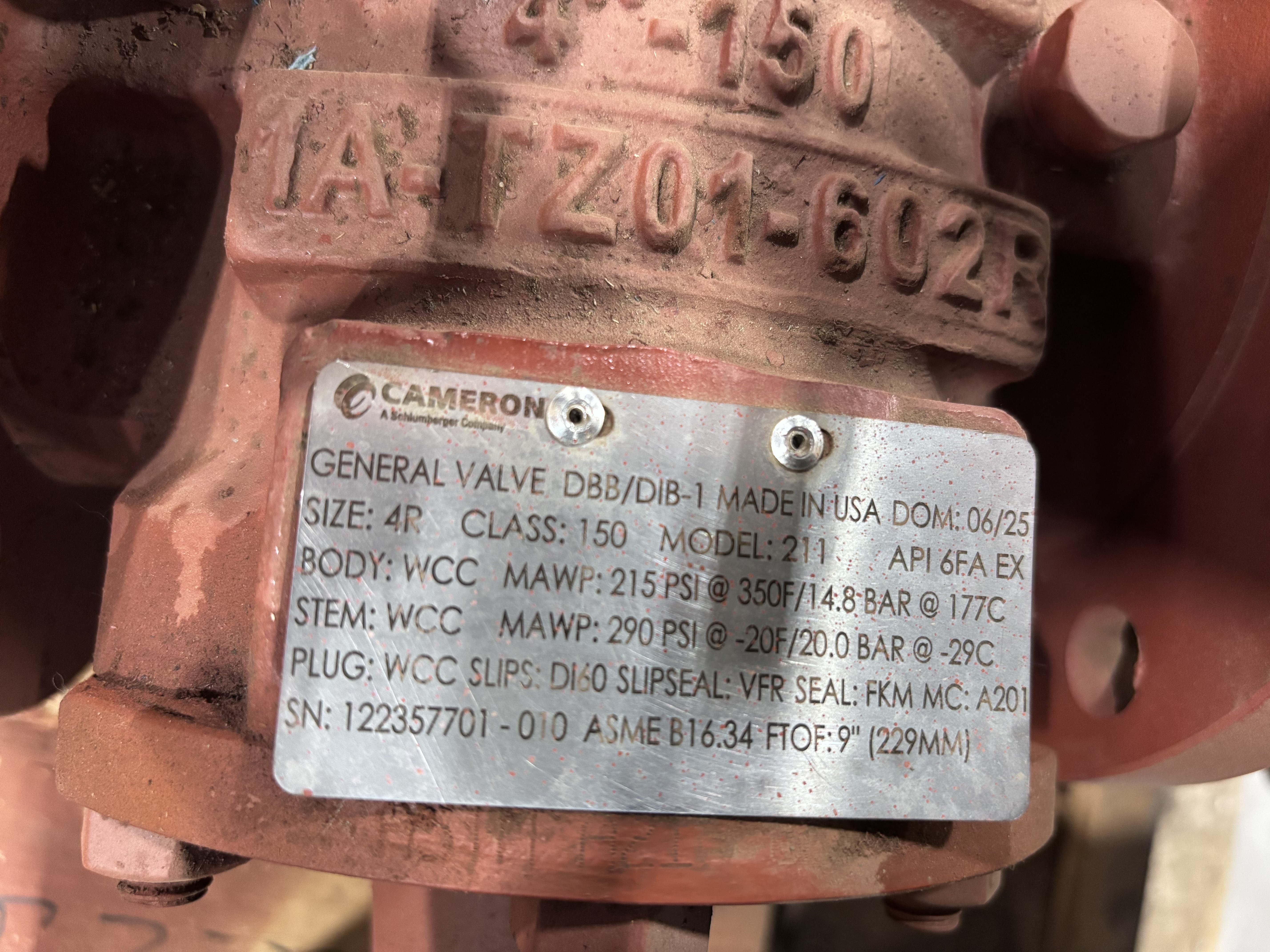

This package centers on a Cameron GENERAL VALVE 4 in. Class 150, Model 211, double-block-and-bleed/double-isolation-and-bleed plug valve. The physical nameplate identifies WCC body, stem, and plug materials, DI/60 slips, FKM sealing, 9 in. face-to-face dimension, and serial number 122357701-010. It also marks the valve as made in the USA and carries a DOM 06/25 marking.

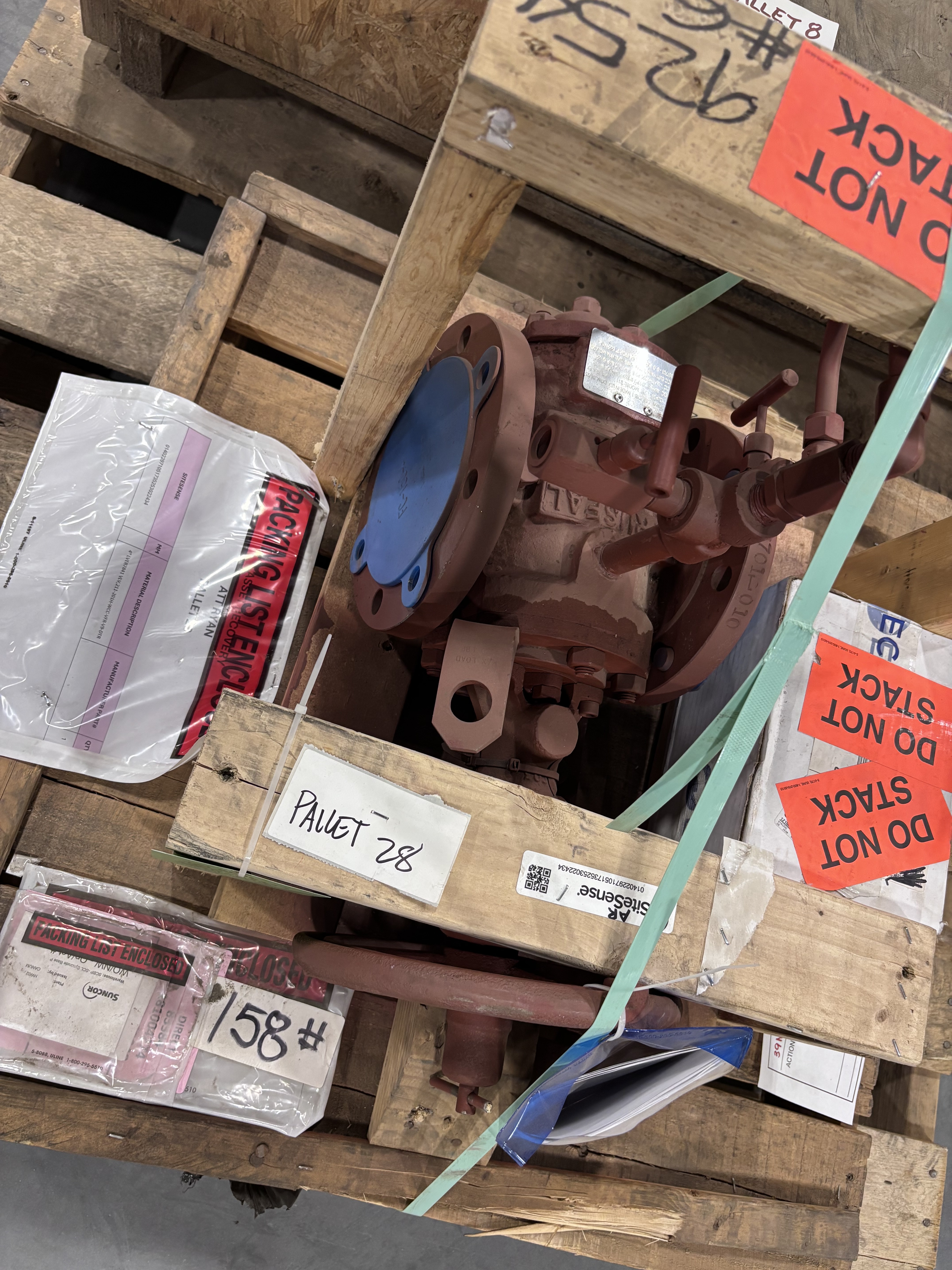

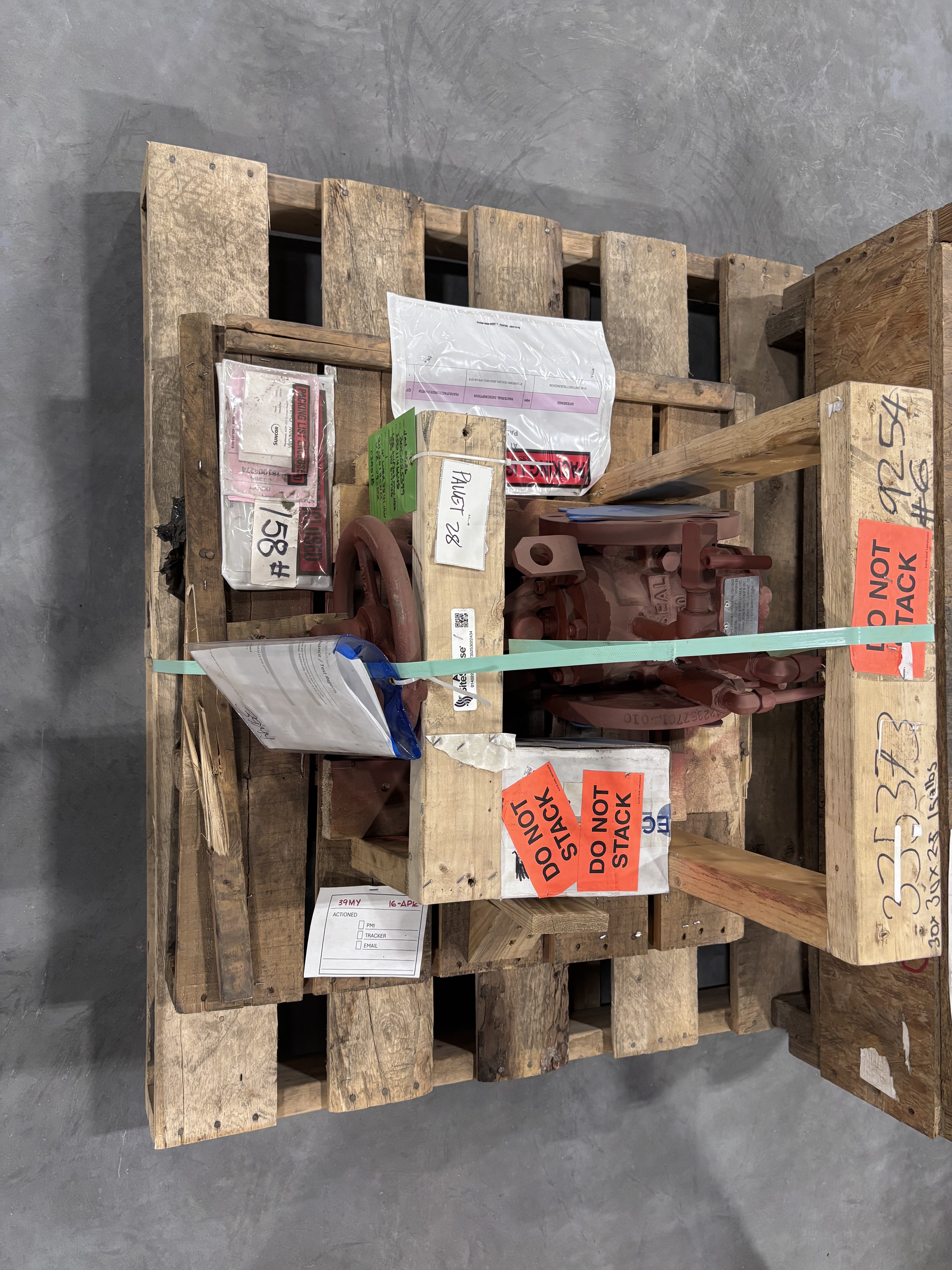

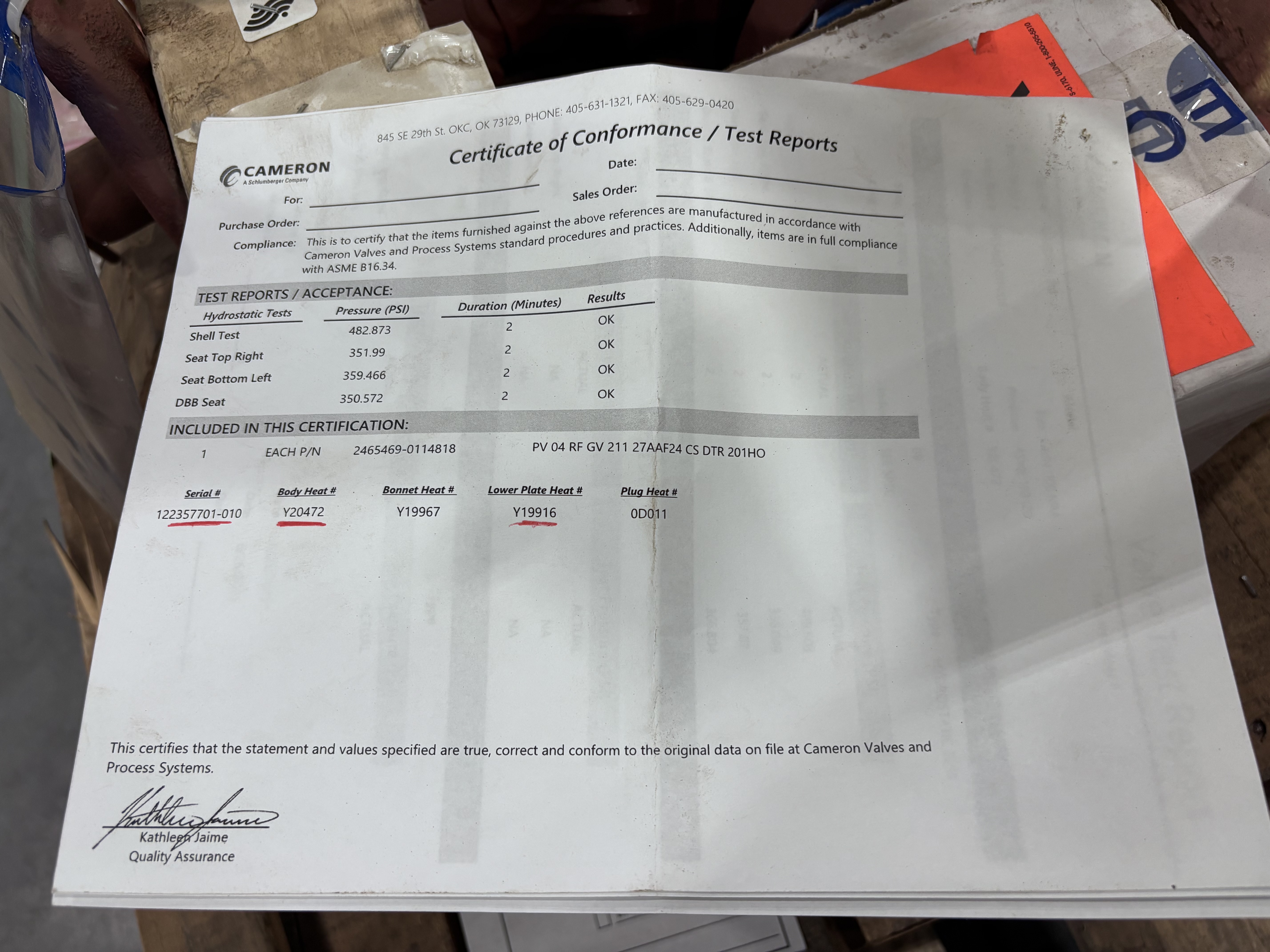

The GENERAL VALVE Twin Seal product family uses two independently mounted seating slips that retract before the plug rotates. SLB describes the DBB design as providing a verifiable dual seal while reducing seal abrasion.  The physical valve is equipped with the manual operator and installed bleed/relief tubing and components shown. A configuration designation on the supplied factory test record identifies a DTR arrangement; the buyer must verify all installed components and the intended-service requirements before installation.
