HPS 25 kVA Single-Phase Dry-Type Transformer
HPS 164855 25 kVA Single-Phase Dry-Type Transformer — 600 V Primary / 120-0-120 V Secondary — CAT P/N 471-4093
Description
Available is one Hammond Power Solutions (HPS) 164855 single-phase dry-type transformer, rated 25 kVA, 60 Hz, with a 600 V primary and 120-0-120 V secondary. The nameplate identifies primary terminals H1–H2 and secondary terminals X2–X0–X1. It also shows primary-voltage taps at 630, 615, 600, 585, and 570 V.
The HPS nameplate carries a supplemental P/N 4714093 marking, and the matching Caterpillar crate label identifies CAT P/N 471-4093 as a transformer. The CAT number is therefore retained as a buyer-facing package/OEM reference, while HPS is identified as the physical manufacturer and HPS P/N 164855 is the manufacturer part number.

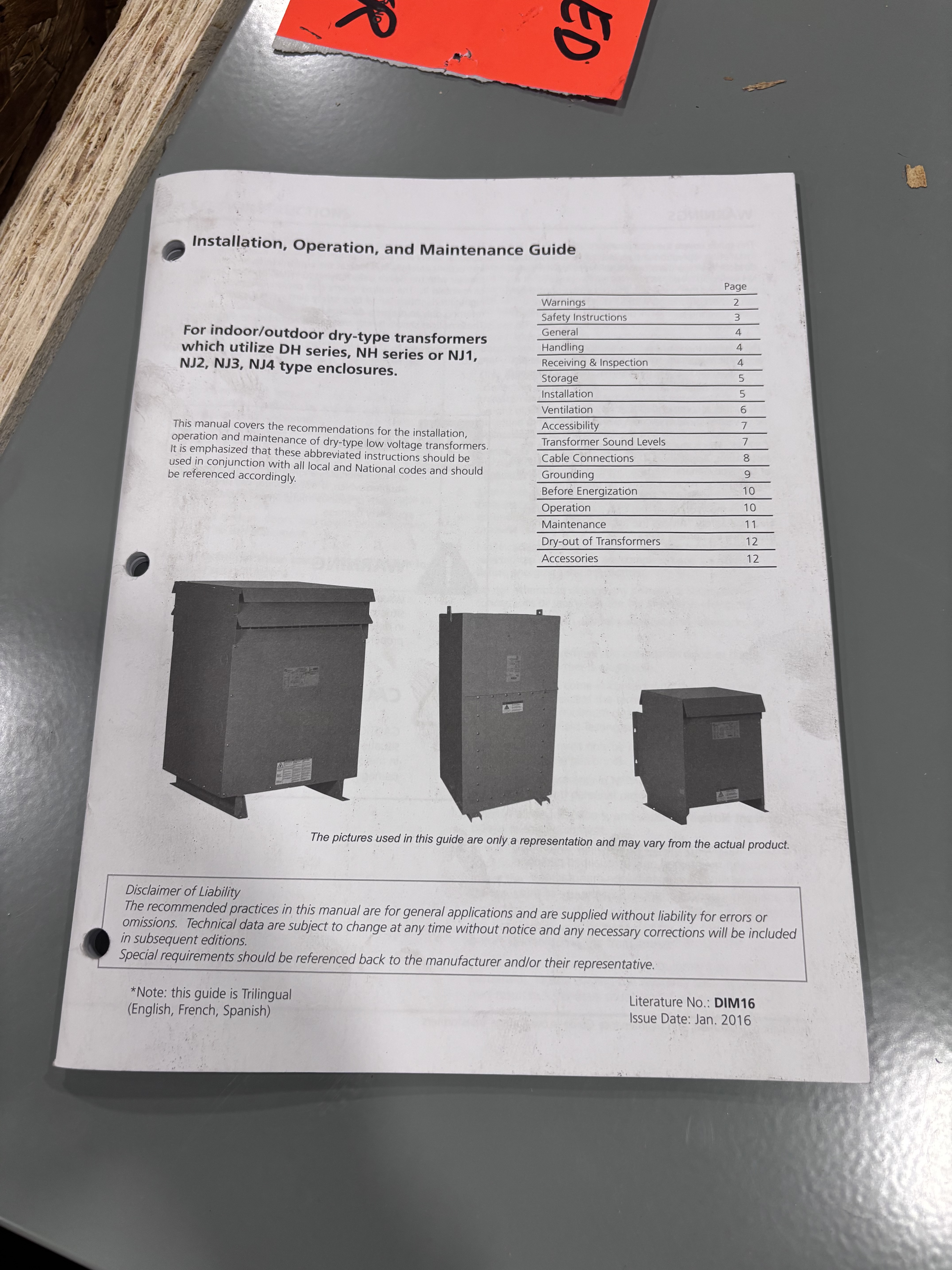

HPS describes its general-purpose distribution transformers as low-voltage products rated 600 V and below for supplying appliance, lighting, heating, motorized-machine, and power loads from electrical distribution systems. The offered unit’s exact ratings, configuration, and suitability are governed by its own physical nameplate and must be verified by the buyer.

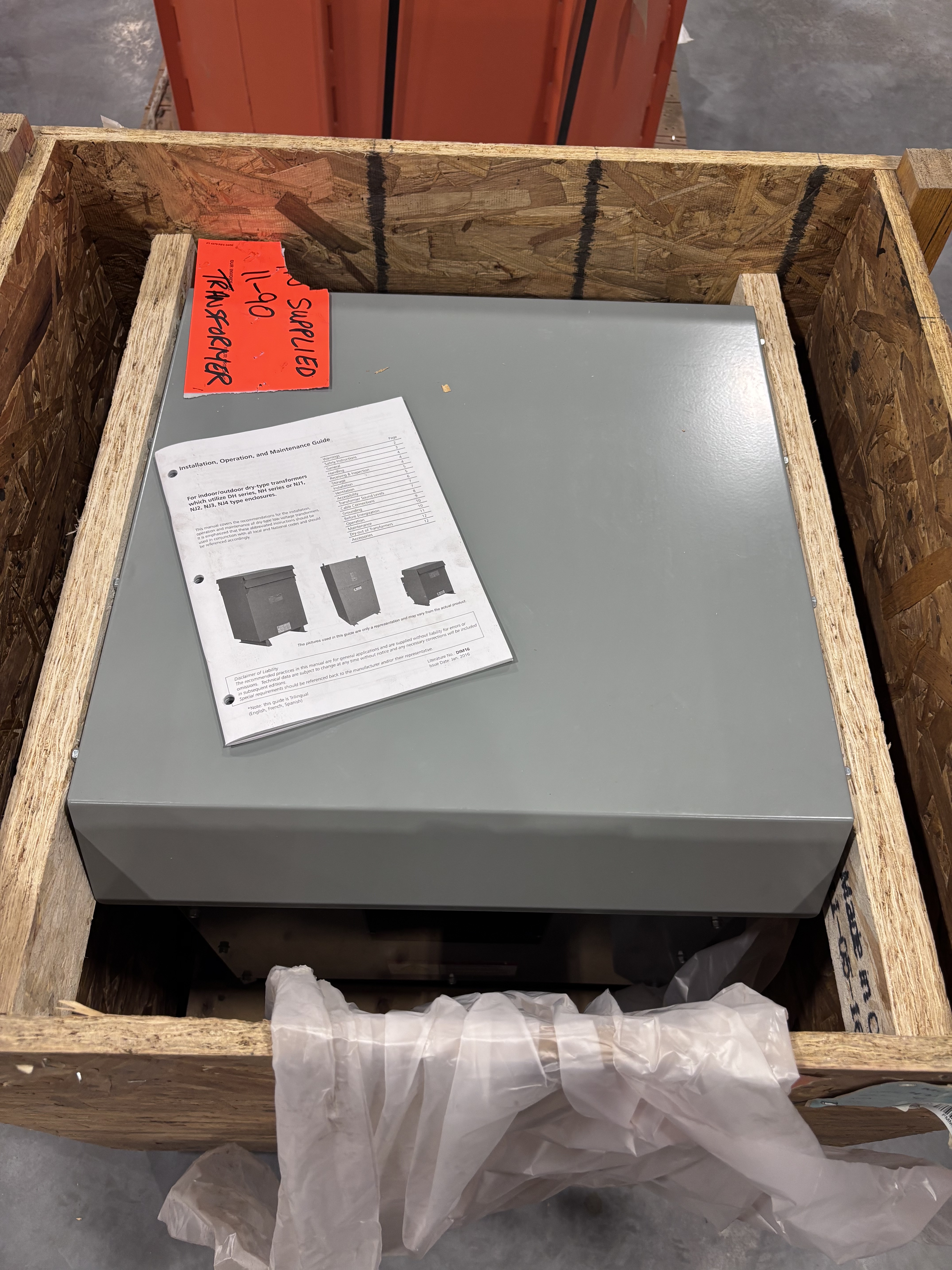

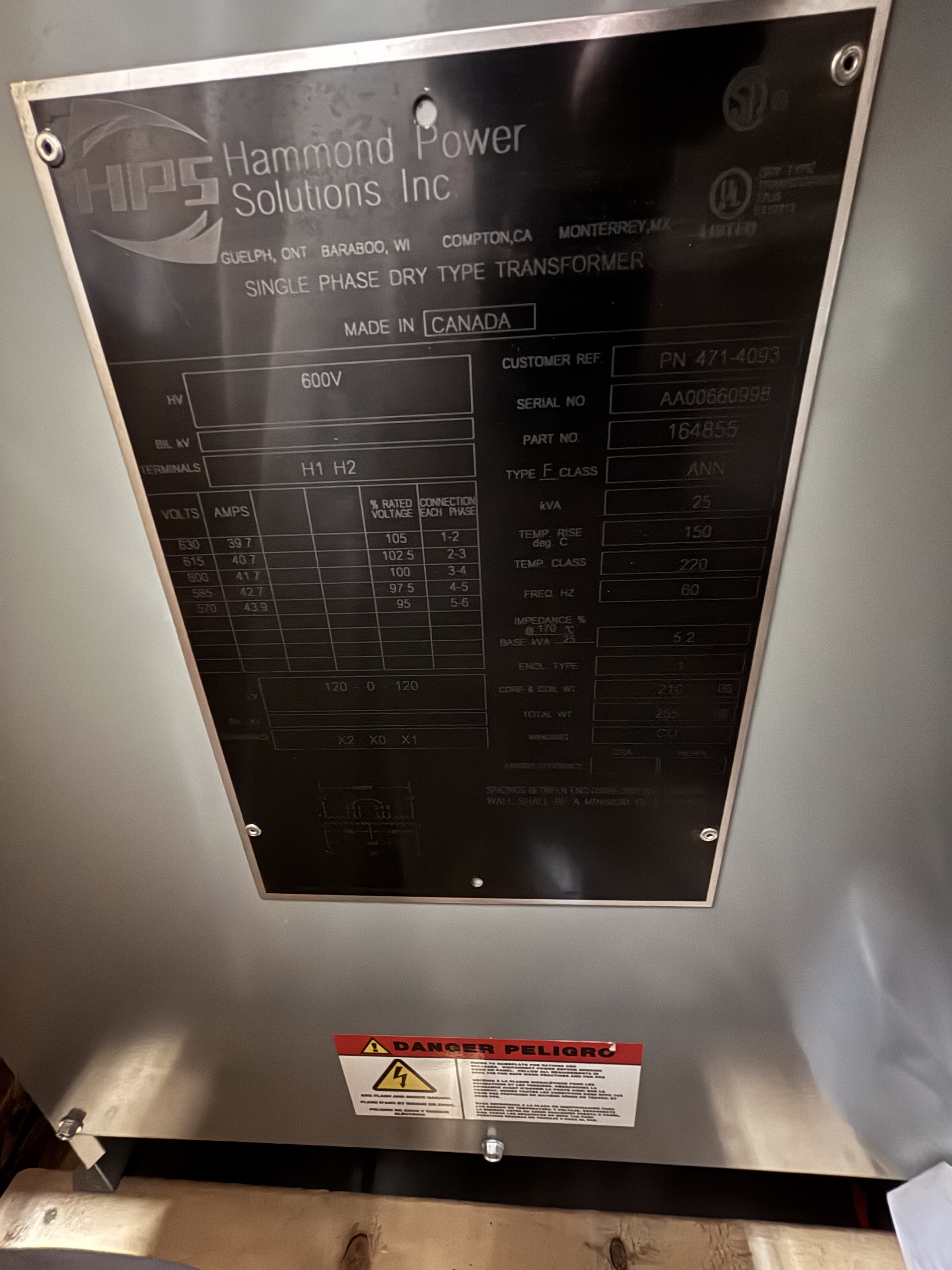

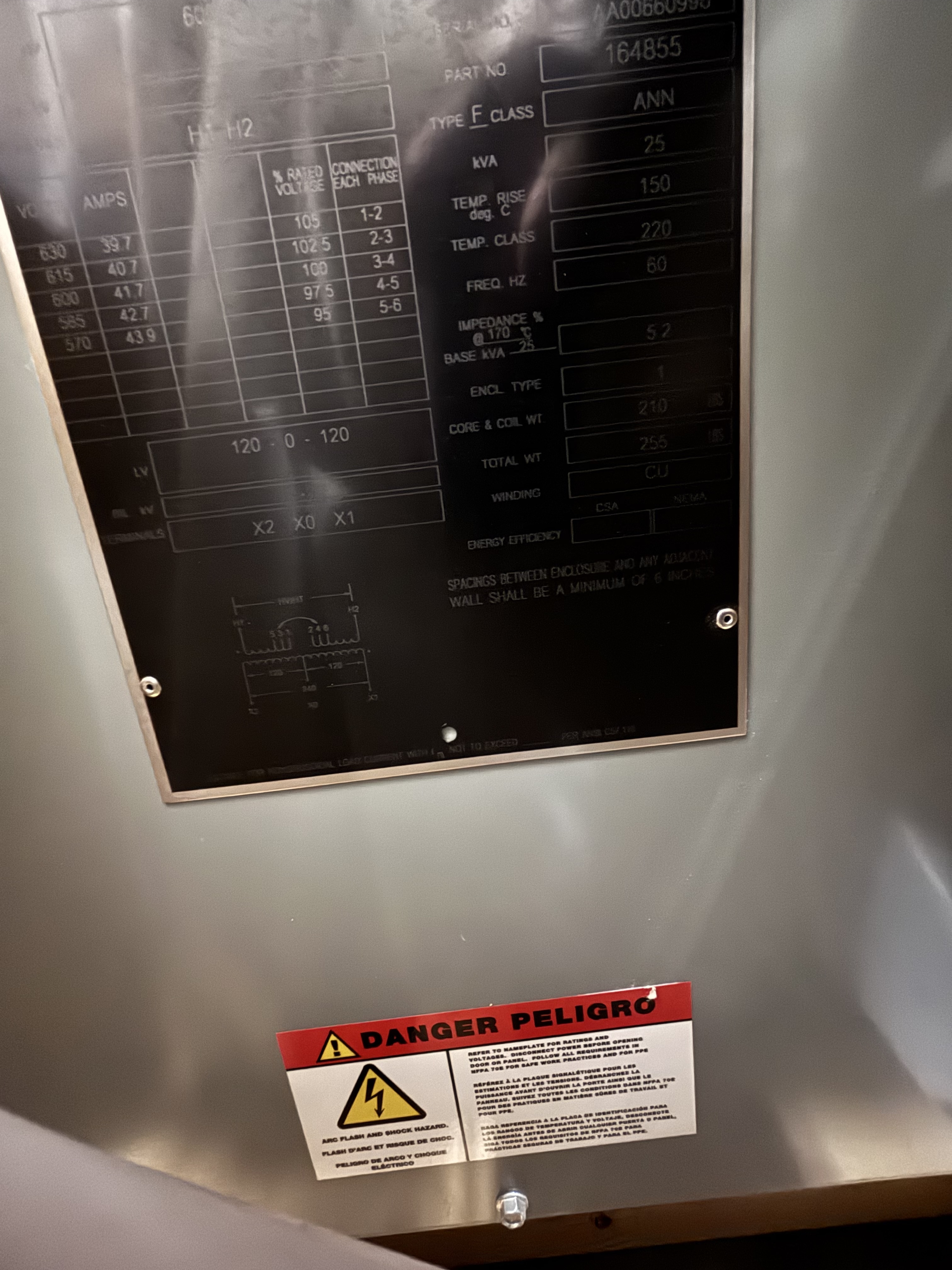

Verified Nameplate Data
| Nameplate field | Verified marking |
| Manufacturer | Hammond Power Solutions Inc. |
| Transformer type | Single-phase dry type transformer |
| HPS part number | 164855 |
| Serial number | AA00660998 |
| Supplemental P/N marking | 4714093 |
| Rated capacity | 25 kVA |
| Frequency | 60 Hz |
| Primary | 600 V, H1–H2 |
| Primary tap ratings | 630 V / 39.7 A; 615 V / 40.7 A; 600 V / 41.7 A; 585 V / 42.7 A; 570 V / 43.9 A |
| Secondary | 120-0-120 V, X2–X0–X1 |
| Secondary connection markings | 105 V, connection 1–2; 102.5 V, connection 2–3; 100 V, connection 3–4; 97.5 V, connection 4–5; 95 V, connection 5–6 |
| Temperature rise | 150°C |
| Temperature class | 220°C |
| Impedance | 5.2% at 170°C, 25 kVA base |
| Enclosure type | 1 |
| Winding | CU / copper |
| Core and coil weight | 210 lb, as marked |
| Total weight | 255 lb, as marked |
| Origin | Canada |
