WEG W22 30 HP NEMA Premium Efficiency Motor — 575V, 3535 RPM, Frame 284/6TS, TEFC

Listing Summary

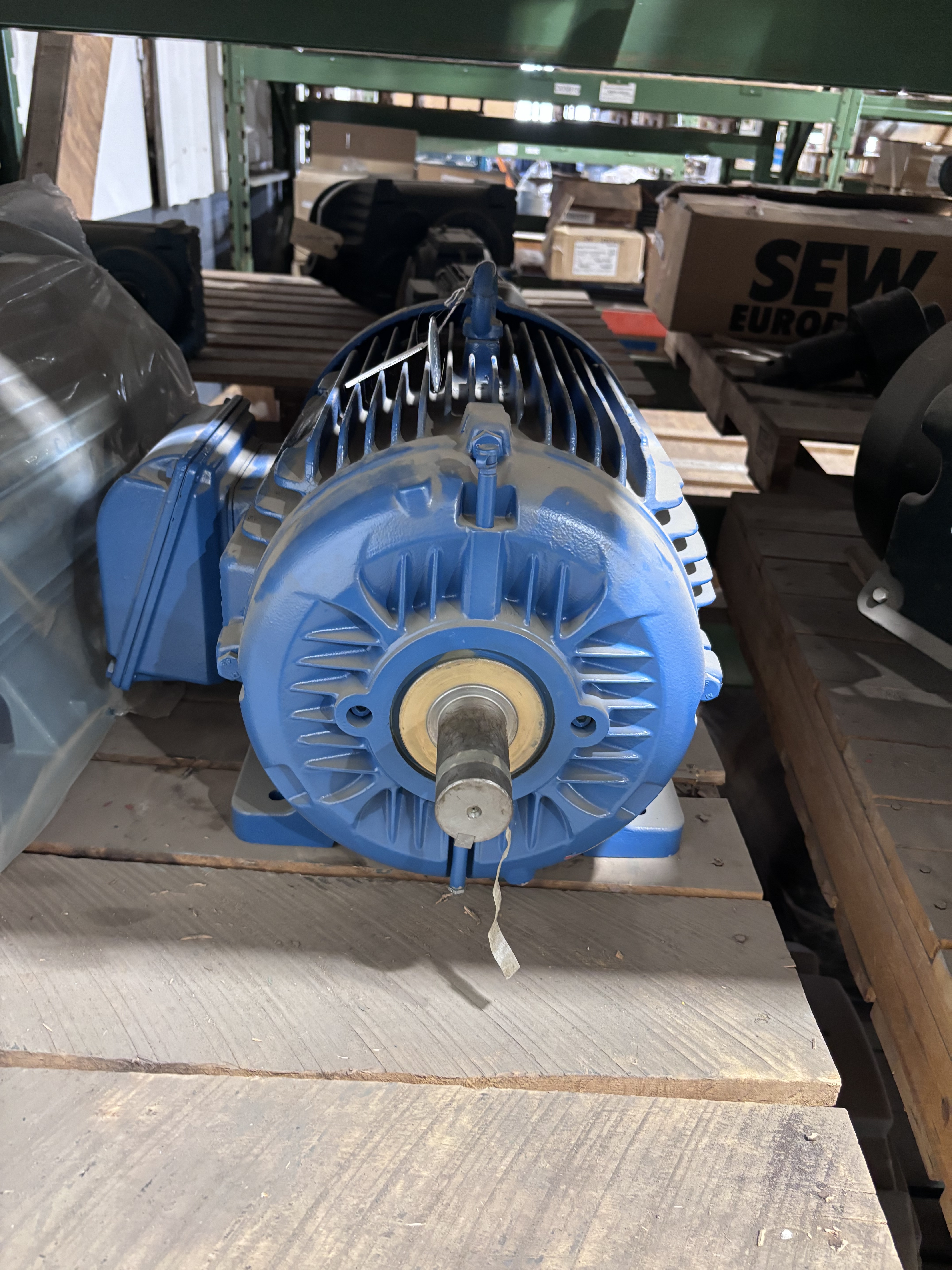

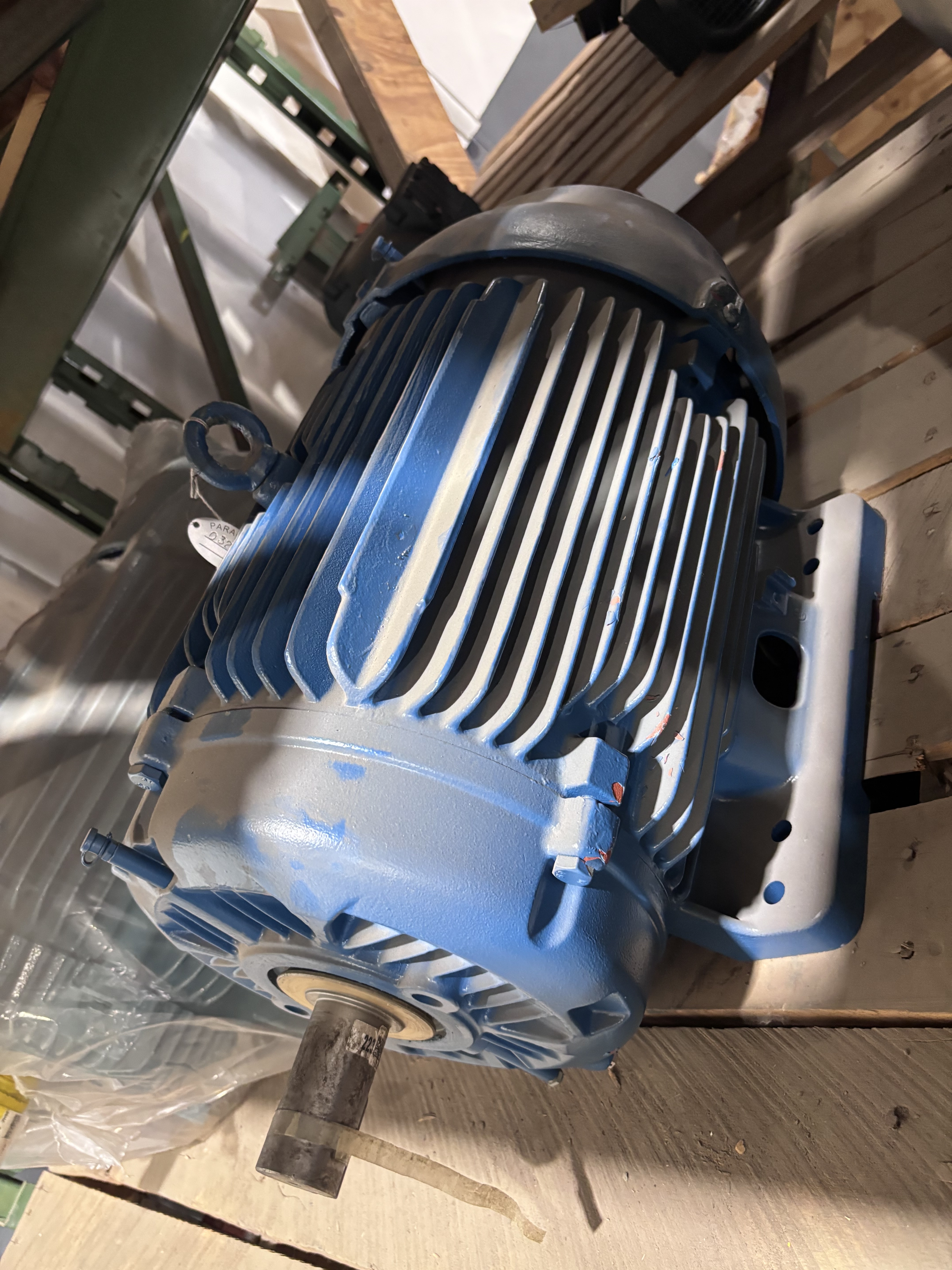

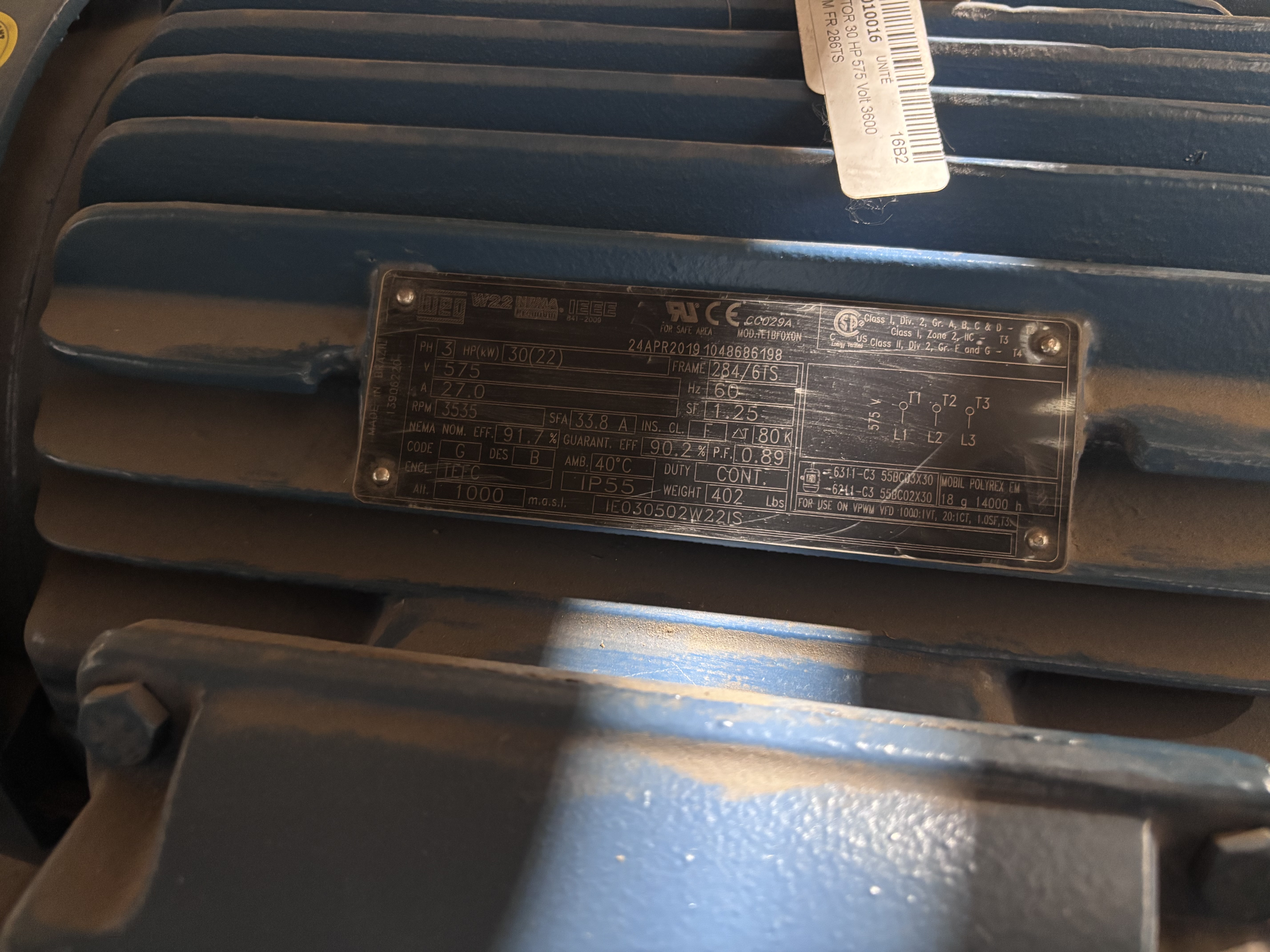

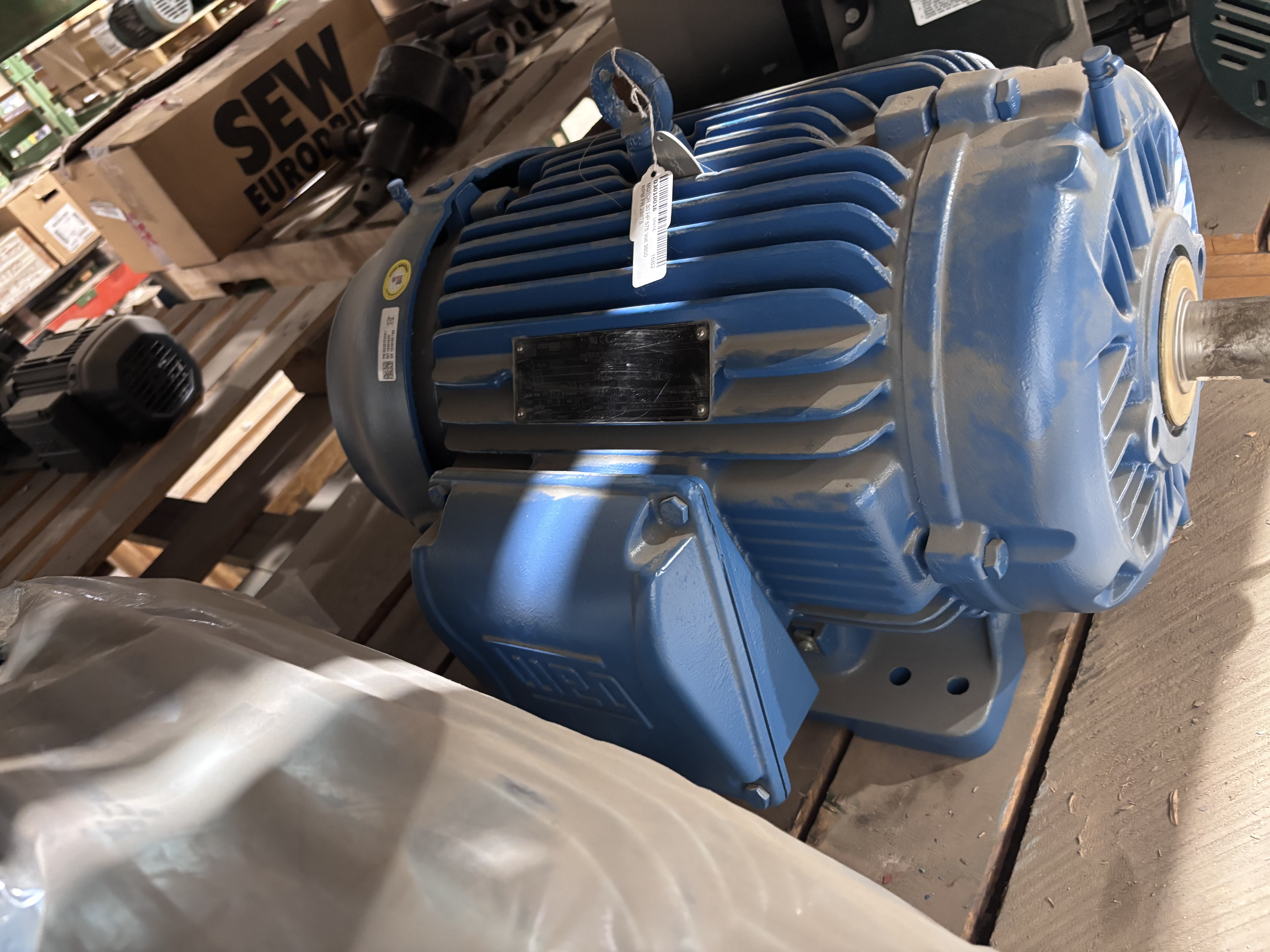

Available for immediate sale is a WEG W22 30 HP NEMA Premium Efficiency AC Induction Motor. This severe-duty industrial motor operates at 575 Volts and 3535 RPM (2-pole), built on a 284/6TS Frame with a Totally Enclosed Fan Cooled (TEFC) cast iron enclosure.

Manufactured in April 2019, this motor features WEG's W22 severe-duty cast iron construction, designed to maximize performance and energy savings while providing improved airflow and lower operational temperatures. It is inverter duty rated (VFD compatible) and features a high 1.25 Service Factor.

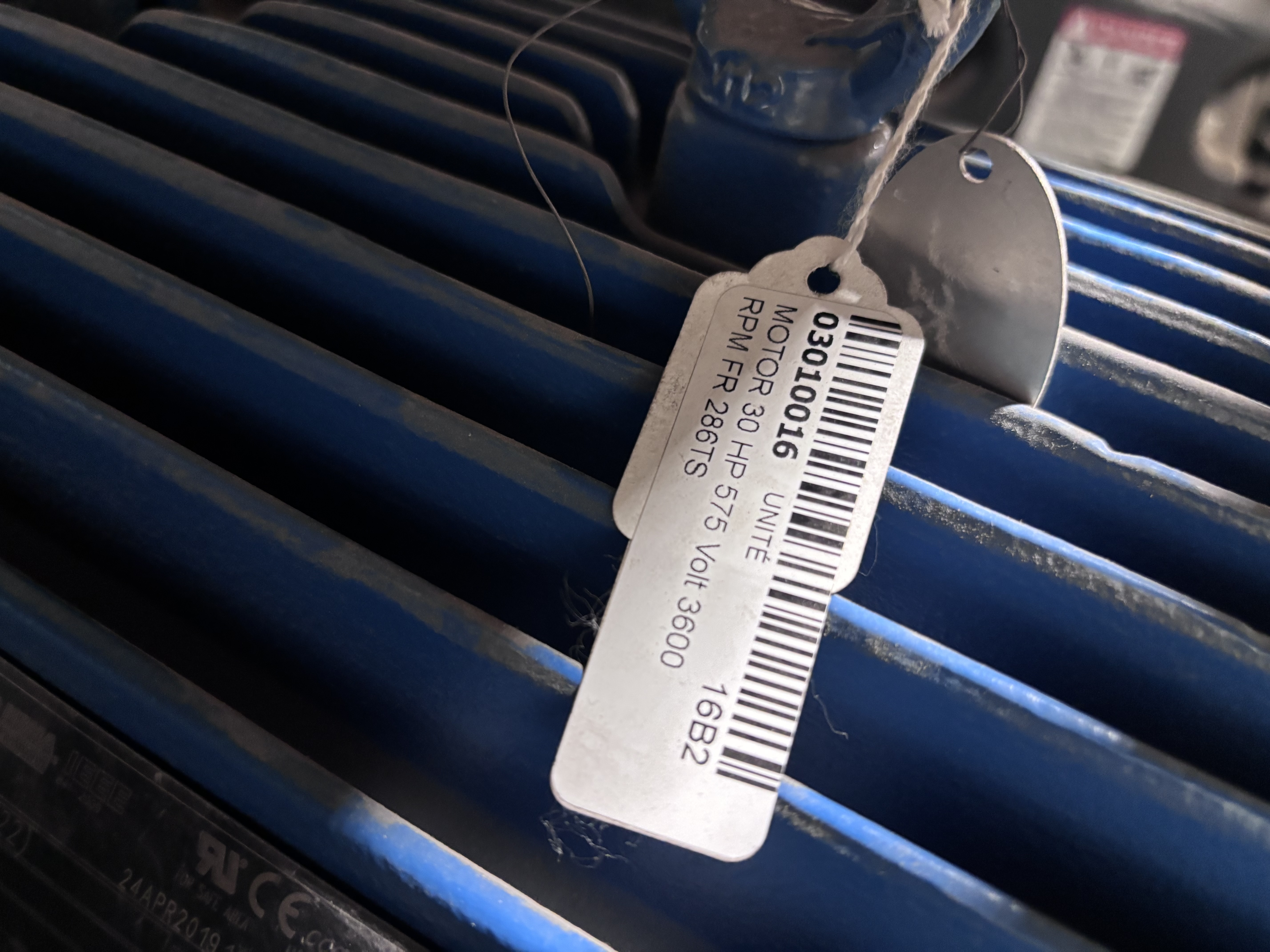

This unit bears an internal plant asset identification tag (03010016), consistent with a CMMS asset register. It is currently palletized and stored indoors, presenting an excellent opportunity to acquire a modern, high-efficiency replacement motor for pumps, fans, or compressors operating on 575V Canadian industrial power systems.

Key Specifications

Typical Applications

A 30 HP, 575V, 3600 RPM (nominal) motor on a 284/6TS frame is a high-speed workhorse specification, particularly common in Canadian industrial facilities utilizing 575V power. Typical applications include:

•Centrifugal Pumps: High-speed water transfer, boiler feed, and process pumps.

•Industrial Fans & Blowers: High-velocity ventilation and exhaust systems.

•Compressors: Rotary screw and centrifugal air compressors.

•General Manufacturing: Any application requiring a severe-duty, high-speed, NEMA Premium efficiency drive.
