EnviroSeal SpiralTrac Superset Bushing — Qty: 4
Listing ID:
IH-65720
Description
EnviroSeal SpiralTrac™ Superset Bushing — P/N PM22006RS27152(174)20-0231 — Qty: 4
Notes:
Item Overview

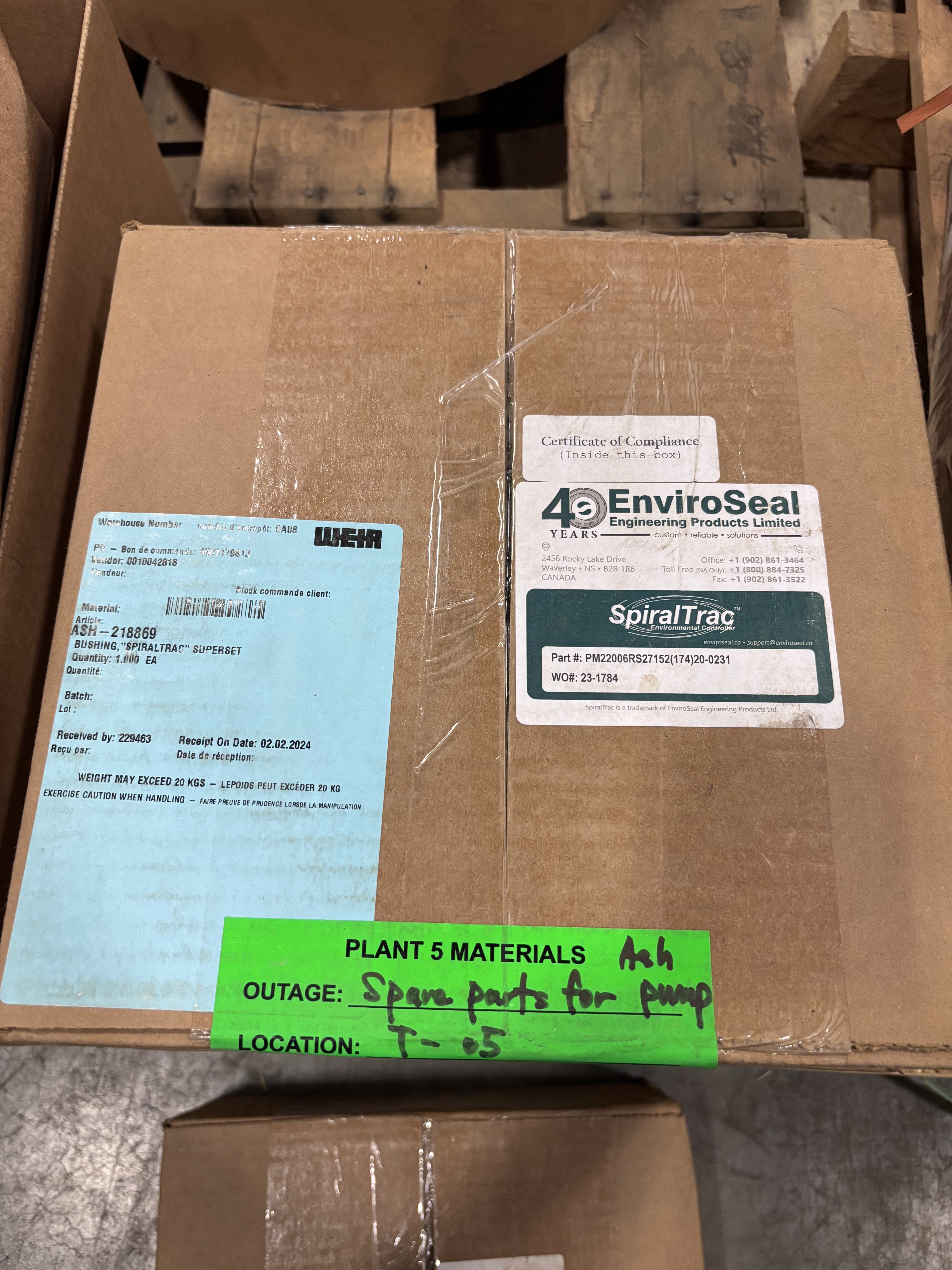

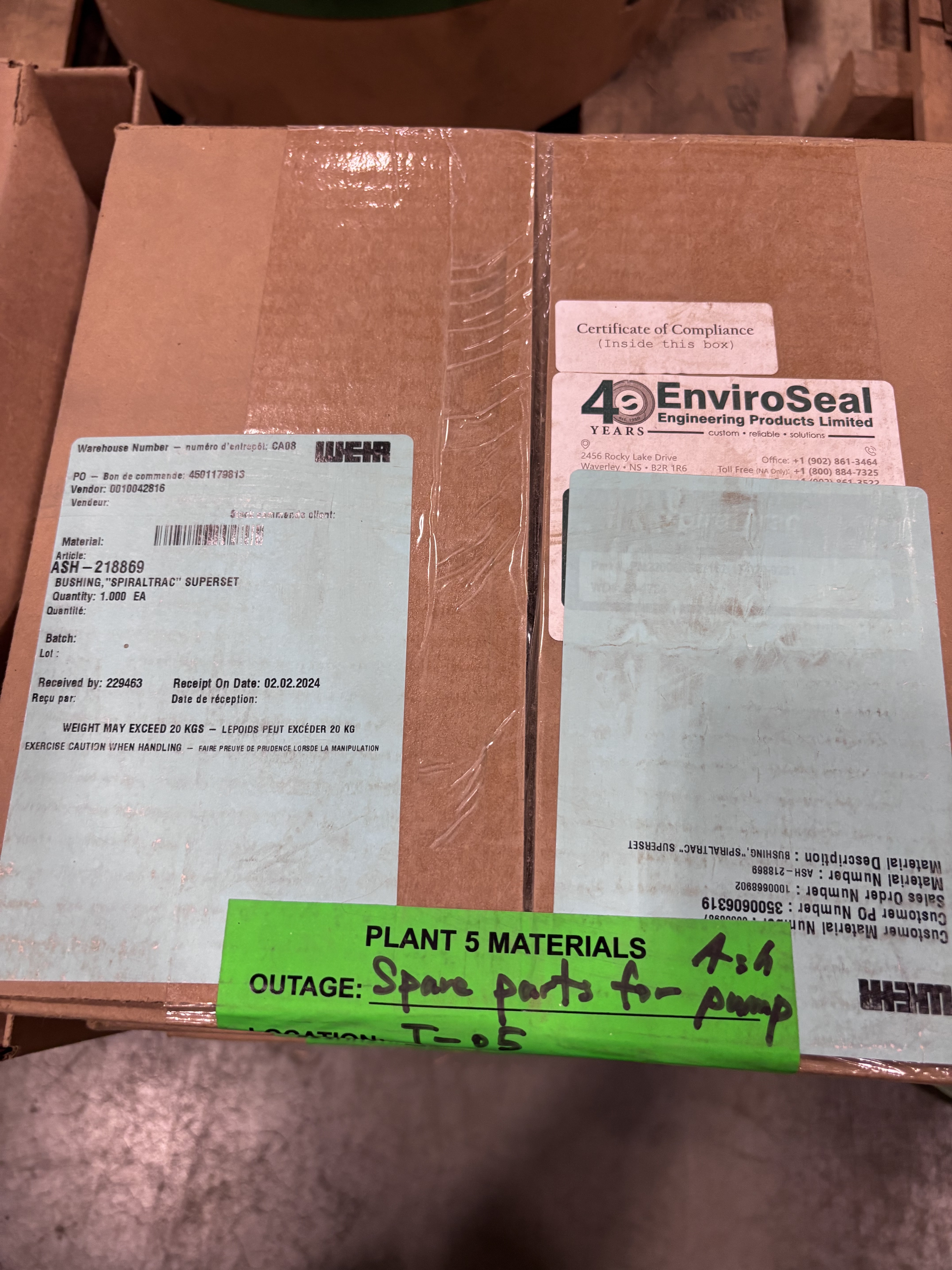

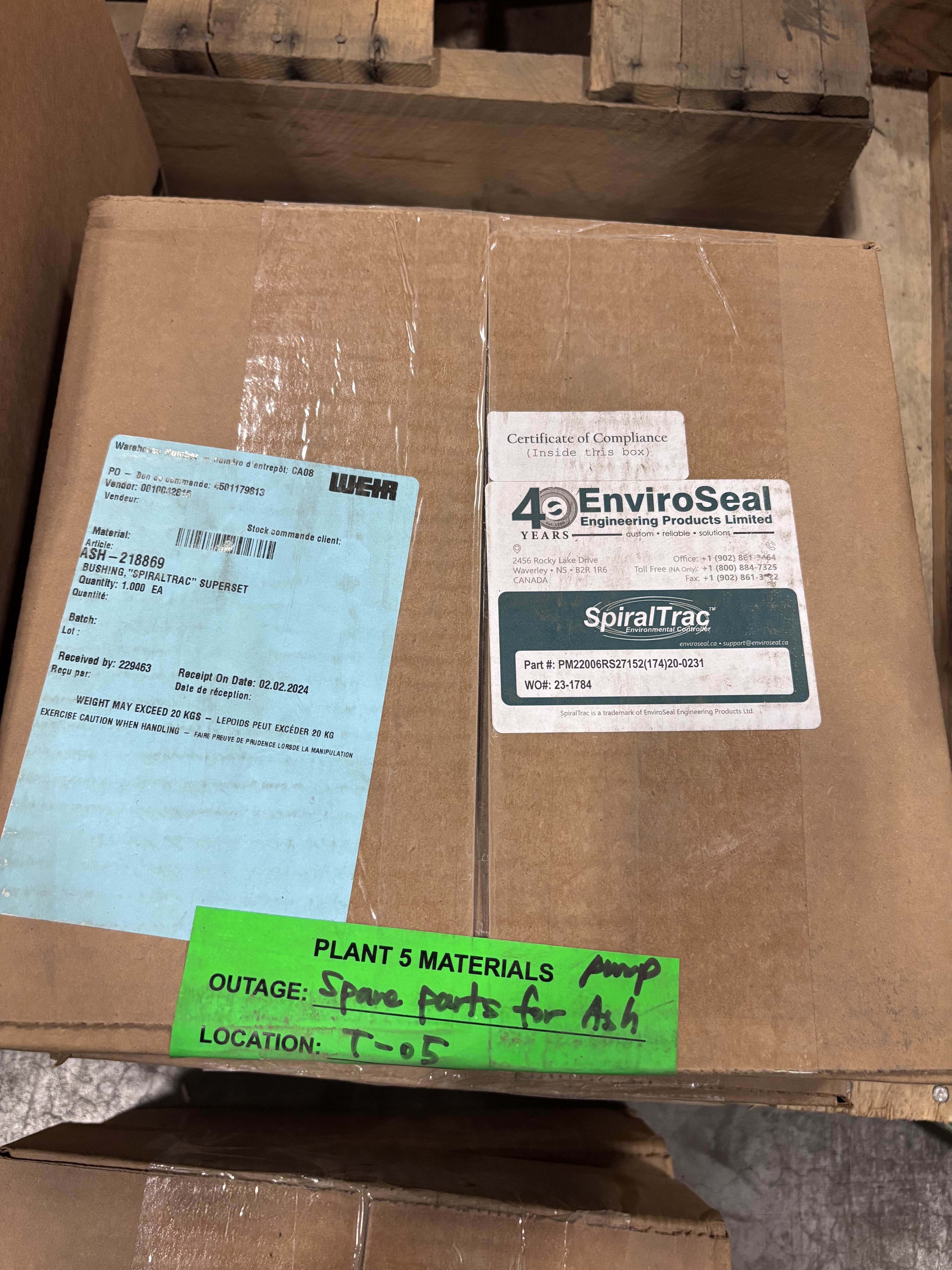

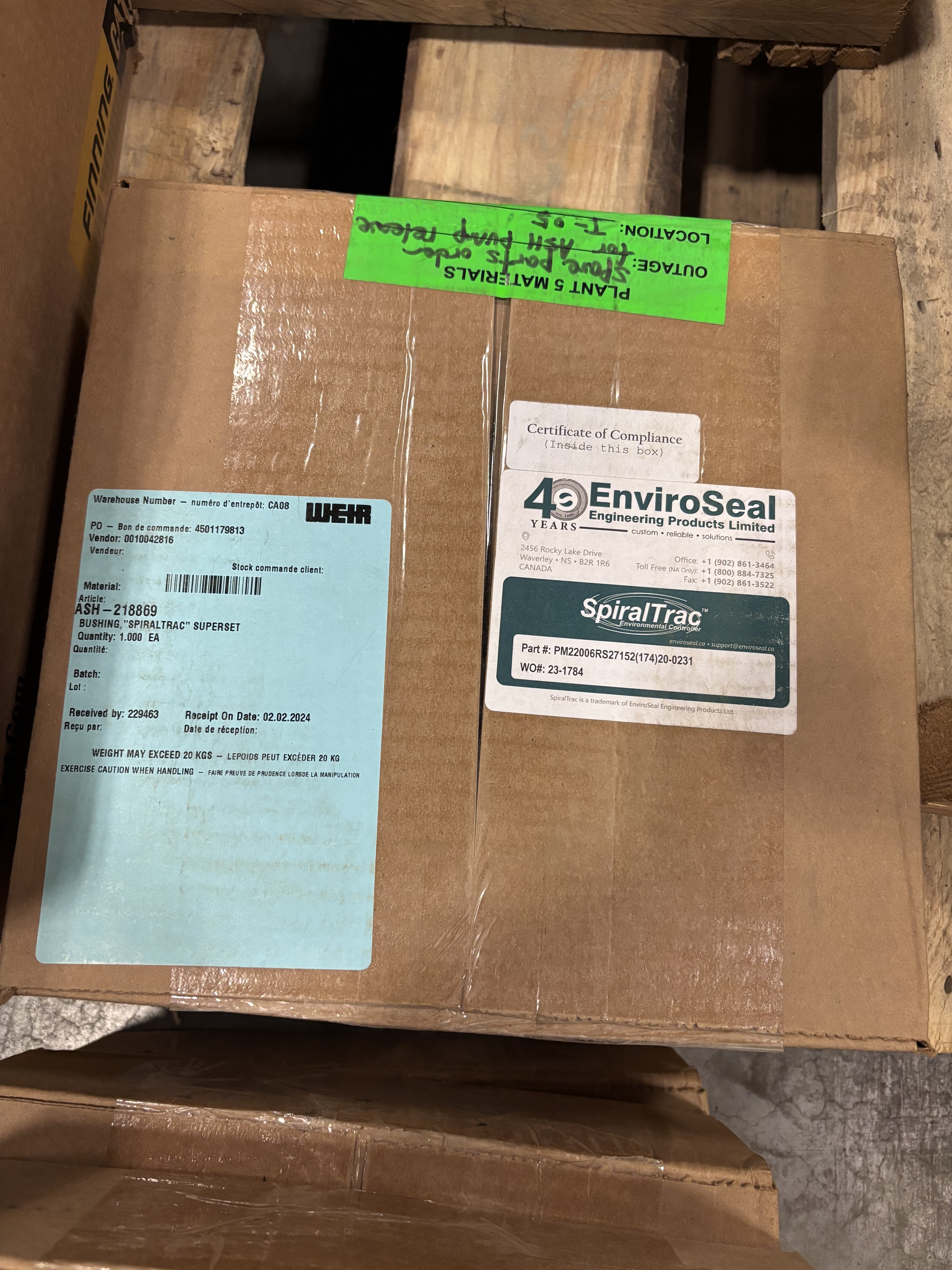

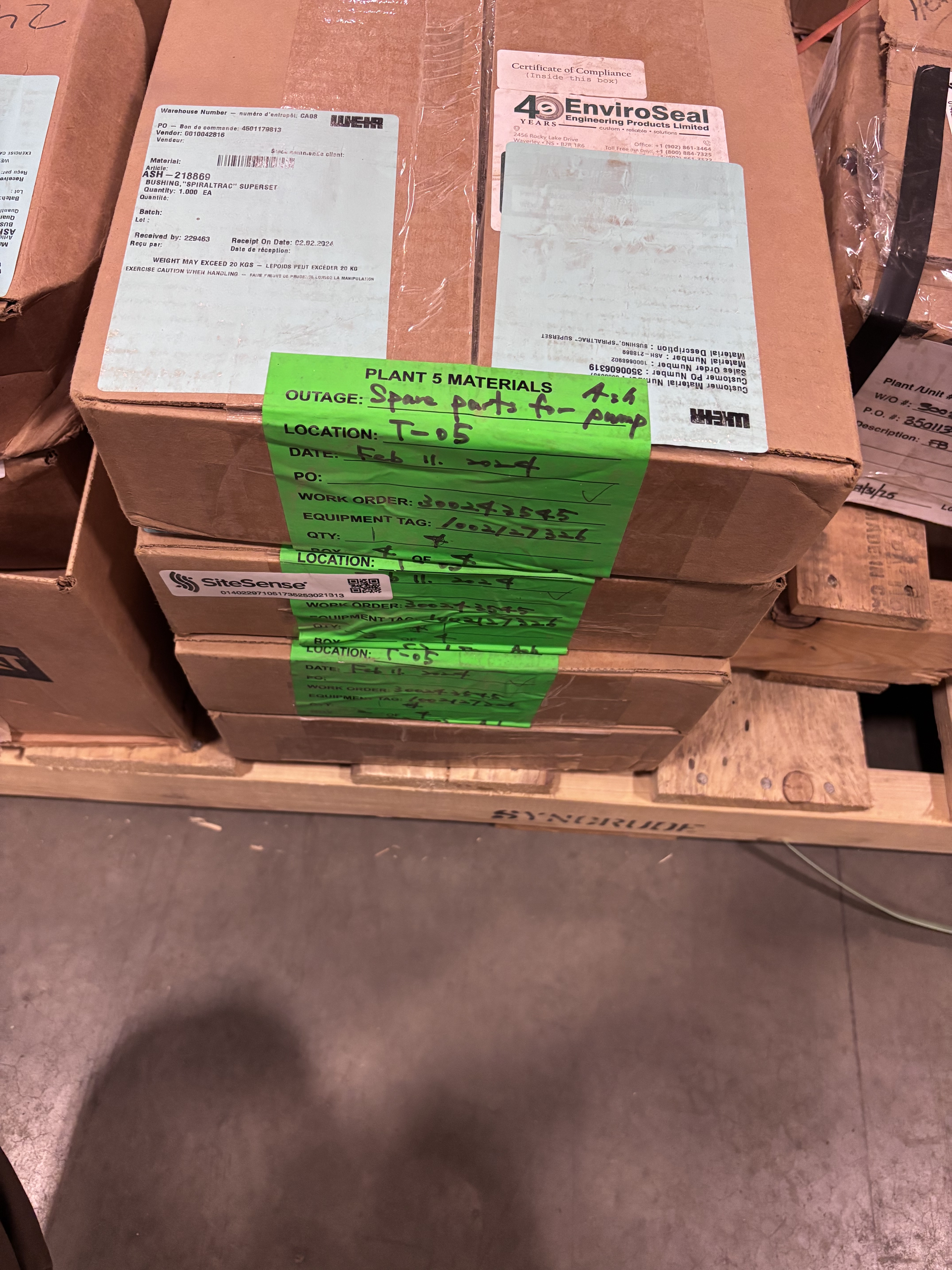

This is a lot of 4 new, factory-sealed EnviroSeal SpiralTrac™ Superset bushings, part number PM22006RS27152(174)20-0231. All 4 units are in original EnviroSeal OEM cartons with a Certificate of Compliance inside each box, confirming factory quality inspection. Each unit weighs in excess of 20 kg, indicating this is a large-bore, heavy-duty stuffing box assembly.
Part Number Decoder
The SpiralTrac part number encodes the shaft and bore dimensions for this custom-engineered device:
| Code | Meaning |
| PM | Packing version, M-type (for use with packing) |
| 22006 | Shaft diameter: 2.2006" |
| RS | Stuffing box bore: R-series |
| 27152 | Stuffing box bore: 2.7152" |
| (174) | Stuffing box depth: 1.74" |
| 20 | Material code |
| 0231 | Engineering revision / design identifier |
Specifications
| Attribute | Detail |
| Manufacturer P/N | PM22006RS27152(174)20-0231 |
| Weir Material Number | ASH-218869 |
| Description | SpiralTrac Superset (bushing + packing kit) |
| Shaft Diameter | ~2.2006" |
| Stuffing Box Bore | ~2.7152" |
| Type | Packing version (PM) |
| Application | Weir ash pump stuffing box |
| Manufacturer | EnviroSeal Engineering Products Ltd., Waverley, NS, Canada |
| Work Order | WO# 23-1784 |
| Condition | New in OEM packaging, Certificate of Compliance included |
| Weight | >20 kg per unit |
| Quantity | 4 units available |
| Receipt Date | February 2, 2024 |
