TECO-Westinghouse Optim TEFC — 75 HP | 230/460V | 3555 RPM | Frame 365TSC | Hazardous Location | VFD Duty | NEMA Premium | S/N VGP7218401001

Description

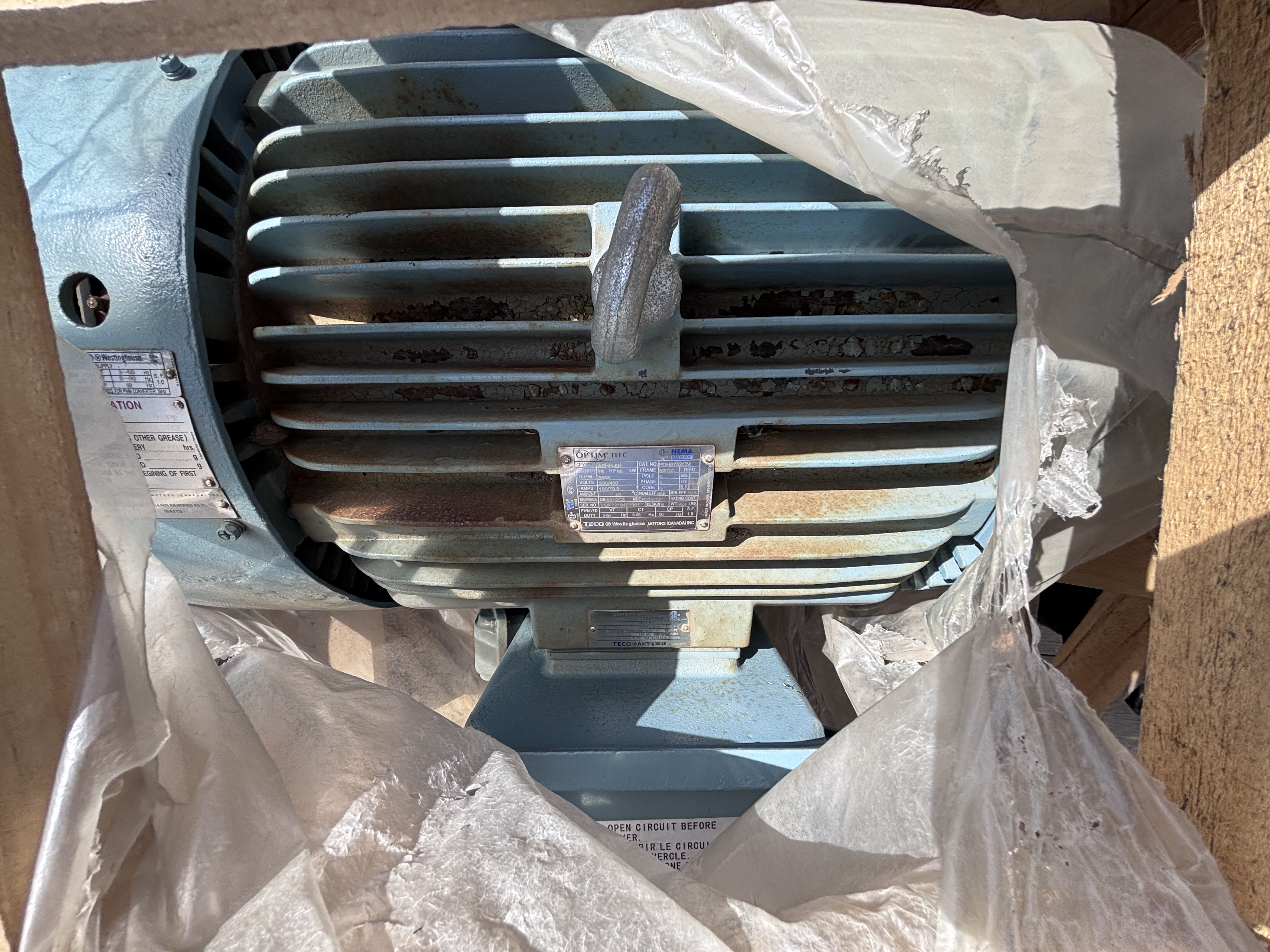

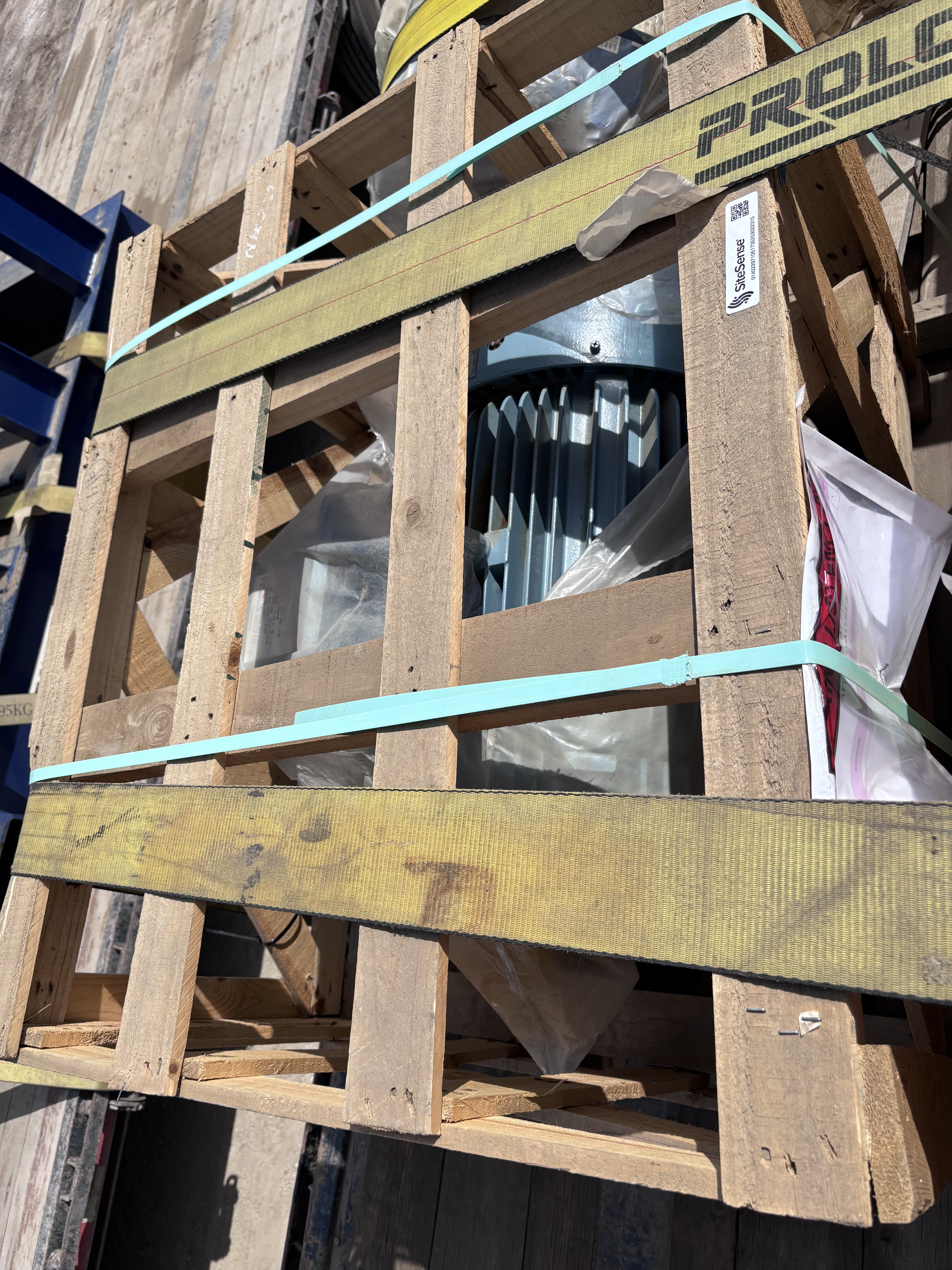

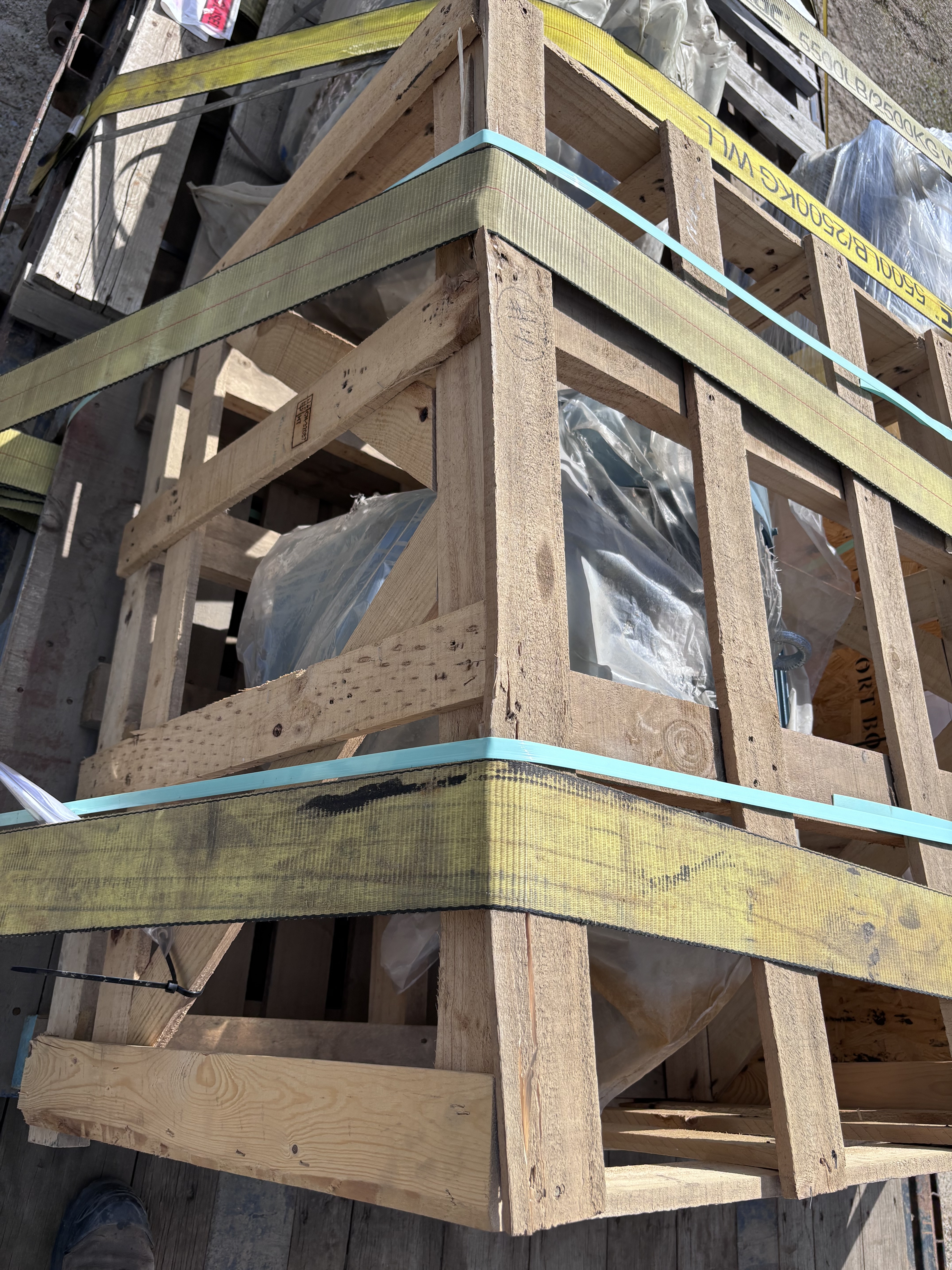

For sale is one (1) TECO-Westinghouse Optim TEFC AC induction motor, 75 HP, 230/460V, 3-phase, 3555 RPM, Frame 365TSC, serial VGP7218401001. This motor was procured in 2021 and remains in its original shipping crate, unused, with original protective wrapping intact.

This is a premium-specification industrial motor with three features that significantly distinguish it from standard surplus motors:

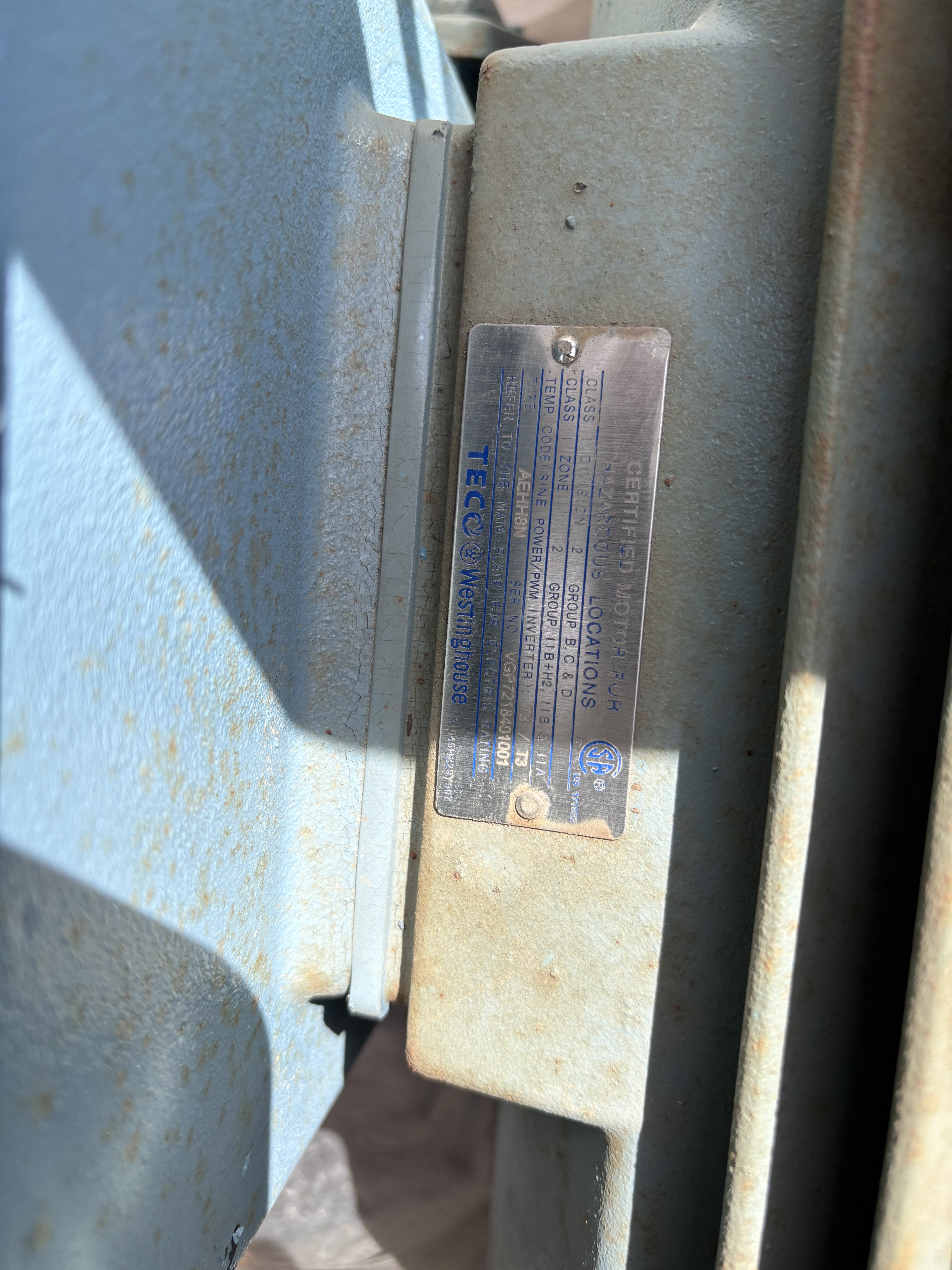

1. Hazardous Location Certified (Class I, Division 2 / Zone 2)The motor carries CSA certification for use in Class I, Division 2 and Zone 2 hazardous locations, Group B, C & D, Temperature Code T3/T1A. This certification is required for installation in areas where flammable gases or vapours may be present under abnormal conditions — standard in oil sands, upstream oil and gas, petrochemical, and refinery environments. Not all motors of this HP and frame carry this certification.

2. Full VFD / Inverter Duty Rating (PWM)The motor is rated for PWM inverter (VFD) duty across the full speed range: Variable Torque (VT) 3–60 Hz, Constant Torque (CT) 6–60 Hz, and Constant Power (CP) 60 Hz. This makes it directly compatible with variable frequency drives without additional derating or insulation concerns.

3. NEMA Premium EfficiencyNominal efficiency of 94.5% (minimum 93.6%) — NEMA Premium certified. This represents a meaningful operating cost advantage over standard efficiency motors at 75 HP over a typical service life.

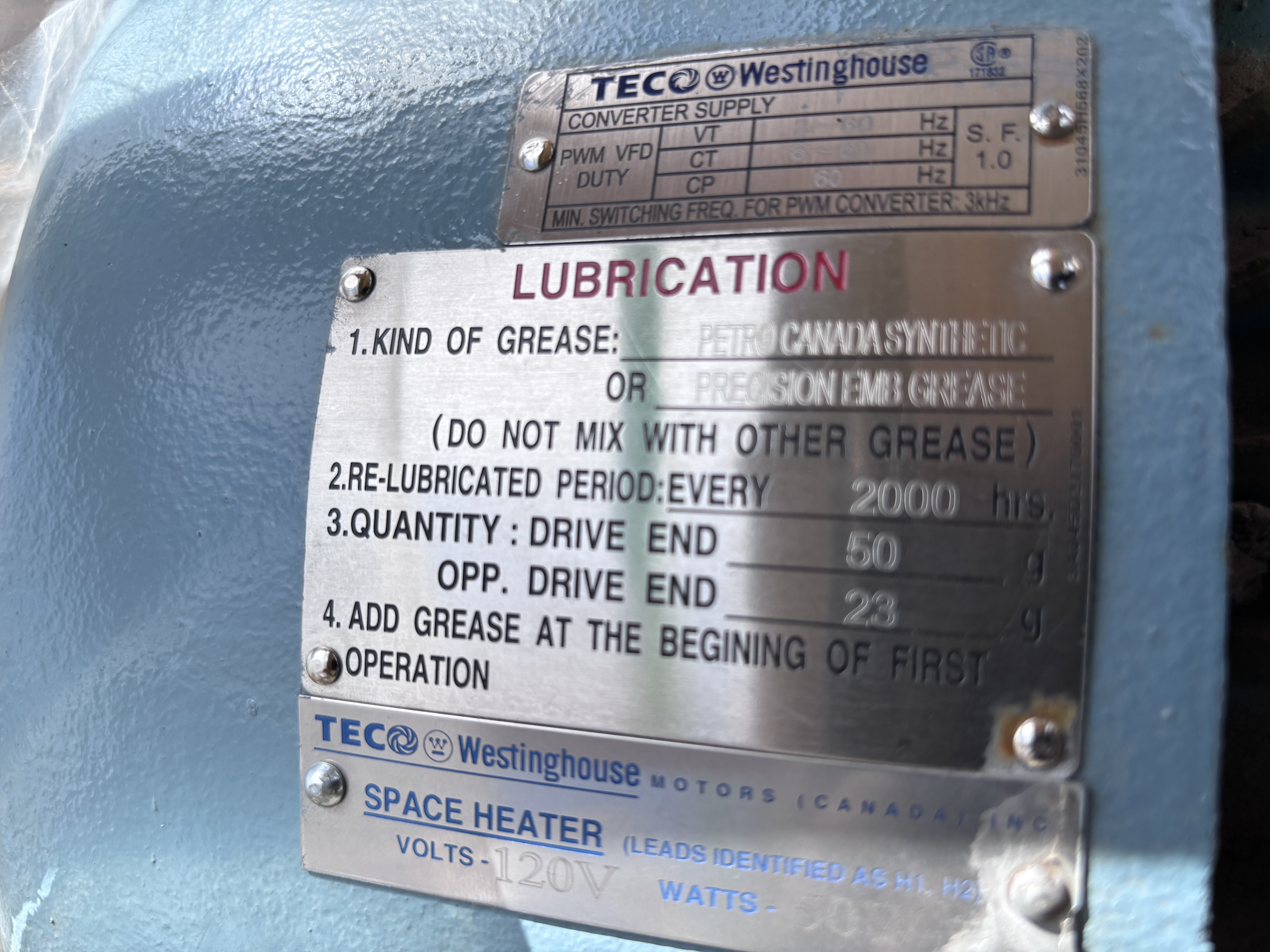

Additional features include an integral 120V space heater (leads H1/H2) for cold-climate condensation prevention during standby, and a Class F insulation system rated for 40°C ambient.

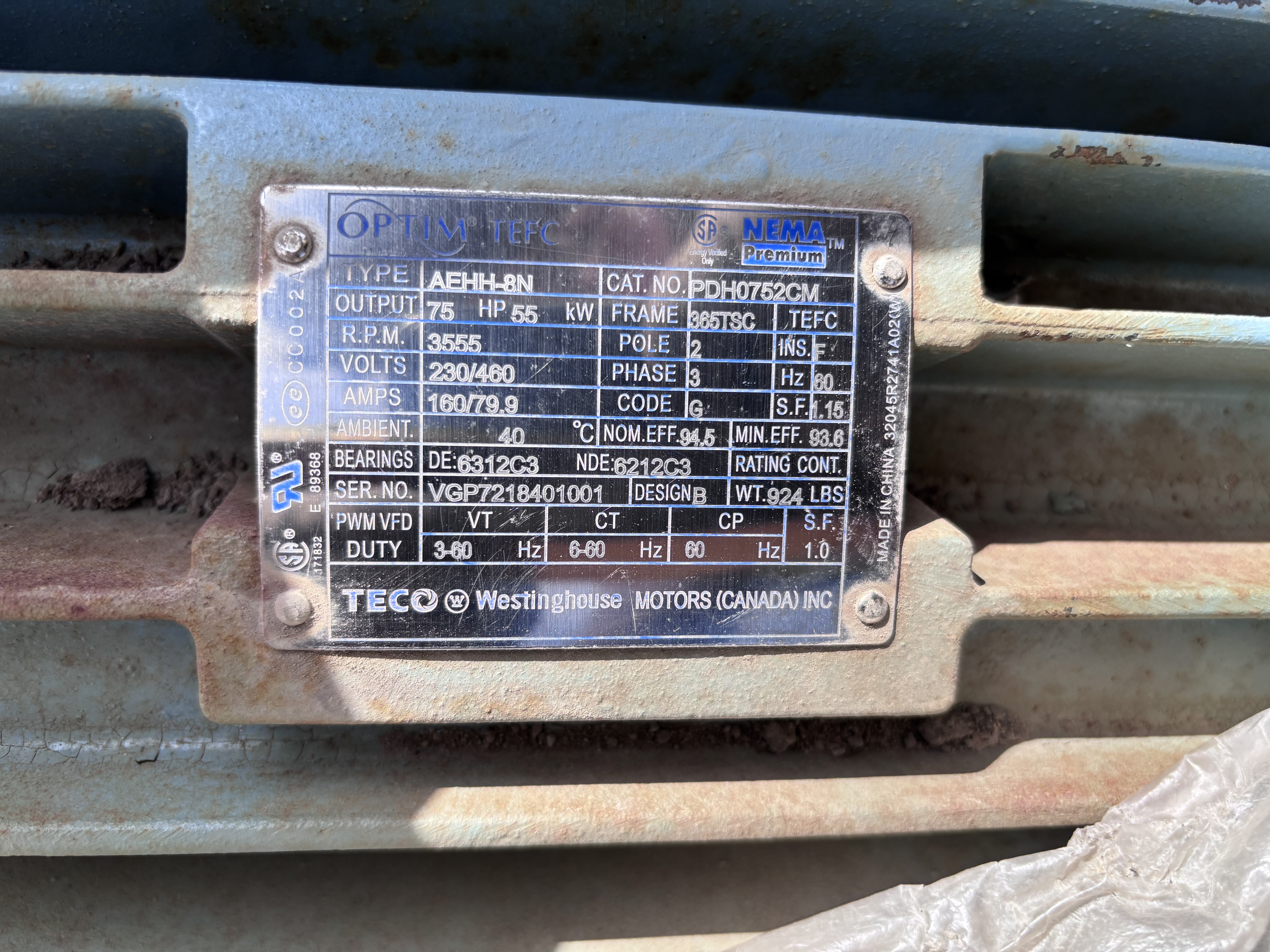

Full Nameplate Specifications
