FAG 32234-A and 32234-XL Tapered Roller Bearings - QTY 4
FAG 32234-A and 32234-XL Tapered Roller Bearings — 4-Unit Lot
Description

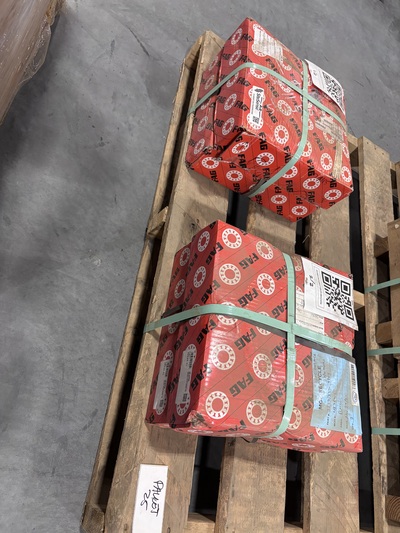

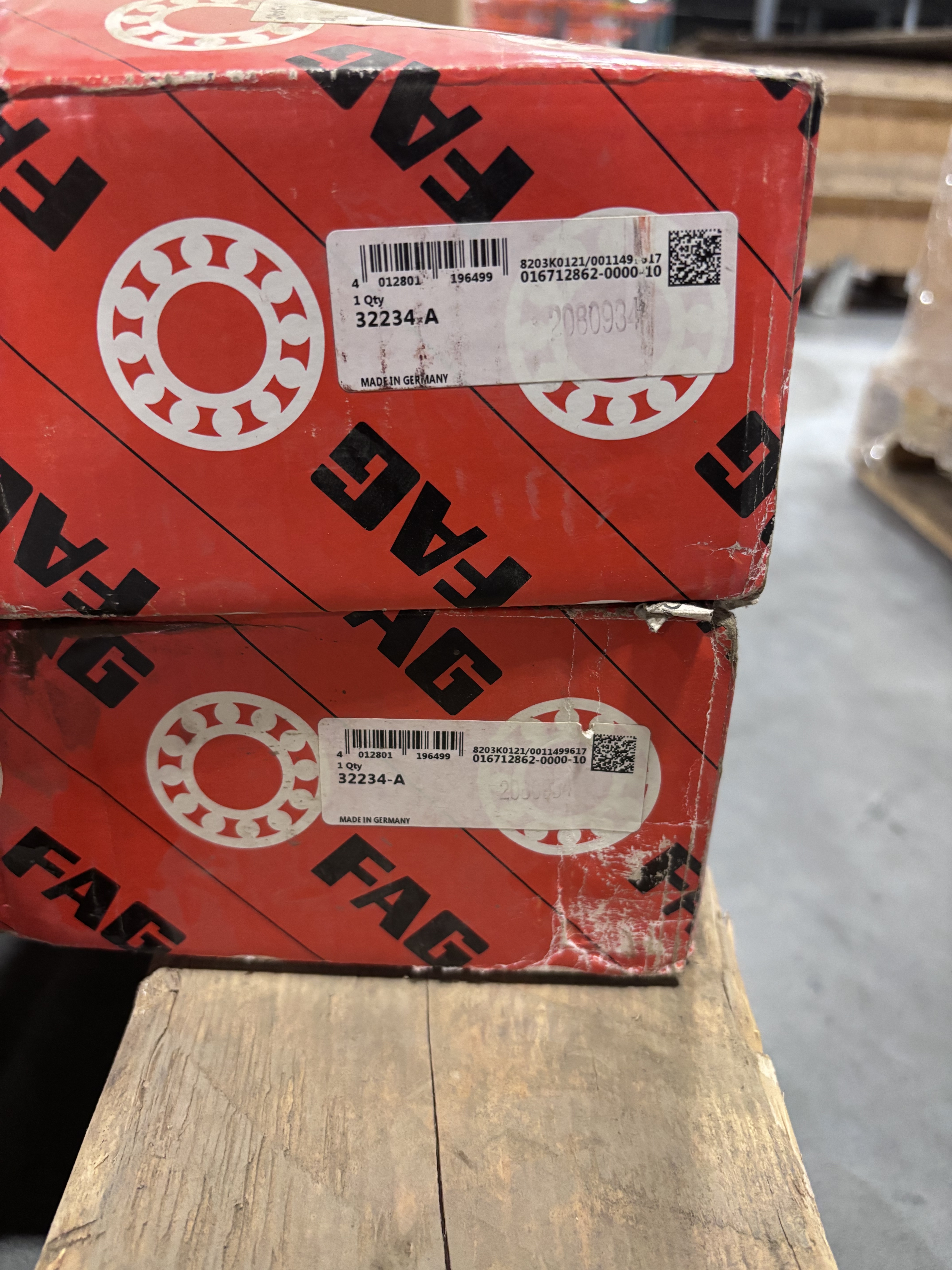

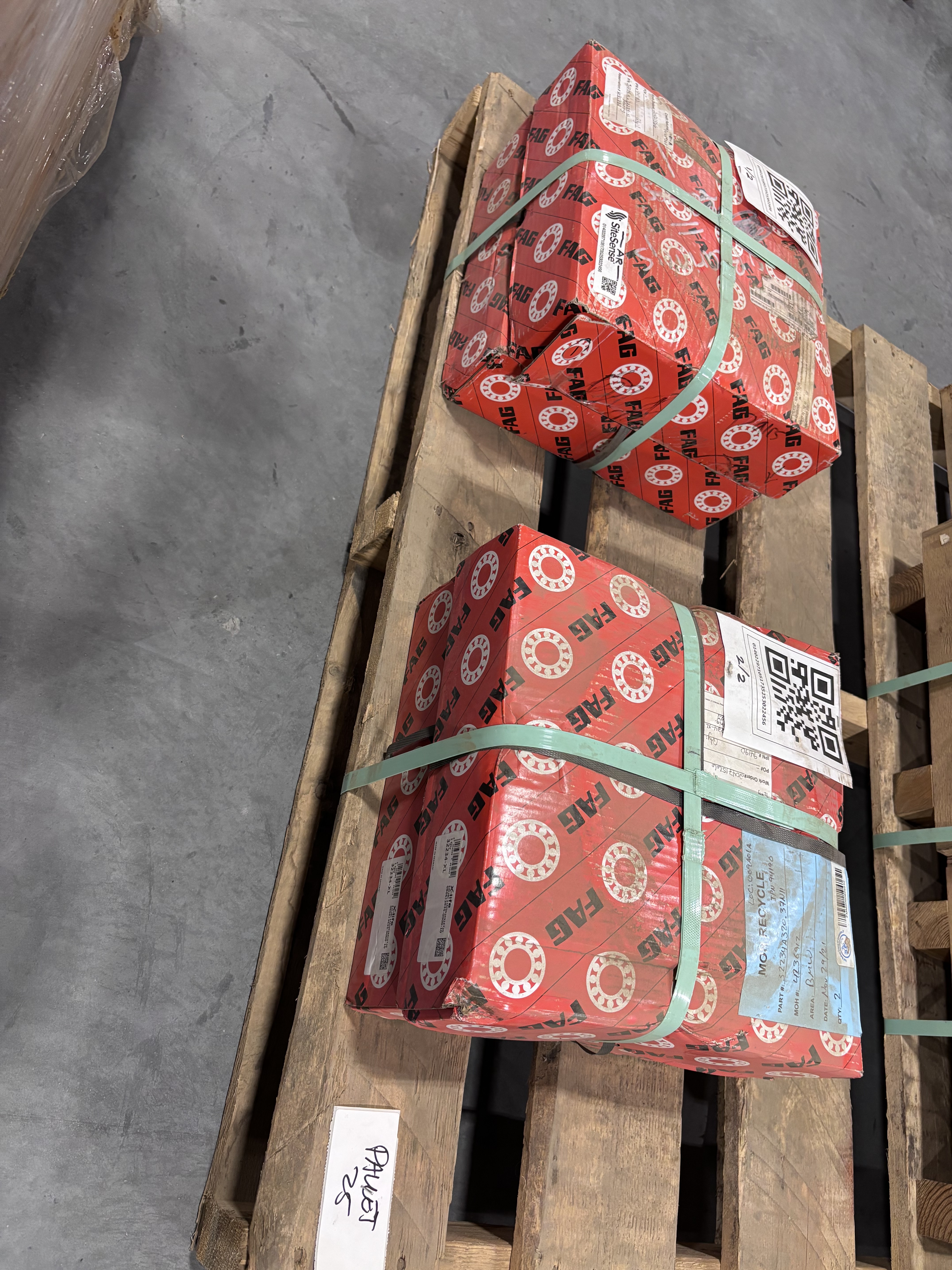

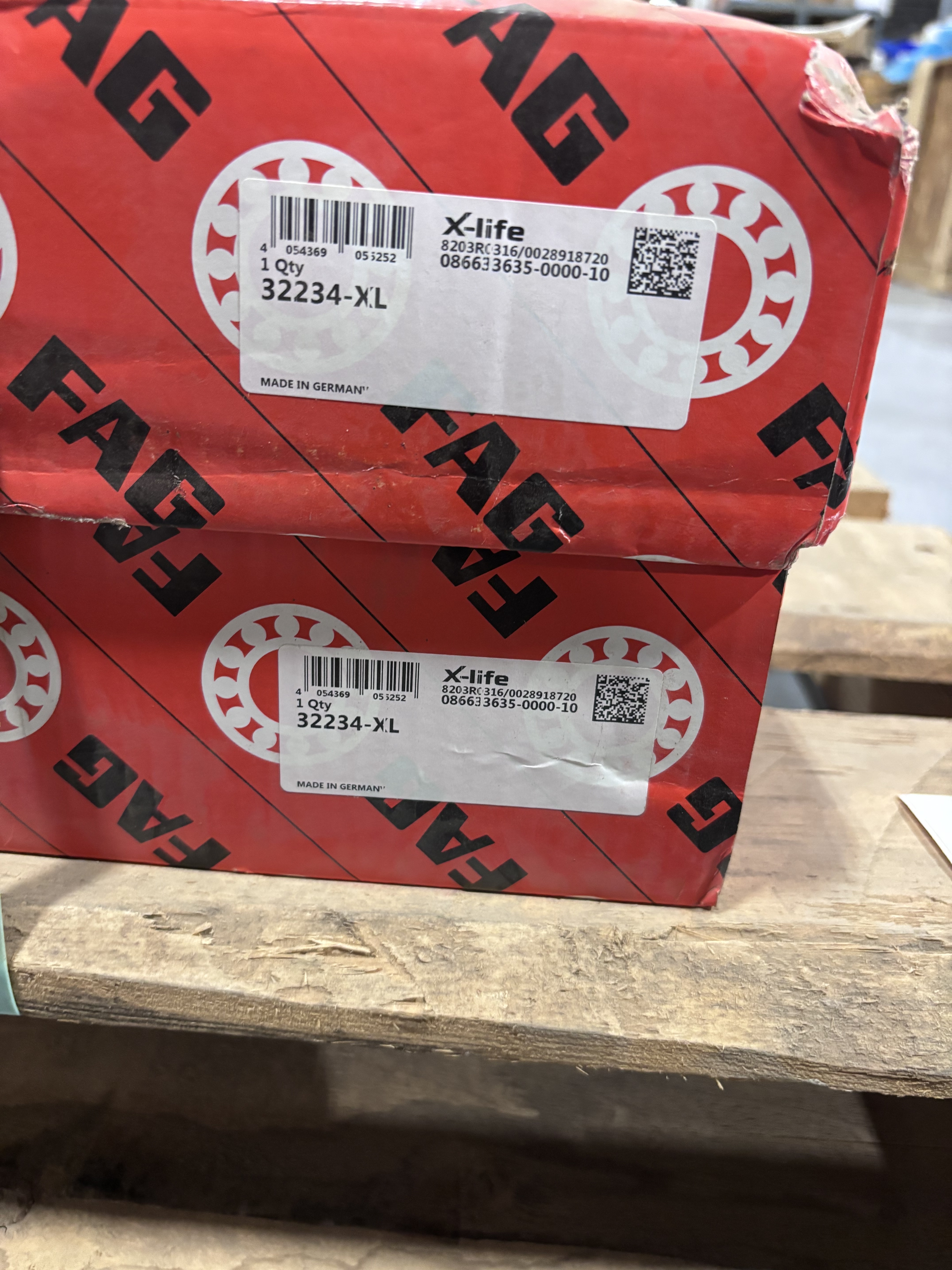

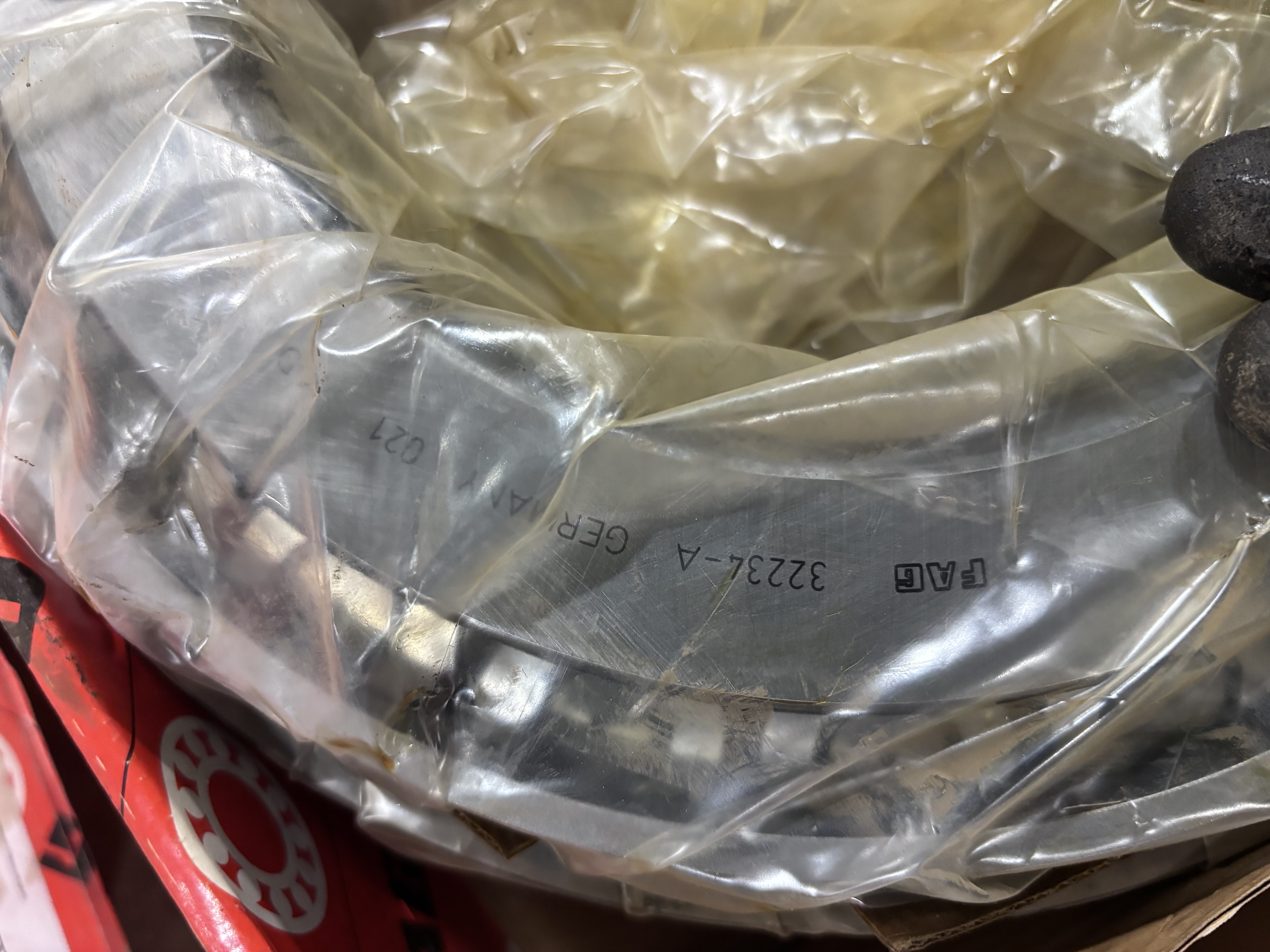

Available is a four-unit lot of FAG metric tapered roller bearing assemblies, consisting of two 32234-A bearings and two 32234-XL X-life bearings. The photographed box labels identify each carton as one bearing. The 32234-A marking is also visible on one bearing through its protective packaging.
These are not complementary cone-and-cup part numbers. Each designation identifies a complete, separable single-row tapered roller bearing assembly, comprising a cone assembly and cup. The 32234-XL is the X-life version of the 32234 design. A Schaeffler-partner distributor identifies 32234-XL as also known as / replacing 32234-A, with the same published 170 × 310 × 91 mm main dimensions.
Lot Composition and Published Reference Data
| Quantity | Designation | Published construction / status | Published dimensions | Published weight reference |
| 2 | 32234-A | Open, single-row tapered roller bearing assembly; cone and cup | 170 mm bore × 310 mm OD × 91 mm total width | 30.3 kg / 66.9 lb each |
| 2 | 32234-XL | Open, single-row tapered roller bearing in X-life design; separable cone and cup | 170 mm bore × 310 mm OD × 91 mm total width | 28.7 kg / 63.2 lb each |
