18" 150# Butterfly Valve
Supporting Documents (1)
library_books
8-1-HV-563_CERT_F002970222.pdf
Listing ID:
IH-64888
Notes:
Description

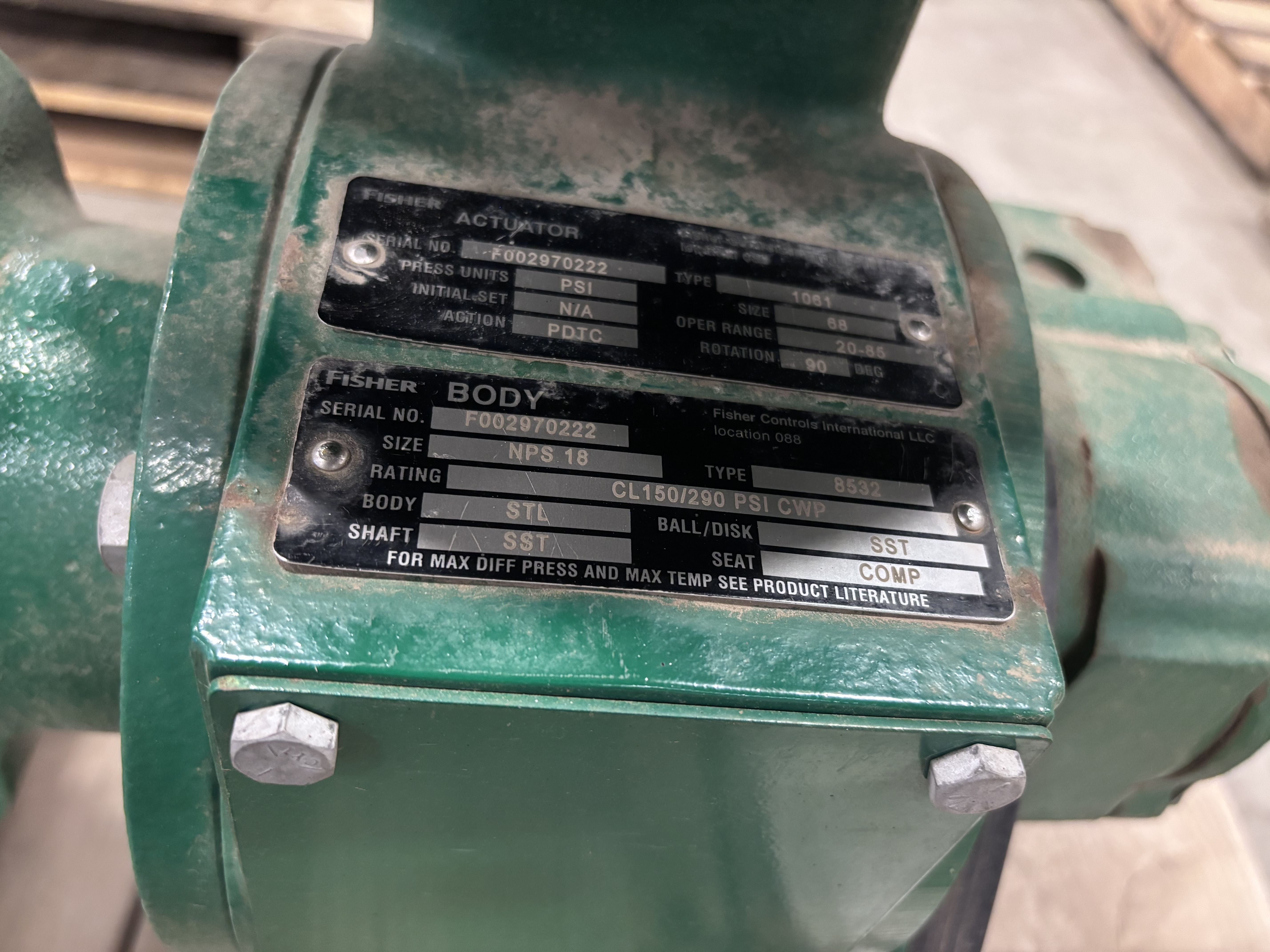

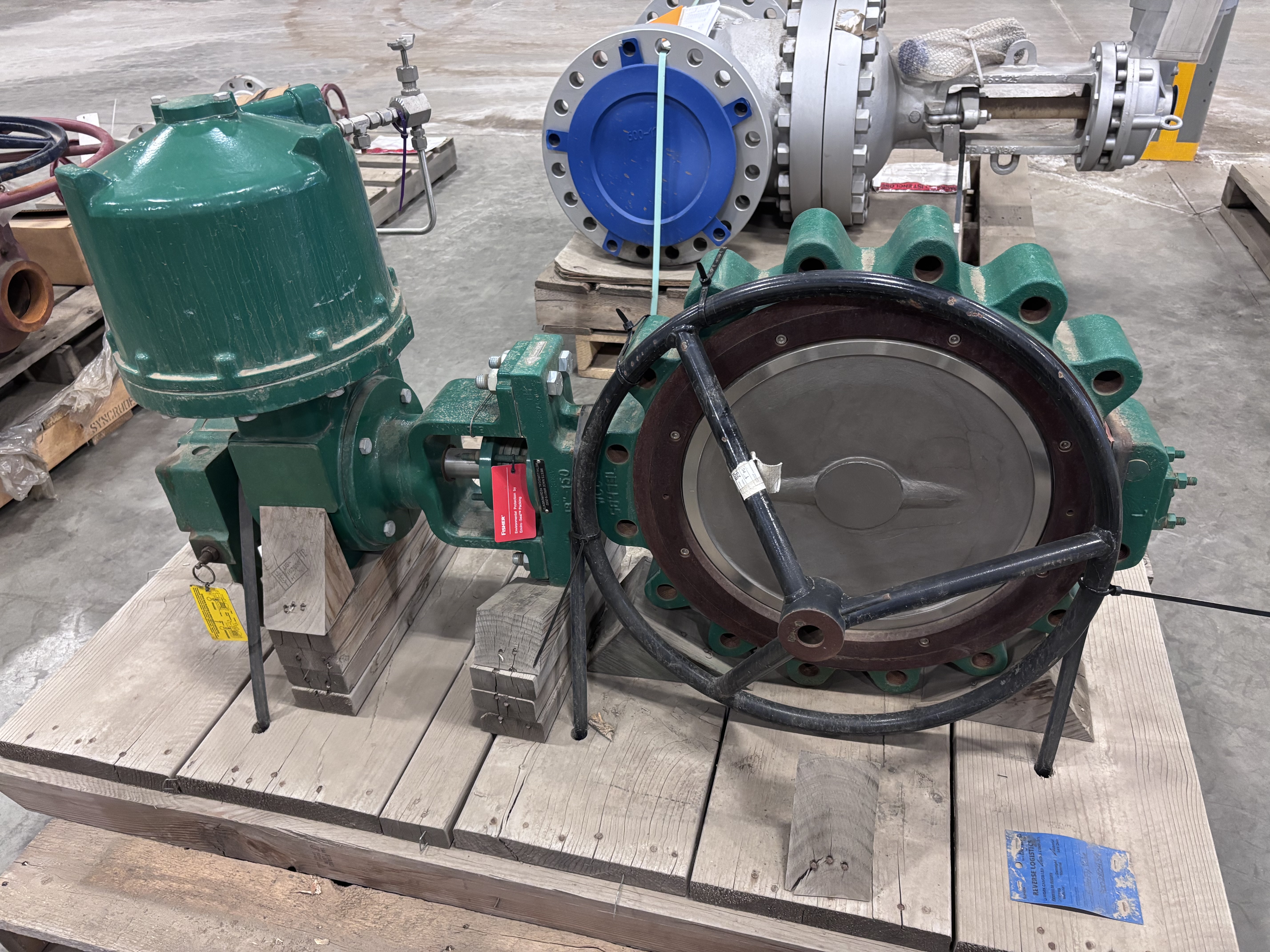

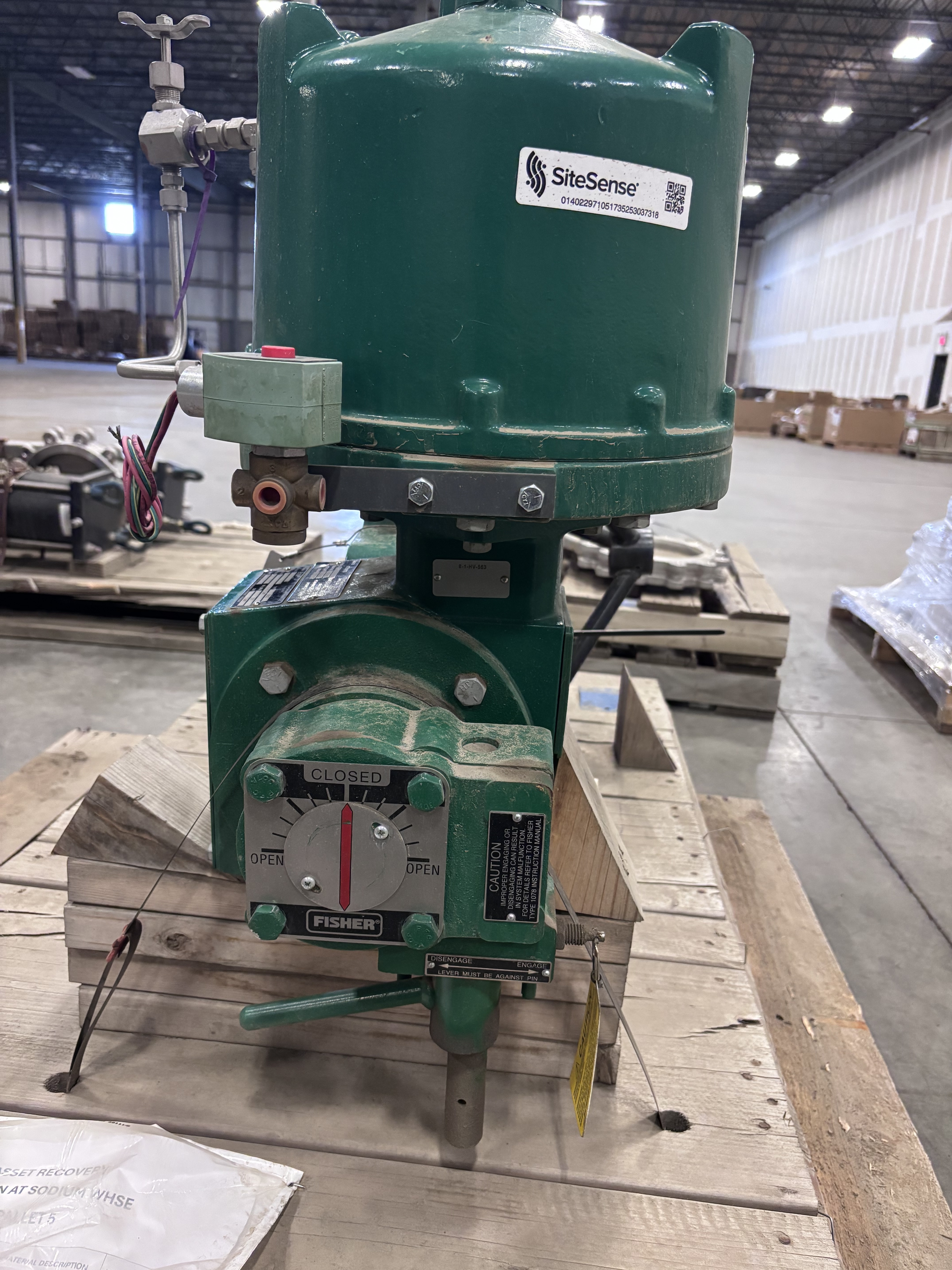

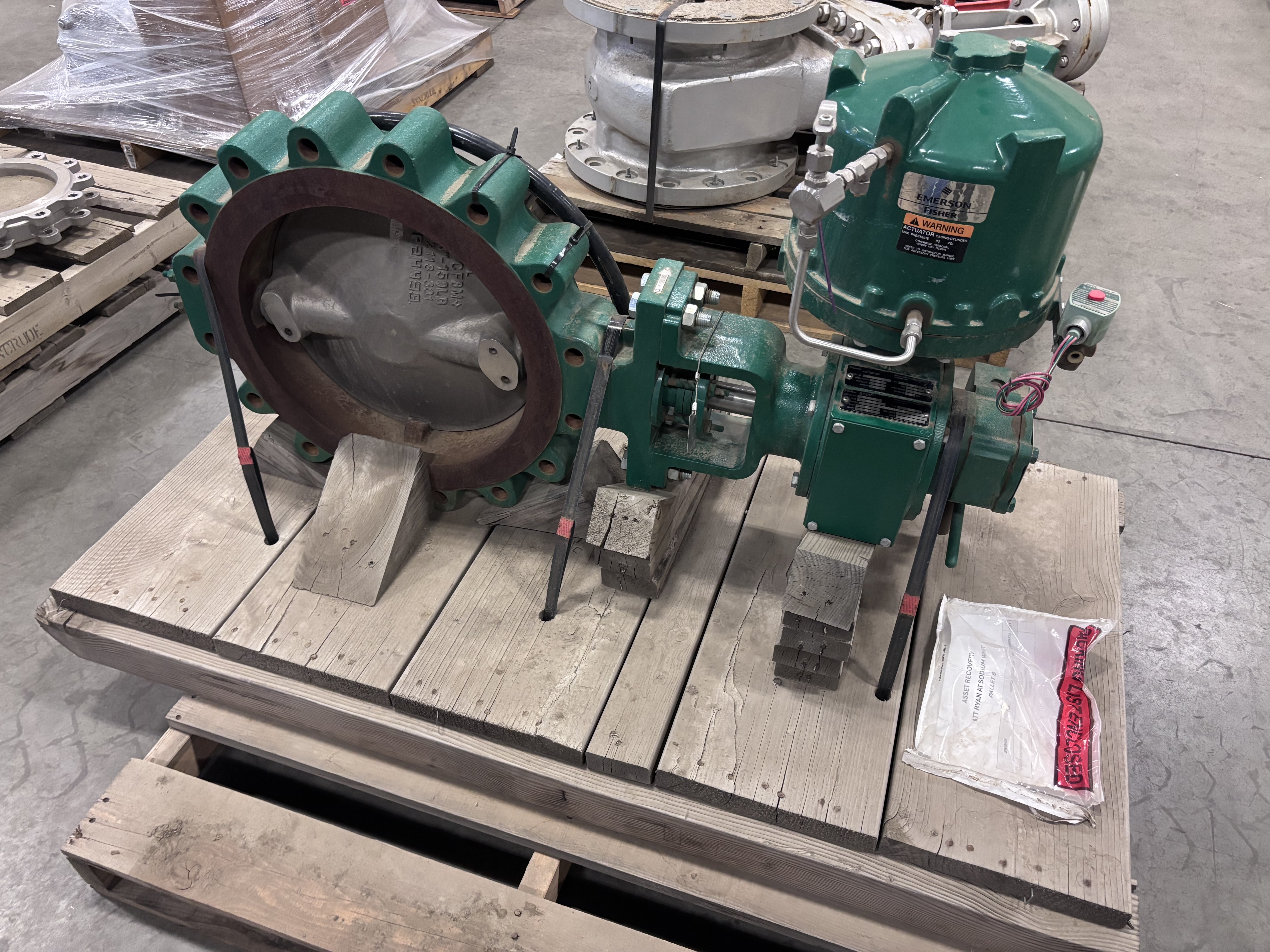

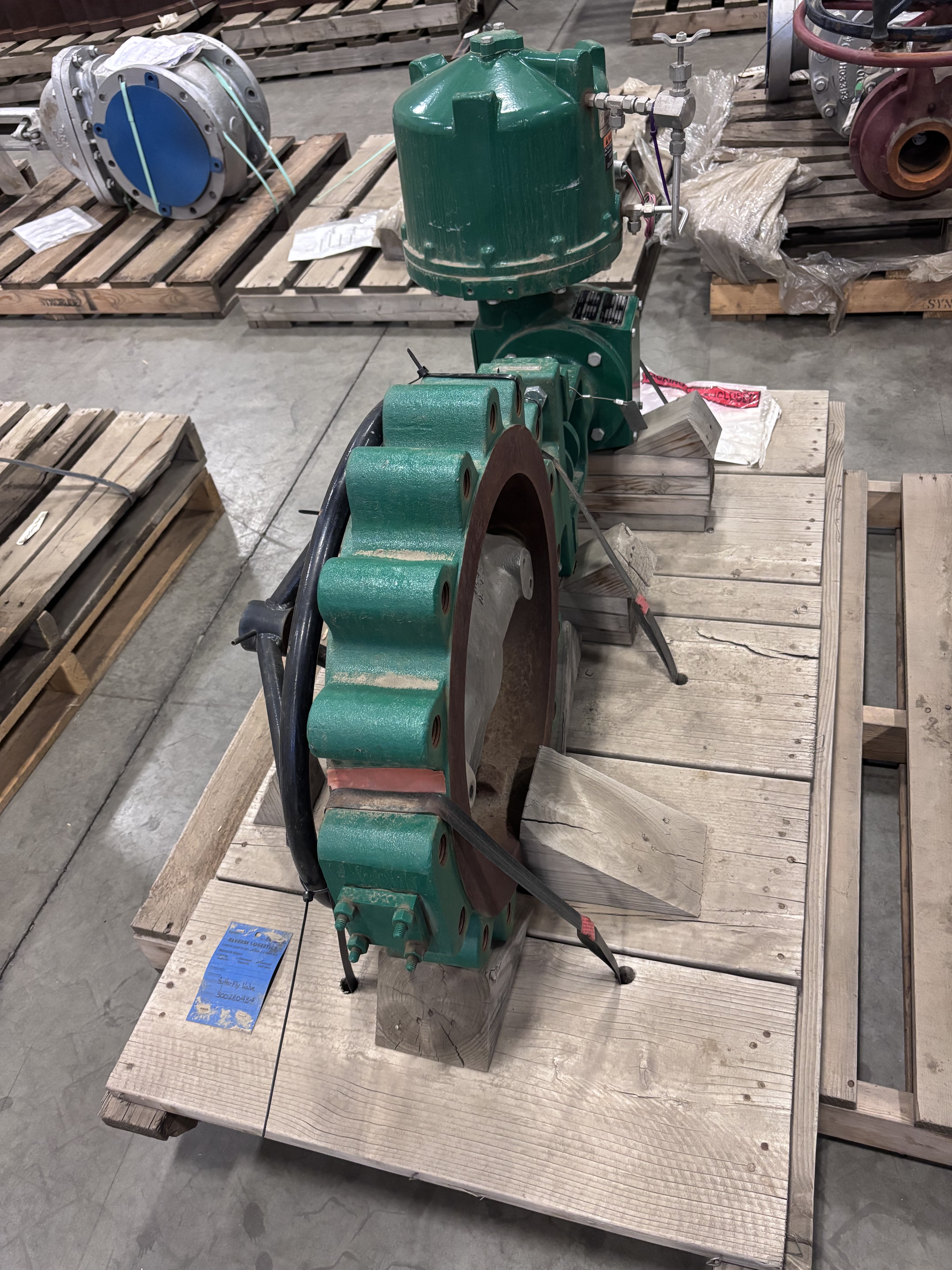

This listing is for one Fisher Type 8532 18 in Class 150 butterfly valve assembly with an STL body, Fisher Type 1061 Size 68 pneumatic actuator, open/closed position indicator, manual engage/disengage lever, pneumatic accessories, and an ASCO Red-Hat II solenoid valve. The visible Fisher body tag shows serial no. F002970222, NPS 18, CL150 / 290 PSI CWP, SST disk, SST shaft, and COMP seat. The actuator tag shows Type 1061, Size 68, PDTC action, 20–85 PSI operating range, and 90° rotation.
Key Details
| Category | Detail |
| Manufacturer | Fisher / Emerson Fisher |
| Item type | Butterfly valve assembly with pneumatic actuator and solenoid |
| Quantity | 1 assembly |
| Valve size | NPS 18 / 18 in |
| Pressure class / rating | CL150 / 290 PSI CWP |
| Body type / model | Fisher Type 8532 |
| Body material | STL |
| Body serial no. | F002970222 |
| Actuator serial no. | F002970222 |

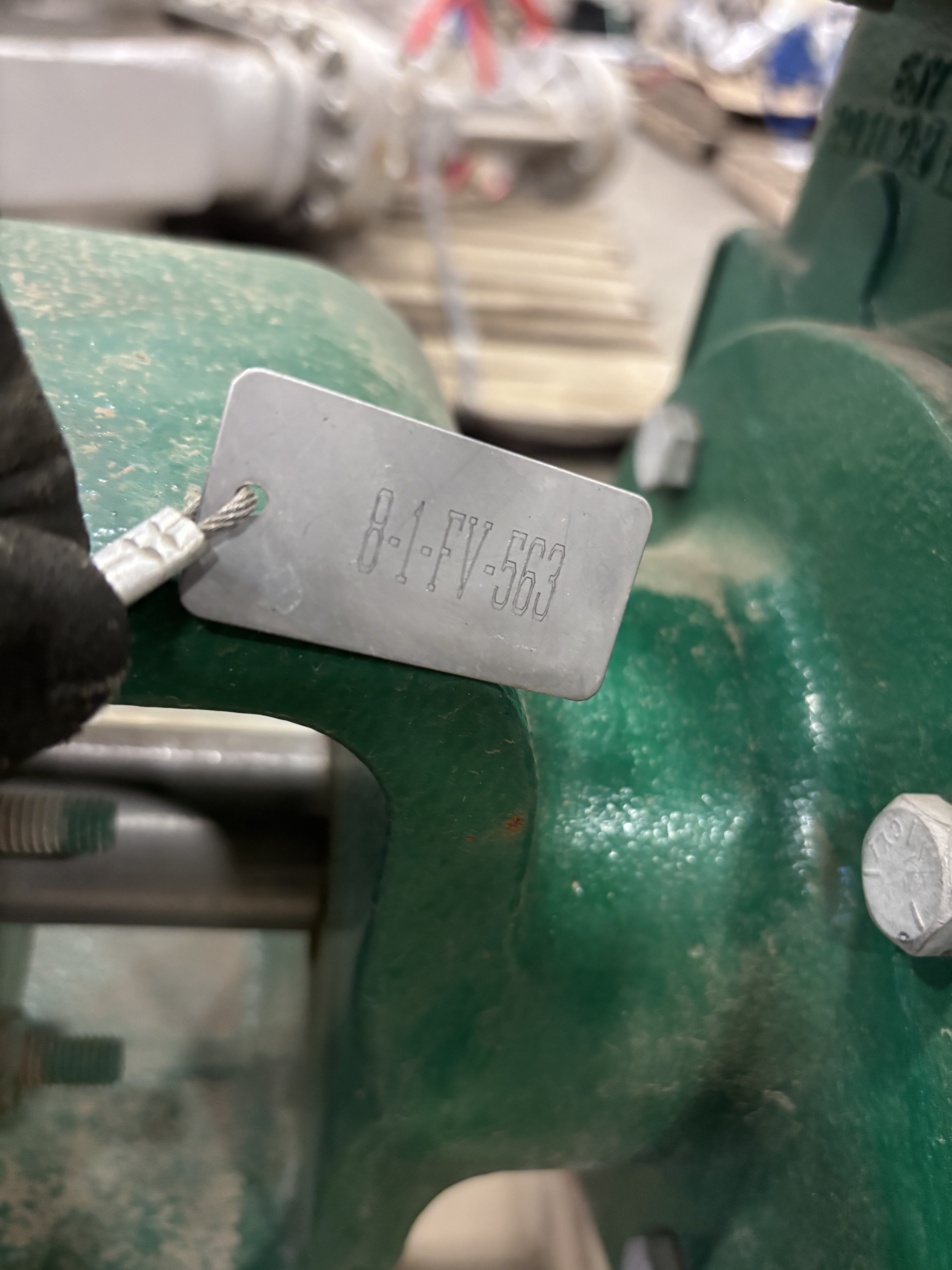

| Asset / loop tag | 8-1-FV-563 |
| Actuator type | Fisher 1061 |
| Actuator size | 68 |
| Actuator action | PDTC |
| Operating range | 20–85 PSI |
| Rotation | 90° |
| Disk / ball-disk | SST |
| Shaft | SST |
| Seat | COMP |

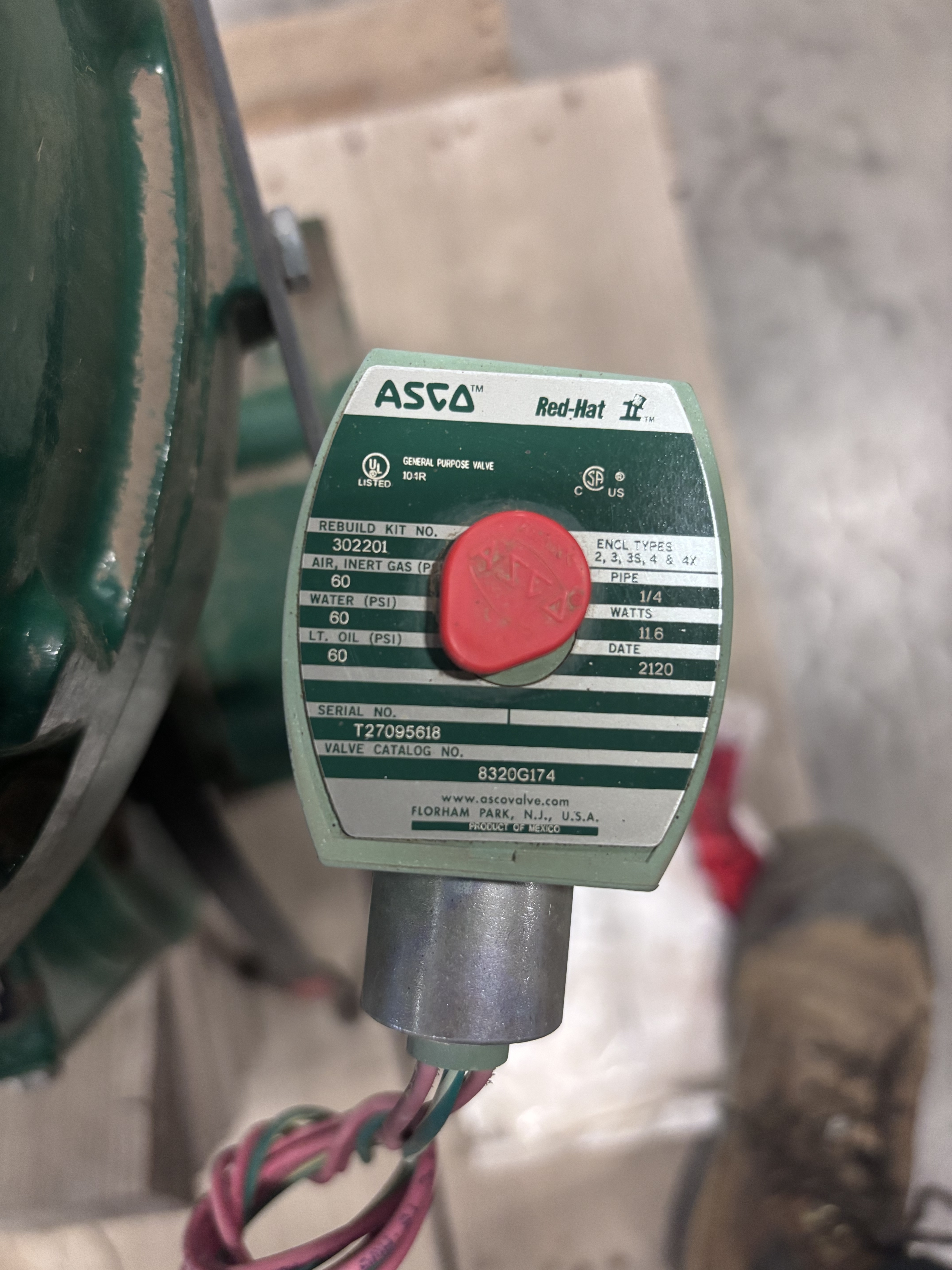

| Solenoid | ASCO Red-Hat II, catalog no. 8320G174 |
| Solenoid serial no. | T27095618 |
| Solenoid pipe size | 1/4 in |
| Solenoid rating shown | 60 PSI air/inert gas, water, and light oil; 11.6 W |
