6" 1500# Gate Valve

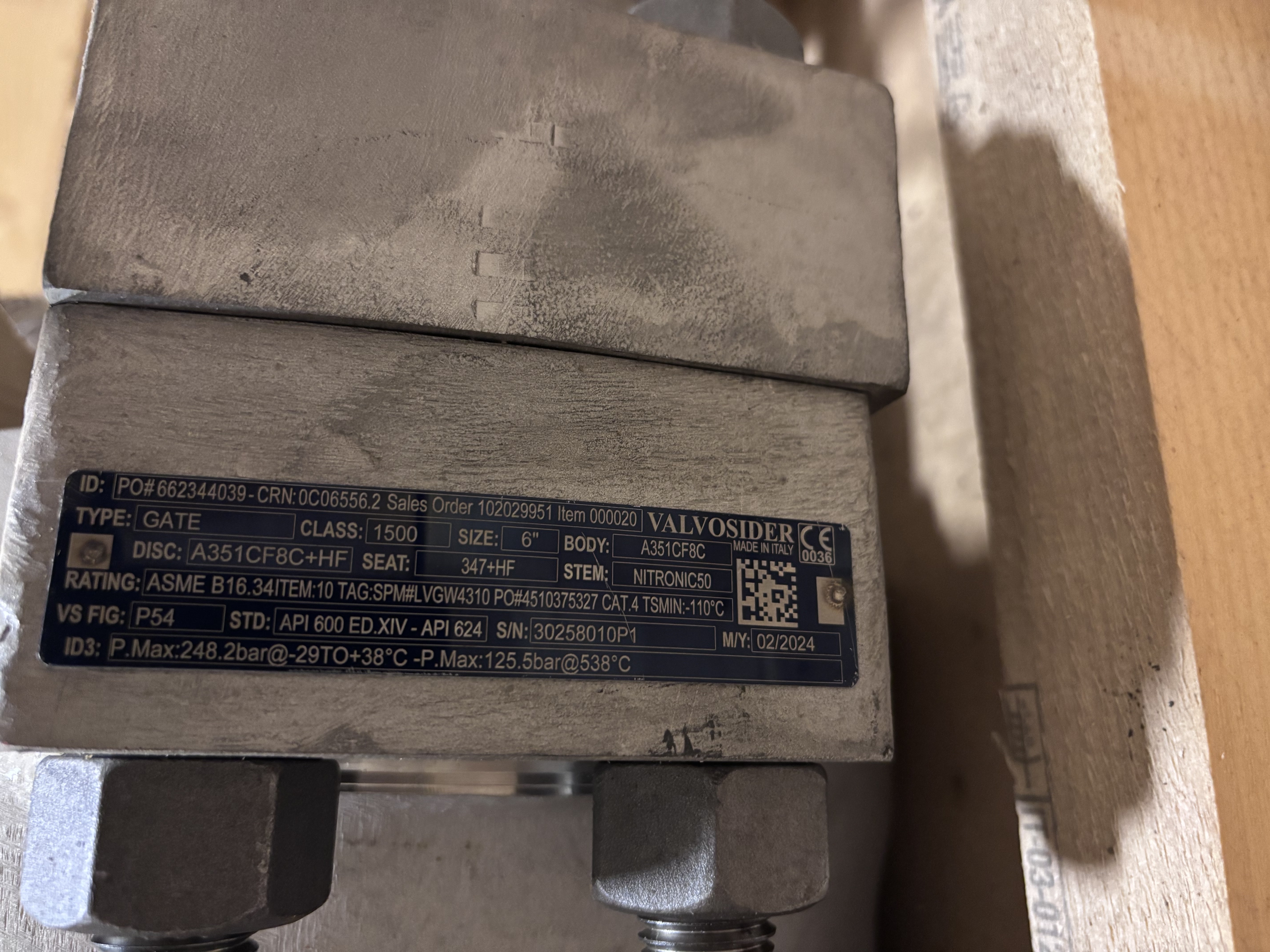

Valvosider 6" Class 1500 Gate Valve — A351 CF8C Stainless | Butt Weld | Bevel Gear | OS&Y | Pressure Seal | EN 10204-3.1 Certified | S/N 30258010P1
Description

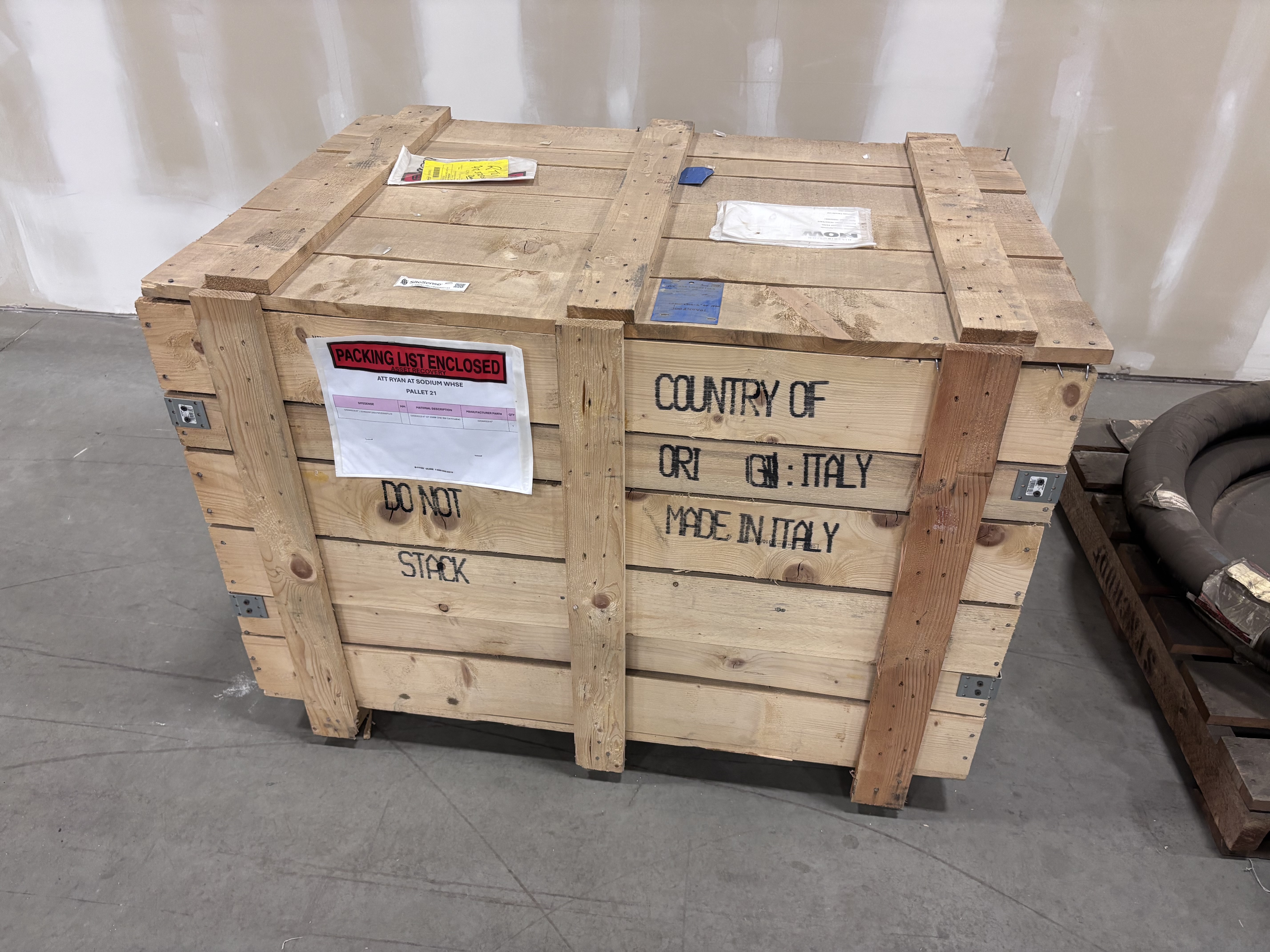

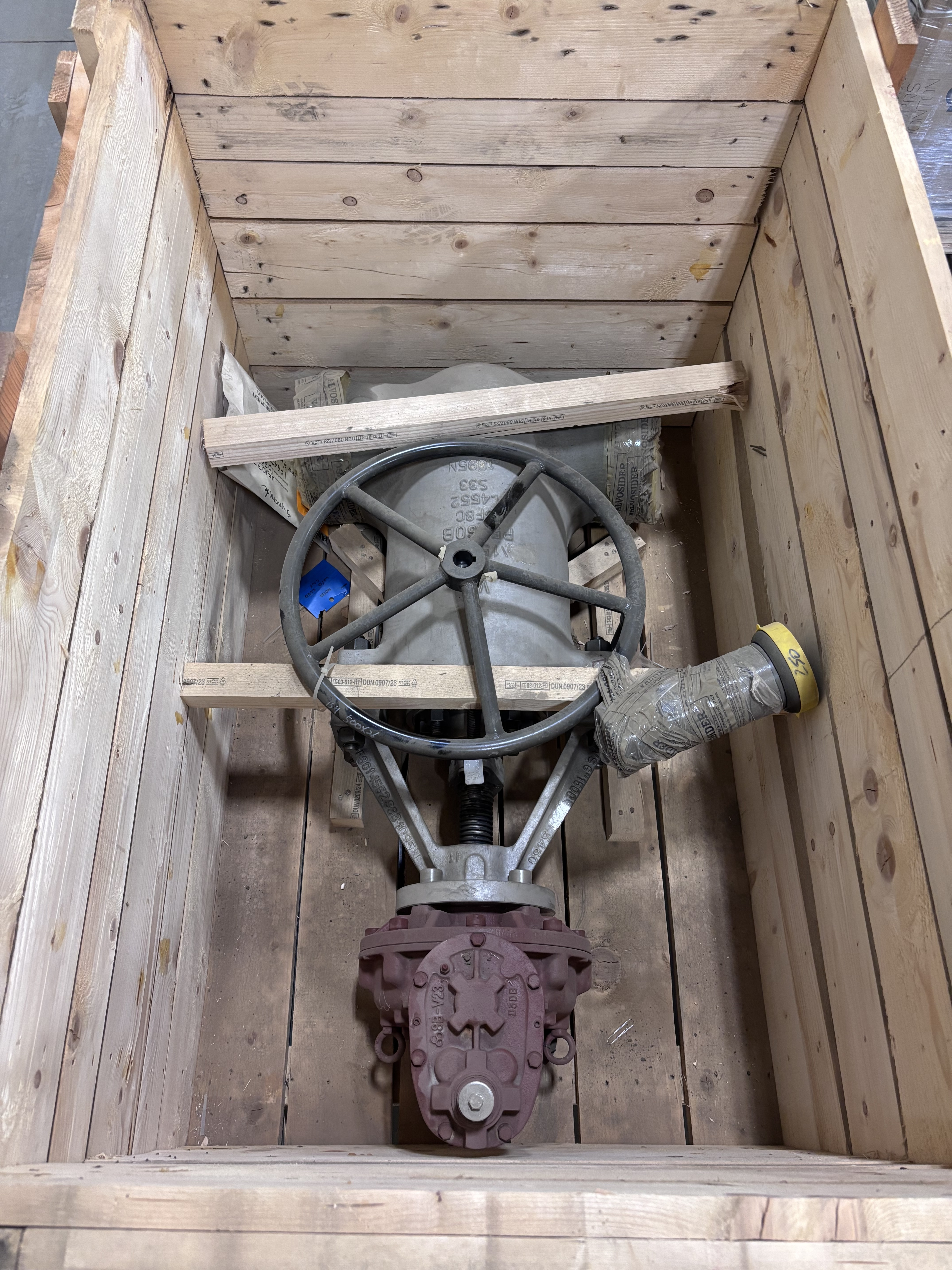

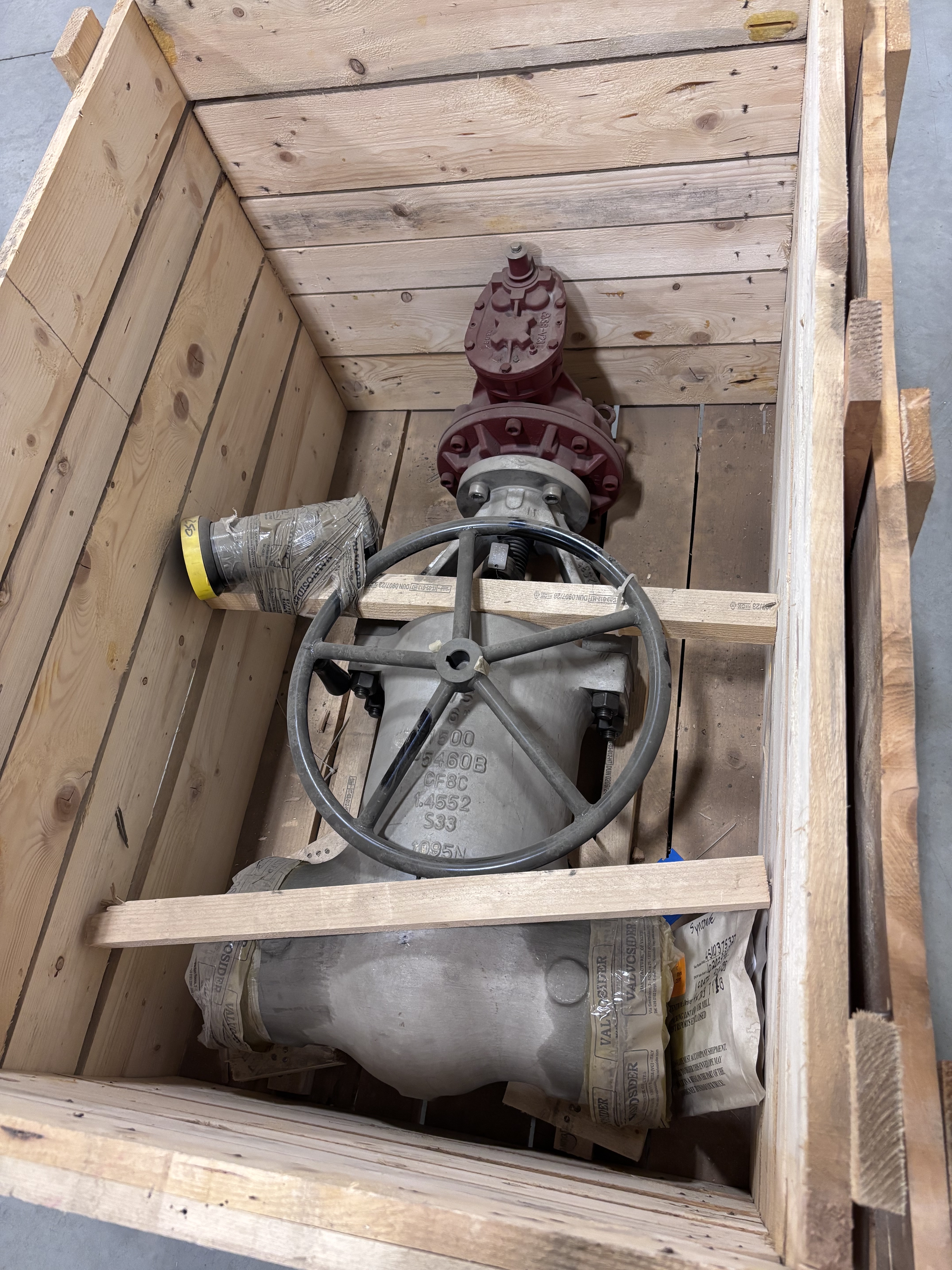

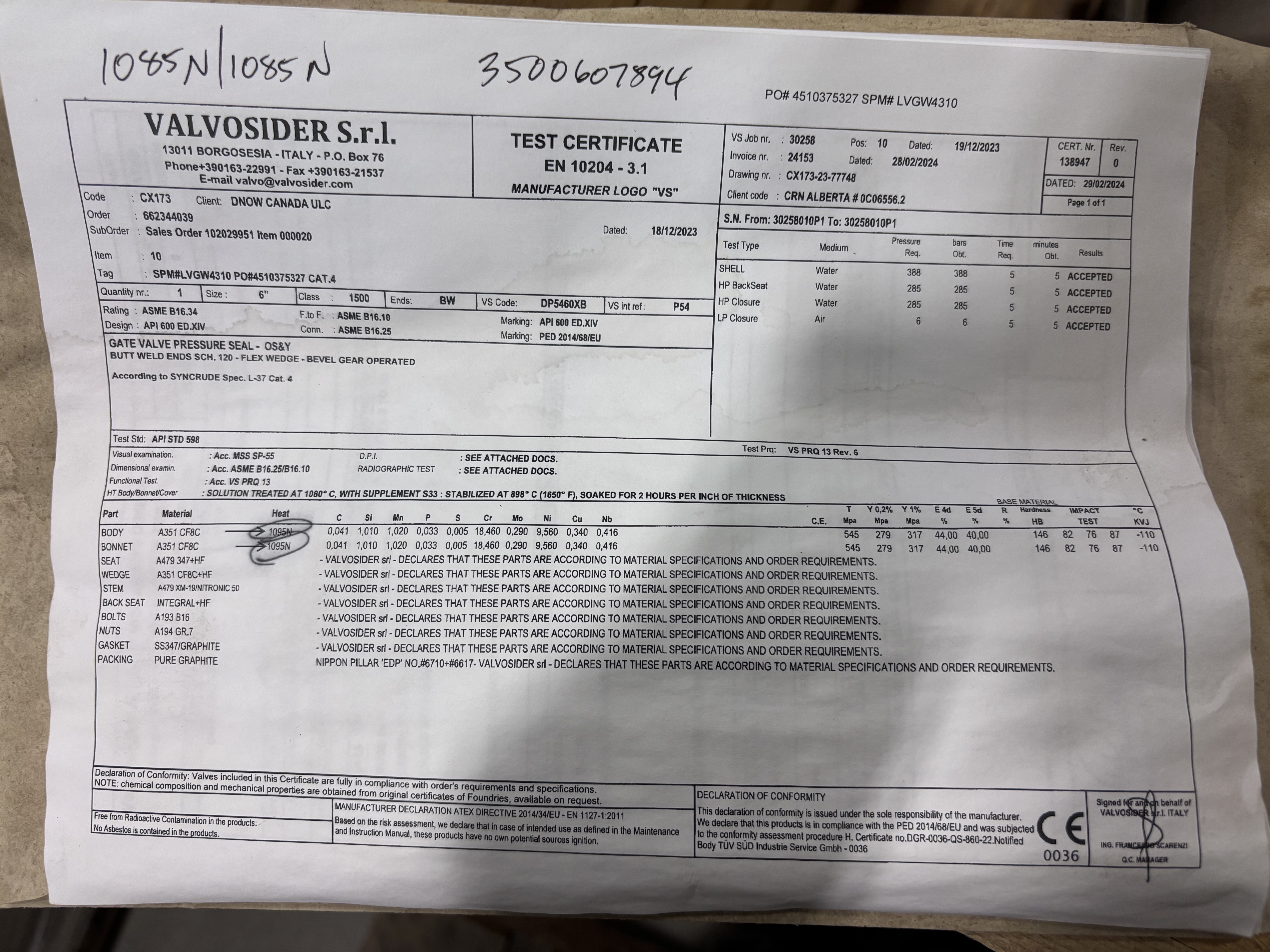

For sale is one (1) Valvosider 6" Class 1500 Pressure Seal Gate Valve, butt weld ends Schedule 120, flex wedge, bevel gear operated, OS&Y, full stainless steel construction, serial 30258010P1, manufactured February 2024. The valve is in its original Valvosider factory wooden export crate (Country of Origin: Italy), never installed, and is accompanied by a full EN 10204-3.1 Manufacturer's Test Certificate (Cert. Nr. 138947) with all pressure tests accepted.
It carries Alberta CRN # 0C06556.2, confirming registration with the Alberta Boilers Safety Association (ABSA) for use in pressure systems in Alberta.
The Valvosider Class 1500 pressure seal gate valve is designed for high-pressure, high-temperature, and cryogenic service in refinery, petrochemical, oil sands, and heavy process applications. The combination of A351 CF8C (cast 347 stainless steel) body, hard-faced disc and seats, Nitronic 50 stem, and pressure seal bonnet design makes this valve suitable for the most demanding process conditions.
Full Technical Specifications
| Attribute | Value |
| Manufacturer | Valvosider S.r.l., Borgosesia, Italy |
| Type | Gate Valve — Pressure Seal, OS&Y |
| Size | 6" |
| Pressure Class | ASME Class 1500 |
| End Connections | Butt Weld (BW), Schedule 120 |
| Operation | Flex Wedge — Bevel Gear Operated |
| Body Material | A351 CF8C (Cast 347 Stainless Steel) |
| Disc Material | A351 CF8C + HF (Hard Faced) |
| Seat Material | 347 + HF (Hard Faced) |
| Stem Material | Nitronic 50 |
| Bonnet Material | A351 CF8C |
| Wedge Material | A351 OR14HF |
| Back Seat Material | A182 OR14HF |
| Packing | SS304 / Graphite |
| Gasket | Pure Graphite |
| Bolts | A193 B7 |
| Nuts | A194 2H |
| VS Figure | P54 |
| VS Code | DP5460XB |
| Serial Number | 30258010P1 |
| Manufacture Year | 02/2024 |
