0.75" Pressure Safety Valve
Supporting Documents (1)
library_books
Consolidated 19096MCF-2-S4-MS-33-10-05-LA 0.75 in. 410 psig Pressure Safety Valve
Listing Summary

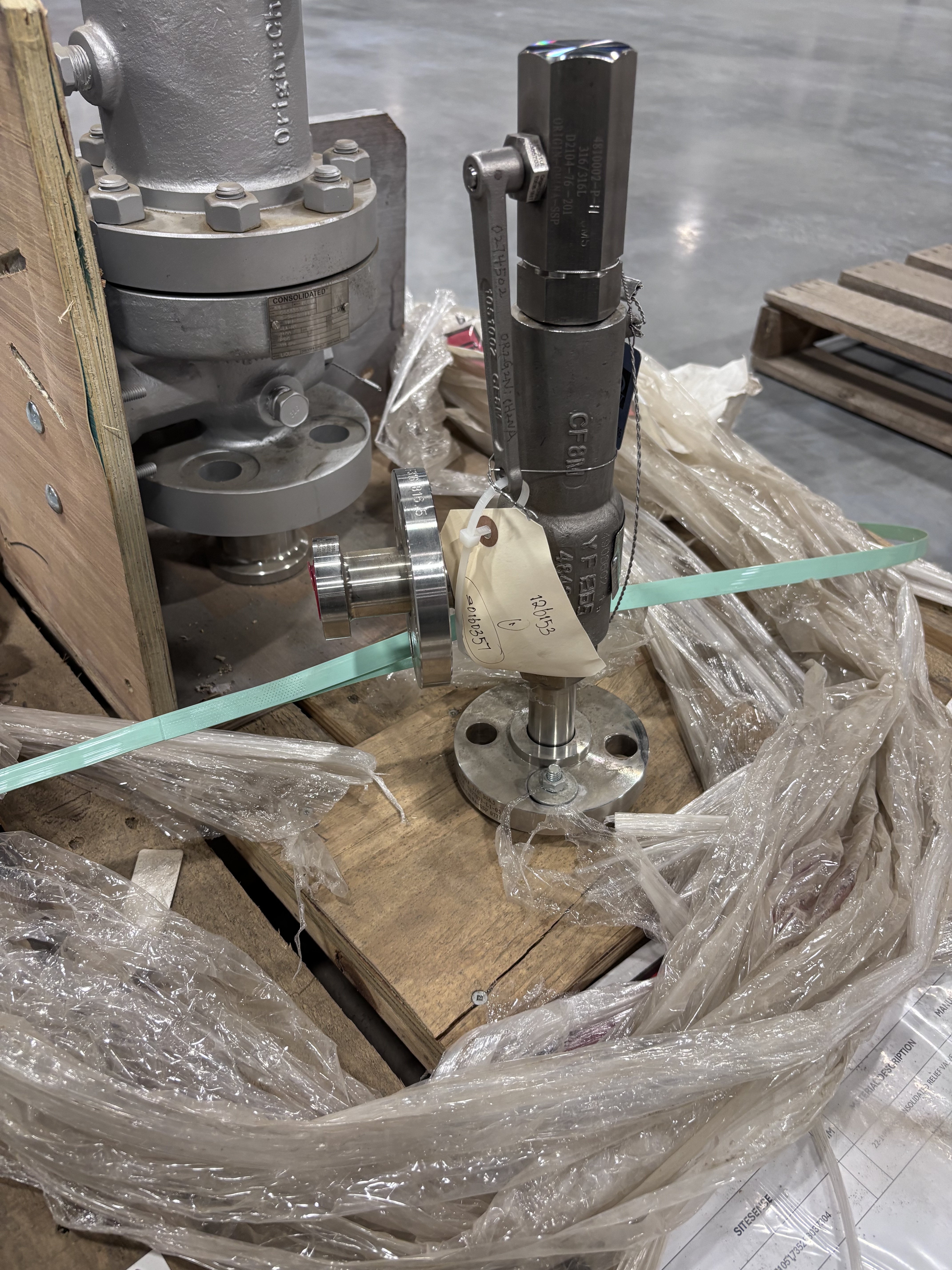

Available is one Consolidated Type 19096 pressure safety valve (PSV), configured for liquid service and supplied as a flanged assembly on the pallet shown. The physical nameplate identifies the unit as 19096MCF-2-S4-MS-33-10-05-LA, with a 410 psig set pressure, 380 psig cold differential test pressure (CDTP), and 50 GPM nameplate capacity. The supplied serial-matched material traceability report supports material traceability for the base, bonnet, disc, extensions, and two flange components.
| Field | Verified detail |
| Manufacturer / brand | Consolidated |
| Valve type | Pressure safety valve / safety relief valve |
| Model / configuration | 19096MCF-2-S4-MS-33-10-05-LA |
| Quantity | 1 valve |
| Nameplate size | 0.75 in. |
| Media | Liquid, as marked on nameplate |
| Set pressure | 410 psig / approximately 28.3 barg |
| CDTP | 380 psig / approximately 26.2 barg |
| Back pressure | 30 psig / approximately 2.07 barg |
| Nameplate capacity | 50 GPM / approximately 189.3 L/min |
| Serial number | D-24-000636 |
| Canadian Registration Number | 0G5530.5CL, as marked |

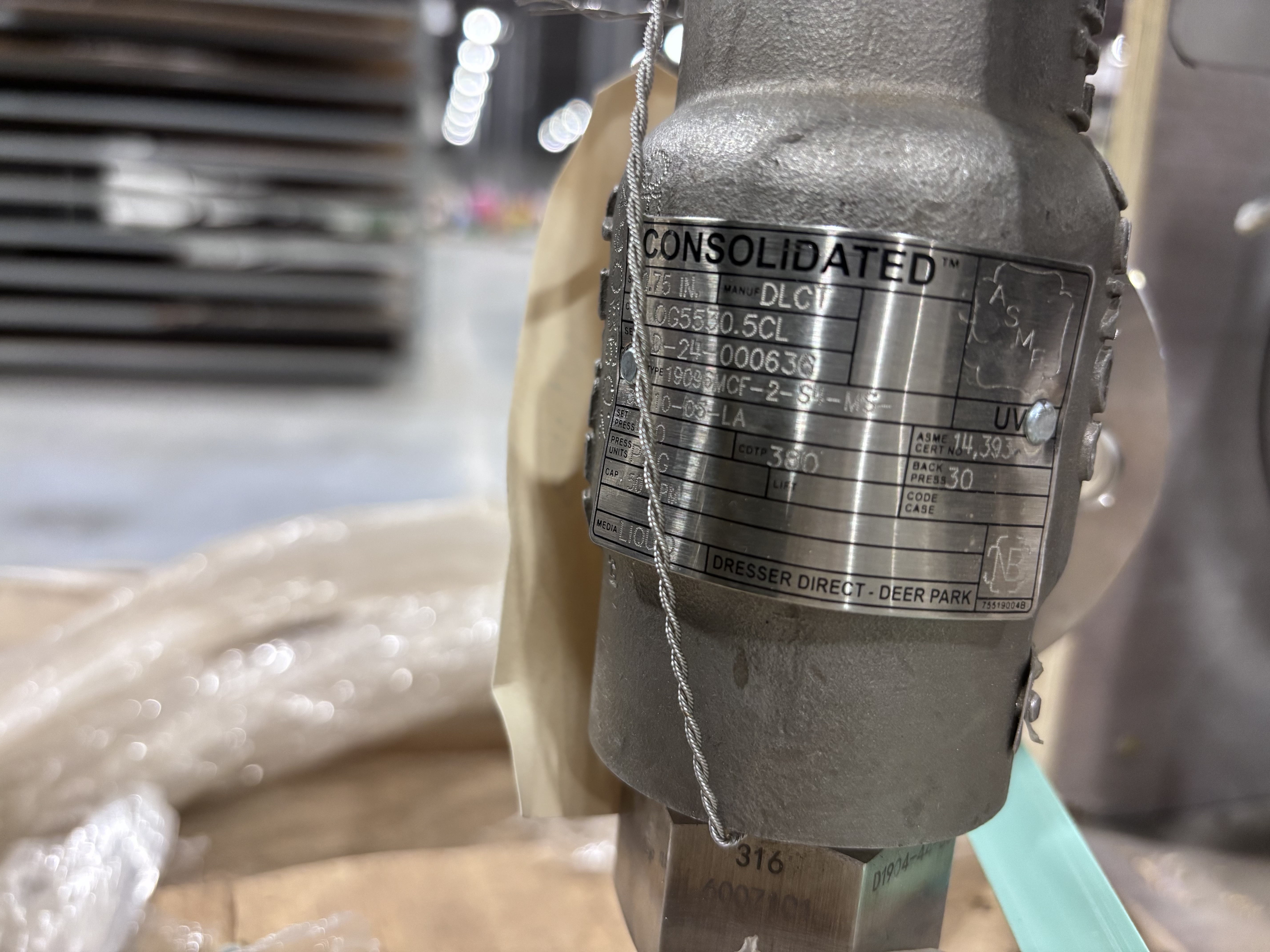

| Nameplate conformity marks | NB logo, UV marking, and “ASME Cert No. 14393” are visible on the nameplate |

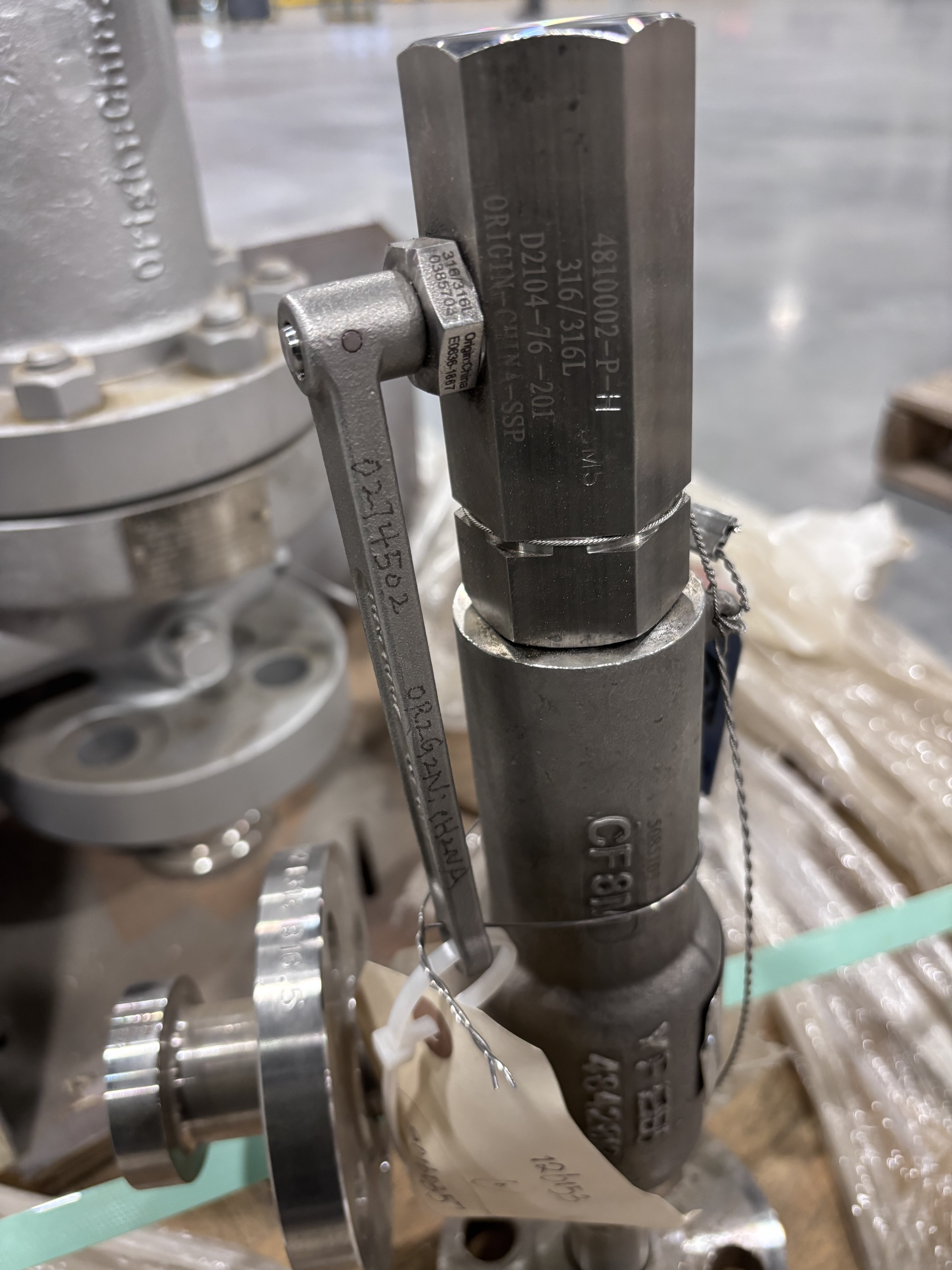

| Physical assembly | Flanged inlet/outlet assembly shown, including an exposed 316-marked stainless component and a manual lifting lever |
| Material-traceability evidence | Supplied record matched to serial D-24-000636 identifies traceable base, bonnet, disc, two extensions, and two flange components; cited material records include CF8M and 316/316L. |
Description

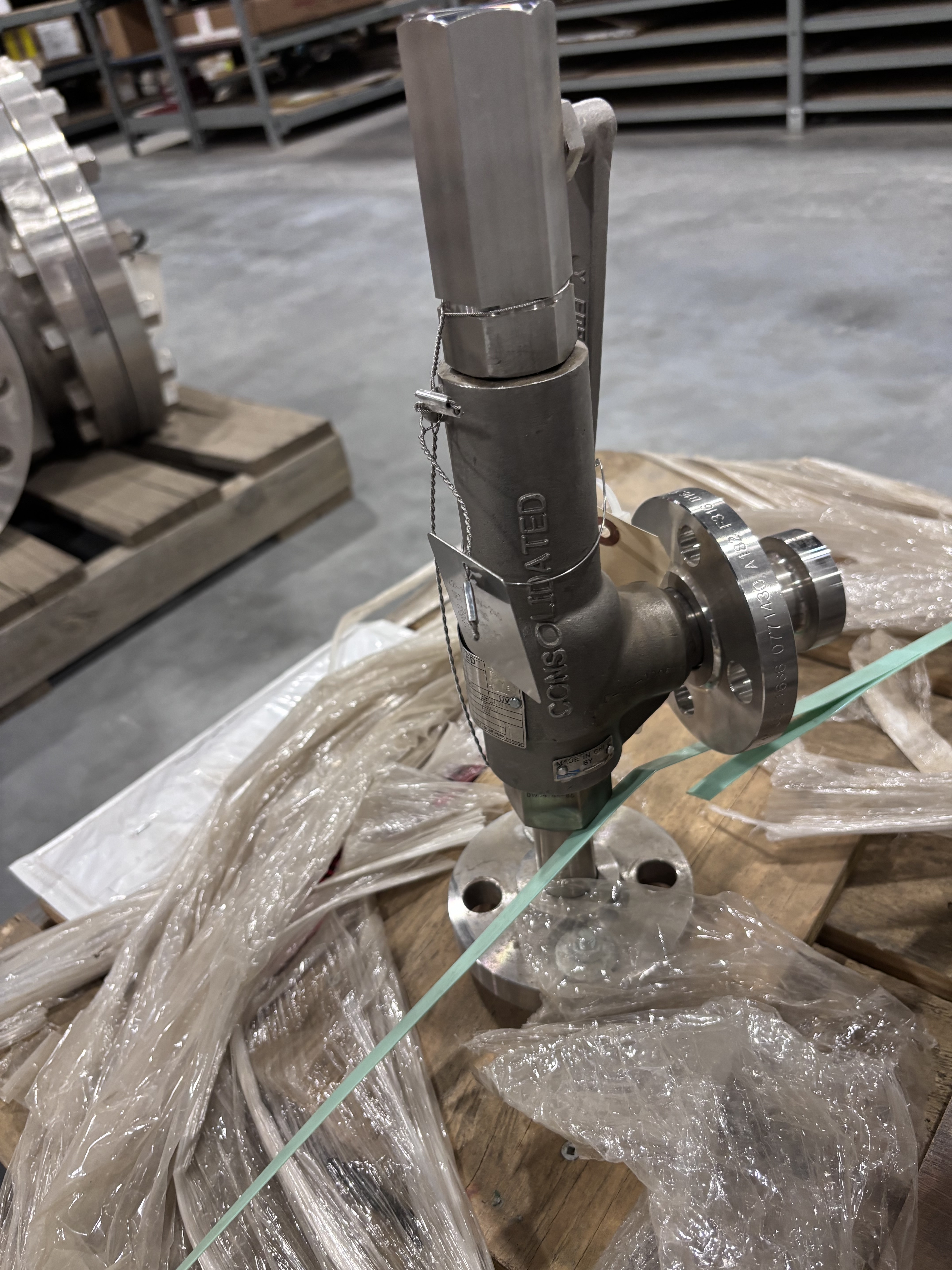

This offering is for one Consolidated Type 19096 liquid-service pressure safety valve. Baker Hughes describes the 19000 Series as a compact safety relief valve family available in threaded, socket-weld, or flanged configurations for overpressure-protection service. The offered assembly is visibly fitted with flanged components, but the supplied evidence does not establish their exact nominal sizes, pressure classes, flange facings, or whether all flanged components are integral to the final intended installation.

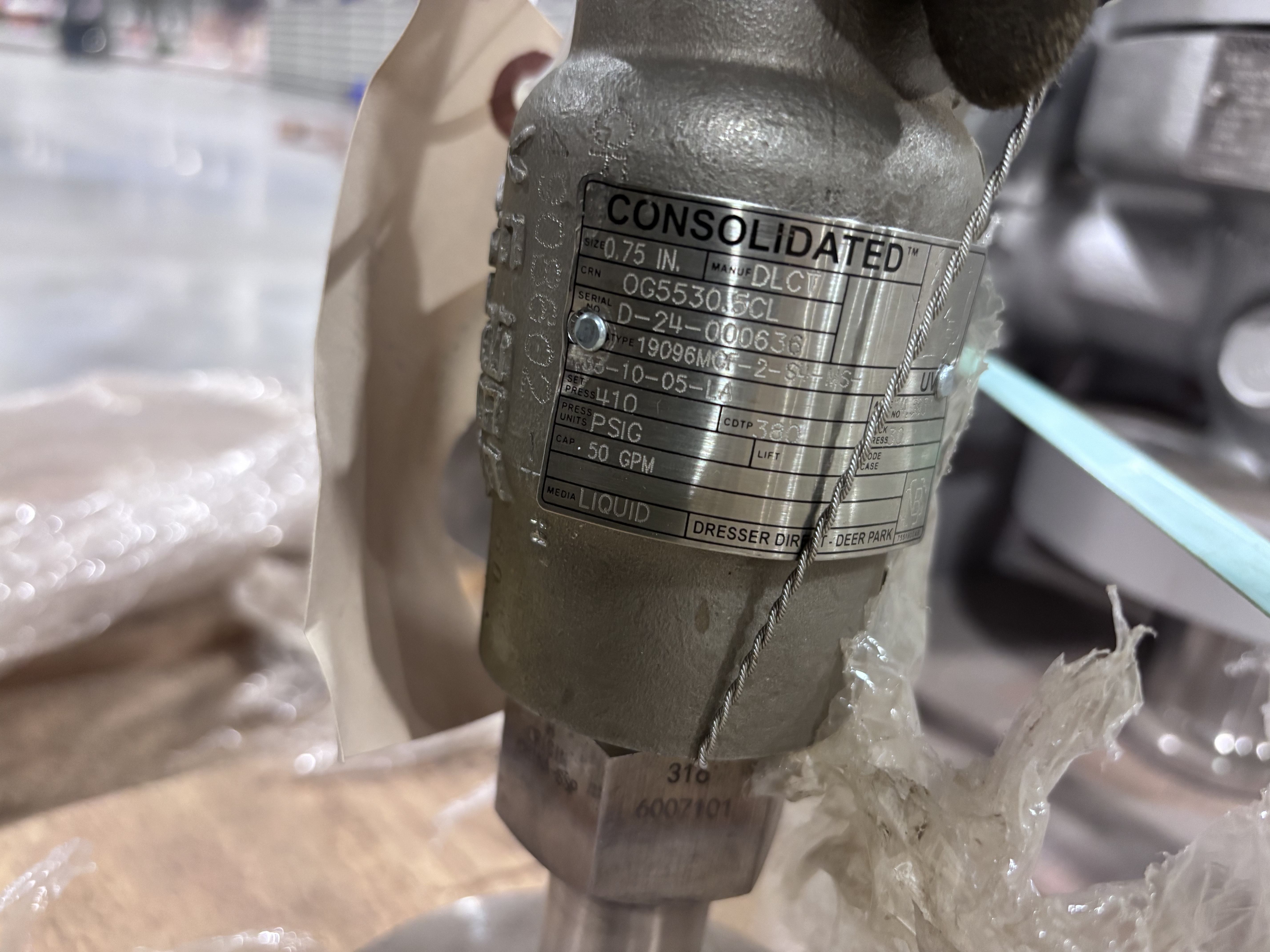

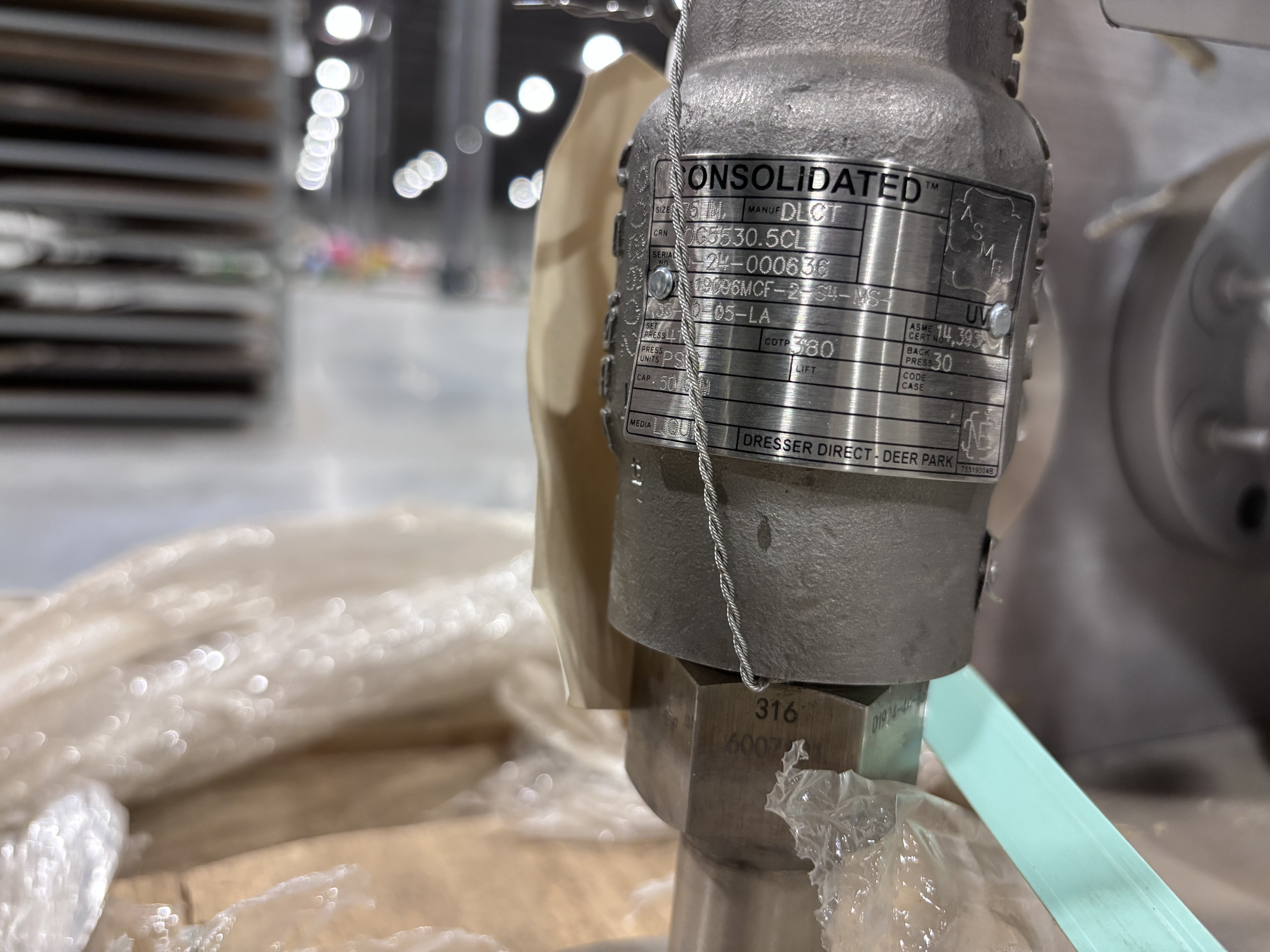

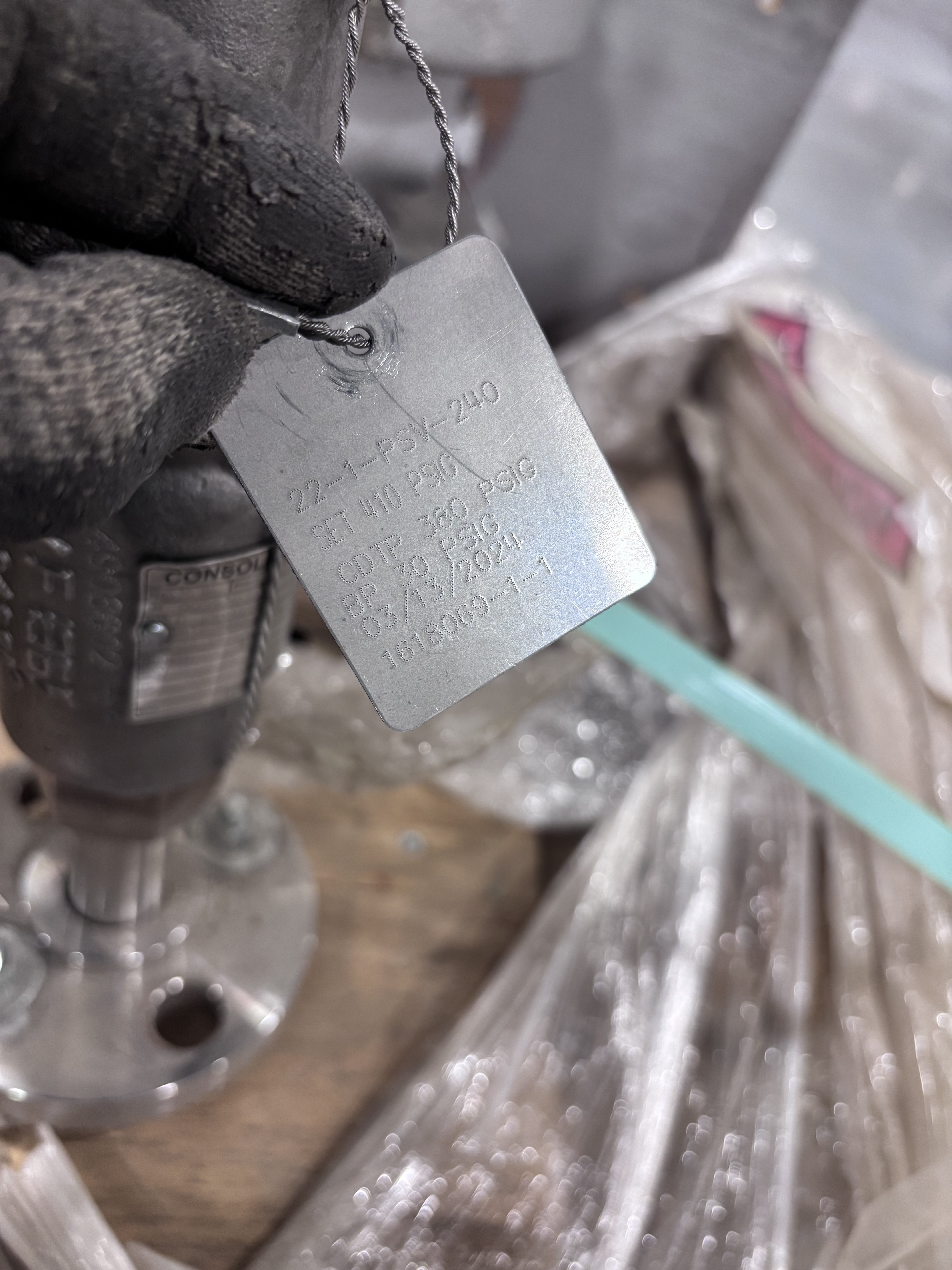

The physical nameplate identifies model 19096MCF-2-S4-MS-33-10-05-LA, serial number D-24-000636, and the set-pressure, CDTP, back-pressure, and capacity values recorded above. A wire tag physically attached to the valve repeats SET 410 PSIG, CDTP 380 PSIG, and BP 30 PSIG, dated 05/31/2024. This is historical physical-tag evidence only and does not establish current certification, set pressure, seat tightness, capacity, or service readiness.
