3" 150# Gate Valve
Listing ID:
IH-64896
Notes:
Overview

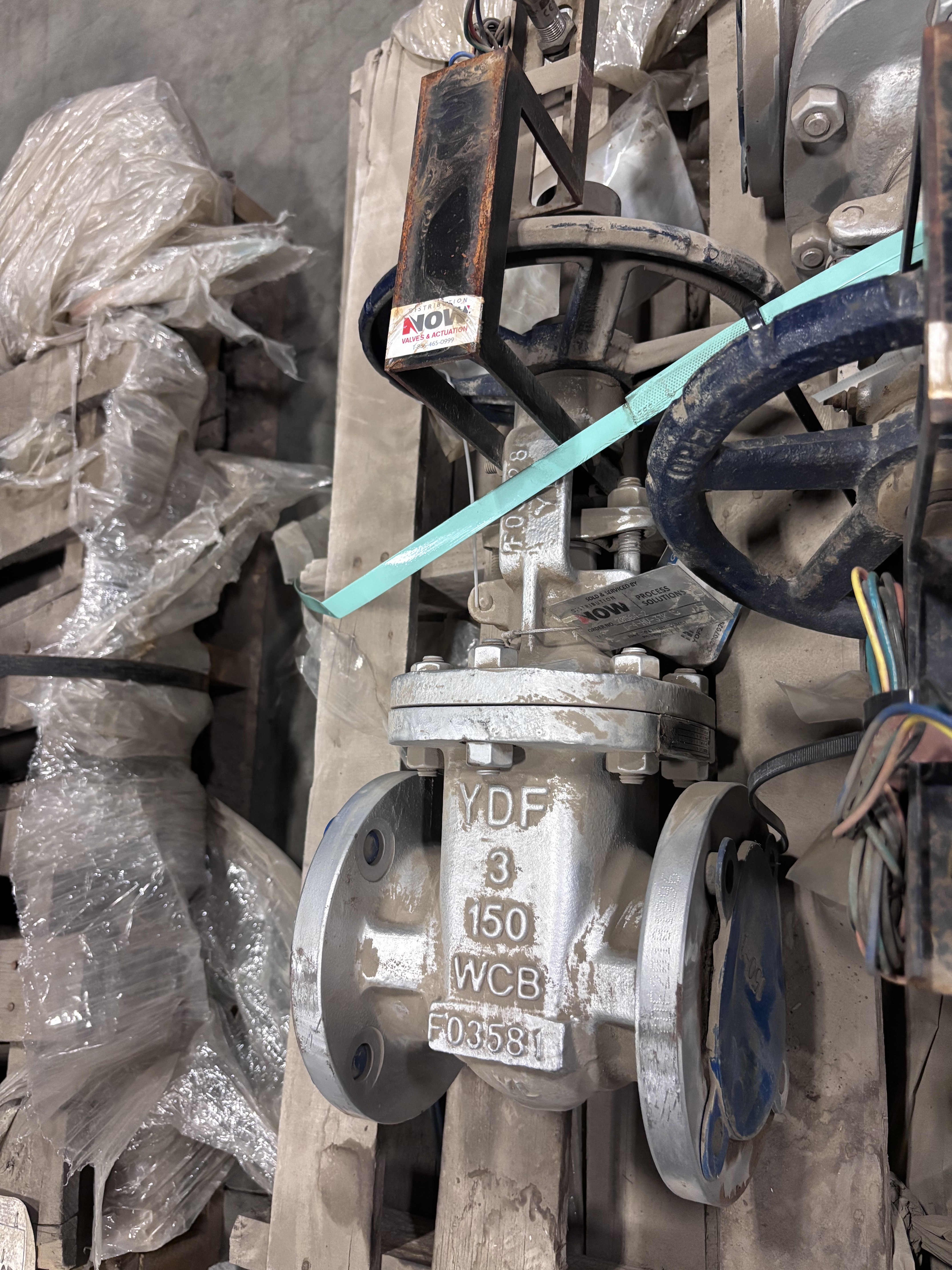

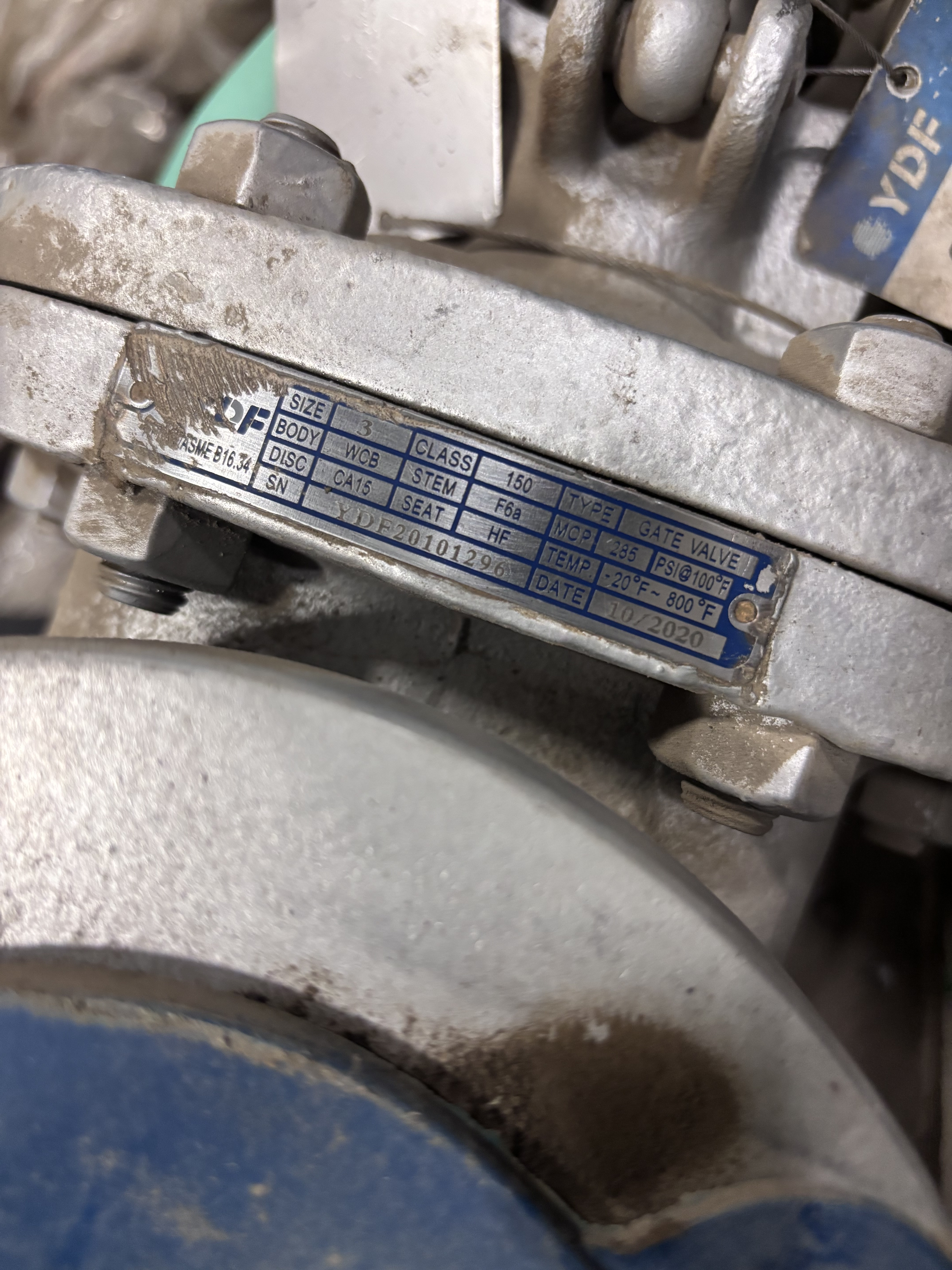

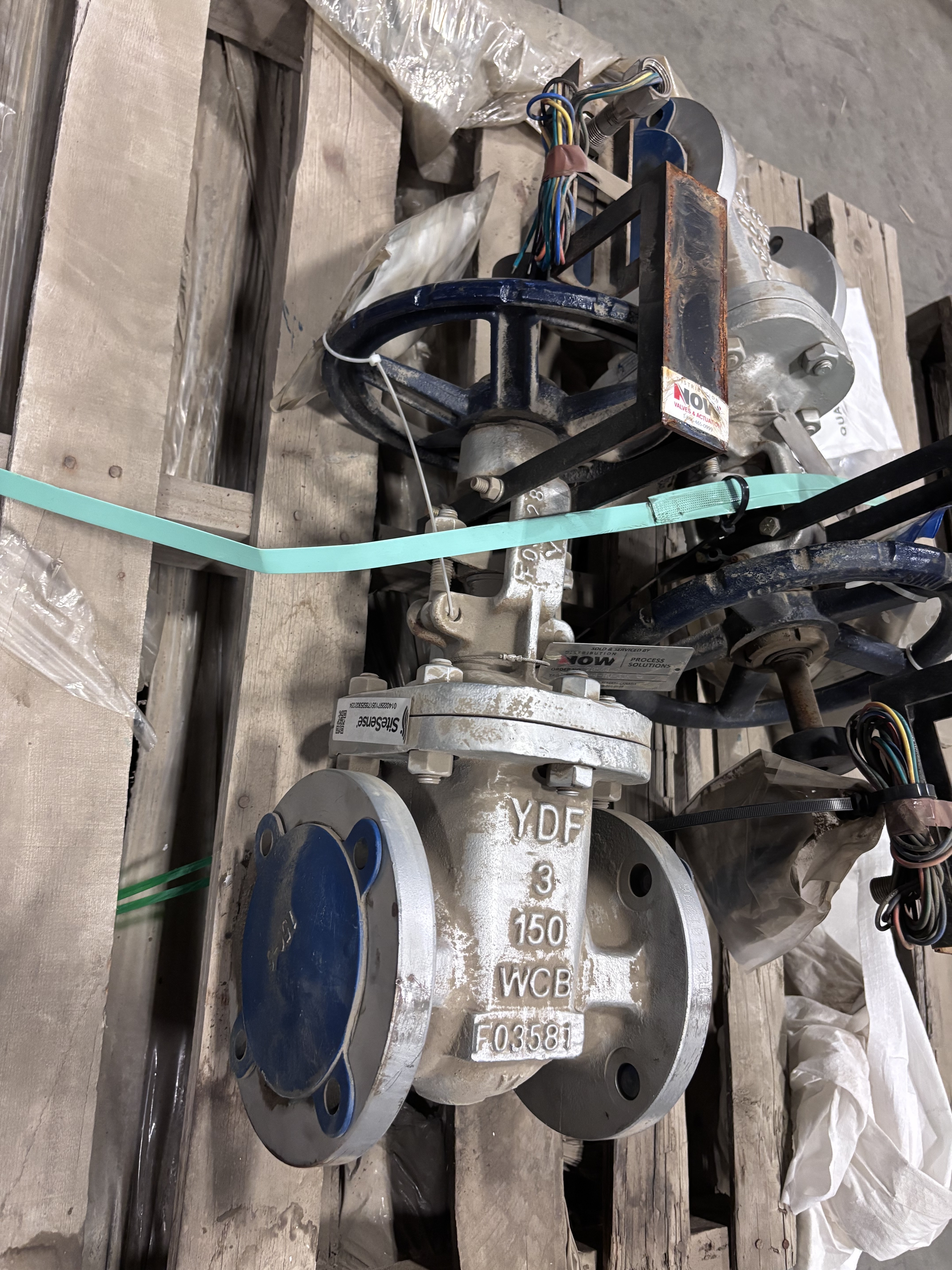

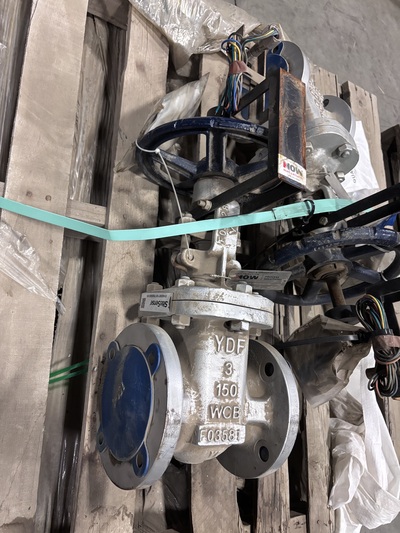

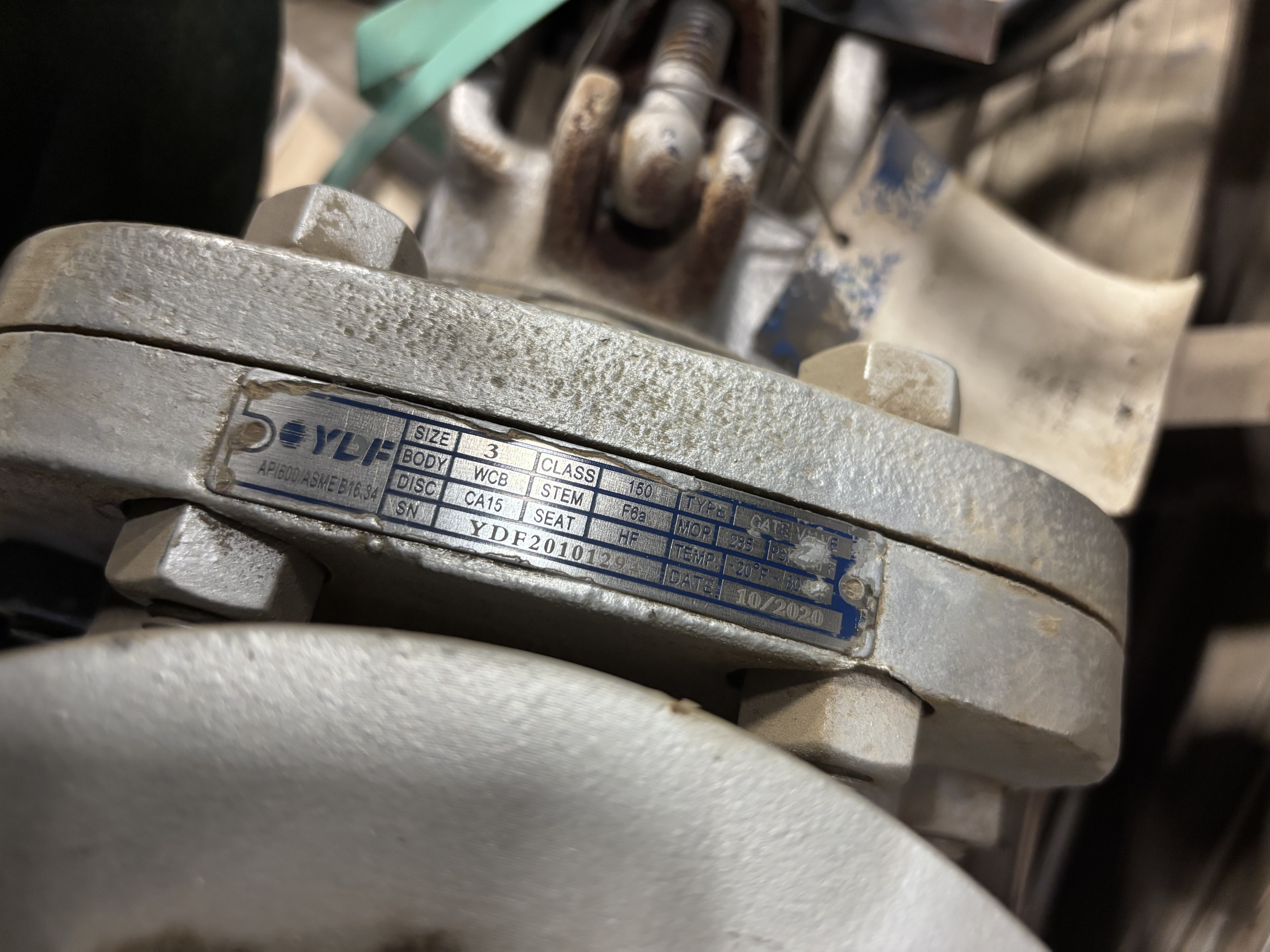

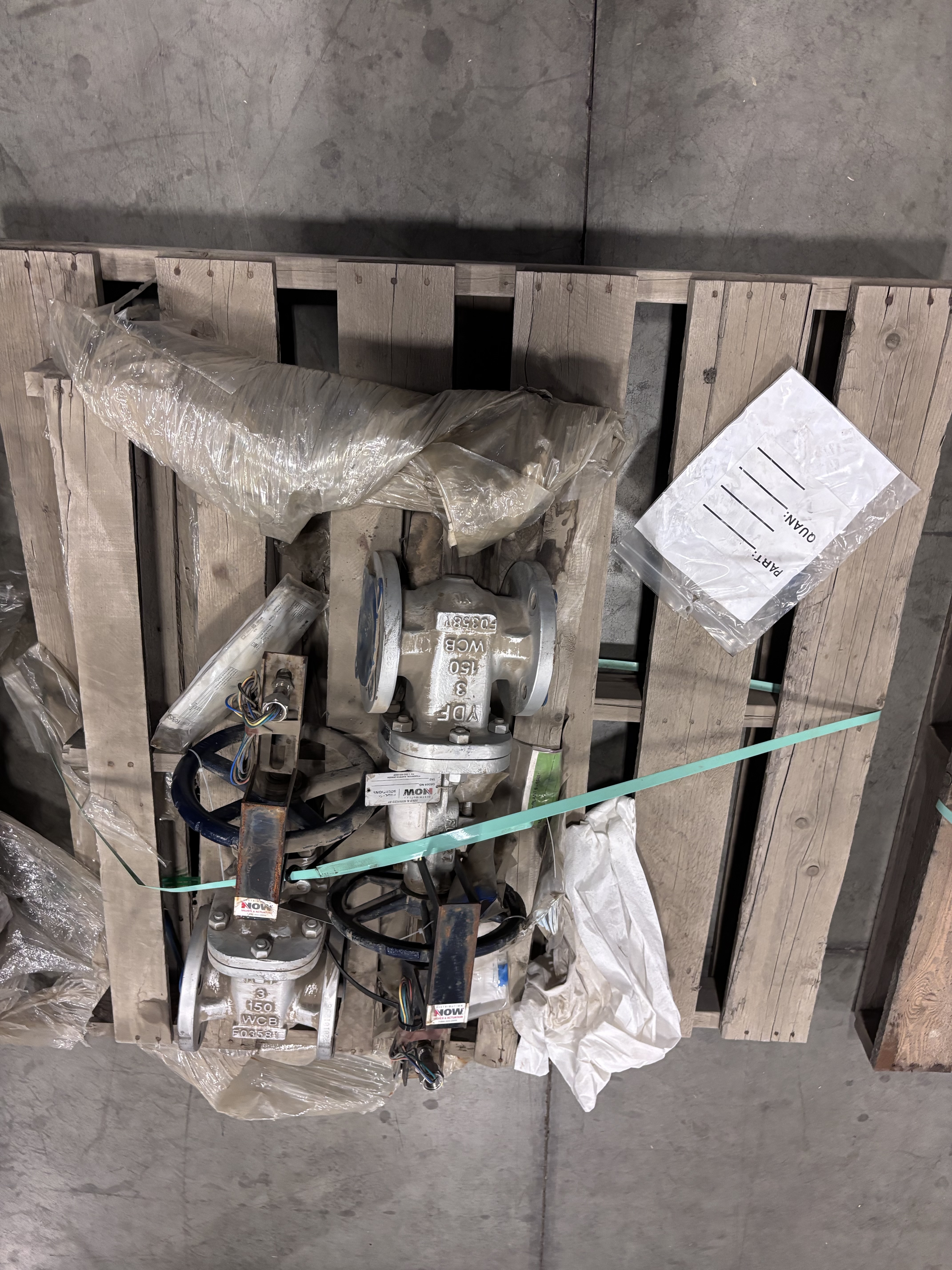

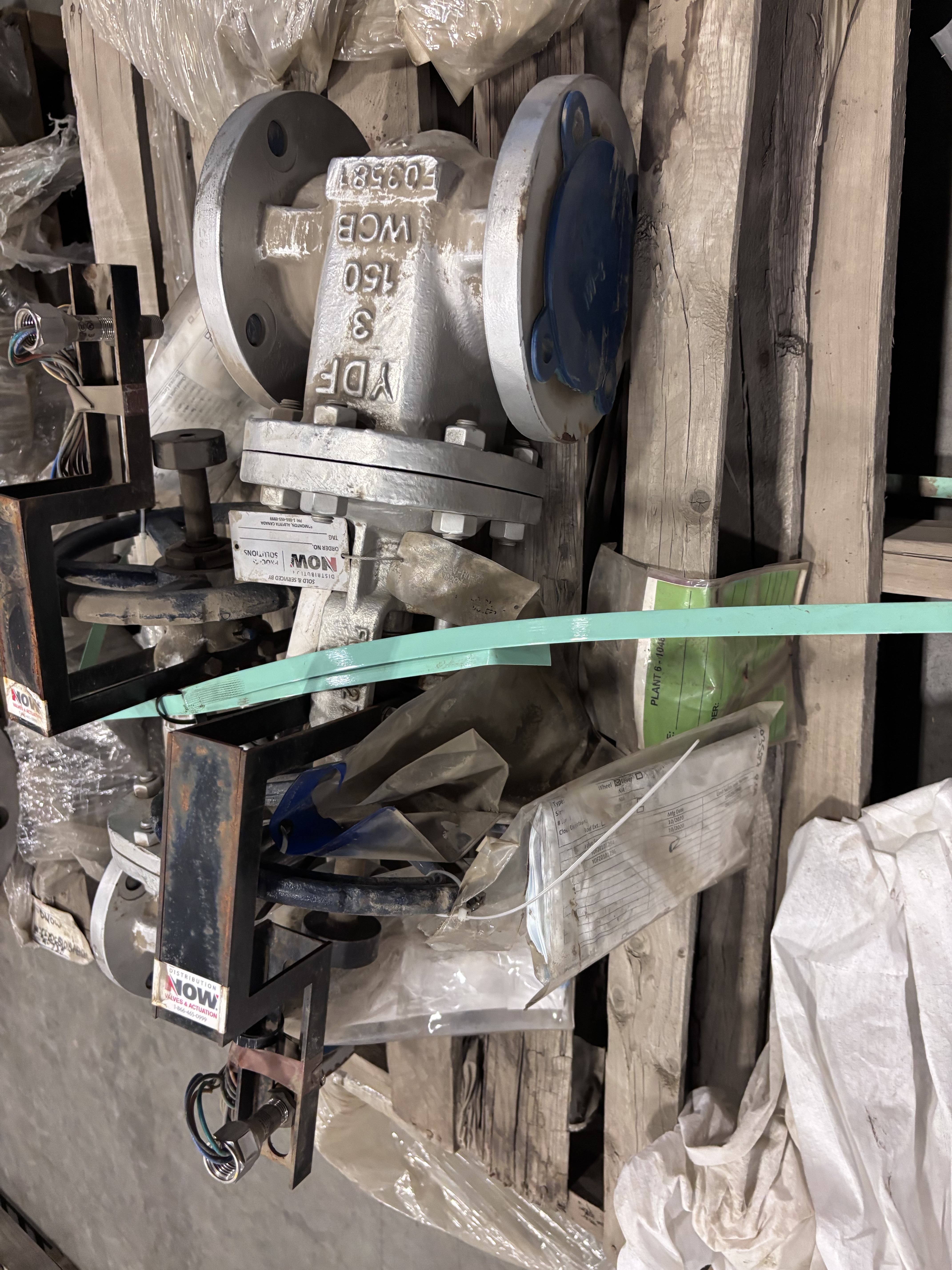

This listing is for a lot of two YDF 3 in Class 150 WCB gate valves with raised-face flanged ends, manual handwheel operation, and mounted limit-switch assemblies. Both valves show YDF body castings and visible nameplates identifying API 600 / ASME B16.34, 3 in, Class 150, WCB body, CA15 disc, F6a stem, HF seat, and 10/2020 date markings.

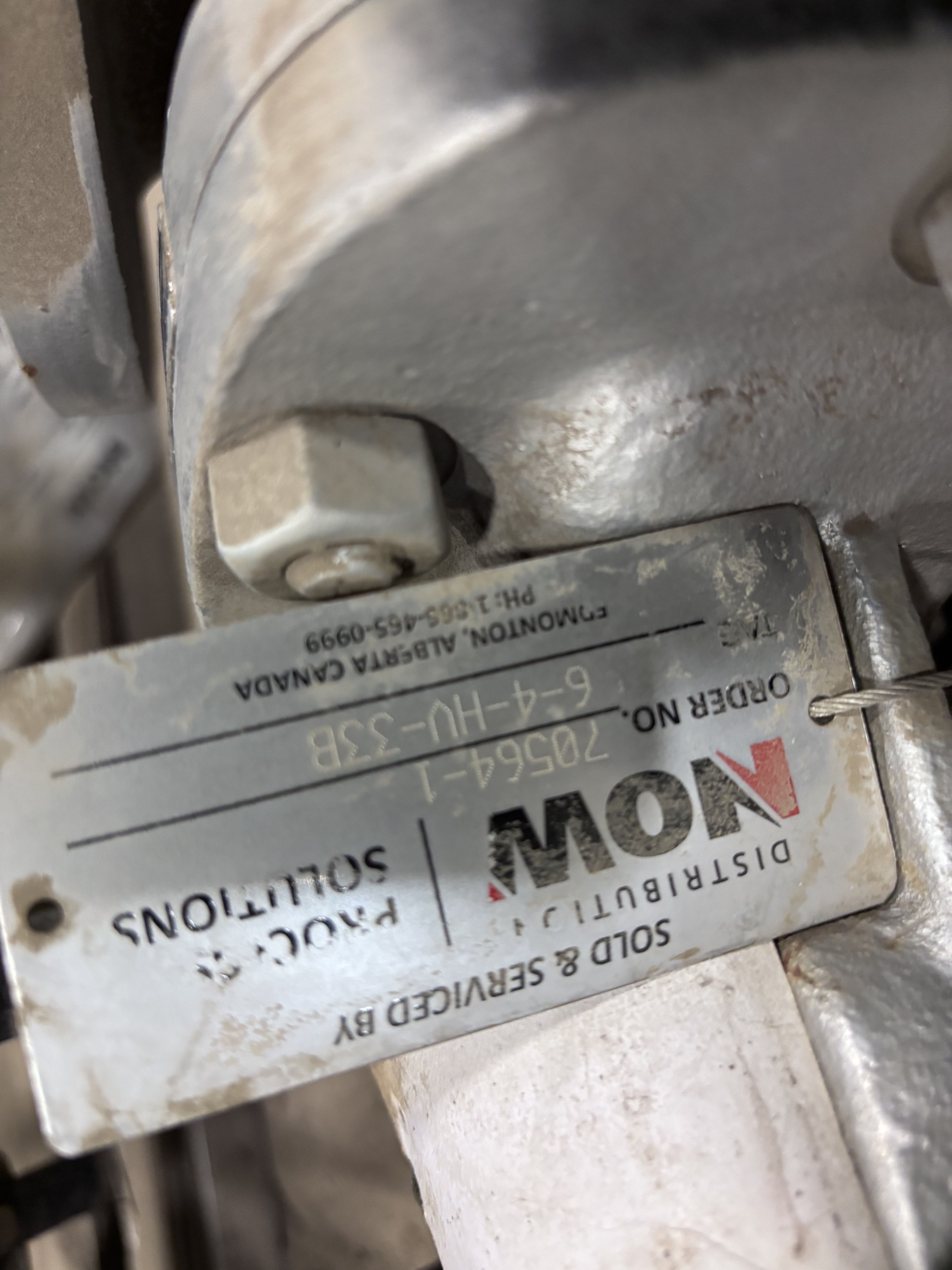

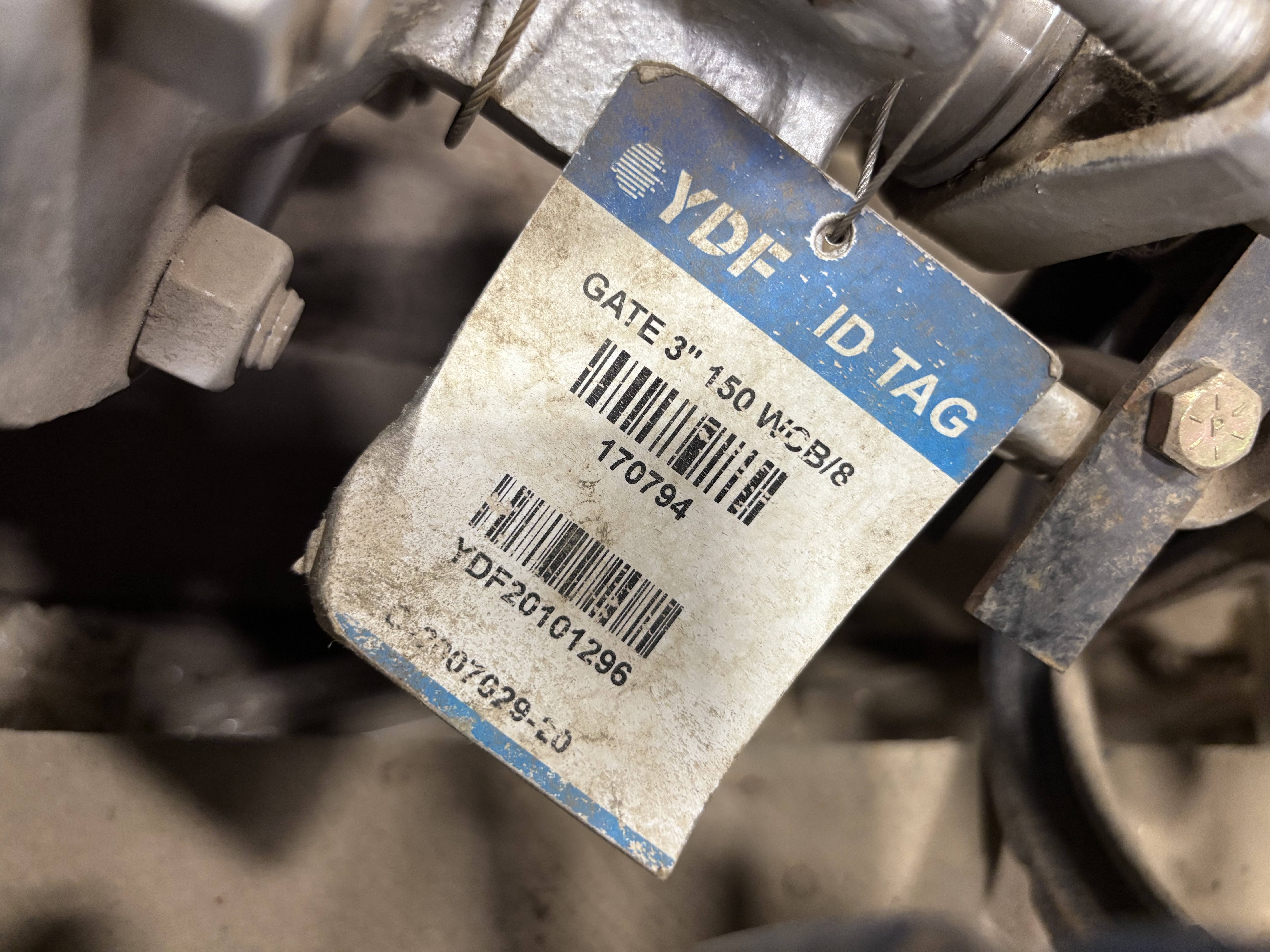

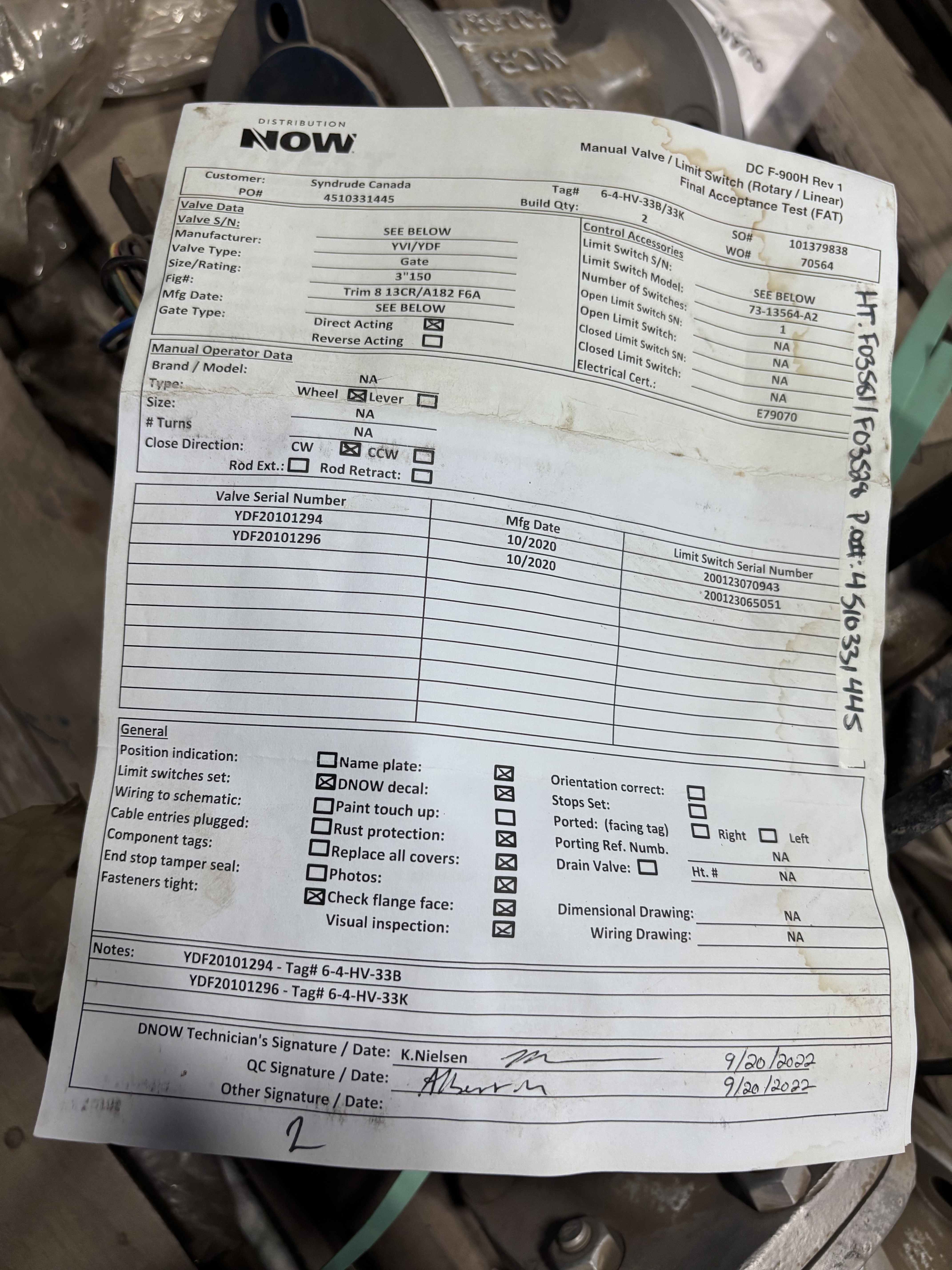

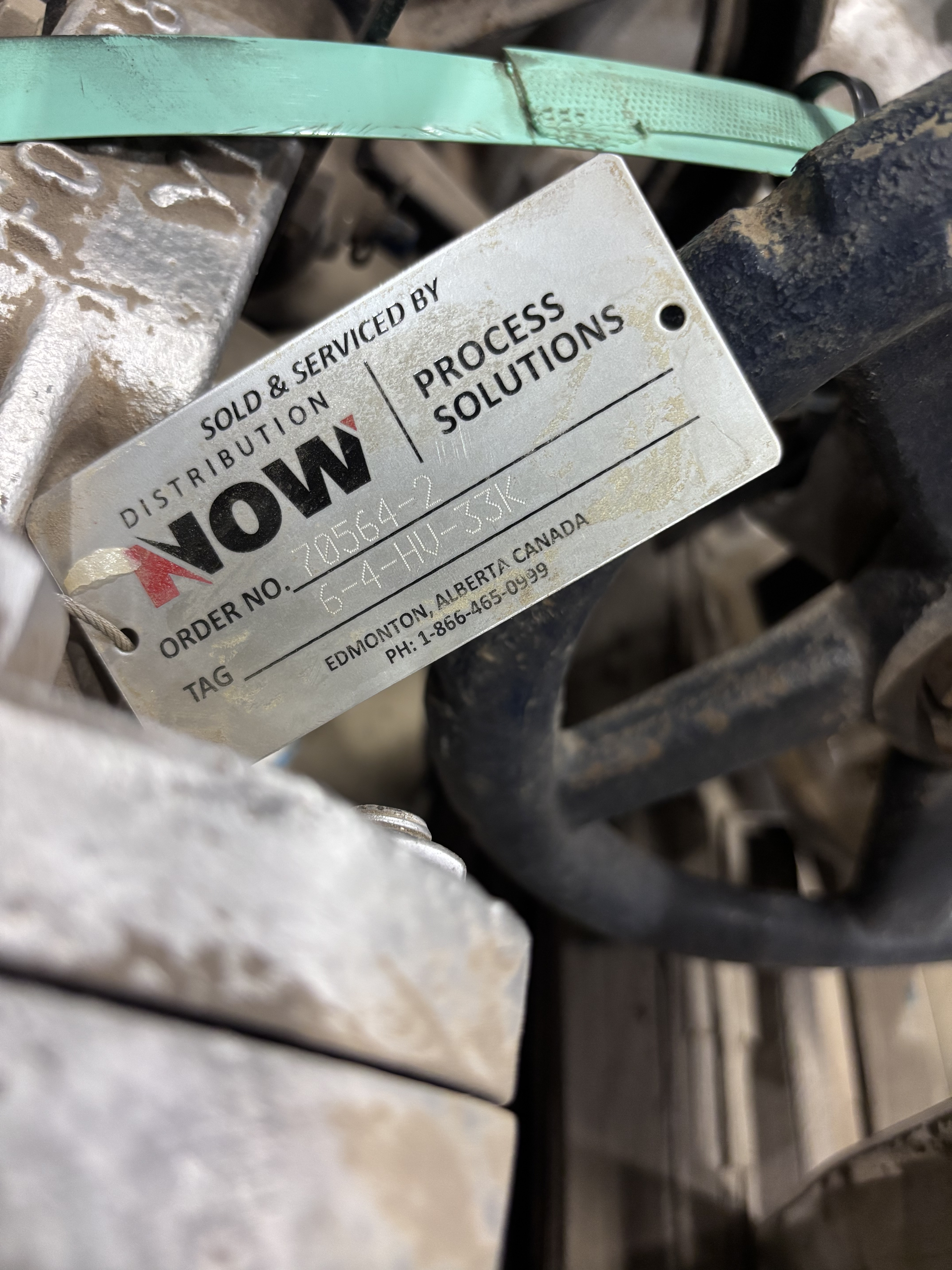

The two visible valve serial numbers are YDF20101294 and YDF20101296. The lot is supported by a visible DNOW / Process Solutions Manual Valve / Limit Switch Final Acceptance Test sheet covering both valve serial numbers and associated limit-switch serial numbers.
Lot Summary
| Field | Details |
| Manufacturer | YDF |
| Quantity | 2 valves total |
| Valve type | Gate valve |
| Size | 3 in |
| Pressure class | Class 150 |
| Body material | WCB |
| End connection | Raised-face flanged ends, RF |
| Operation | Manual handwheel with mounted limit-switch assemblies |
| Visible standards | API 600; ASME B16.34 |
| Nameplate trim details | CA15 disc; F6a stem; HF seat |
| Manufacture date shown | 10/2020 |
Valve-by-Valve Identification
| Valve | Visible Serial Number | Size | Class | Body | Disc | Stem | Seat | Date | Visible Rating / Temperature | Associated Limit Switch Serial |
| Valve 1 | YDF20101294 | 3 in | 150 | WCB | CA15 | F6a | HF | 10/2020 | 285 PSI @ 100°F appears visible; -20°F to 800°F appears visible | 200123070943 |
| Valve 2 | YDF20101296 | 3 in | 150 | WCB | CA15 | F6a | HF | 10/2020 | 285 PSI @ 100°F appears visible; -20°F to 800°F appears visible | 200123065051 |
