SKF Radial Spherical Plain Bearing — Qty: 2
Listing ID:
IH-65721
Description
SKF GE 120 TXG3A-2LS Radial Spherical Plain Bearing — Qty: 2
Notes:
Item Overview

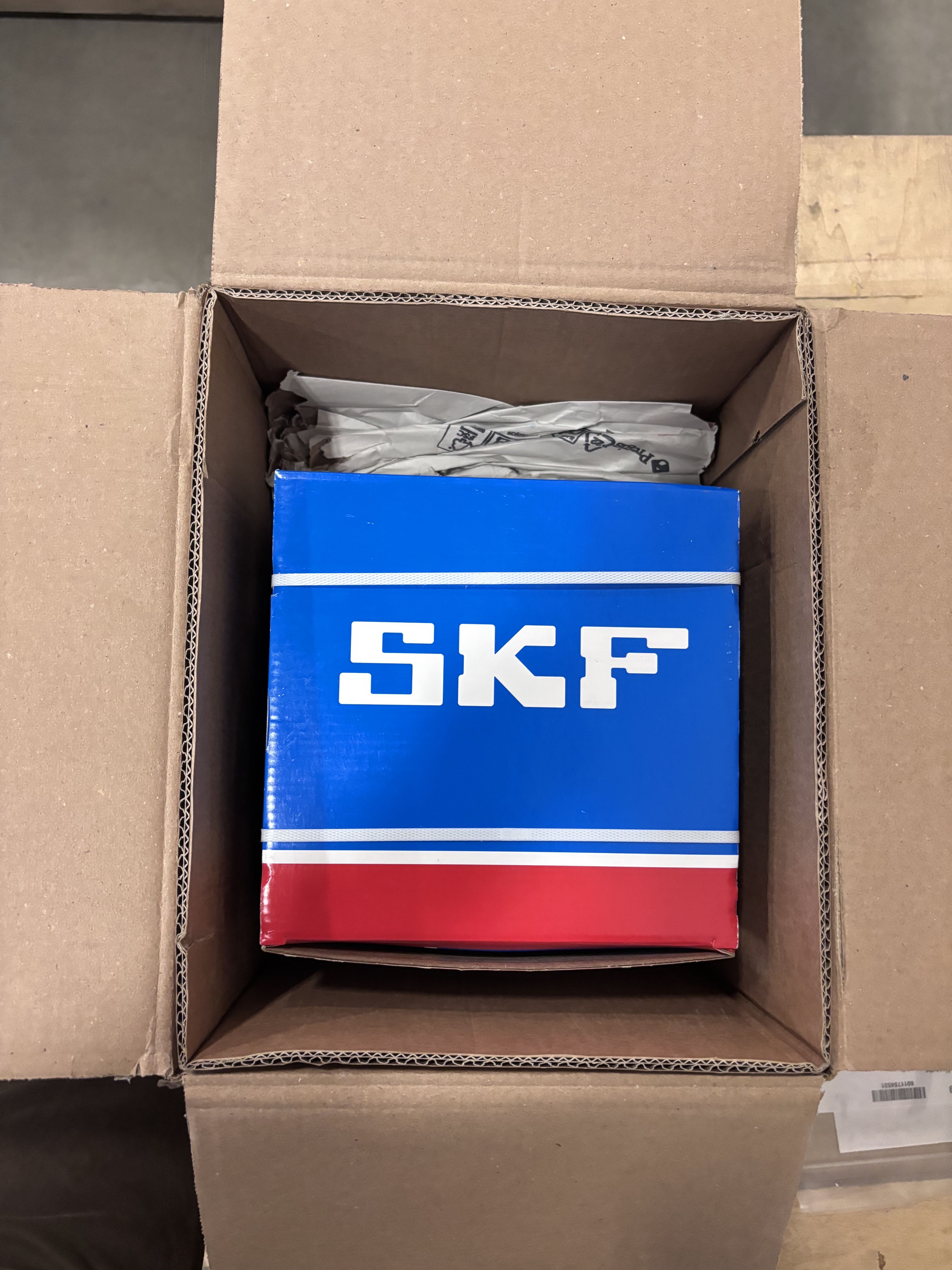

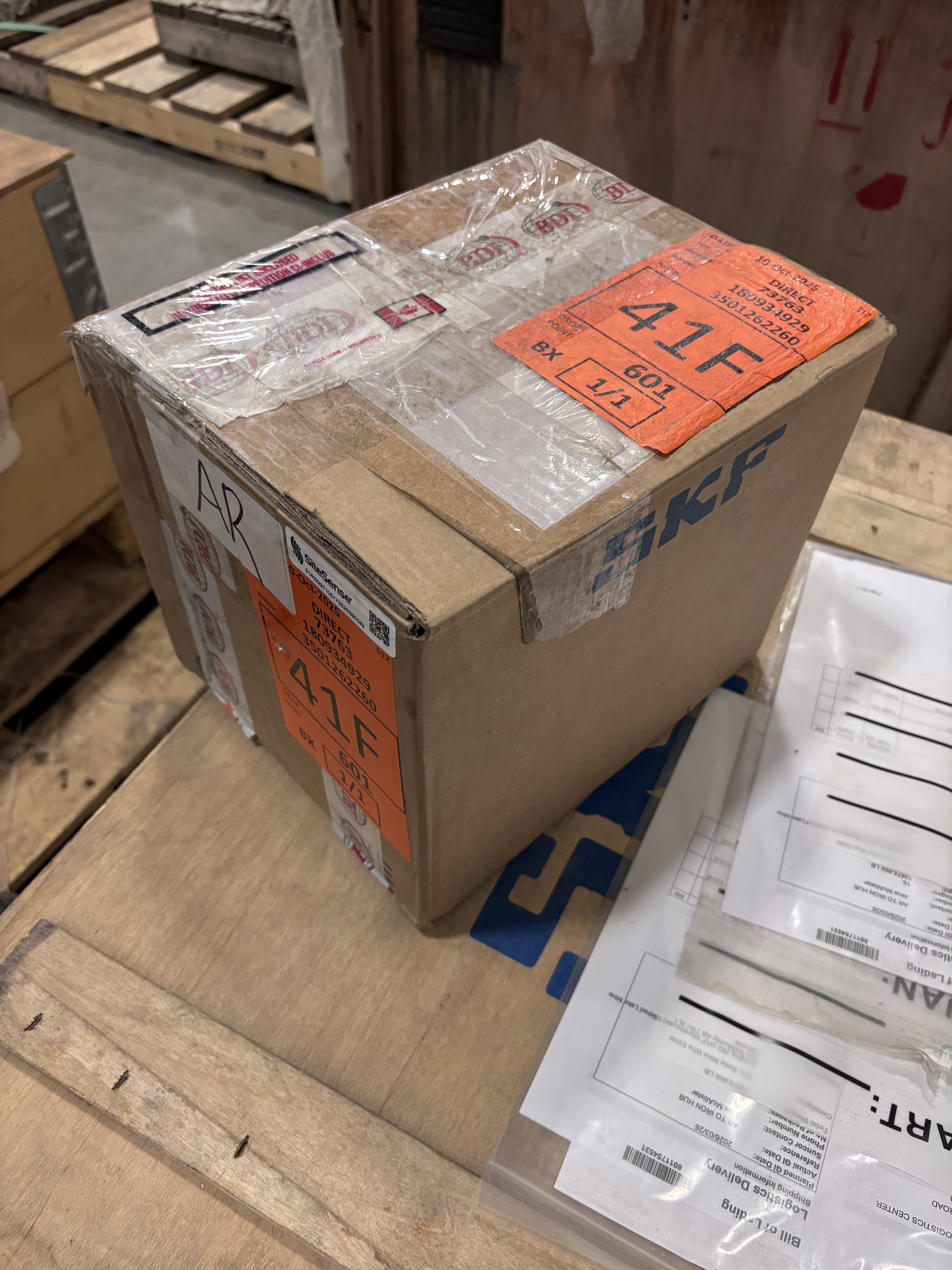

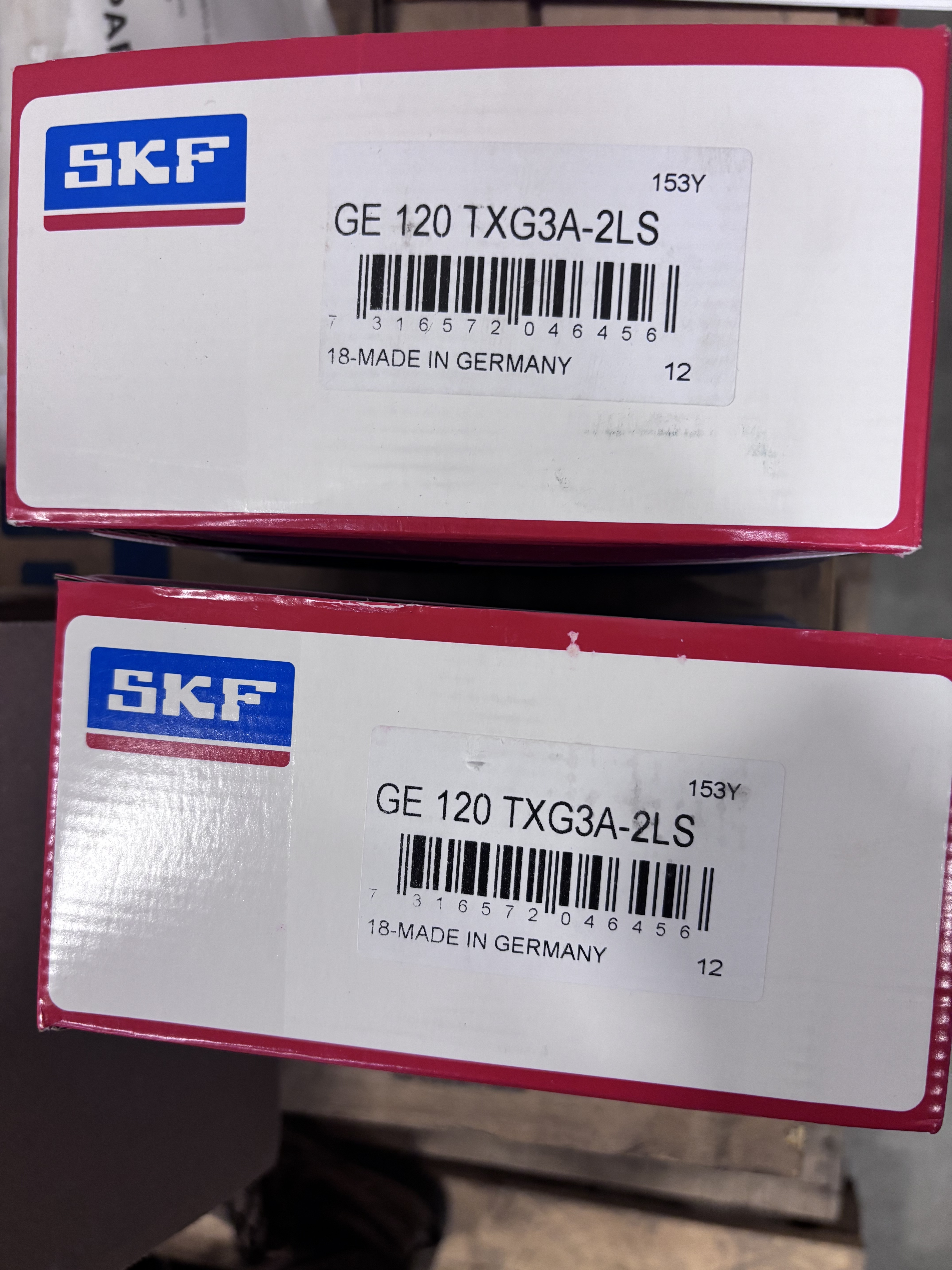

This is a pair of new, factory-sealed SKF GE 120 TXG3A-2LS radial spherical plain bearings, made in Germany, date code 153Y (2025). Both units are in original SKF OEM red/blue packaging, shipped in a single outer BDI carton.
The BDI packing slip notes these were a special order from stock in Germany with 8–9 weeks delivery lead time, and are designated non-returnable/non-cancellable — confirming these are genuine, current-production SKF bearings procured to a specific maintenance requirement.
Technical Specifications
| Attribute | Value |
| SKF Part Number | GE 120 TXG3A-2LS |
| Bearing Type | Radial spherical plain bearing, maintenance-free |
| Bore Diameter (d) | 120 mm (4.7244 in) |
| Outside Diameter (D) | 180 mm (7.0866 in) |
| Inner Ring Width (B) | 85 mm (3.3465 in) |
| Outer Ring Width (C) | 70 mm |
| Basic Dynamic Load Rating (C) | 2,700 kN |
| Basic Static Load Rating (C₀) | 4,500 kN |
| Max Misalignment Angle | ±6° |
| Liner Material | PTFE/fabric composite (maintenance-free, no re-lubrication required) |
| Inner Ring Material | Steel |
| Country of Origin | Germany |
| Weight | ~9.5 kg each |
