8,000 hp General Electric (GE) 5K26379AH1 Electric Driver
General Electric 8000 HP Induction Motor (6600V, 1790 RPM)
Listing Summary

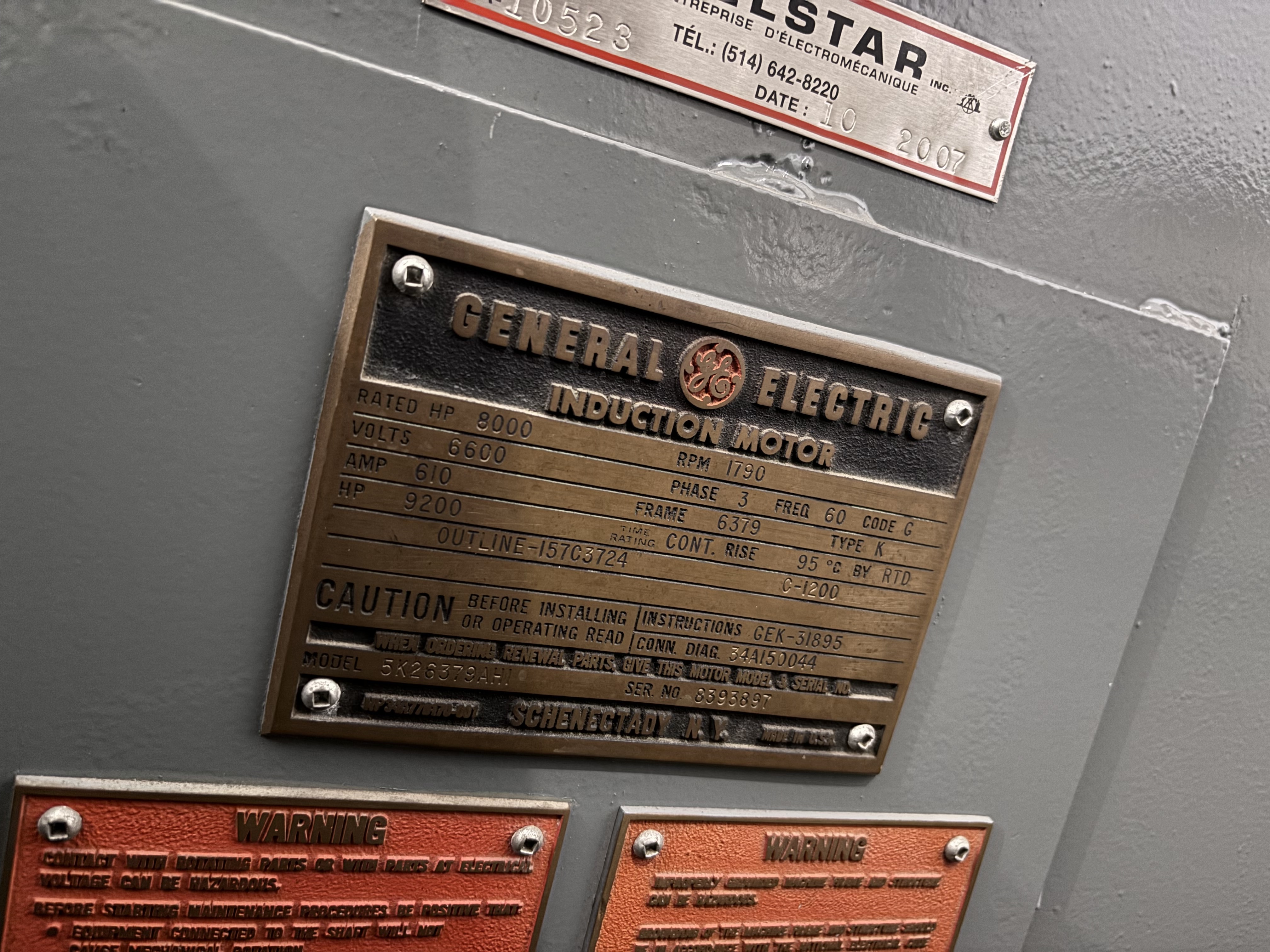

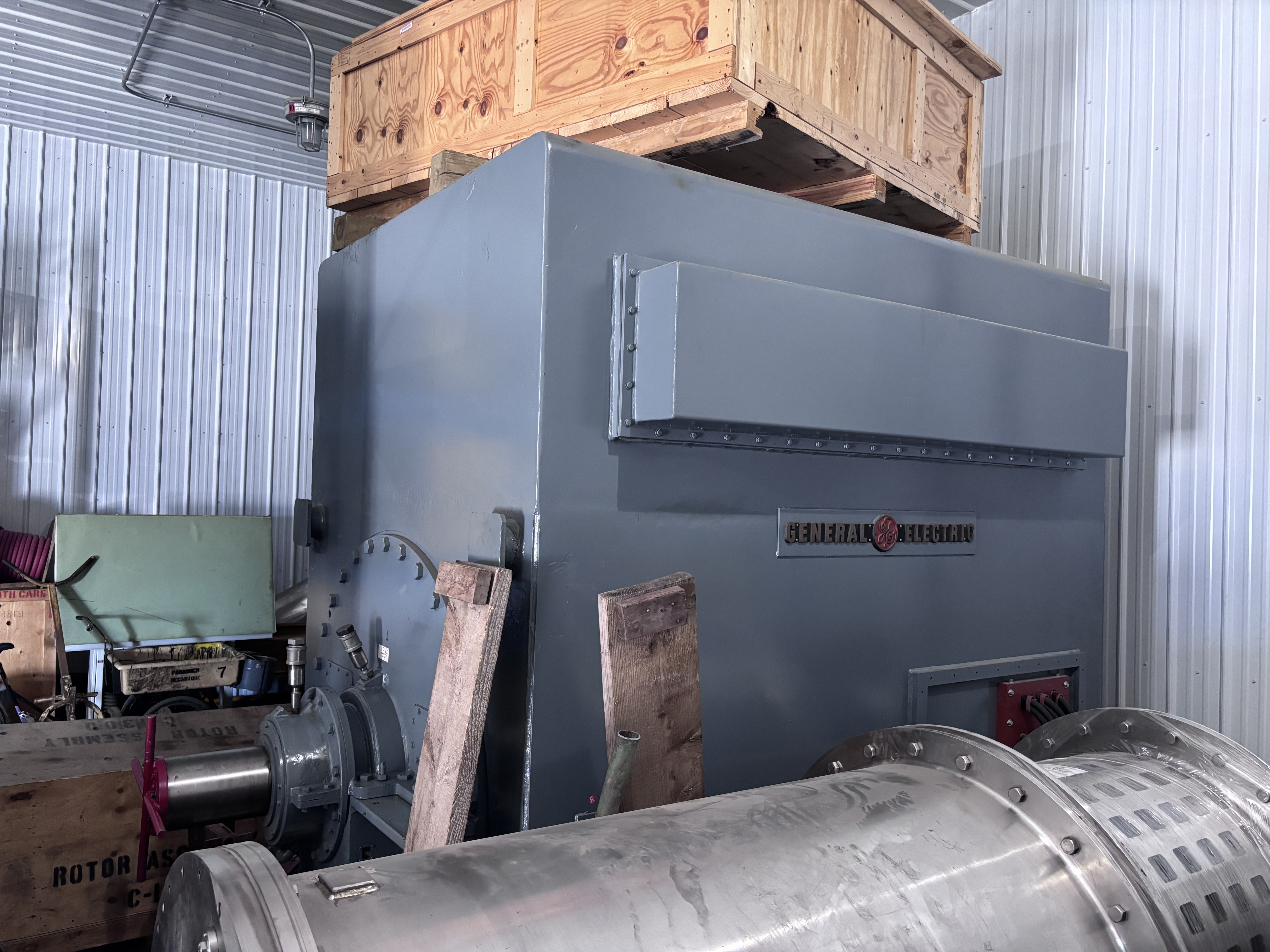

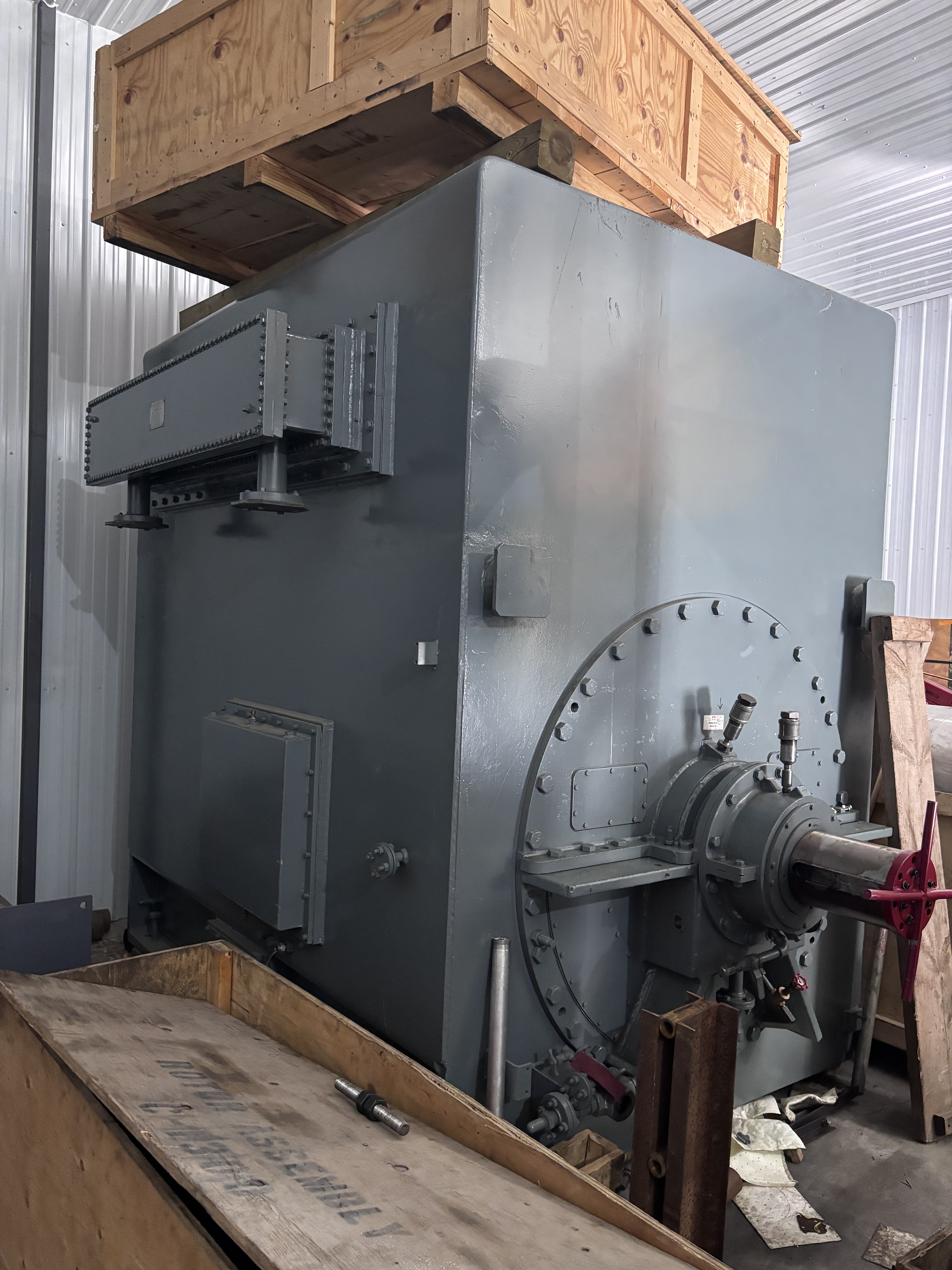

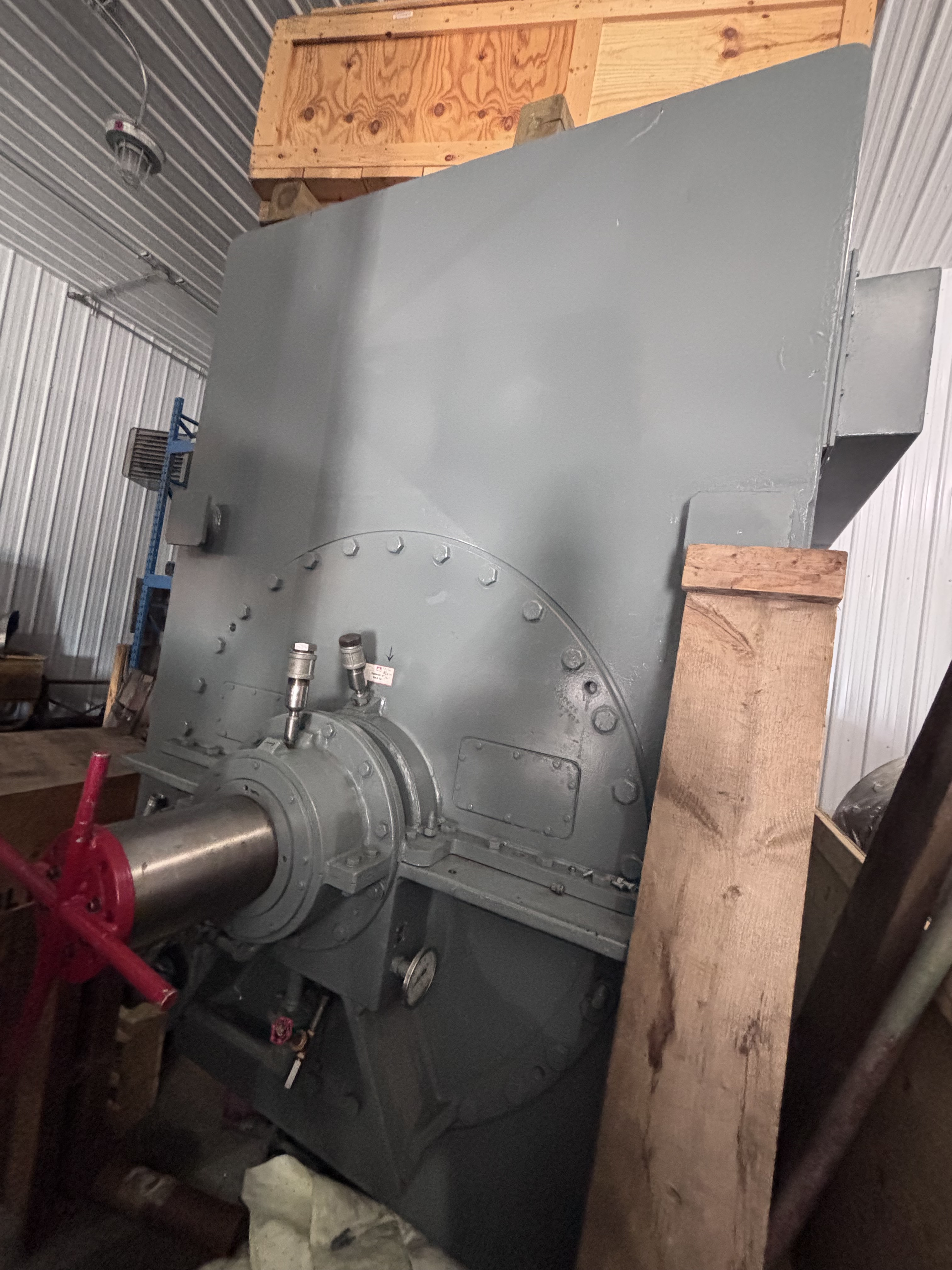

Available for sale is a massive General Electric 8000 HP Squirrel-Cage Induction Motor. Built on a heavy-duty 6379 frame, this high-voltage (6600V) motor is designed for continuous, severe-duty industrial applications. It features a 1790 RPM base speed, RTD temperature monitoring, and an integrated Enerfin motor cooler (C-1301A).

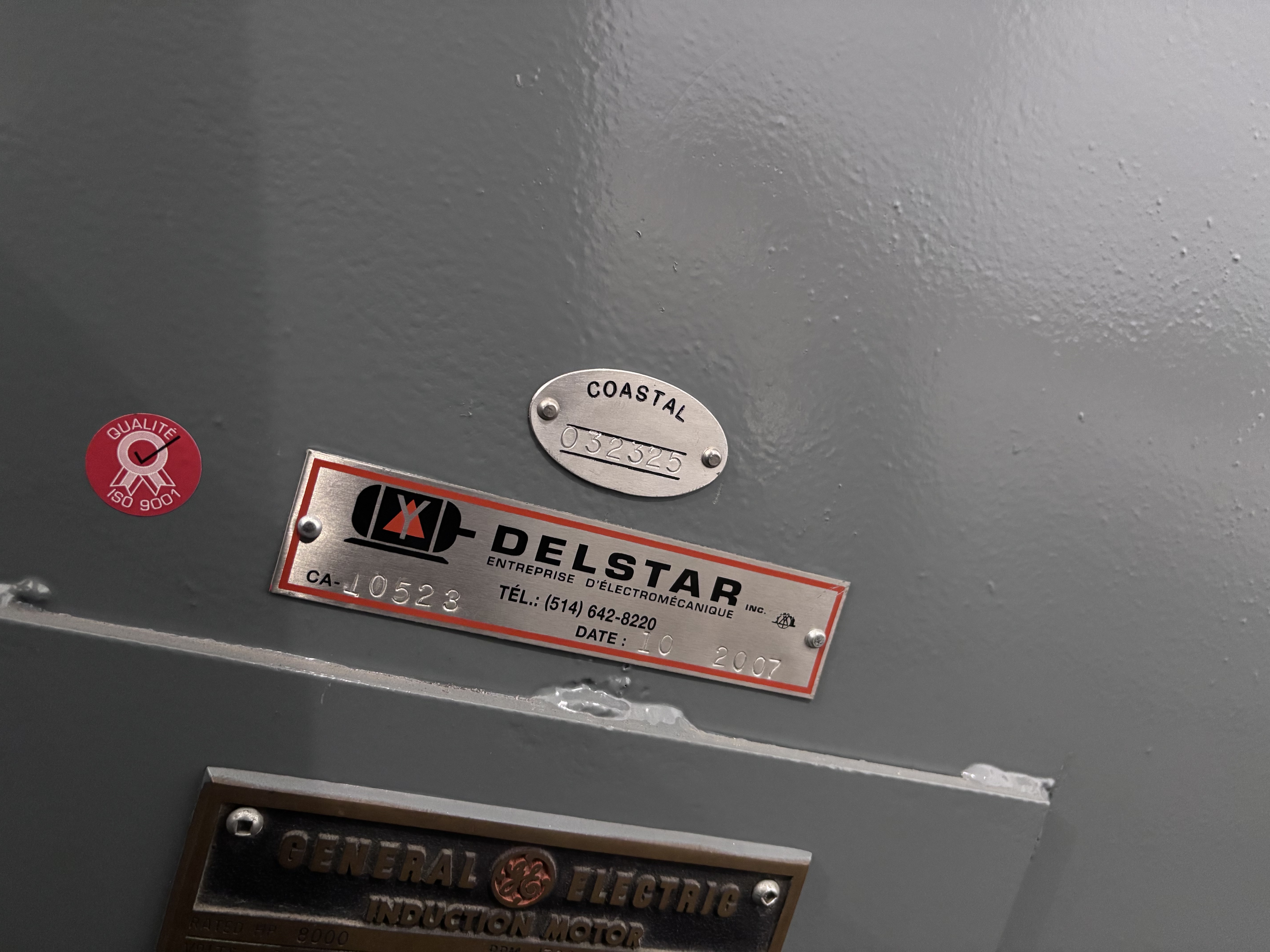

This unit was originally manufactured in Schenectady, N.Y., and features Delstar electromechanical servicing tags (2007). It is currently stored indoors presenting an exceptional opportunity to acquire a large-scale prime mover at a fraction of new OEM replacement cost and lead time.
Key Specifications
| Specification | Detail |
| Rated Horsepower | 8,000 HP (9,200 HP Max) |
| Voltage | 6,600 V |
| Amperage | 610 A |
| Speed | 1,790 RPM |
| Phase / Frequency | 3 Phase / 60 Hz |
| Frame Size | 6379 |
| Motor Type | Squirrel-Cage Induction |
| Time Rating | Continuous (CONT.) |
| Temperature Rise | 95 °C by RTD |

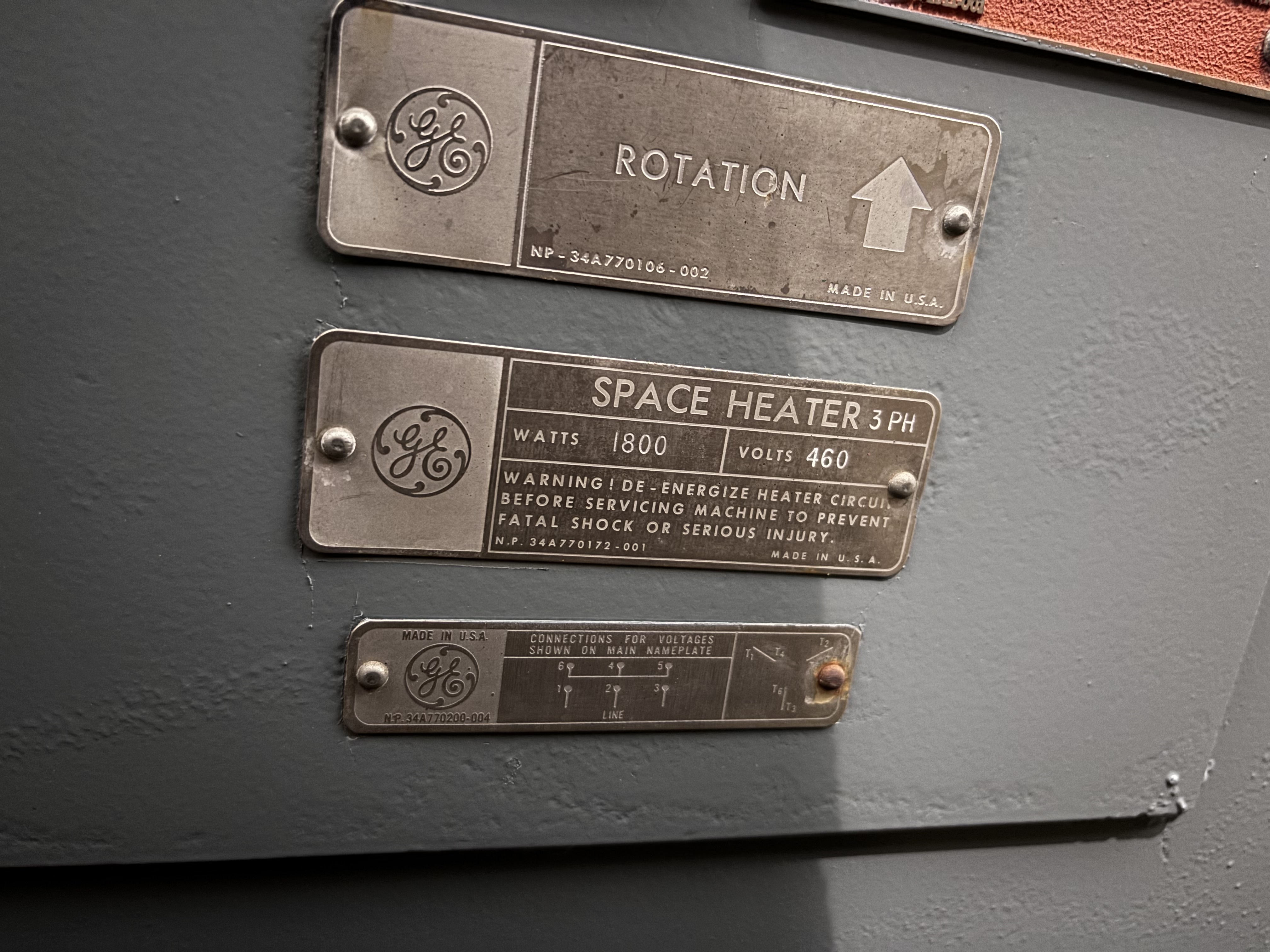

| Space Heater | 1,800 Watts, 460 Volts, 3 Phase |

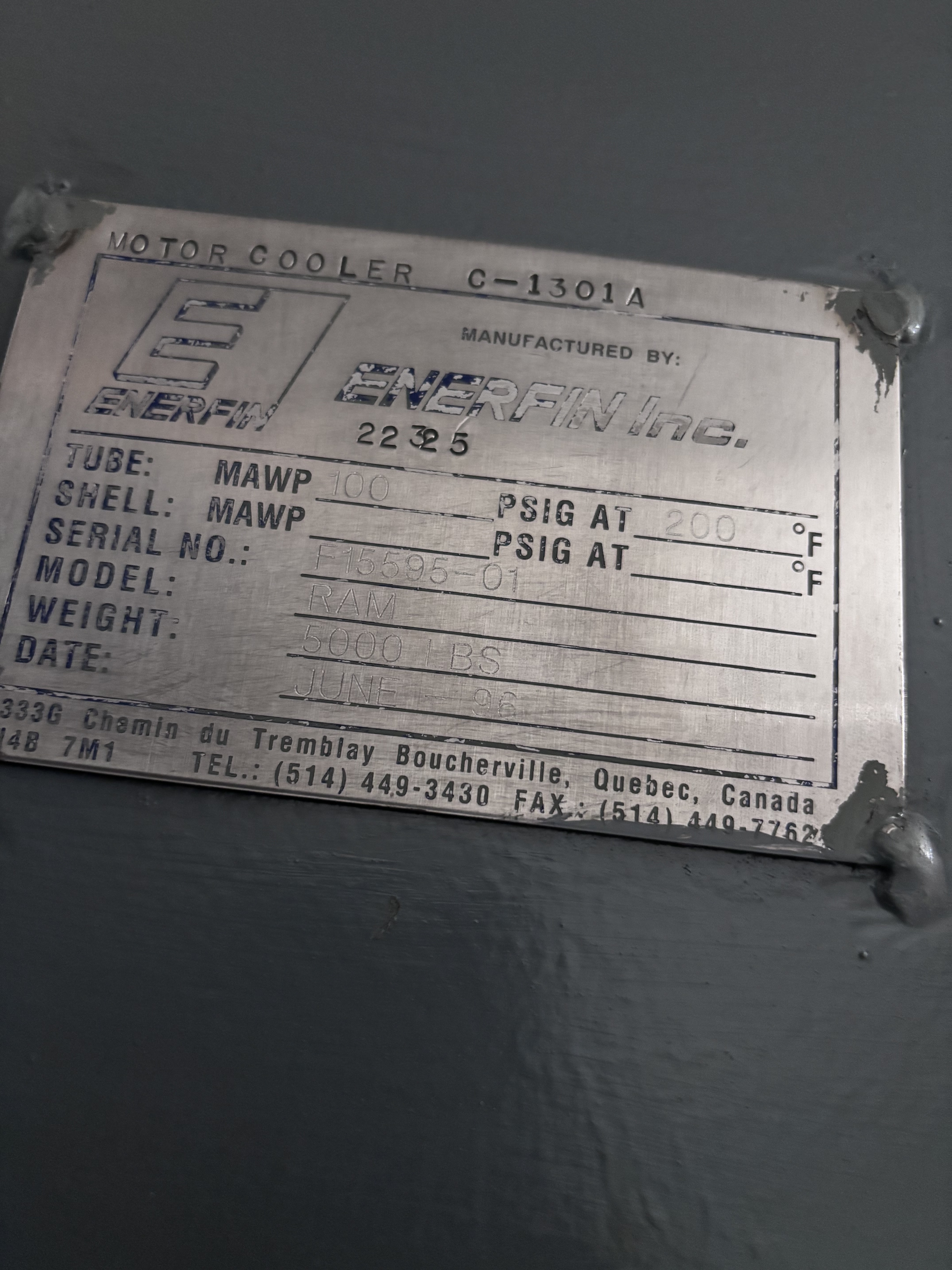

| Cooling System | Enerfin Inc. Motor Cooler (Model RAM, S/N F15595-01) |
| Cooler MAWP | Tube: 100 PSIG @ 200°F |
| Outline Drawing | I57C3724 |
| Connection Diagram | 34A150044 |
Typical Applications
This 8000 HP high-voltage induction motor is engineered for driving large-scale industrial rotating equipment. Typical applications include:
•Main gas compressors in pipeline and LNG facilities
•Large centrifugal pumps in water/wastewater and mining hydrotransport
•Boiler feed pumps in power generation plants
•Heavy-duty fans and blowers in steel and cement manufacturing
•Main drives for crushers, mills, and heavy material handling
