12" 600# Gate Valve
Supporting Documents (1)
library_books
MTRs.pdf
Listing ID:
IH-64871
Notes:
Summary

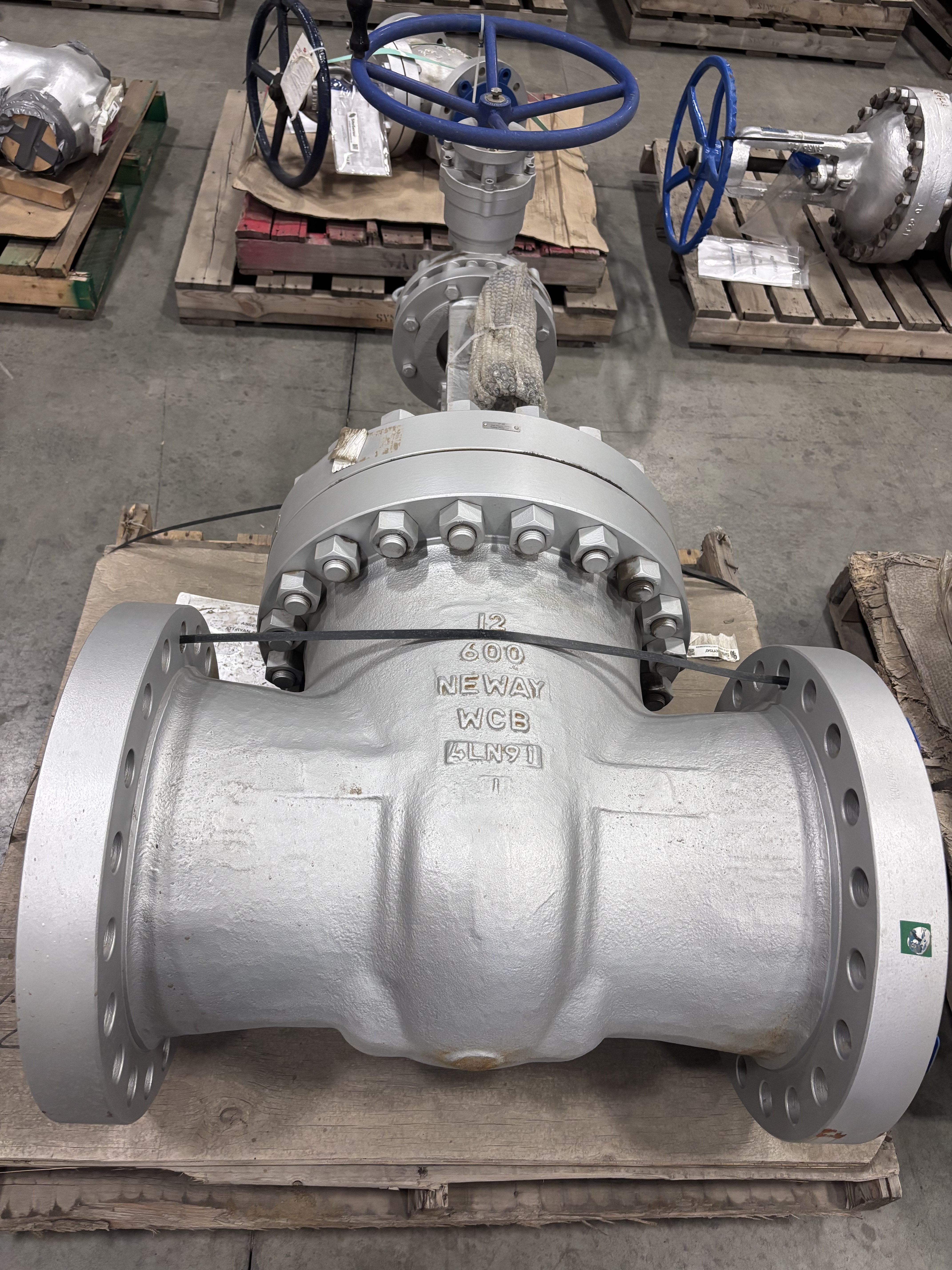

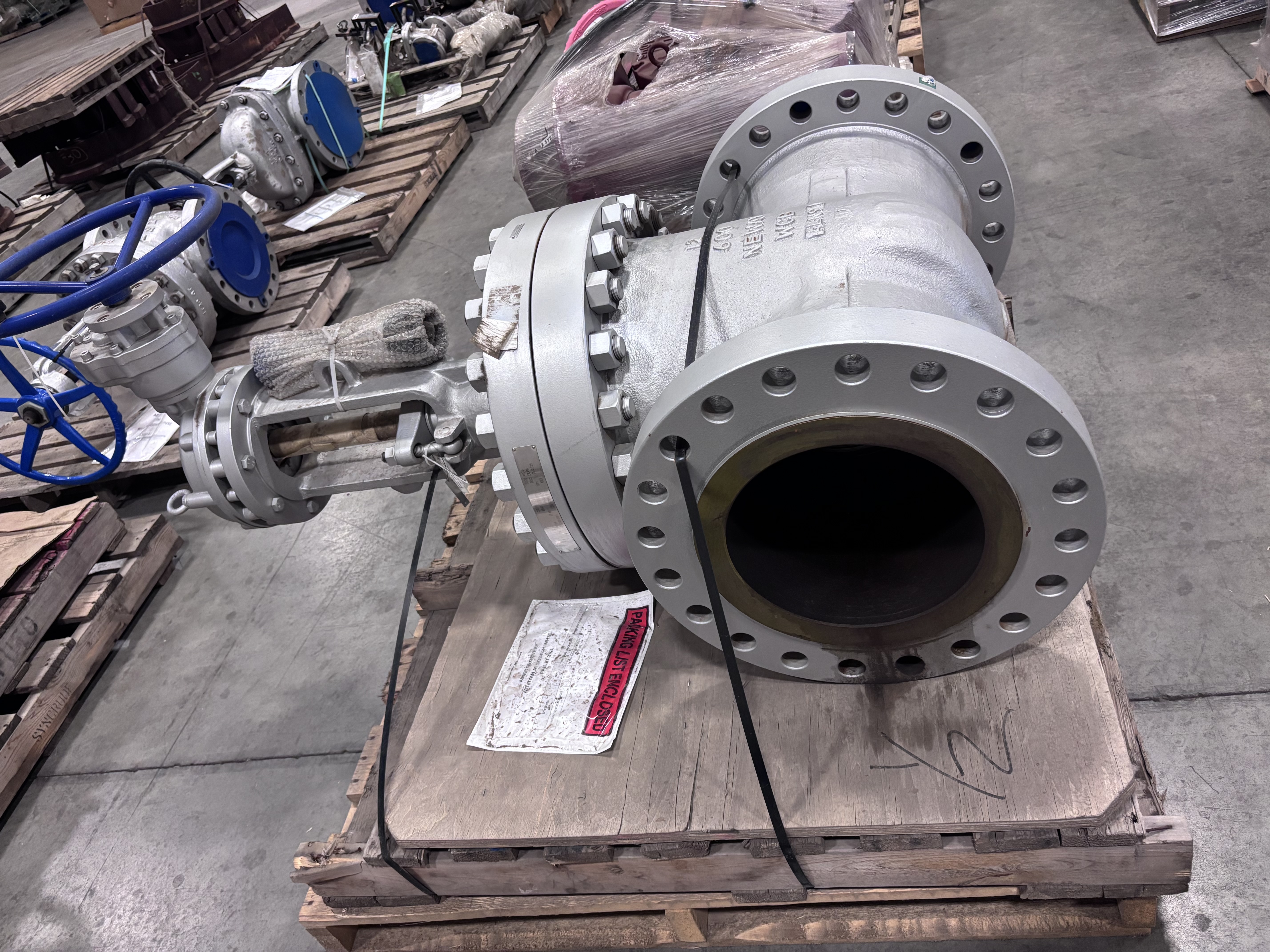

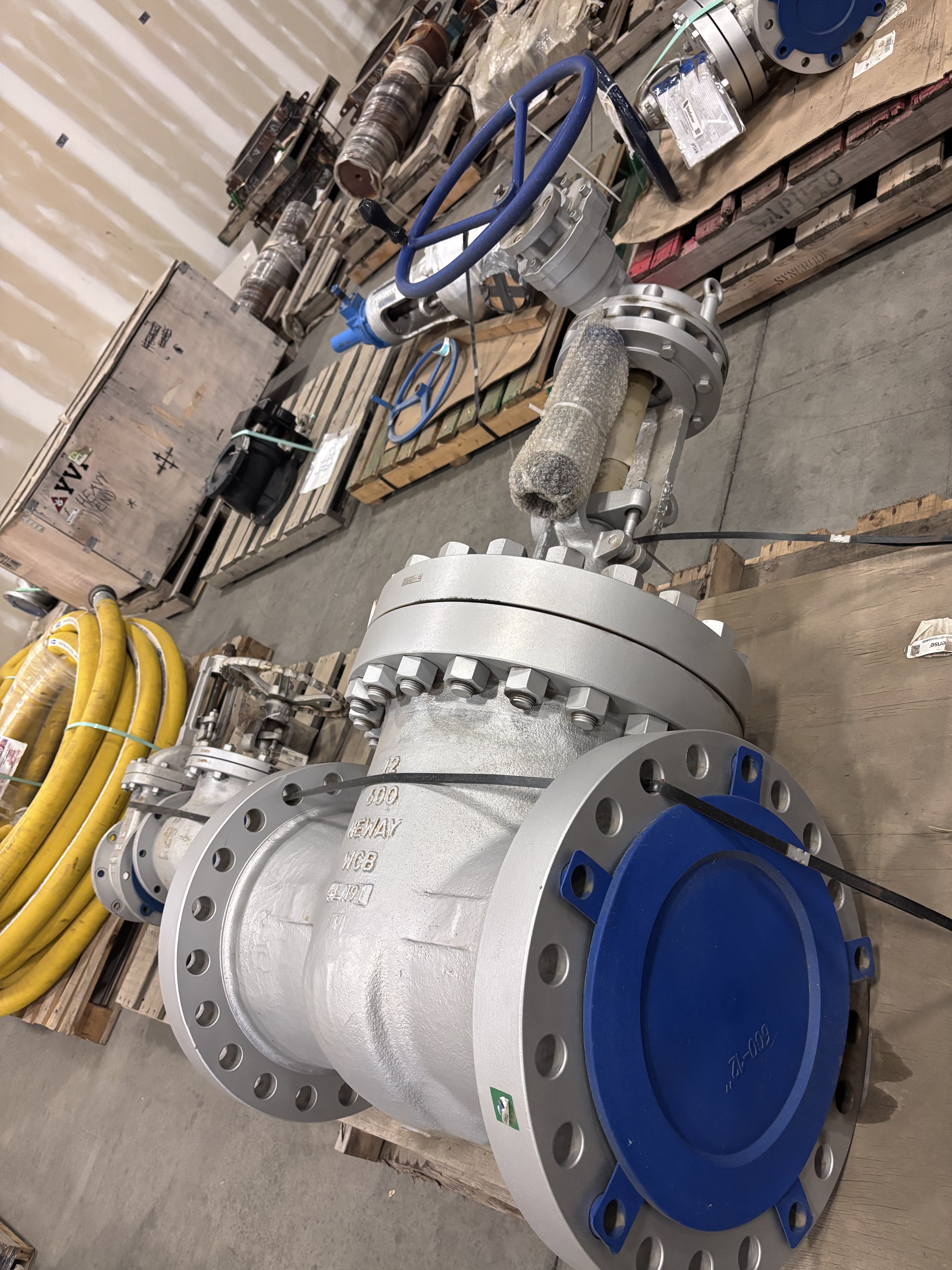

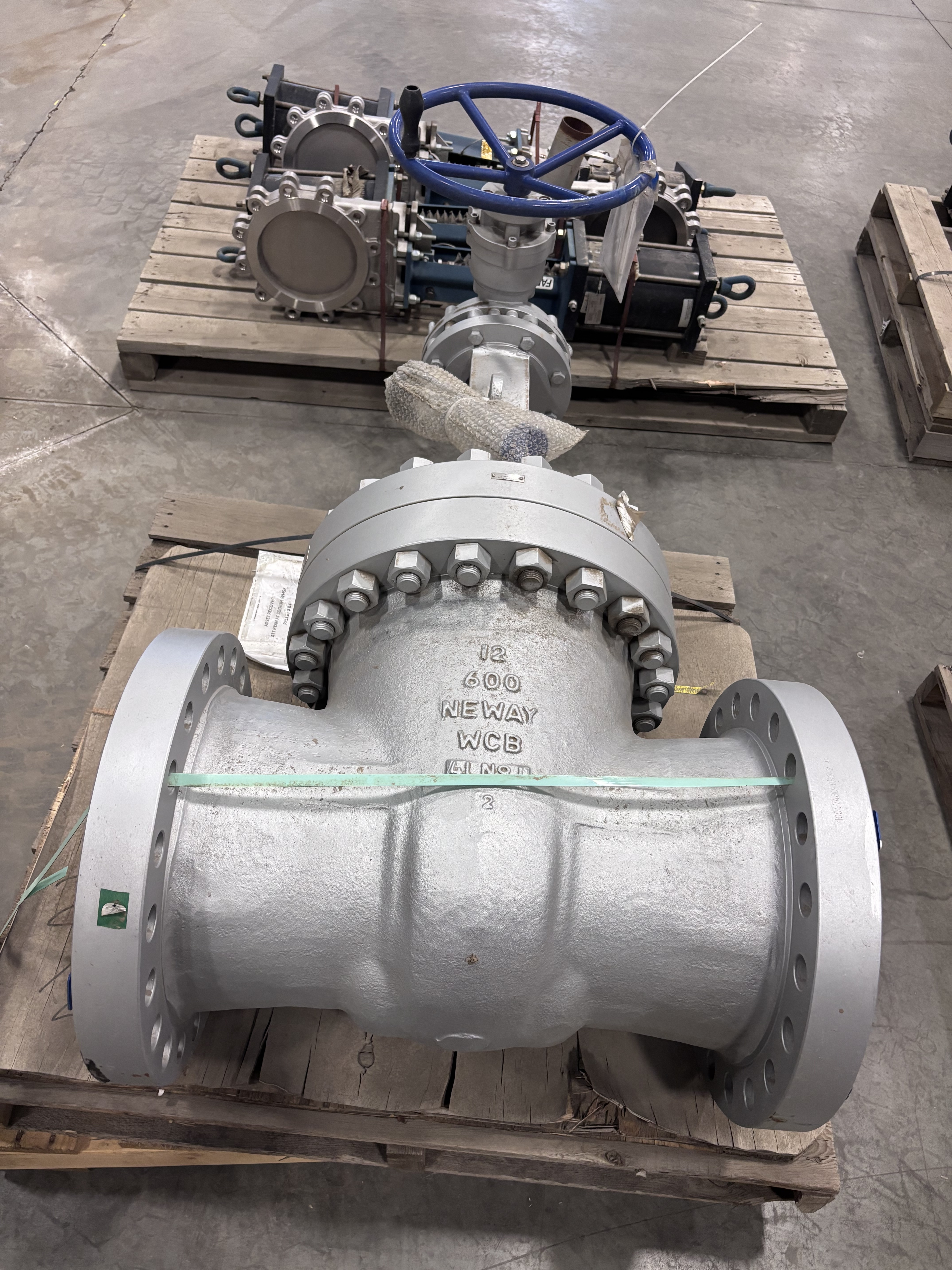

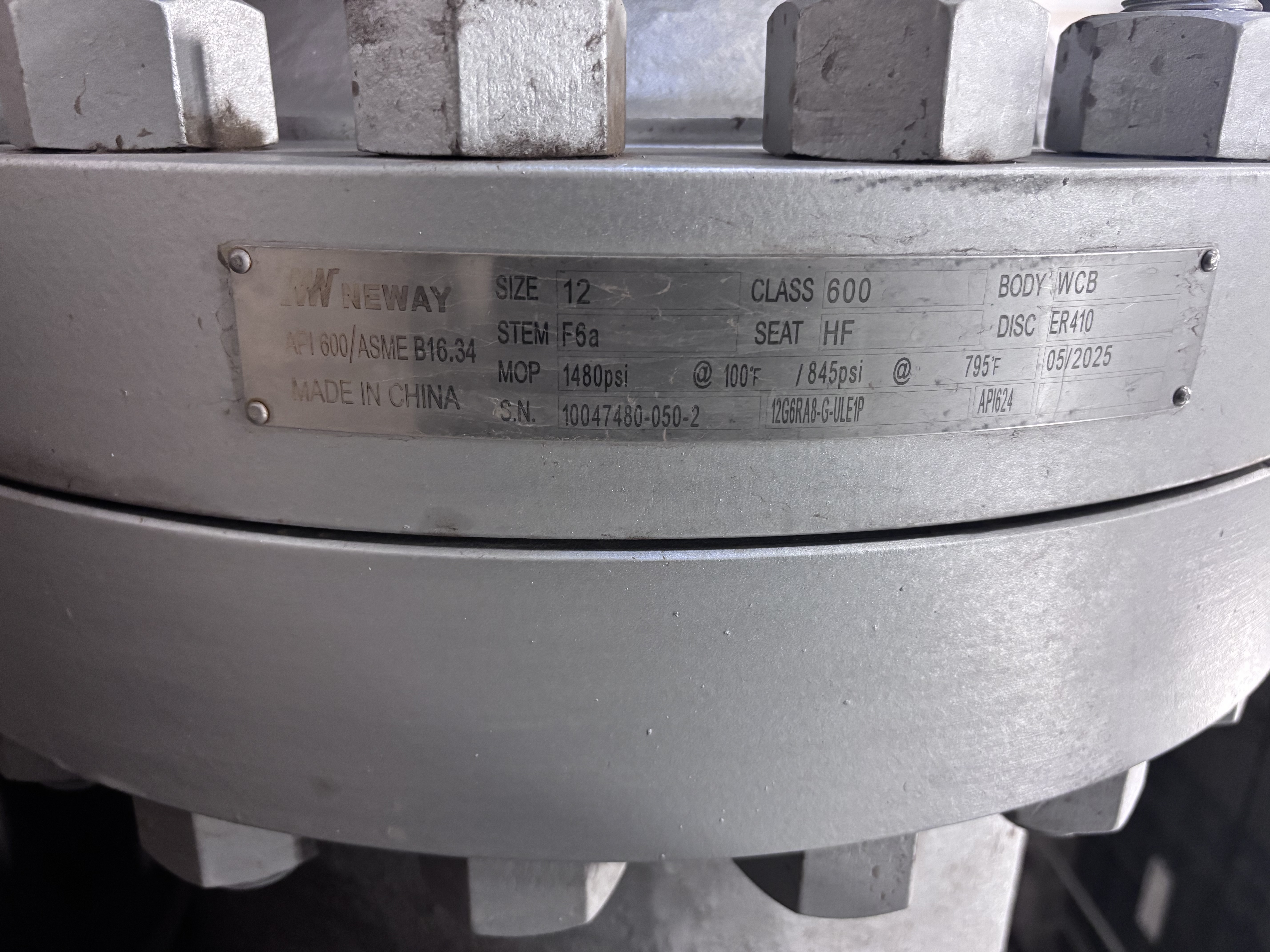

Available for sale is a lot of two NEWAY 12 in Class 600 WCB gear-operated gate valves. The valve nameplates identify the valves as NEWAY, size 12, Class 600, WCB body, built to API 600 / ASME B16.34, with F6a stem, HF seat, ER410 disc, and maximum operating pressure marked as 1480 psi at 100°F / 845 psi at 795°F. Both nameplates show a date of 05/2025 and the configuration / figure code 12G6RA8-G-UJEP.
Key Details
| Detail | Specification |
| Manufacturer | NEWAY |
| Valve type | Bolted-bonnet gate valve |

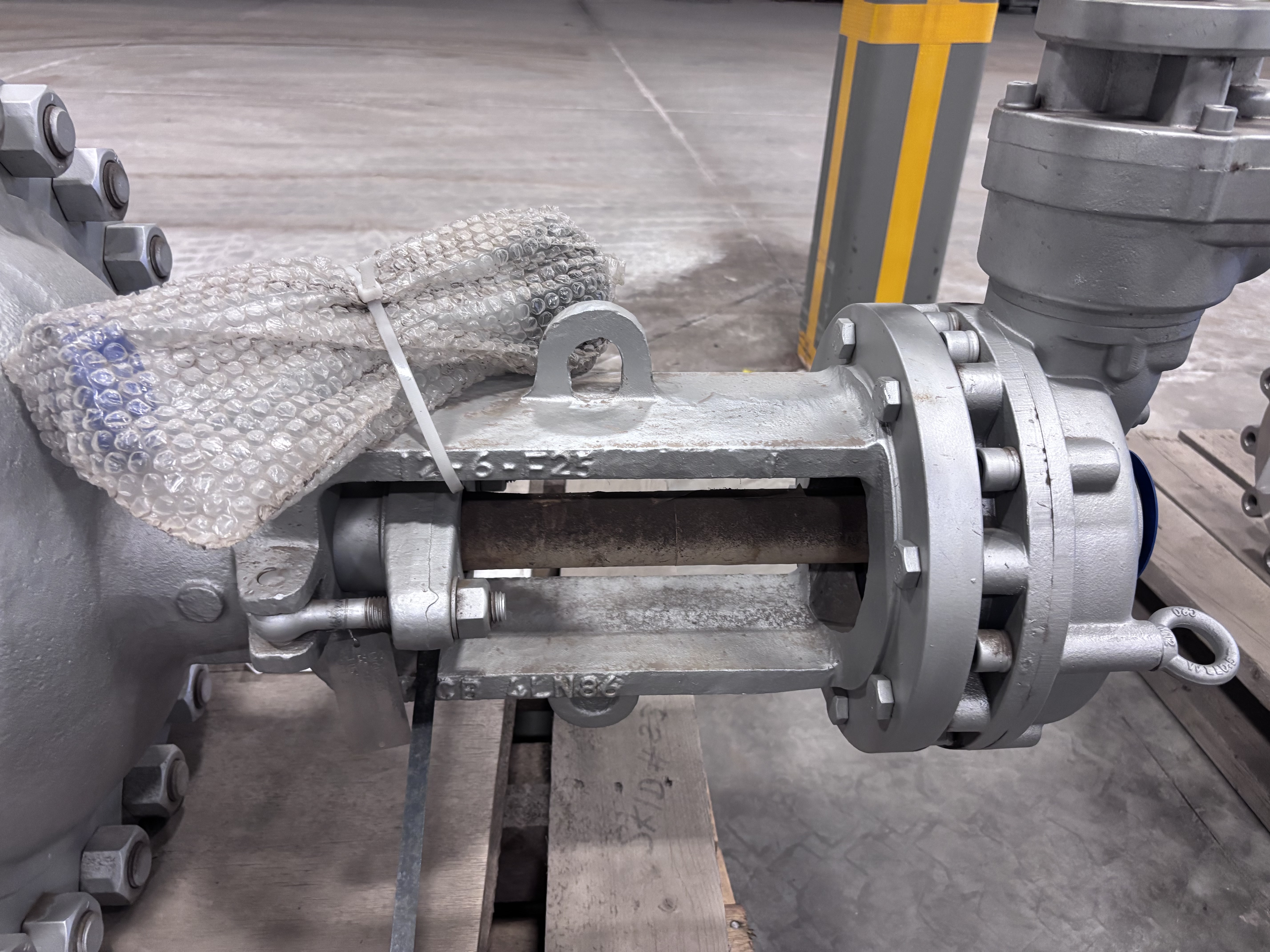

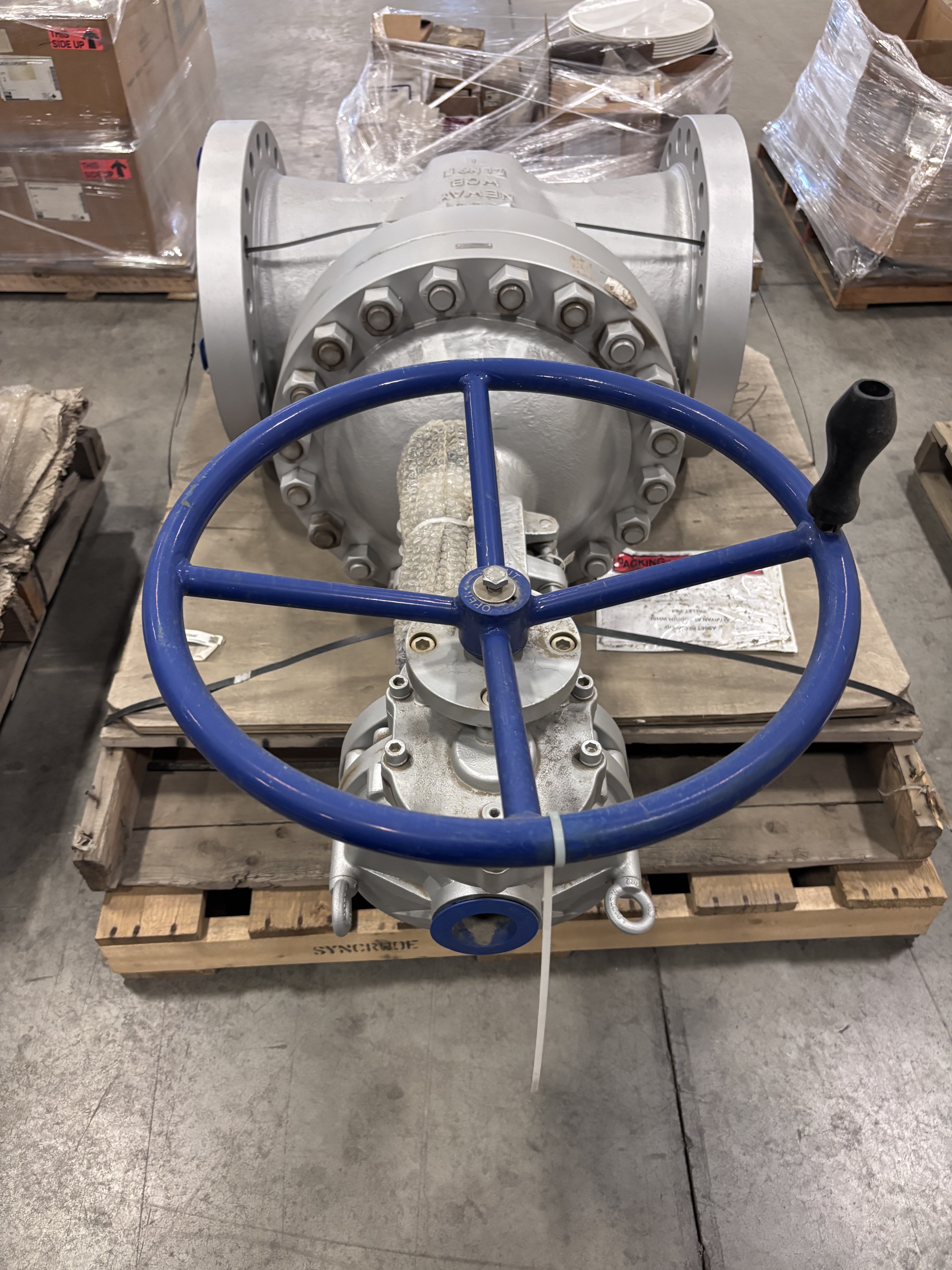

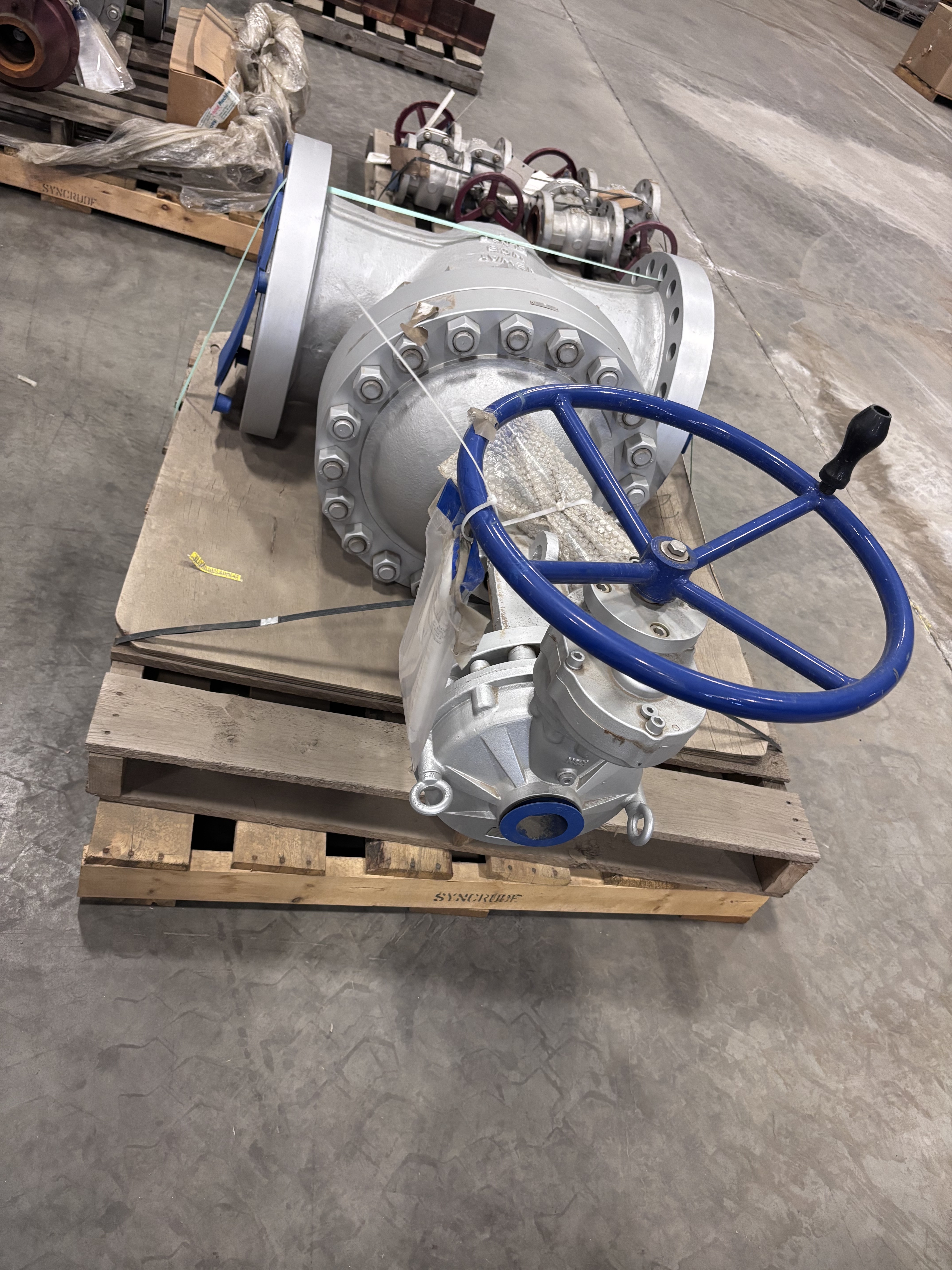

| Operation | Manual gear operator with handwheel |
| Quantity | 2 valves |
| Size | 12 in |
| Pressure class | Class 600 |
| Standard marking | API 600 / ASME B16.34 |
| Body material | WCB |
| Stem material | F6a |
| Seat | HF |
| Disc material | ER410 |
| Maximum operating pressure marking | 1480 psi at 100°F / 845 psi at 795°F |
| Configuration / figure code | 12G6RA8-G-UJEP |
| Additional nameplate code | API624 |
| Date shown on nameplates | 05/2025 |
| Country of manufacture | Made in China |

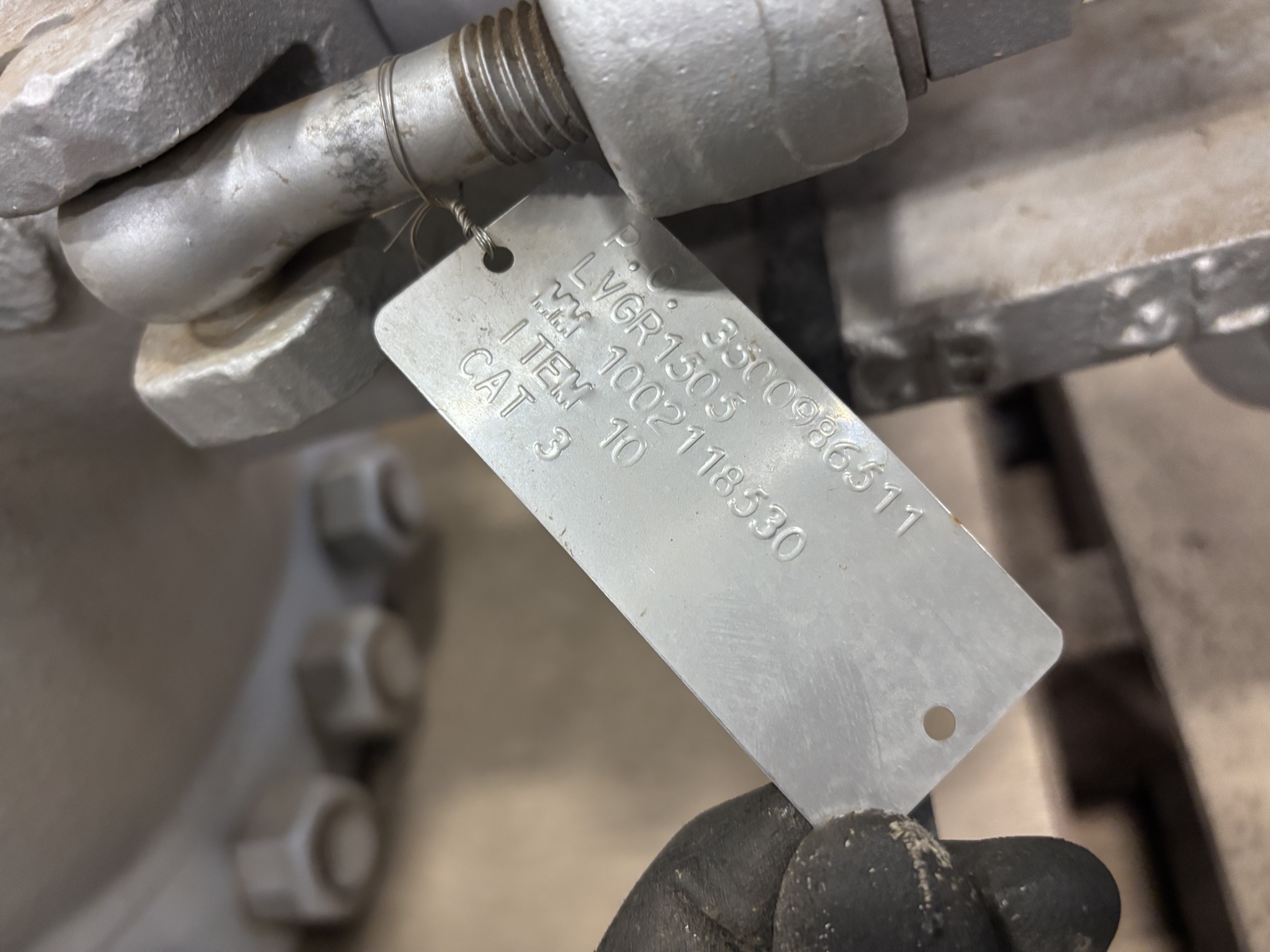

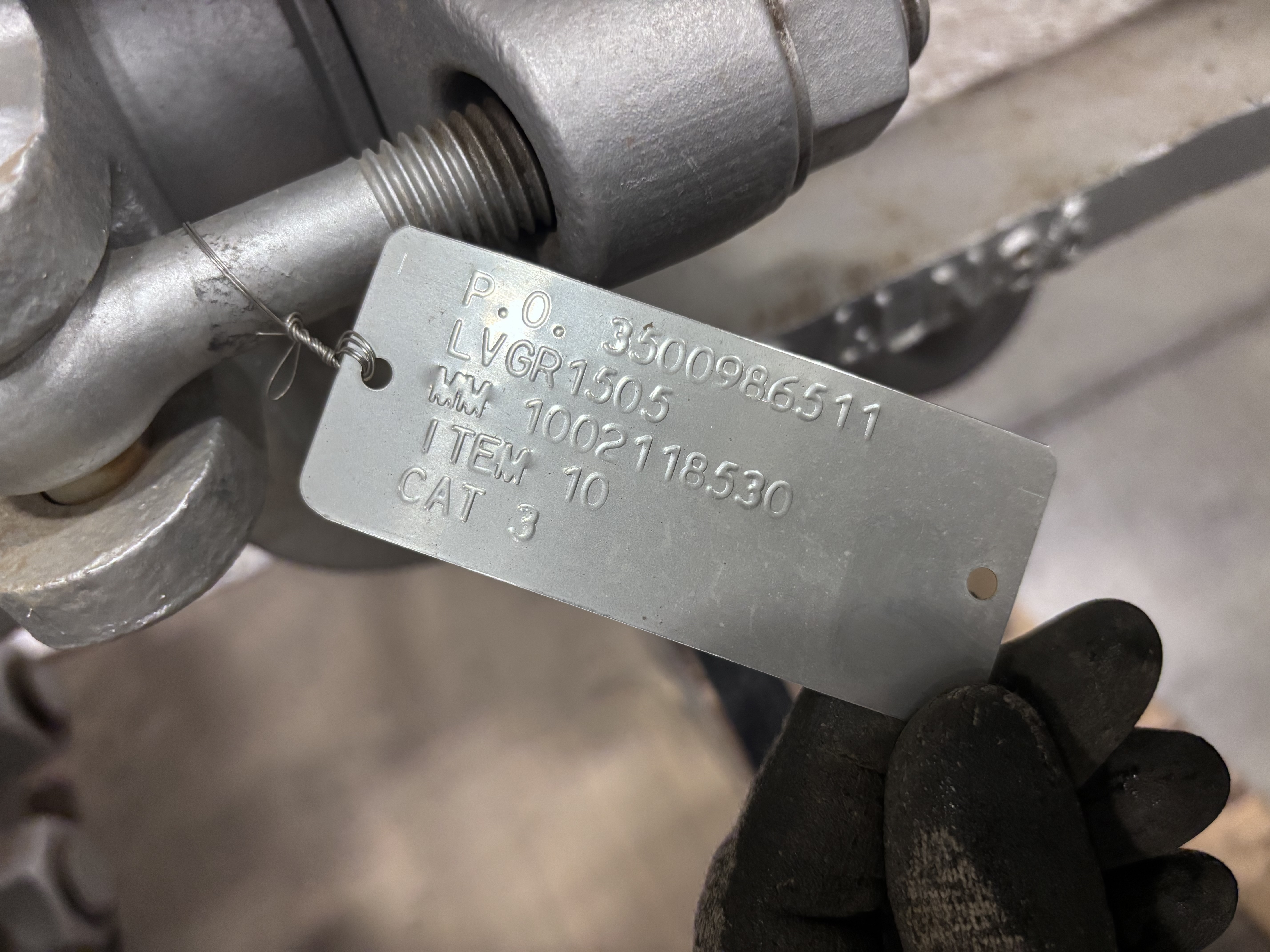

| Inventory LVGR | LVGR1305 |

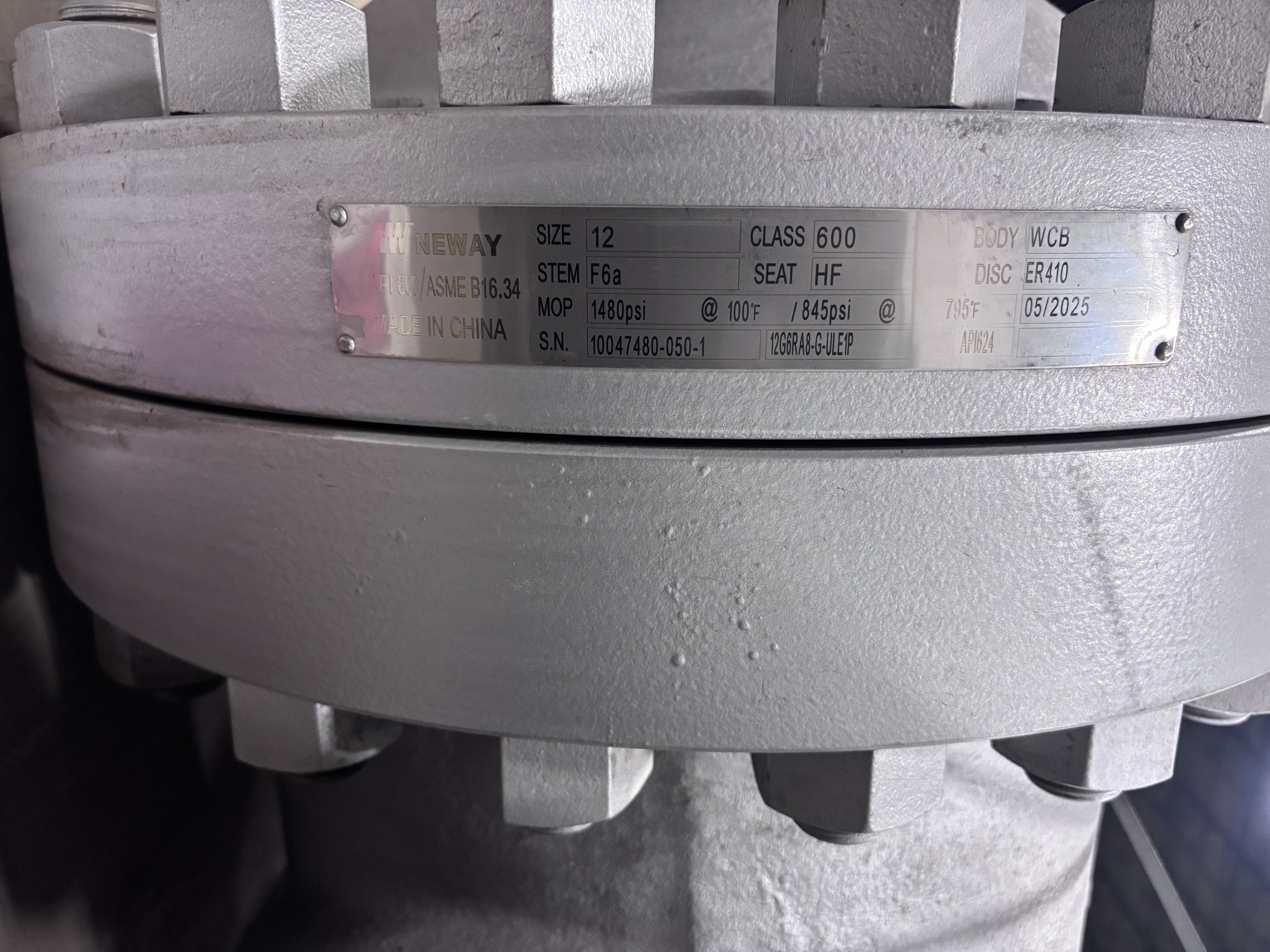

Serial Number / Tag Summary
| Valve | Serial Number | Nameplate Details |
| 1 | 10047480-050-1 | Size 12; Class 600; Body WCB; Stem F6a; Seat HF; Disc ER410; MOP 1480 psi @ 100°F / 845 psi @ 795°F; 05/2025; 12G6RA8-G-UJEP; API624 |
| 2 | 10047480-050-2 | Size 12; Class 600; Body WCB; Stem F6a; Seat HF; Disc ER410; MOP 1480 psi @ 100°F / 845 psi @ 795°F; 05/2025; 12G6RA8-G-UJEP; API624 |
