Lot of 3 — 8 in Industrial Valves, Mixed Surplus Valve Lot
Supporting Documents (2)
library_booksfile_download Download All in ZIP
Short Description
Offered as one lot are three 8 in Class 150 industrial valves consisting of two globe valves and one gate valve. The lot includes a NEWAY 8 in globe valve, a YVI Inc. 8 in gate valve, and a YDF / YLF-marked 8 in globe valve. Visible nameplates, body castings, tags, and test reports indicate WCB bodies, raised-face flanged ends, manual handwheel operation, and hydrostatic/pneumatic test documentation for the individual valves
Detailed Valve-by-Valve Specifications

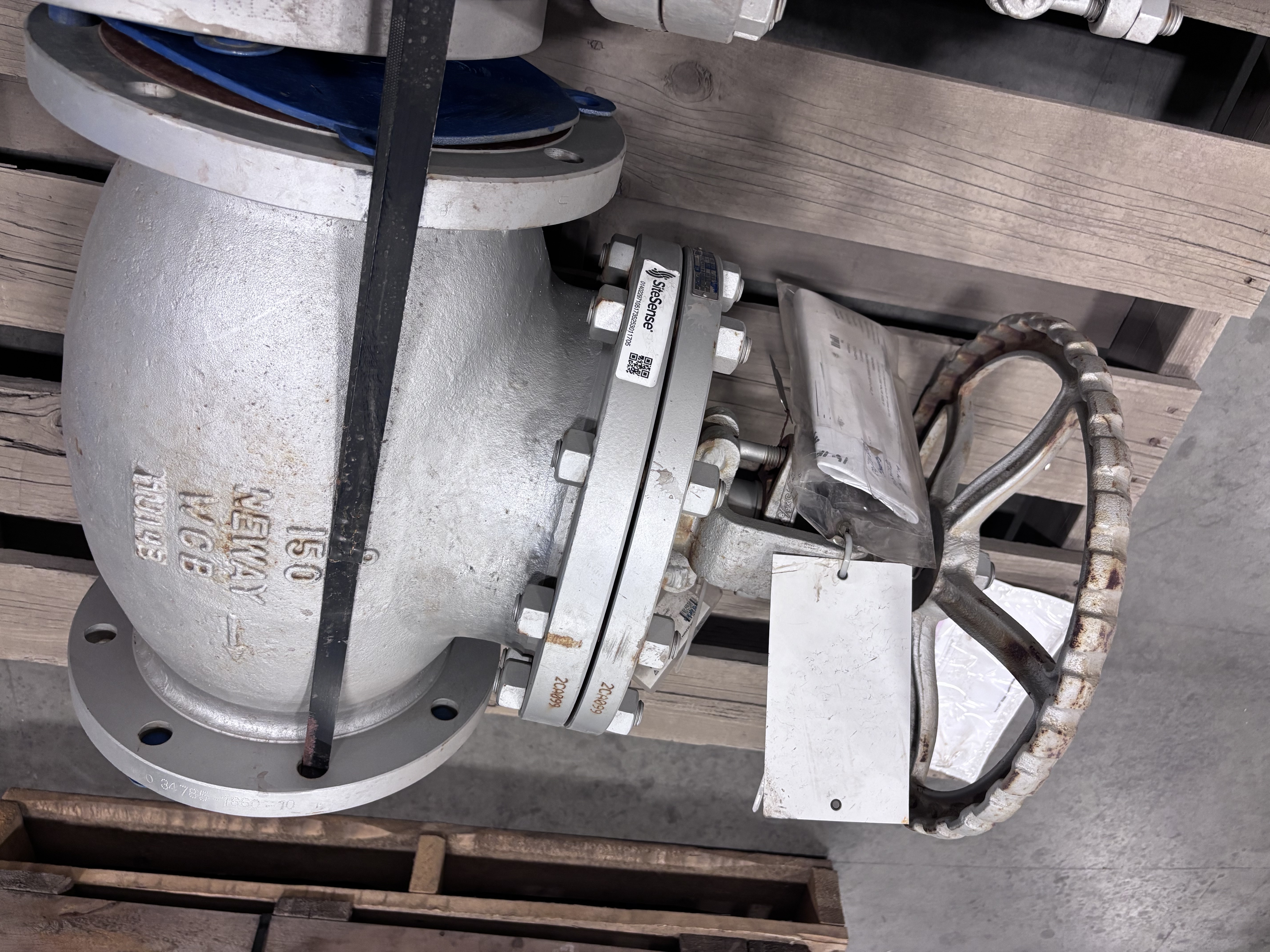

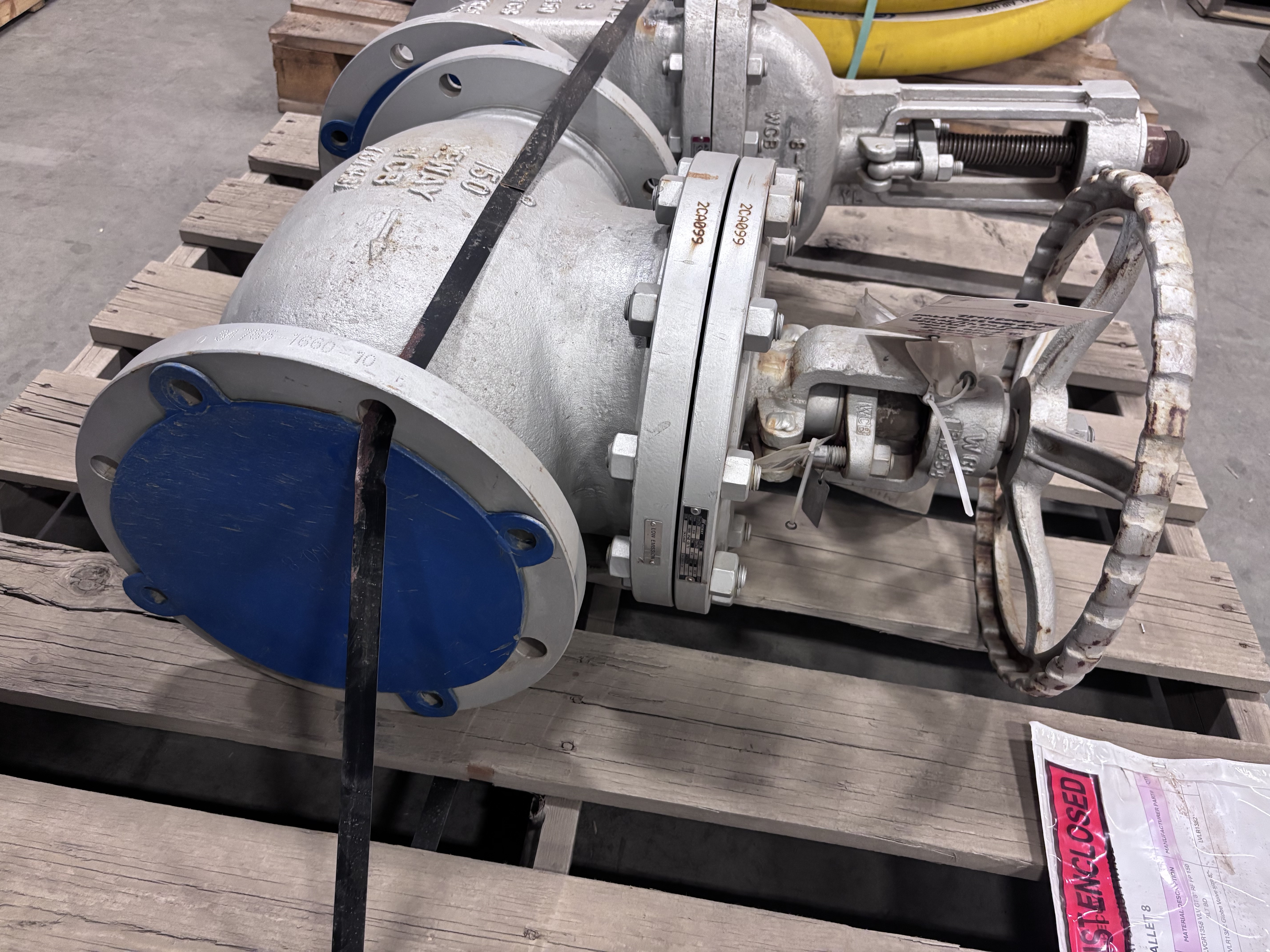

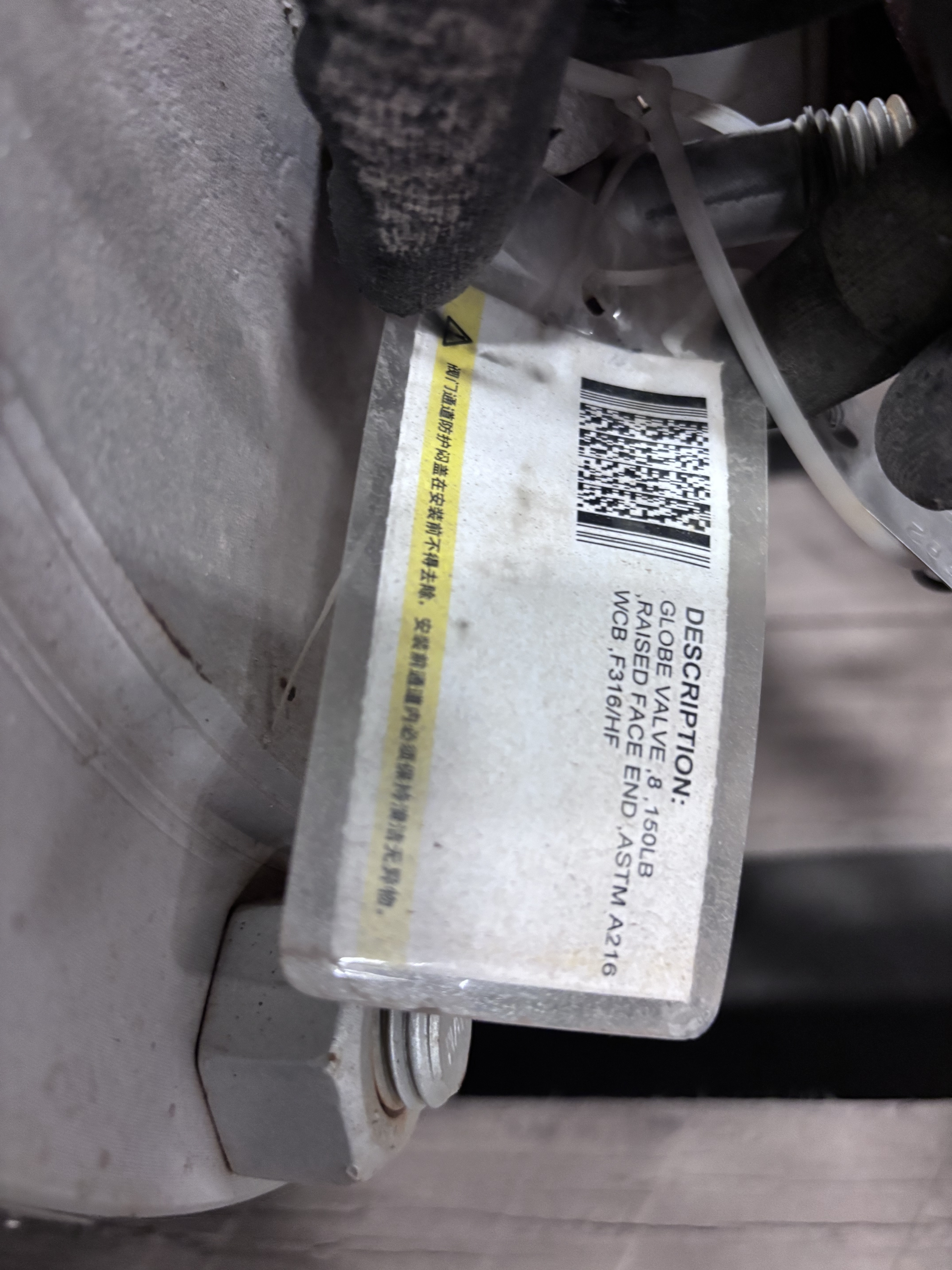

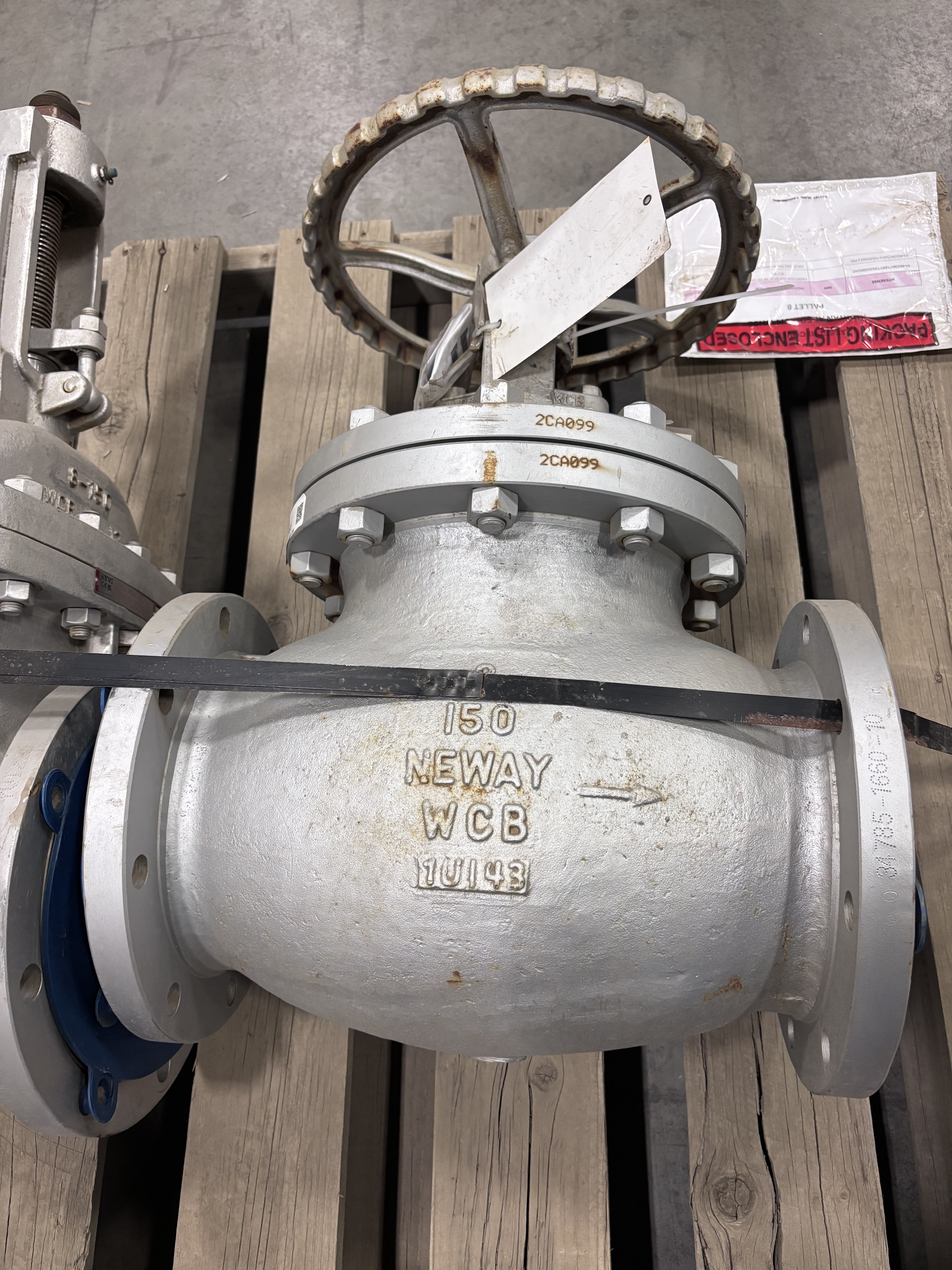

Item 1 — NEWAY 8 in Class 150 Globe Valve

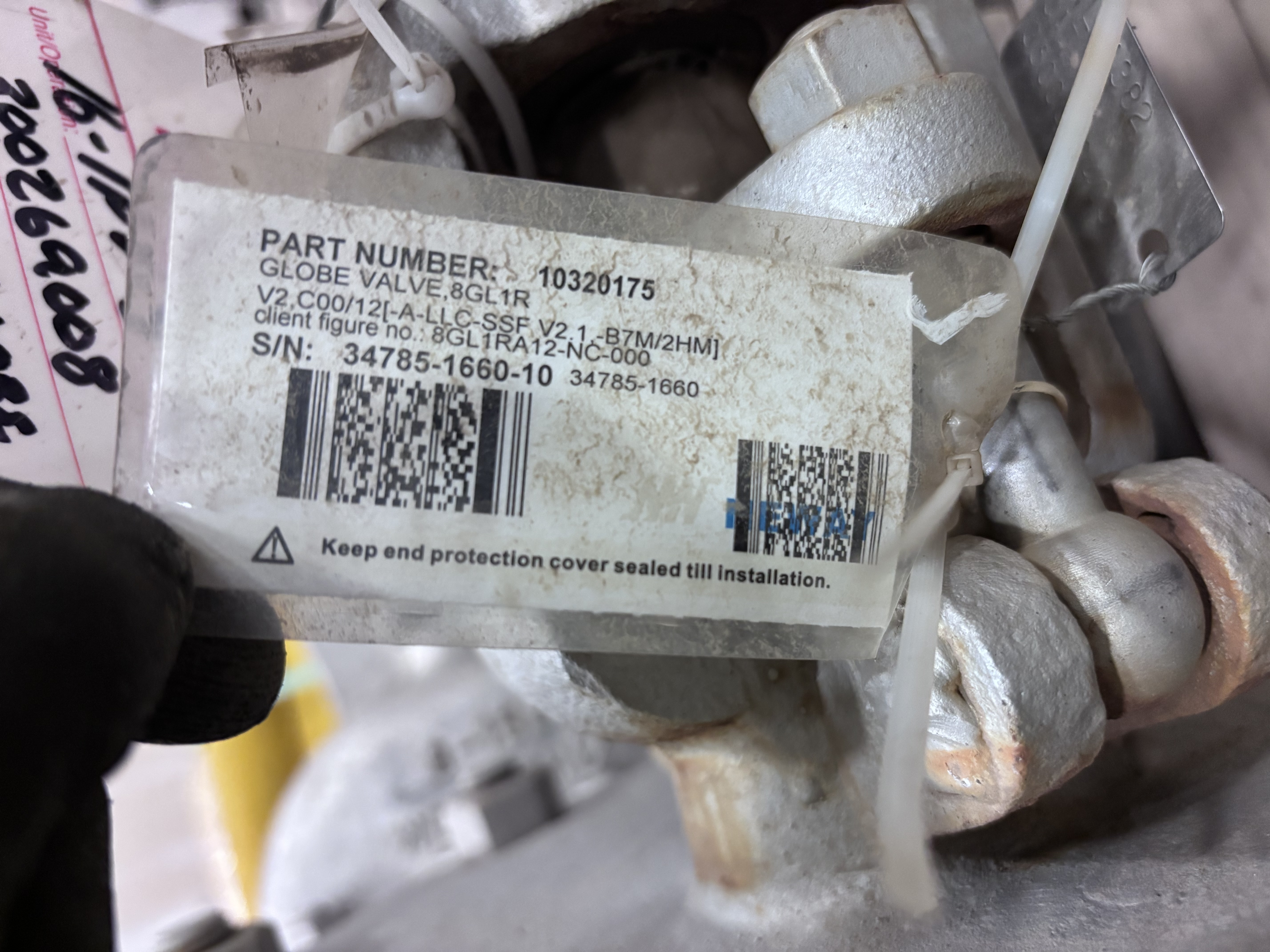

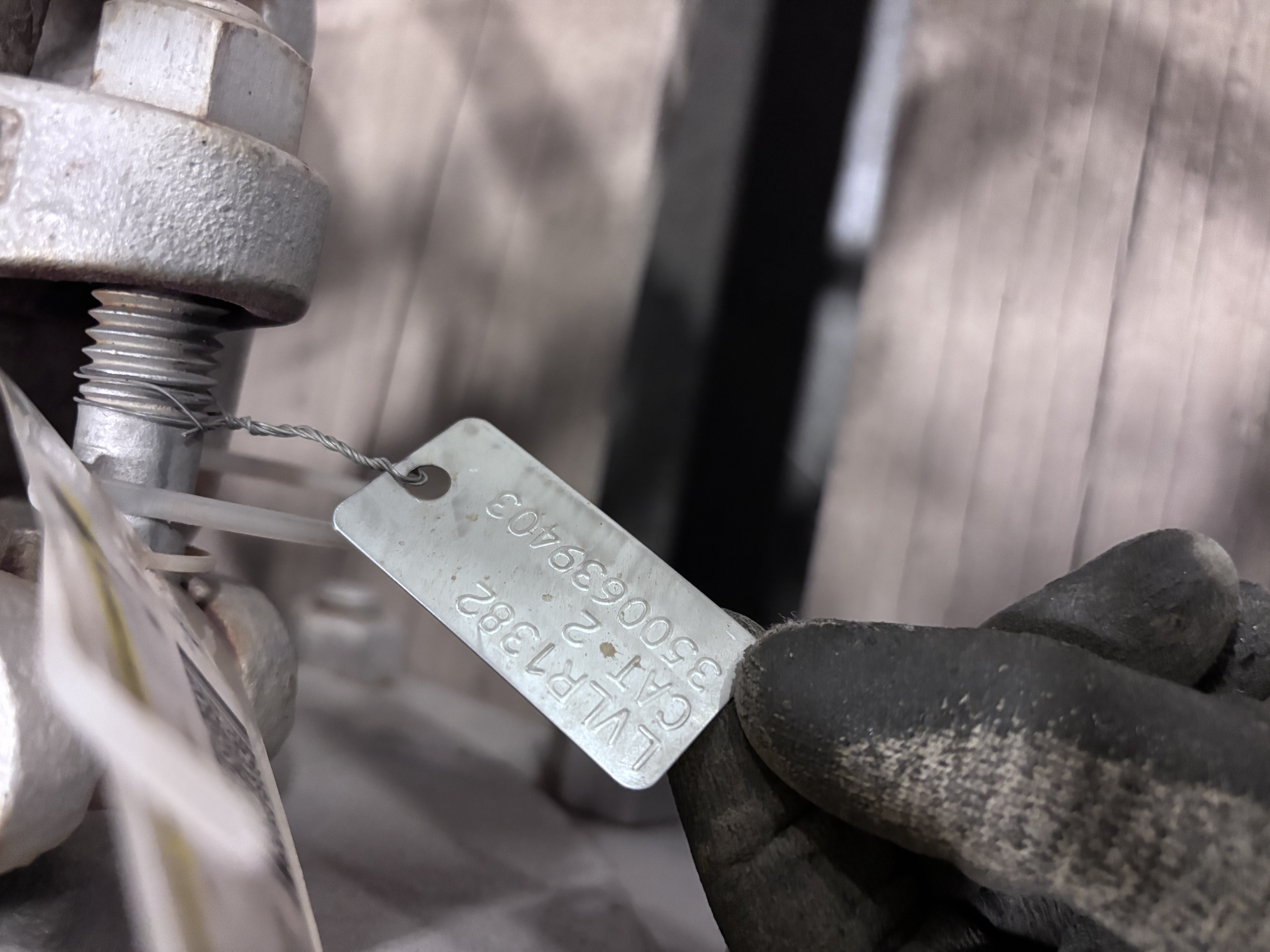

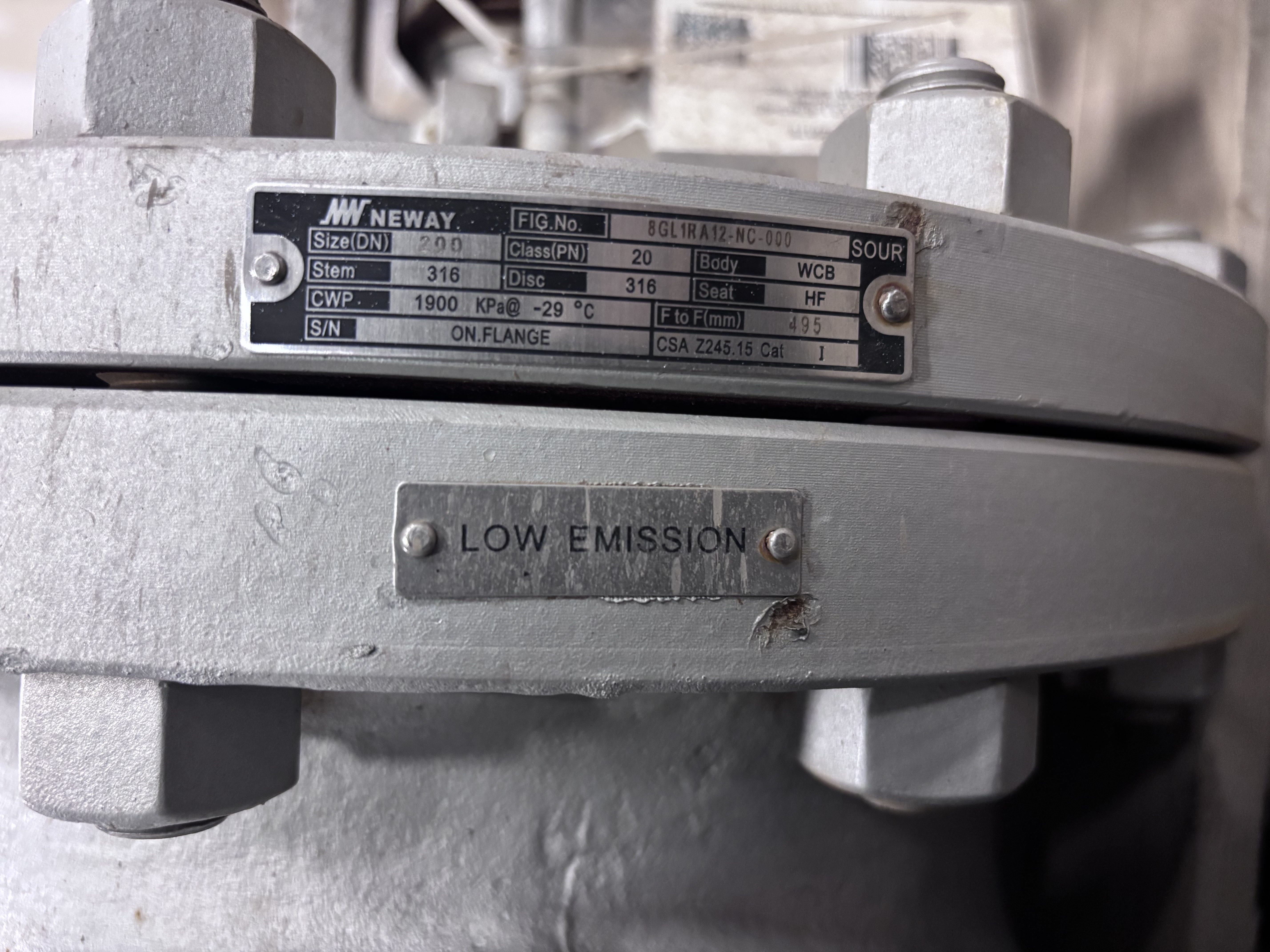

This NEWAY valve corresponds to the source inventory reference LVLR1382. The visible nameplate identifies it as an 8 in / DN 200 globe valve with WCB body, 316 stem, 316 disc, and HF seat. The product code / figure number appears as 8GL1RA12-NC-000, and the tag/report show part number 10320175 with serial/tag references 34785-1660-10 and 34785-1660.
| Field | Detail |
| Manufacturer | NEWAY |
| Valve type | Globe valve |
| Size | DN 200 / 8 in equivalent |
| Class / pressure marking | PN 20 on nameplate; inventory description identifies 150 class |
| Body material | WCB |
| Stem / disc / seat | 316 stem, 316 disc, HF seat |
| Product code / figure | 8GL1RA12-NC-000 |
| Part number | 10320175 |
| Serial / tag reference | 34785-1660-10 / 34785-1660 visible on tag/report |
| CWP | 1900 kPa at -29°C |
| Face-to-face | 495 mm |
| Service marking | SOUR |
| End connection | Raised-face flanged ends indicated by report and visible flanges |
| Operator | Manual handwheel |

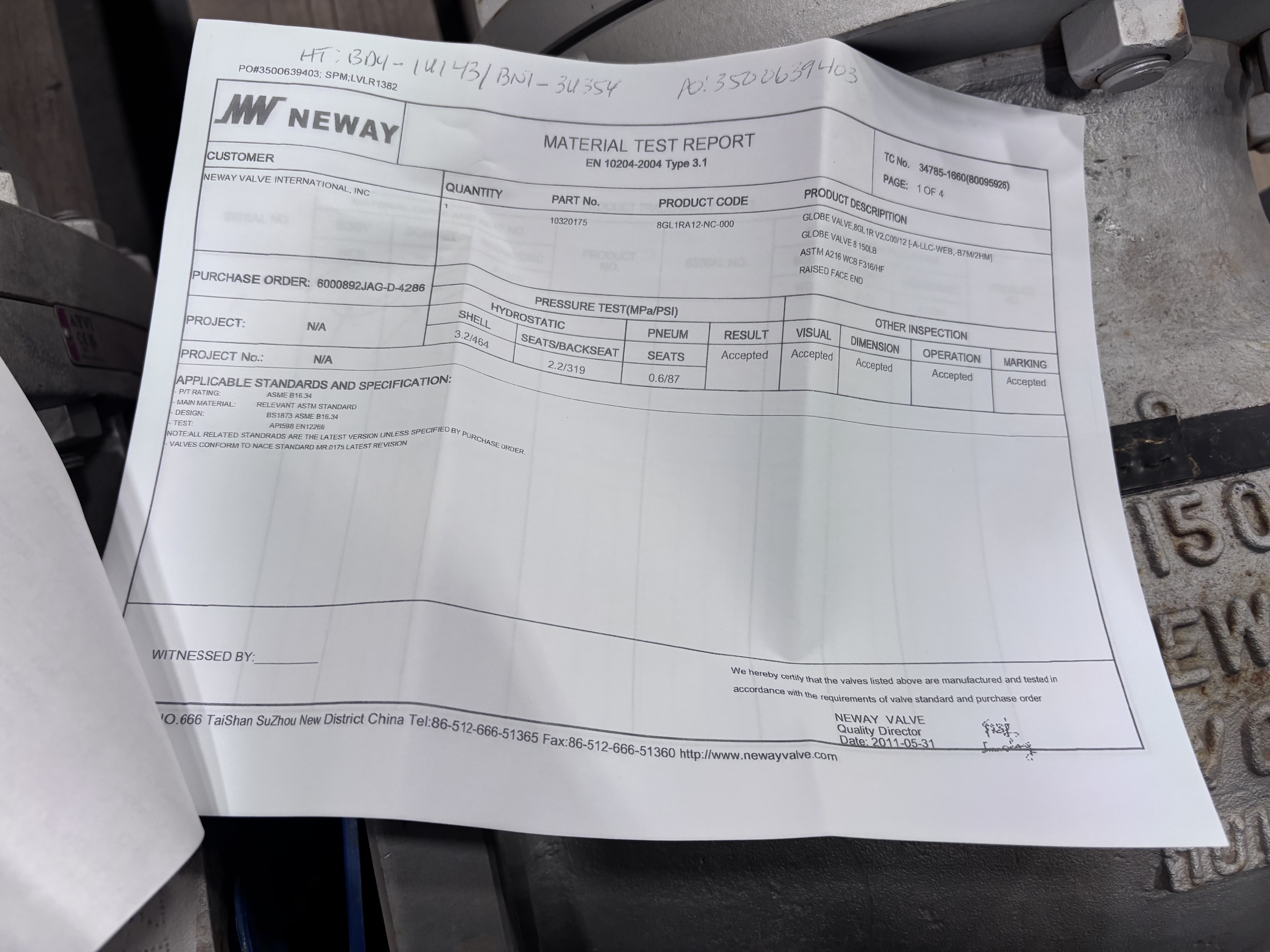

| Test document | NEWAY Valve International Inc. inspection / material test report |
| Test pressures | Shell 3.2 MPa / 464 PSI; seats/backseat 2.2 MPa / 319 PSI; pneumatic seats 0.6 MPa / 87 PSI |
| Inspection result | Accepted for result, visual, dimension, operation, and marking |
| Report date | 2011-05-31 |

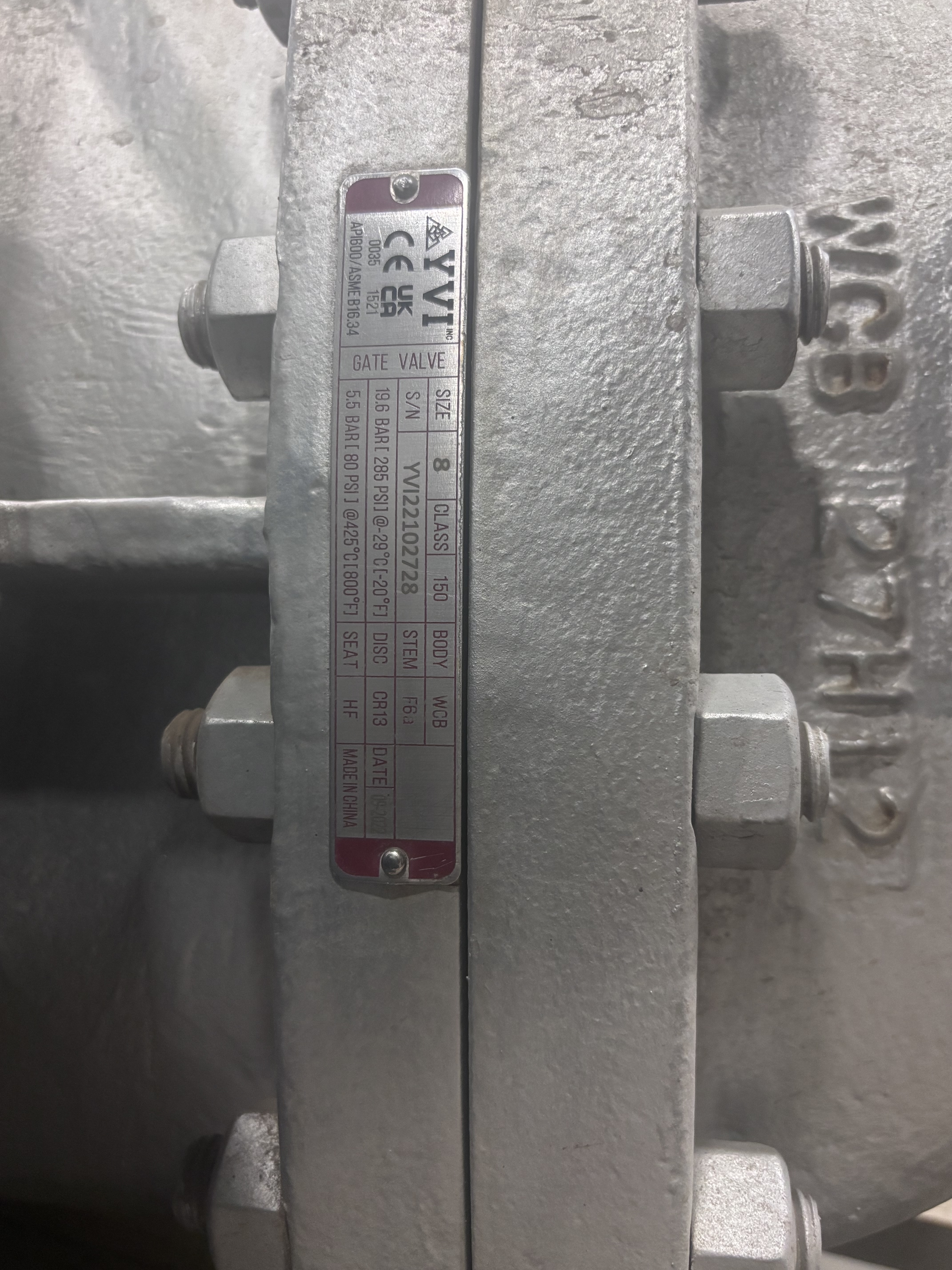

Item 2 — YVI Inc. 8 in Class 150 WCB Gate Valve

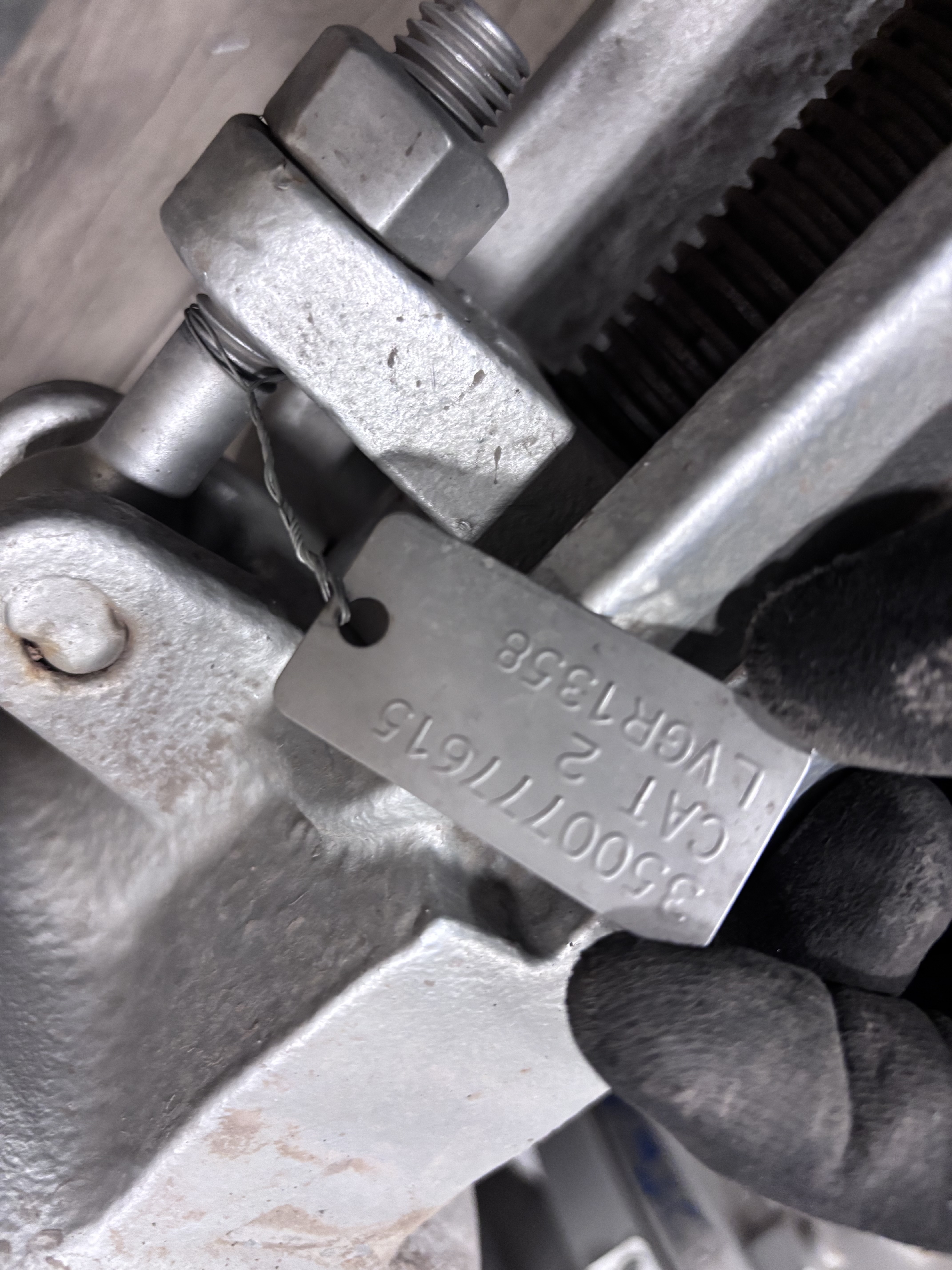

This YVI valve corresponds to the source inventory reference LVGR1358 and is the gate valve in the lot. The visible nameplate identifies it as a YVI Inc. 8 in Class 150 gate valve with WCB body, F6a stem, CR13 disc, and HF seat. The serial number appears as YVI22102728.
| Field | Detail |
| Manufacturer | YVI Inc. |
| Valve type | Gate valve |
| Size | 8 in |
| Pressure class | 150 |
| Body material | WCB |
| Stem / disc / seat | F6a stem, CR13 disc, HF seat |
| Serial number | YVI22102728 |
| Nameplate date | 09/2022 |
| Standards | API 600 / ASME B16.34 visible on nameplate |
| Pressure / temperature rating | 19.6 bar / 285 PSI at -29°C / -20°F; 5.5 bar / 80 PSI at 426°C / 800°F |
| Certifications / marks | CE and UKCA marks visible, with 0035 and 1521 numbers visible |
| Country of origin | Made in China |
| End connection | Raised-face flanged ends indicated by report and visible flanges |
| Operator | Manual handwheel / rising-stem OS&Y-style upper assembly visible |
| Pressure test document | YVI Inc. Pressure Test Report, EN10204 3.1 |
| Certificate / job references | Certificate 2207054 / C-2207054-110; PO26435271; product code 1184403; source PO reference 3500777615 |
| Test pressures | Shell 3.0 MPa / 120 sec; seat 2.2 MPa / 120 sec; backseat 2.2 MPa / 60 sec; air 0.6 MPa / 120 sec |
| Inspection result | Leakage, dimension, visual, and operation all marked OK |
| Report standards | API 600 (2021), API 598 (2016), ASME B16.34 (2020), ASME B16.10 (2022), ASME B16.5 (2020), API 624 (2014), MSS SP 55 (2011) |

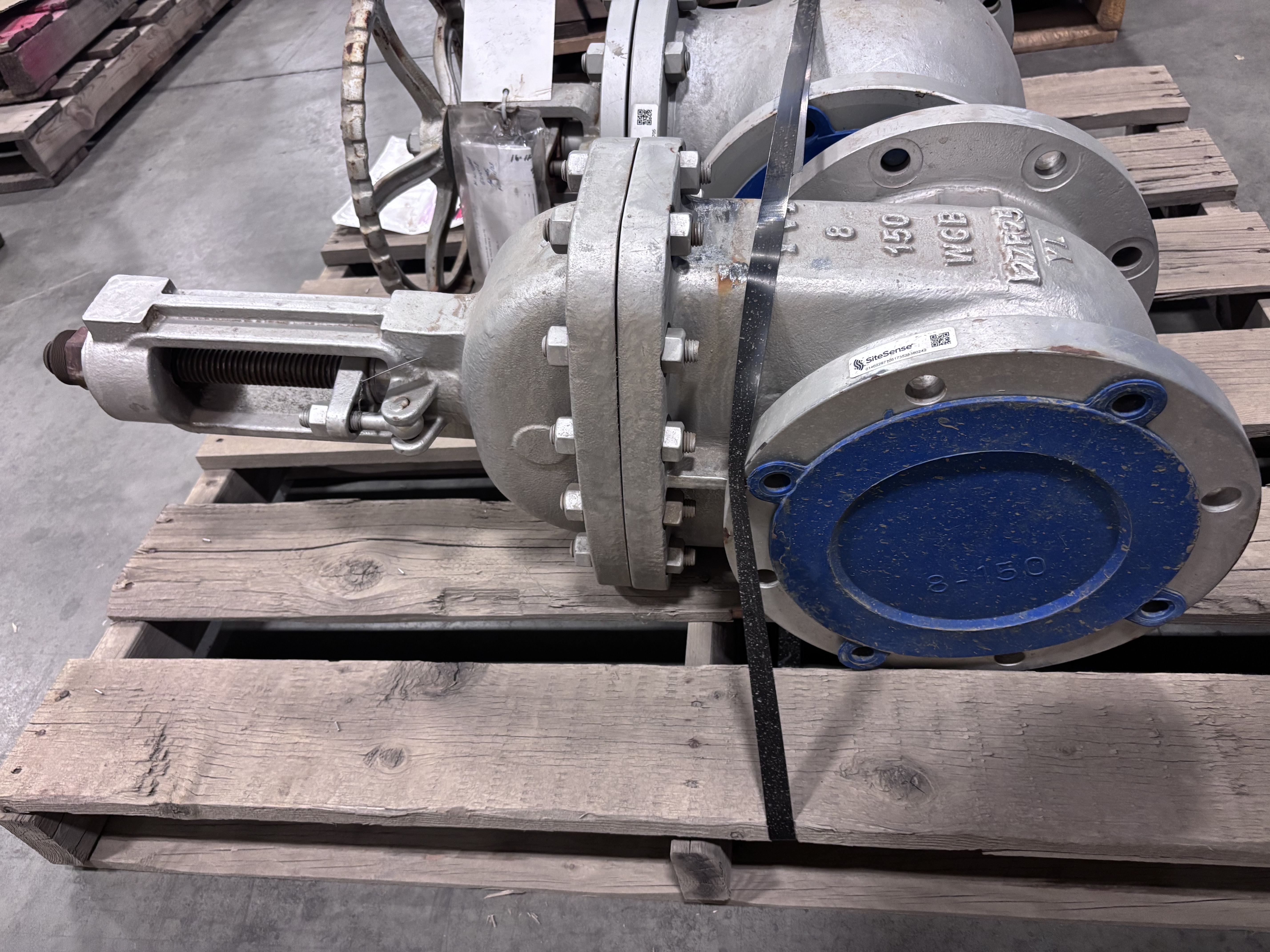

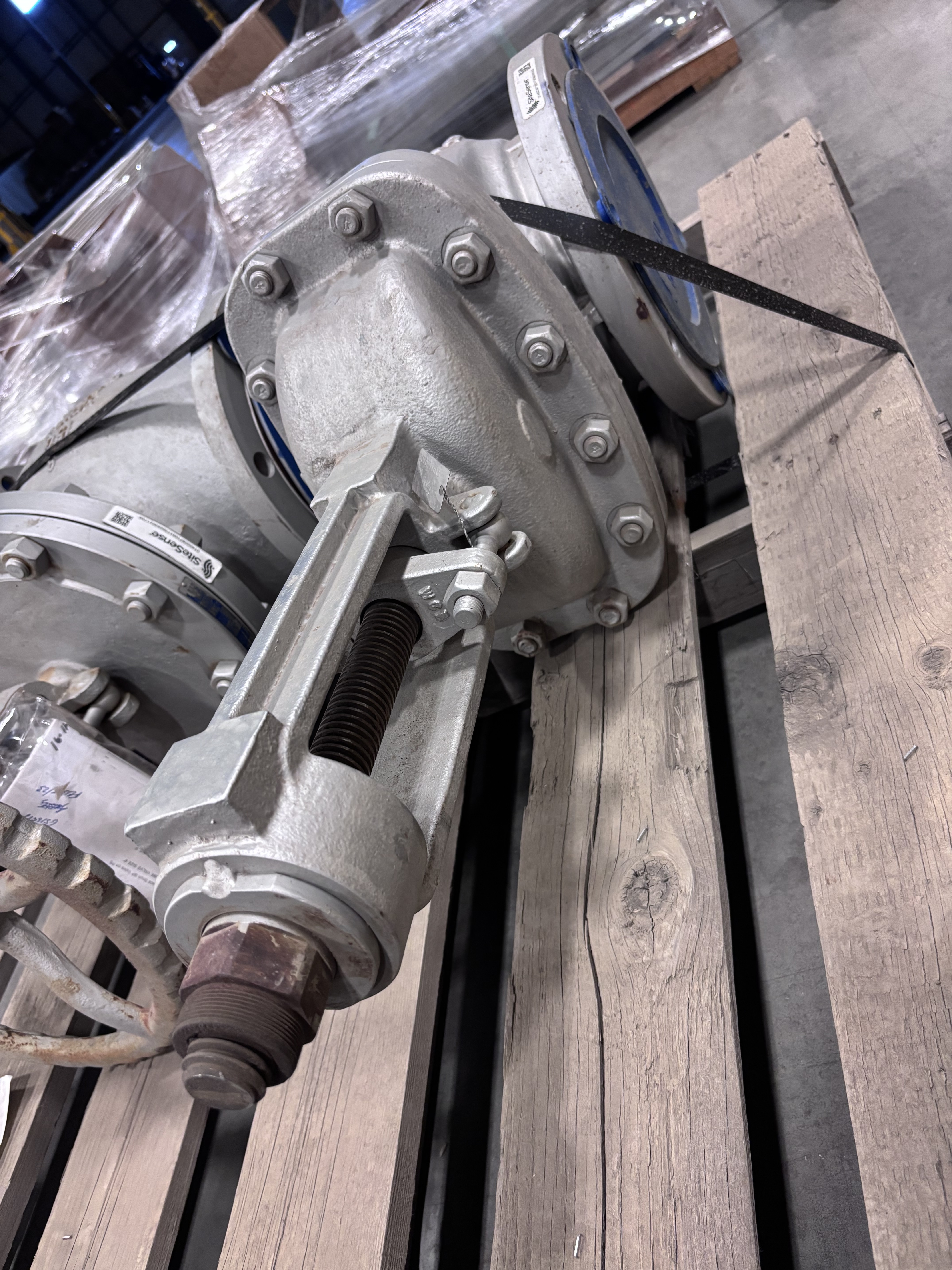

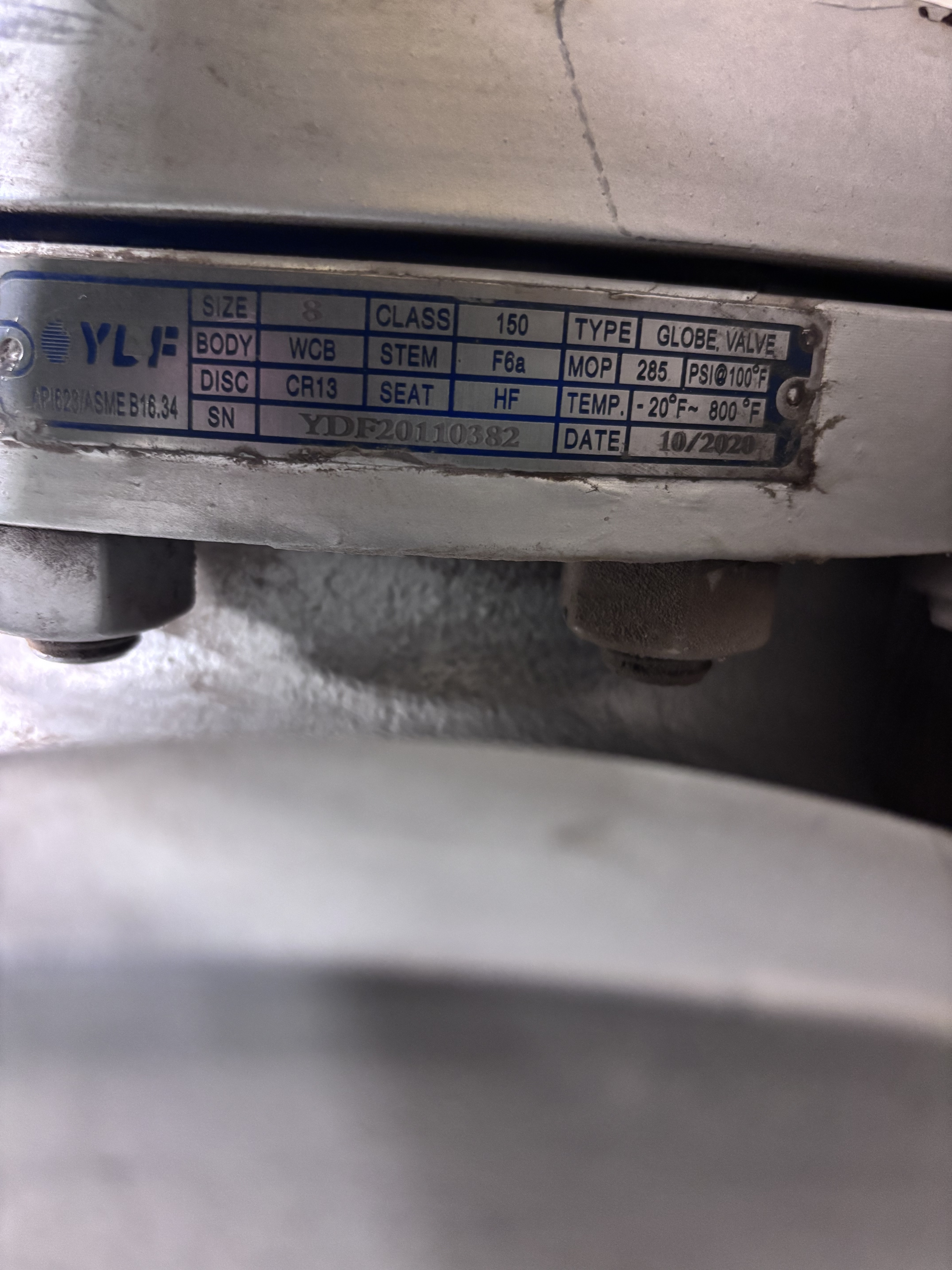

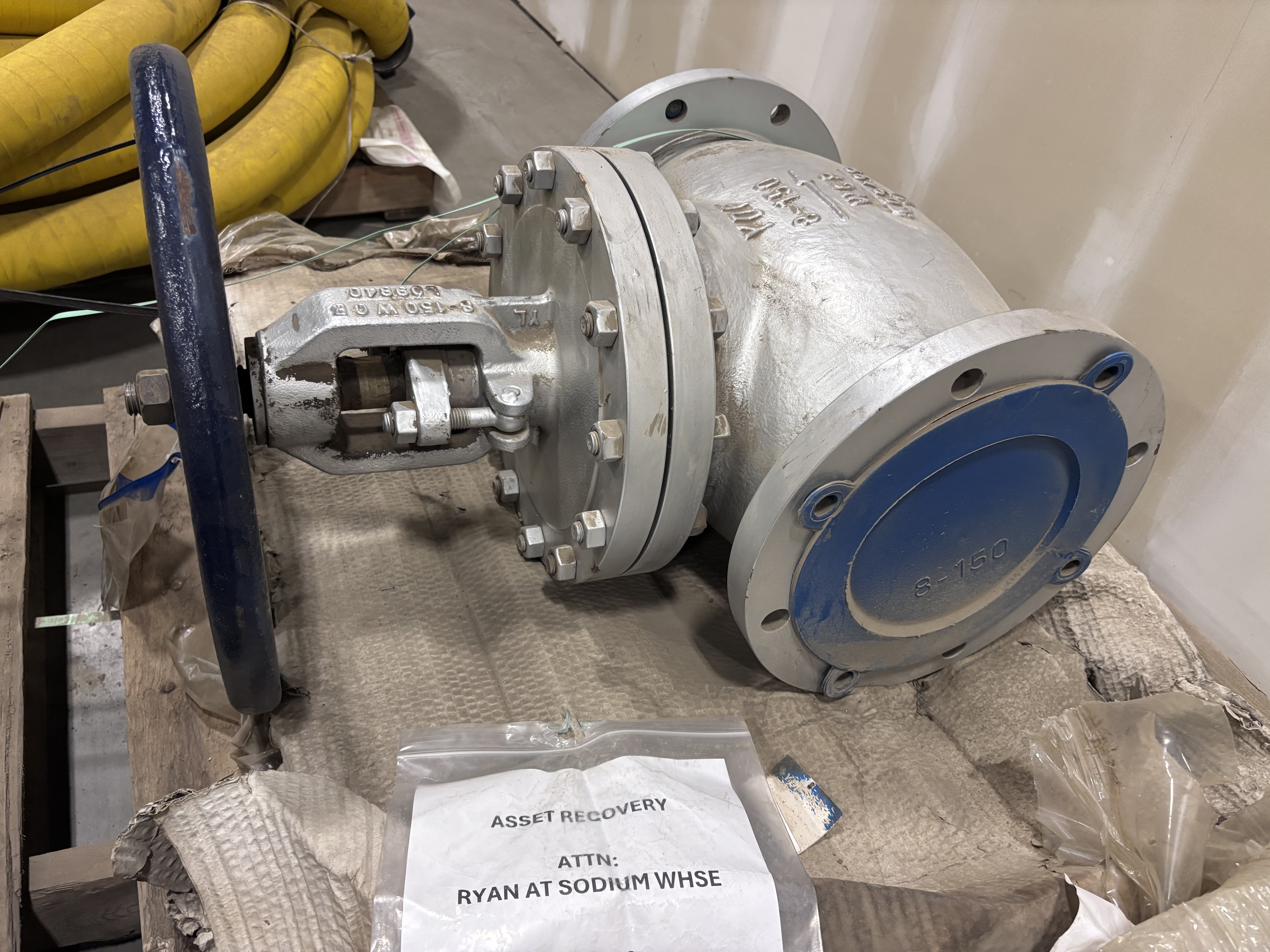

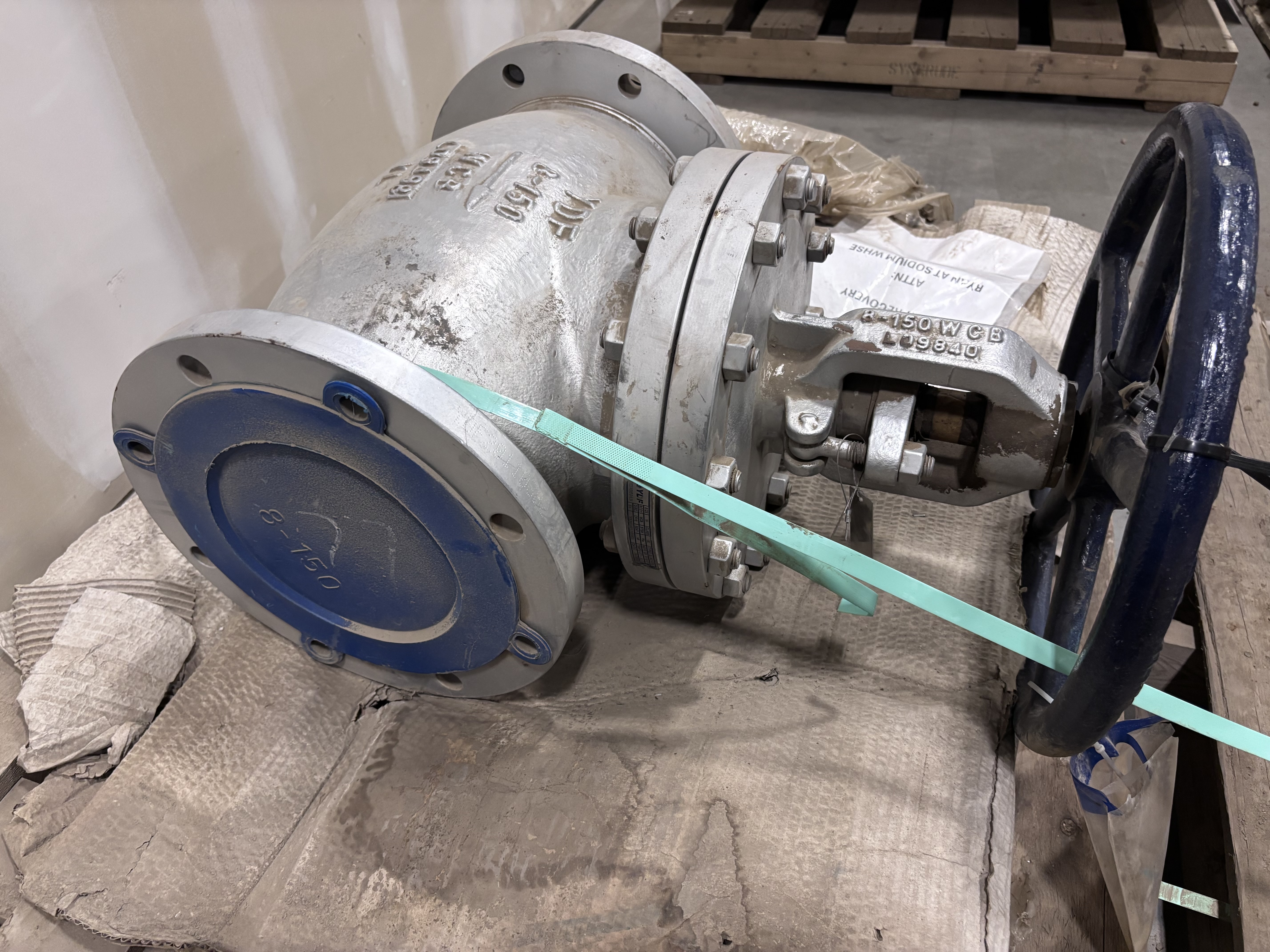

Item 3 — YDF / YLF 8 in Class 150 WCB Globe Valve
This YDF/YLF-marked valve corresponds to the source inventory reference LVLR1379 and is the second globe valve in the lot. The nameplate and test report identify it as an 8 in Class 150 API 623 globe valve with WCB body, F6a stem, CR13 disc, HF seat, and raised-face flanged ends. The figure number on the test report is 8GLA1R-WCB-8.
| Field | Detail |
| Manufacturer / mark | YDF / YLF mark visible; exact logo text partially obscured |
| Valve type | Globe valve |
| Size | 8 in |
| Pressure class | 150 |
| Body material | WCB |
| Stem / disc / seat | F6a stem, CR13 disc, HF seat |
| Figure number | 8GLA1R-WCB-8 |
| Serial number | YDF20110382 |
| Nameplate date | 10/2020 |
| Standards | API 623 / ASME B16.34 appears on nameplate |
| MOP / rating | 285 PSI at 100°F visible on nameplate |
| Temperature range | -20°F to 800°F visible on nameplate |
| End connection | Raised-face flanged ends indicated by report and visible flanges |
| Operator | Manual handwheel |
| Valve test document | YDF Valve Test Report, EN10204 3.1 |
| Test pressures | Shell 3.2 MPa / 120 sec; seat 2.2 MPa / 120 sec; backseat 2.2 MPa / 60 sec; air 0.6 MPa / 120 sec |
| Inspection result | Leakage, dimension, visual, and operation all marked OK |
| Report standards | BS 1873 (1990), API 623 (2013), API 598 (2016), ASME B16.34 (2017), ASME B16.10 (2017), ASME B16.5 (2017), API 624 (2014), MSS SP 55 (2011) |
| Report dates | Reported/approved 2020/01/19; accepted 2022/03/23 |

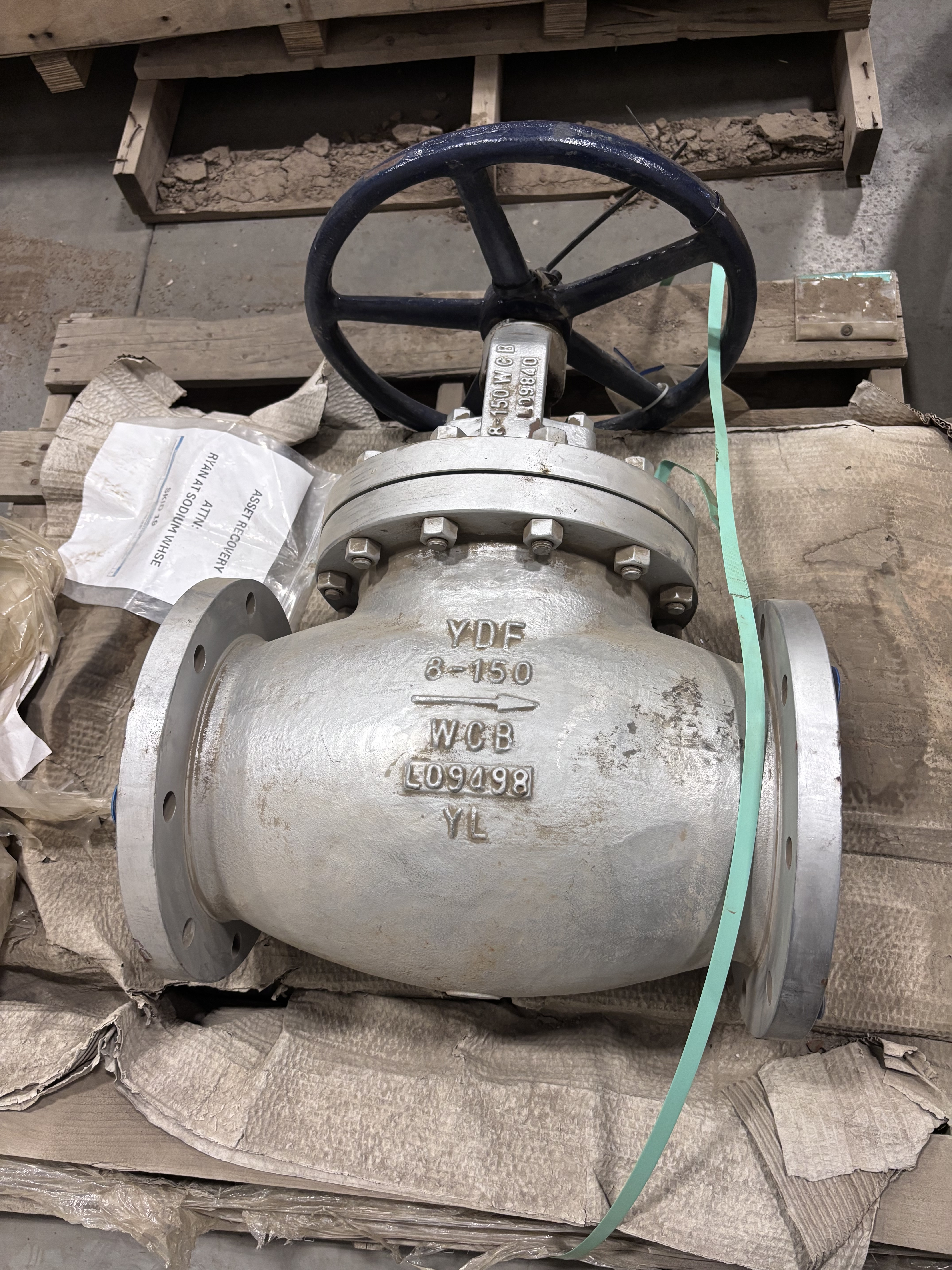

| Visible body markings | YDF / 8-150 / WCB / 109498 / YL |
