8" 600# Gate Valve
Supporting Documents (1)
library_books
4510346249_20260610134755.134_X.pdf
Listing ID:
IH-64889
Notes:
Description

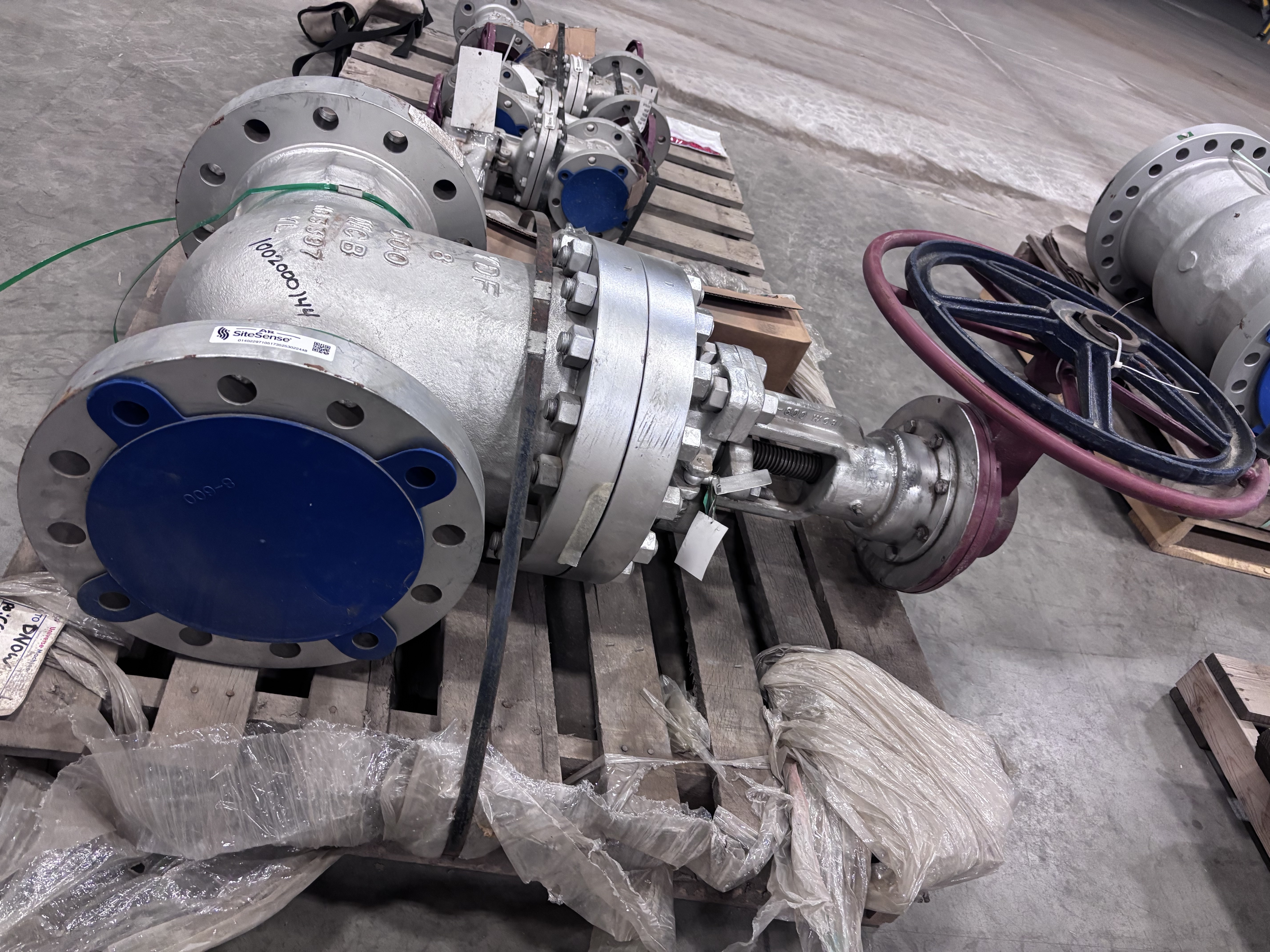

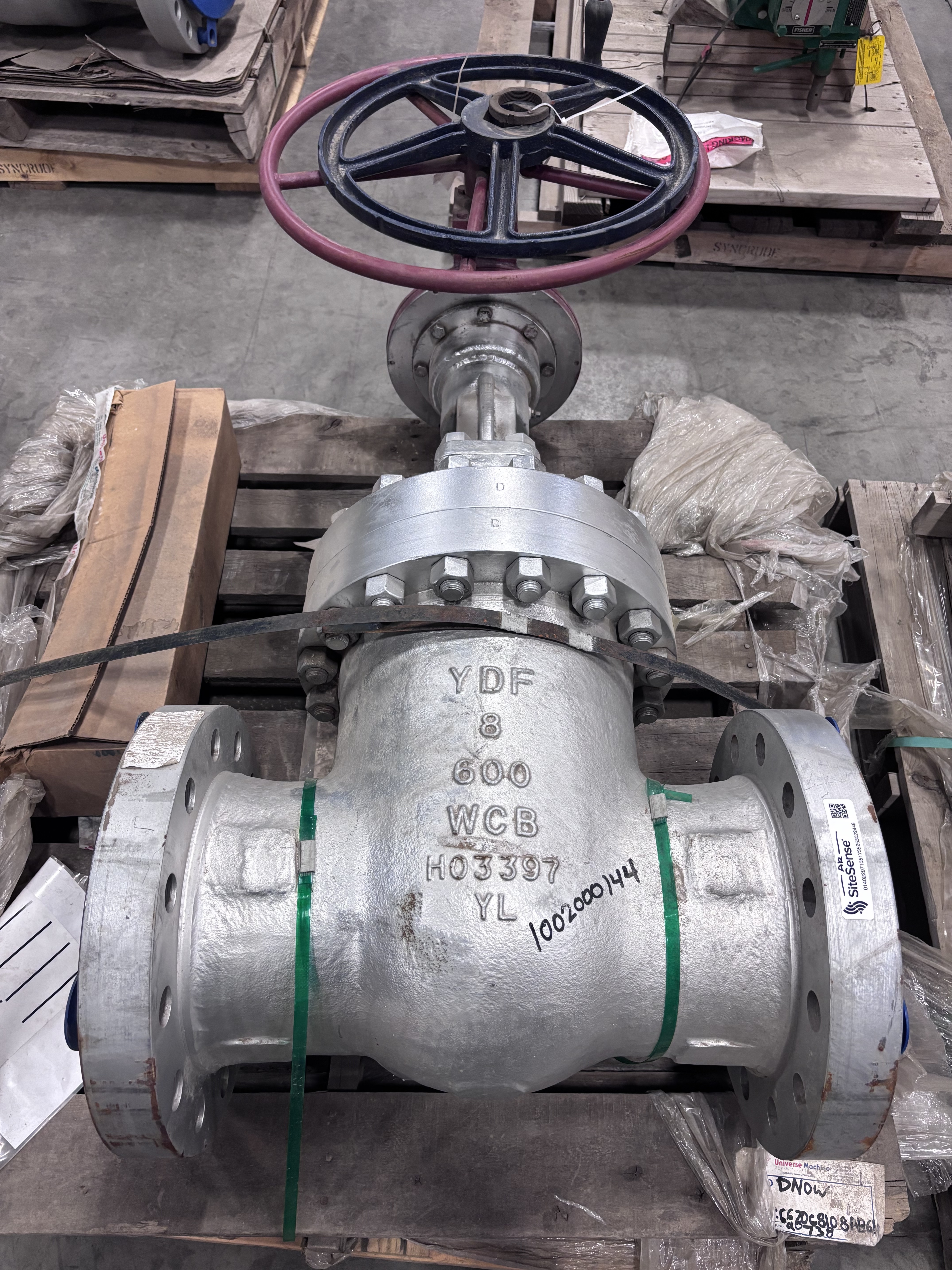

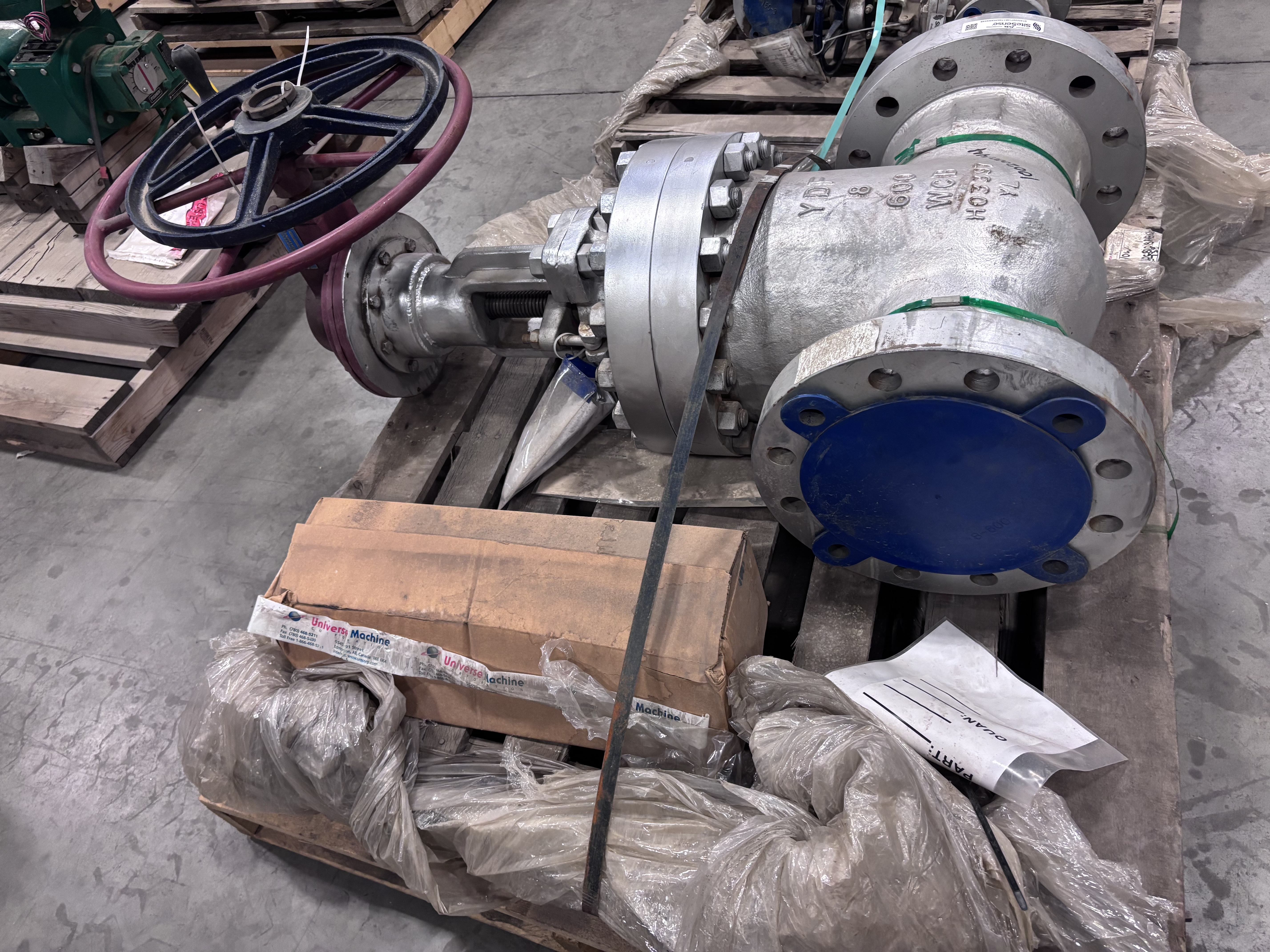

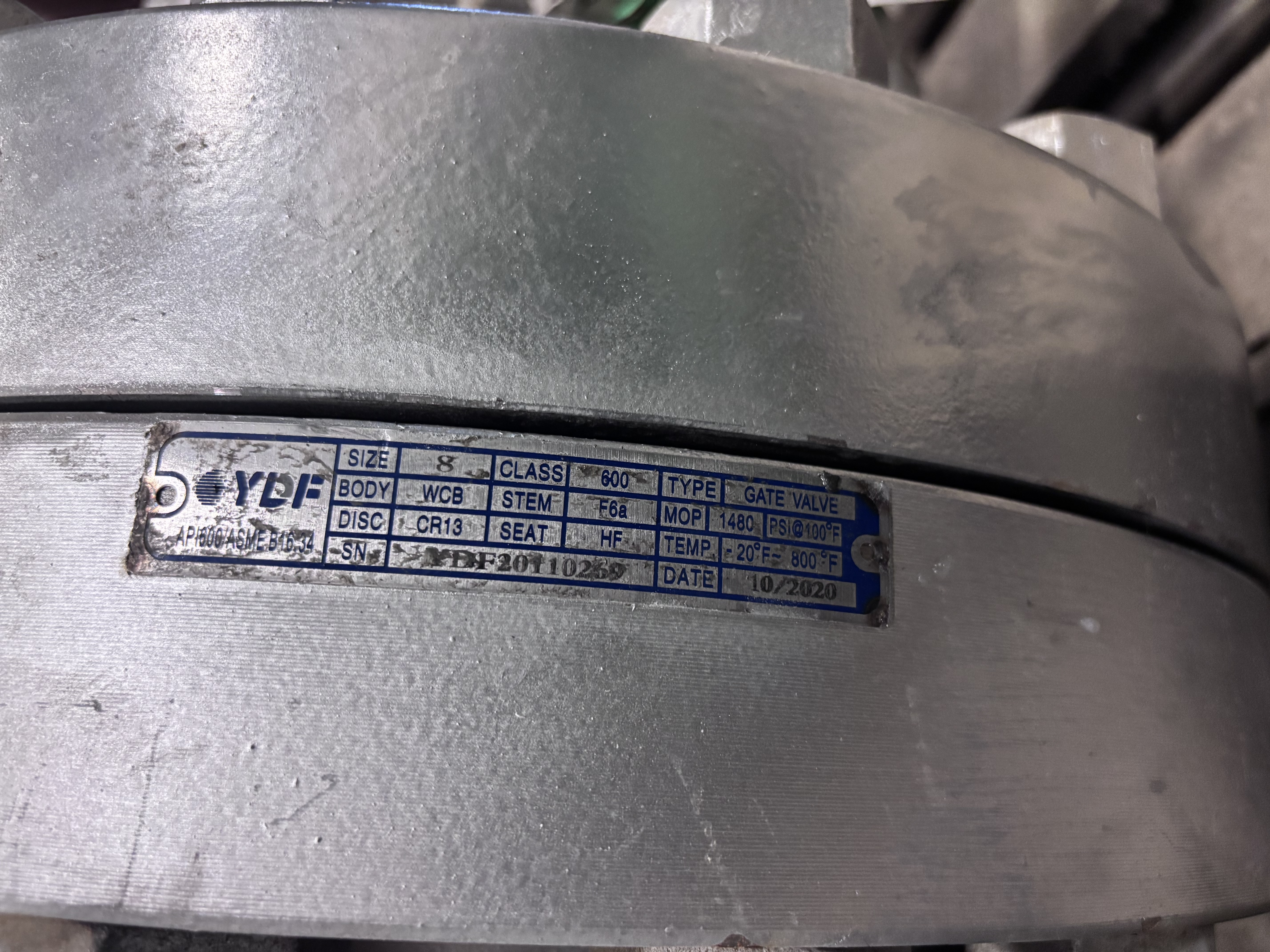

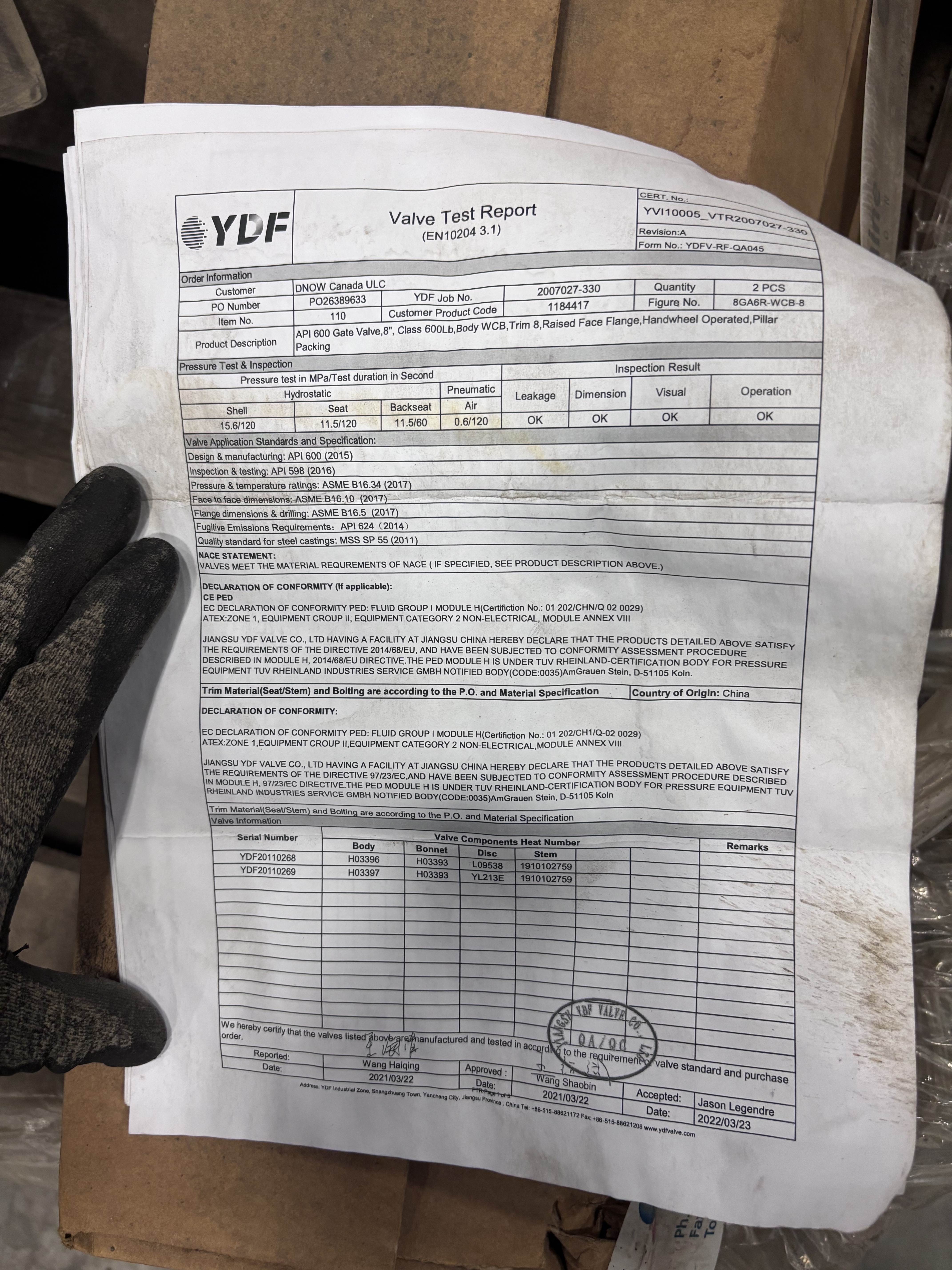

This listing is for one YDF 8 in Class 600 WCB raised-face flanged gate valve with handwheel operation, bolted-bonnet construction, and visible factory documentation. The visible YDF nameplate identifies the valve as an 8 in Class 600 gate valve with WCB body, F6a stem, CR13 disc, HF seat, MOP 1480 PSI at 100°F, 20°F–800°F temperature range, and a 10/2020 nameplate date. The visible test report identifies the product as an API 600 gate valve, 8 in, Class 600Lb, Body WCB, Trim 8, Raised Face Flange, Handwheel Operated, Pillar Packing.
Key Details
| Detail | Specification |
| Manufacturer | YDF / Jiangsu YDF Valve Co., Ltd. |
| Item type | Gate valve |
| Quantity | 1 valve |
| Size | 8 in |
| Pressure class | Class 600 / 600Lb |
| Body material | WCB cast carbon steel |

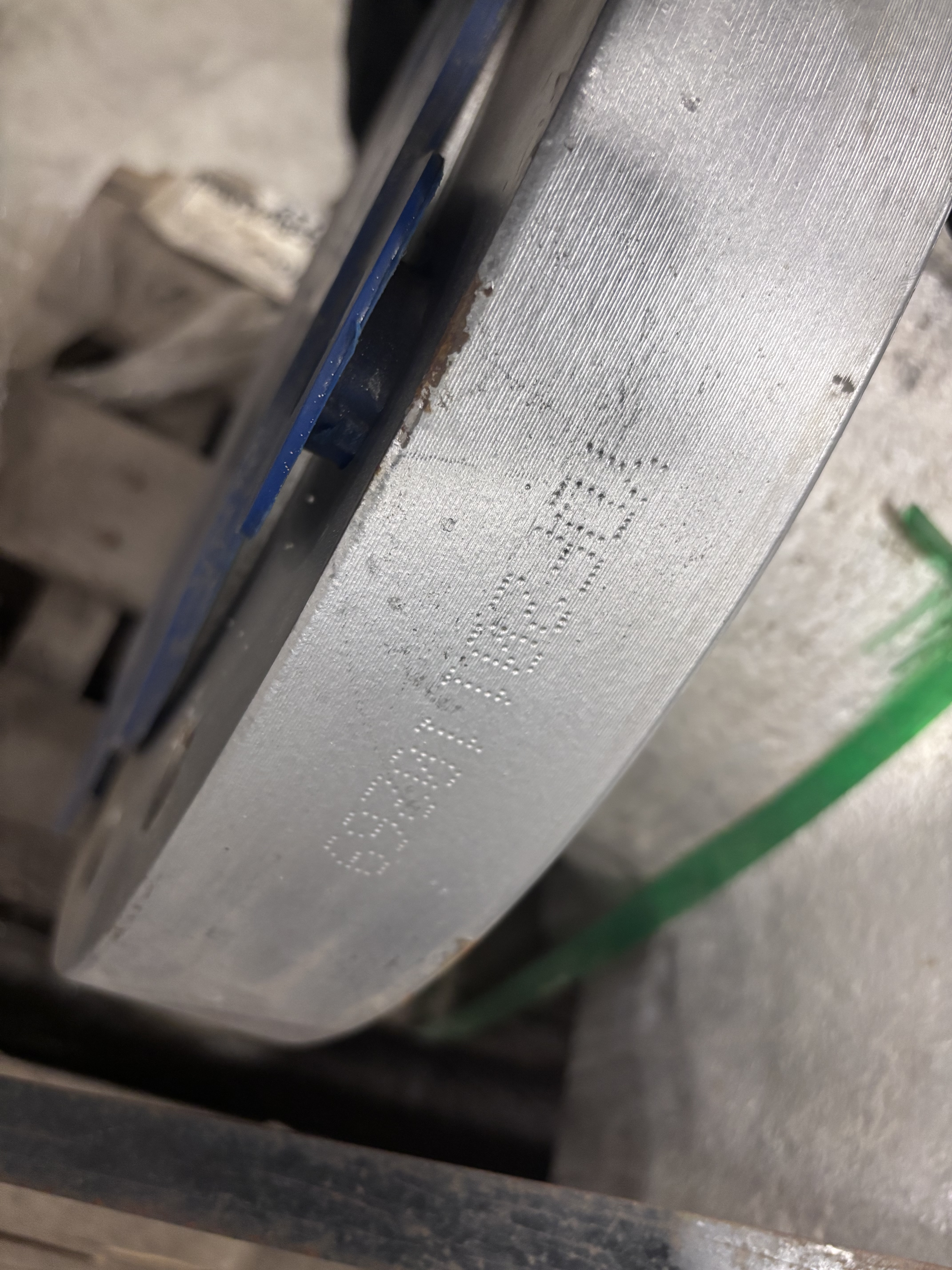

| End connection | Raised face flanged / RF flange |

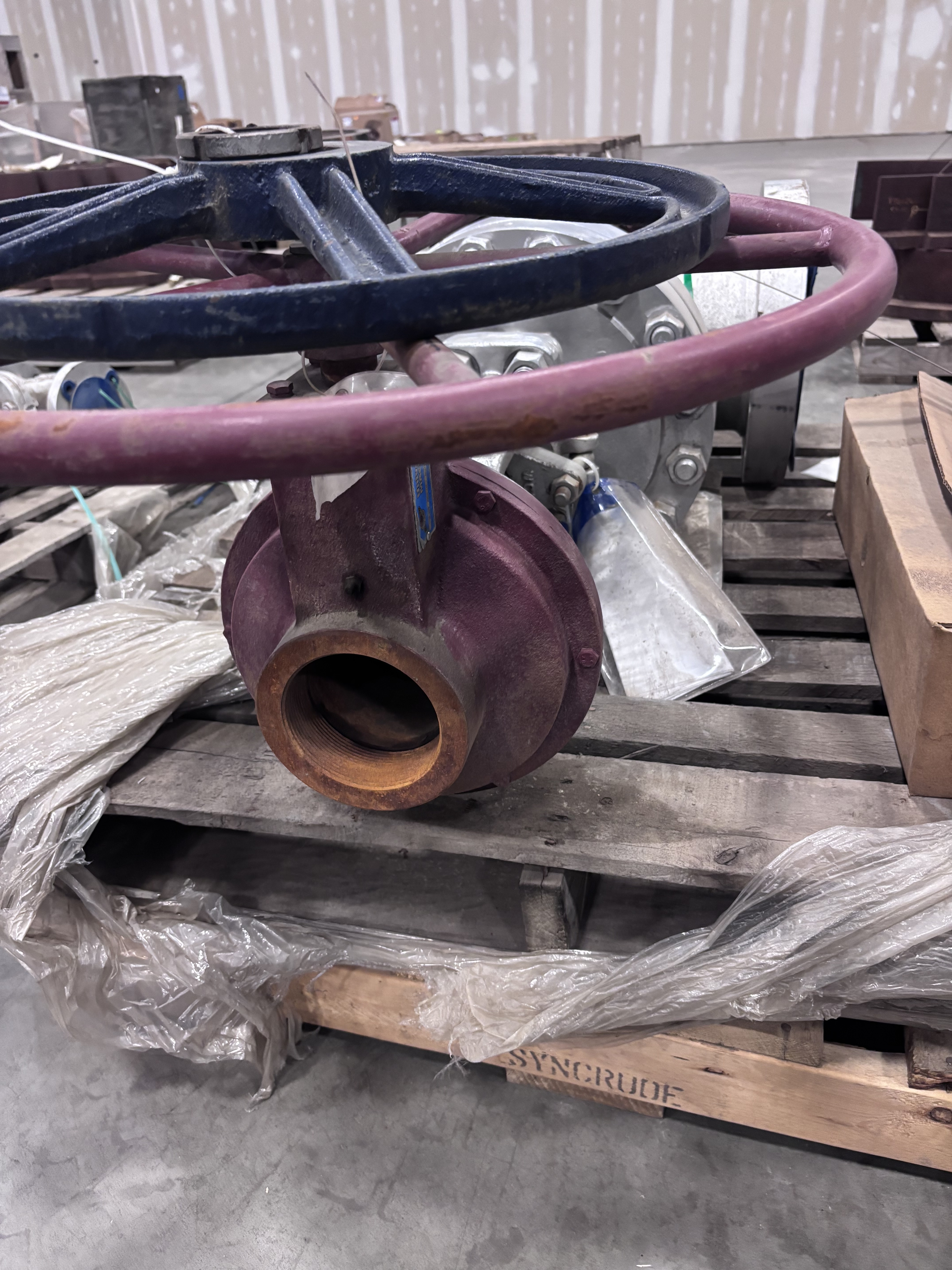

| Operation | Handwheel operated |
| Bonnet style | Bolted bonnet |
| Design basis shown | API 600 |
| Trim | Trim 8 per visible test report |
| Stem material | F6a |
| Disc material | CR13 |
| Seat material | HF / hard faced |
| Packing | Pillar packing per visible test report |

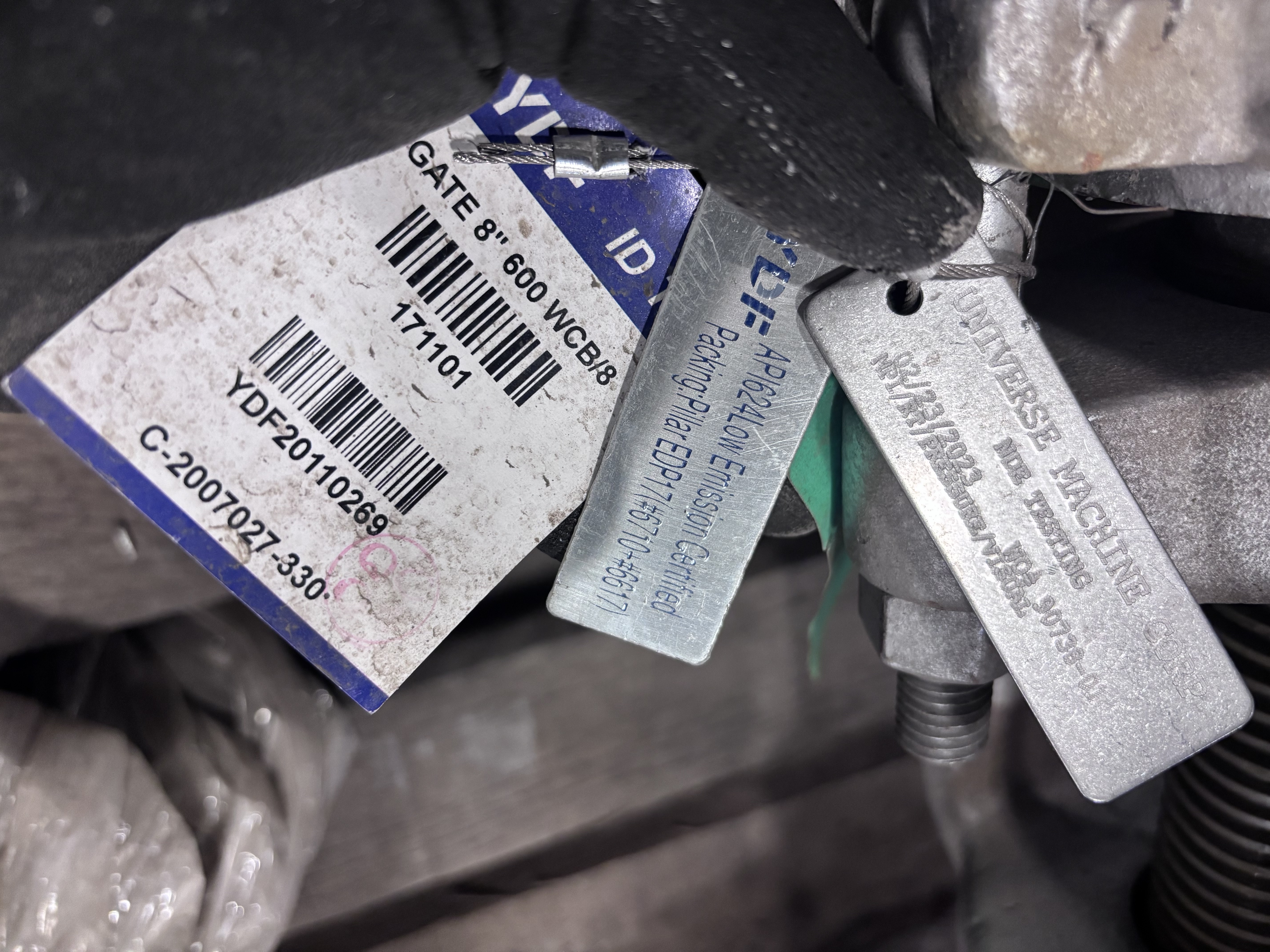

| Serial number | YDF20110269 |
| Body identifier | H03397 |
| Bonnet identifier | H03393 |
| Disc identifier | YL213E |
| Stem heat number | 1910102759 |
| Nameplate date | 10/2020 |
| MOP shown on nameplate | 1480 PSI at 100°F |
| Temperature range shown | 20°F–800°F |
| Figure no. | 8GA6R-WCB-8 |
| YDF job no. | 2007027-330 |
| Test report cert no. | YV110005_VTR2007027-330 |
| Customer product code | 1184417 |

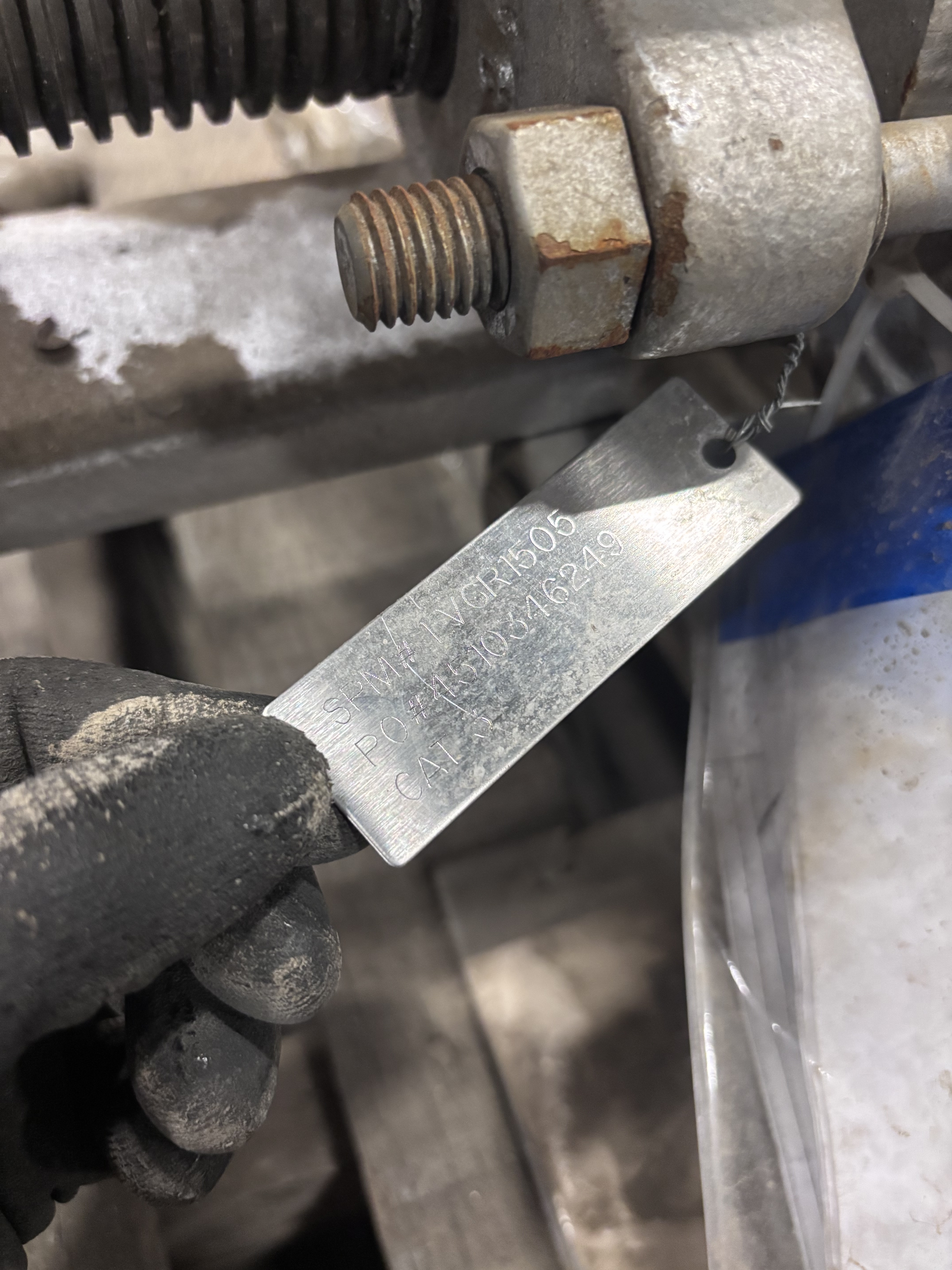

| Seller / return tag SPN | LVGR1505 |
