16" 150# Gate Valve
Supporting Documents (1)
library_books
Short Description

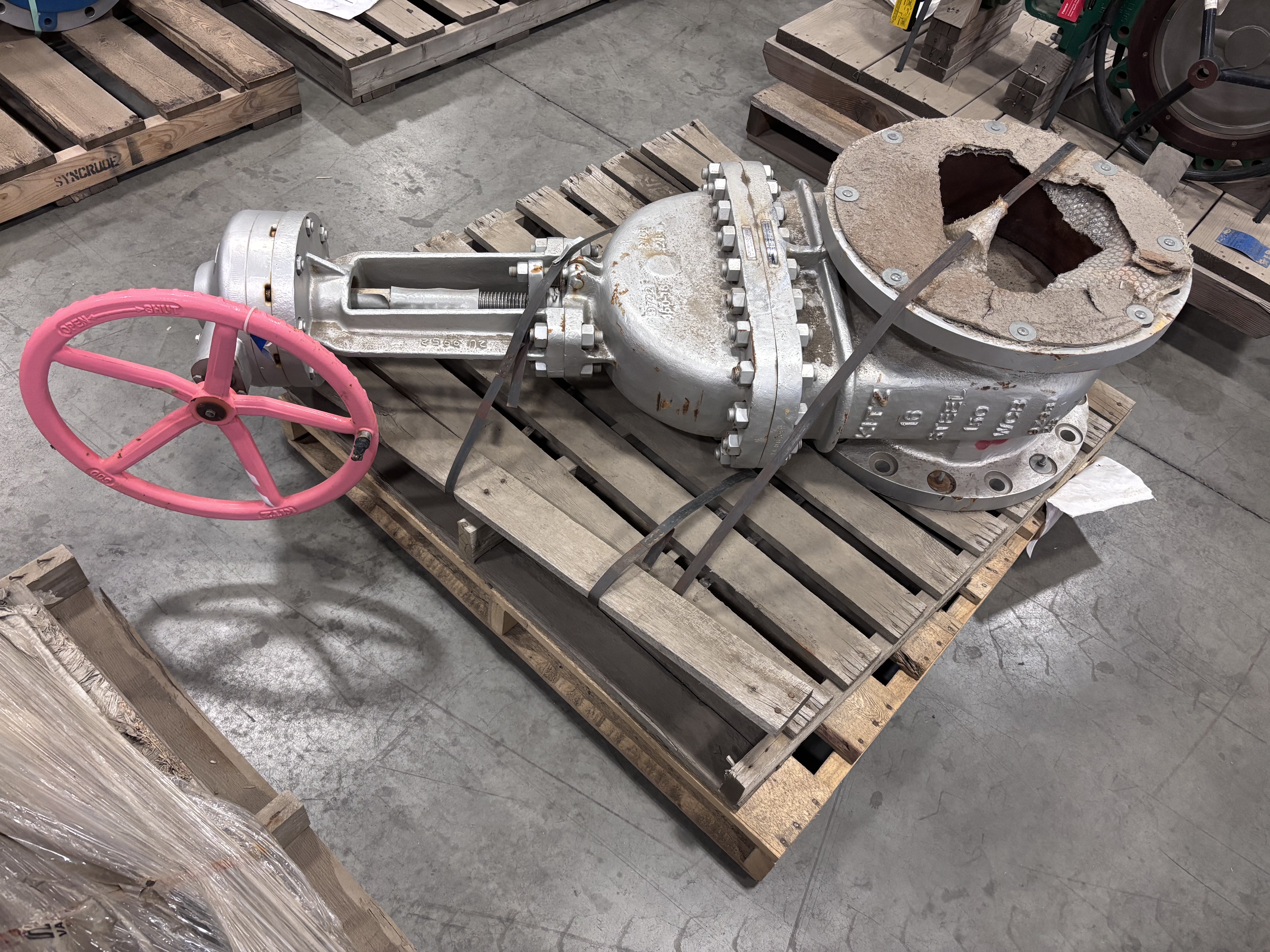

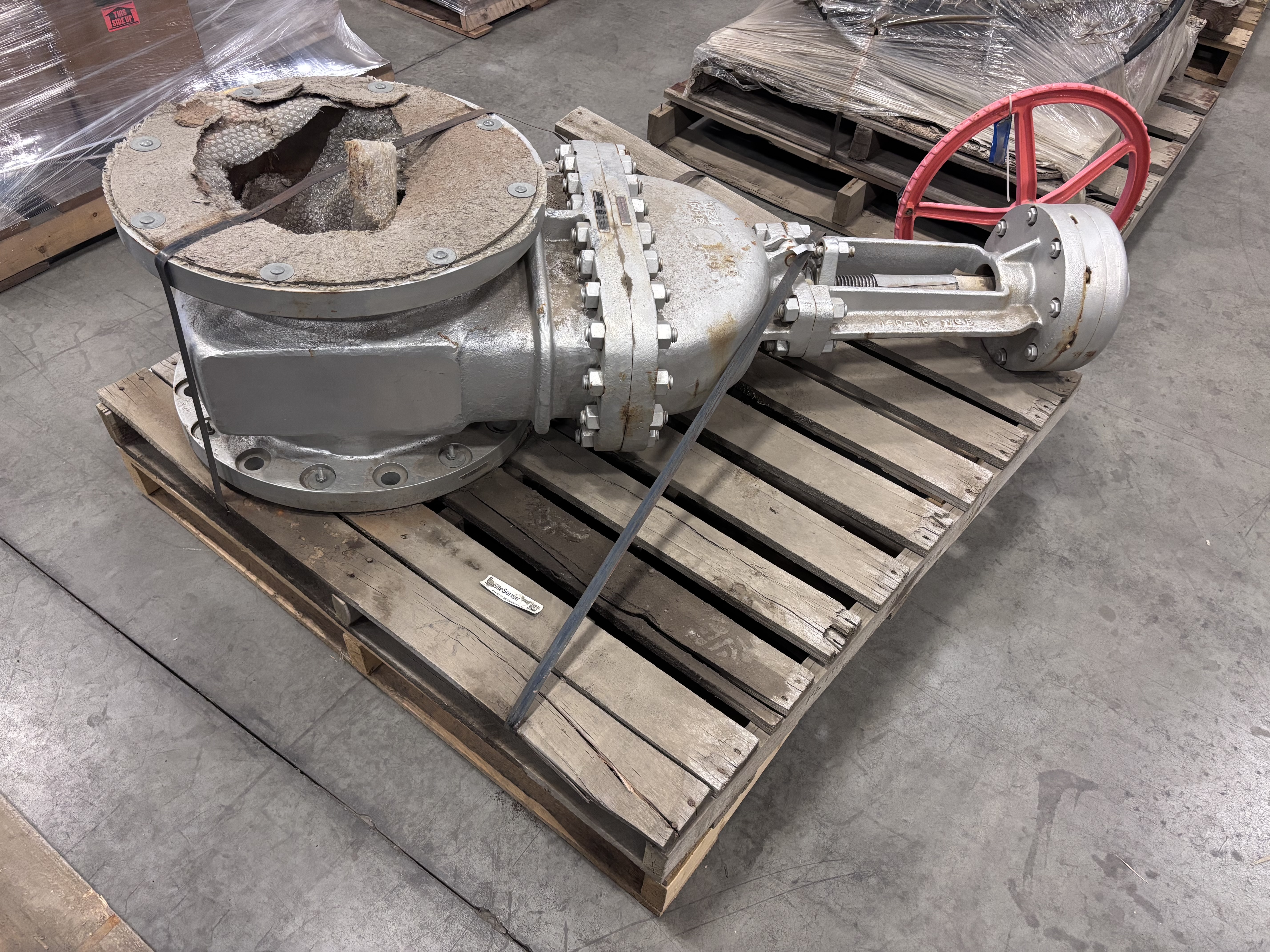

Available as a single surplus industrial valve, this is a KITZ 16 in Class 150 cast steel gate valve with flanged ends, gear-operated handwheel actuation, and an OS&Y-style outside screw and yoke configuration. The visible inspection certificate identifies the valve as a Class 150 cast steel gate valve, flanged ends, gear operated, with manufacturing number 1020217420-012, item number 000012, figure G-150SCLSY<UA326>16, and certificate date 2020/06/16.

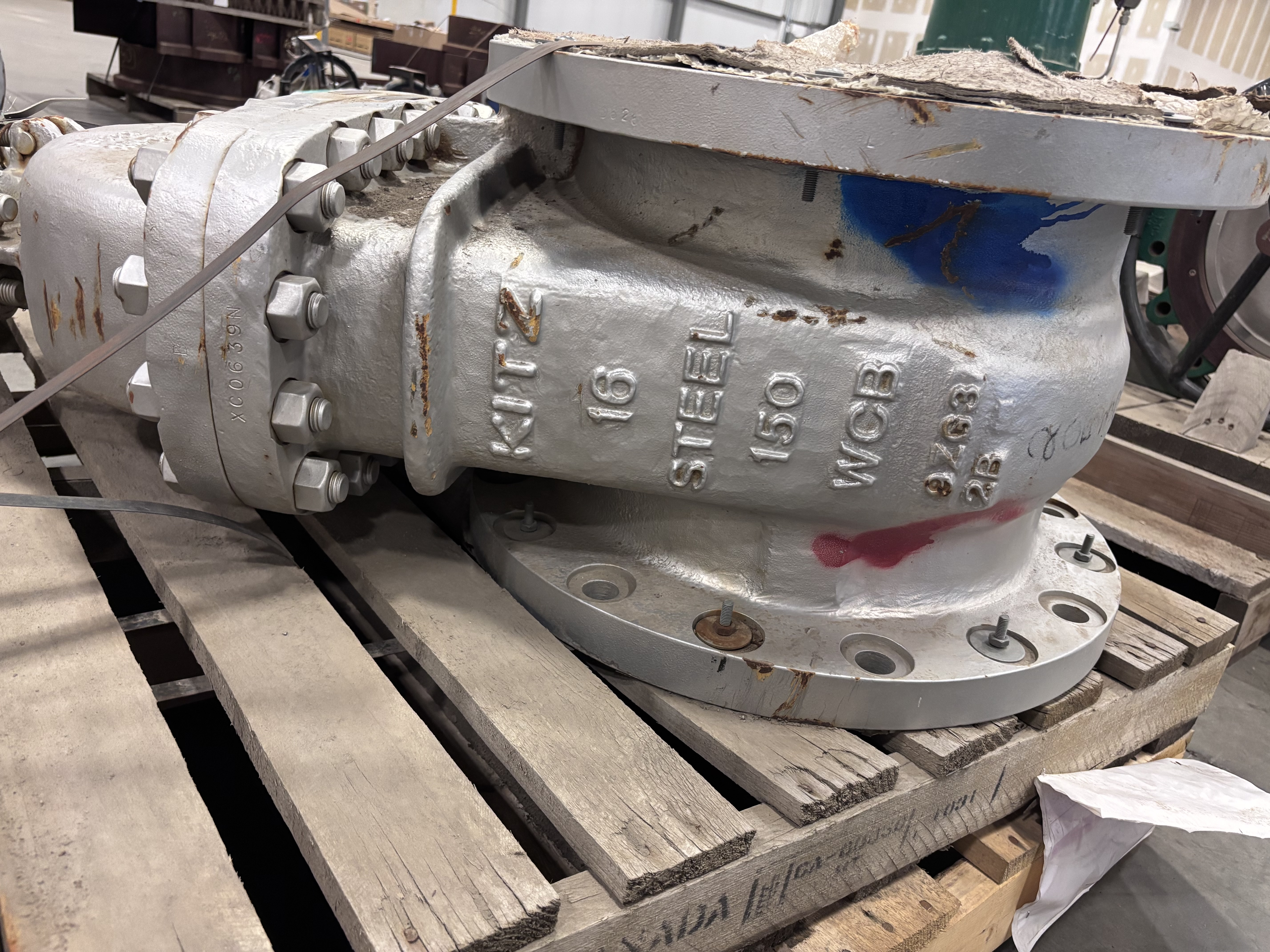

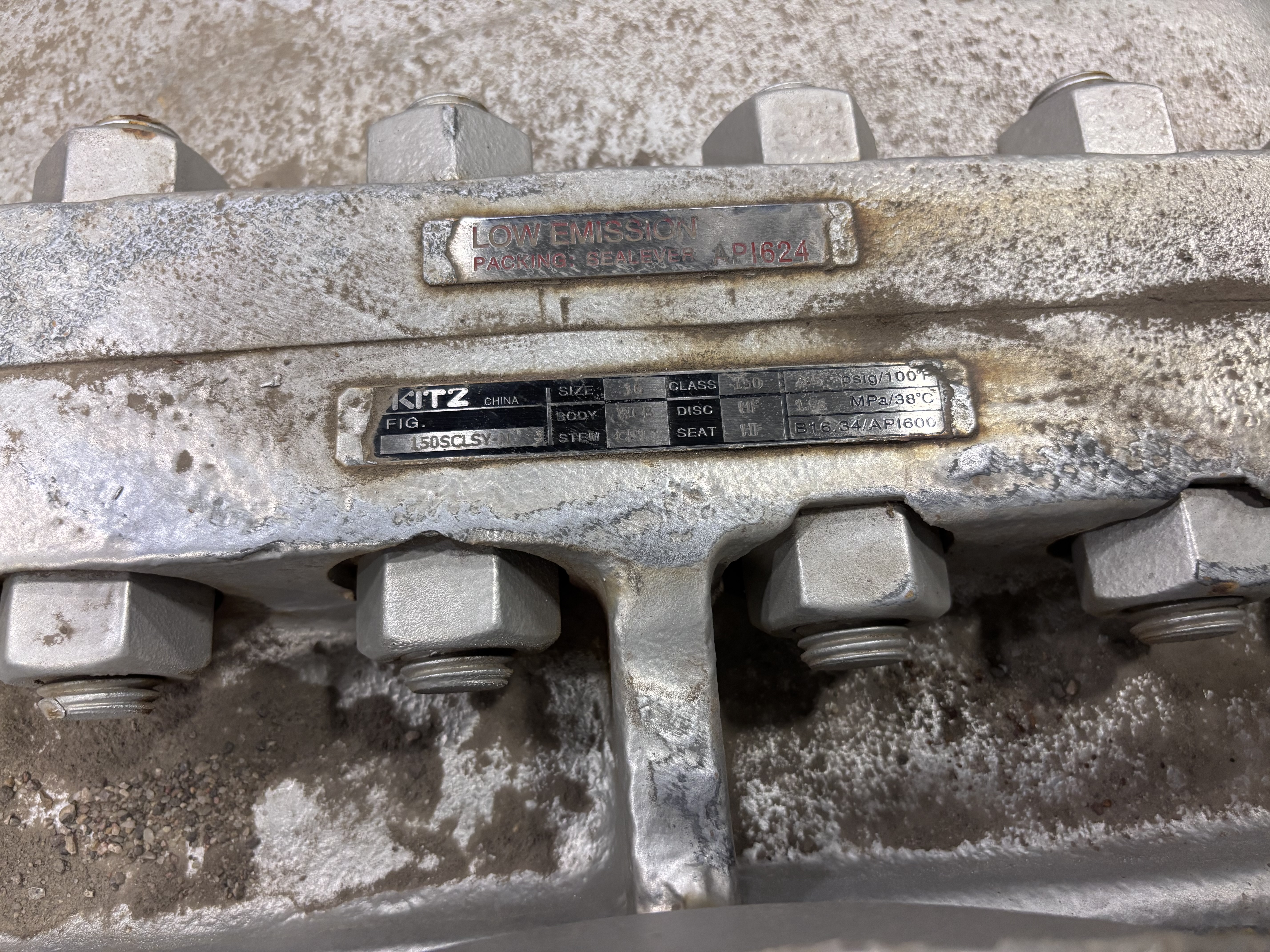

The valve is marked KITZ / China, 16, 150, WCB, and API 600 / ASME B16.34. The visible nameplate and certificate also indicate HF seat/disc facing, Type 410 stem, and low-emission packing/seal designation API624. This is a strong fit for industrial users, valve repair shops, pipeline/process facilities, and surplus buyers seeking a large manual gear-operated 16 in Class 150 gate valve.
Key Details
| Category | Details |
| Manufacturer | KITZ |
| Item | Cast steel gate valve |
| Quantity | 1 |
| Size | 16 in |
| Pressure class | Class 150 |
| Body material | WCB cast steel |
| Bonnet material | WCB |
| Stem material | Type 410 |
| Disc | WCB / HF hard faced, per certificate |
| Seat | HF, per nameplate/certificate |
| Body seat ring | A106 Gr.B / HF, per certificate |
| End connection | Flanged ends |

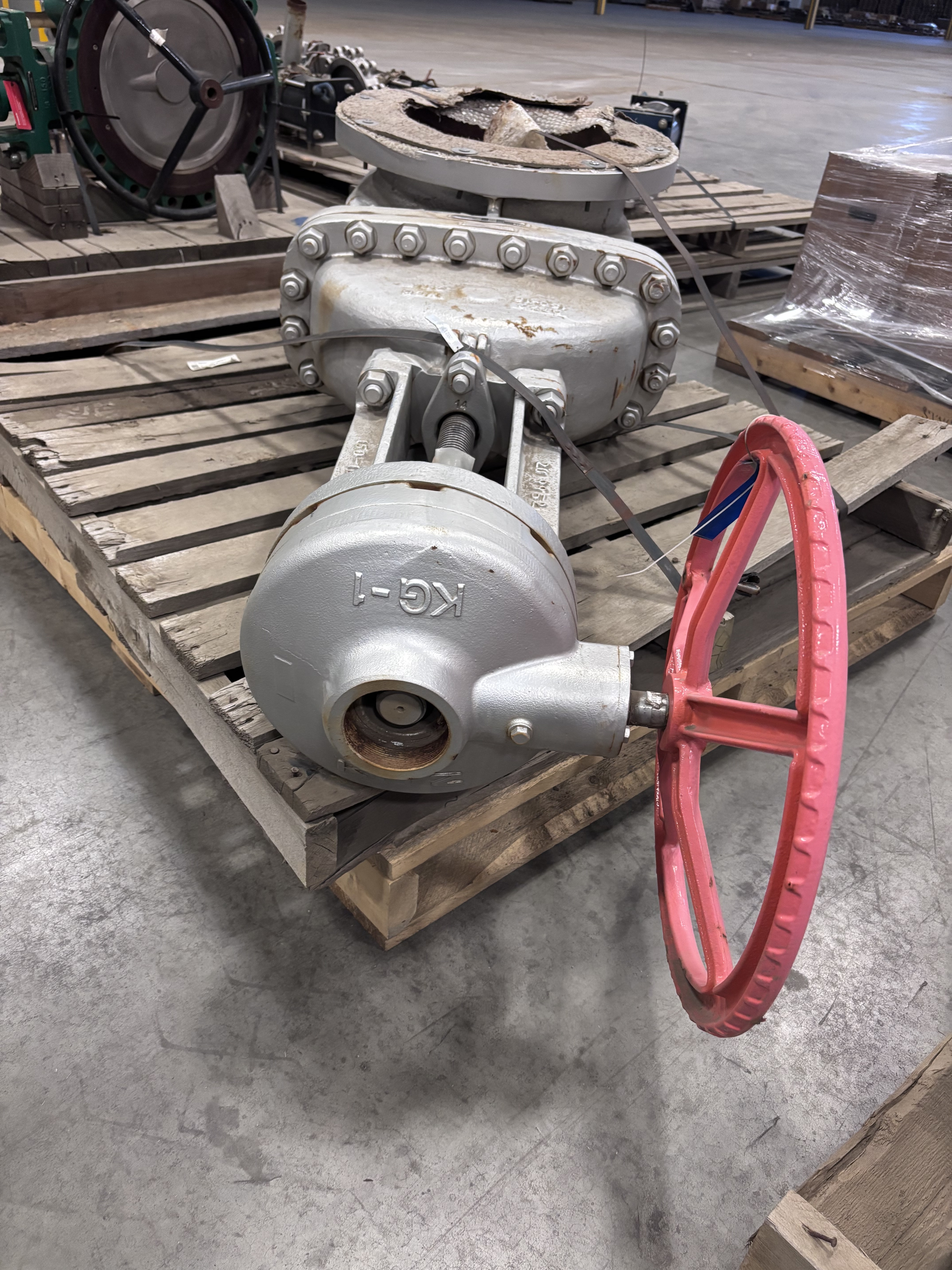

| Operator | Gear operated with manual handwheel |

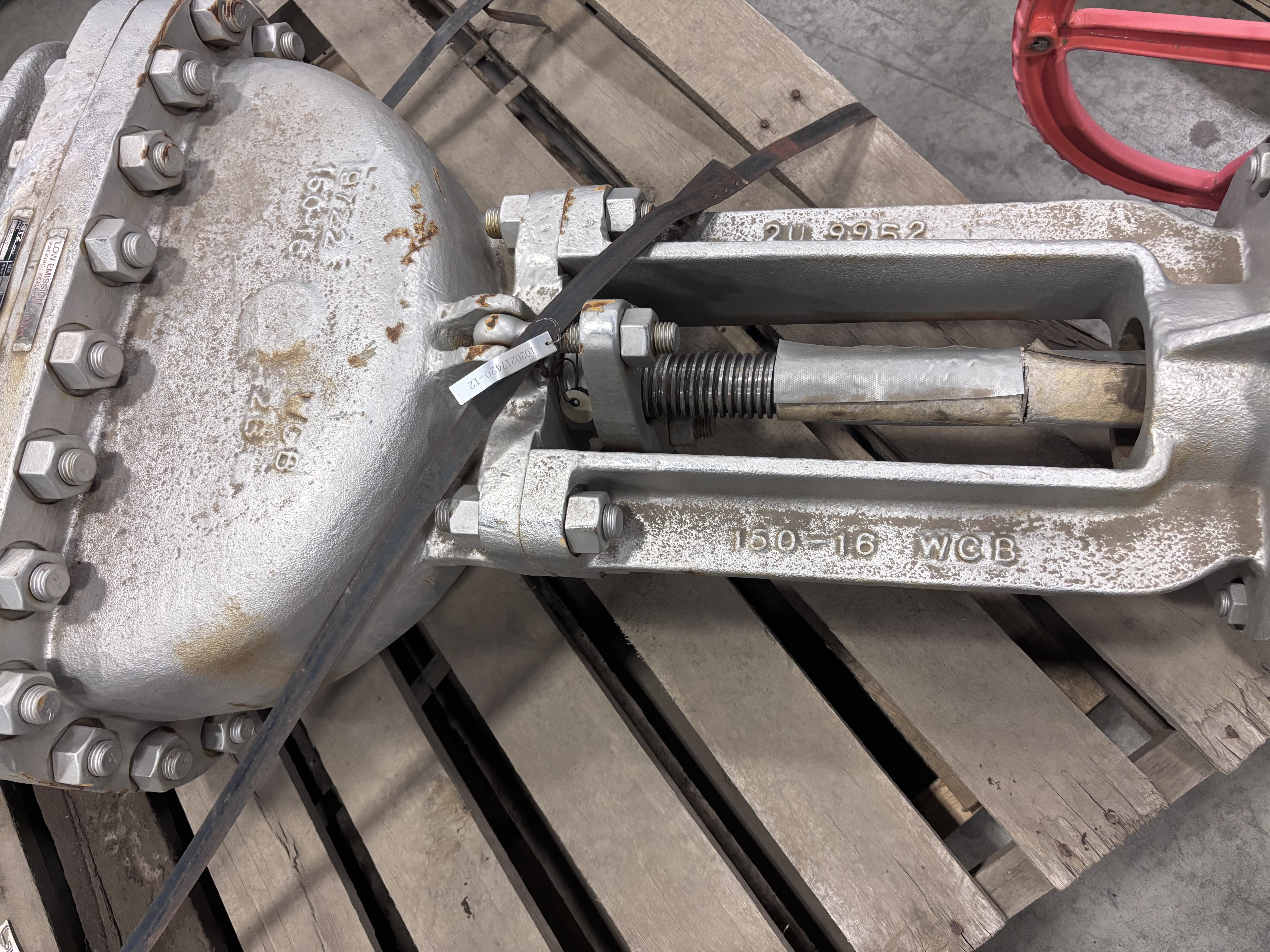

| Configuration | OS&Y-style outside screw and yoke / rising-stem style, buyer to verify |
| Figure / model | 150SCLSY; certificate figure G-150SCLSY<UA326>16 |

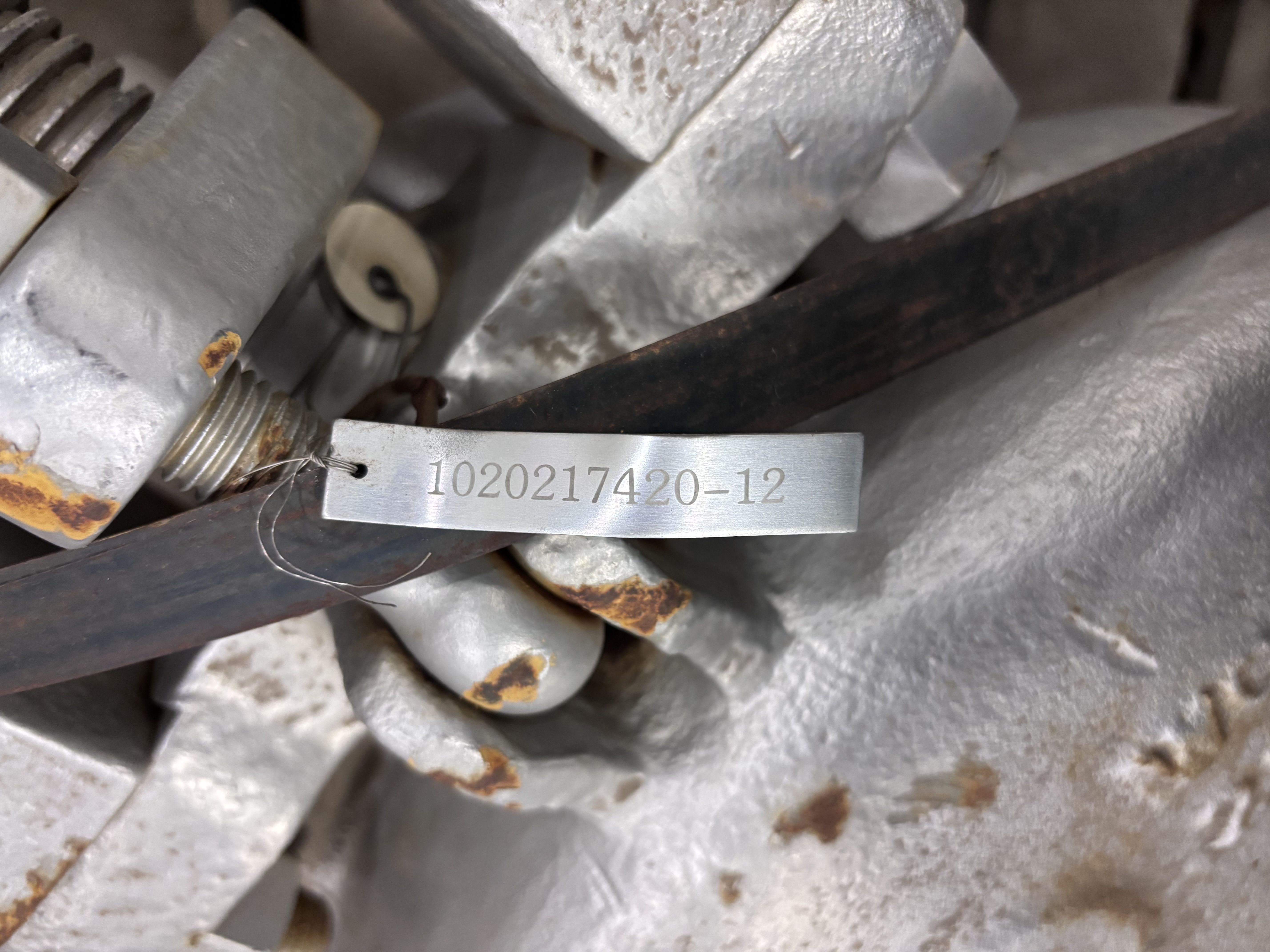

| Manufacturing / serial reference | 1020217420-012 |
| Item number | 000012 |
| Certificate number | 1020217420-012-01-01 |
| Certificate date | 2020/06/16 |
| Visible standards | API 600 / ASME B16.34; API 598 test standard; API624 low-emission packing/seal designation |
| Origin marking | China |
