TopWorx GO Switch Leverless Limit Switches - QTY 6
TopWorx GO Switch 73-13566-A2 Model 73 Leverless Limit Switches — 6-Unit Lot
Description

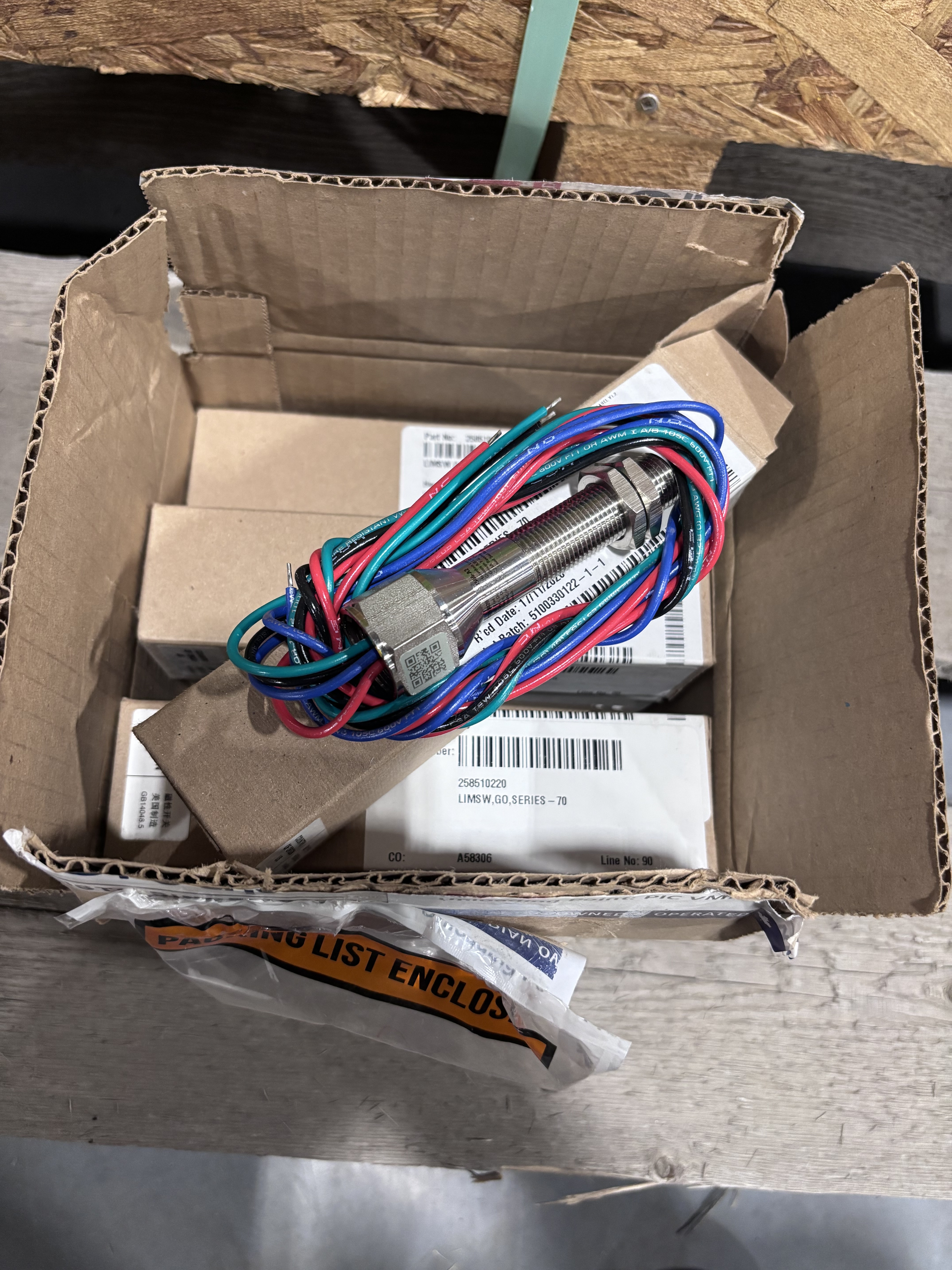

Available is one six-unit lot of matching TopWorx GO Switch Model 73 leverless limit switches, part number 258510220, model number 73-13566-A2. The supplied cartons identify all six units with the same model number. One switch is shown removed from its carton and has a threaded stainless-steel body with bottom-exit color-coded lead wires.
The Model 73 is a dry-contact proximity sensor that changes contact state when a ferrous-metal or magnetic target enters its sensing area. TopWorx describes the Model 73 family as a leverless limit-switch design without external moving parts, springs, cams, or reed elements. The exact 73-13566-A2 reference identifies an SPDT dry-contact configuration with 2.5 mm / 0.100 in. end sensing, a 5/8–18 UNF mounting thread, 316L stainless-steel housing, and three-foot PVC-insulated leads.
Verified Lot Identification
| Specification | Details |

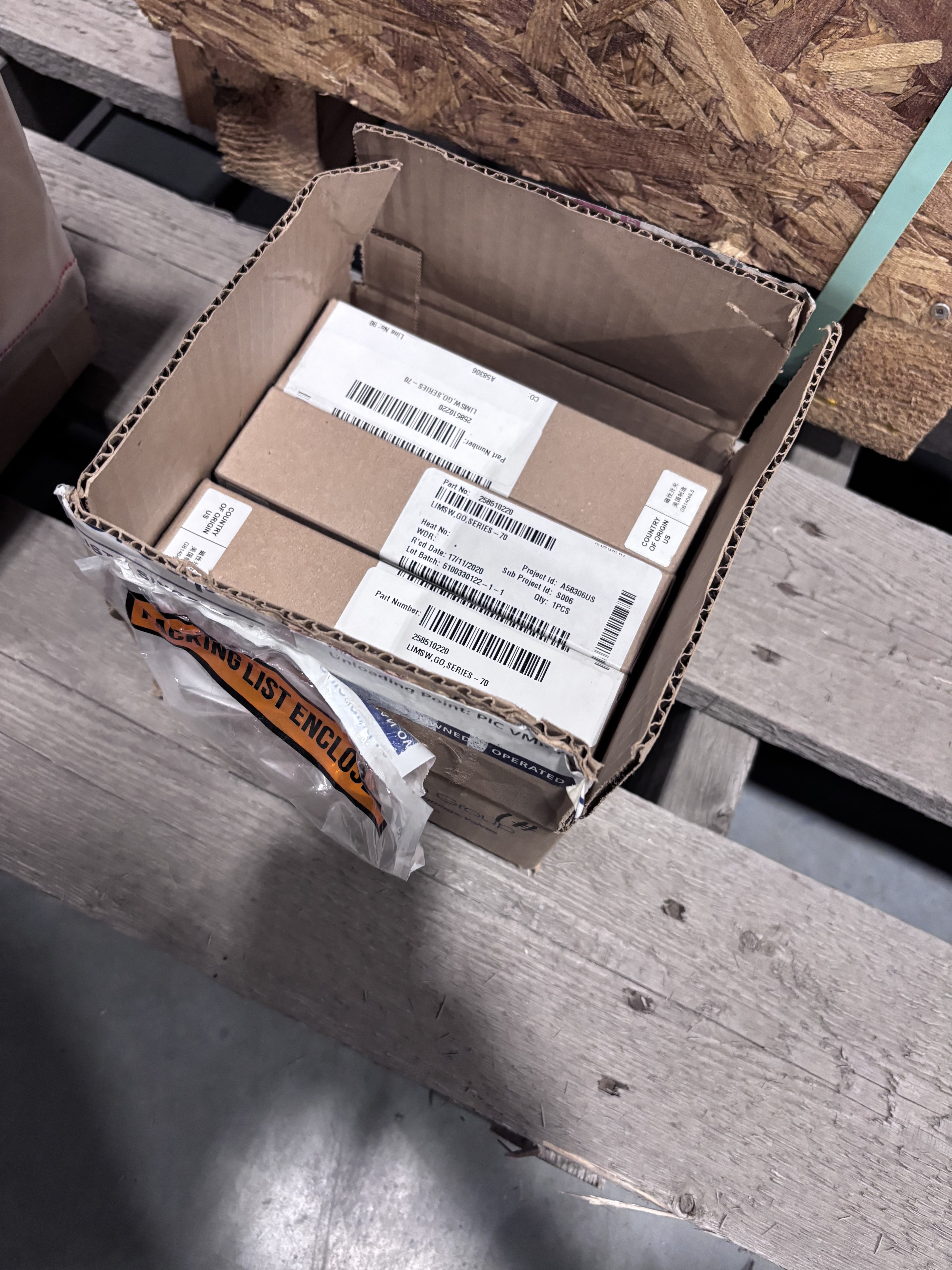

| Lot quantity | 6 individually boxed switches |
| Manufacturer / family | TopWorx GO Switch Model 73 / 70 Series |
| Part number / model | 258510220 / 73-13566-A2 |

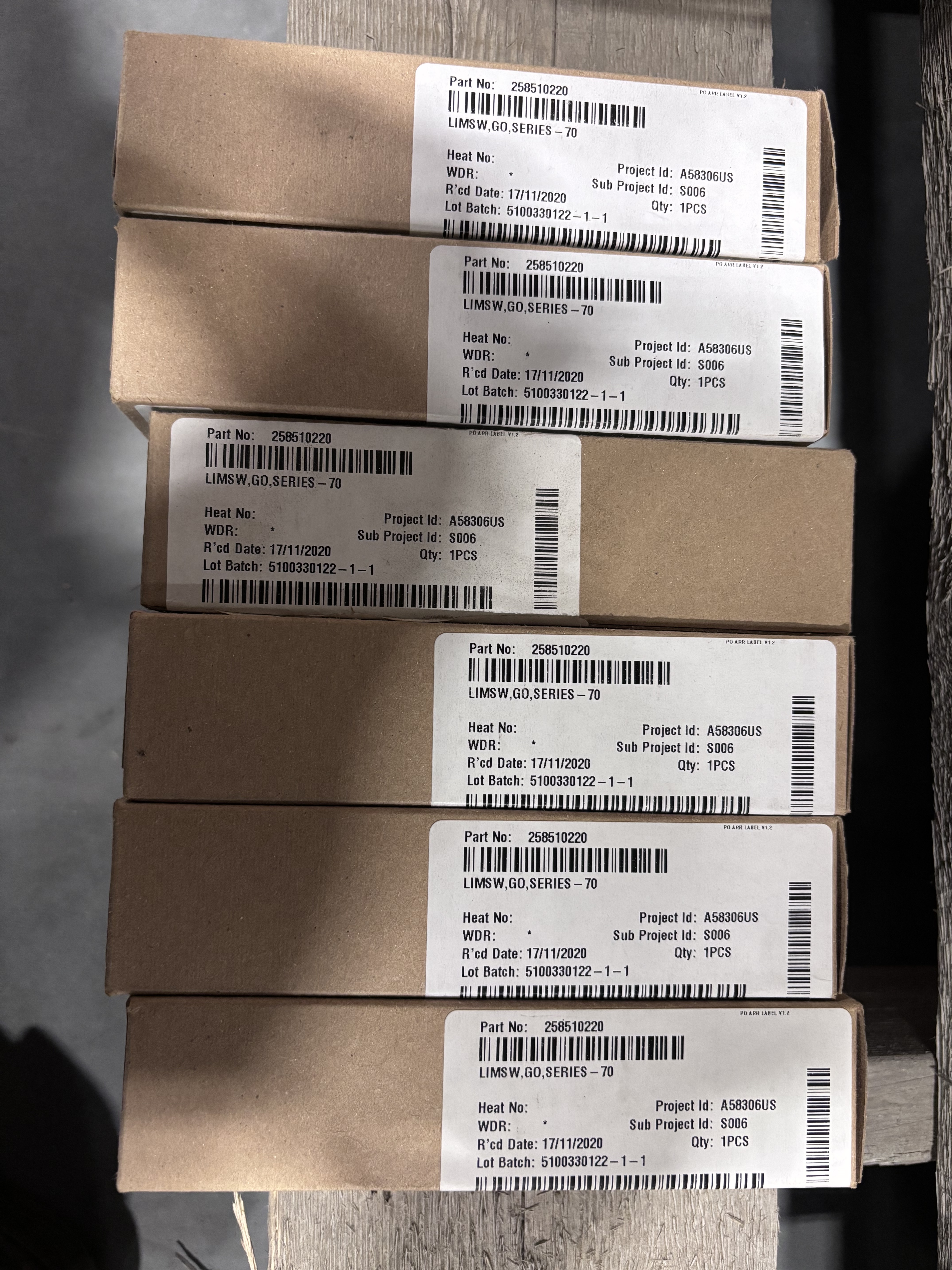

| Carton description | Limit Switch, GO, Series 70 |

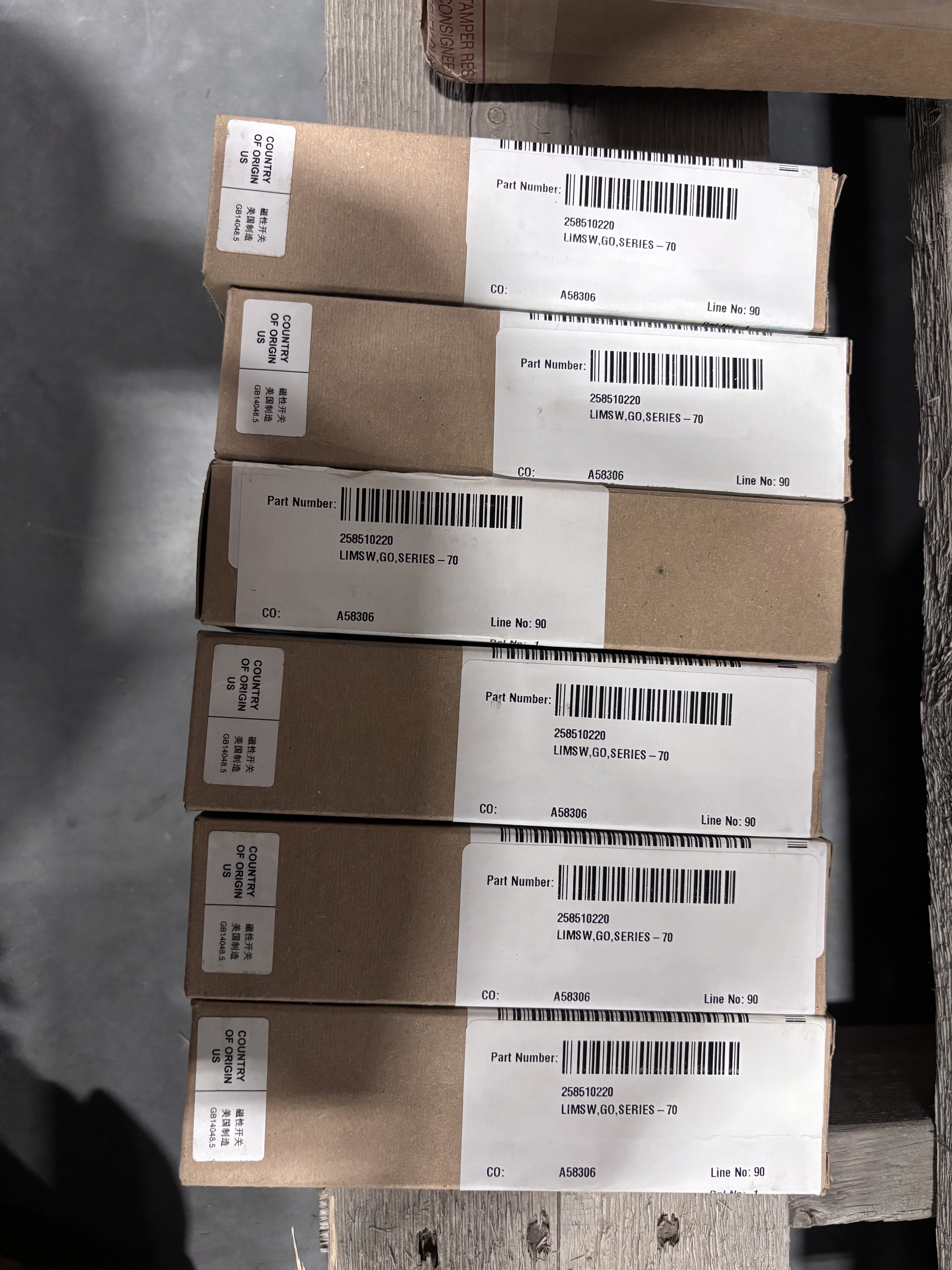

| Country-of-origin carton marking | United States |
| Visible unit configuration | Threaded metal body with bottom-exit lead wires |

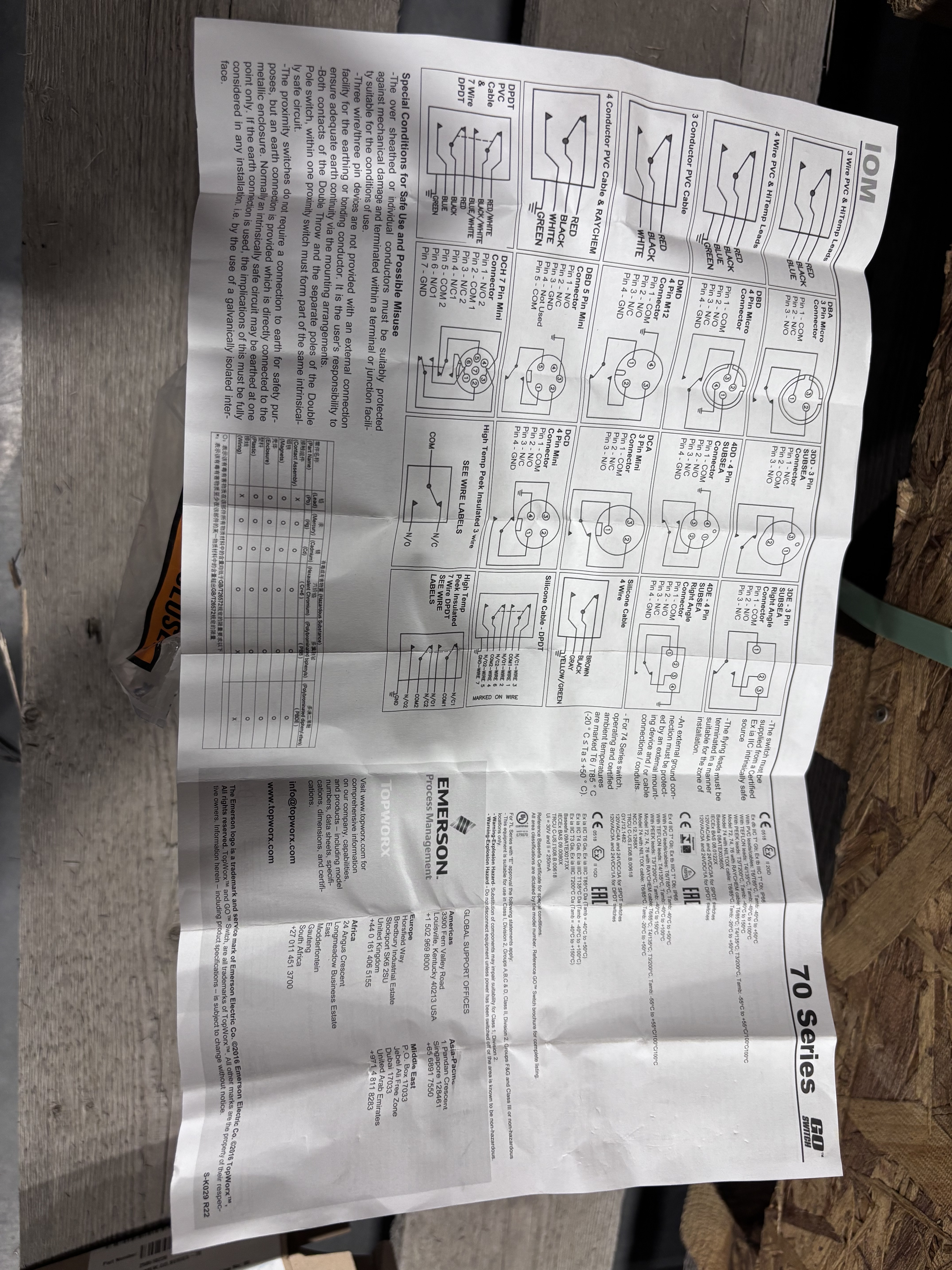

| Included paperwork shown | 70 Series installation and wiring instruction sheet |
Carton Serial Numbers

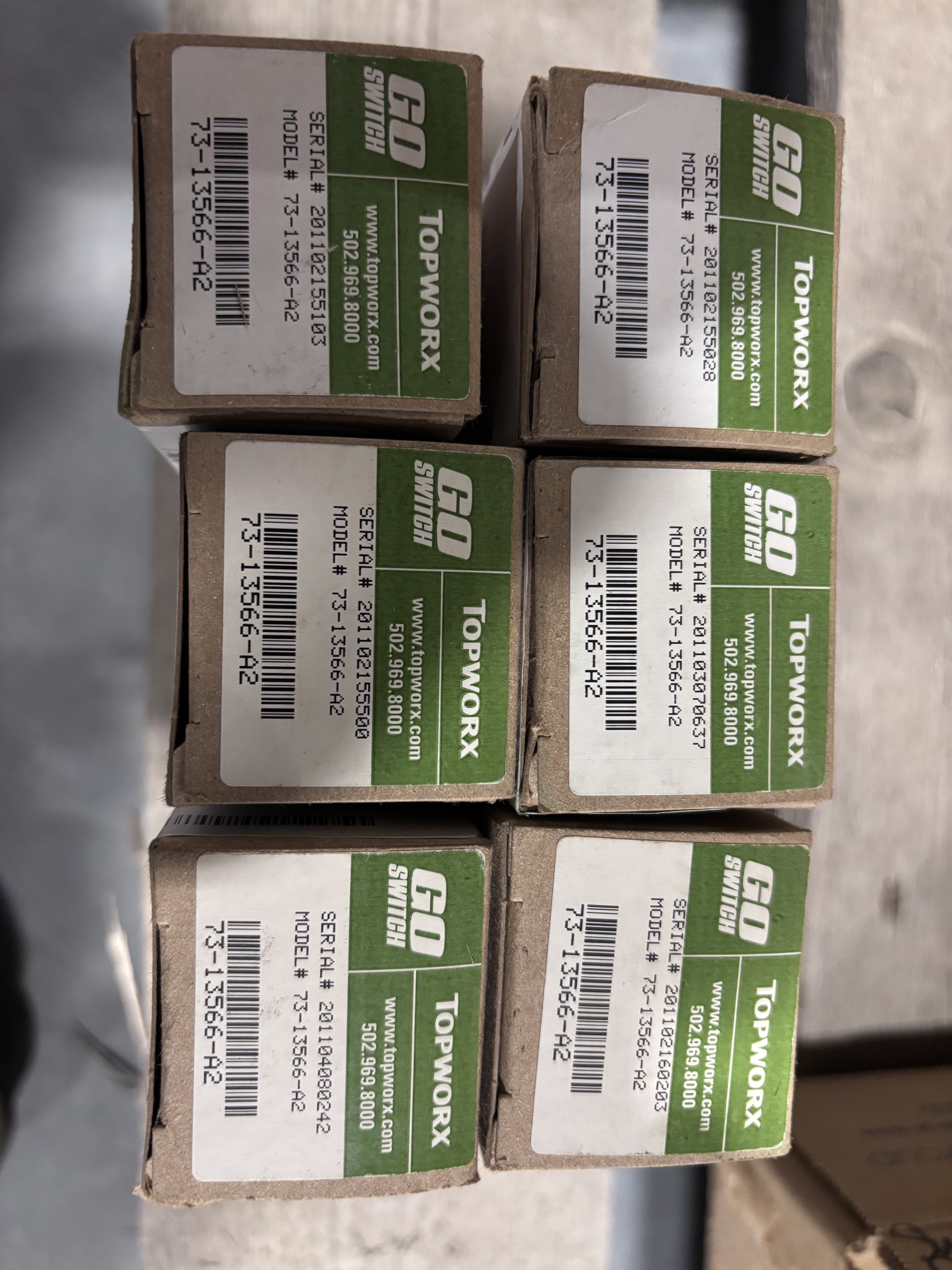

The following serial numbers are shown on the six supplied cartons:
| Unit | Carton serial number |
| 1 | 201102155103 |
| 2 | 201102155028 |
| 3 | 201102155500 |
| 4 | 201103070637 |
| 5 | 201104080242 |
| 6 | 201102160203 |
