16" 300# Gate Valve
Supporting Documents (1)
library_books
YVI 16 in Class 300 API 600 Gate Valve — Gear Operated, A217 C5, Raised Face Flanged
Long Description

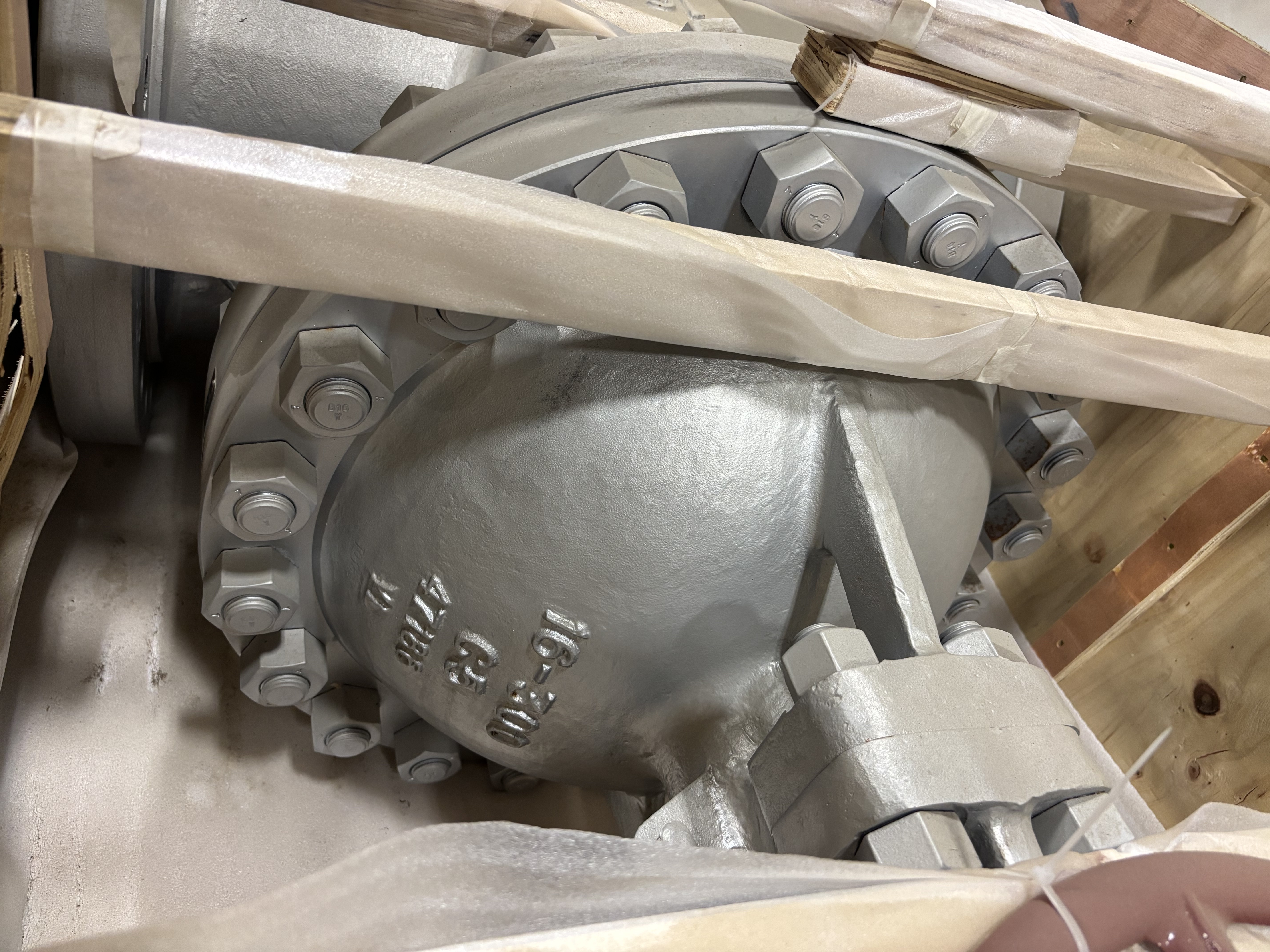

Available is one YVI 16 in Class 300 API 600 gate valve, figure YVI-16GA3R-G-C5-5, SPM/material reference LVGR3808, serial number YVI24060721, supplied as a new surplus crated industrial valve. The valve is a raised face flanged, gear-operated, bolted-bonnet, outside-screw-and-yoke gate valve with A217 Grade C5 / 5Cr-1/2Mo alloy steel body and bonnet, Trim 5, hardfaced seat and disc surfaces, and manufacturer pressure test documentation visible in the supplied photos.

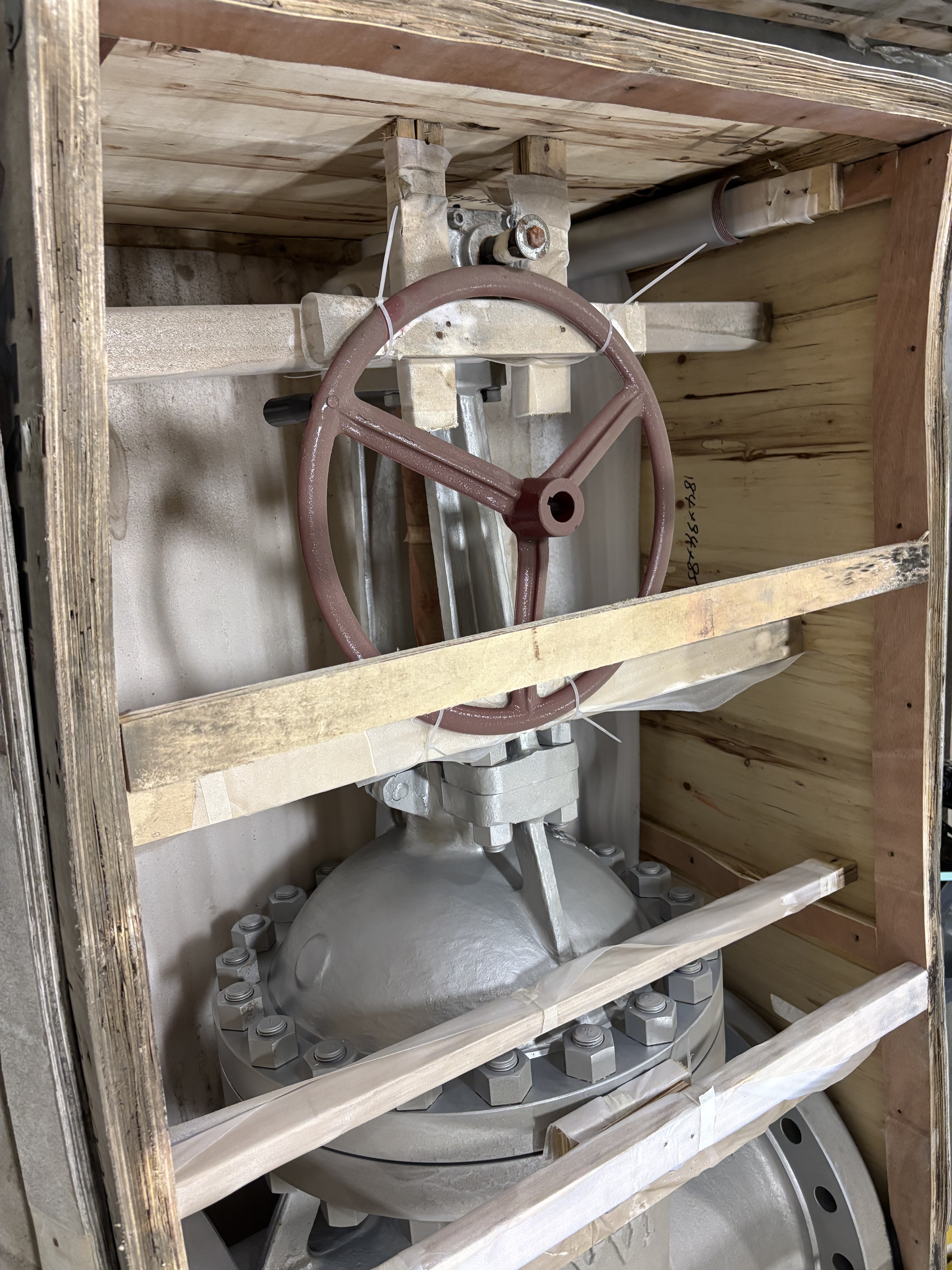

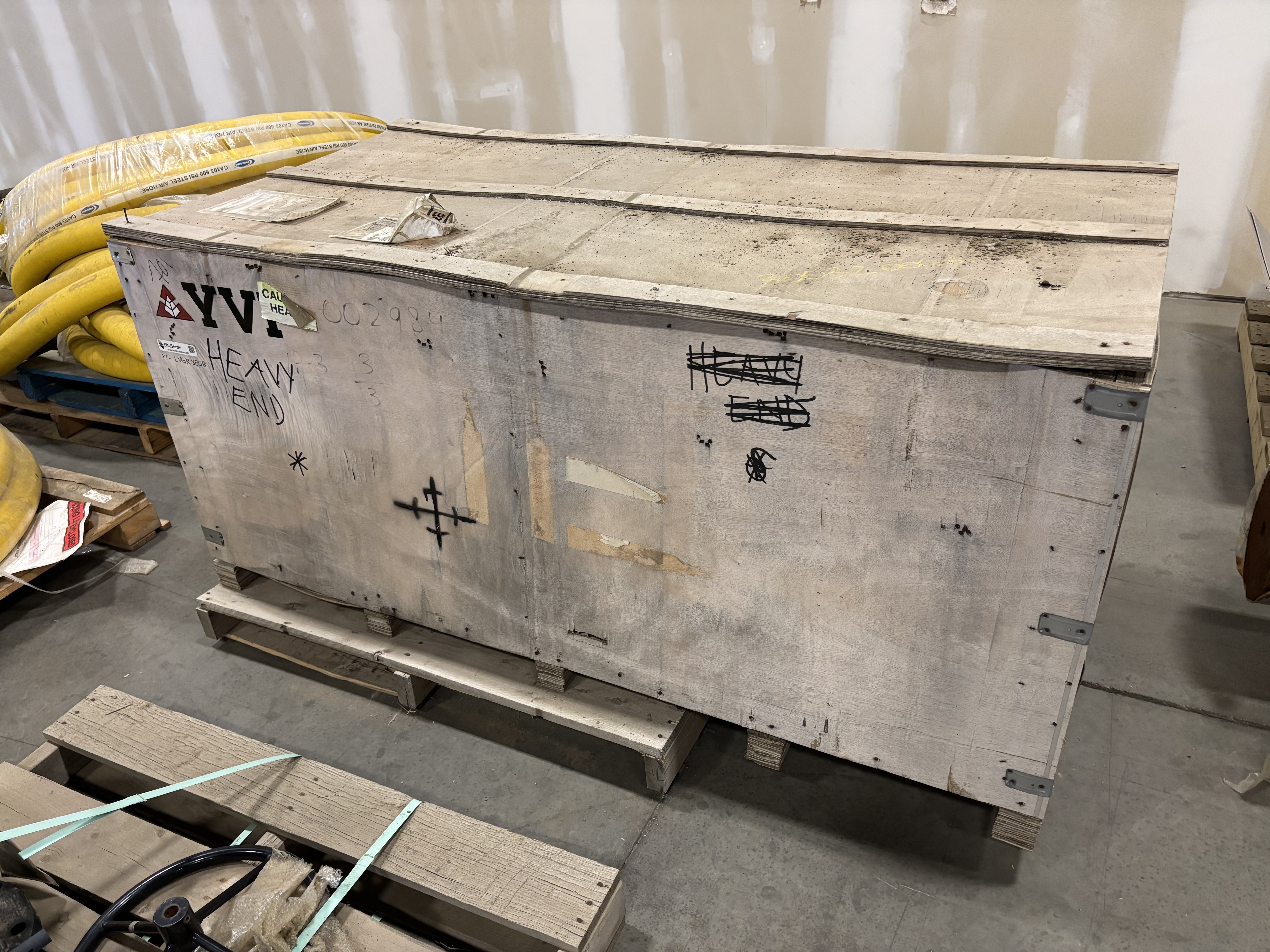

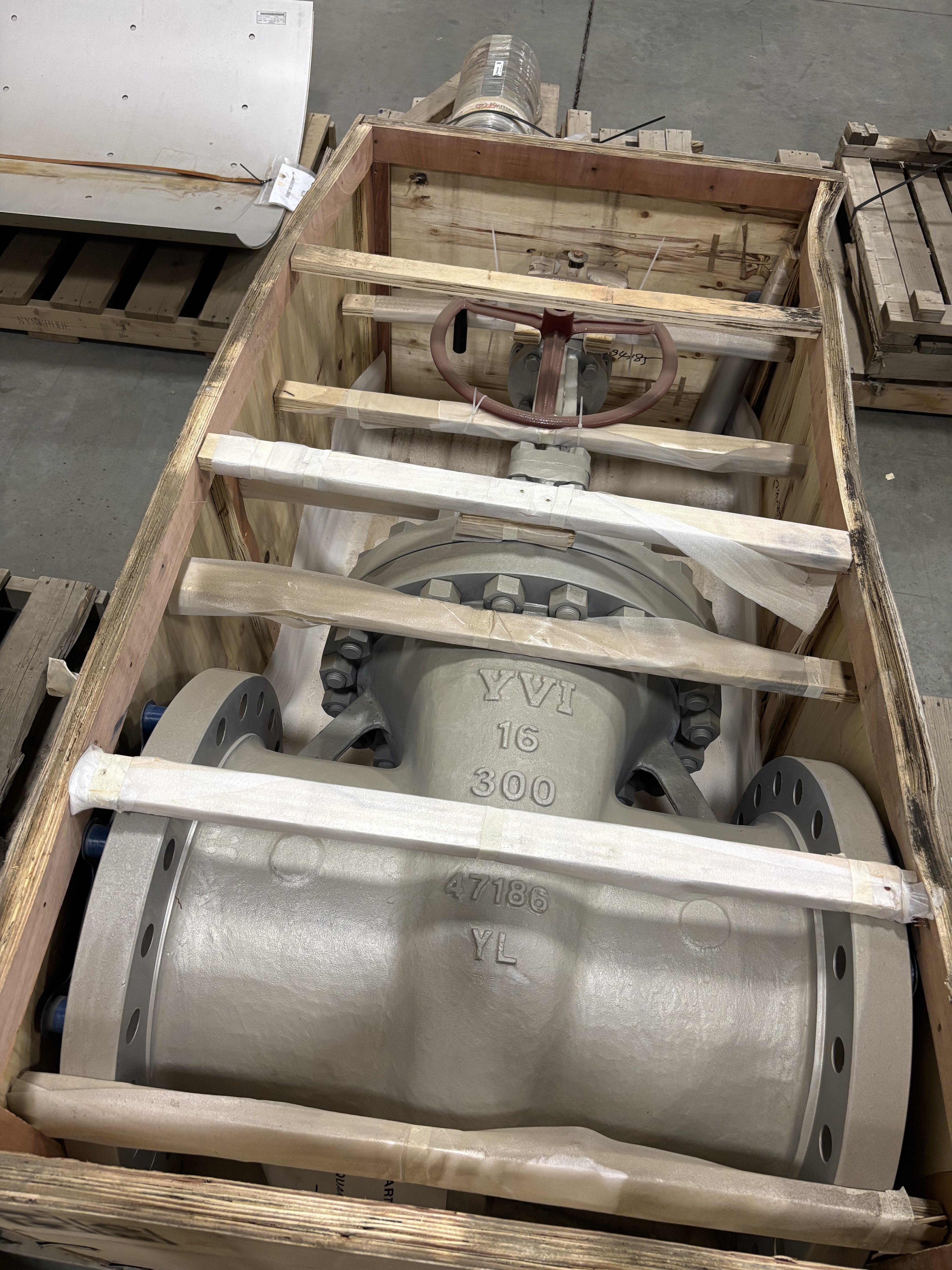

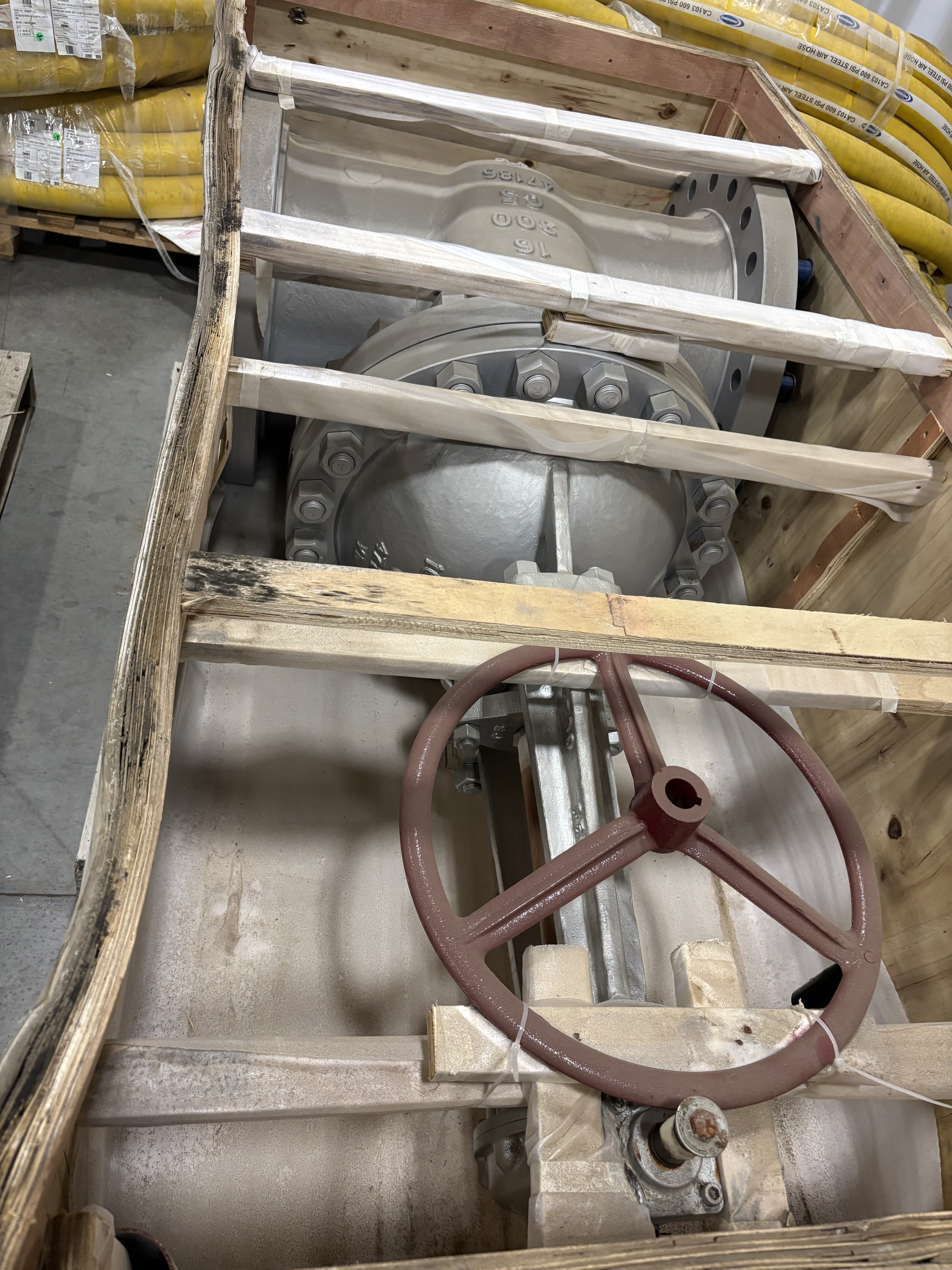

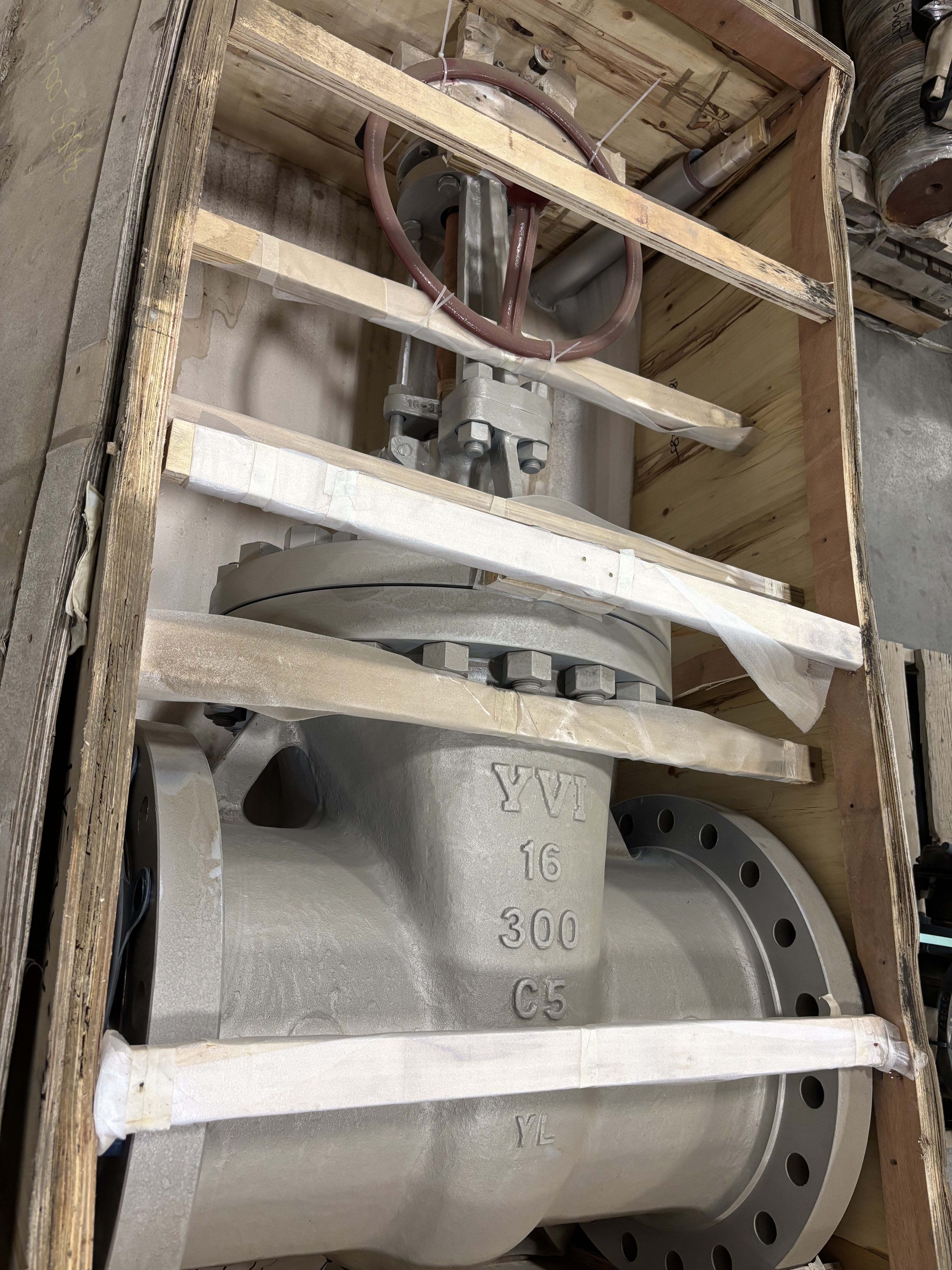

The valve remains in its original wood shipping crate with protective bracing, flange protection, visible handwheel/gear operator, and documentation tags. It is best positioned for industrial buyers seeking a high-pressure, large-bore spare or project valve for refinery, petrochemical, oil sands, steam/hydrocarbon, or process piping service where the final specification match is confirmed by the buyer.
Key Details
| Field | Detail |
| Manufacturer | YVI / YVI Valve |

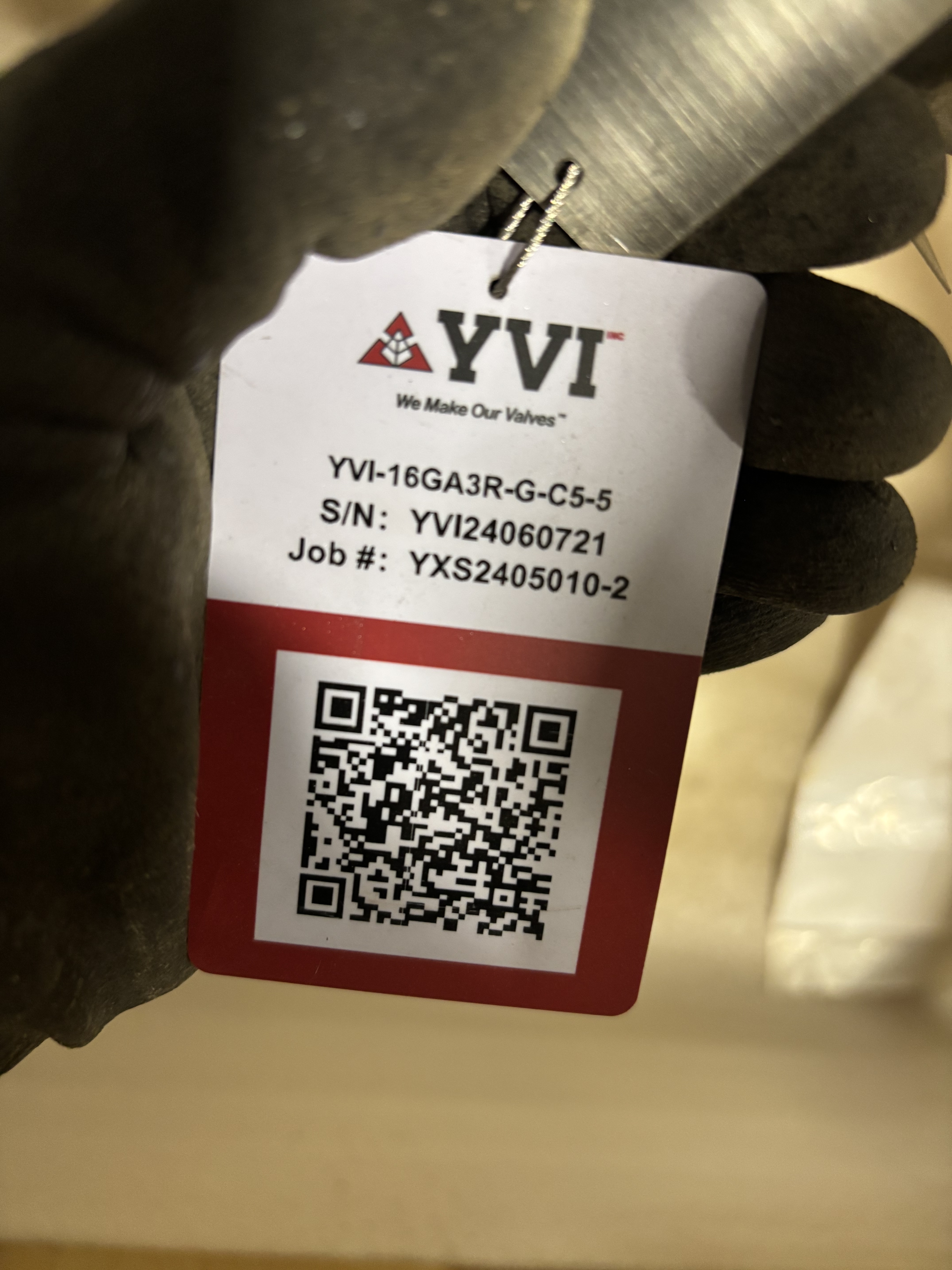

| Figure / model | YVI-16GA3R-G-C5-5 |
| Valve type | Gate valve |
| Size | 16 in |
| Pressure class | ASME Class 300 / 300Lb |
| End connection | Raised face flanged; flanges per ASME B16.5 |
| Operation | Gear operated with visible handwheel / bevel gear operator |
| Body / bonnet material | Cast 5Cr-1/2Mo alloy steel; ASTM A217 Grade C5 / C5 |
| Trim | Trim 5 |
| Serial number | YVI24060721 |

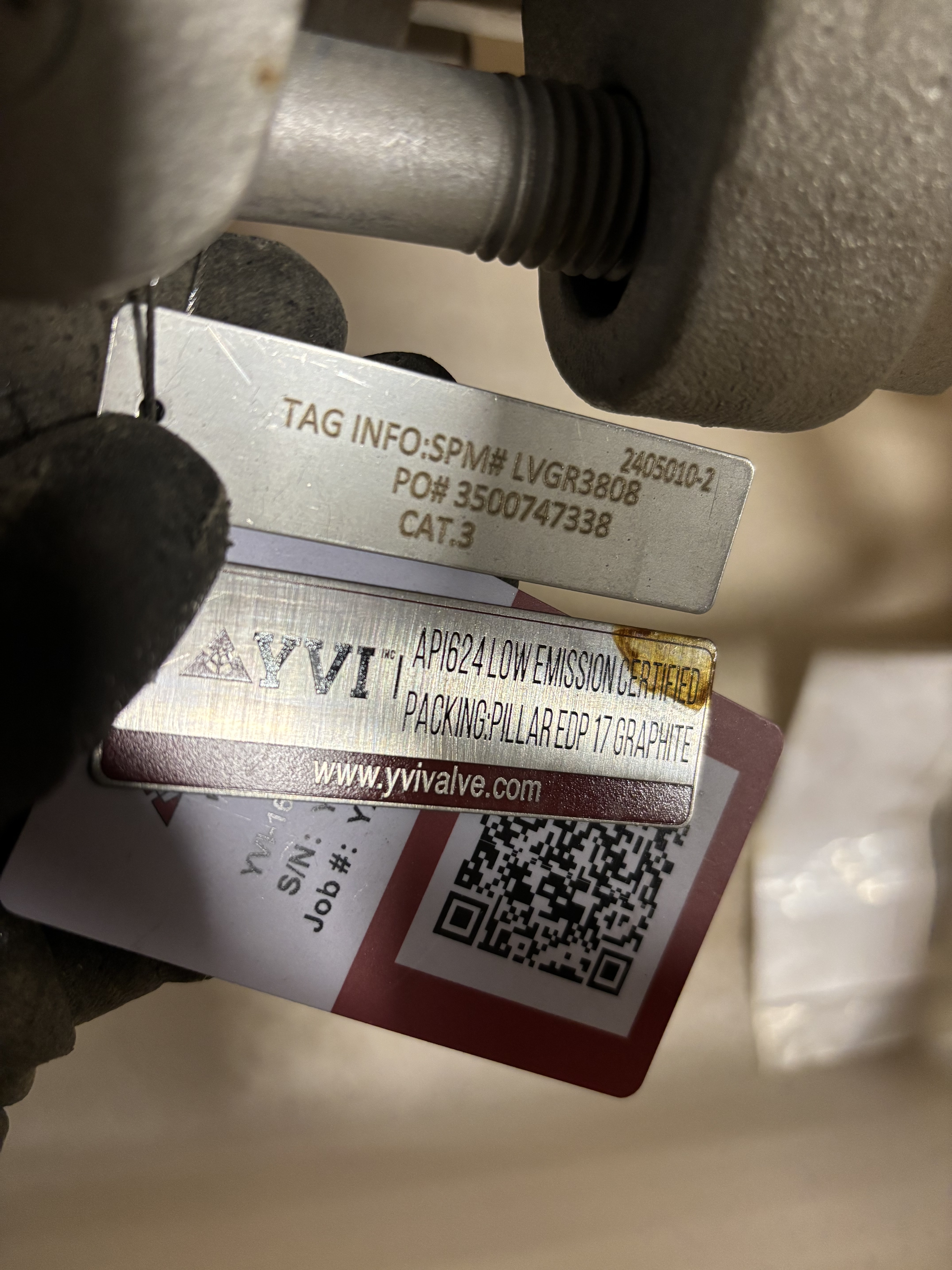

| SPM / material reference | LVGR3808 |
| Job number | YXS2405010-2 |
| Pressure test report PO | PO 66245370 |
| Inspection category | L-37 Inspection Category No. 3 / CAT 3 |

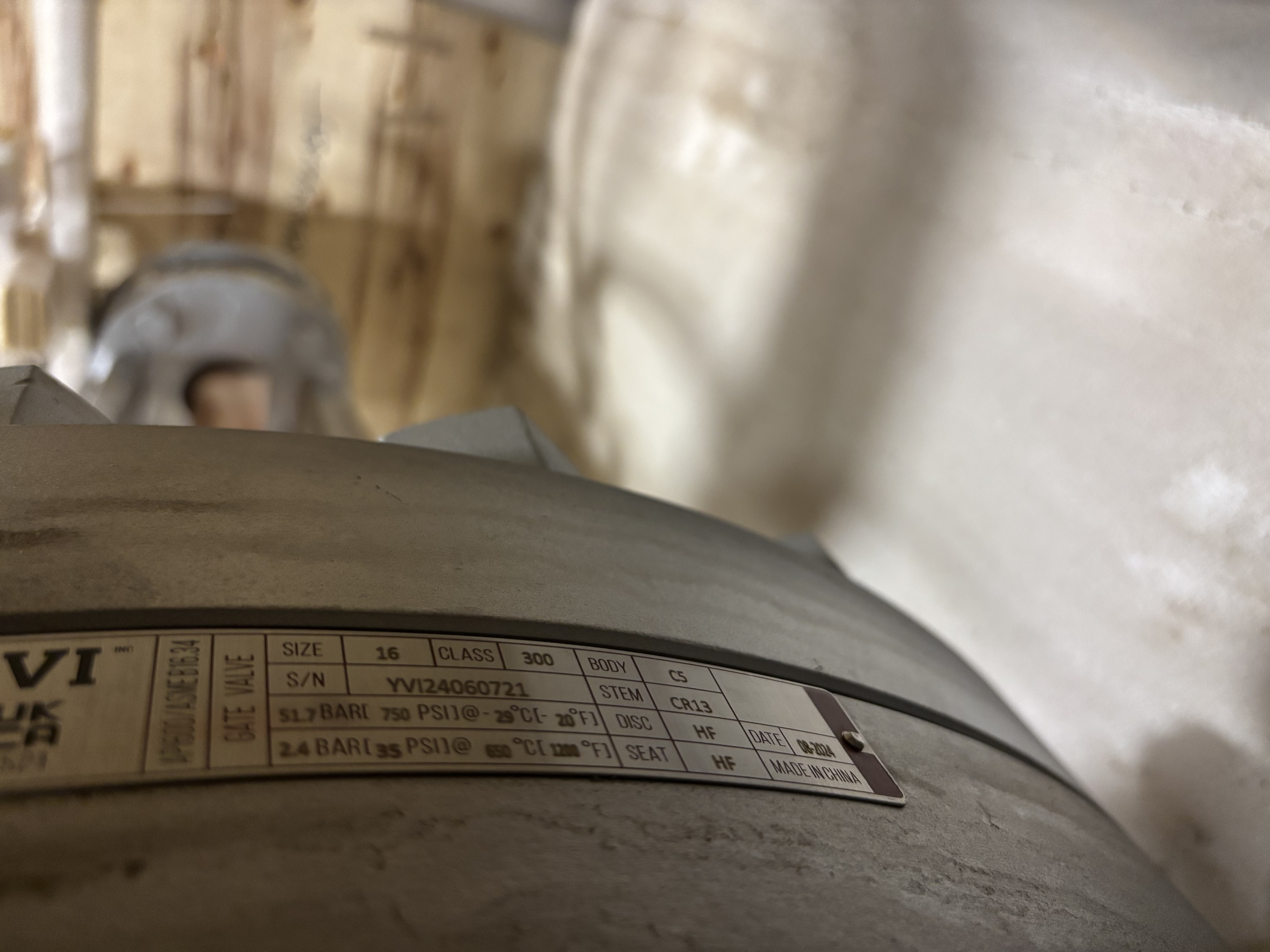

| Date on nameplate | 08/2024 |
