6" 300# Globe Valve
Listing ID:
IH-64892
Notes:
Short Description

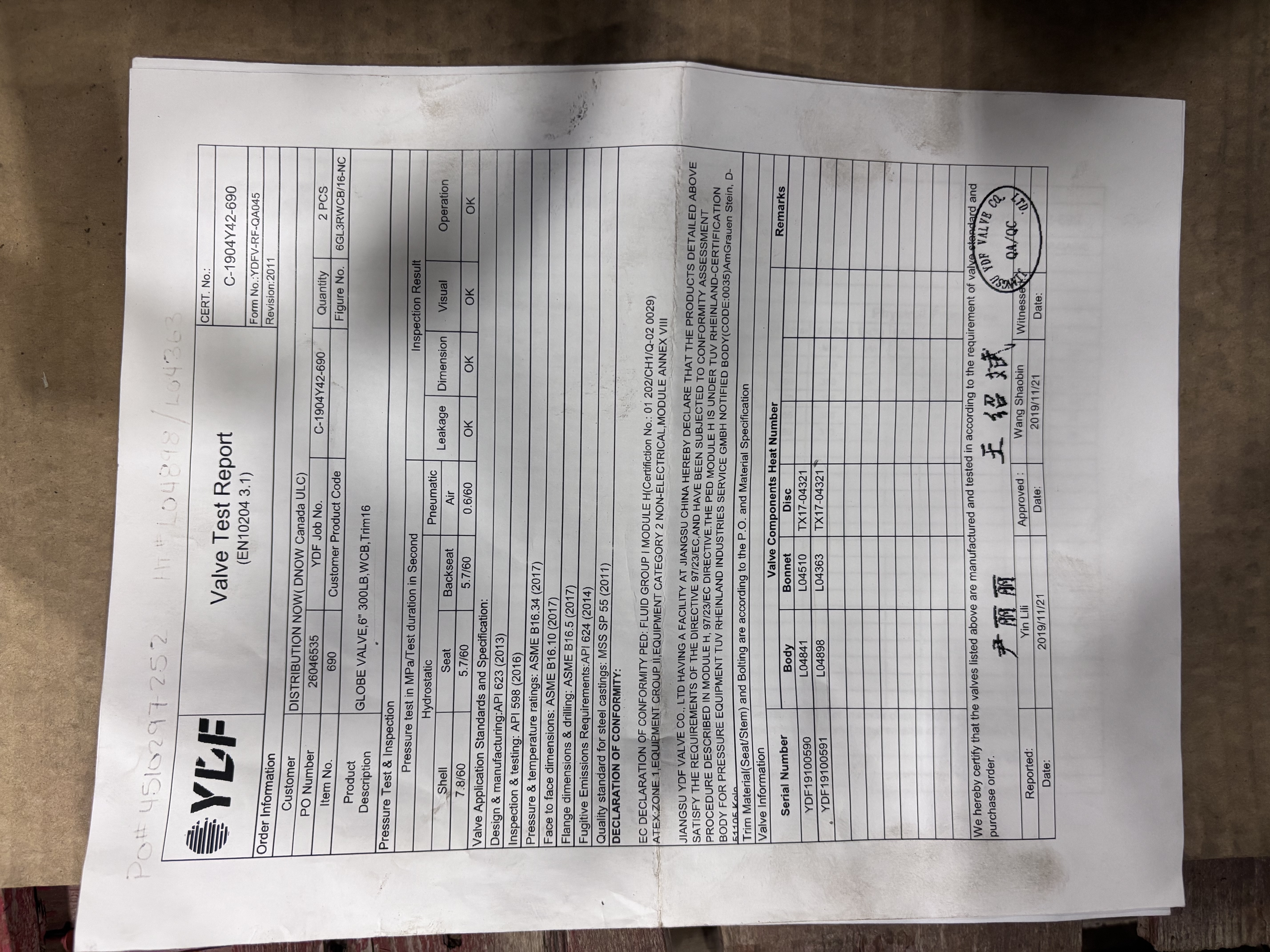

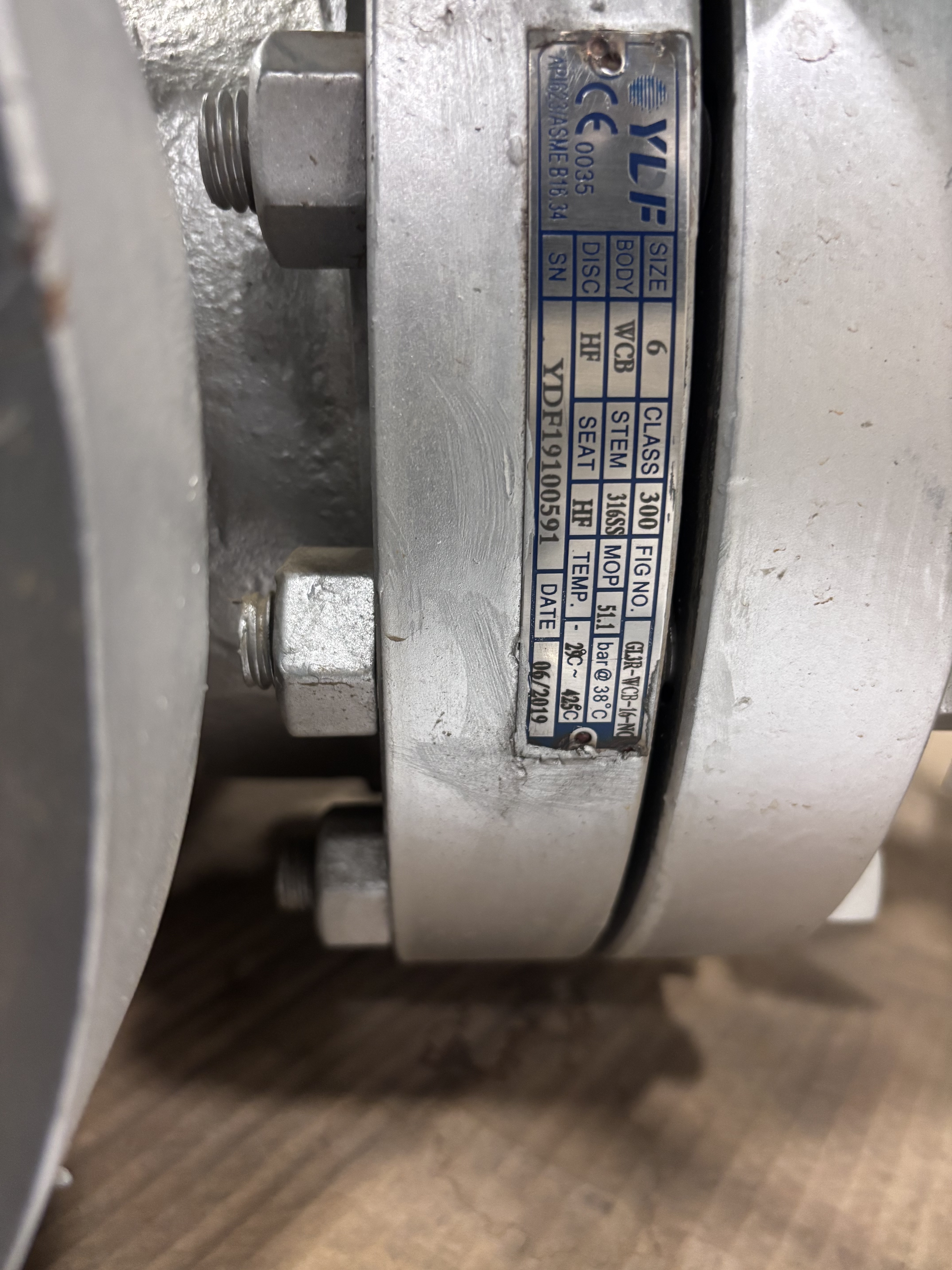

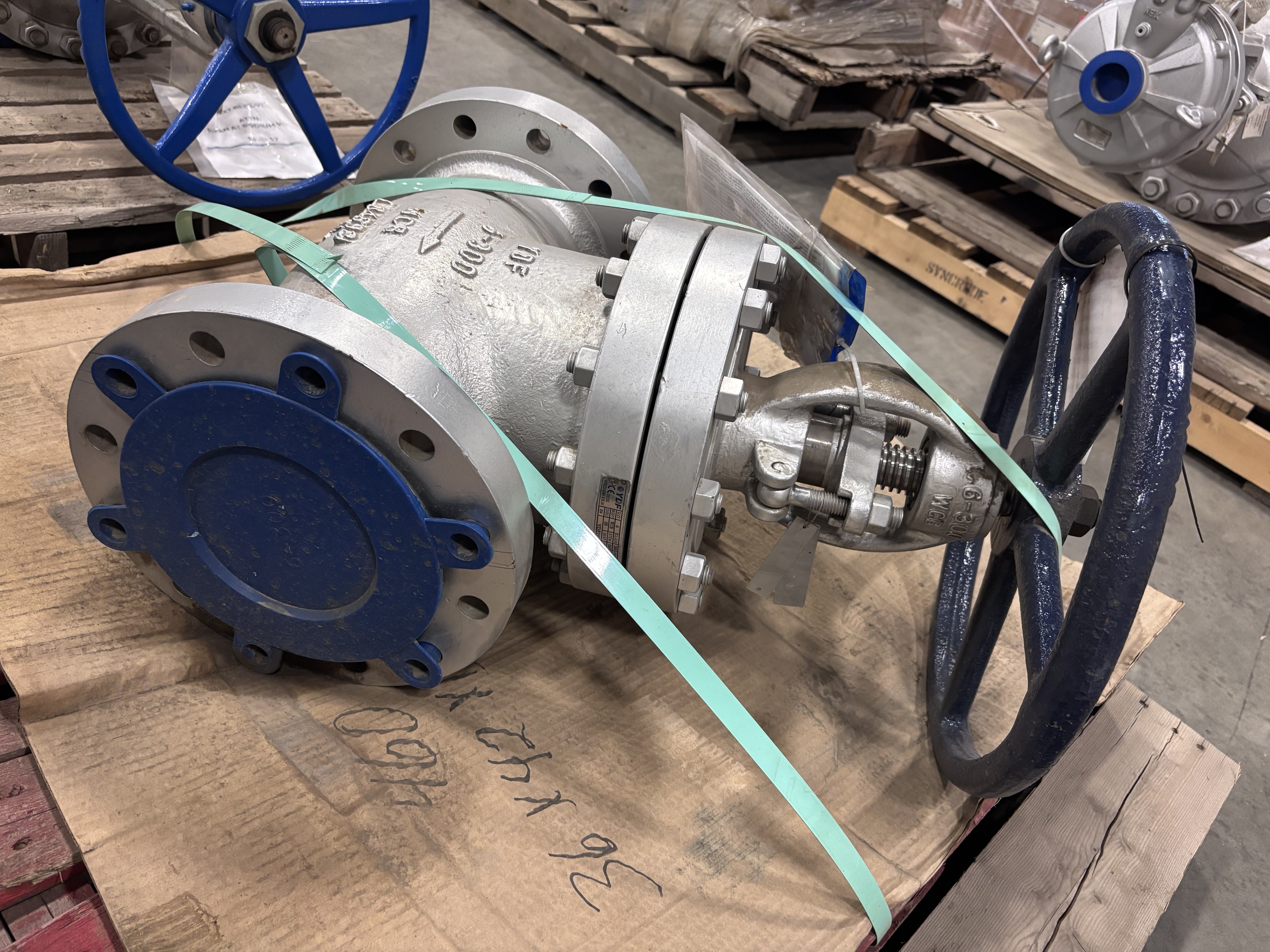

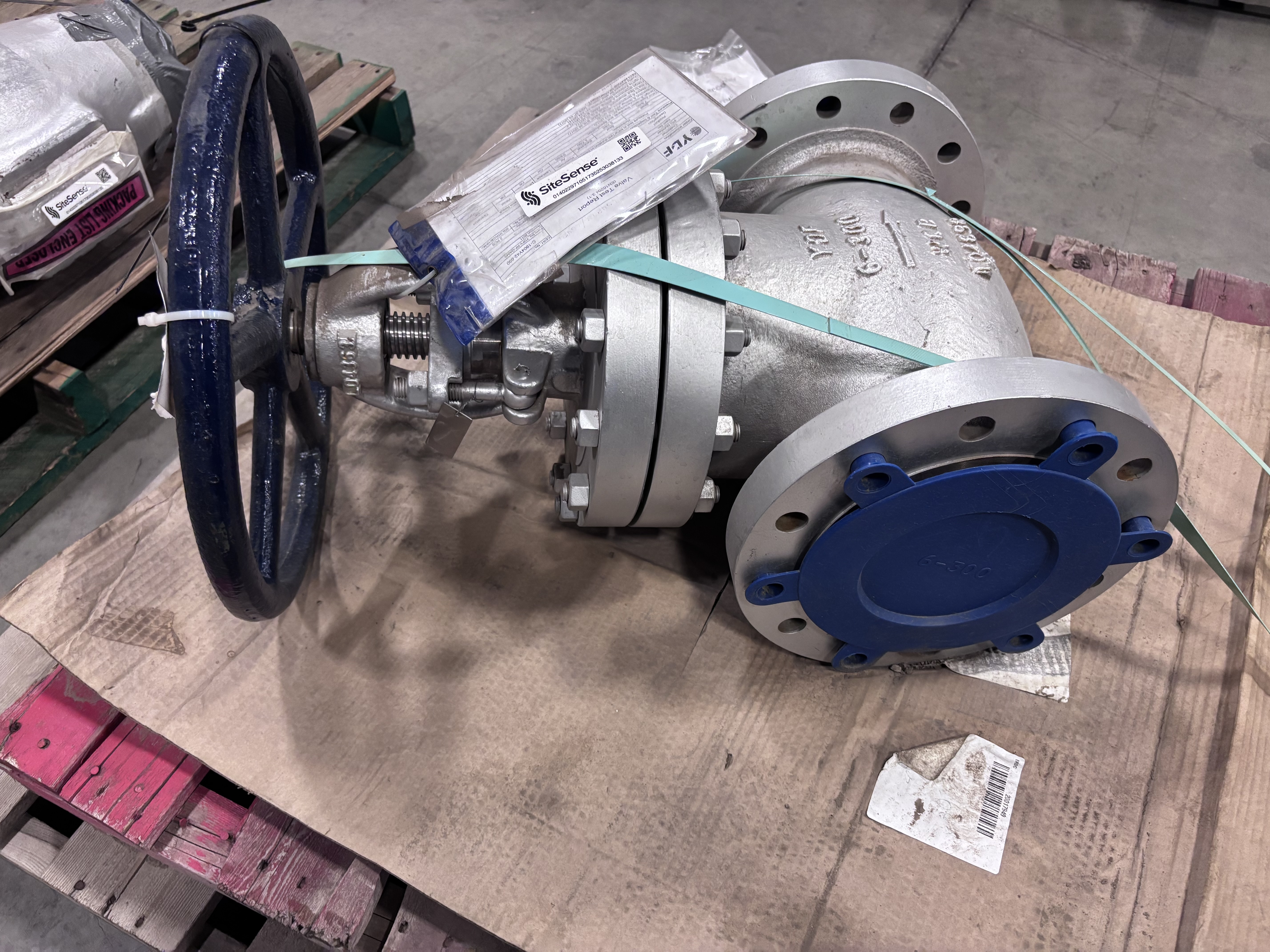

For sale is one YDF 6 in Class 300 WCB raised-face flanged globe valve with handwheel operation, visible bolted-bonnet construction, blue flange protection, documentation packet, metal return tag, factory nameplate, and YDF valve test report. The visible nameplate and test report identify the valve as a 6 in / 300LB globe valve, figure number 6GL3RWCB/16-NC, body material WCB, stem 316SS, disc HF, seat HF, and serial number YDF19100591.
Listing Summary
| Detail | Specification |
| Manufacturer | YDF / Jiangsu YDF Valve Co., Ltd. |
| Valve type | Globe valve |
| Quantity | 1 valve |
| Size | 6 in |
| Pressure class | Class 300 / 300LB |
| Body material | WCB cast carbon steel |
| End connection | RF / raised-face flanged |
| Operation | Handwheel operated |
| Construction | Bolted bonnet with visible yoke/stem assembly |
| Figure no. | 6GL3RWCB/16-NC |
| Nameplate figure no. | GL3R-WCB-16-NC |
| Serial no. | YDF19100591 |
| Body identifier / heat no. | L04898 |
| Bonnet identifier / heat no. | L04363 |
| Disc identifier / heat no. | TX17-04321 |
| Stem material | 316SS |
| Disc material | HF / hard faced |
| Seat material | HF / hard faced |
| Trim | Trim 16, per visible report description |
| Nameplate date | 06/2019 |
| MOP shown | 51.1 bar @ 38°C |
| Temperature range shown | -29°C to 425°C |

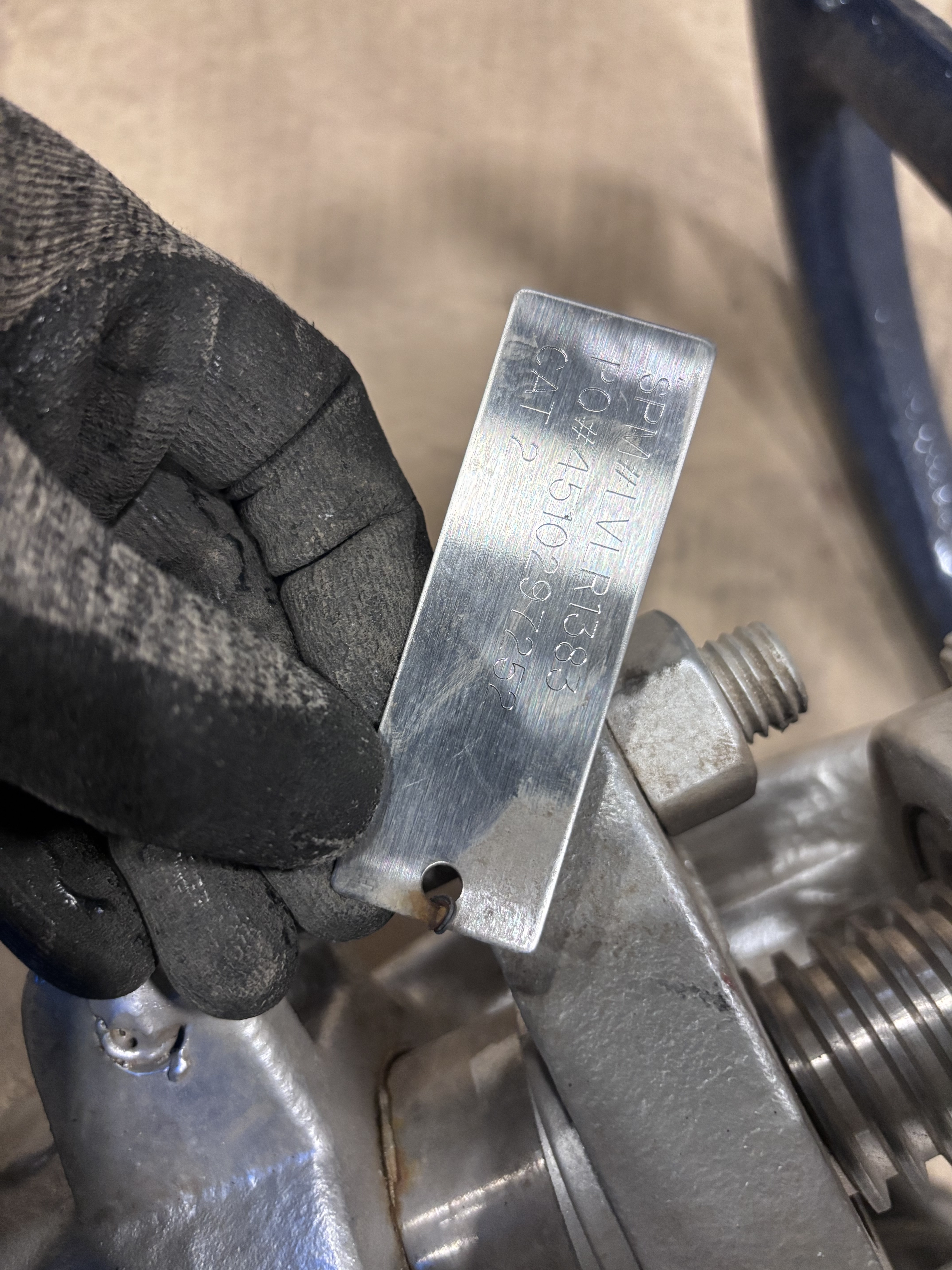

| Seller / return tag | SPM# LVLR1383 |
| Category marking | CAT 2 |

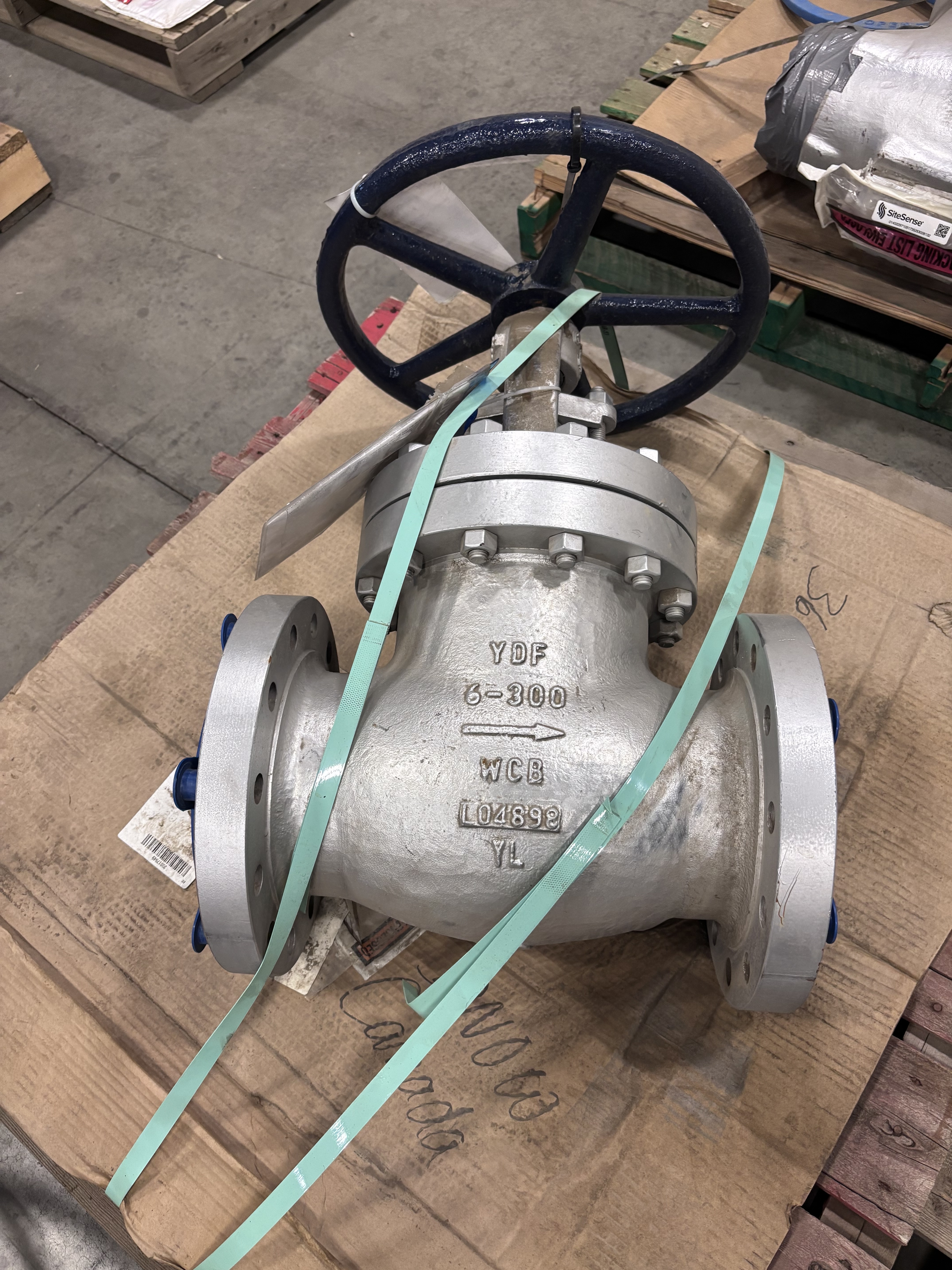

| Visible body casting | YDF; 6-300; WCB; L04898; YL |
