SKF Explorer 23144 CC/C3W33 Spherical Roller Bearings - QTY 2
SKF Explorer 23144 CC/C3W33 Spherical Roller Bearings — 2-Unit Lot
Description

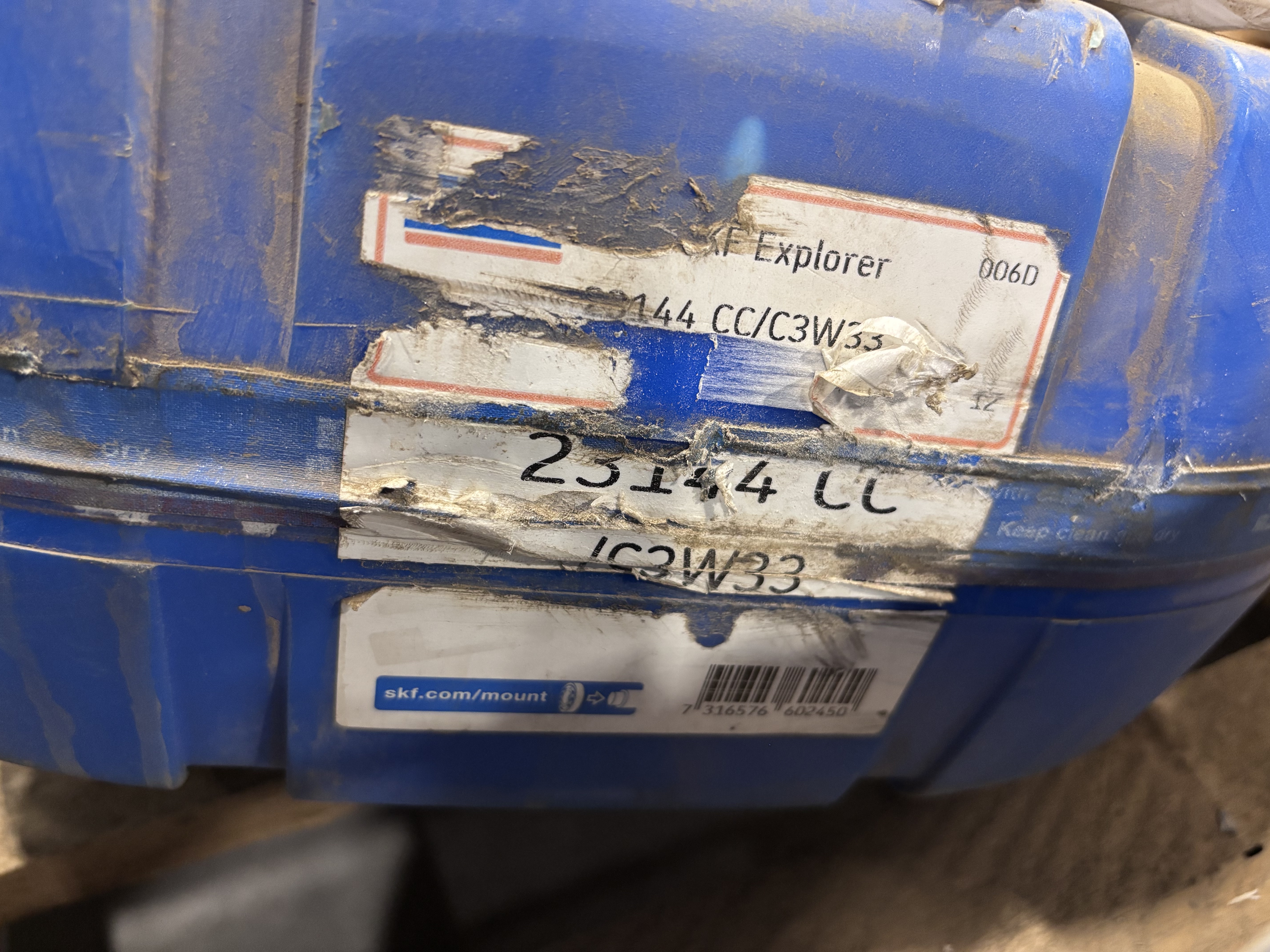

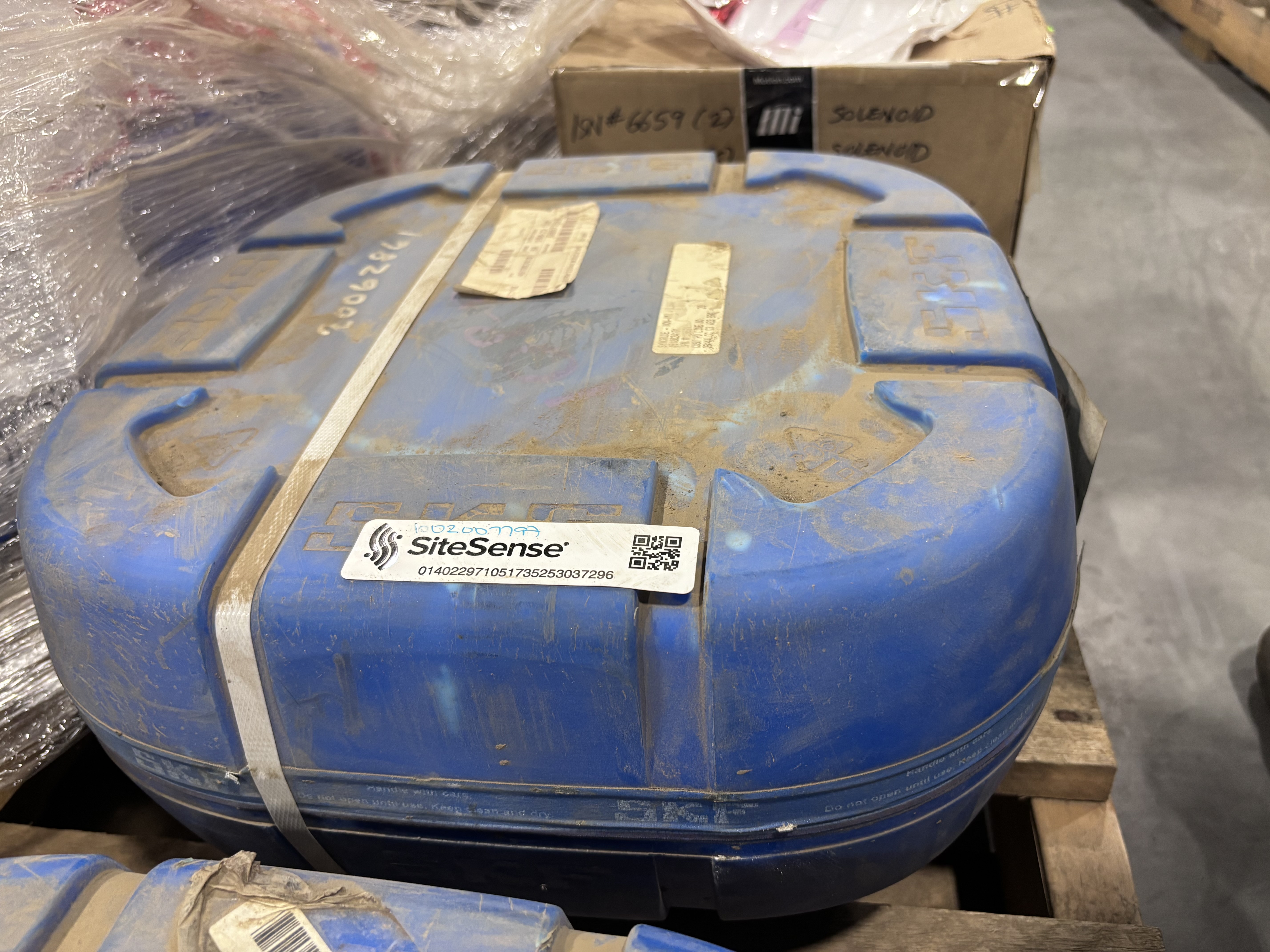

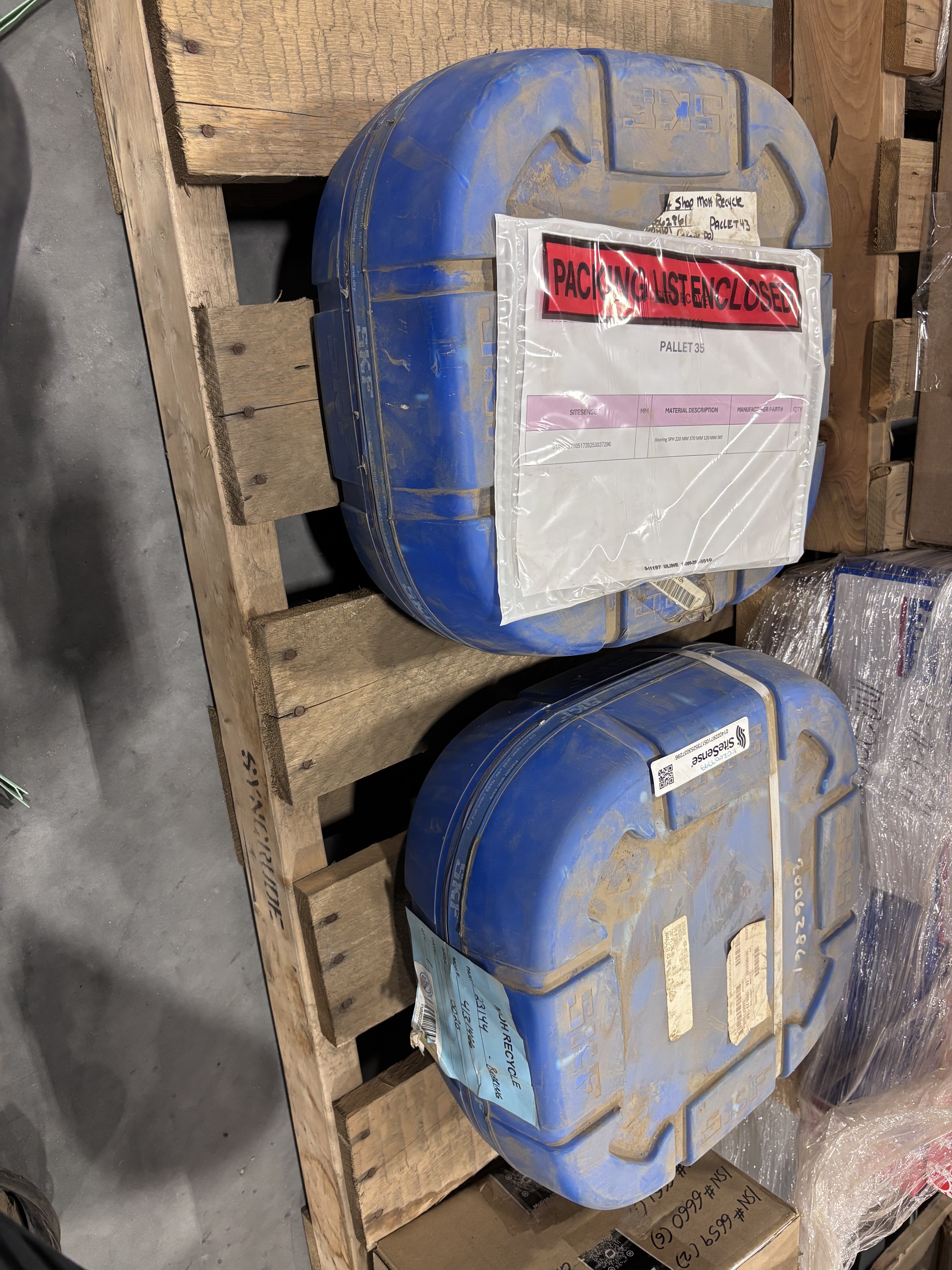

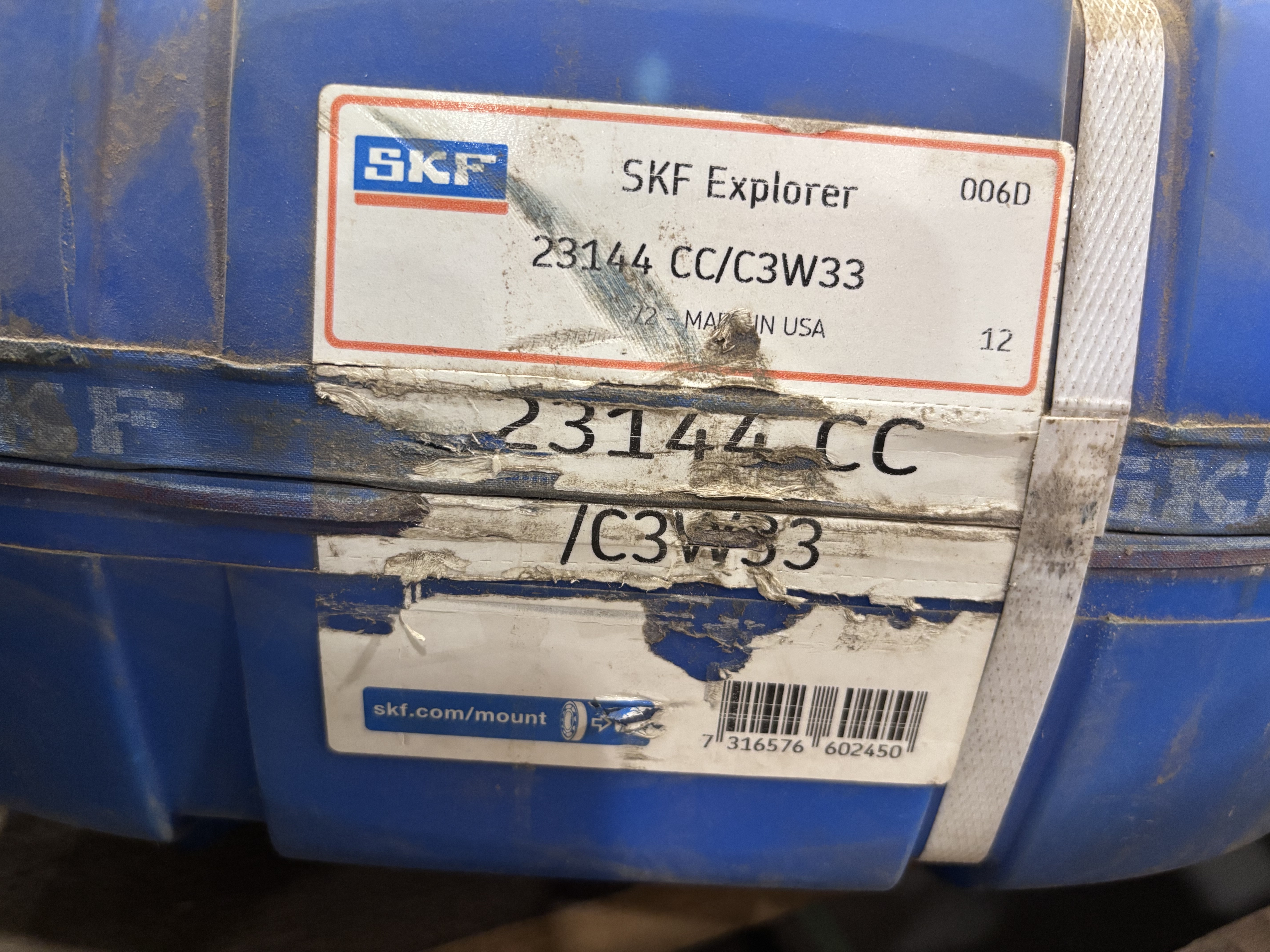

This offering is for two matching SKF Explorer 23144 CC/C3W33 spherical roller bearings, supplied in separate blue SKF hard cases. SKF identifies this designation as a double-row spherical roller bearing with a cylindrical bore, C3 radial internal clearance, steel cage, and relubrication features.

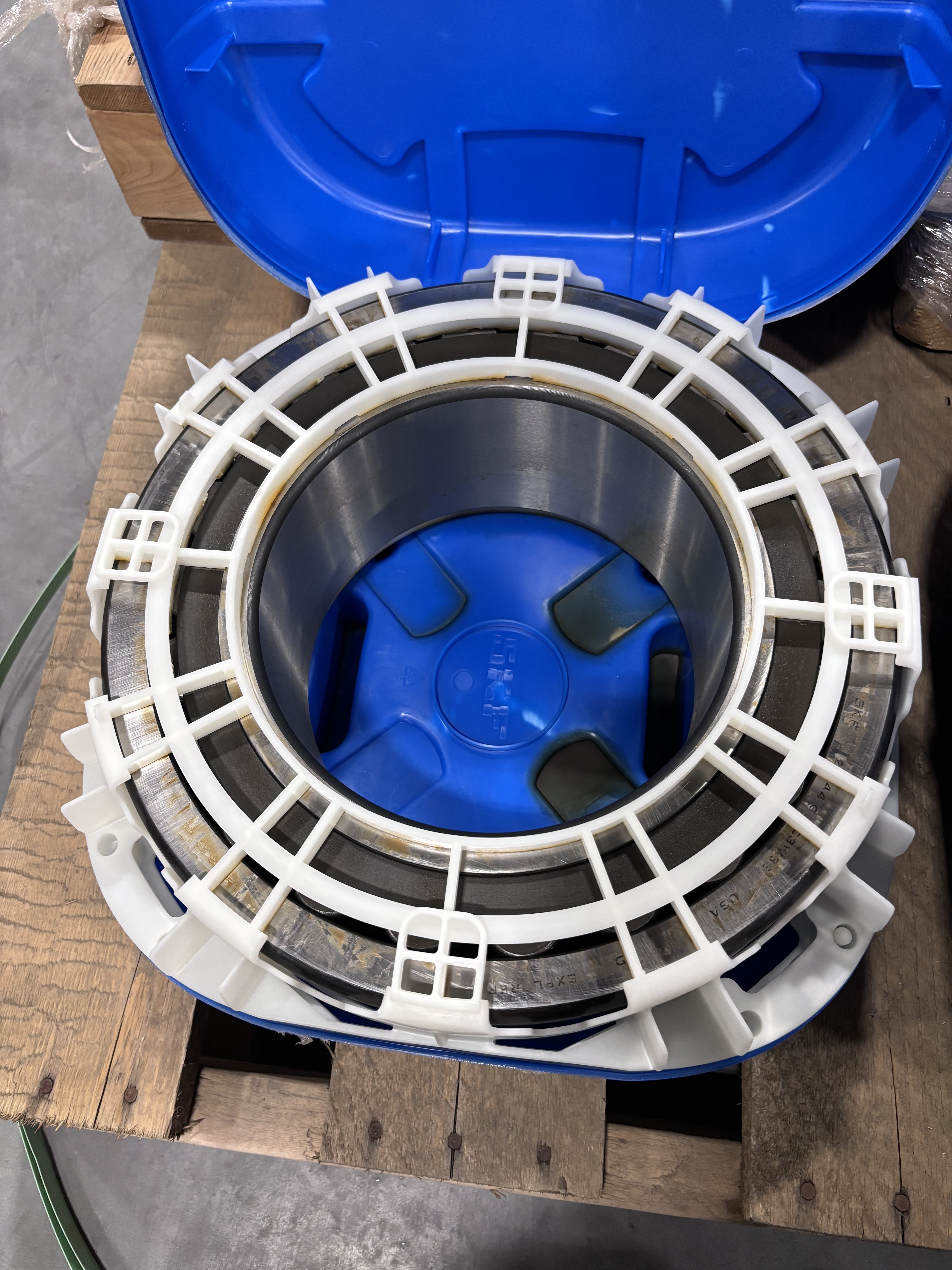

One bearing has been visually checked without removing it from its protective carrier. The accessible visible surfaces appear clean, and no obvious installation damage is evident from that limited inspection. The other case is closed and has not been opened; its contents are represented only by the matching external SKF identification label. The unopened case should remain closed until buyer inspection unless the purchaser requests otherwise.
Published Technical Reference Data
| Specification | Published detail for SKF 23144 CC/C3W33 |
| Bearing series / configuration | 23144 CC/C3W33 spherical roller bearing |
| Rows | 2 |
| Bore diameter (d) | 220 mm / 8.6614 in. |
| Outside diameter (D) | 370 mm / 14.5669 in. |
| Width (B) | 120 mm / 4.7244 in. |
| Cylindrical bore | Yes |
| Radial internal clearance | C3 |
| Cage | Sheet metal |
| Relubrication | Included |
| Basic dynamic load rating | 424,439 lbf |
| Basic static load rating | 618,225 lbf |
| Reference speed | 1,300 r/min |
| Limiting speed | 1,700 r/min |
| Sealing | None; open-bearing configuration |
Published technical data is provided solely as a reference for the stated SKF designation. Buyer must confirm the complete designation, current SKF catalogue data, C3 clearance requirement, mounting arrangement, load/speed calculation, lubrication plan, storage condition, and service suitability before purchase or installation.
