Consolidated 1916-00D-2-N1MS-32 1.5 in. 2,100 psig Pressure Safety Valve
Listing Summary

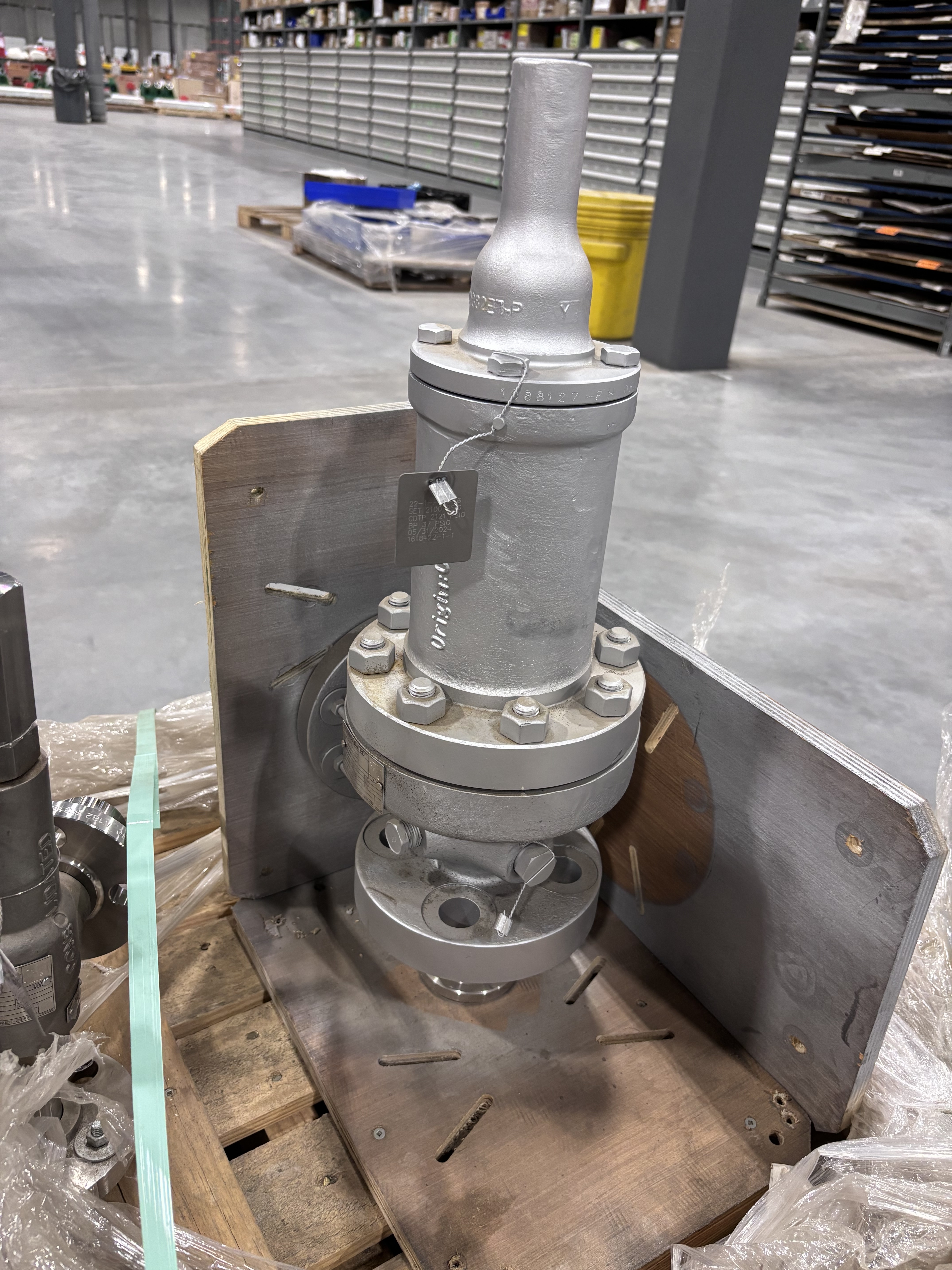

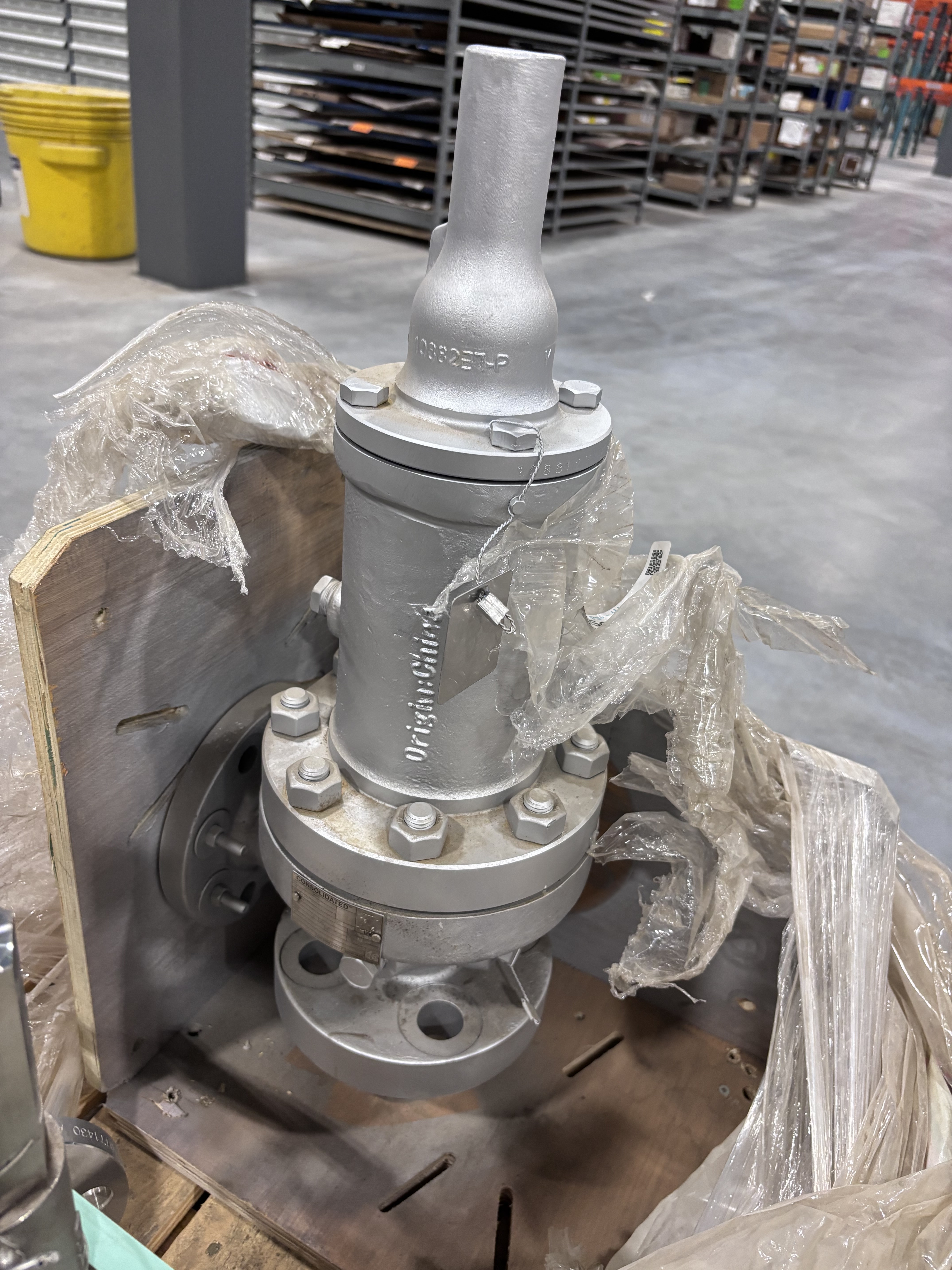

Available is one Consolidated Type 1916 pressure safety valve (PSV), configured for liquid service and supplied in the protective wood cradle shown. The physical nameplate identifies the valve as Type 1916-00D-2-N1MS-32, with a 2,100 psig set pressure, 2,121 psig cold differential test pressure (CDTP), and 155 GPM nameplate capacity.
| Field | Verified detail |
| Manufacturer / brand | Consolidated |
| Valve type | Pressure safety valve / safety relief valve |
| Model / type | 1916-00D-2-N1MS-32 |
| Quantity | 1 valve |
| Nameplate size | 1.5 in. |
| Media | Liquid, as marked on nameplate |
| Set pressure | 2,100 psig / approximately 144.8 barg |
| CDTP | 2,121 psig / approximately 146.2 barg |
| Back pressure | 37 psig / approximately 2.55 barg |
| Lift | 0.056 in., as marked |
| Nameplate capacity | 155 GPM / approximately 586.7 L/min |
| Serial number | D-24-001997 |
| Canadian Registration Number | 0G5530.5CL, as marked |
| Nameplate conformity marks | NB logo, UV marking, and “ASME Cert No. 14399” are visible on the nameplate |
| Standard configuration reference | A Consolidated Type 1916 D-orifice valve is catalogued with a 1.5 in. ASME Class 1500 inlet and 2 in. ASME Class 300 outlet. This is a configuration reference only; buyer must verify the actual connections. |
| Published bare-weight reference | Approximately 95 lb / 43.1 kg for the catalogued Type 1916 D-orifice configuration; final scale weight required. |
Description
This is a spring-loaded Consolidated Type 1916 pressure safety valve. Baker Hughes identifies the Consolidated Type 1900 family as safety relief valves configured for gas, liquid, and steam service across a range of certified construction options. The supplied unit is specifically marked LIQUID on its nameplate.

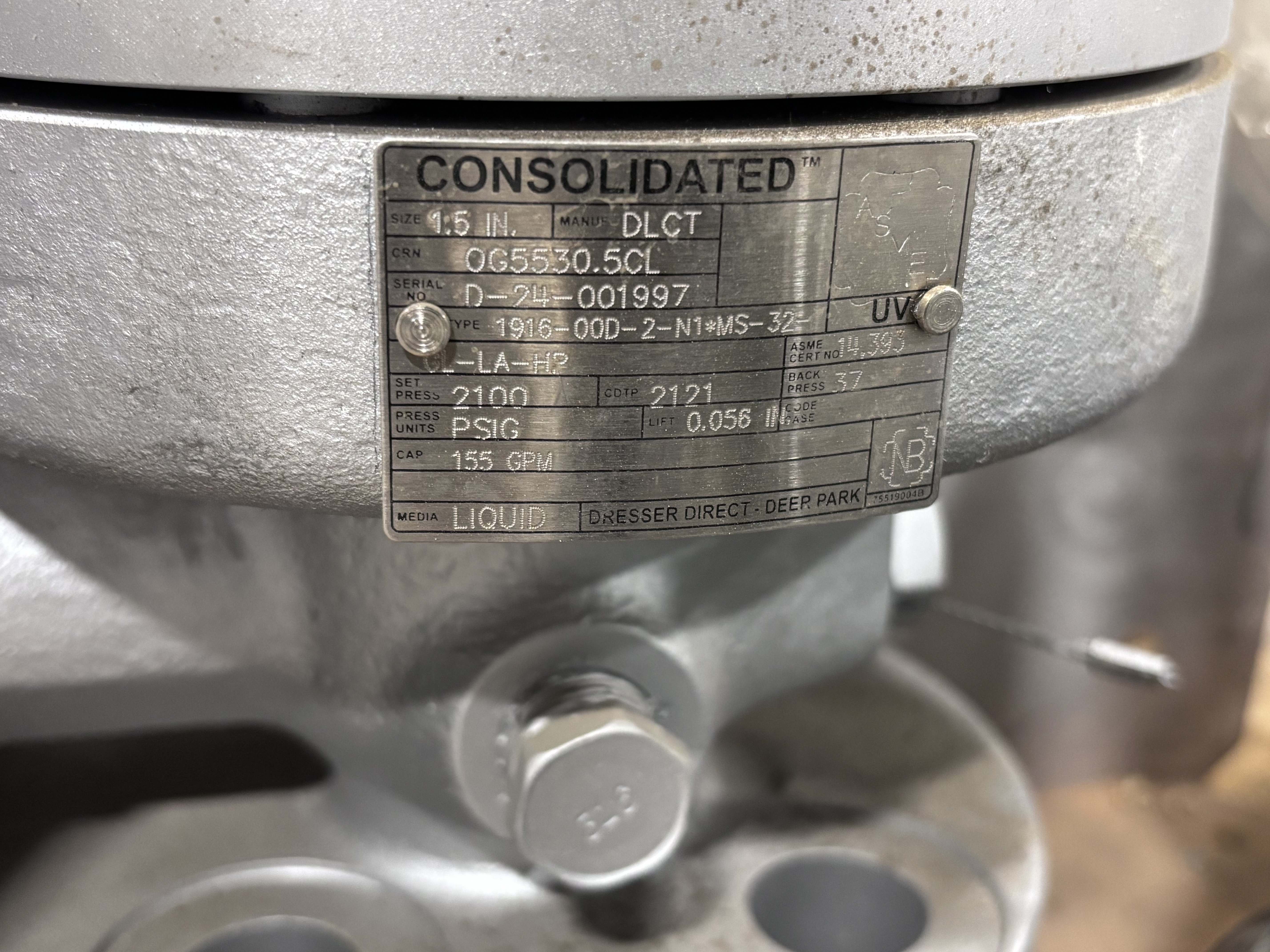

The nameplate identifies Type 1916-00D-2-N1MS-32, serial number D-24-001997, and the set-pressure, CDTP, back-pressure, lift, and capacity values recorded above. The physical valve is retained in a purpose-built wood cradle. Its coating, protective cradle, and general appearance support a new/unused surplus presentation, but do not establish current operational integrity or certification.
