15 hp Elektrim 20NFM-3-20-12 Electric Driver
Listing ID:
IH-68010
Description
Elektrim 15 HP TEFC Motor
Notes:
Description

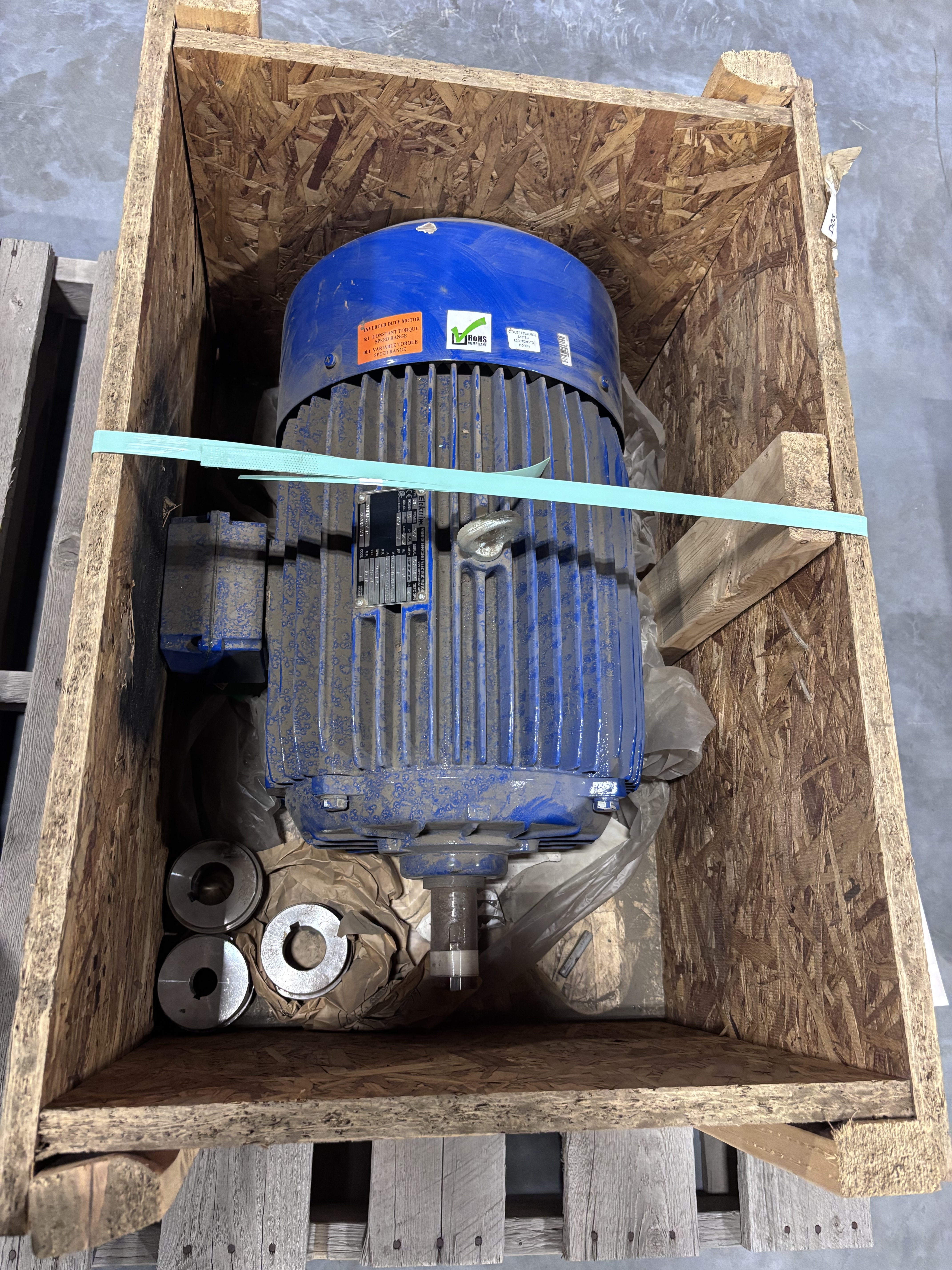

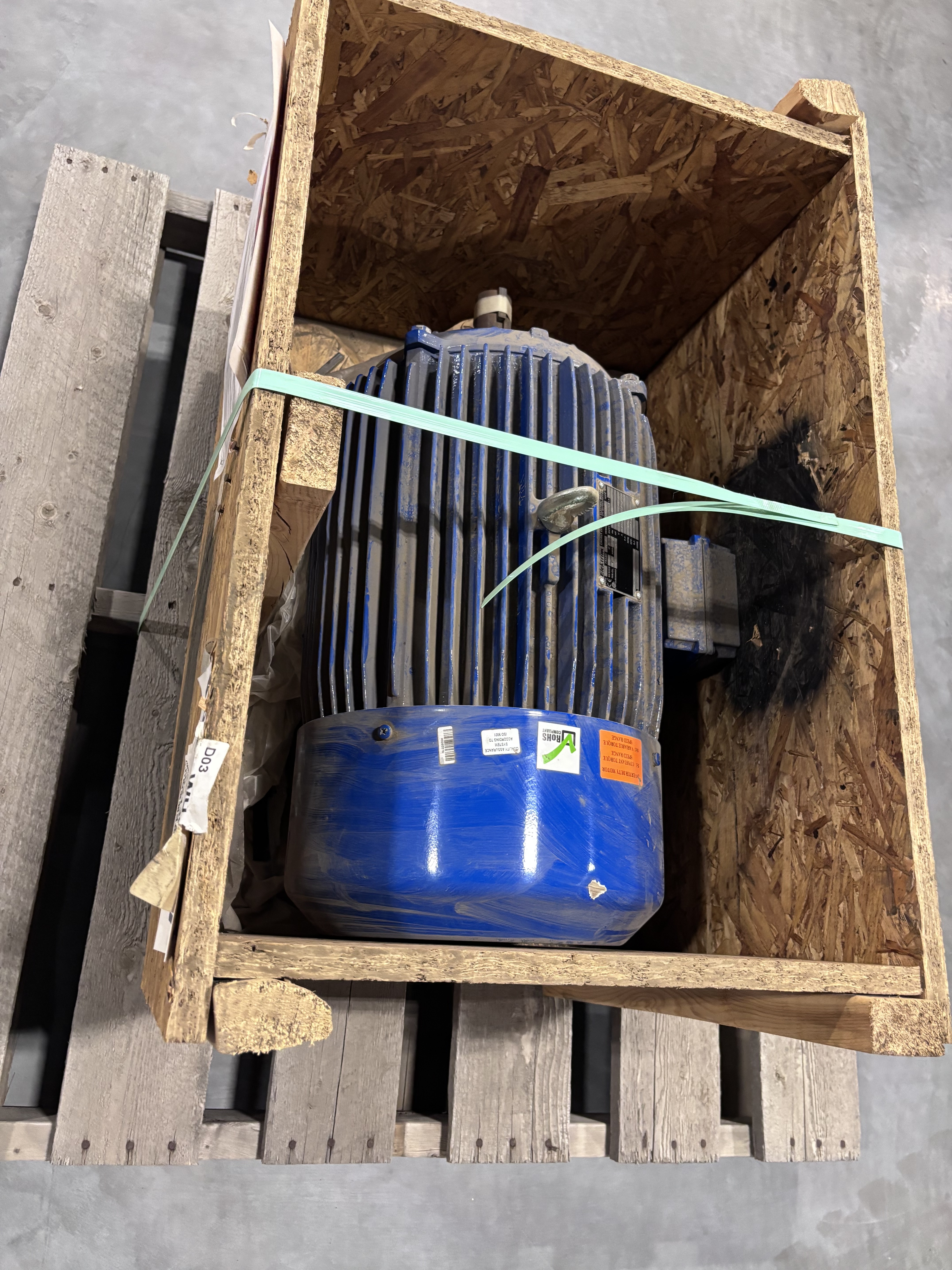

The motor is a 15 HP, three-phase, TEFC industrial motor with VPI impregnation, IP55 protection, Class F insulation, and continuous-duty rating. The nameplate provides both 50 Hz and 60 Hz voltage/speed configurations, as detailed below. The motor shaft and assembly remain protected in the crate.

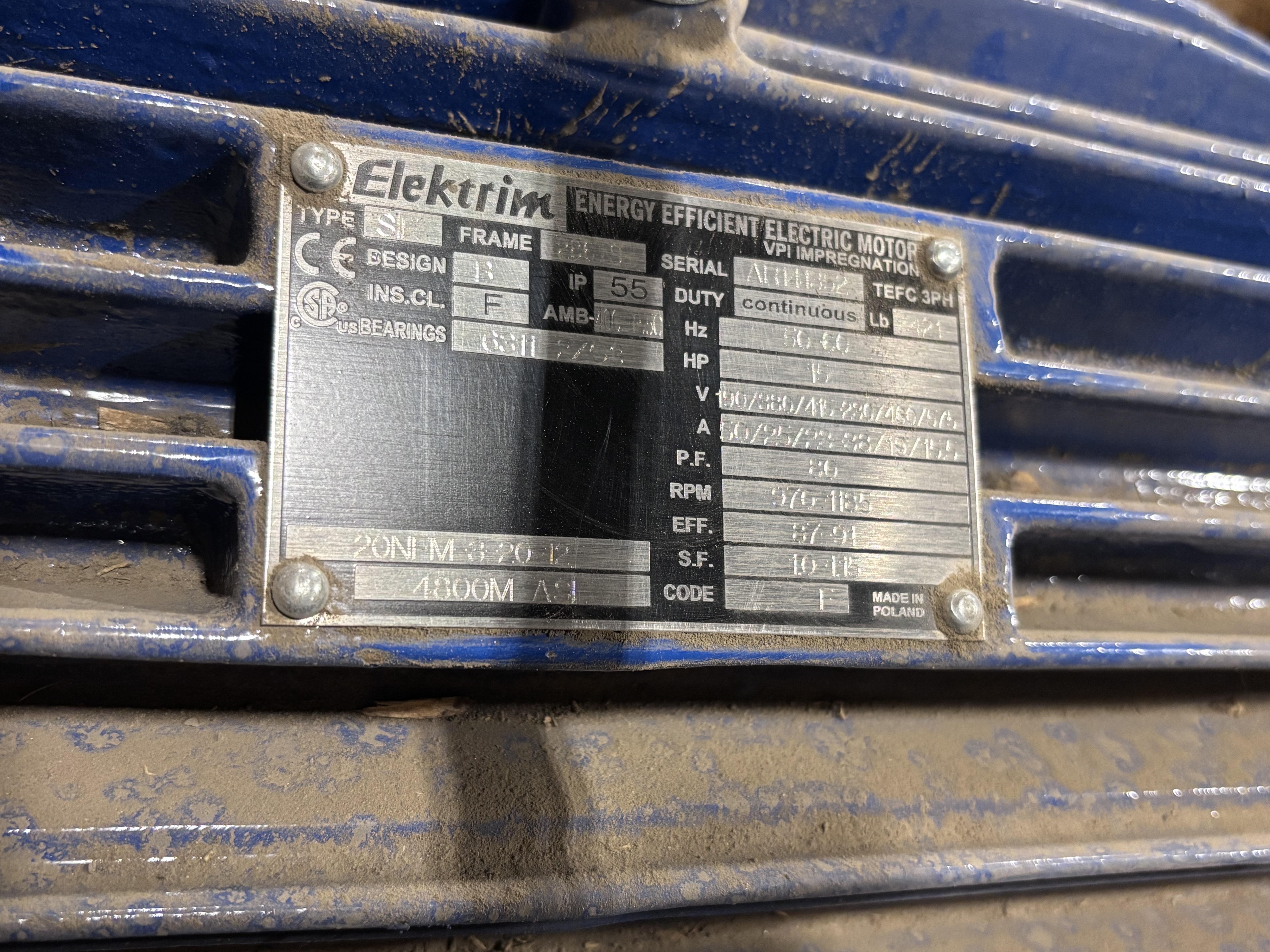

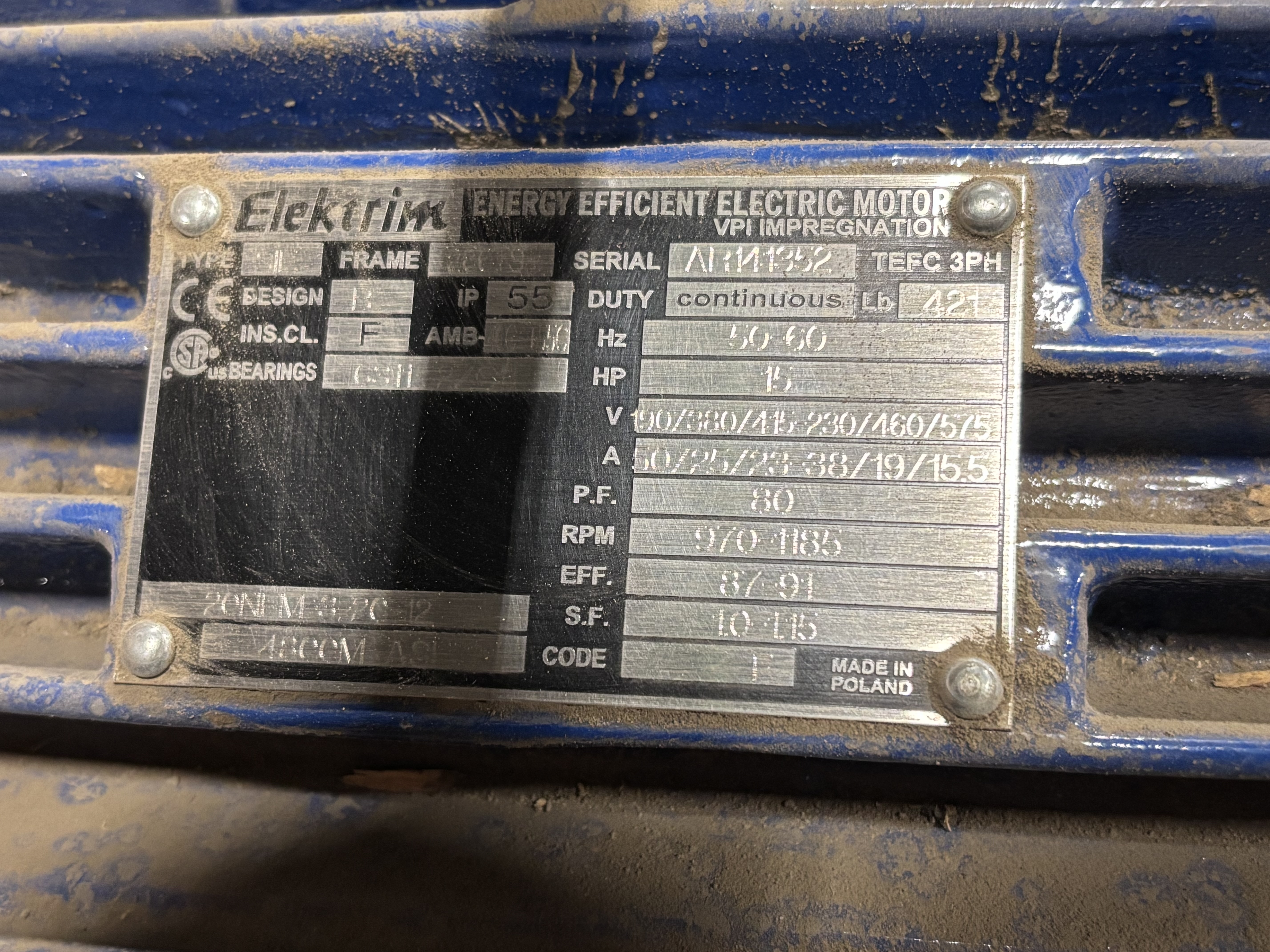

Verified Motor Nameplate Data
| Specification | Details |
| Manufacturer | Elektrim |
| Output | 15 HP |
| Electrical system | Three-phase AC |
| Enclosure | TEFC |
| Ingress protection | IP55 |
| Frequency | 50 / 60 Hz |
| Rated speed | 970 RPM at 50 Hz / 1185 RPM at 60 Hz |
| Voltage | 190 / 380 / 415 V at 50 Hz; 230 / 460 / 575 V at 60 Hz |
| Duty | Continuous |
| Insulation class | F |
| Efficiency | 87.91% nameplate value |
| Service factor | 1.0 / 1.15 nameplate value |
| Motor weight | 421 lb nameplate value |
