92.8 hp Coppus Engineering Corporation PL-22L Steam Turbine Driver
Listing ID:
IH-67739
Description

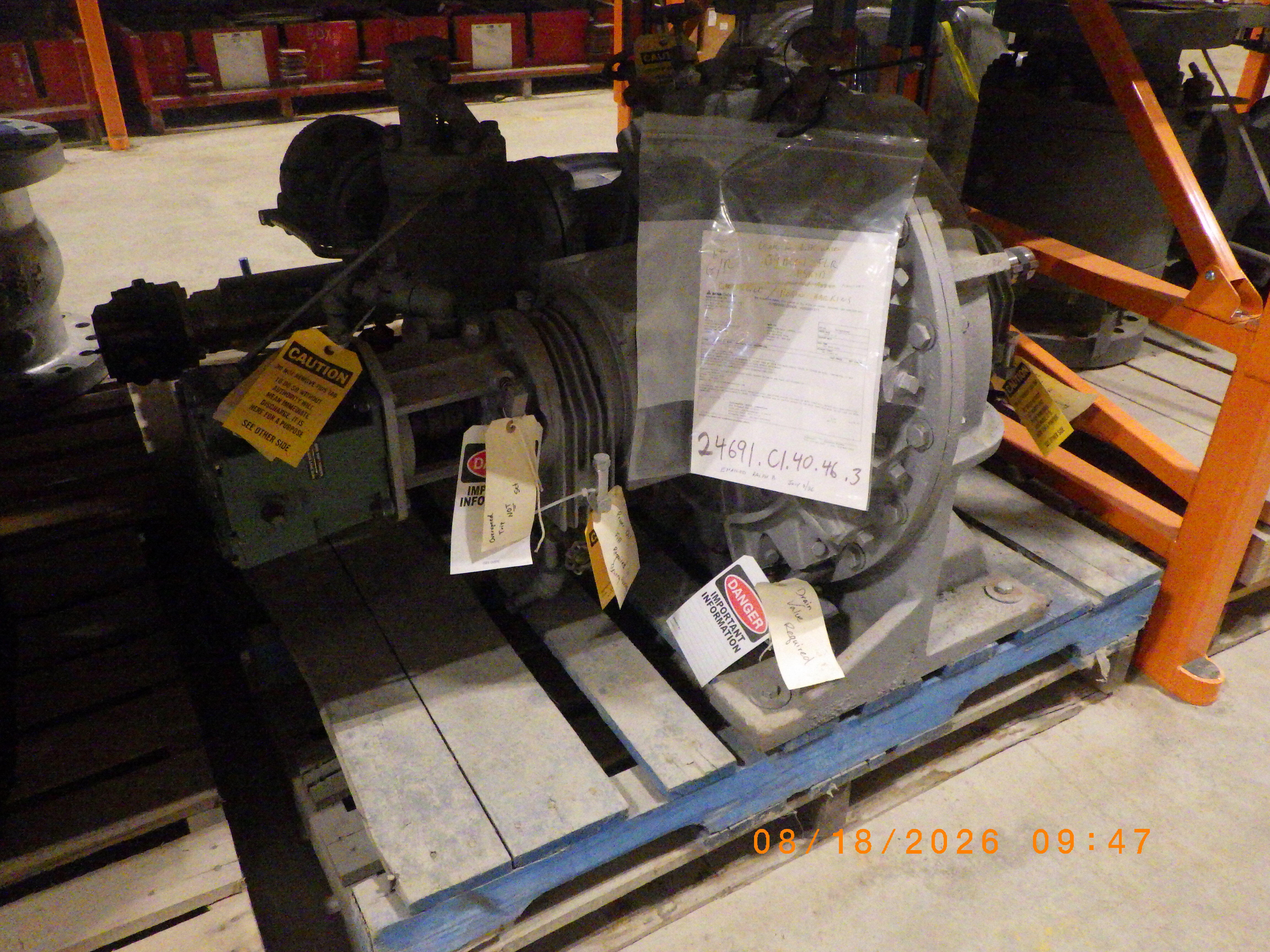

Coppus Turbine PL-22L
Notes:
Coppus PL-22L single-stage industrial steam turbine, engineered by the Coppus Engineering Corporation. This rugged prime mover is rated for 92.8 HP at a continuous operating speed of 3,500 RPM

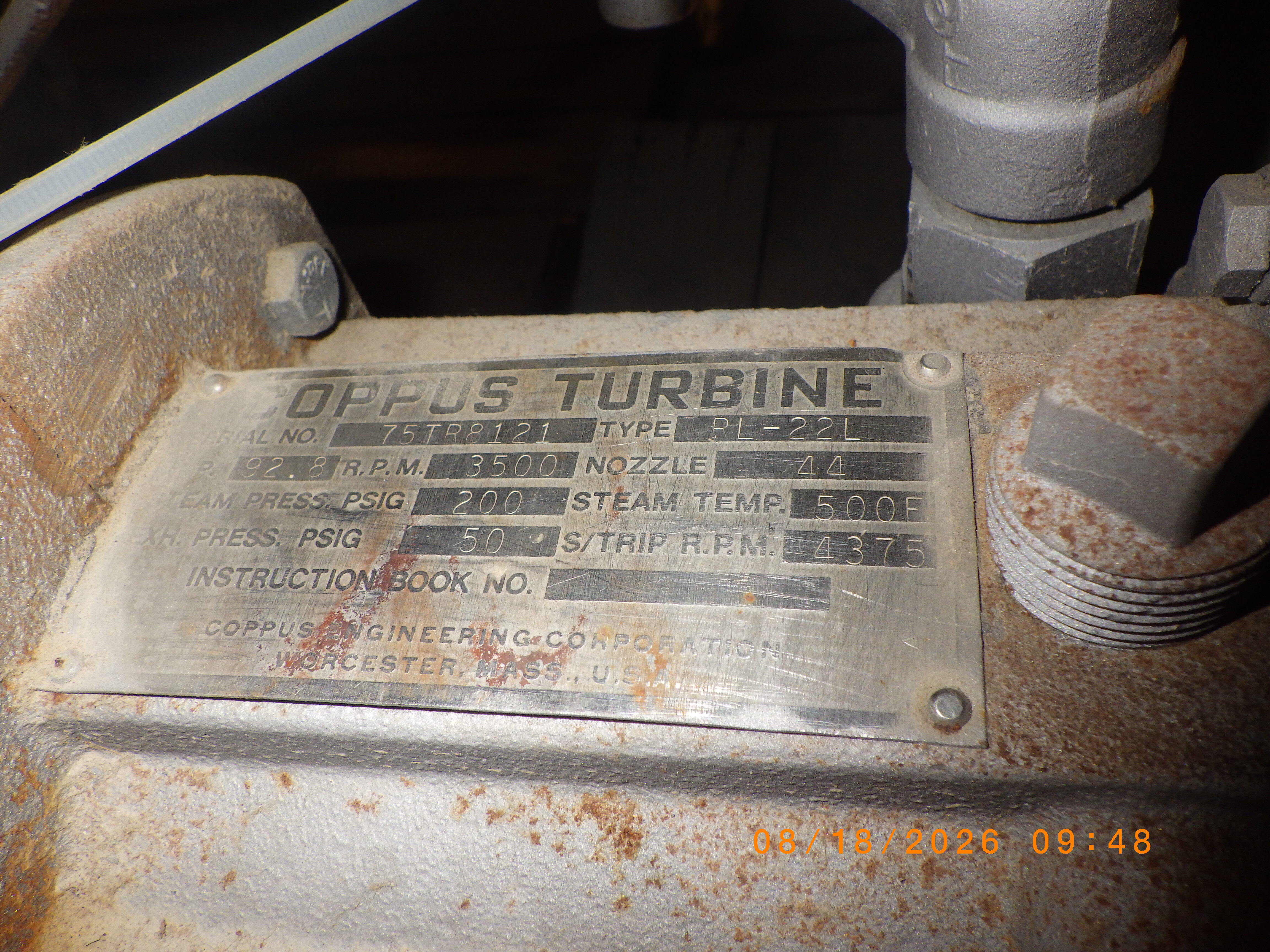

Technical Specifications
- Manufacturer: Coppus Engineering Corporation (Worcester, Mass., U.S.A.)
- Equipment Type: Mechanical Drive Steam Turbine
- Model/Type: PL-22L
- Serial Number: 75TR8121
- Power Output (H.P.): 92.8 HP
- Operating Speed: 3,500 RPM
- Overspeed Safety Trip (S/TRIP R.P.M.): 4,375 RPM
- Inlet Steam Pressure (STEAM PRESS. PSIG): 200 PSIG
- Inlet Steam Temperature (STEAM TEMP.): 500°F
- Exhaust Steam Pressure (EXH. PRESS. PSIG): 50 PSIG
- Nozzle Size/Configuration: 4.4
Tag #:
75TR8121
