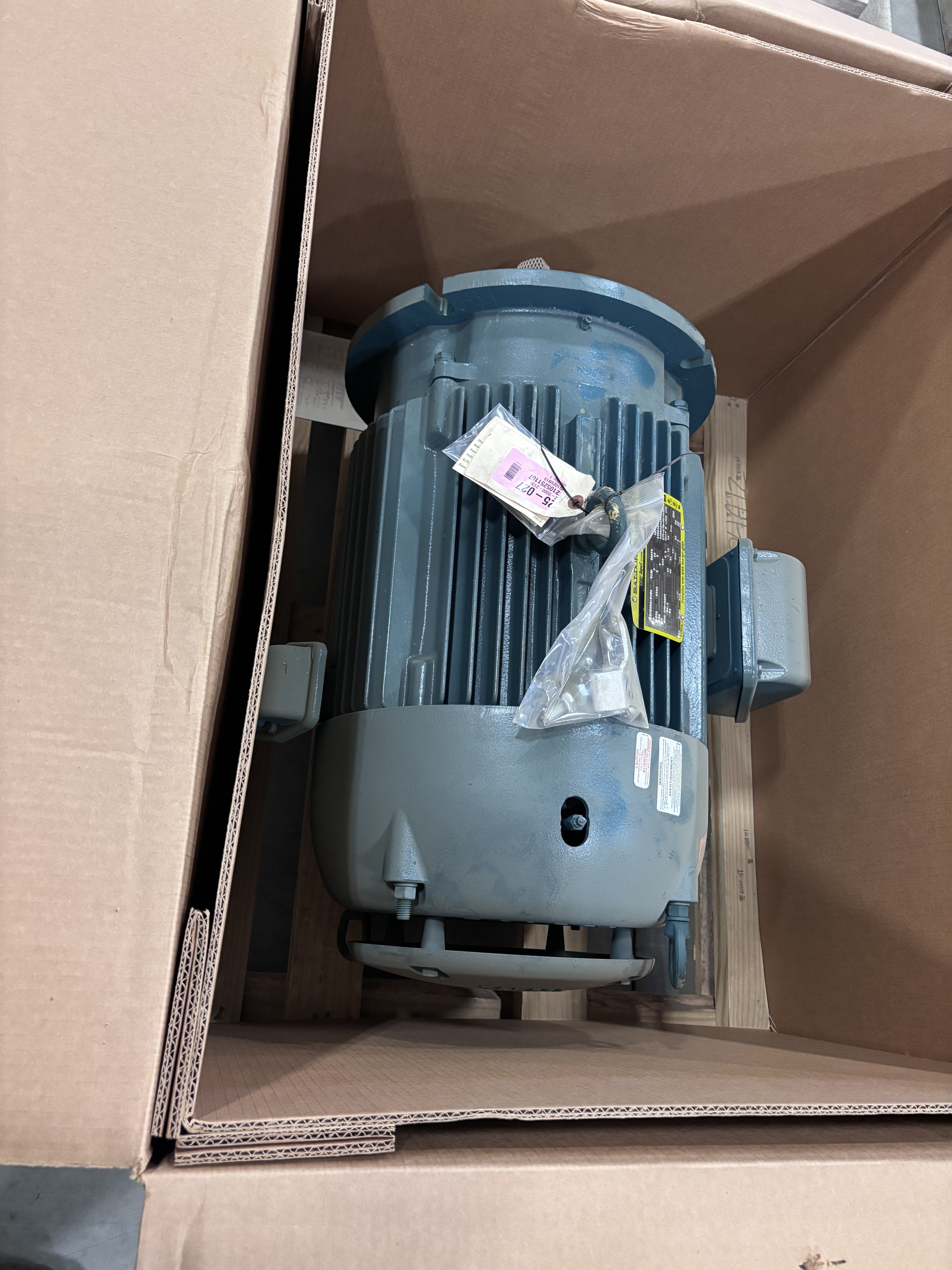

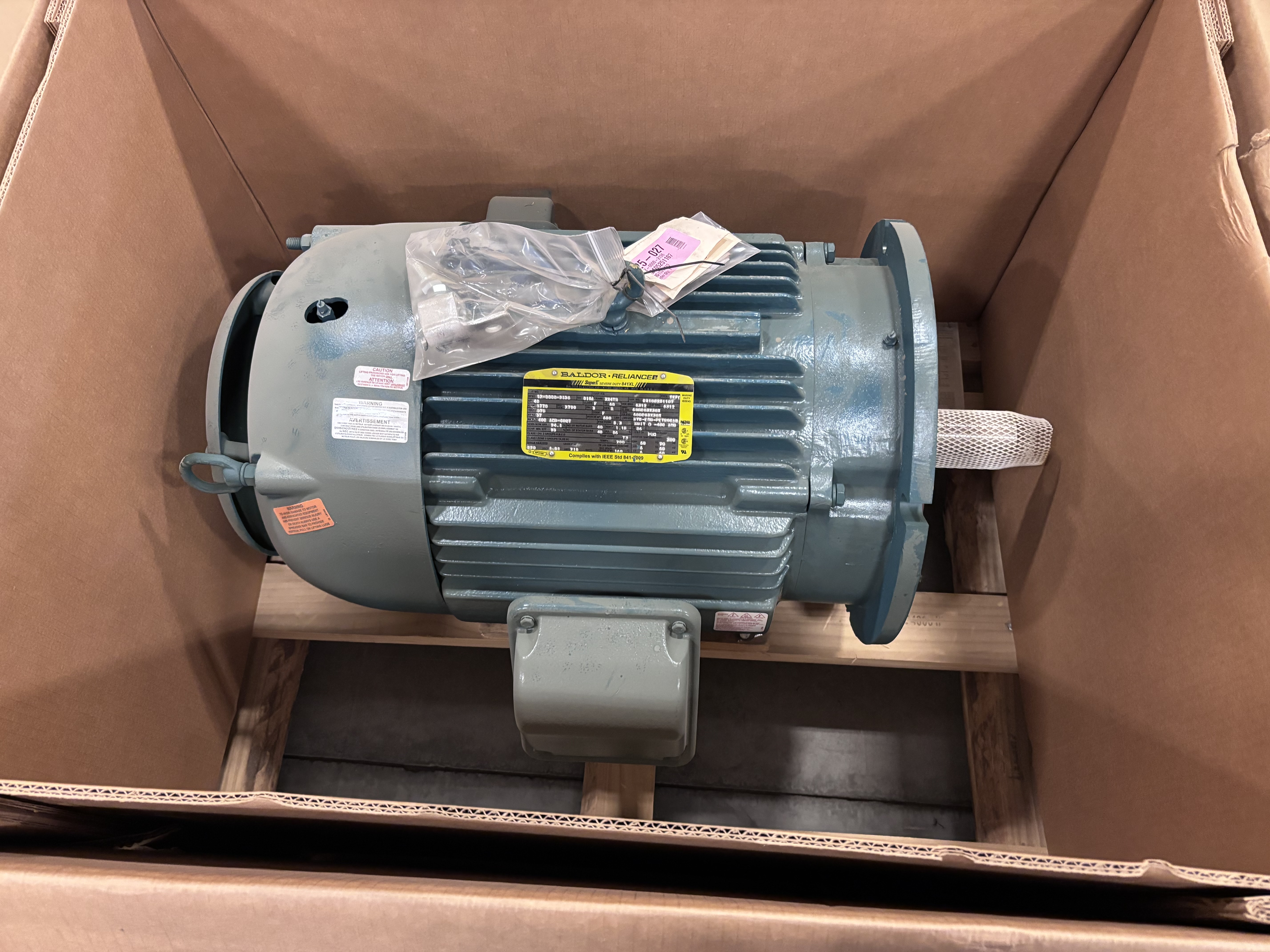

Baldor-Reliance Super-E Severe Duty 841XL — 40 HP | 575V | 1770 RPM | Frame 324TD C-Face | Class I Div 2 | IEEE 841 | VFD Duty | S/N C2105251107

Key Differentiators

IEEE 841-2009 ComplianceFull compliance with IEEE Std 841-2009 — the definitive severe duty standard. This is not a marketing designation; it is a documented engineering standard with specific requirements for enclosure integrity, corrosion protection, bearing design, and quality verification.

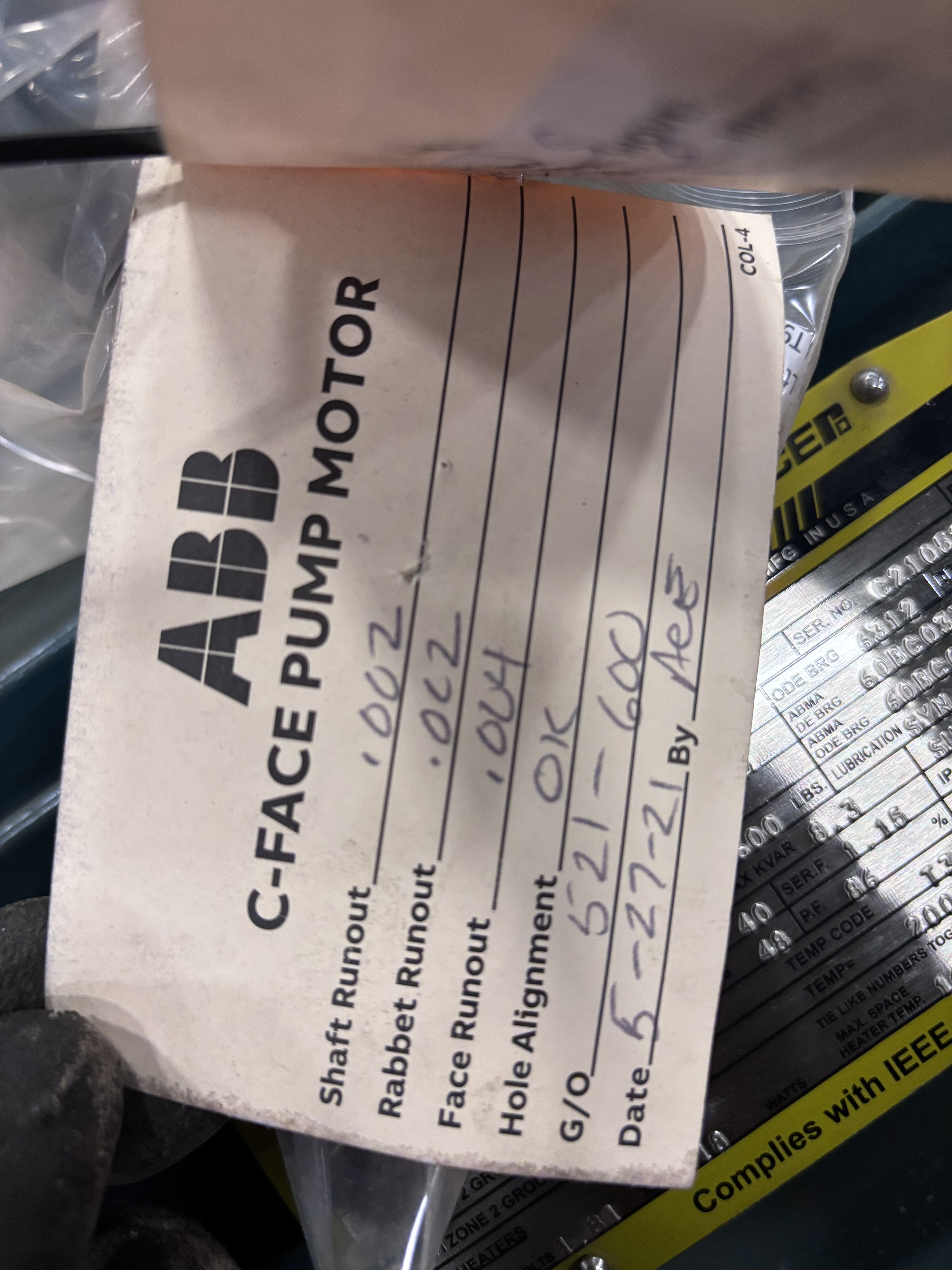

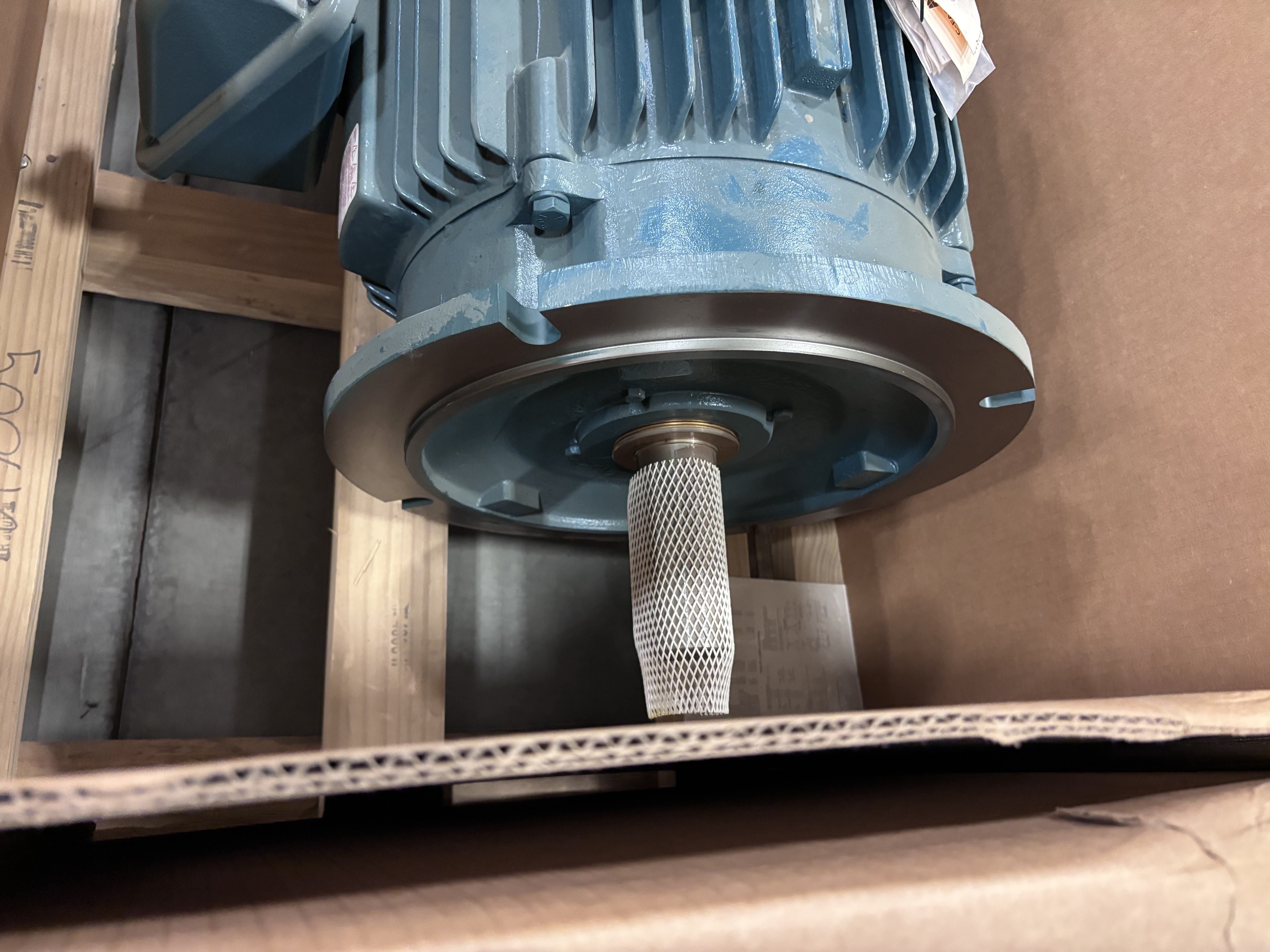

C-Face / Pump Motor Configuration (Frame 324TD)The 324TD frame designation indicates a C-Face (flanged) end with foot mounting — the standard configuration for direct-coupled pump drives. The ABB-certified runout tag confirms the C-Face dimensions were verified to pump coupling tolerances before delivery.

Class I, Division 2 and Zone 2 Hazardous Location CertifiedCertified for Class I Div 2 Groups A, B, C, D and Class I Zone 2 Groups IIA, IIB, IIC — suitable for installation in hazardous areas where flammable gases or vapours may be present under abnormal conditions.

Full VFD / Inverter Duty (PWM)Rated for PWM inverter duty across the full speed range: CHP 60–90 Hz, CT 6–60 Hz, VT 6–60 Hz. Inverter temperature code: 200°C.

Cold Weather Rated to -45°C AmbientSuitable for operation down to -45°C ambient — essential for Alberta and northern Canadian installations.

Marine Duty — IEEE 45Additional Marine Duty certification to IEEE 45 standard.

Made in USAManufactured at Baldor Electric's Ft. Smith, Arkansas facility.

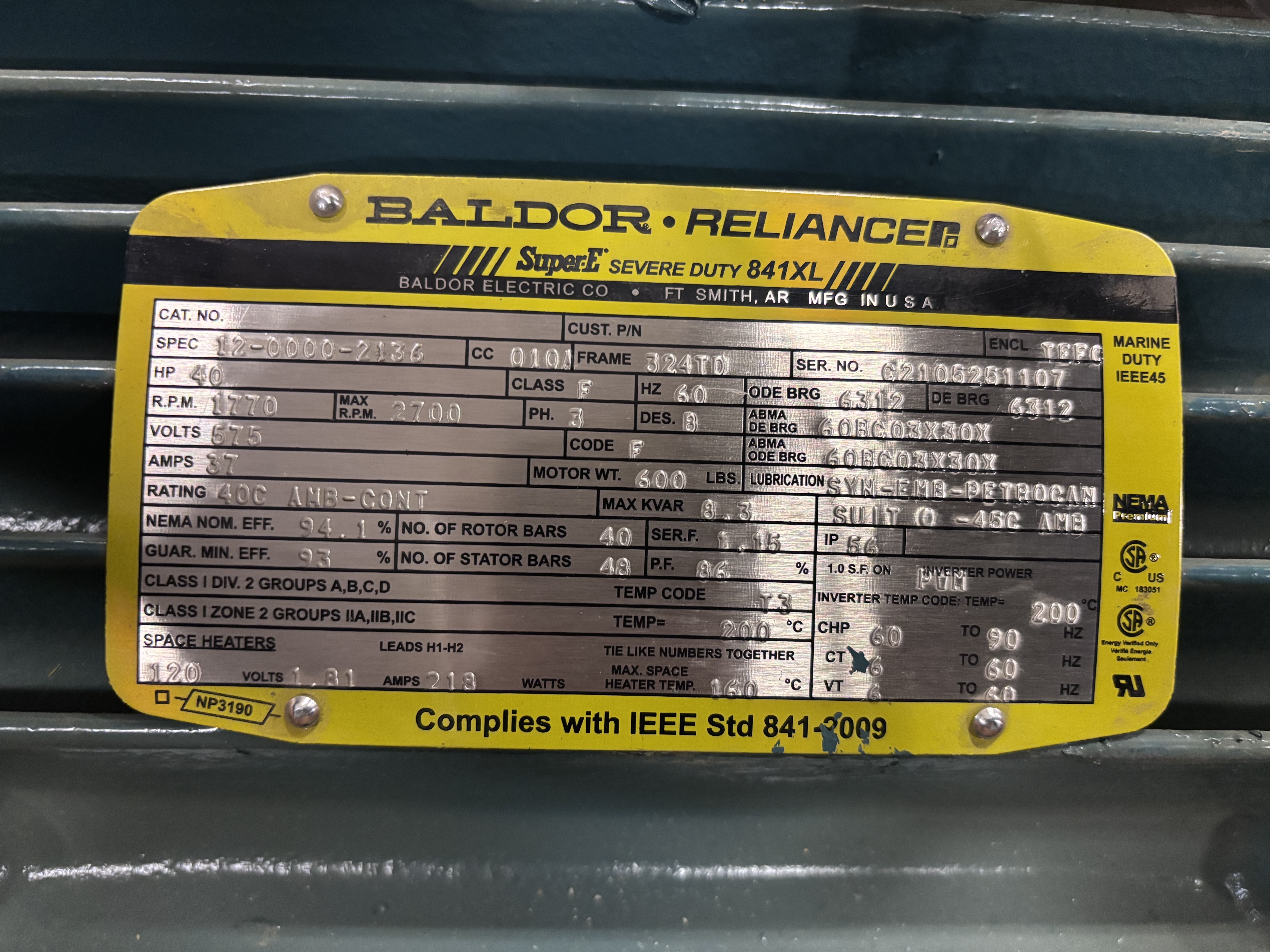

Full Nameplate Specifications
