42 SCFM 125 psig Instrument Air Package

Make an Inquiry

Contact us

#3000
207 9th Ave SW
Calgary, AB
T2P 1K3
587-783-8393
[email protected]

Listing ID: IH-67275

Description

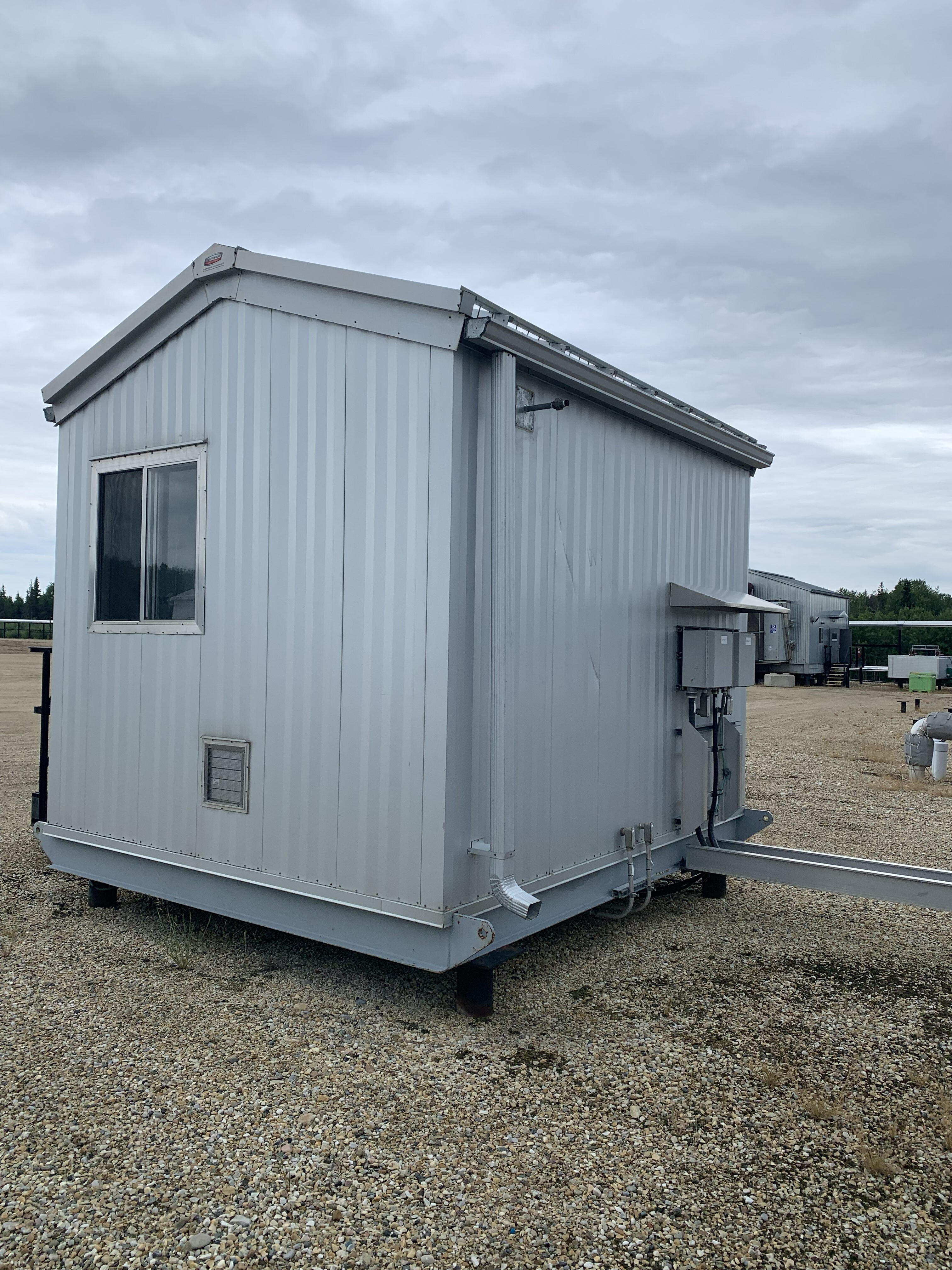

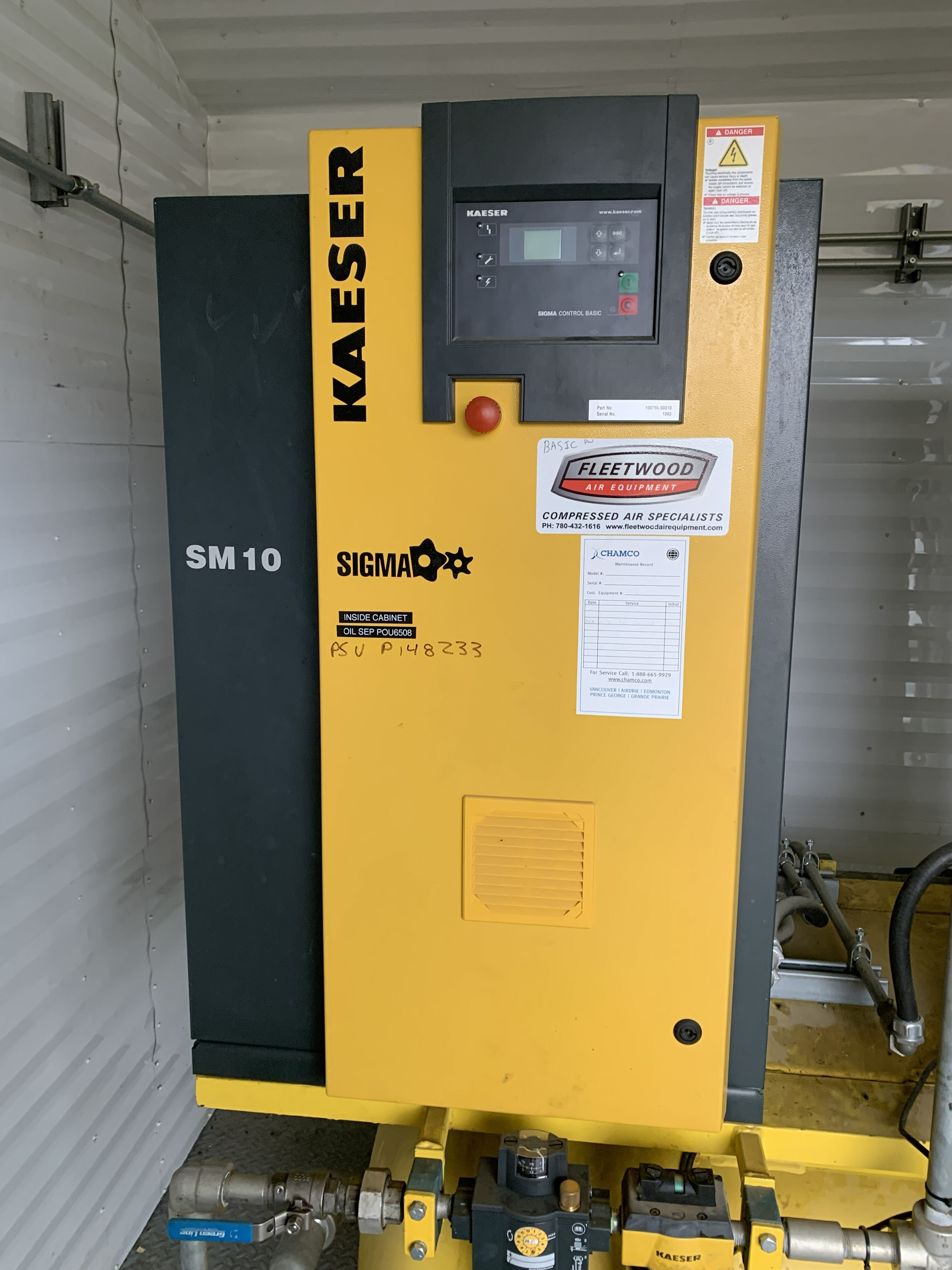

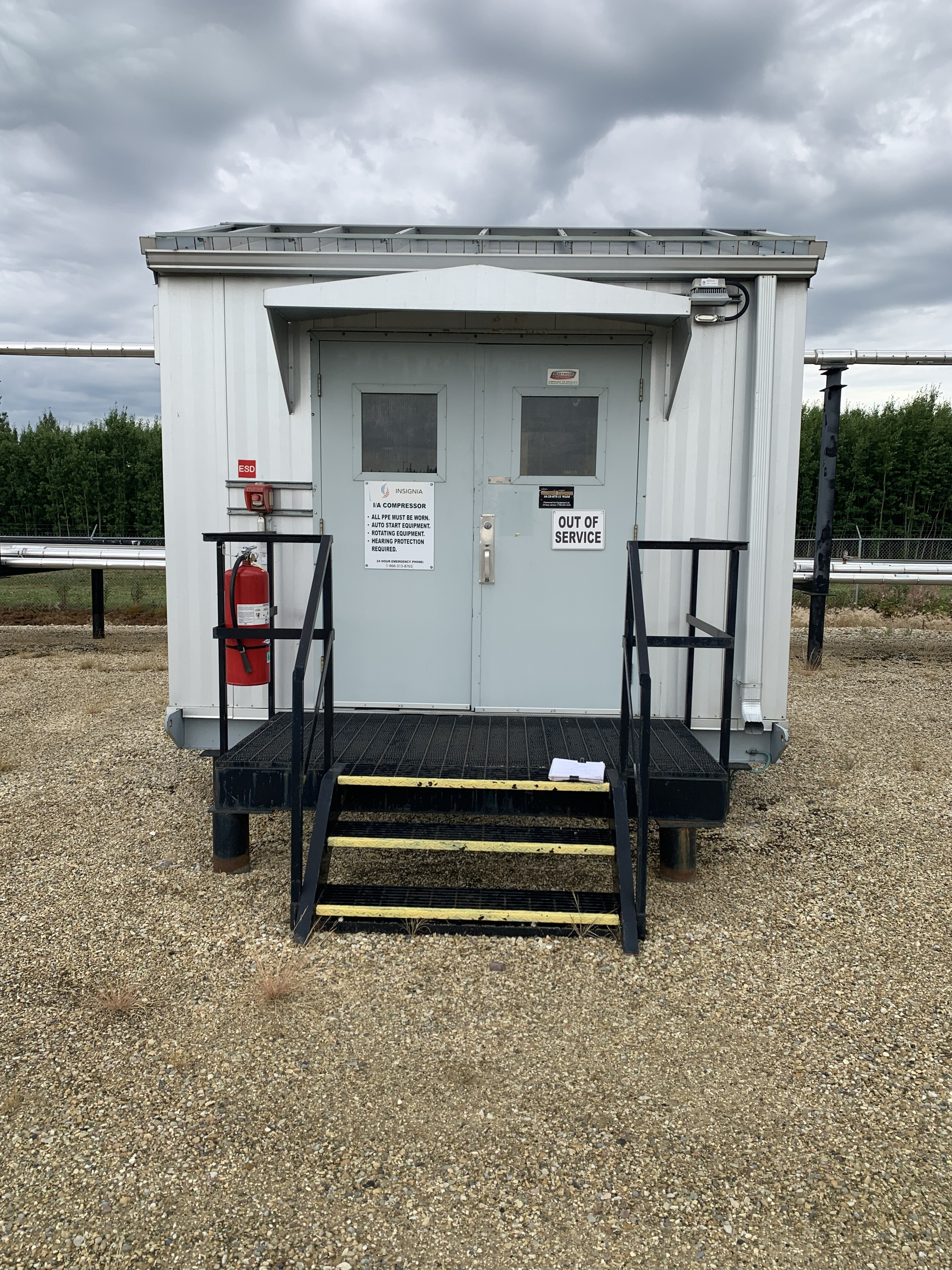

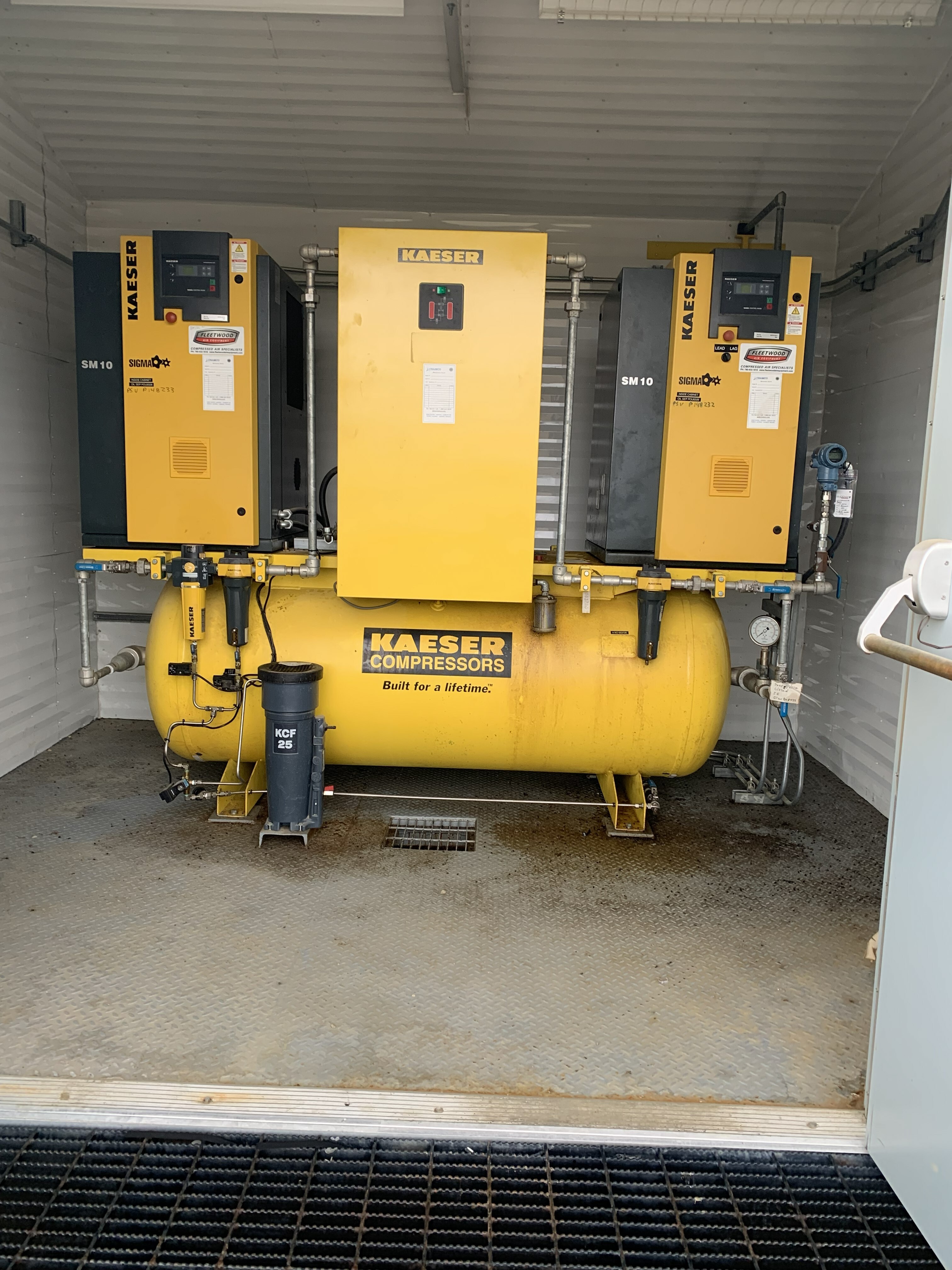

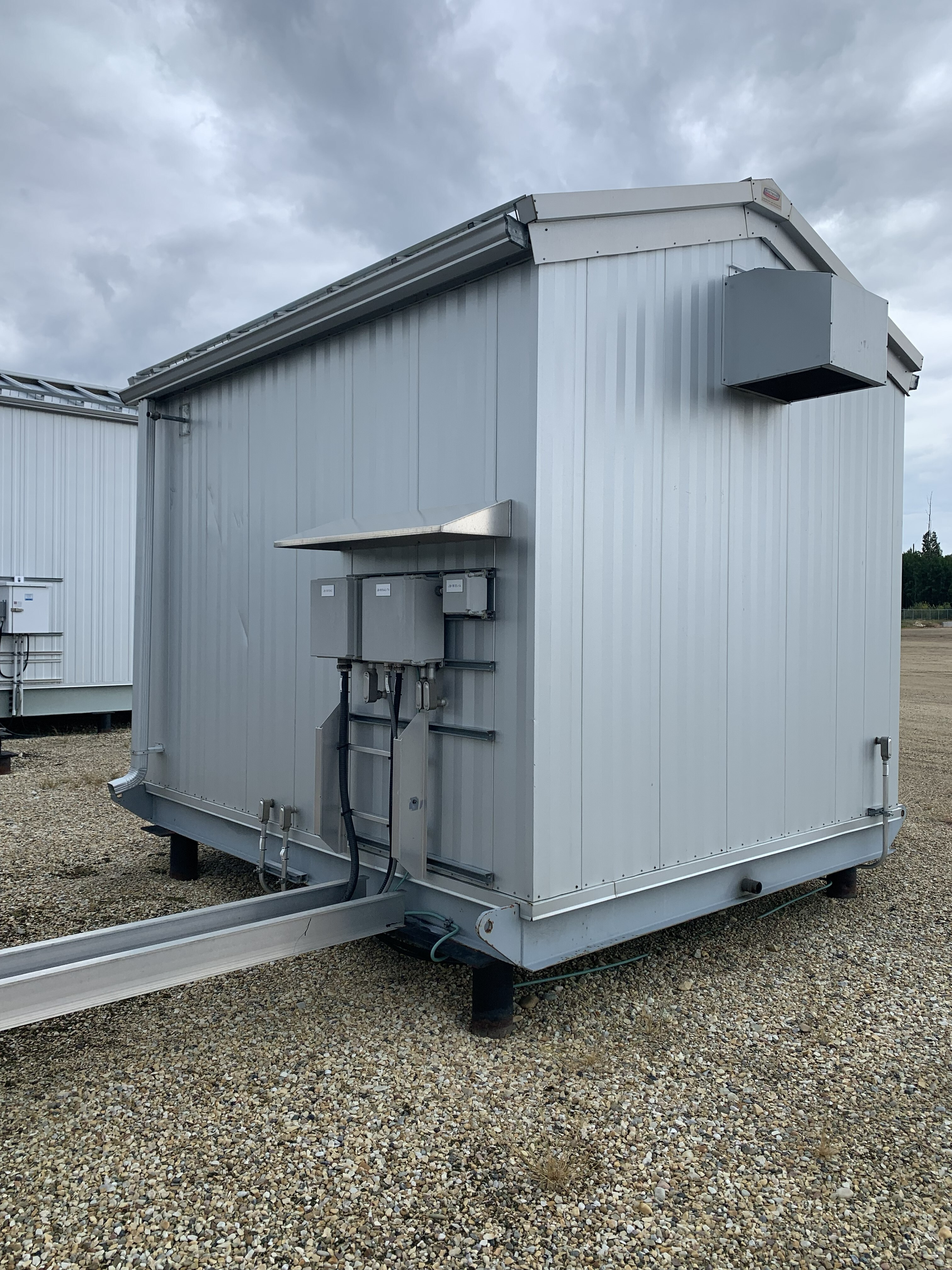

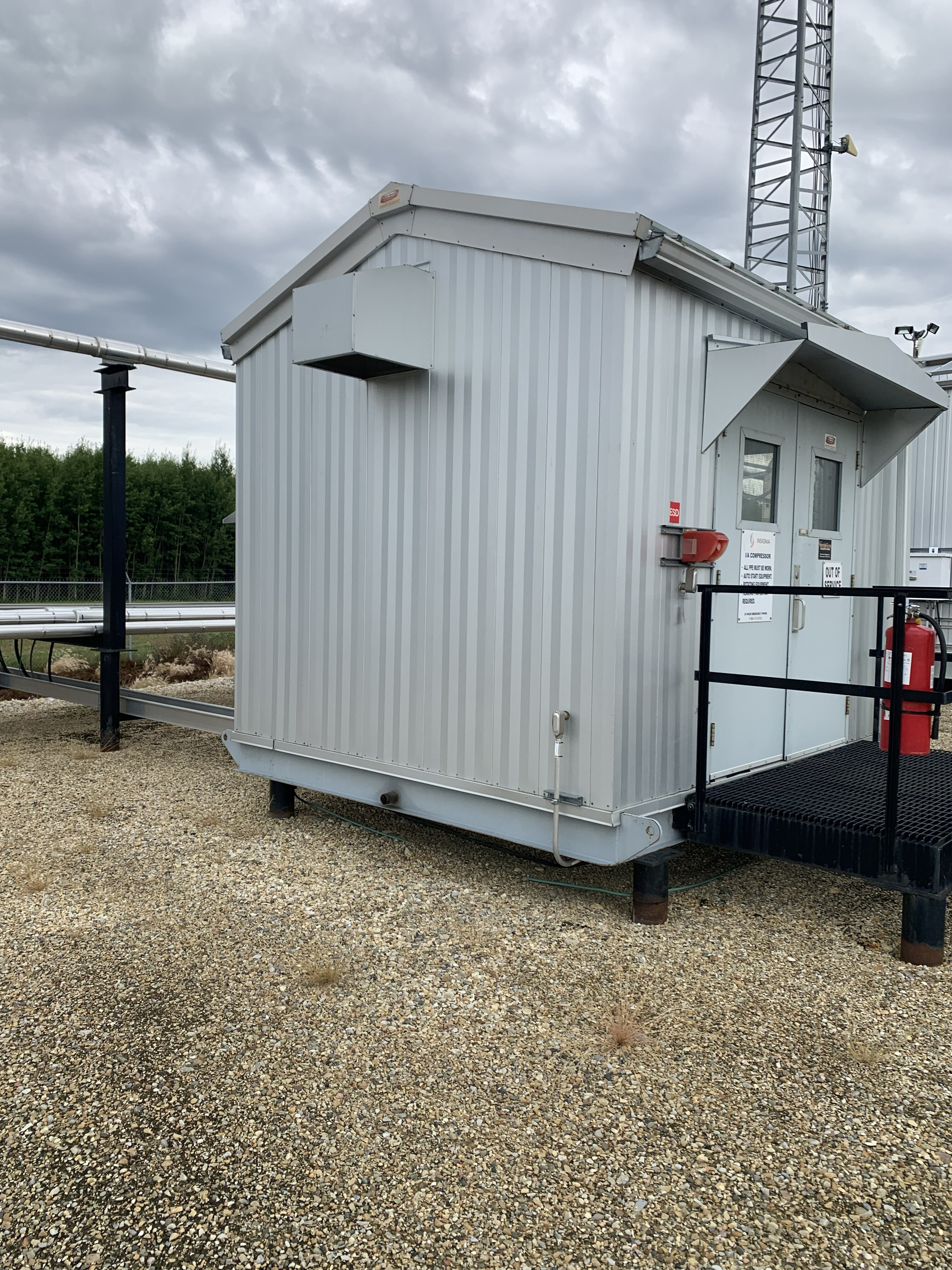

Kaeser dual screw compressors c/w volume tank. Two SM10 screw compressors, built 2010, MAWP 125psi, 42CFM each. One pressure swing regenerative compressed air dryer, rated at 50scfm @ 100psi @ 120F. Volume tank built by Steel Fab 2010. NB# 4557, s/n so-12397, MAWP 200psi @ 400f, MDMT -20F @ 200psi, CRN L4036.5C, head thickness 0.174", shell thickness 0.20". Skid overall 10'W x 12'L x 11'6"H. On piles, lift lugs on skid.

General Info

Air Compressor Package Type:

Instrument Air Package

Packager:

Fleetwood Air Equipment / Chamco

Year Built:

2010

Service Type:

N/A

Condition Rating:

B — Used, Good Condition

Skidded:

Yes

Housed:

Yes

Connection Status:

Disconnected

Warranty:

Units Available:

Manufacturer:

Kaeser dual screw compressors

Serial #:

1064 & 1063

Model #:

SM10

Driver Info

Driver Types:

Electric

Driver Make:

Kaeser

Driver Model:

100755.00010

Max HP:

10 hp

Rated RPM:

3535 RPM

Hertz:

60 Hz

Compressor Details

Compressor Type:

Screw

Compressor Make:

2 x Kaeser

Compressor Model:

2 x SM10

Capacity:

42 SCFM

Pressure:

125 psig

Compressor Serial #:

1064

Notes:

Air compressor skid. Kaeser dual screw compressors c/w volume tank. Two SM10 screw compressors, built 2010, MAWP 125psi, 42CFM each. One pressure swing regenerative compressed air dryer, rated at 50scfm @ 100psi @ 120F. Volume tank built by Steel Fab 2010. NB# 4557, s/n so-12397, MAWP 200psi @ 400f, MDMT -20F @ 200psi, CRN L4036.5C, head thickness 0.174", shell thickness 0.20". Skid overall 10'W x 12'L x 11'6"H. On piles, lift lugs on skid.

Financial Info

Availability Status

Available

Location

Nearest Town / City

Stettler

Province

Country

Canada
