10" 300# Gate Valve
Supporting Documents (1)
library_books
Short Description

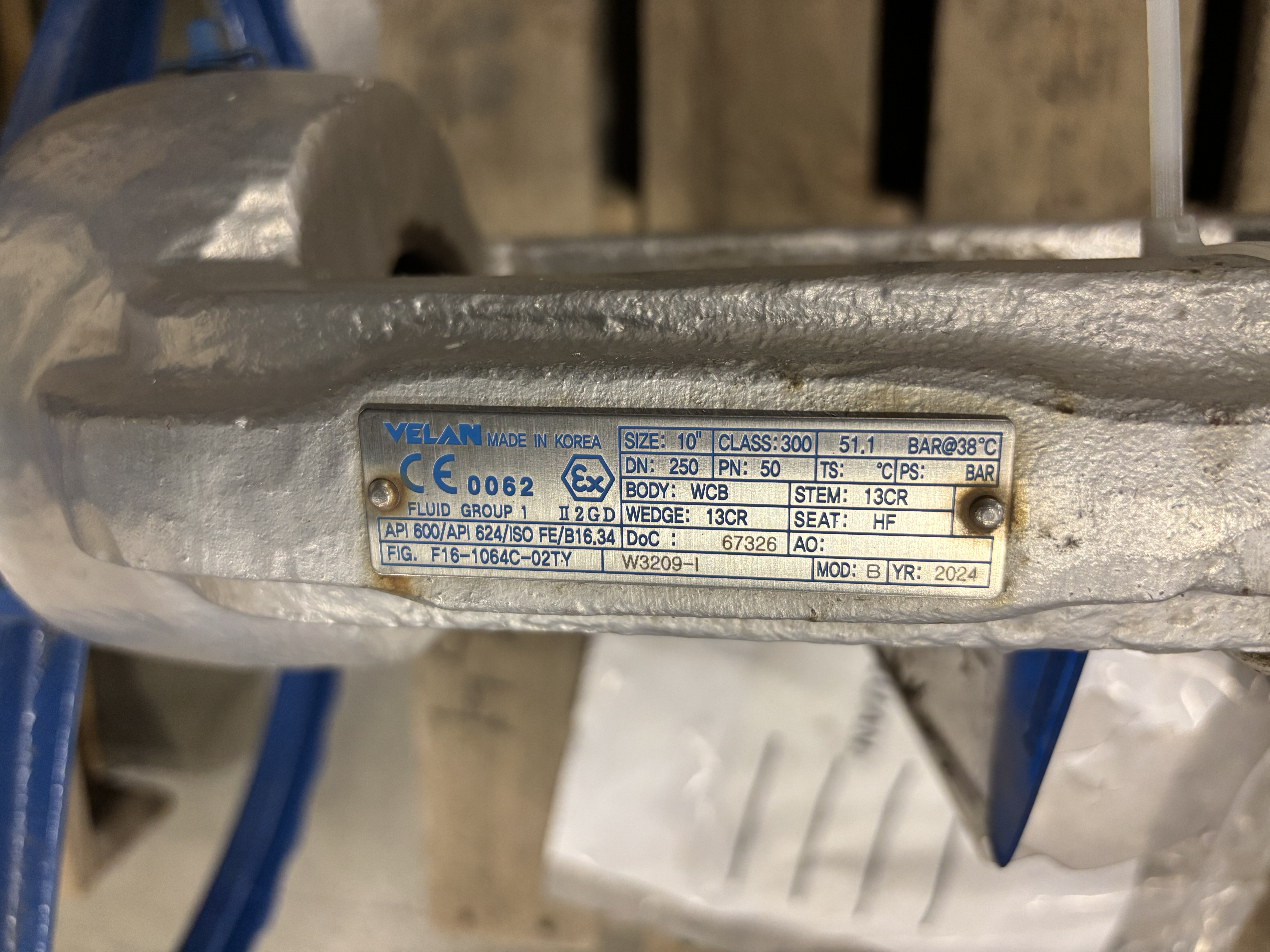

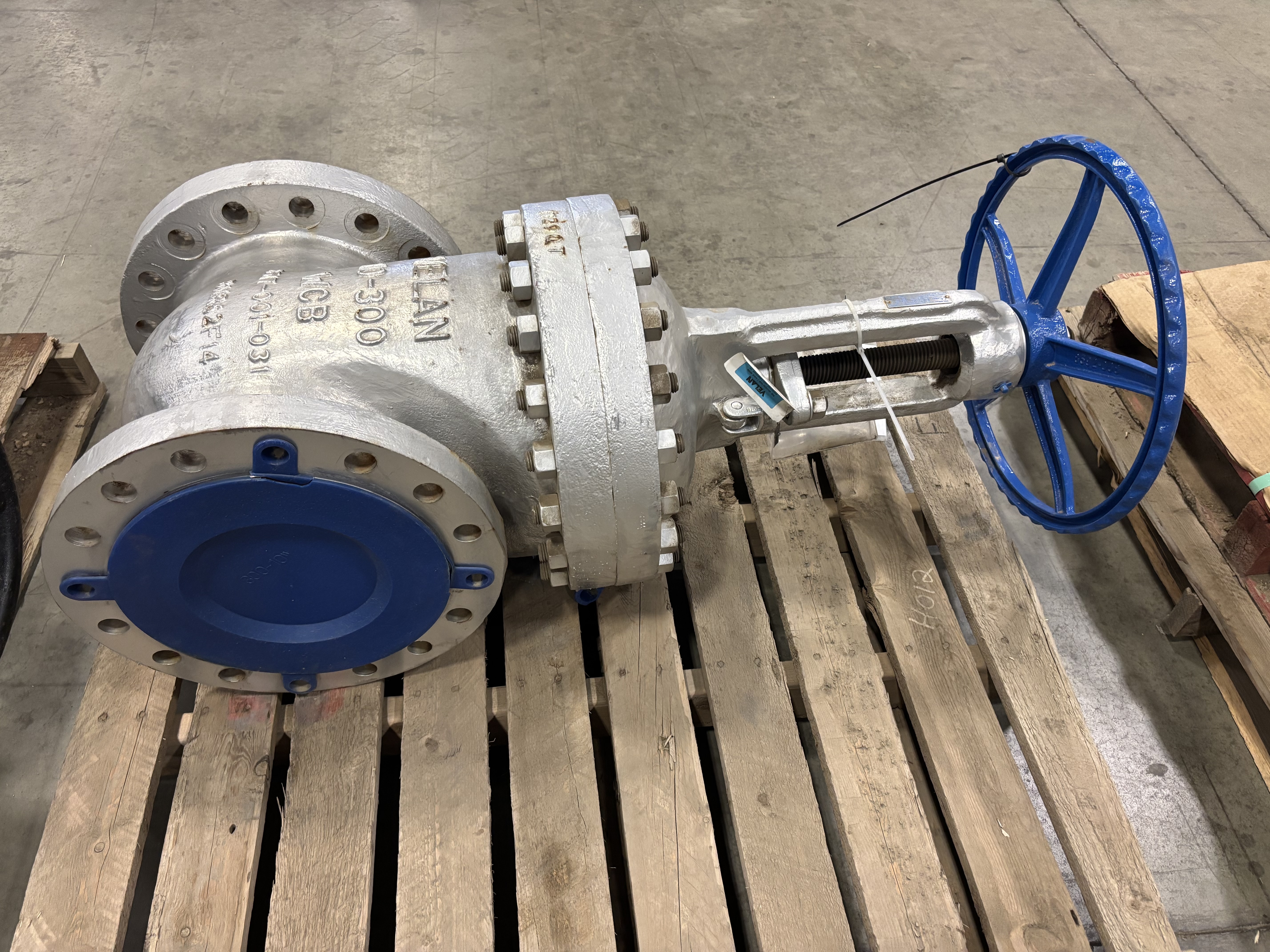

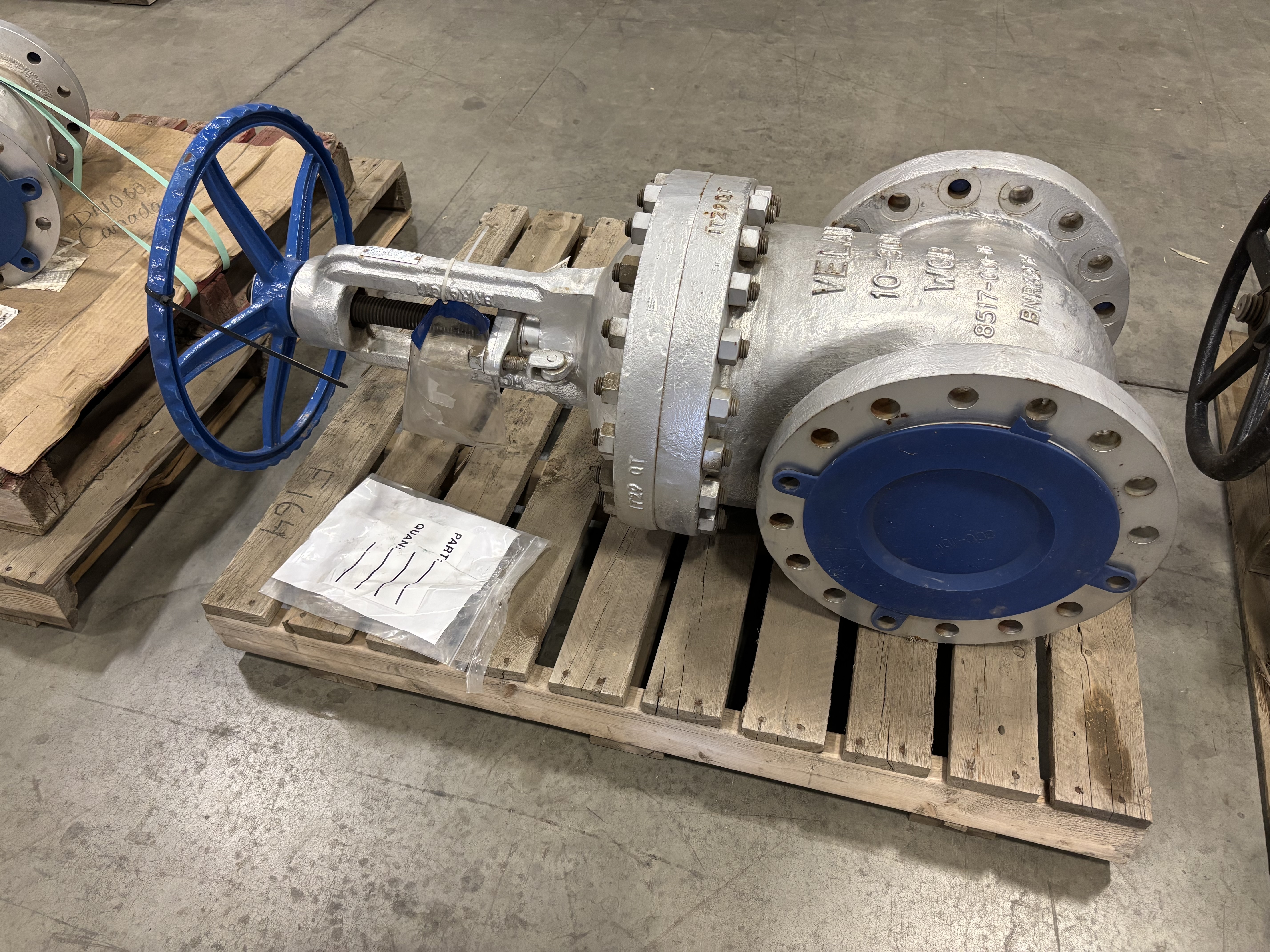

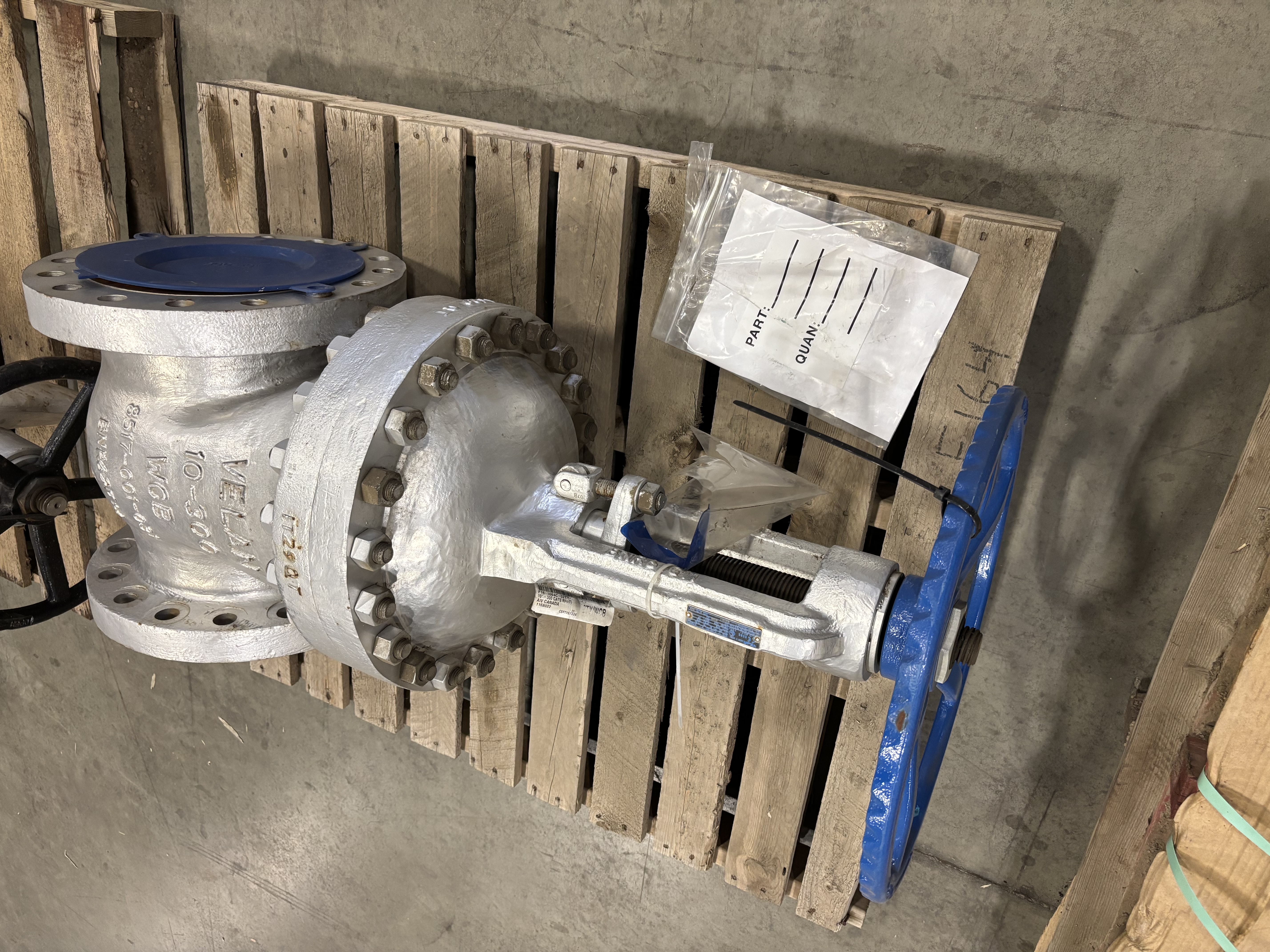

This listing is for one Velan 10 in Class 300 WCB raised-face flanged gate valve with handwheel operation, OS&Y-style stem/yoke assembly, blue flange protection, visible factory nameplate, Velan valve ID tag, return tag, and inspection/test certificate. The visible nameplate identifies the valve as size 10 in / DN 250, Class 300 / PN 50, body WCB, stem 13CR, wedge 13CR, seat HF, figure F16-1064C-02TY-W3209-I, DoC / certificate 67326, and year 2024.
The visible Velan inspection and test certificate identifies the item as 10"300 GT RF WCB/13CR IT under certificate 67326 / Rev. 1, figure number F16-1064C-02TY-W3209-I, customer AIV Canada, customer PO 1168022, and Velan order S00052486. The valve is unused warehouse surplus with factory-style protective covers, palletized storage, and normal handling/storage marks.
Key Details
| Detail | Specification |
| Manufacturer | Velan |
| Country of manufacture | Korea, per visible nameplate/certificate |
| Item type | Gate valve |
| Quantity | 1 valve |
| Size | 10 in / DN 250 |
| Pressure class | Class 300 |
| PN rating | PN 50 |
| Body material | WCB cast carbon steel |
| End connection | RF / raised-face flanged |
| Operation | Handwheel operated |
| Visible construction | Bolted bonnet with OS&Y-style stem/yoke assembly |
| Design / standards shown | API 600 / API 624 / ISO FE / B16.34 |
| Test standard shown | API 598 |
| Trim / internals | 13CR trim / IT |
| Stem material | 13CR |
| Wedge material | 13CR |
| Seat material | HF / hard faced |
| Figure no. | F16-1064C-02TY-W3209-I |
| Drawing no. | 4F-1064C-02TY-01 Rev. N |
| Certificate no. / revision | 67326 / Rev. 1 |
| Declaration of conformity | DoC 67326 |
| Year | 2024 |
| Model marking | MOD: B |
| Pressure marking | 51.1 bar @ 38°C |
| Fluid group | Fluid Group 1 |
| CE marking | CE 0062 |
| ATEX / Ex marking | II 2 G D |
| Customer shown on certificate | AIV Canada |
| Customer PO | 1168022 |
| Velan order no. | S00052486 |
| Position no. | 125 |

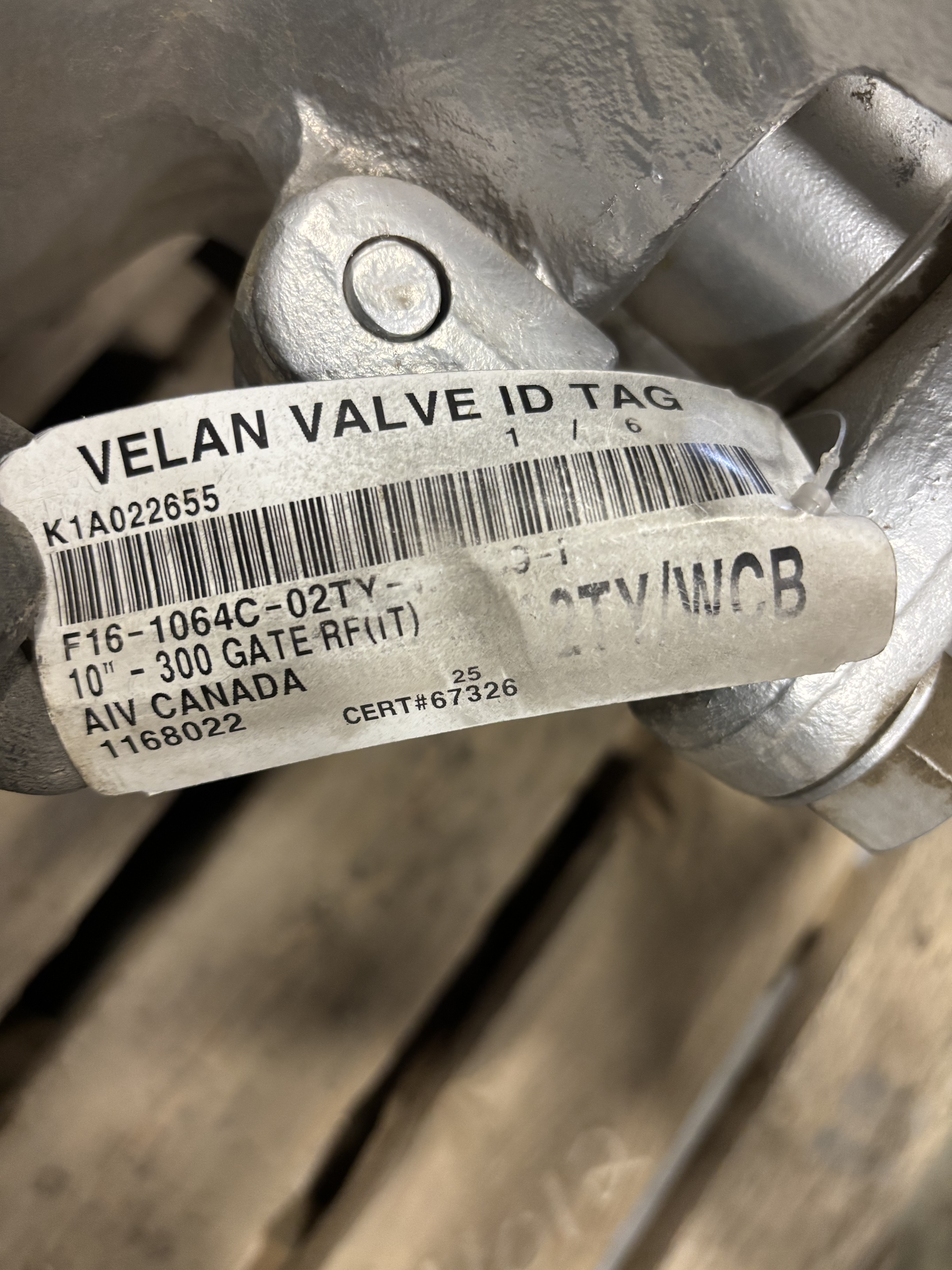

| Velan ID tag no. | K1A022655 |

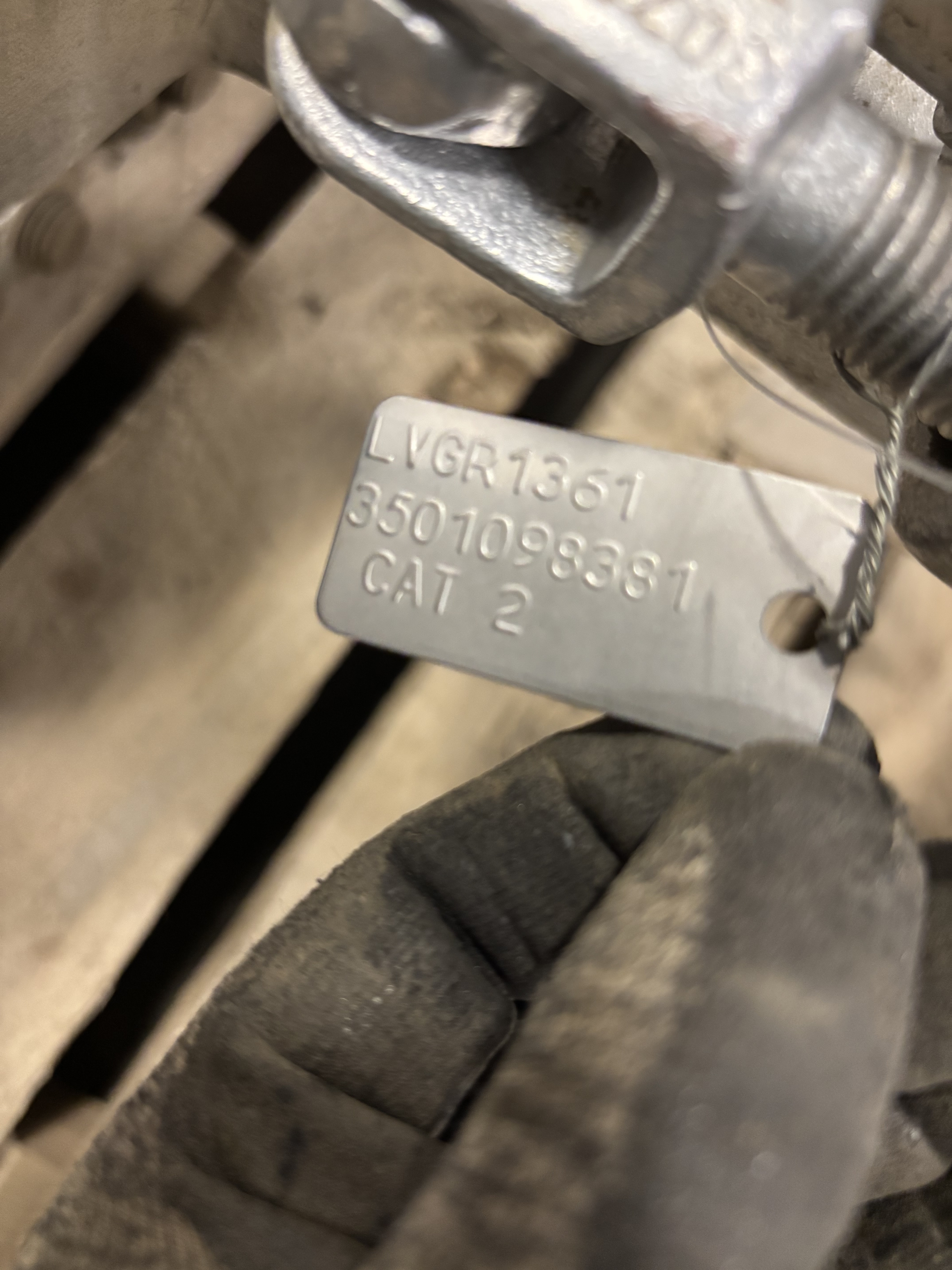

| Seller / return tag | LVGR1361 |
| Category marking | CAT 2 |

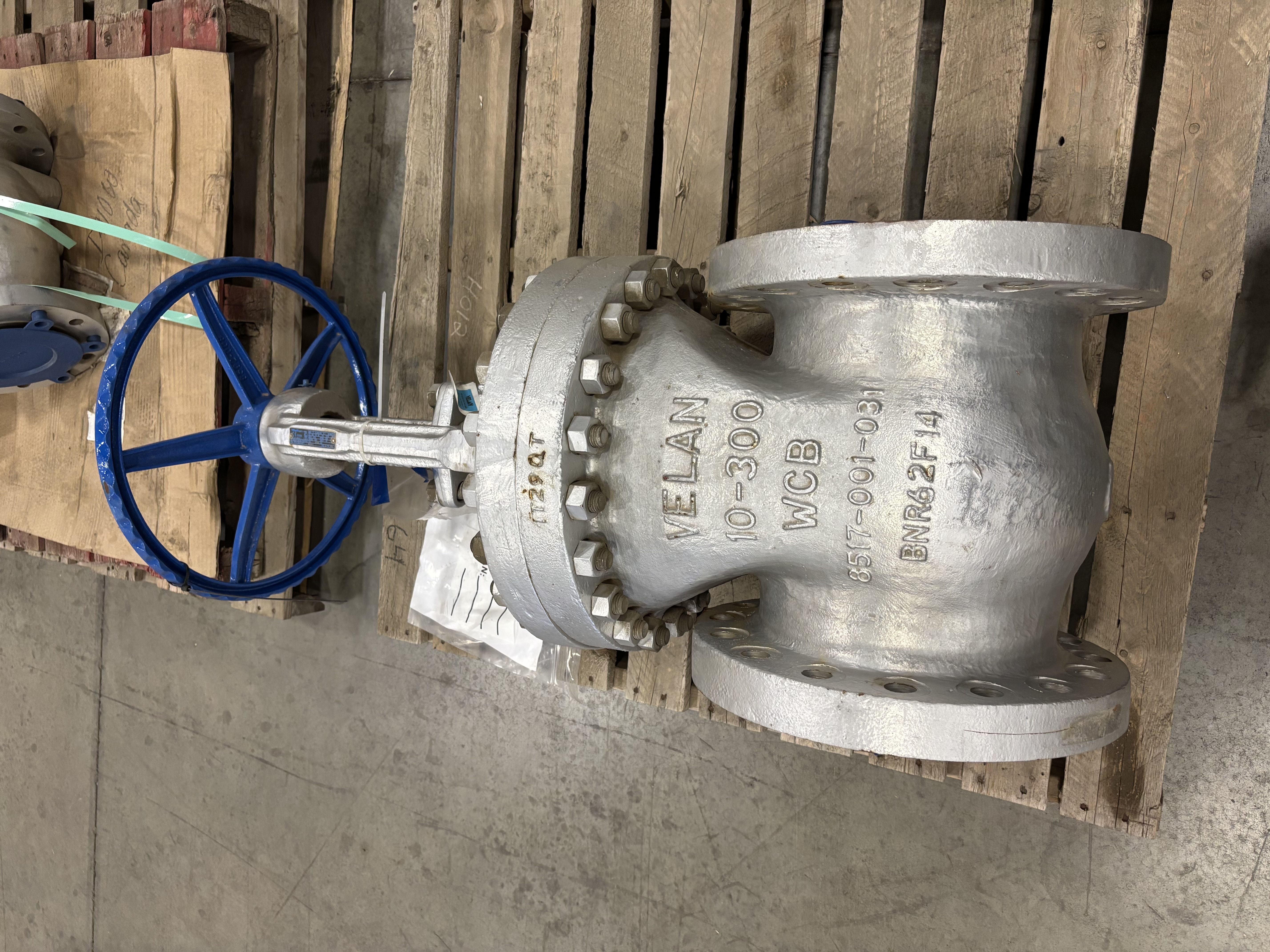

| Visible body casting marks | VELAN; 10-300; WCB; 8517-001-03; BNR62F14; N4 |
