1" 1690# Globe Valve QTY 3
Bonney Forge 1690Y 1 in. Class 1690 Y-Pattern Globe Valves — 3-Unit Lot
Description

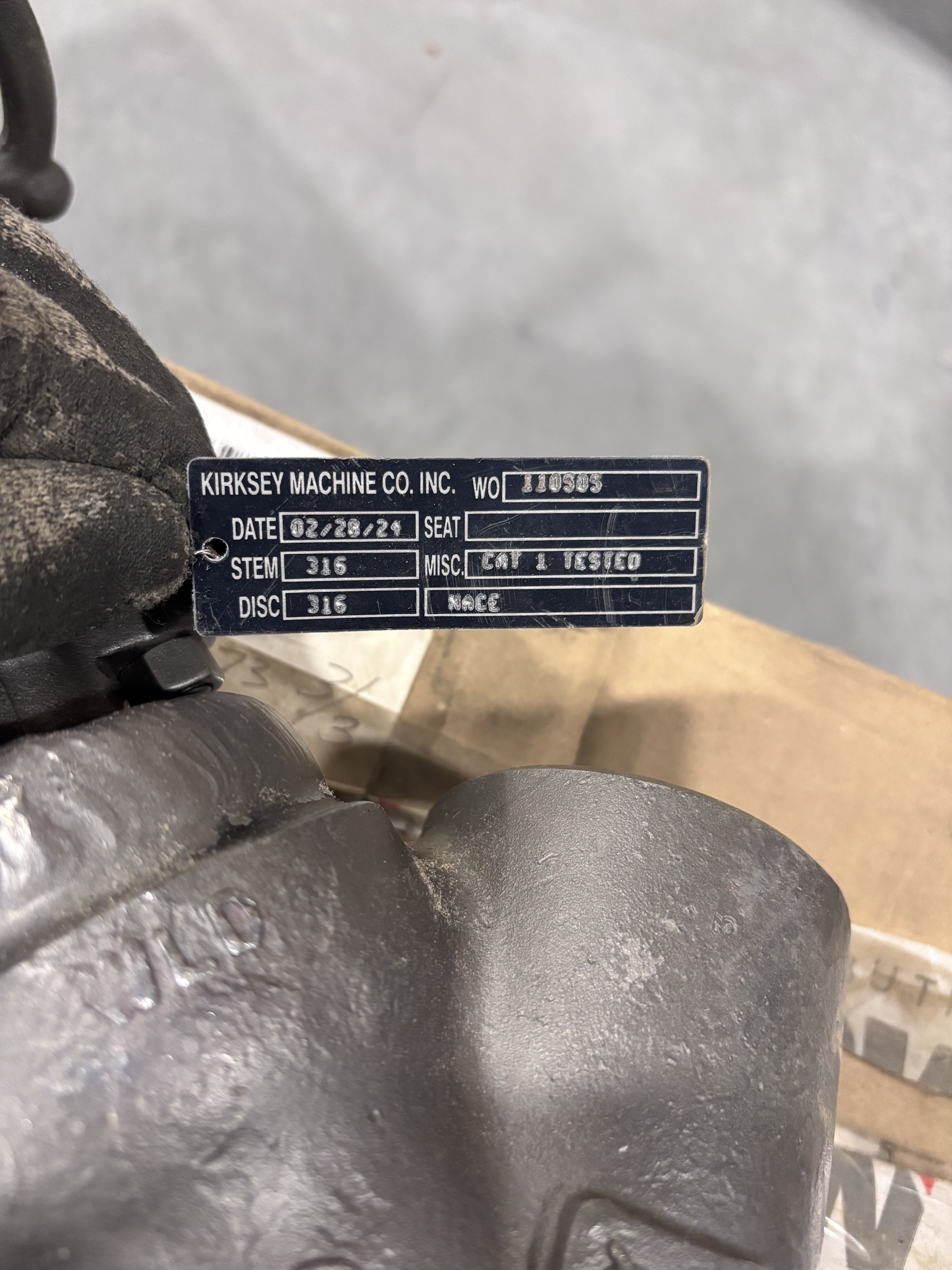

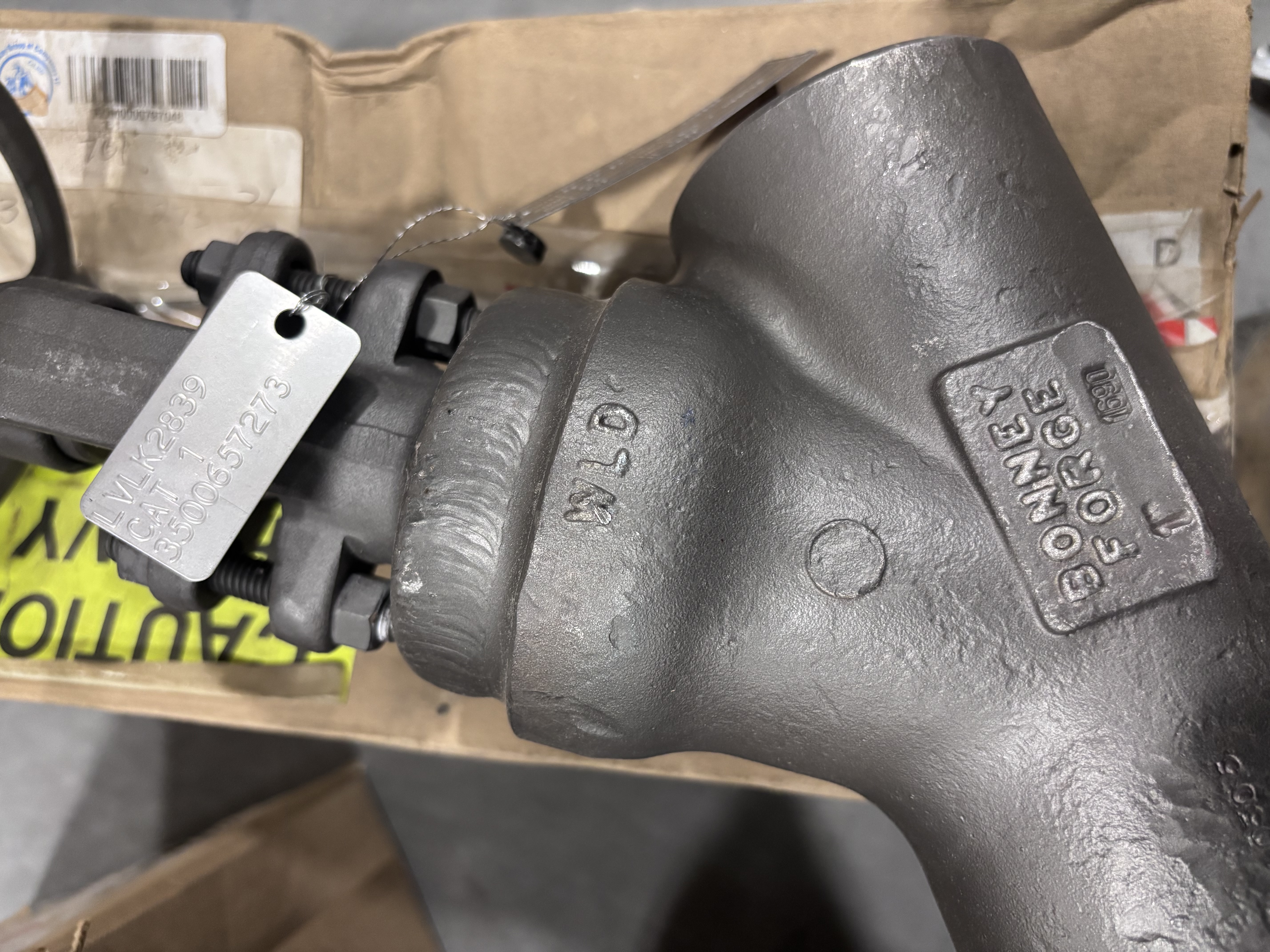

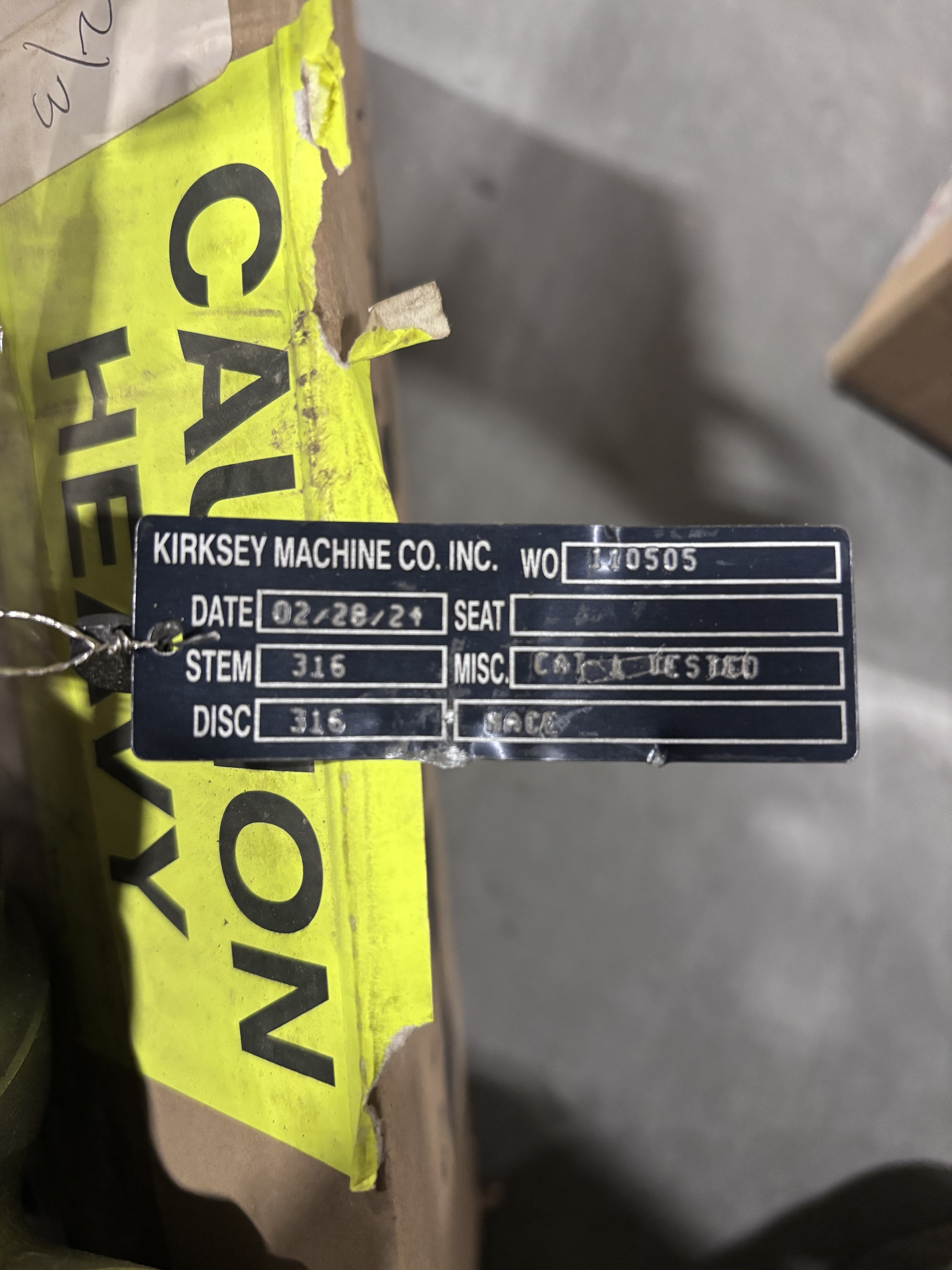

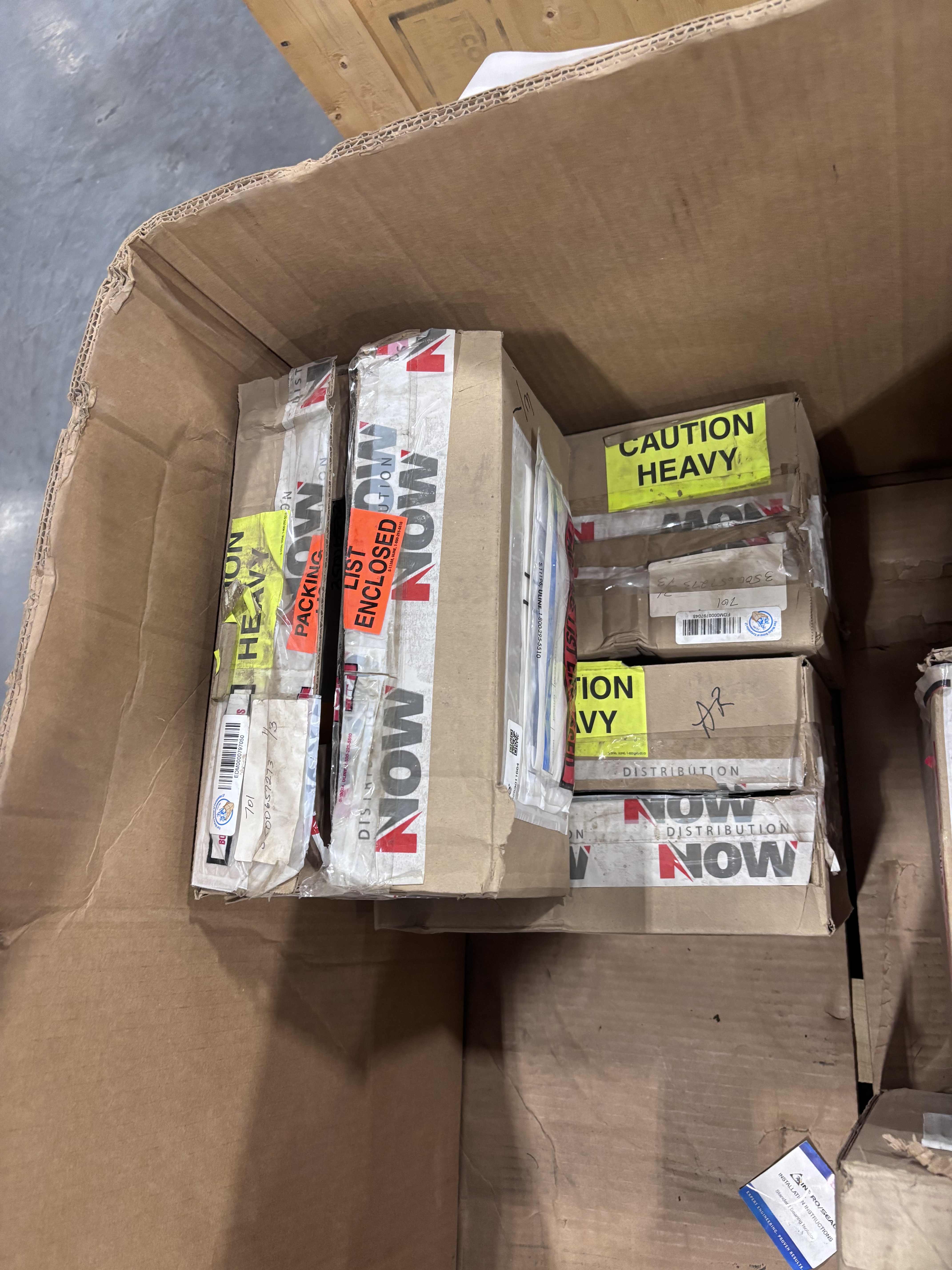

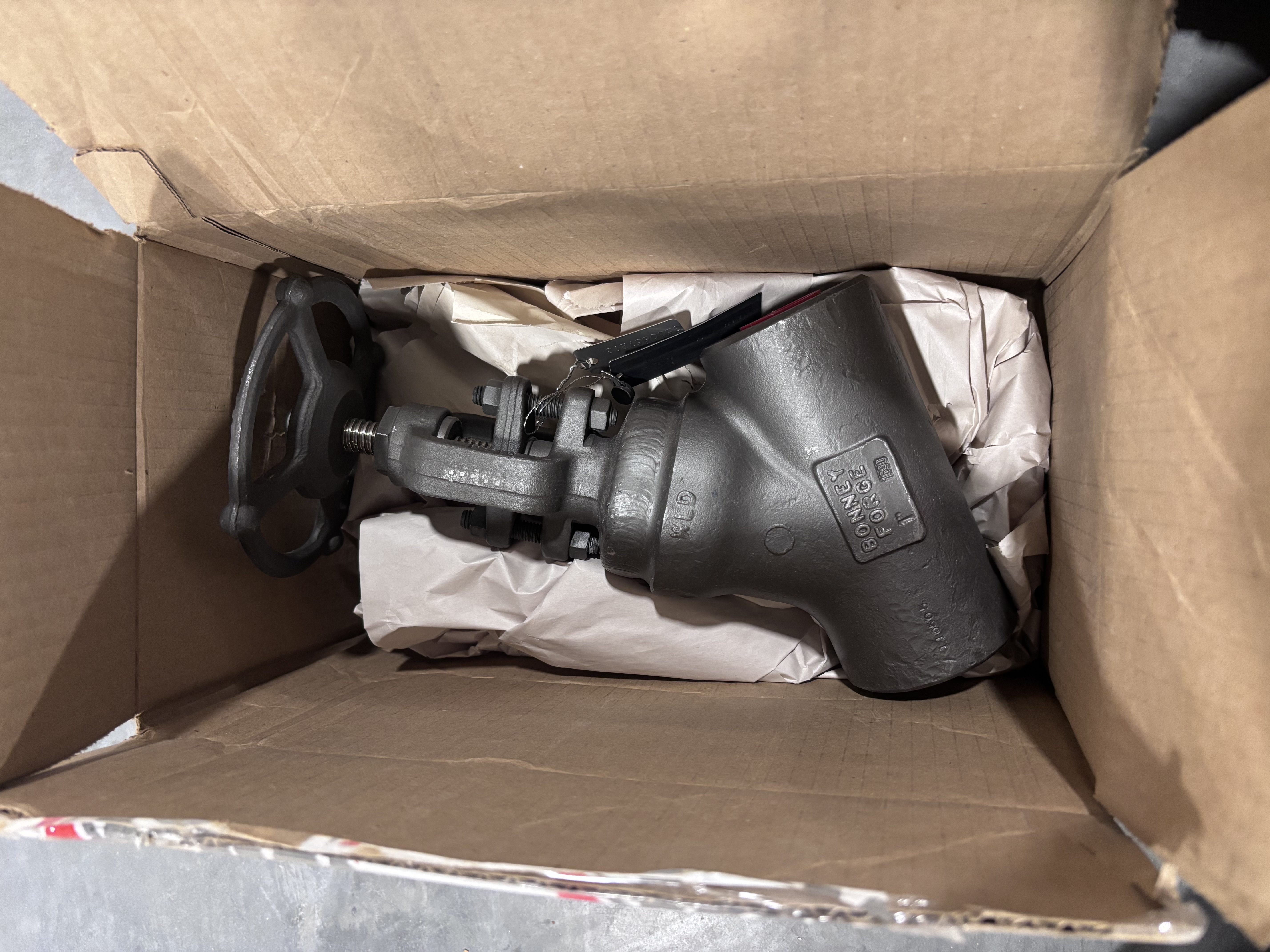

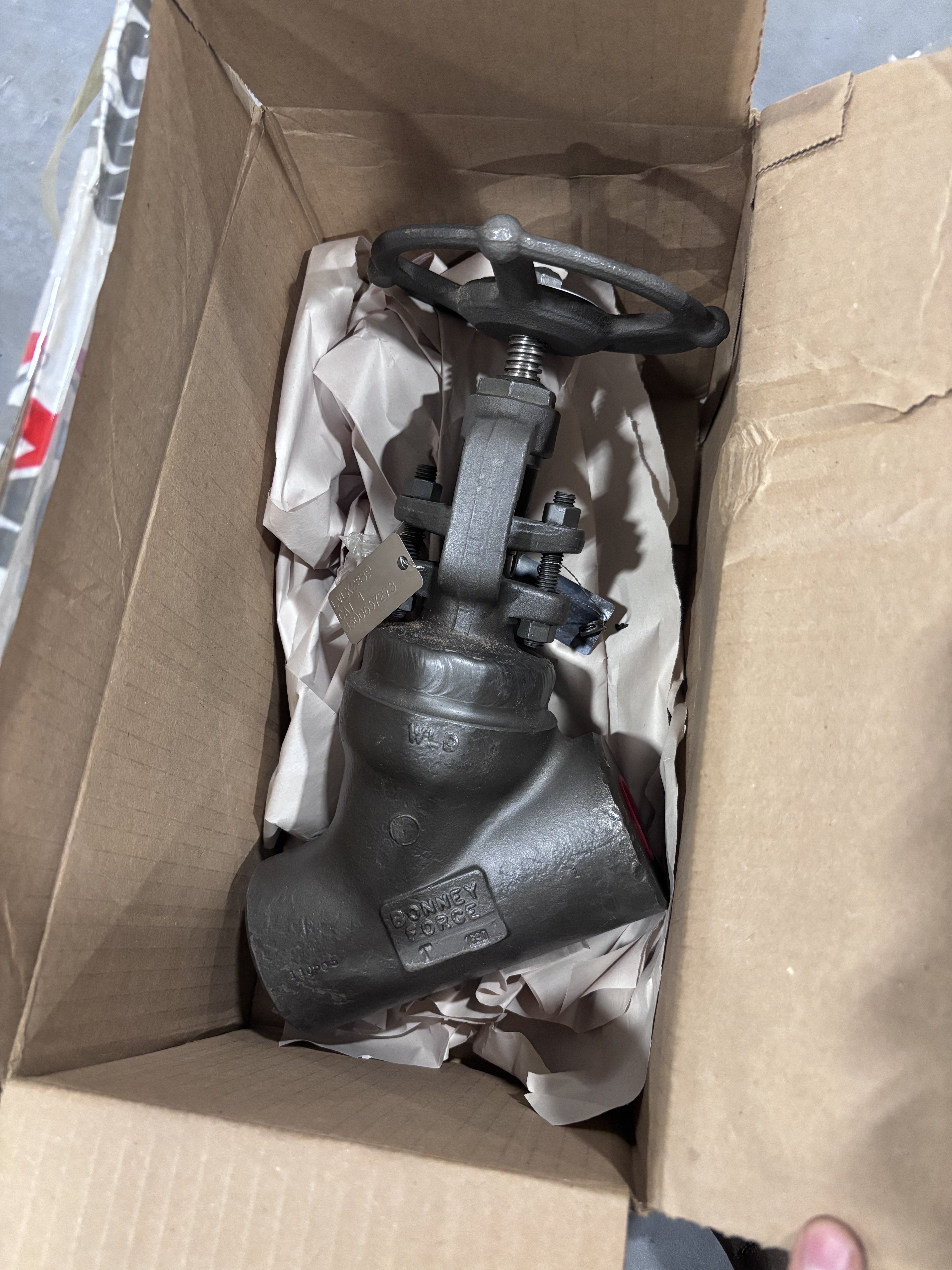

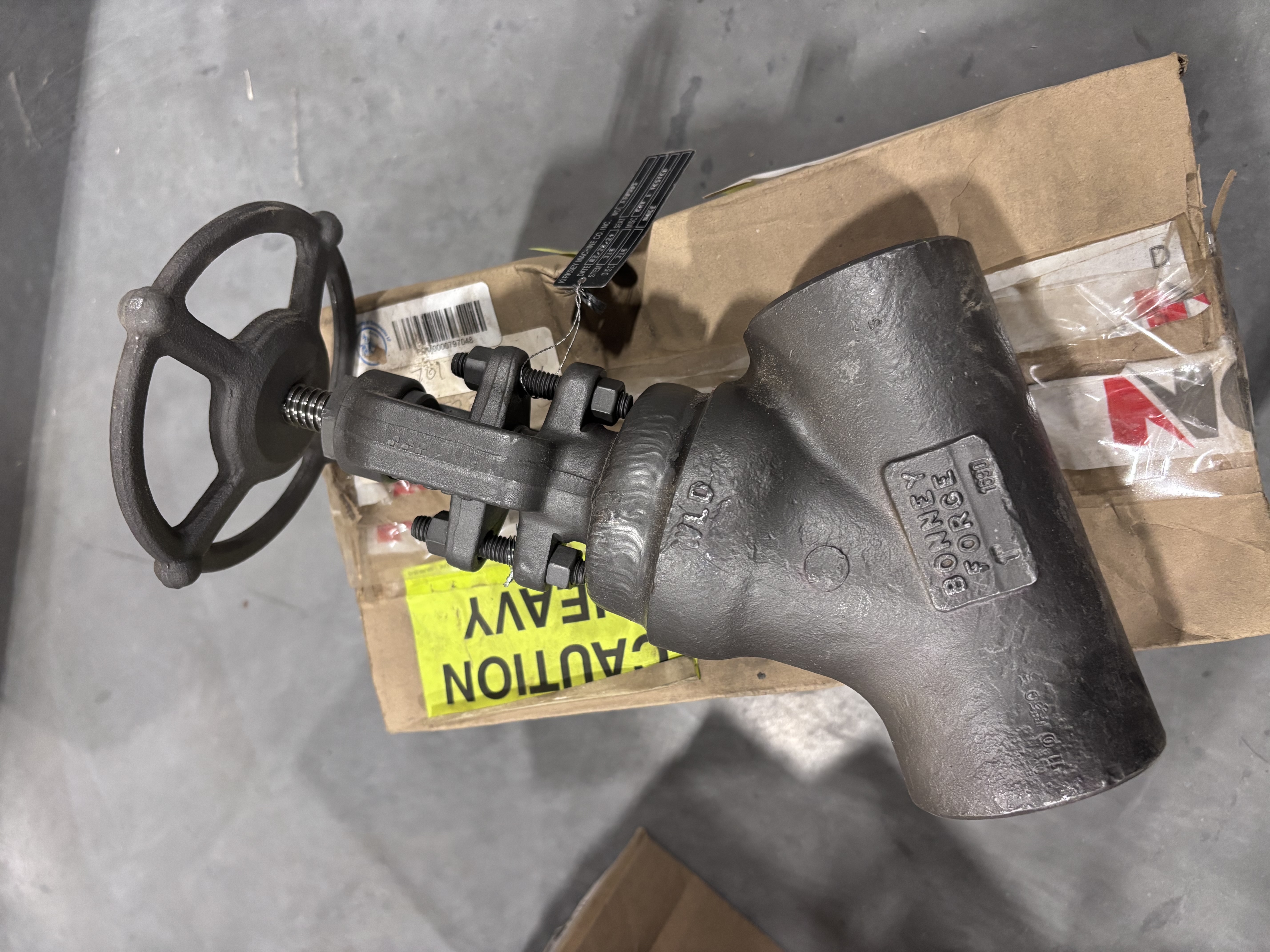

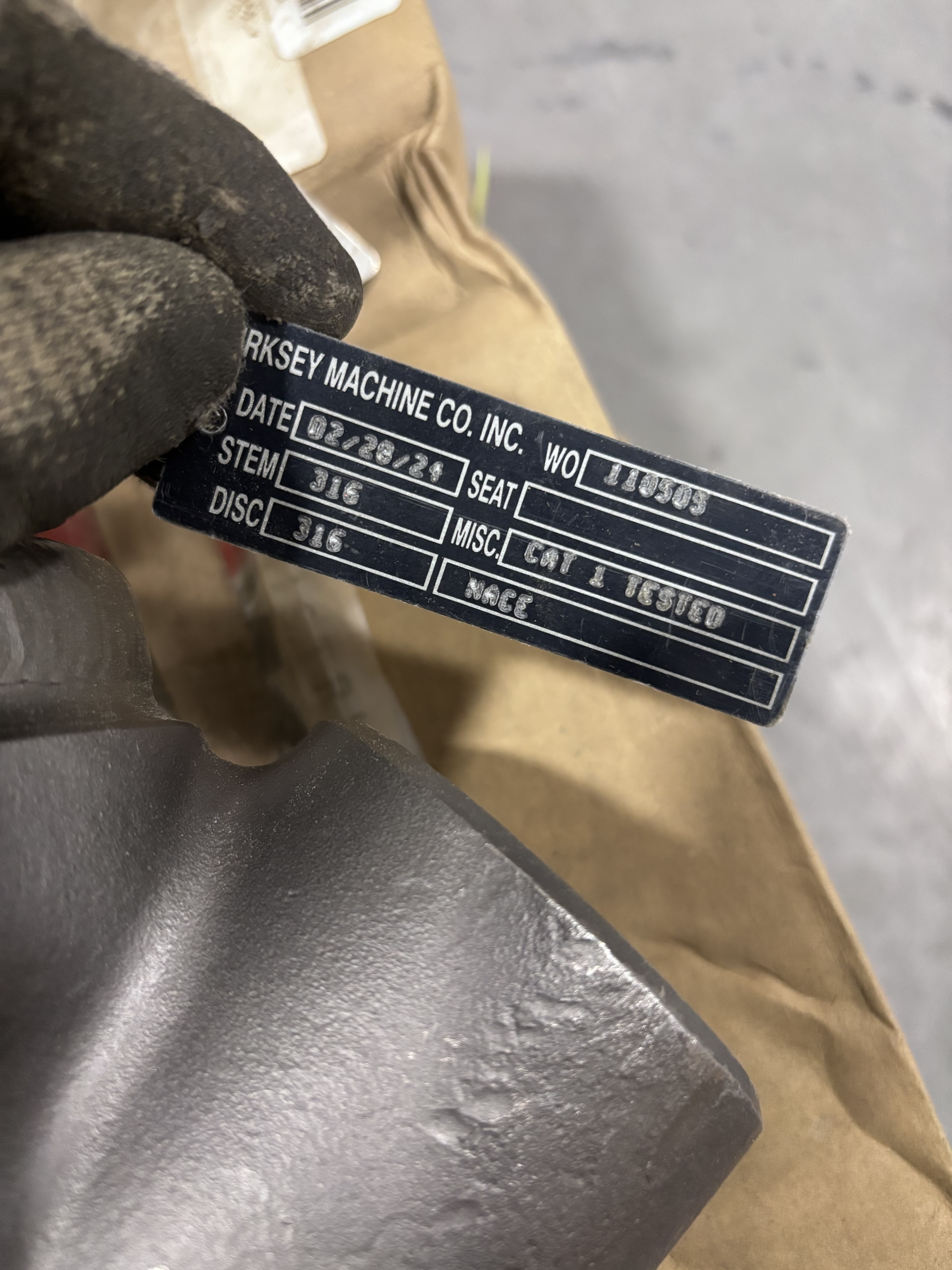

Available is one lot of three matching Bonney Forge 1 in. Class 1690 Y-pattern globe valves with threaded ends. Each valve bears a Bonney Forge plate marked “Modified at Kirksey” and is supplied in individual cardboard packaging with internal paper protection. The body configuration, handwheel, welded bonnet, full-port Y-pattern geometry, and red factory protective end caps are visible in the supplied photographs.

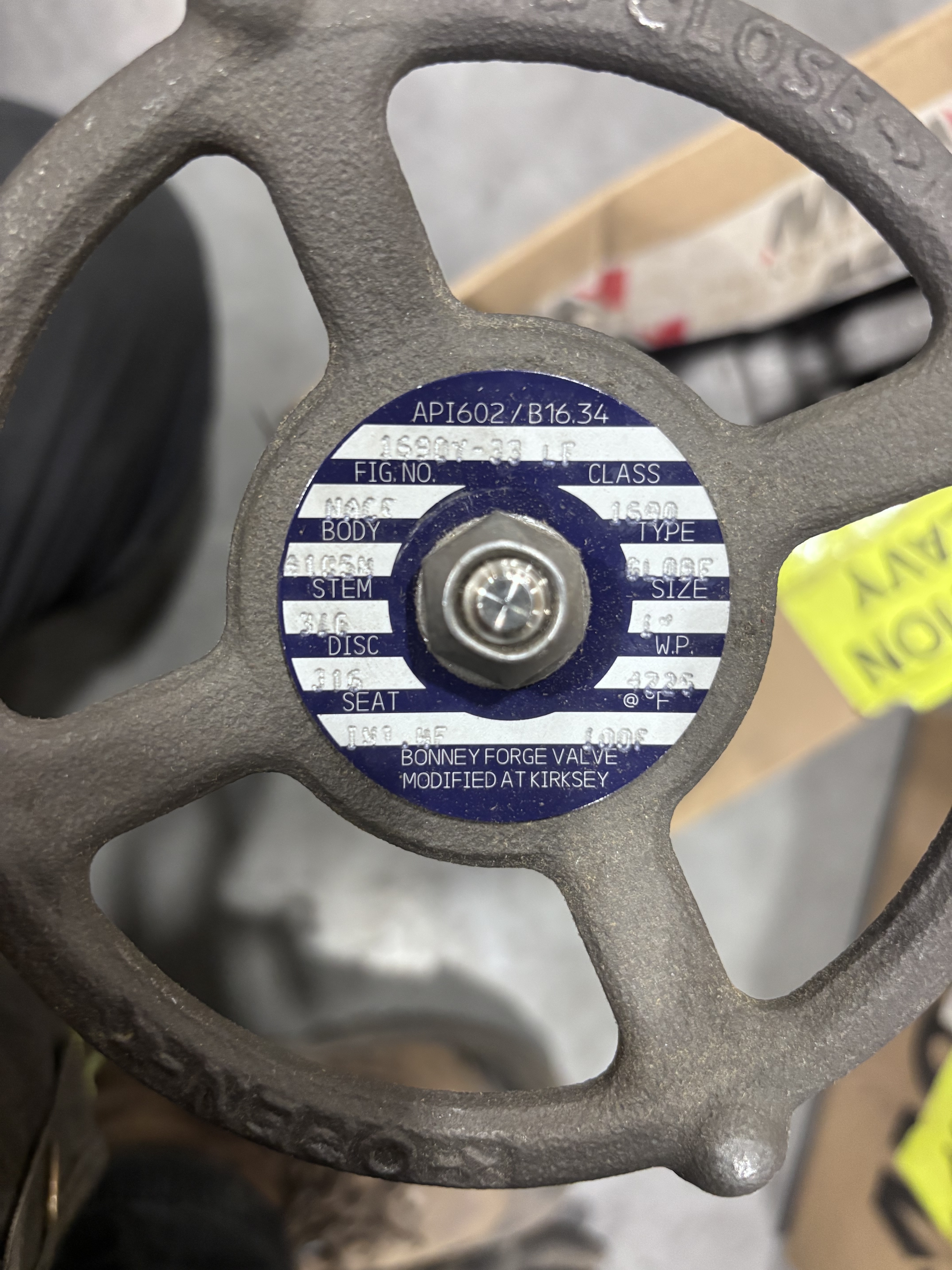

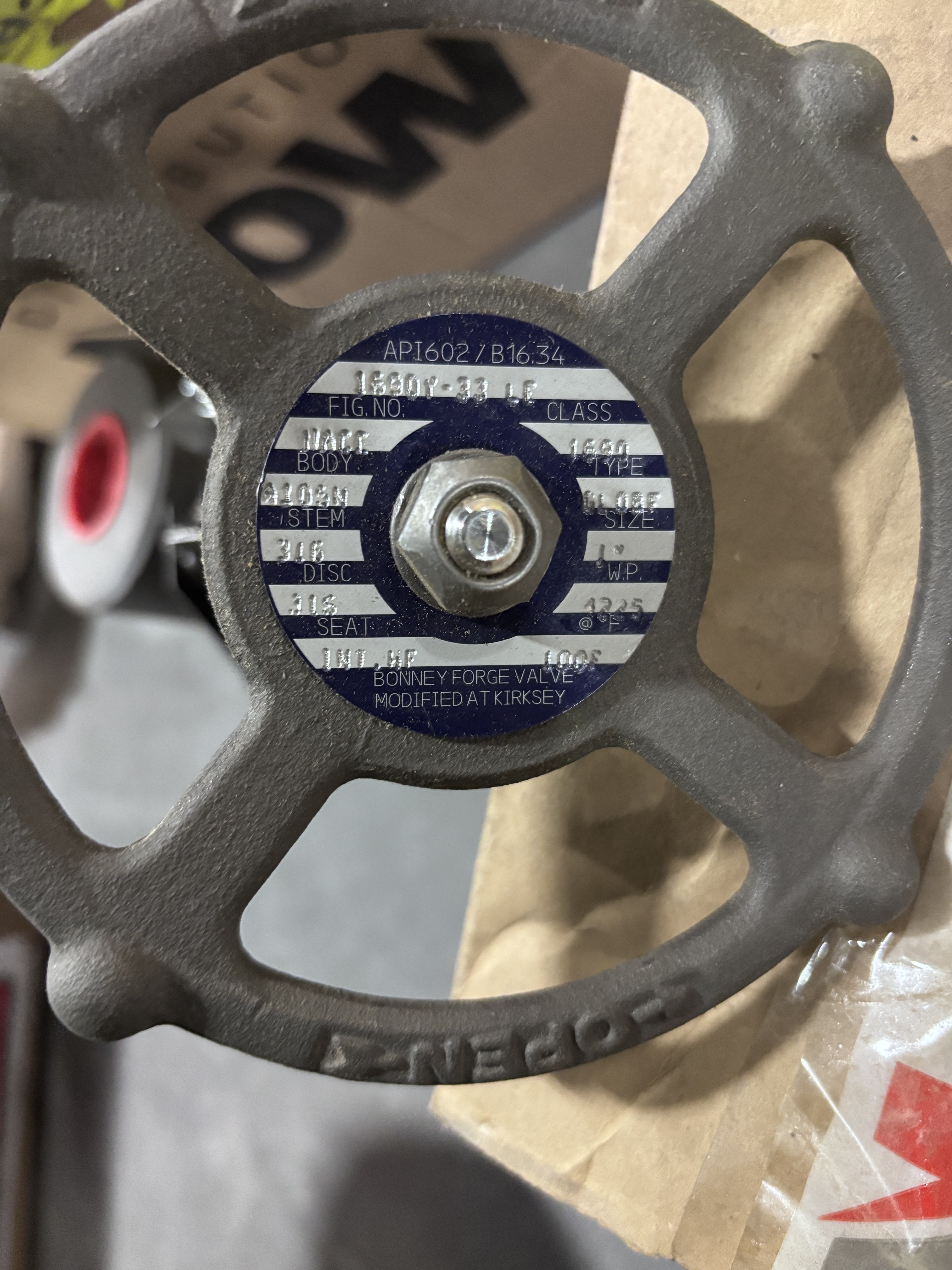

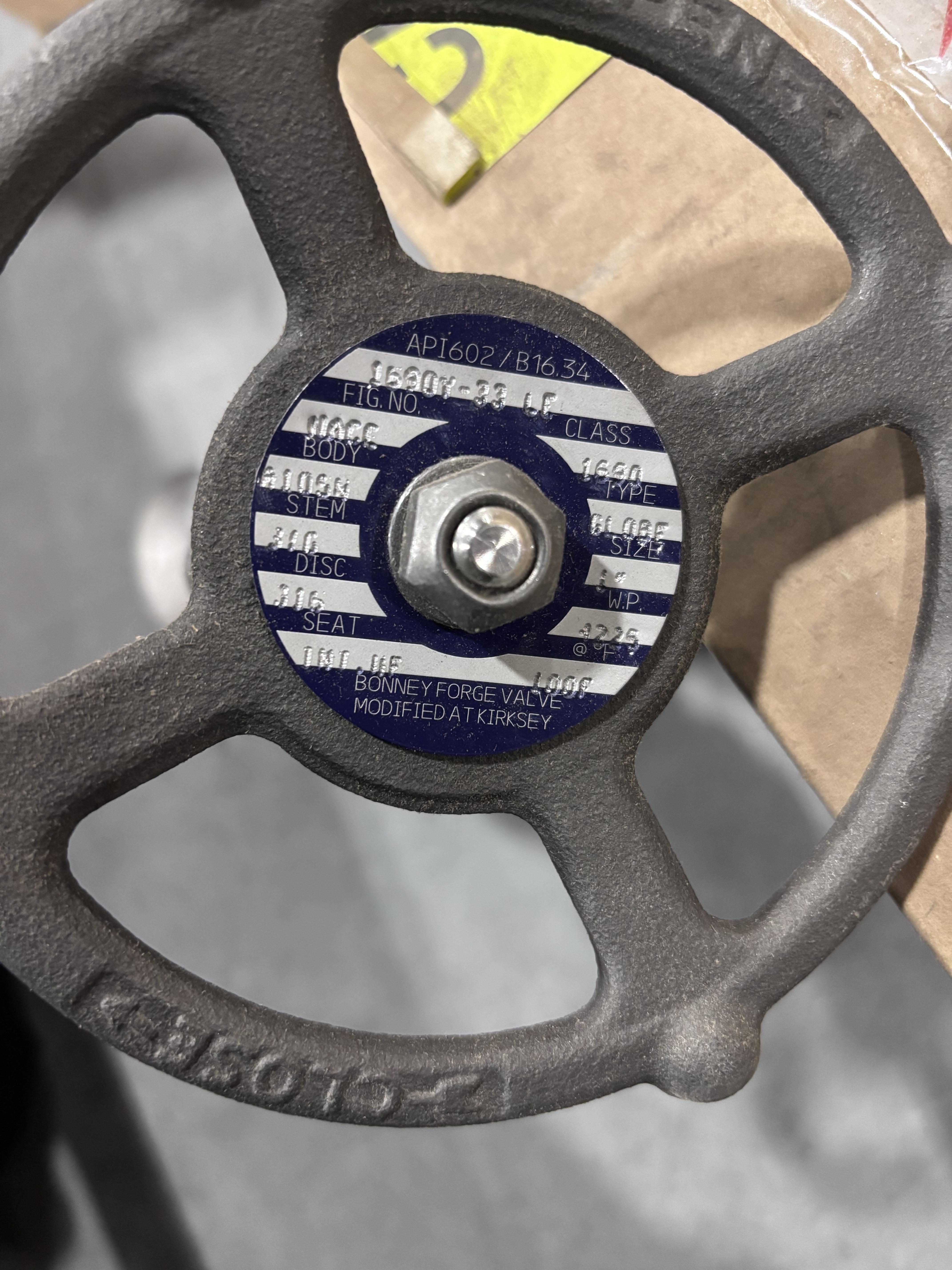

The physical nameplates identify API 602 / ASME B16.34 design references, a 1 in. size, Class 1690 Limited Class designation, and a working-pressure marking of 4,225 psi at 100 °F. Each plate also identifies the body as A105N and the stem, disc, and seat as 316. The manufacturer’s catalog identifies the 1690Y series as a full-port, welded-bonnet Y-pattern globe-valve configuration.
Verified Valve Data
| Specification | Details |
| Quantity | 3 matching valves |
| Manufacturer / modification marking | Bonney Forge valve; modified at Kirksey |
| Valve style | Y-pattern globe valve, handwheel operated |
| Bonnet configuration | Welded bonnet, visibly marked and configured |
| Port designation | Full port, based on the 1690Y product-family configuration |
| Size | 1 in. |
| End connection | Threaded |
| Pressure class | Class 1690 Limited Class |
| Working-pressure marking | 4,225 psi at 100 °F |
| Standards marked | API 602 / ASME B16.34 |
| Body material | A105N |
| Stem material | 316 |
| Disc material | 316 |
| Seat material | 316 |
