John Deere OEM High Pressure Common Rail Fuel Injectors — P/N DZ100217 | Qty: 6

Item Overview

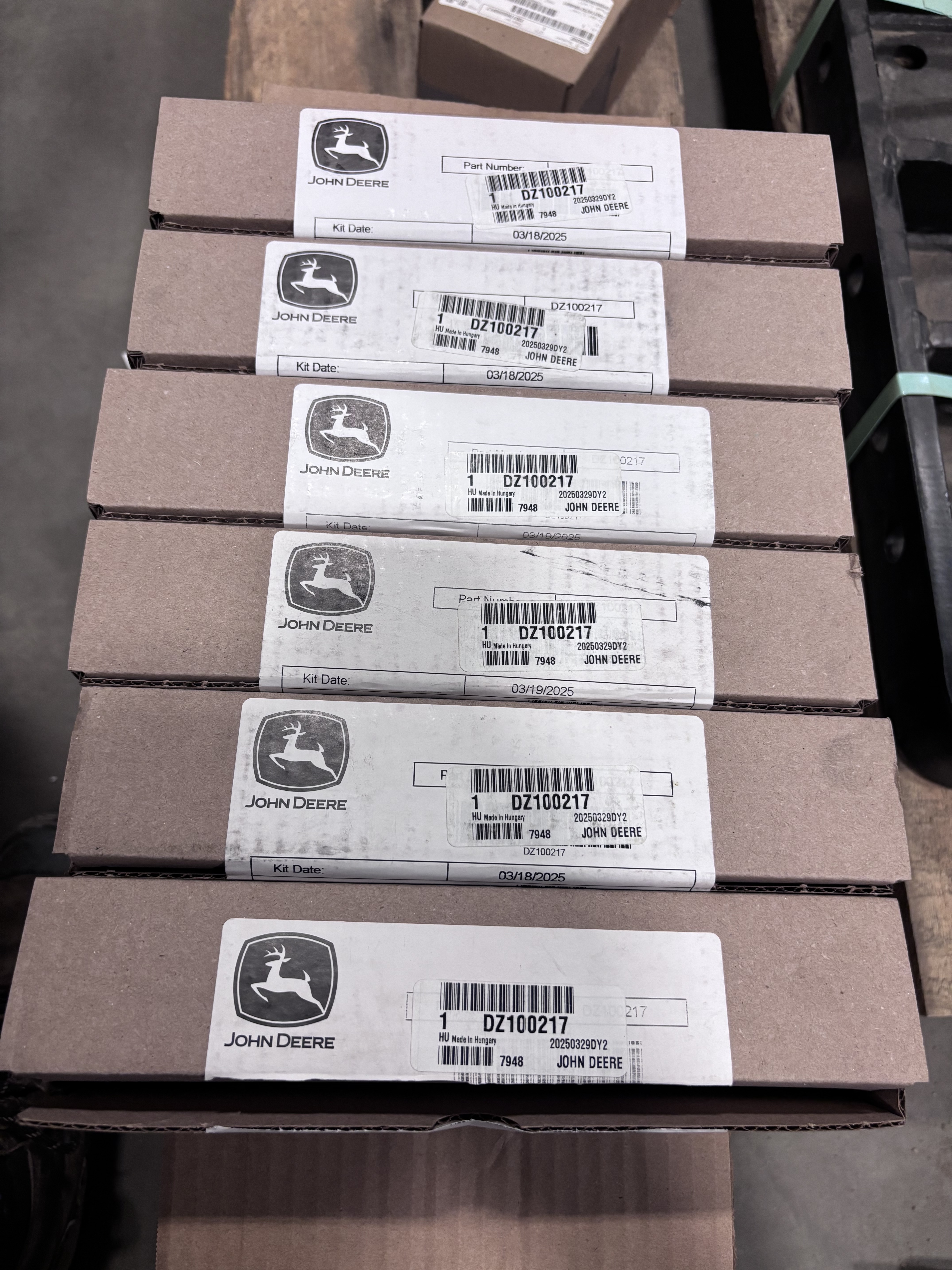

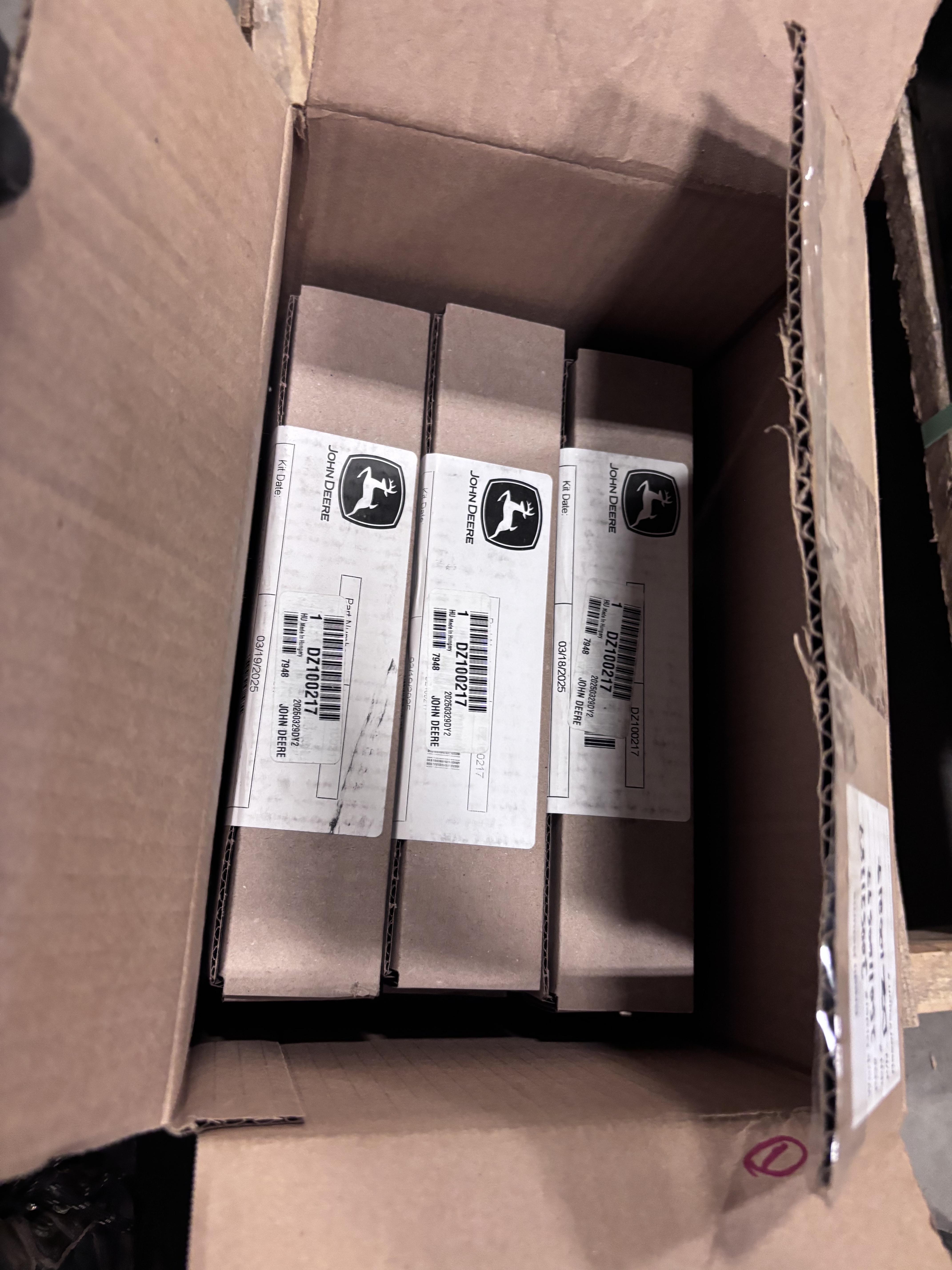

This is a lot of 6 new, factory-sealed John Deere OEM High Pressure Common Rail (HPCR) Fuel Injectors, part number DZ100217, manufactured in Hungary in 2025. These are genuine Denso-manufactured injectors supplied under the John Deere OEM part number — the same injector that ships in a new John Deere machine. Each unit is individually packaged in a John Deere branded cardboard box with a factory-printed calibration data sheet included.

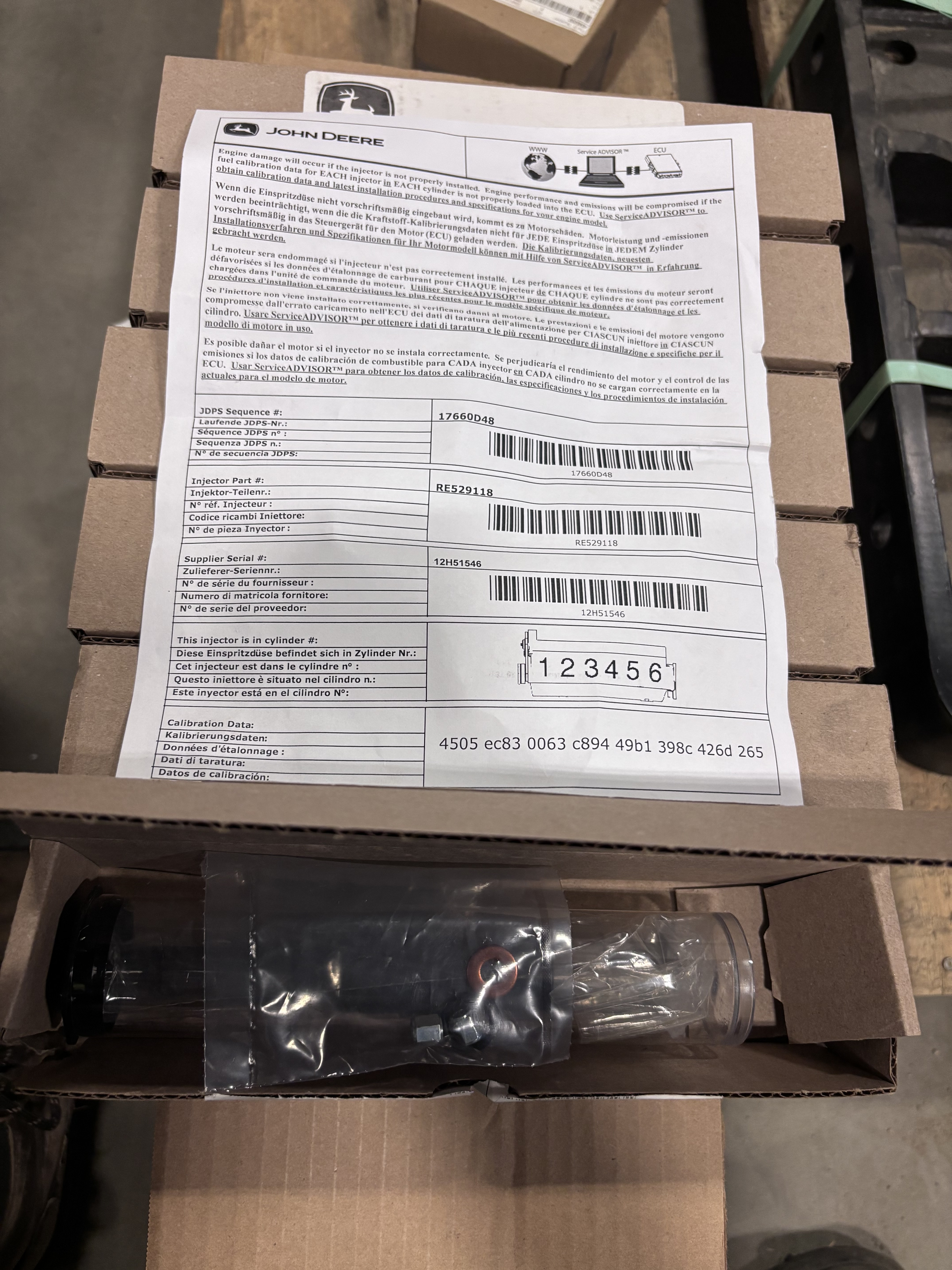

The calibration data sheet included with each injector is a critical document unique to that specific injector. It contains the injector's individual trim code / calibration data string (e.g., 4505 ec83 0063 c894 49b1 398c 426d 265) along with the JDPS Sequence Number, Injector Part Number, and Supplier Serial Number — all of which must be programmed into the engine ECU using John Deere ServiceADVISOR software during installation. This documentation confirms these are genuine, individually-calibrated OEM injectors, not aftermarket replacements.

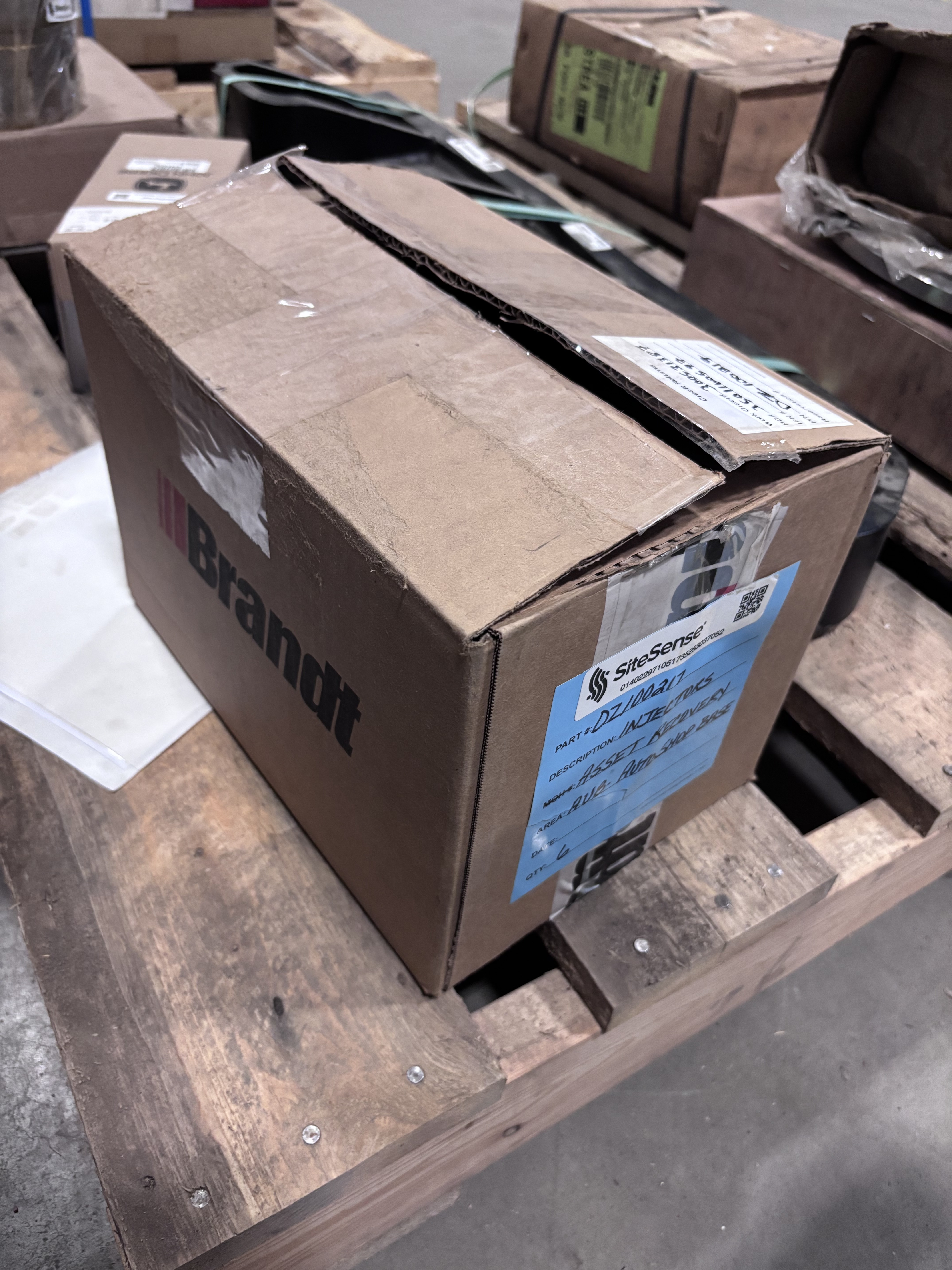

The lot is sourced from Brandt Industries (a major John Deere dealer network in Canada), confirming legitimate OEM supply chain provenance.

Compatible Equipment

The DZ100217 / RE529118 injector fits the John Deere 4045 (4.5L) and 6068 (6.8L) PowerTech HPCR diesel engines across a wide range of John Deere equipment:

Tractors: 6520, 6603, 6605, 6615, 6620, 6715, 7210, 7220, 7320, 7405, 7410, 7420, 7500, 7510, 7520, 7610, 7815, 7200R, 7210R, 7215R, 7230R, 7430, 7530, 7630, 7730

Combines: 1165, 1170, 1175, 1450CWS, 1450WTS, 1550CWS, 1550WTS, 9400, 9410, 9450, 9540WTS

Excavators: 200CLC, 200LC, 230CLC, 230LC, 270CLC, 270LC, 690ELC, E210LC, E240LC, E300LC

Wheel Loaders: 624J, 624K, 644K

Skidders: 640H, 648H, 748H, 748L

Backhoe Loaders: 710D, 710G

Crawlers/Dozers: 700H, 700J, 750C, 750C-II, 750J

Feller Bunchers: 643G, 643H, 653E, 653G

Motor Graders: 670G, 672G

Other: 755D, 764, 9935 Cotton Picker

Key Specifications
