12" 150# Gate Valve
Listing ID:
IH-64890
Notes:
Description

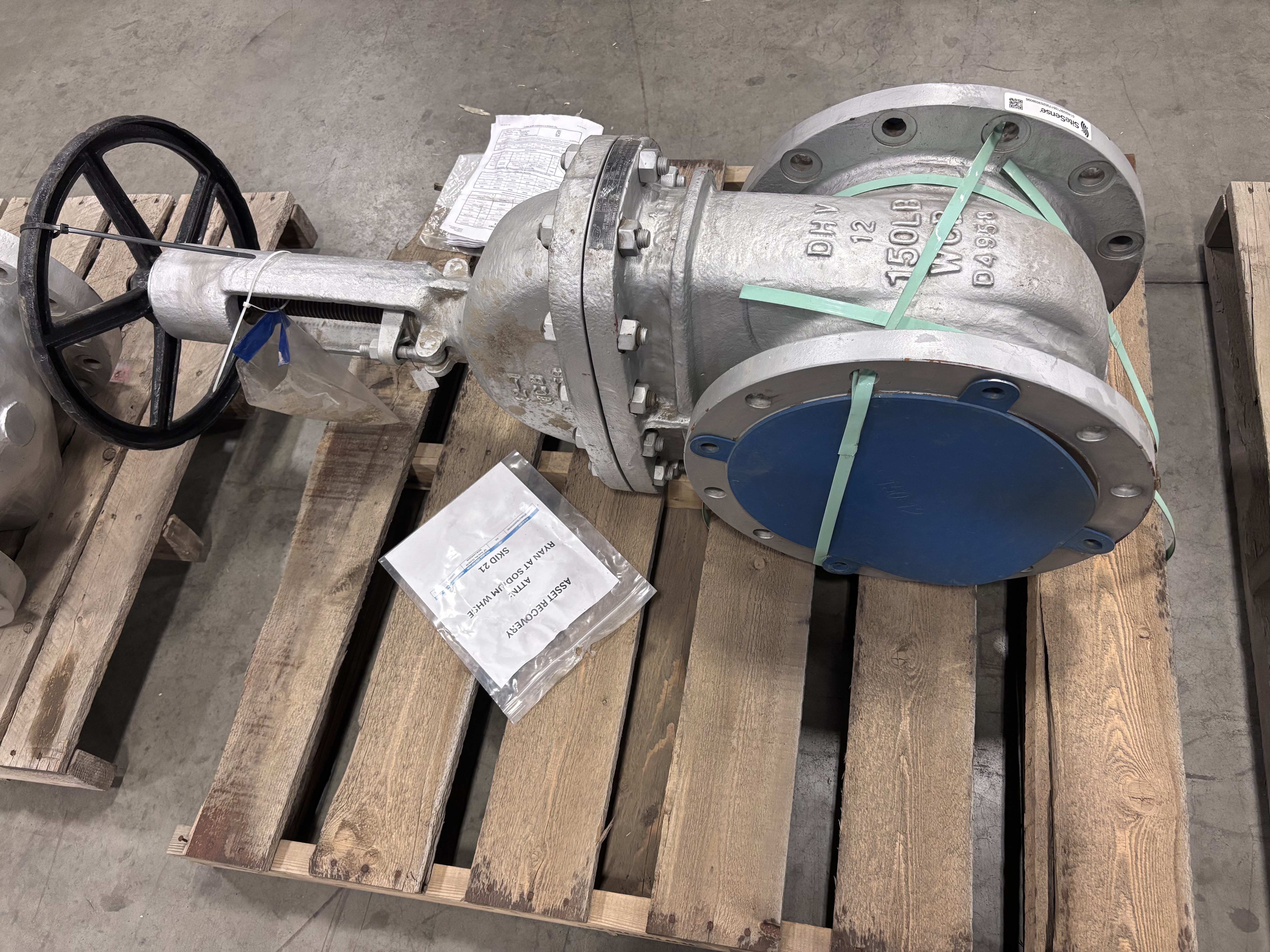

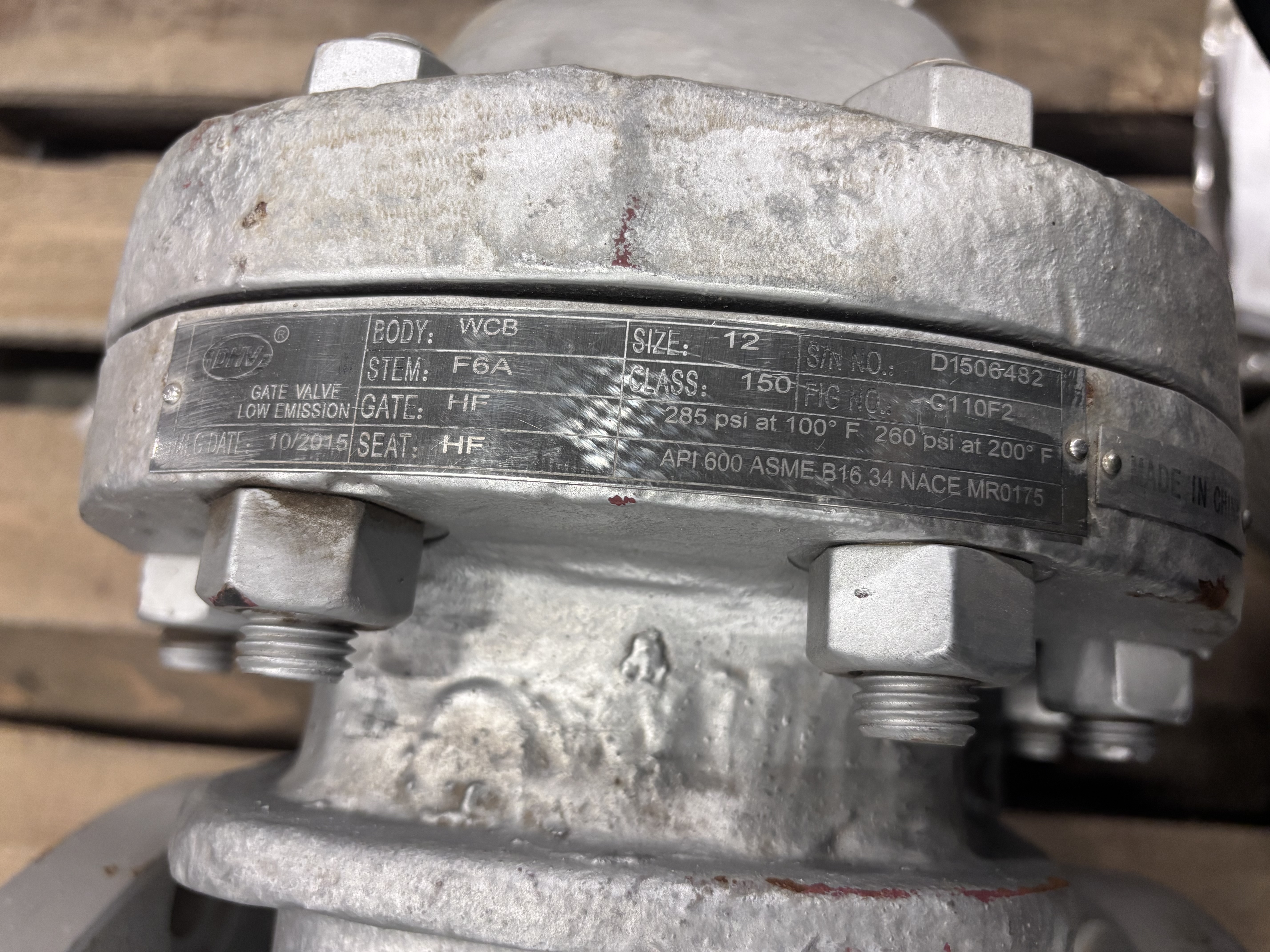

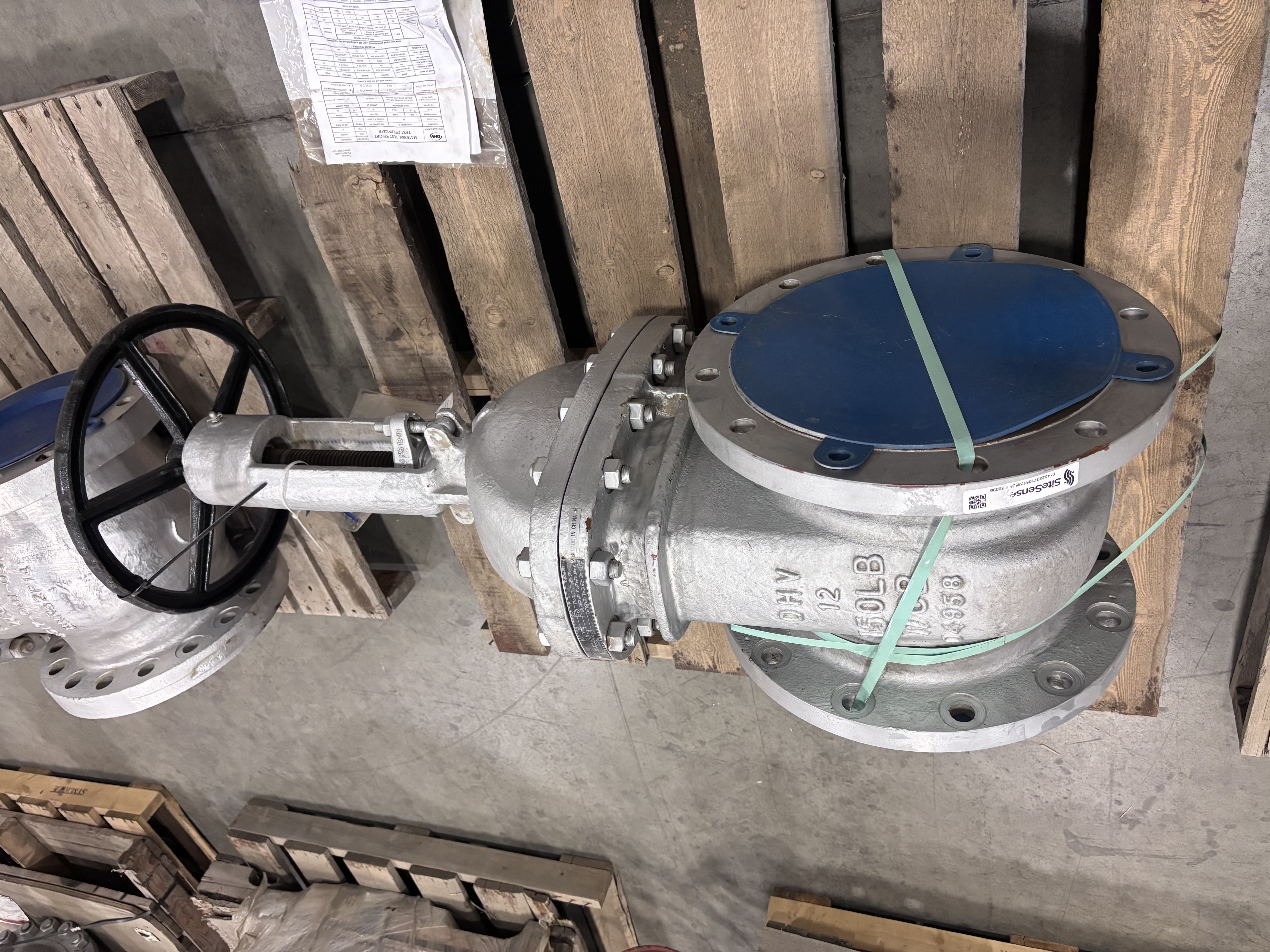

This listing is for one DHV 12 in Class 150 WCB raised-face flanged OS&Y gate valve with handwheel operation, low-emission marking, and visible material test certificate documentation. The visible DHV nameplate identifies the valve as a 12 in Class 150 gate valve with WCB body, F6A stem, HF gate, HF seat, figure no. C110F2, and serial no. D1506482. The same nameplate shows 285 psi at 100°F, 260 psi at 200°F, API 600, ASME B16.34, NACE MR0175, and a 10/2015 date.
Key Details
| Detail | Specification |
| Manufacturer | DHV / DHV Valve Group |
| Item type | OS&Y gate valve |
| Quantity | 1 valve |
| Size | 12 in |
| Pressure class | Class 150 / 150LB |
| Body material | ASTM A216 WCB / WCB cast carbon steel |
| End connection | RF / raised-face flanged |
| Operation | Handwheel operated |
| Construction | Cast steel OS&Y gate valve |
| Low-emission marking | Gate valve low emission |
| Design standard shown | API 600 / API 600-2009 12th Ed. |
| Pressure-temperature standard shown | ASME B16.34 |
| NACE reference shown | NACE MR0175; certificate also references NACE MR0175/ISO15156-2015 and NACE MR-0103-2015 |
| Figure no. | C110F2 |
| Serial no. | D1506482 |
| Nameplate date | 10/2015 |
| Rated pressure shown | 285 psi at 100°F; 260 psi at 200°F |
| Stem material | F6A / ASTM A182 F6A |
| Gate / wedge face | HF on nameplate; Stellite 6 on certificate |
| Seat face | HF on nameplate; Stellite 6 on certificate |
| Trim description | 13CR Trim; Stellite 6 / Stellite 6 seat face |
| Body / bonnet / wedge base material | ASTM A216 WCB |
| Seat ring base material | ASTM A105N |
| Studs / nuts | ASTM A193 B7M studs; ASTM A194 2HM nuts |
| Gland / backseat material | ASTM A276 420 |

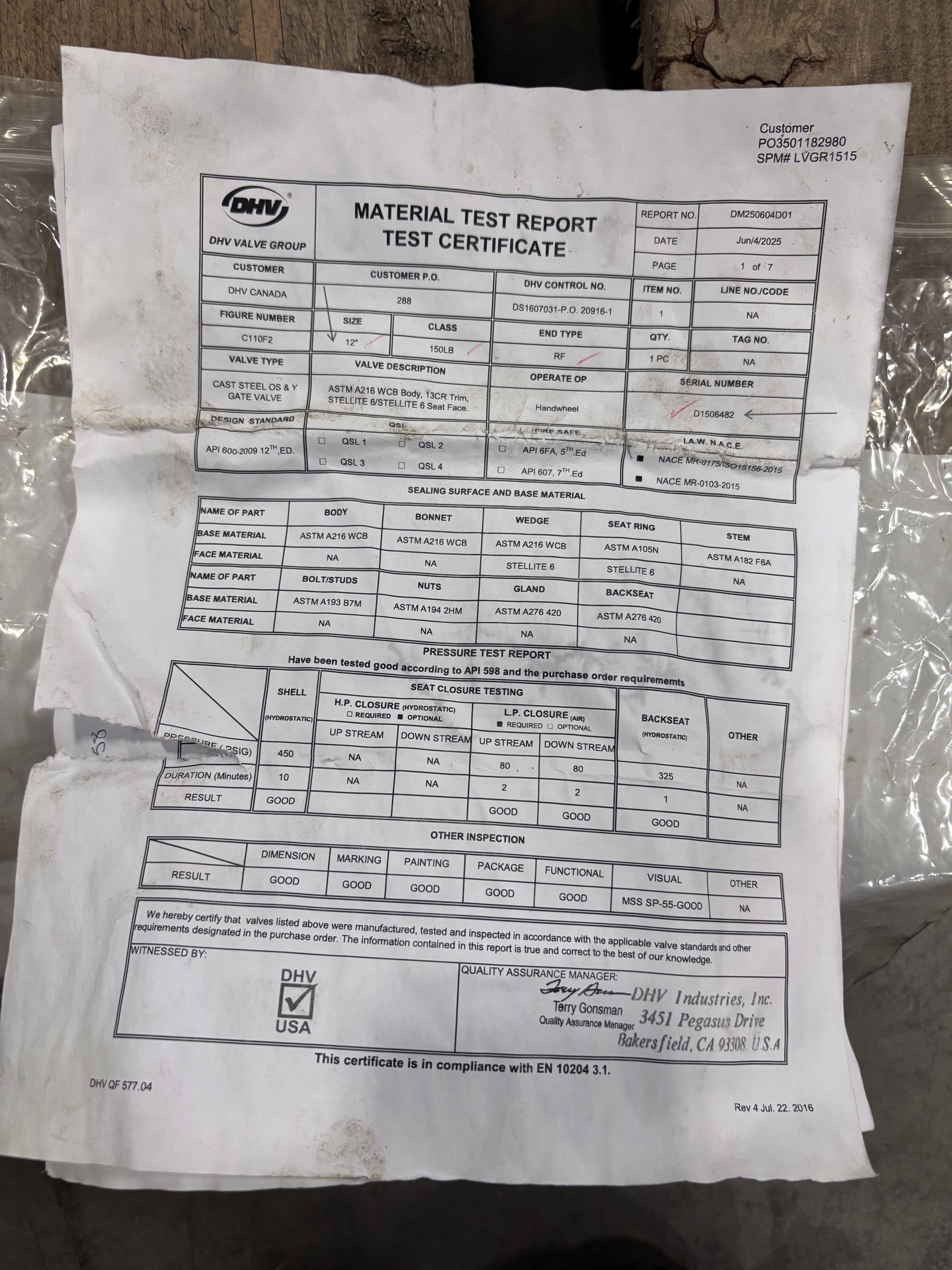

| Certificate report no. | DM250604D01 |
| Certificate date | Jun/4/2025 |
| Customer shown on certificate | DHV Canada |
| Customer PO | 288 |
| DHV control no. | DS1607031-P.O. 20916-1 |

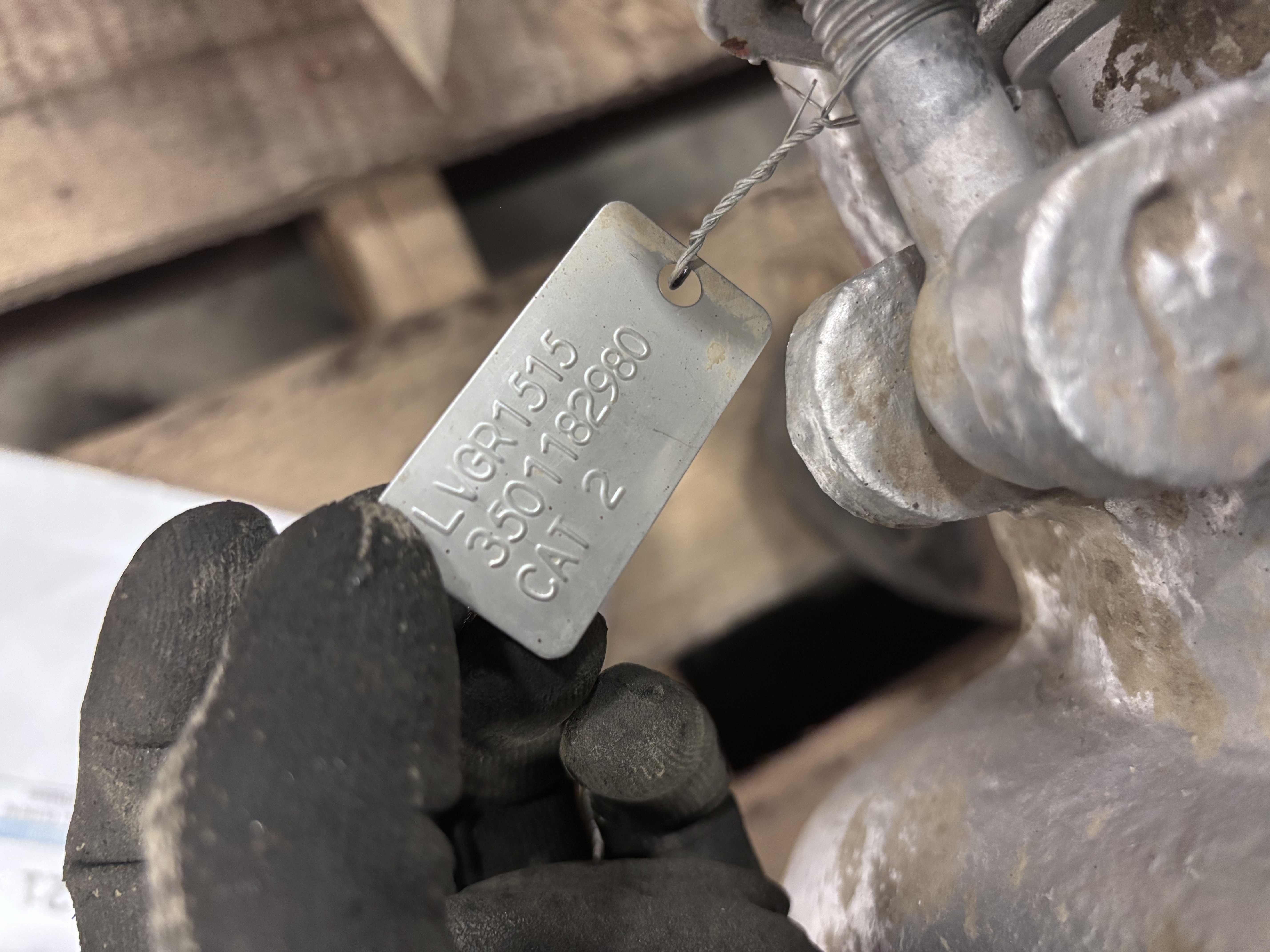

| Seller / return tag | LVGR1515 |
