39 ft² Shell & Tube Exchanger
Listing ID:
IH-64970
Description
Air-Cooled Heat Exchanger Assembly
Notes:
Summary

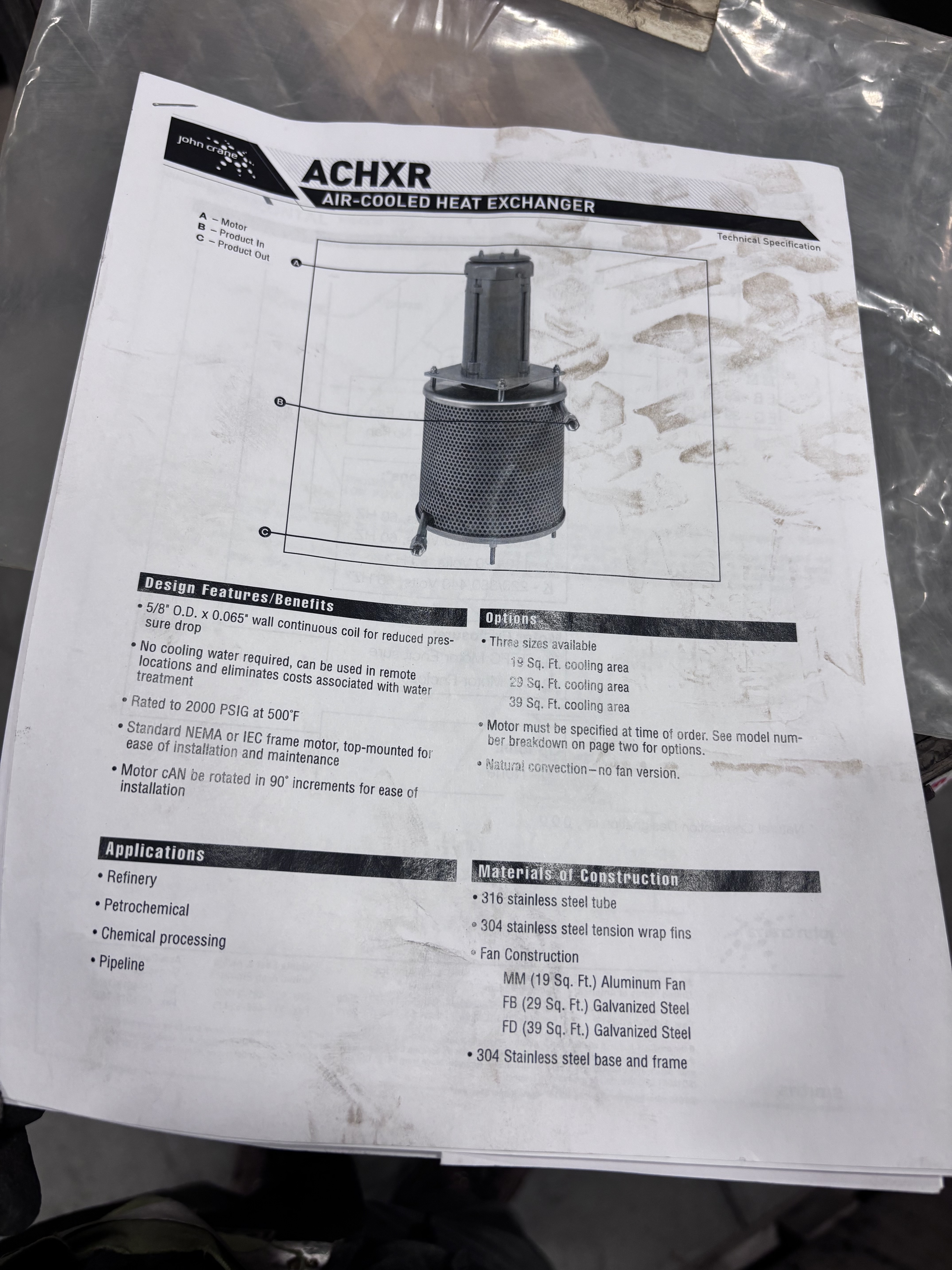

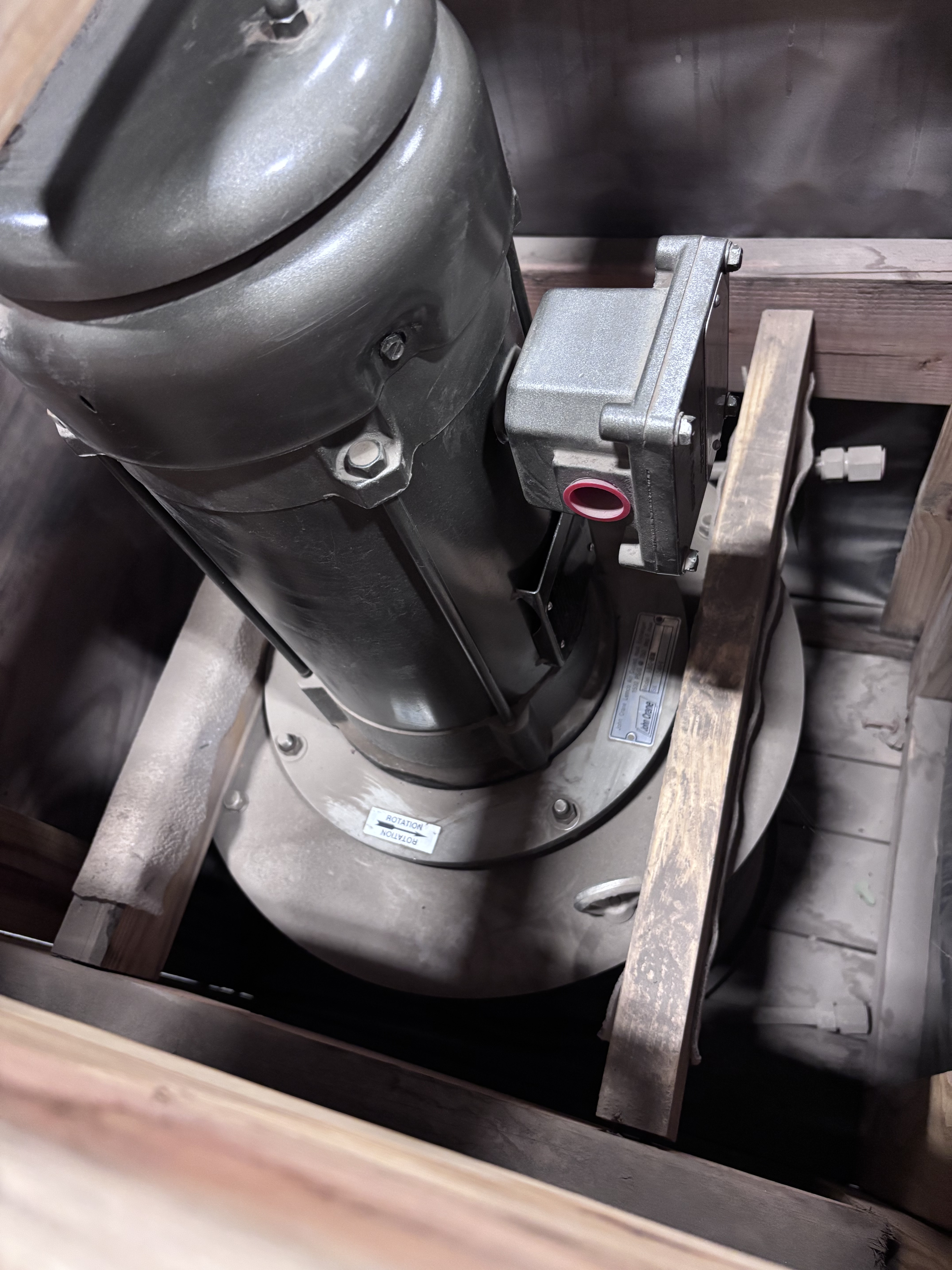

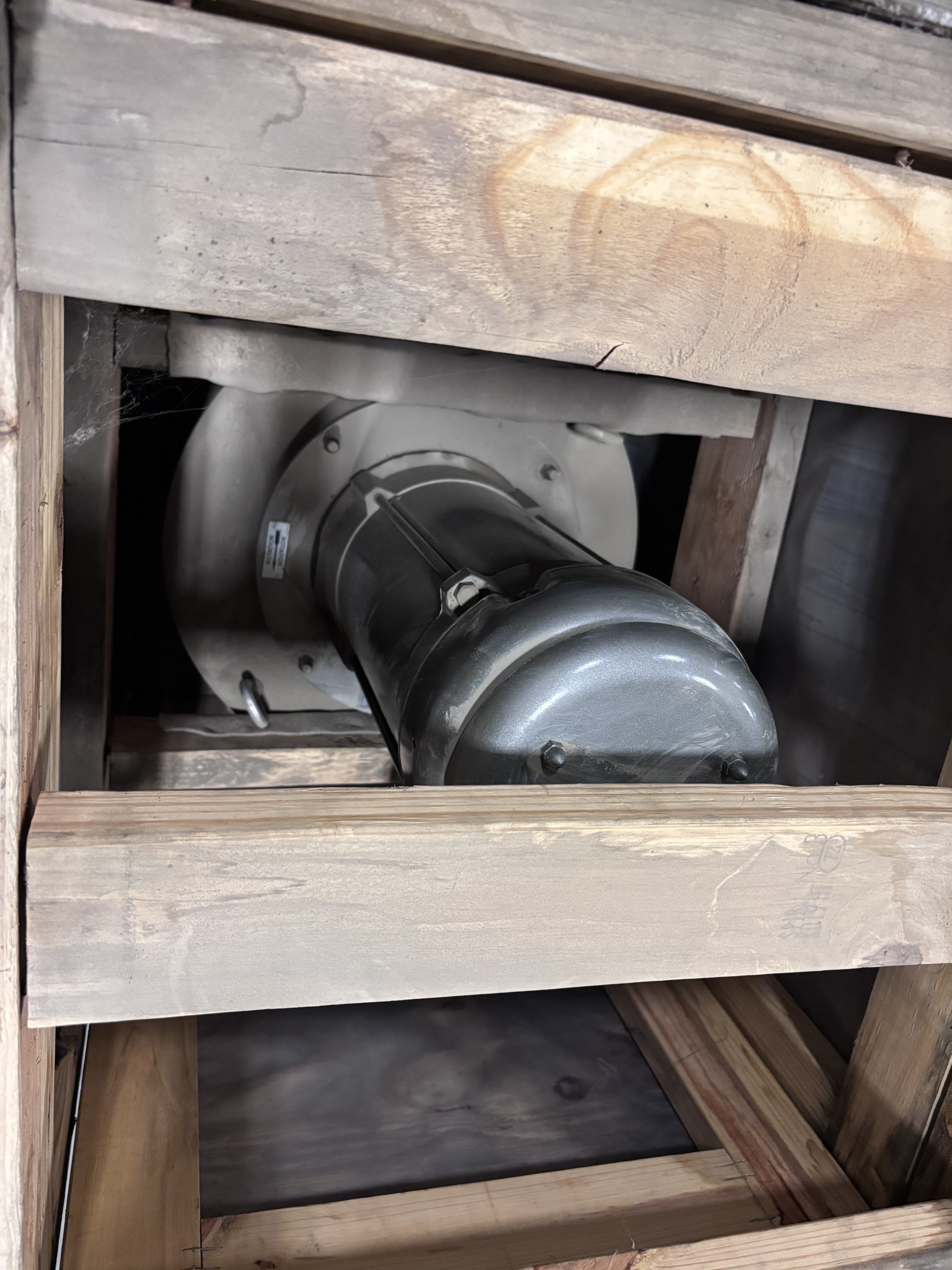

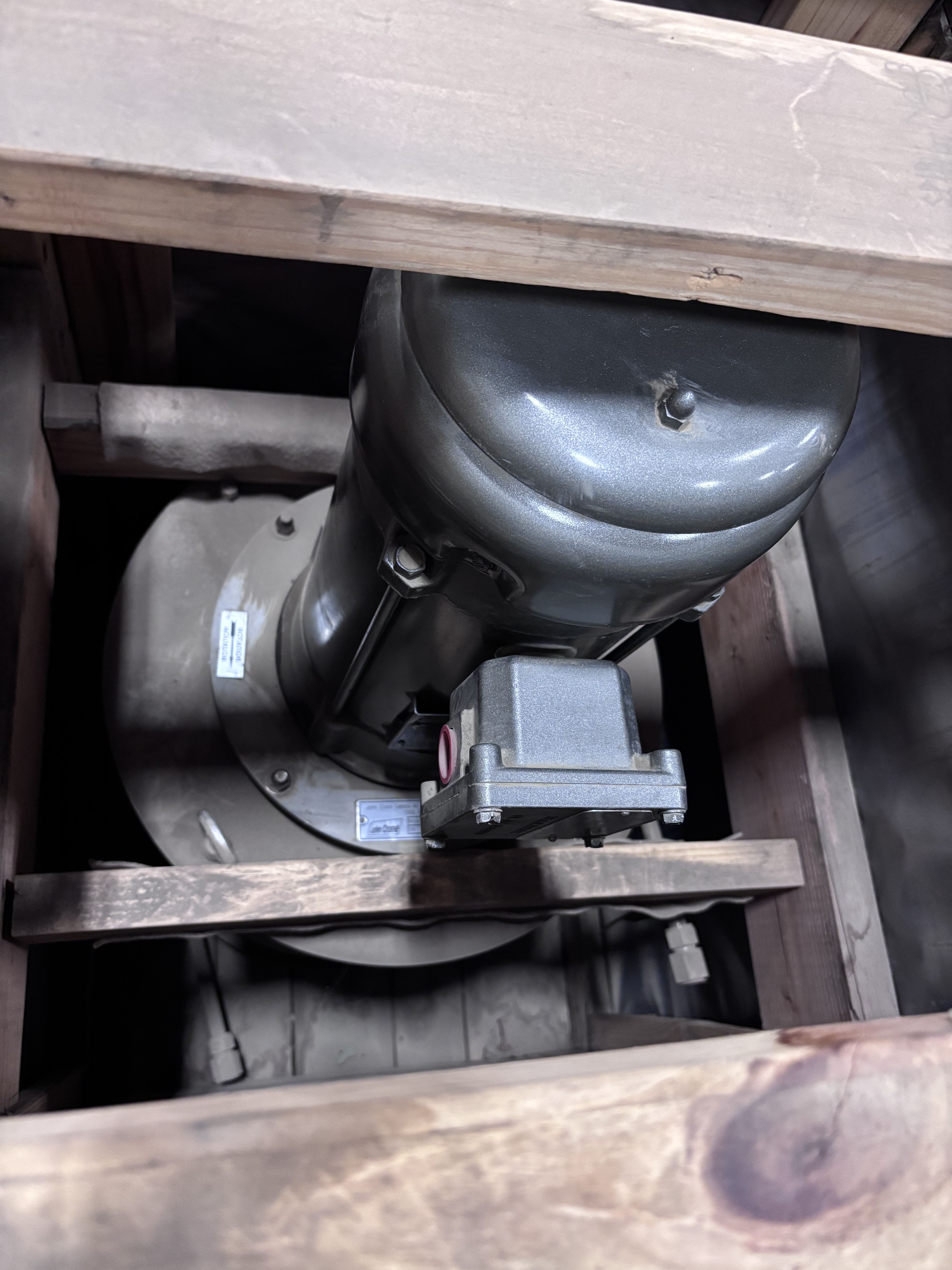

Surplus John Crane Lemco air-cooled heat exchanger assembly, model ABC-B1N, serial number 76341-1. Unit appears unused or lightly handled and is stored in a wooden shipping crate. Documentation shown identifies the assembly as an ACHXR air-cooled heat exchanger with stainless construction, high-pressure coil rating, and Baldor hazardous-location electric motor.
Key Details
| Field | Listing Information |
|---|---|
| Manufacturer | John Crane / Lemco |
| Equipment type | Air-Cooled Heat Exchanger Assembly |
| Product family | ACHXR Air-Cooled Heat Exchanger |
| Model | ABC-B1N |
| Serial number | 76341-1 |

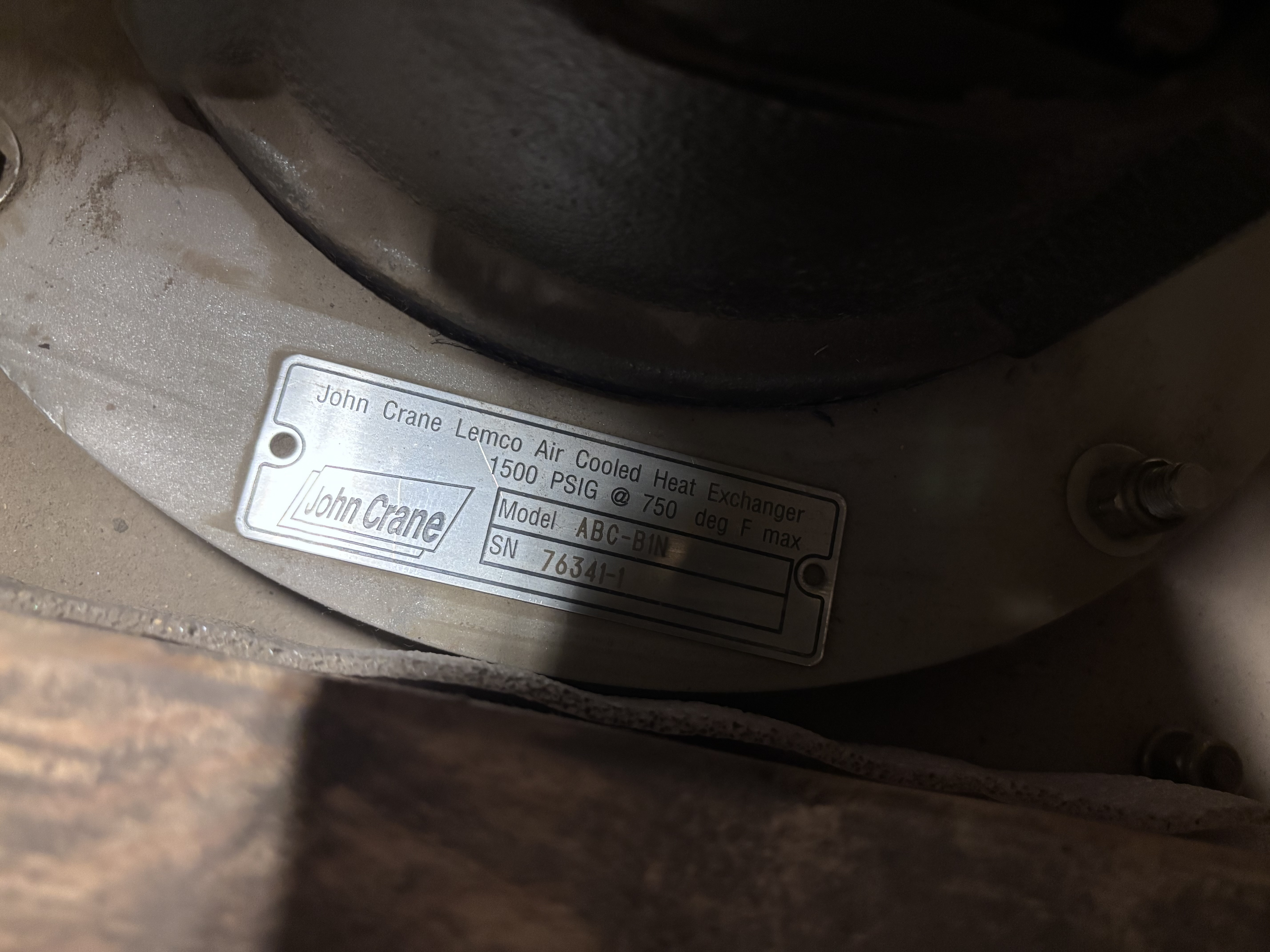

| Pressure rating | 1500 PSIG nameplate; drawing also references coil design pressure 1500 PSI |
| Maximum temperature | 750°F max nameplate / drawing reference |
| Material of construction | 316L stainless steel shown on drawing/spec sheet |

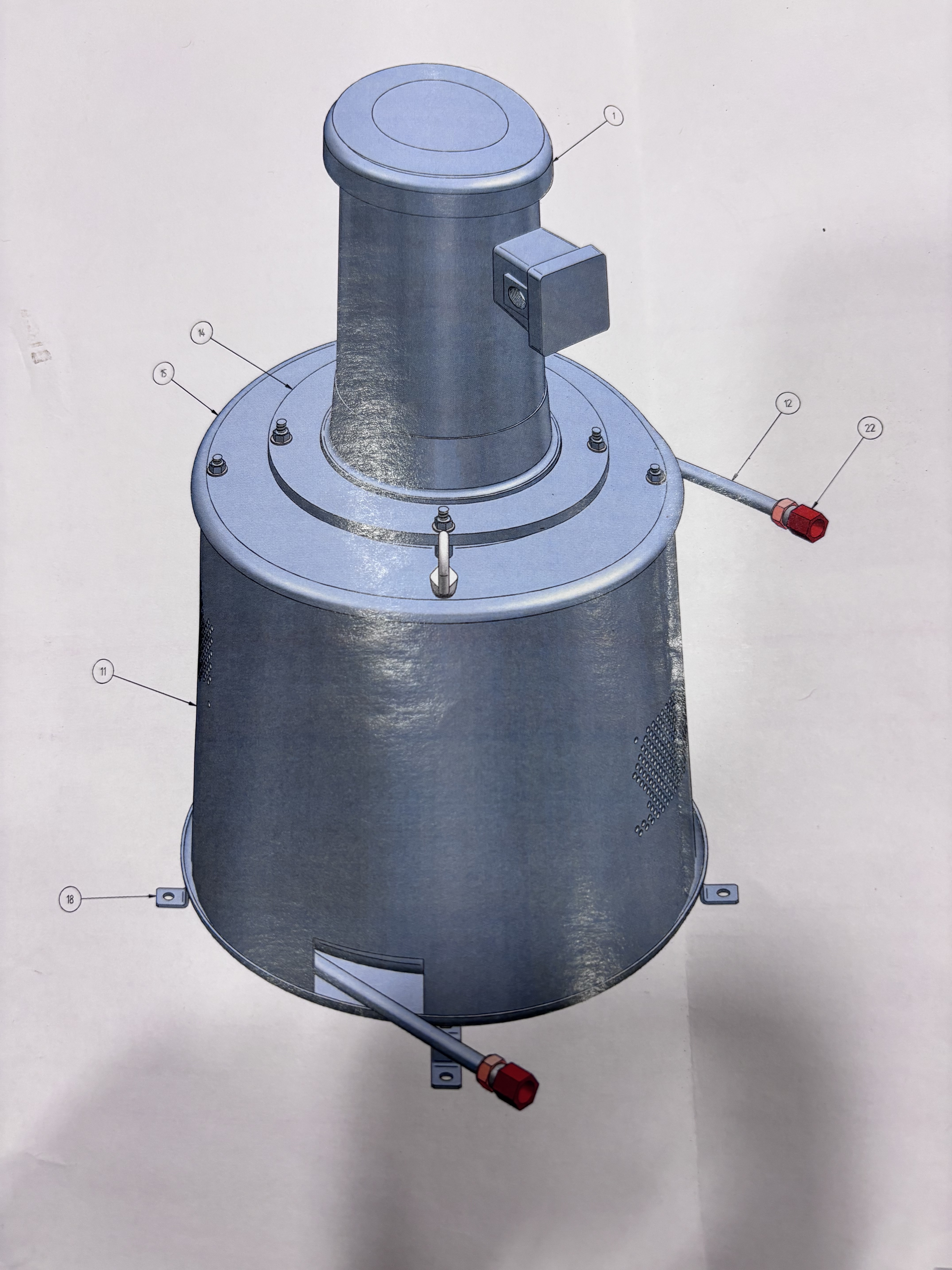

| Drawing description | Air Cooled Heat Exchanger Assembly |
| Drawing no. | ABC-B1 Build |
| Configuration / model reference | Drawing references Model 39 |
| Cooling area options shown on product sheet | 19, 29, or 39 sq. ft.; this unit appears to be associated with Model 39 |

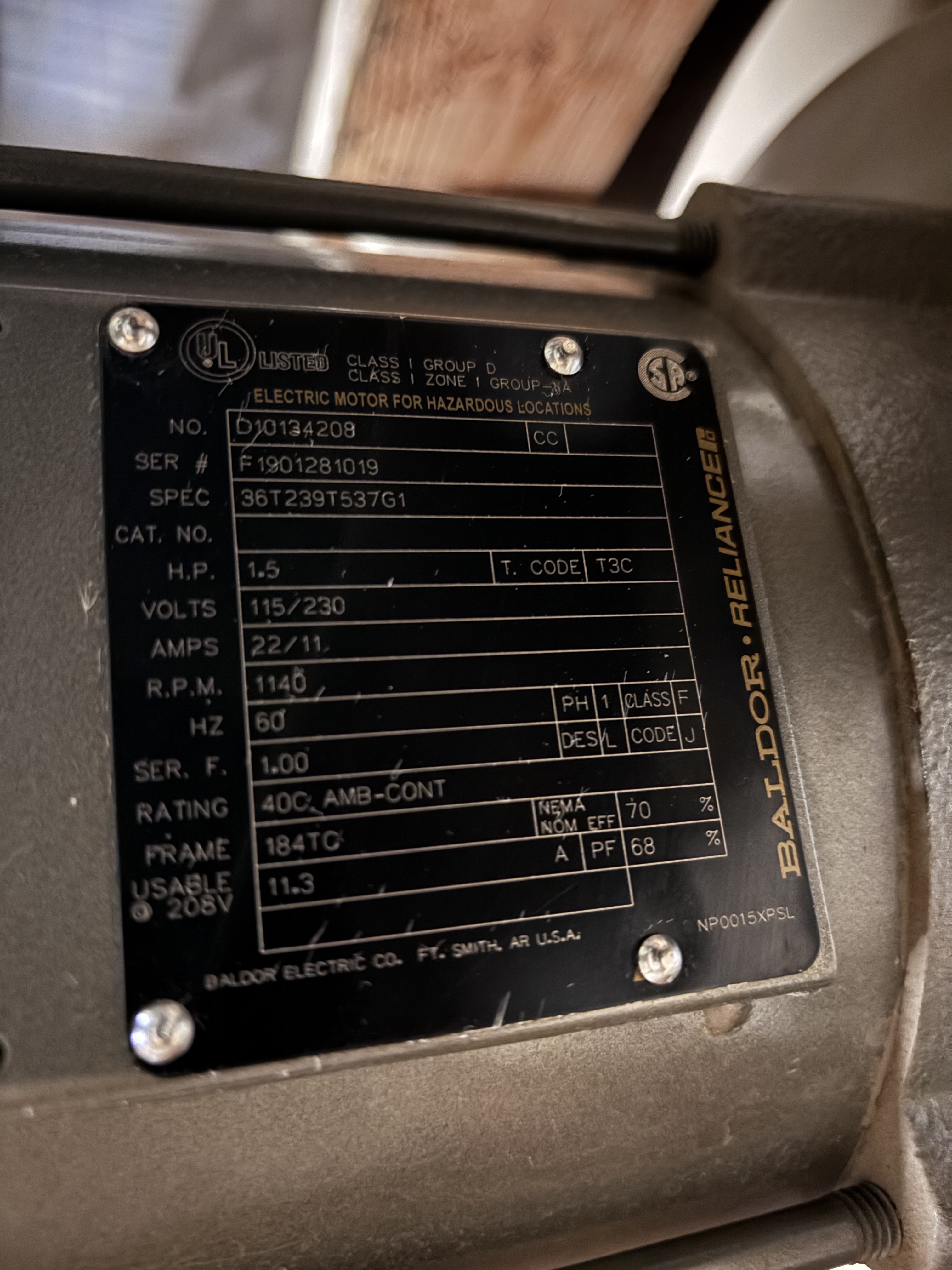

| Motor | Baldor Reliance hazardous-location motor |
| Motor horsepower | 1.5 HP |
| Motor voltage | 115/230 V |
| Motor phase / frequency | 1 phase, 60 Hz |
| Motor RPM | 1140 RPM |
| Motor frame | 184TC |

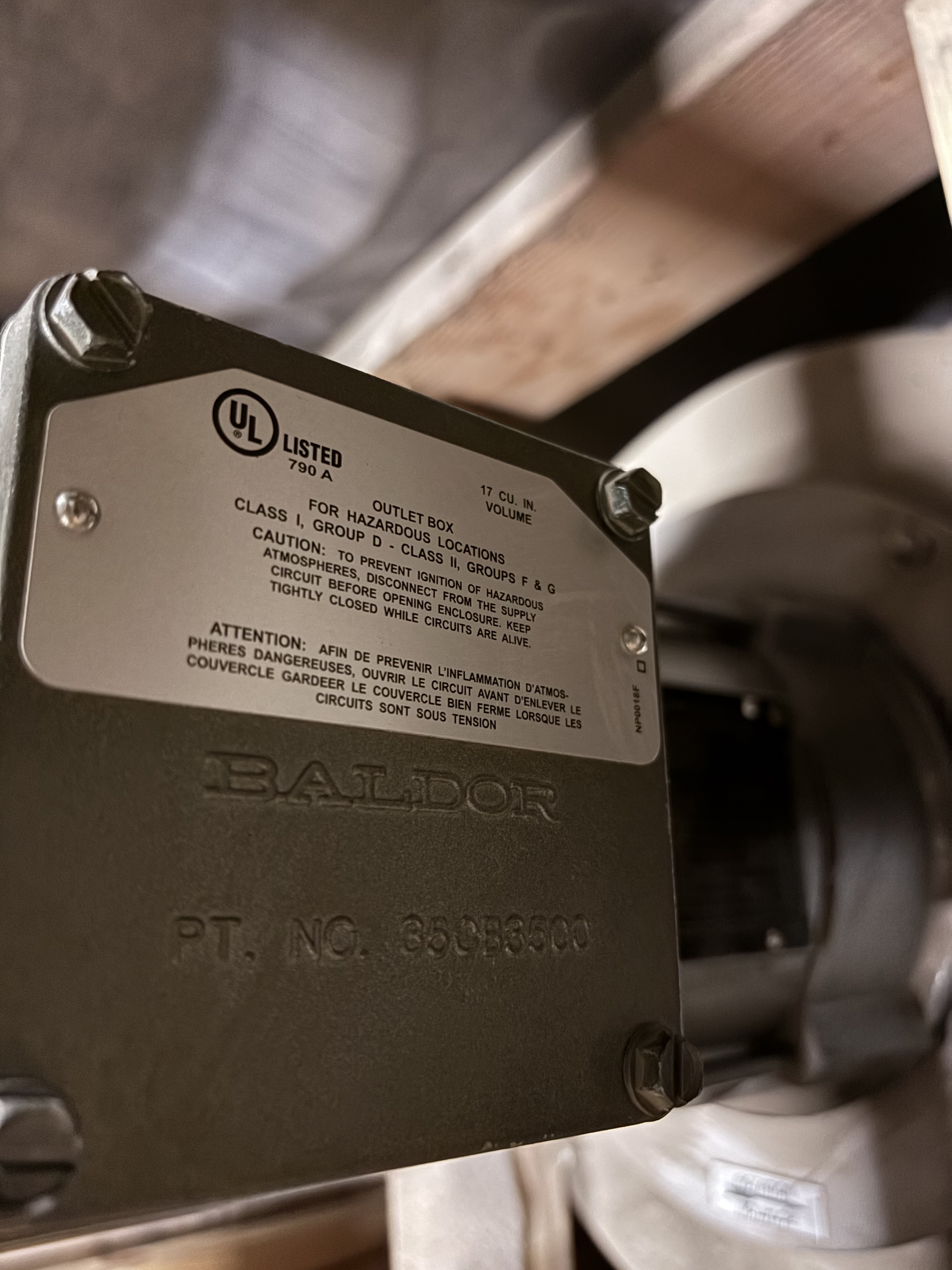

| Hazardous location rating | Class I Group D; Class II Groups F & G visible on motor/outlet box labels |
