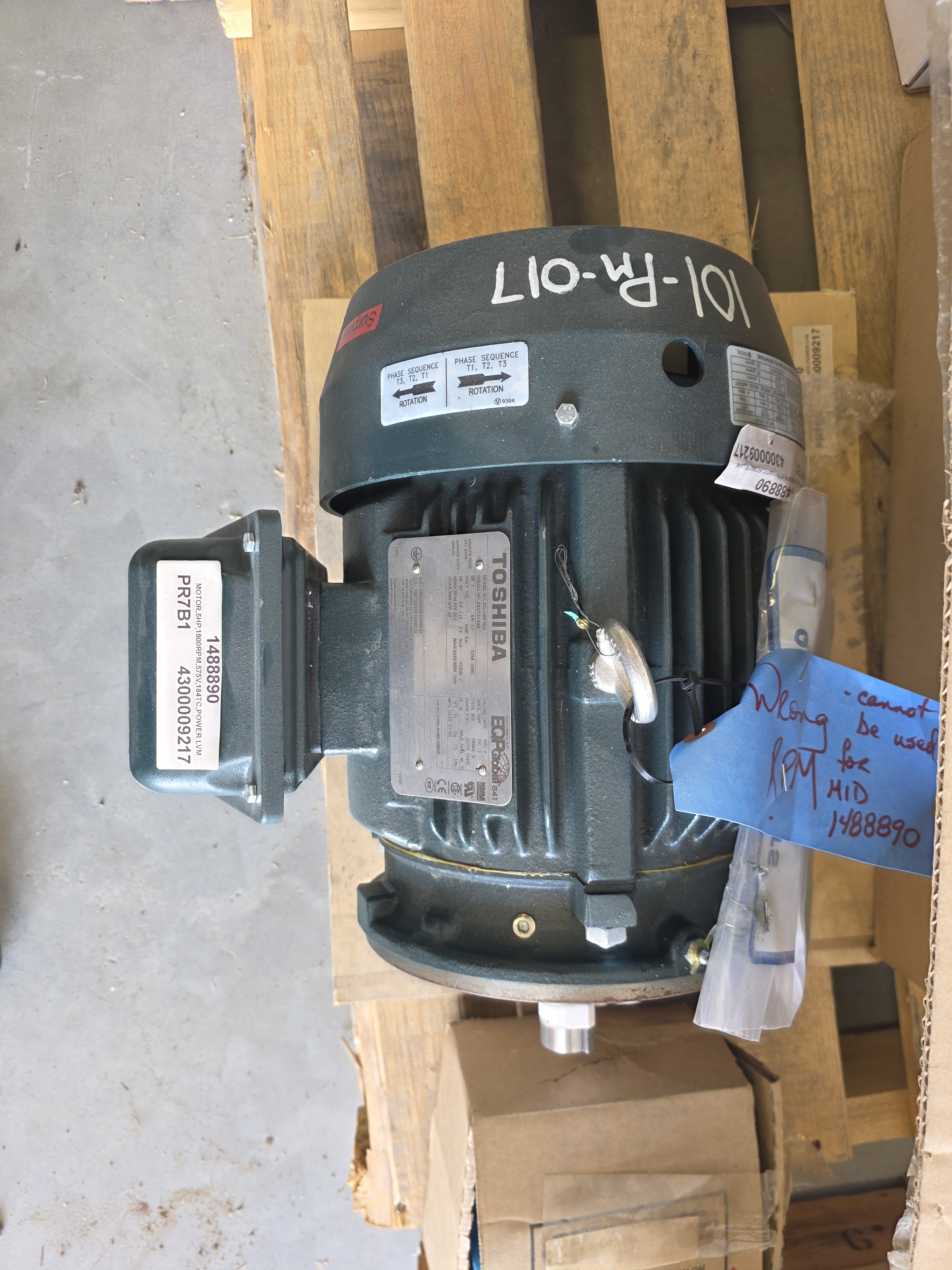

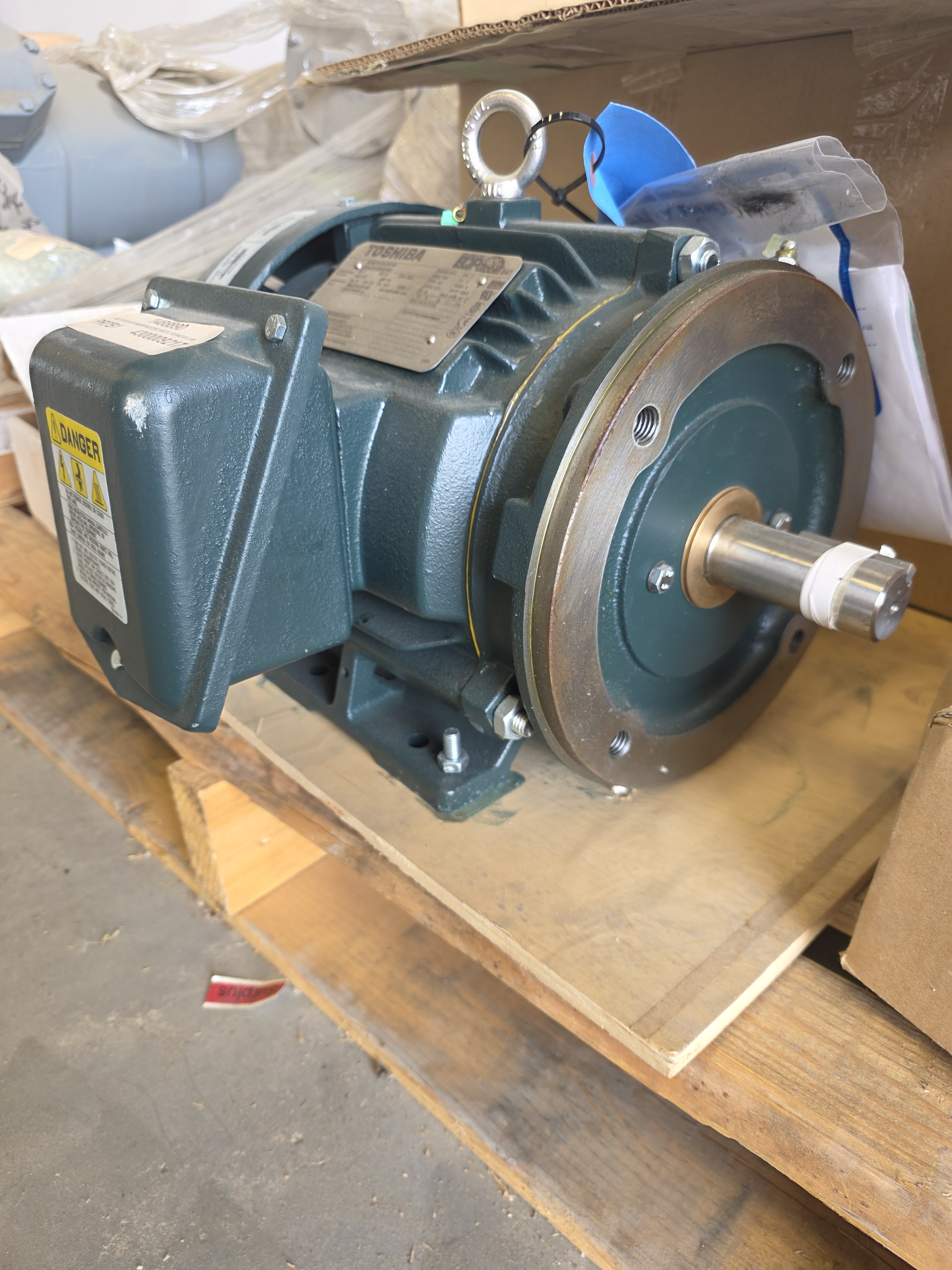

MOTOR,5HP,3500RPM,575V, EQP Global 841

MOTOR,5HP,3500RPM,575V,184TC,POWER LVM >

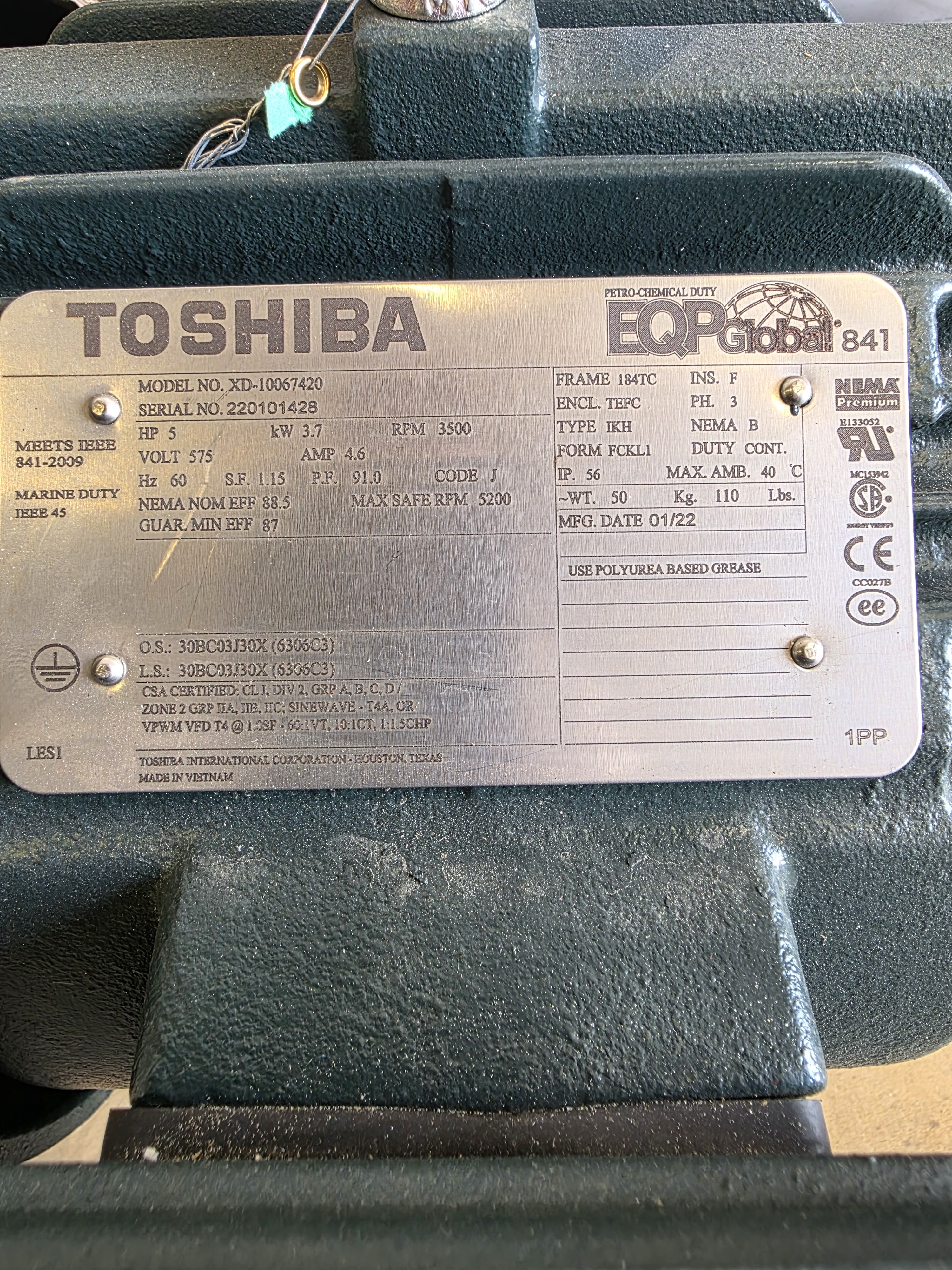

Class:12220                    ELECTRIC MOTOR.
Horsepower:                    5HP.
Voltage:                       575V.
Speed:                         3500RPM.
Frame:                         184TC.
Manufacturer Name:             TOSHIBA.
Manufacturer Part Number:

ADDITIONAL INFORMATION:
841
Service Factor: 1.15 S.F.
Nema Design Letter: B
Motor Frame Construction: Cast Iron Footed
Shaft Rotation: Bi-Directional, CCW from NDE/OS (CW from DE/LS)
Motor Mounting Arrangement: Horizontal Shaft Mounting
Hazard Duty Application: Standard Hazard Duty Approval
Classification/ Division: Class I Division 2
T-Code: SINEWAVE= T4A - 120°C @ 1.15SF OR 1.0SF;
VPWM VFD= T4 - 135°C @ 1.0SF~ 60:1VT, 10:1CT, 1:1.5CHP
Groups: A,B,C,D
Winding PTC Thermistor Modification: Mark A (PTC) Thermistor
Thermistor Leads Wired to Main Terminal Box
Main Conduit Box: Standard Cast Iron Conduit Box
Location: Main-Box F1 Location (Standard)
