200 hp Westinghouse Canada Limited HSB Electric Driver
Description

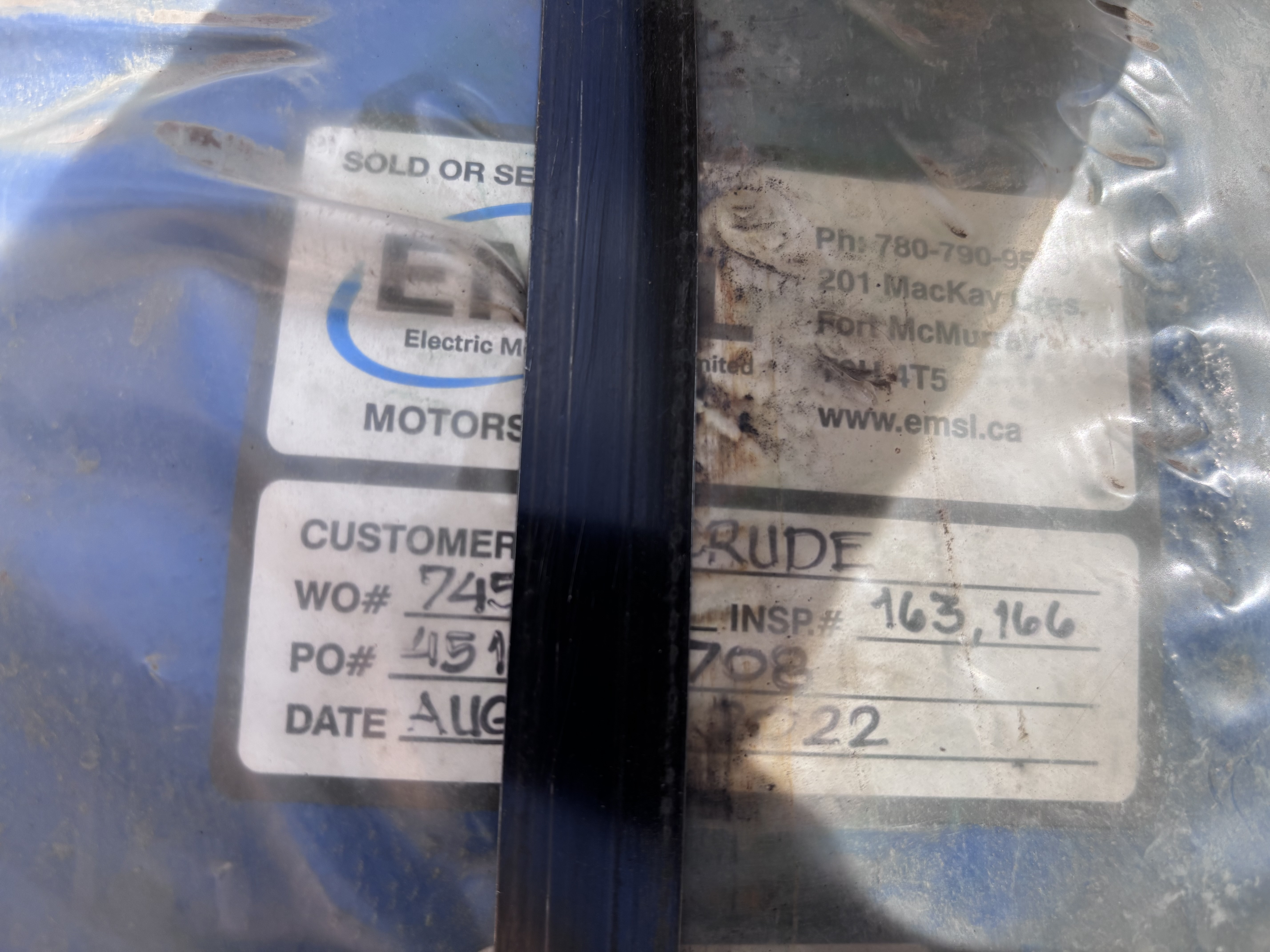

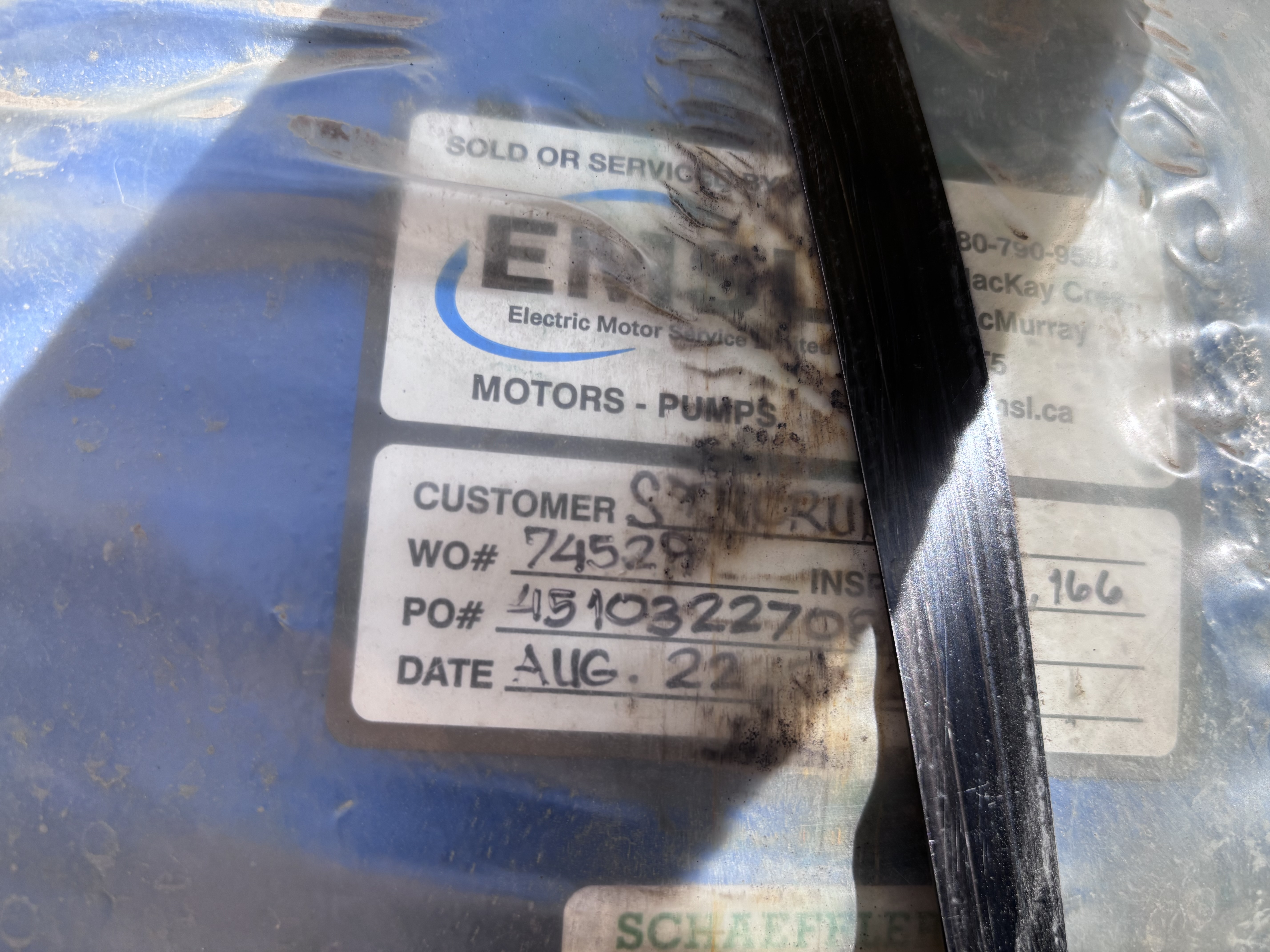

For sale is one (1) Westinghouse Life-Line T AC induction motor, 200 HP, 575V, 3-phase, 1780 RPM, Frame 447TS, serial 7-28S8253. This motor was sourced from Suncor Energy (Syncrude) Mildred Lake operations and was on a professional repair/inspection work order completed by EMSL (Electric Motor Service Ltd.), Fort McMurray, AB in August 2022.
The Westinghouse Life-Line T series is a heavy-duty TEFC (Totally Enclosed Fan Cooled) industrial AC motor built to NEMA/CEMA standards, widely used in oil sands, mining, process, and utility drive applications. The 447TS frame is a large-frame industrial standard, and the 575V rating is the standard Canadian industrial voltage, making this motor directly compatible with the majority of Alberta industrial facilities without transformer modification.

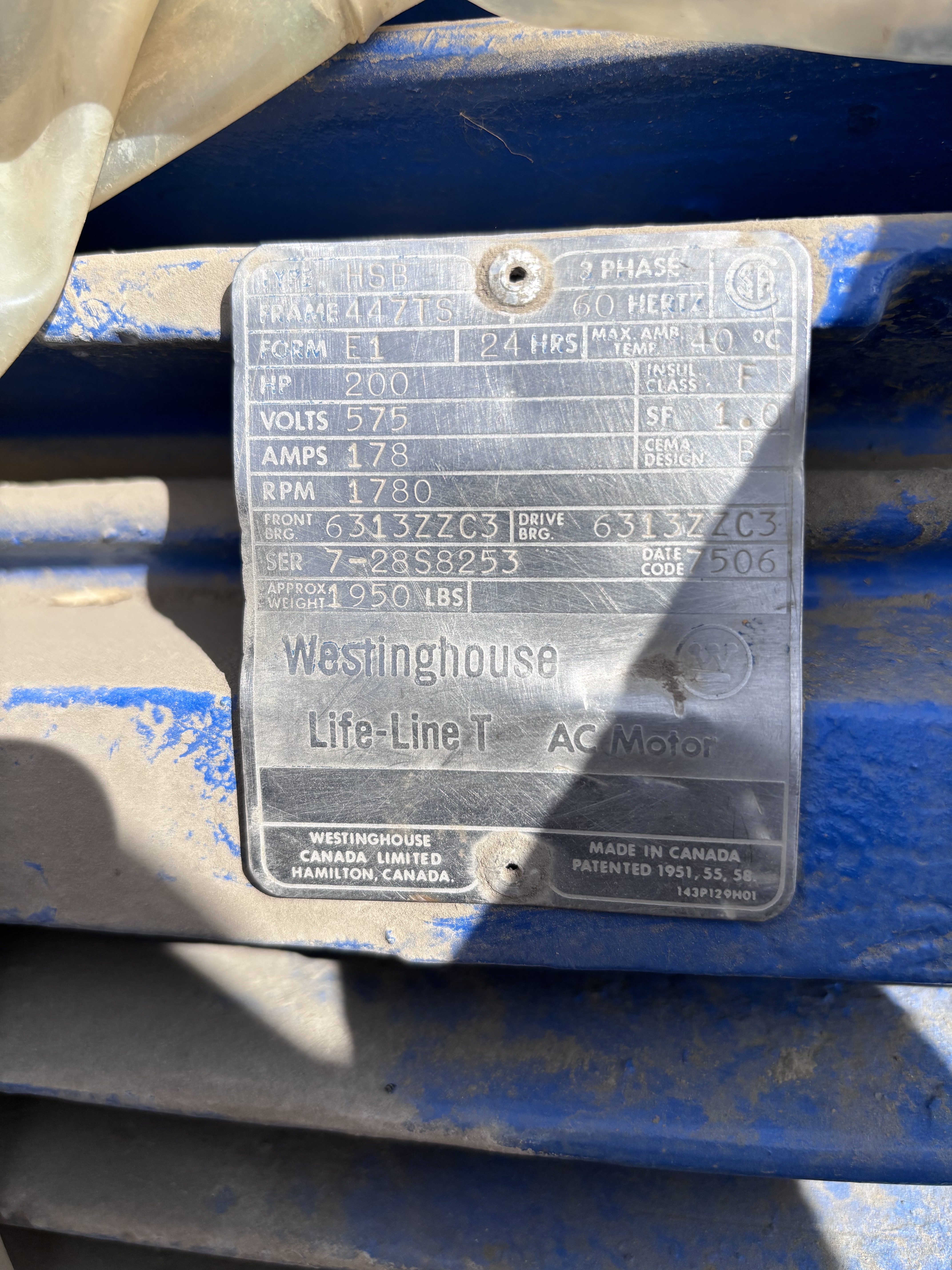

Nameplate Specifications
| Attribute | Value |
| Manufacturer | Westinghouse Canada Limited |
| Series | Life-Line T |
| Type | HSB |
| Frame | 447TS |
| Form | E1 |
| Duty | Continuous (24 HRS) |
| Phase | 3 |
| Frequency | 60 Hz |
| Horsepower | 200 HP |
| Voltage | 575 V |
| Full Load Amps | 178 A |
| Speed | 1780 RPM |
| Max Ambient Temperature | 40°C |
| Insulation Class | F |
| Service Factor | 1.0 |
| CEMA Design | B |
| Front Bearing | 6313ZZC3 |
| Drive Bearing | 6313ZZC3 |
| Serial Number | 7-28S8253 |
| Date Code | 7506 (June 1975) |
| Approx. Weight | 1,950 lbs (885 kg) |
| Origin | Made in Canada |
