HPS 5 kVA Constant-Voltage Transformer
Listing ID:
IH-68088
Description
HPS 5 kVA Constant-Voltage Transformer — 600 V Primary / 120/240 V Secondary
Notes:
Description
Available is one Hammond Power Solutions (HPS) 5 kVA single-phase constant-voltage transformer, catalog number 1240187, type CVHW. The unit has a 600 V primary and a 120/240 V secondary configuration, as stated on the physical nameplate.

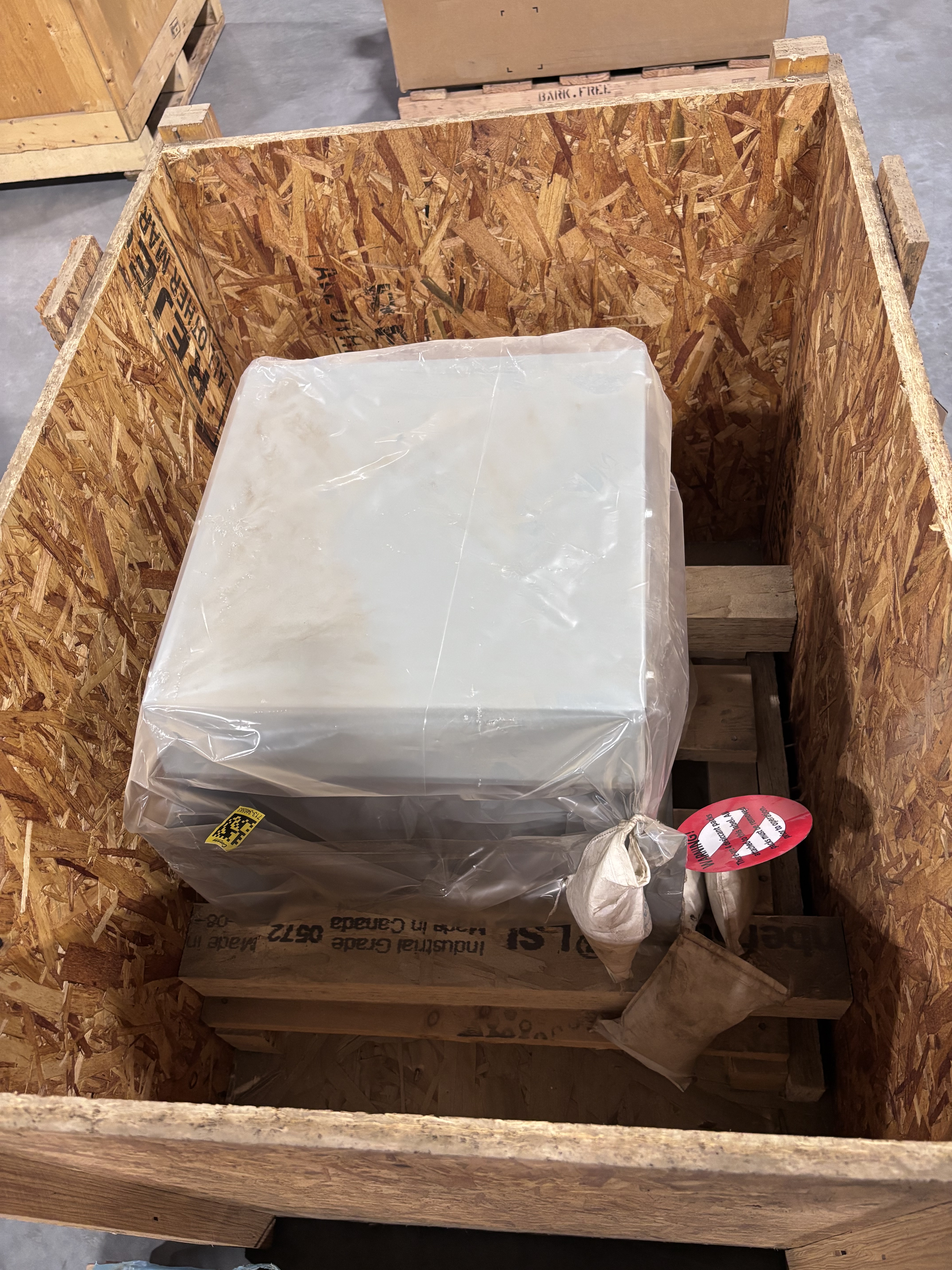

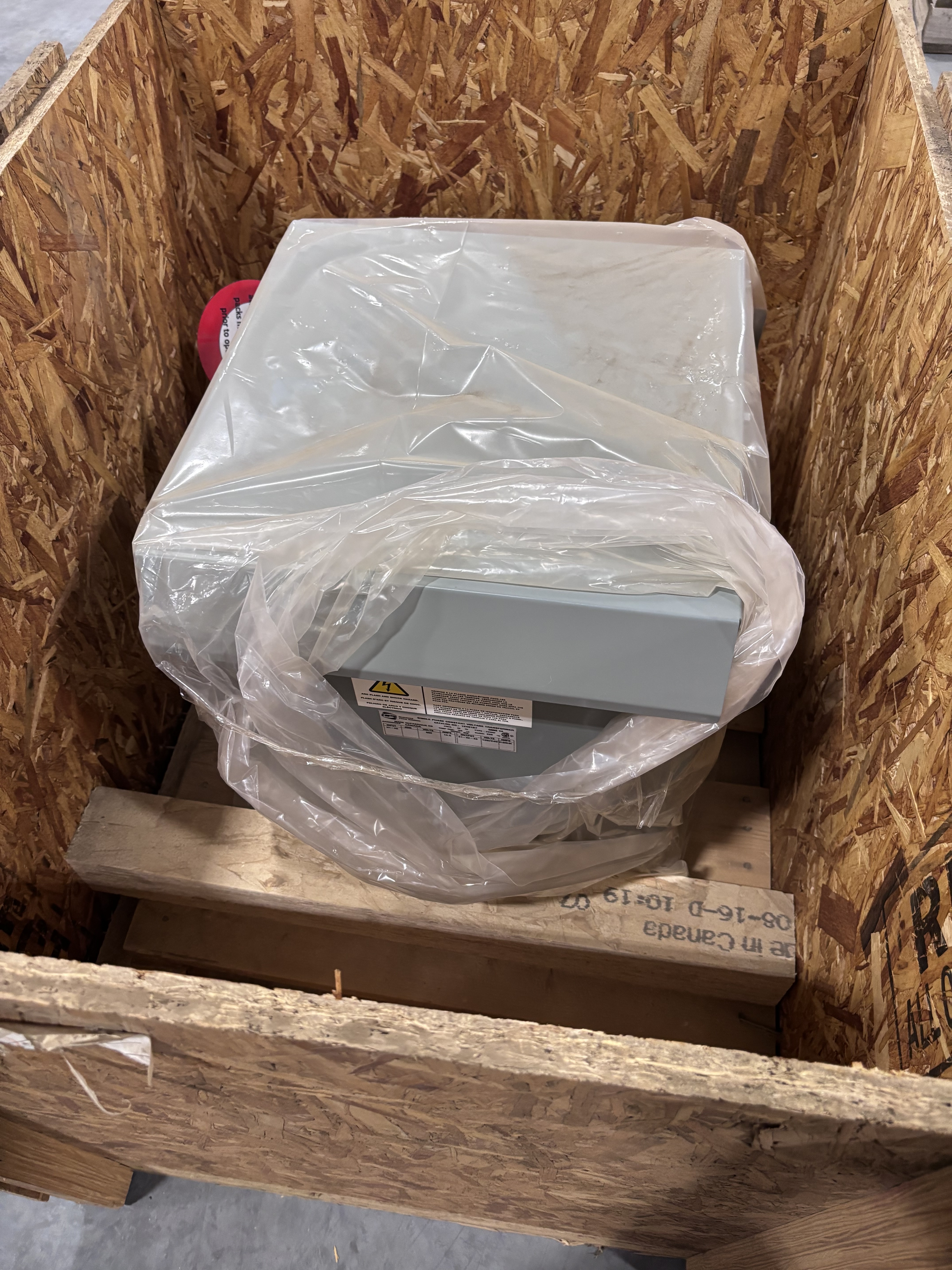

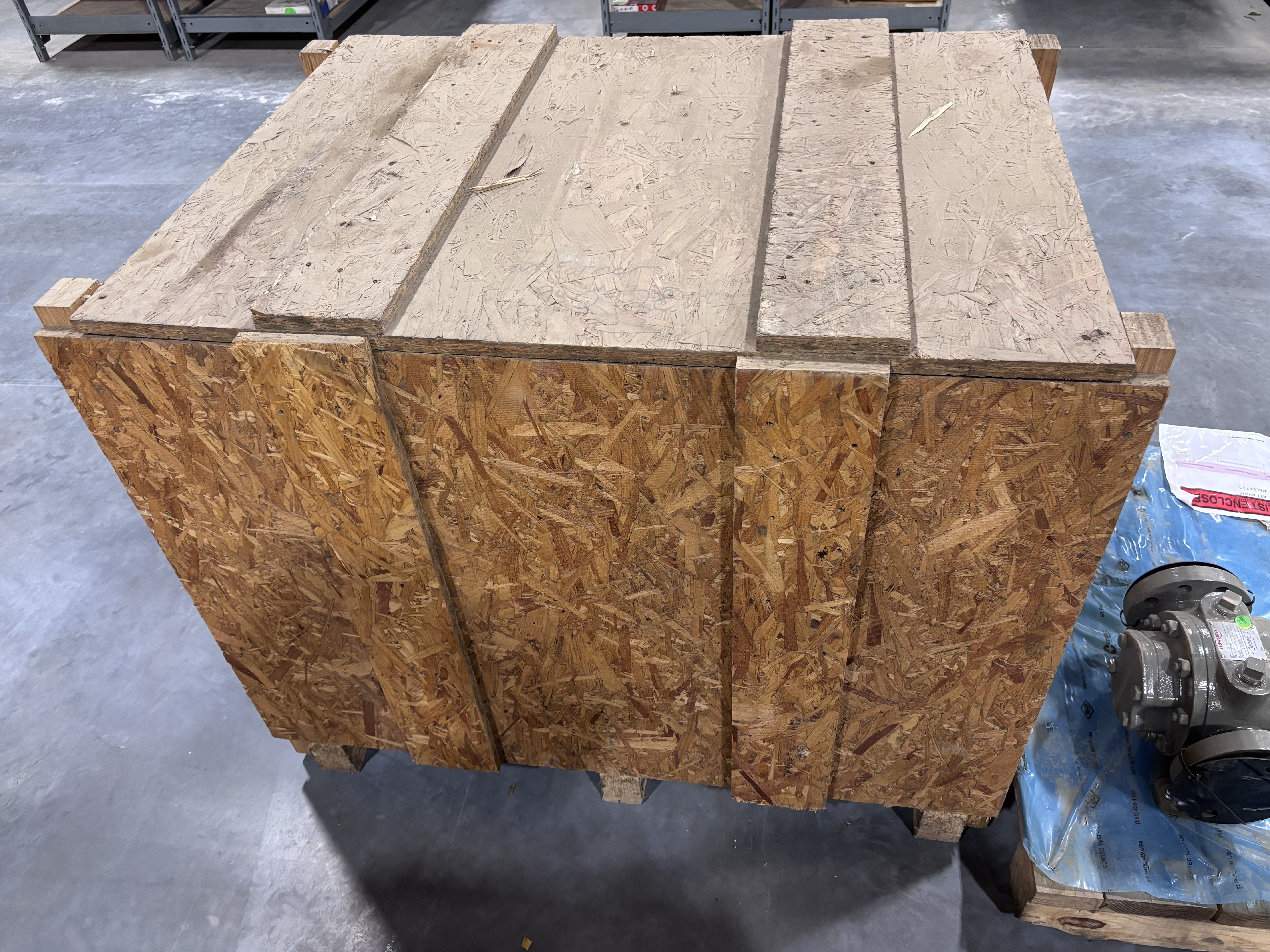

The transformer remains protected by clear plastic inside a wood crate, with protective/desiccant packaging visible. It is offered as unused surplus in its current crated condition. The original crate and protective packaging are included as presented.

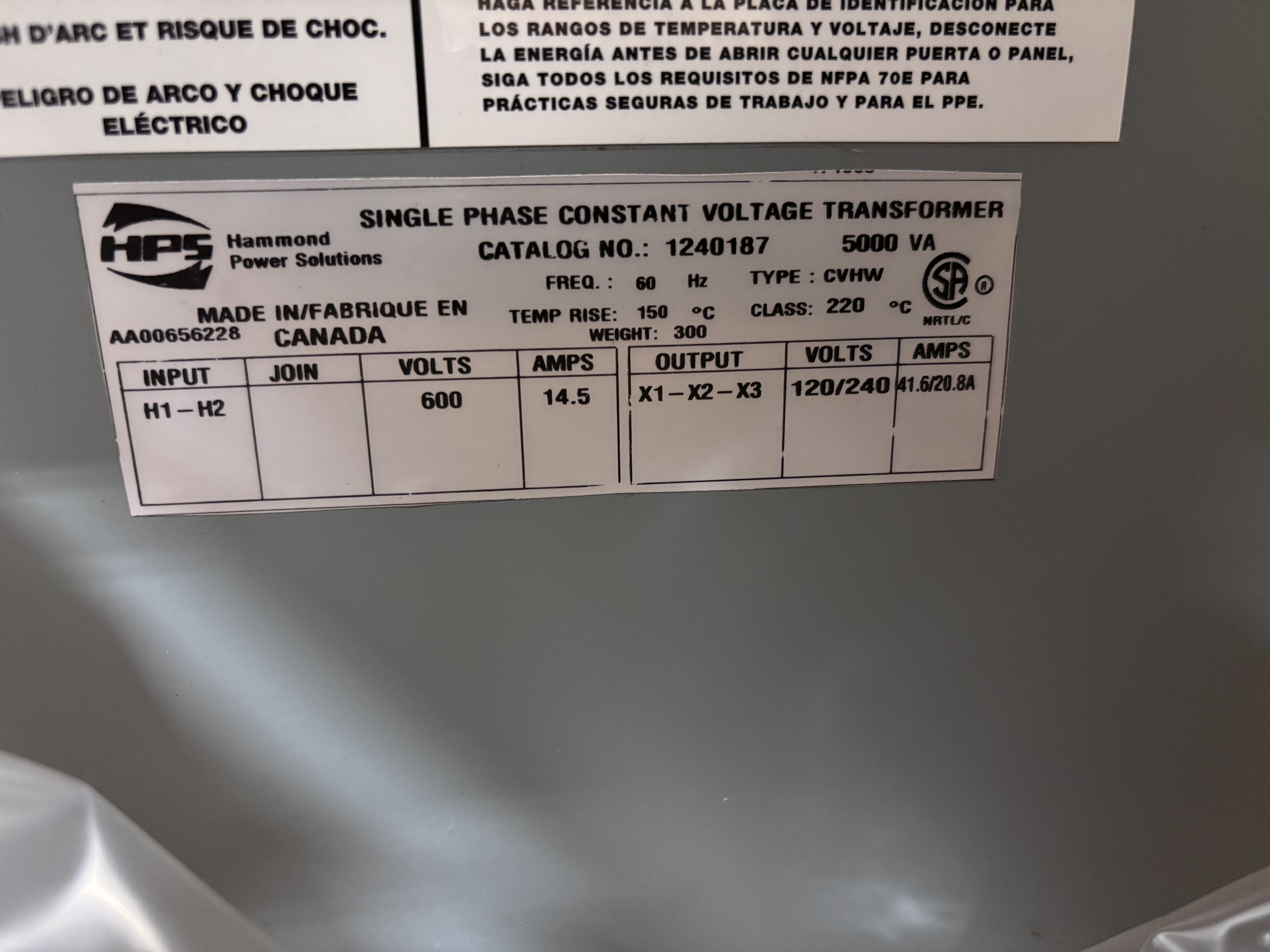

Verified Nameplate Data
| Specification | Verified detail |
| Manufacturer | Hammond Power Solutions (HPS) |
| Catalog number | 1240187 |
| Serial number | AA00656228 |
| Transformer type | Single-phase constant-voltage transformer; type CVHW |
| Rated capacity | 5,000 VA / 5 kVA |
| Frequency | 60 Hz |
| Input | H1–H2, 600 V, 14.5 A as marked |
| Output | X1–X2–X3, 120/240 V, 41.6/20.8 A as marked |
| Temperature rise | 150°C |
| Insulation class | 220°C |
| Nameplate weight marking | Weight: 300 |
| Manufacture date | No date identified on the available nameplate or exterior evidence, work order unit was ordered for is from 2016 |
