1" 800# Gate Valve
Douglas Chero Newco-47 Gate Valve | 1" Class 800 | Forged Steel A105N | SW x NPT | NACE MR0103 | New in Box
Description

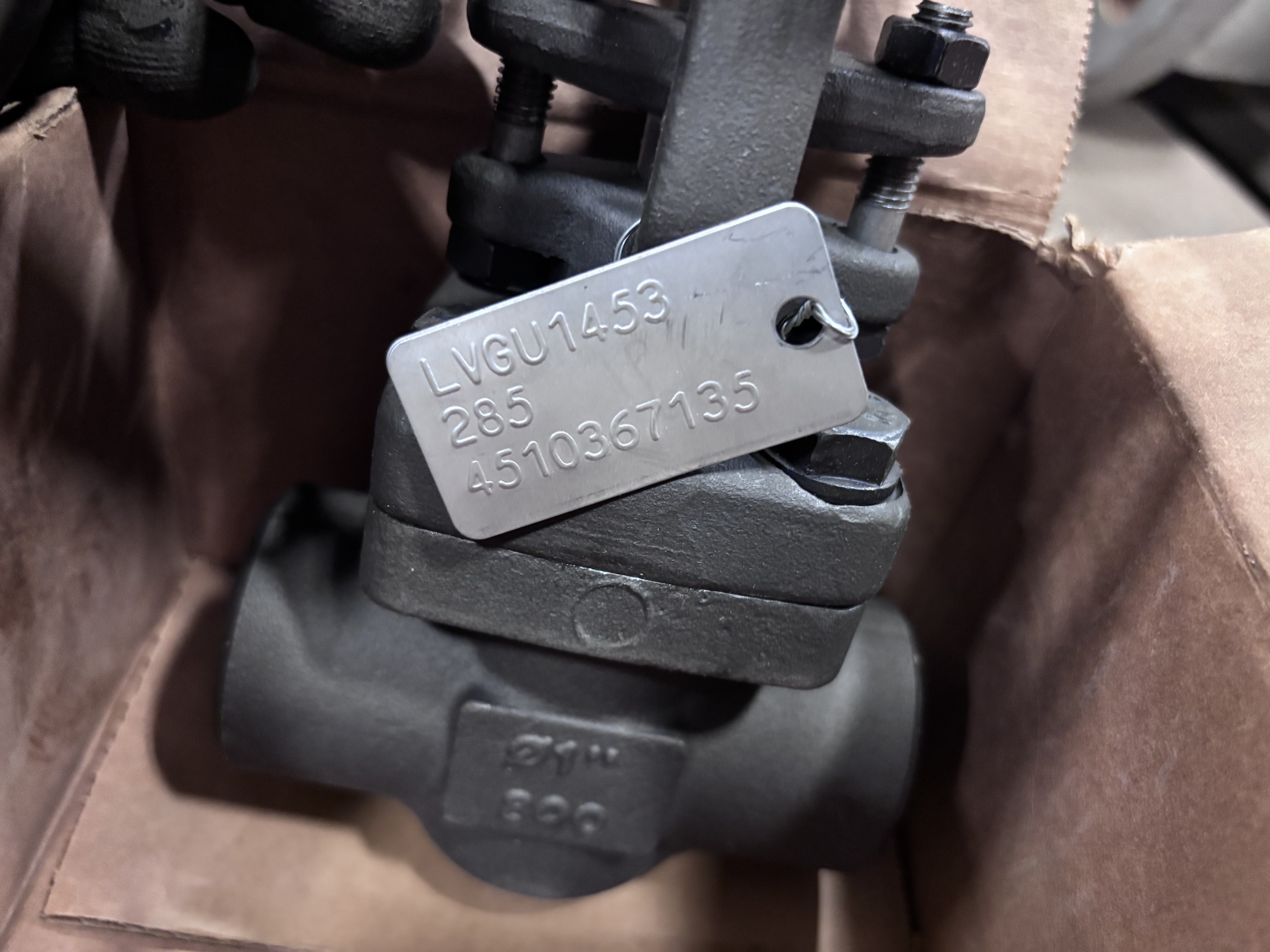

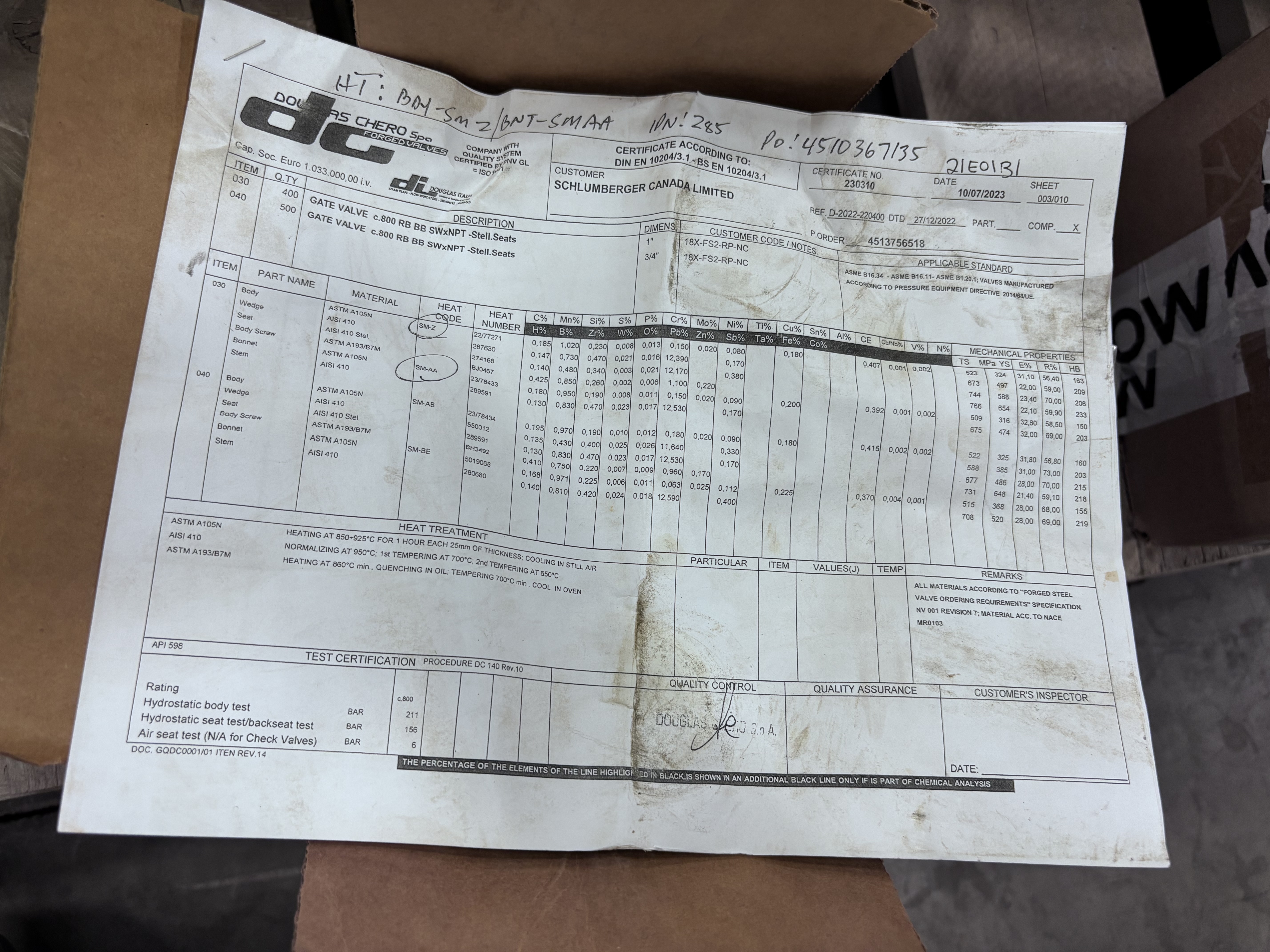

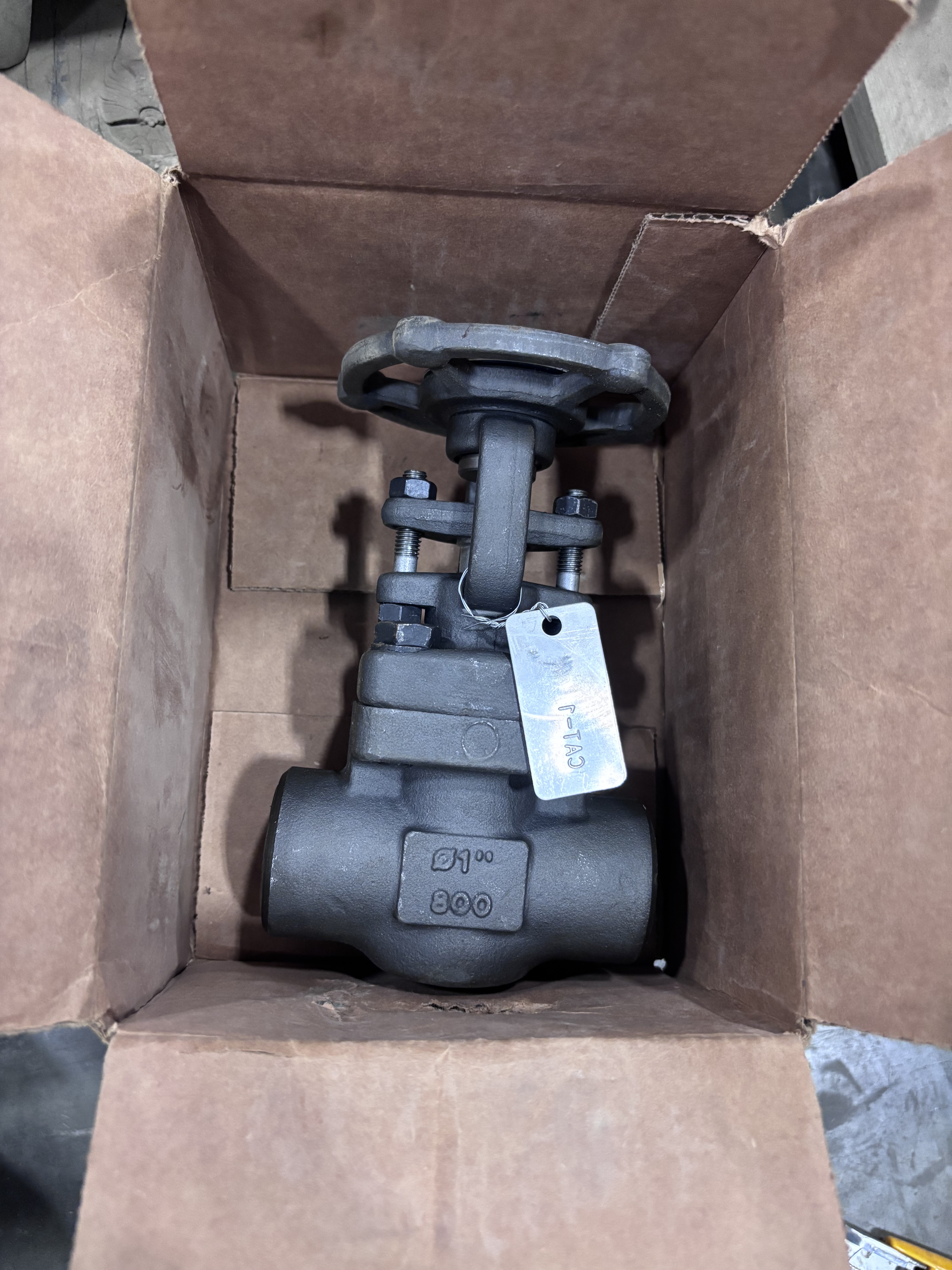

For sale is one (1) Douglas Chero Newco-47 1" Class 800 Forged Steel Gate Valve, new in its original box. This valve was manufactured in Italy in June 2023 and originally procured for Schlumberger Canada Limited. It comes complete with full traceability, including the original metal asset tag (LVGU1453) and a comprehensive EN 10204-3.1 Mill Test Certificate from Douglas Chero Spa.
This is a heavy-duty, bolted bonnet (BB), rising stem, outside screw and yoke (OS&Y) gate valve designed for demanding industrial applications. The body is forged carbon steel (ASTM A105N) with AISI 410 stainless steel trim and hard-faced (HF) seats for superior wear resistance. The end connections are mixed: Socket Weld (SW) on one end and Threaded (NPT) on the other, a common configuration in heavy oil, refinery, and petrochemical piping systems.
The valve is fully compliant with NACE MR0103 for sour gas service, as well as ASME B16.34 and API 602 standards.
Full Specifications
| Attribute | Value |
| Manufacturer | Douglas Chero Spa (Italy) |
| Brand | Newco-47 |
| Figure Number | R254/TS |
| Valve Type | Gate Valve, Bolted Bonnet, Rising Stem (OS&Y) |
| Size | 1" (Reduced Bore) |
| Pressure Class | Class 800 |
| End Connections | SW x NPT (Socket Weld x Threaded) |
| Body Material | ASTM A105N (Forged Carbon Steel) |
| Wedge Material | AISI 410 Stainless Steel |
| Stem Material | AISI 410 Stainless Steel |
| Seat Material | AISI 410 HF (Hard-Faced) |
| Bonnet Material | ASTM A193 Grade B7M |
| Temperature Range | -29°C to 426°C (-20°F to 800°F) |
| Max Pressure Rating | 136 bar @ -29°C / 76 bar @ 426°C |

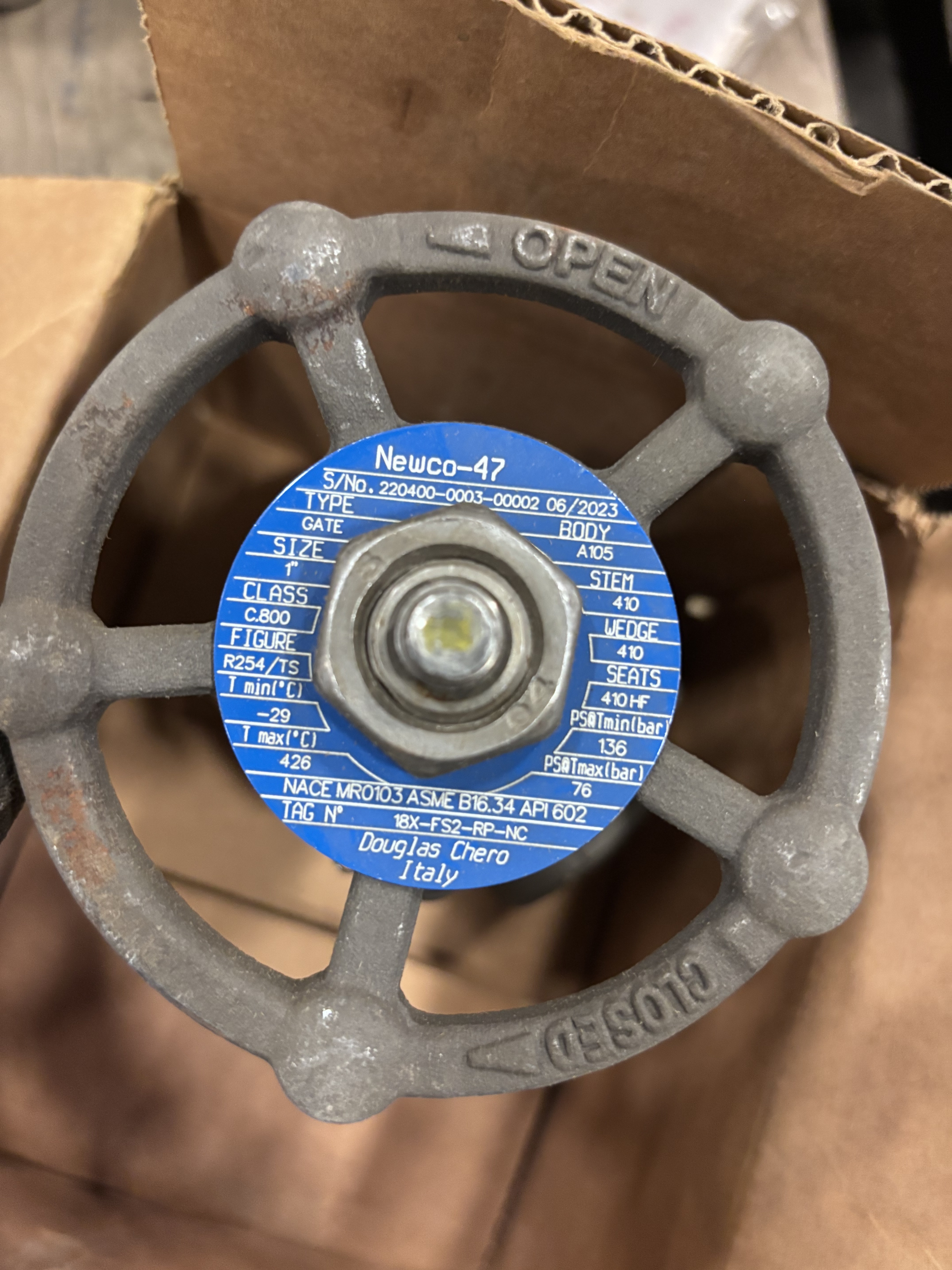

| Serial Number | 220400-0003-00002 |
| Tag Number | 18X-FS2-RP-NC / LVGU1453 |
