Xylem Flygt NP 3127 MT Submersible Pumps - QTY 2
Xylem Flygt NP 3127 MT — 10 HP, 600 V Submersible Pumps | 2-Unit Lot
Description

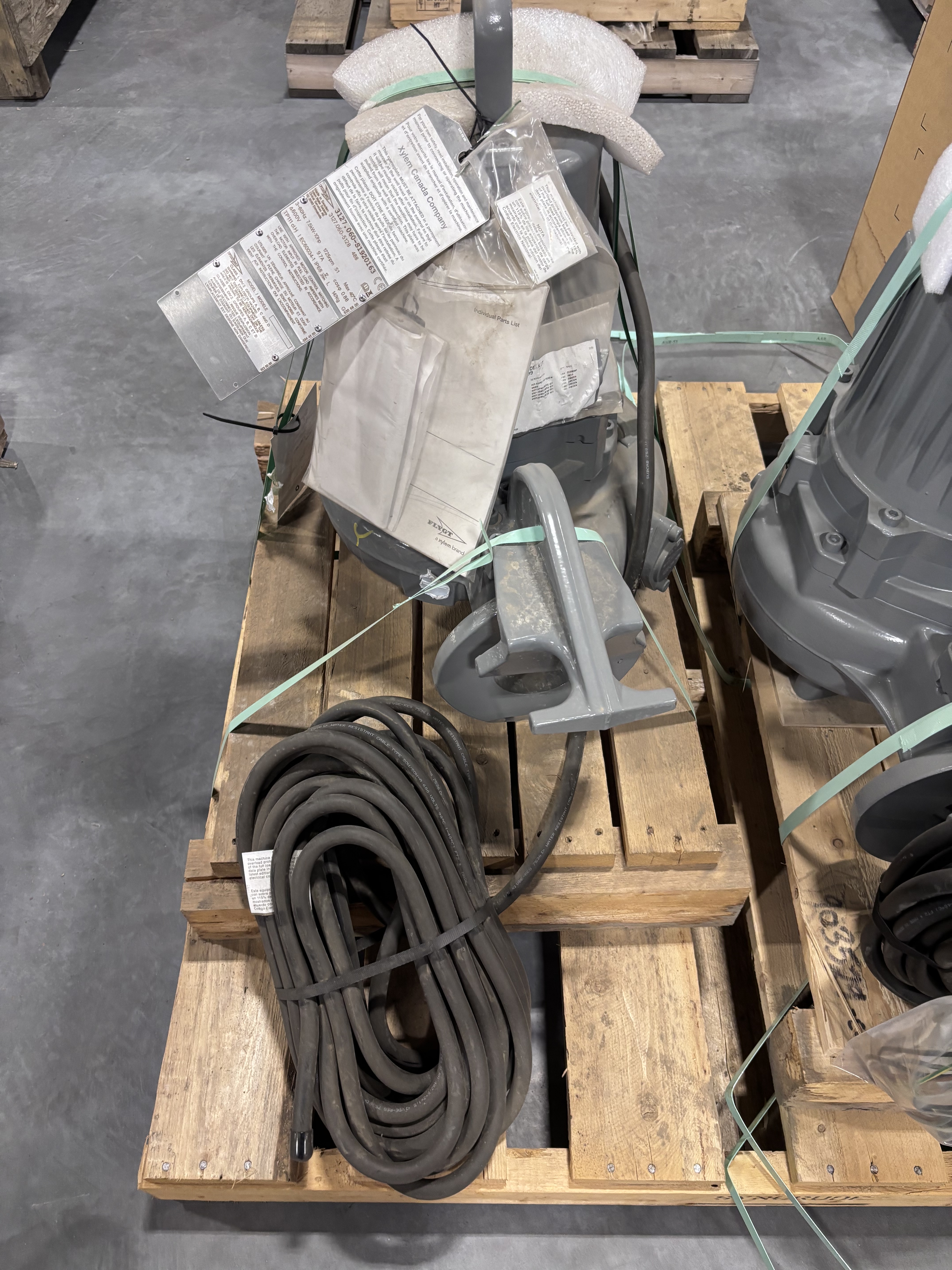

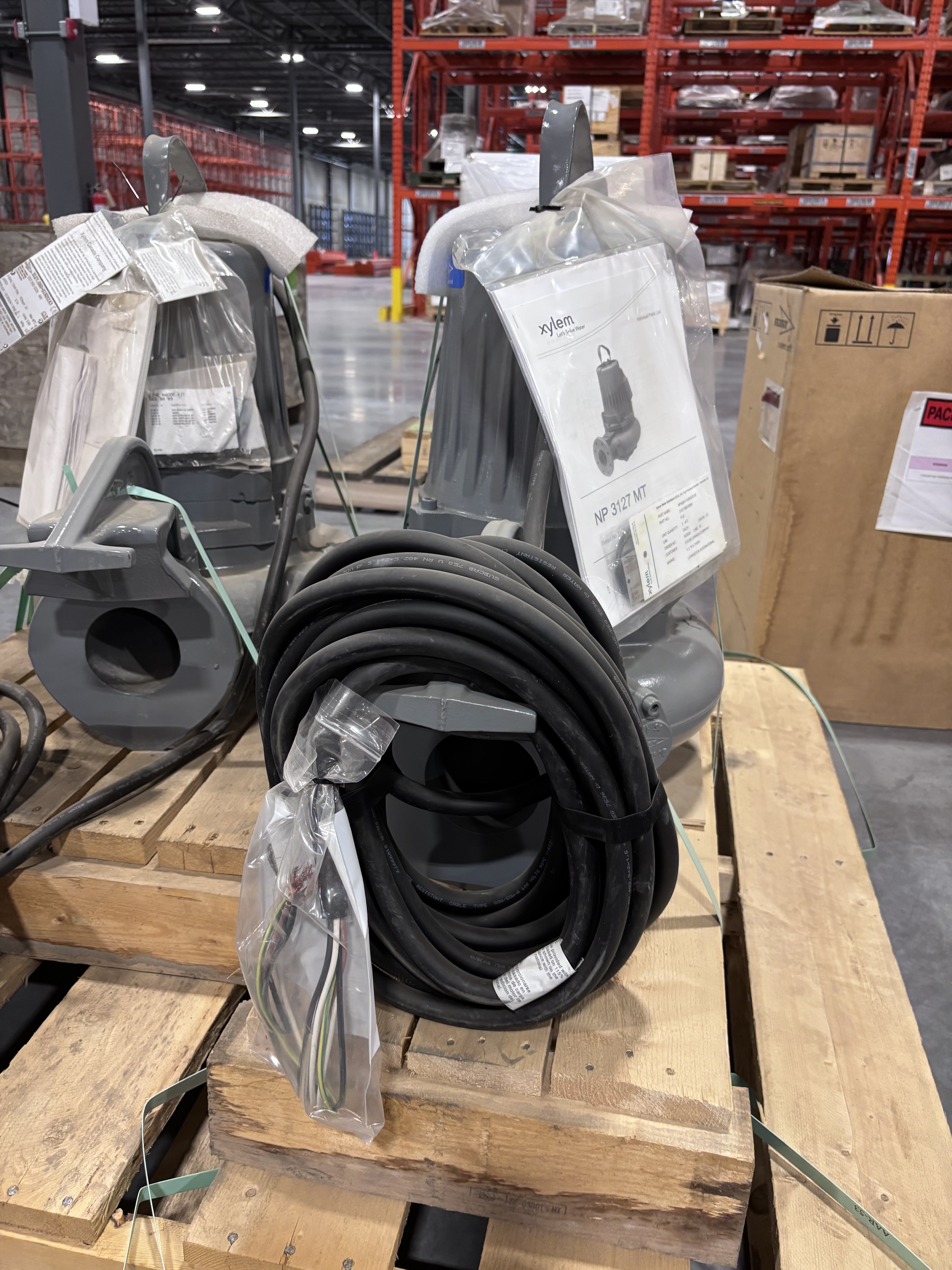

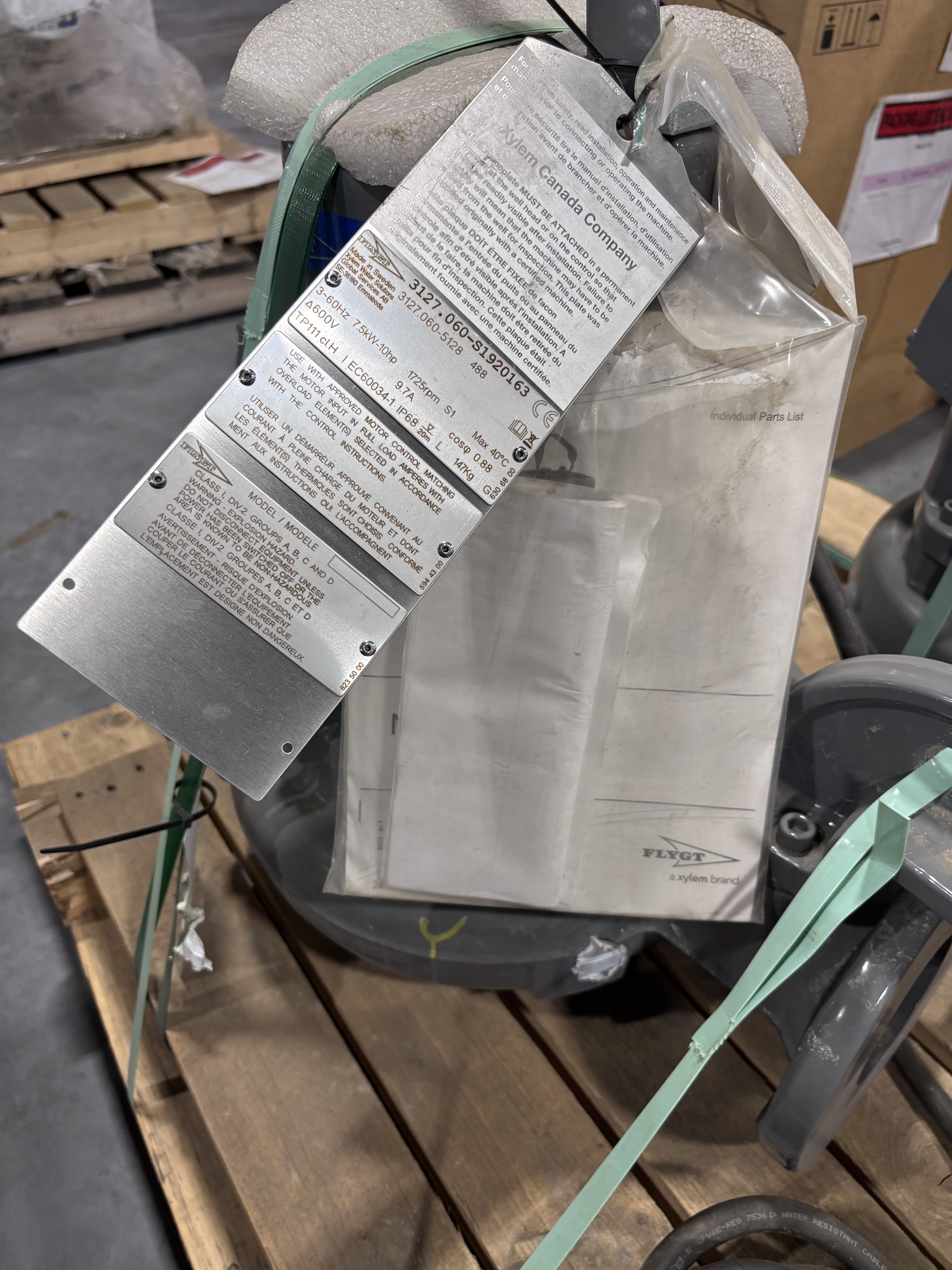

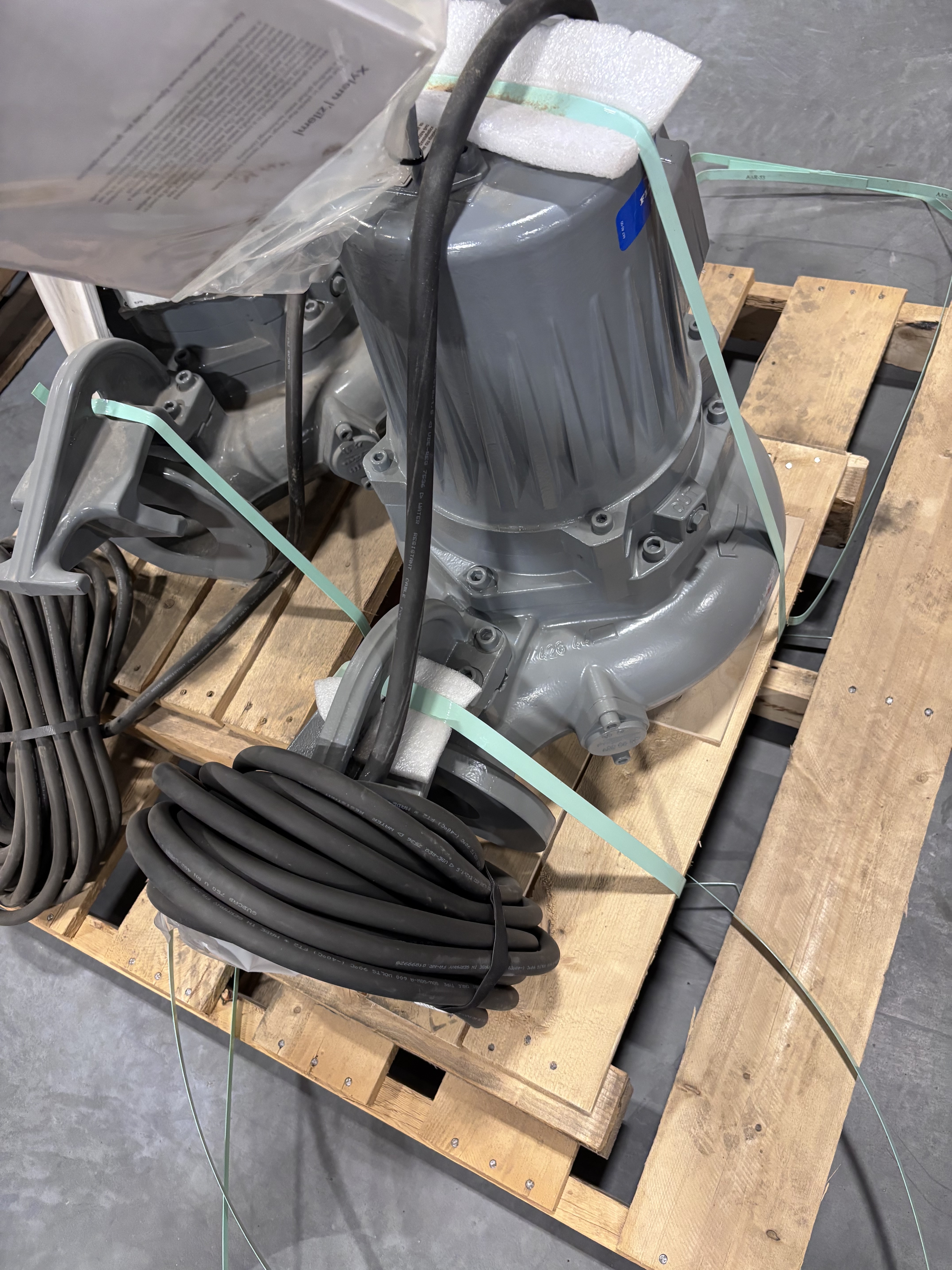

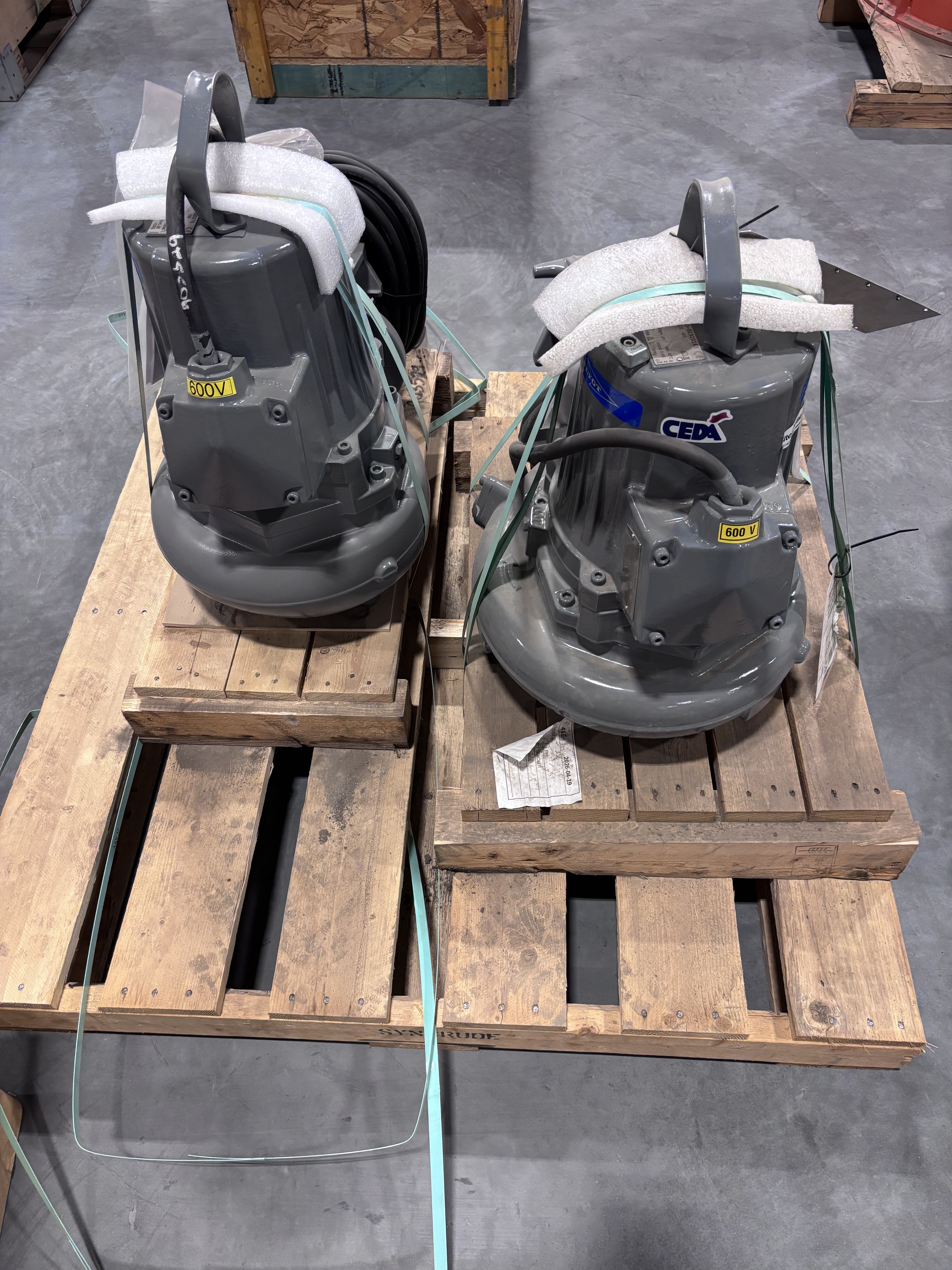

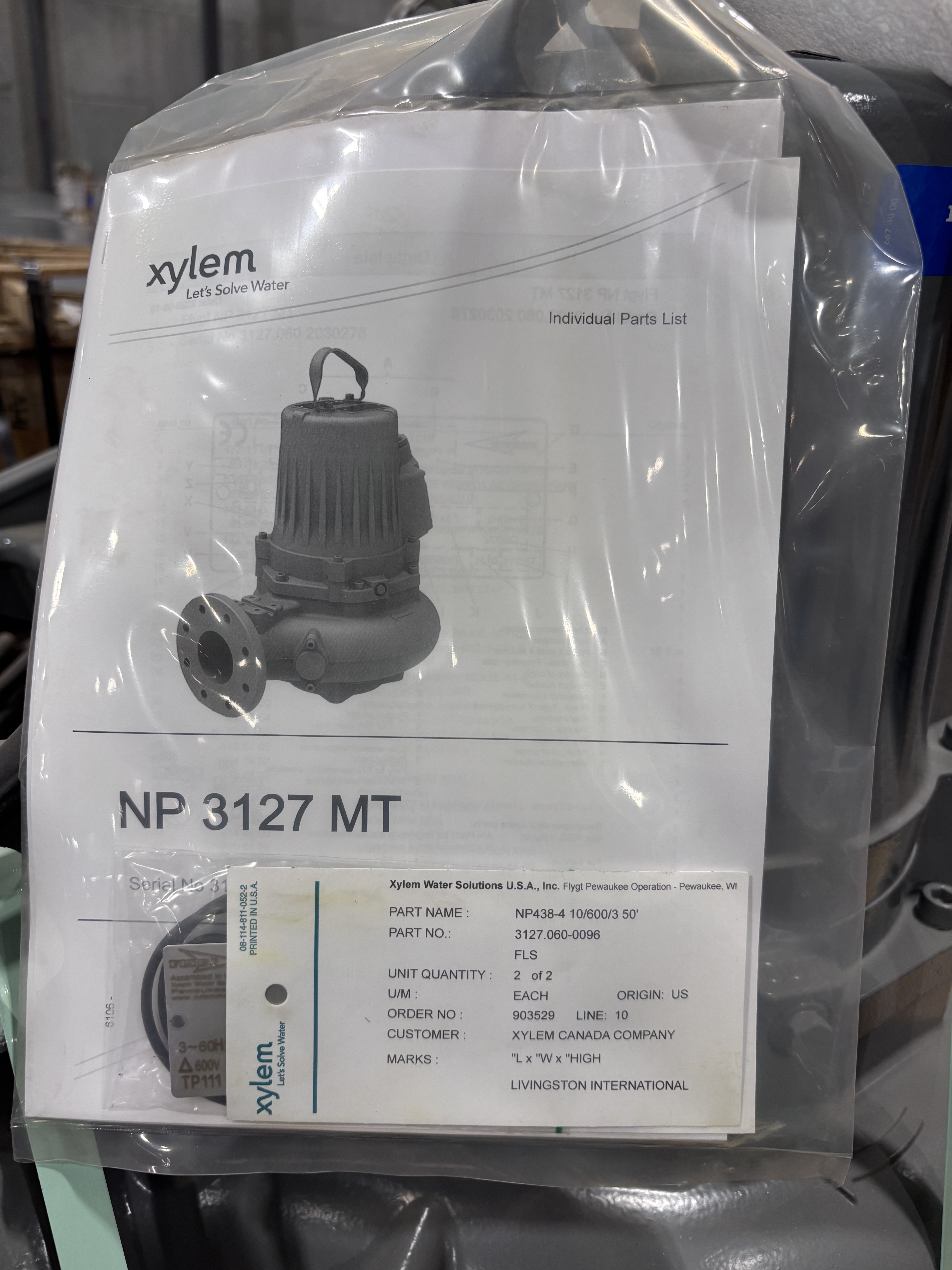

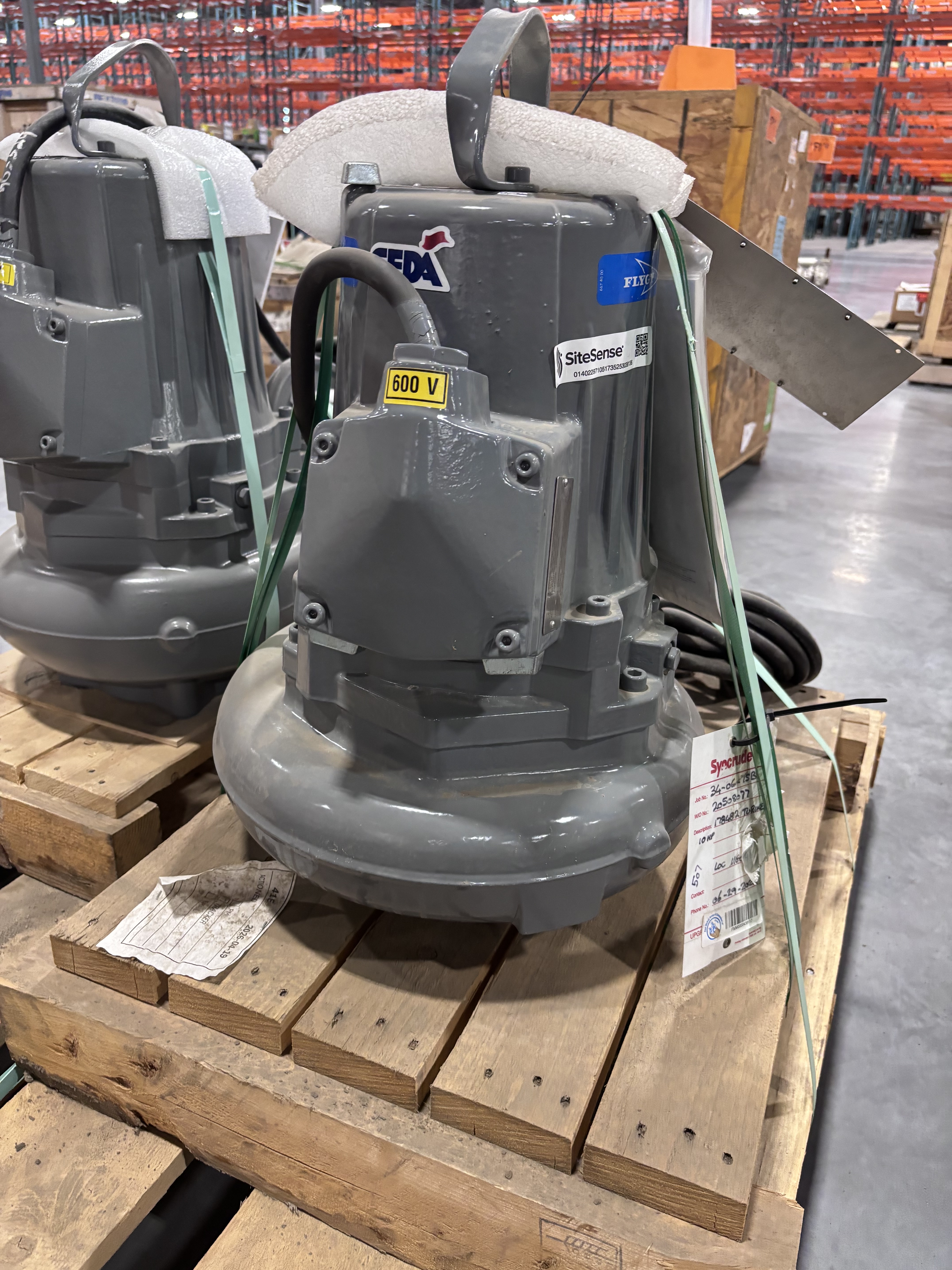

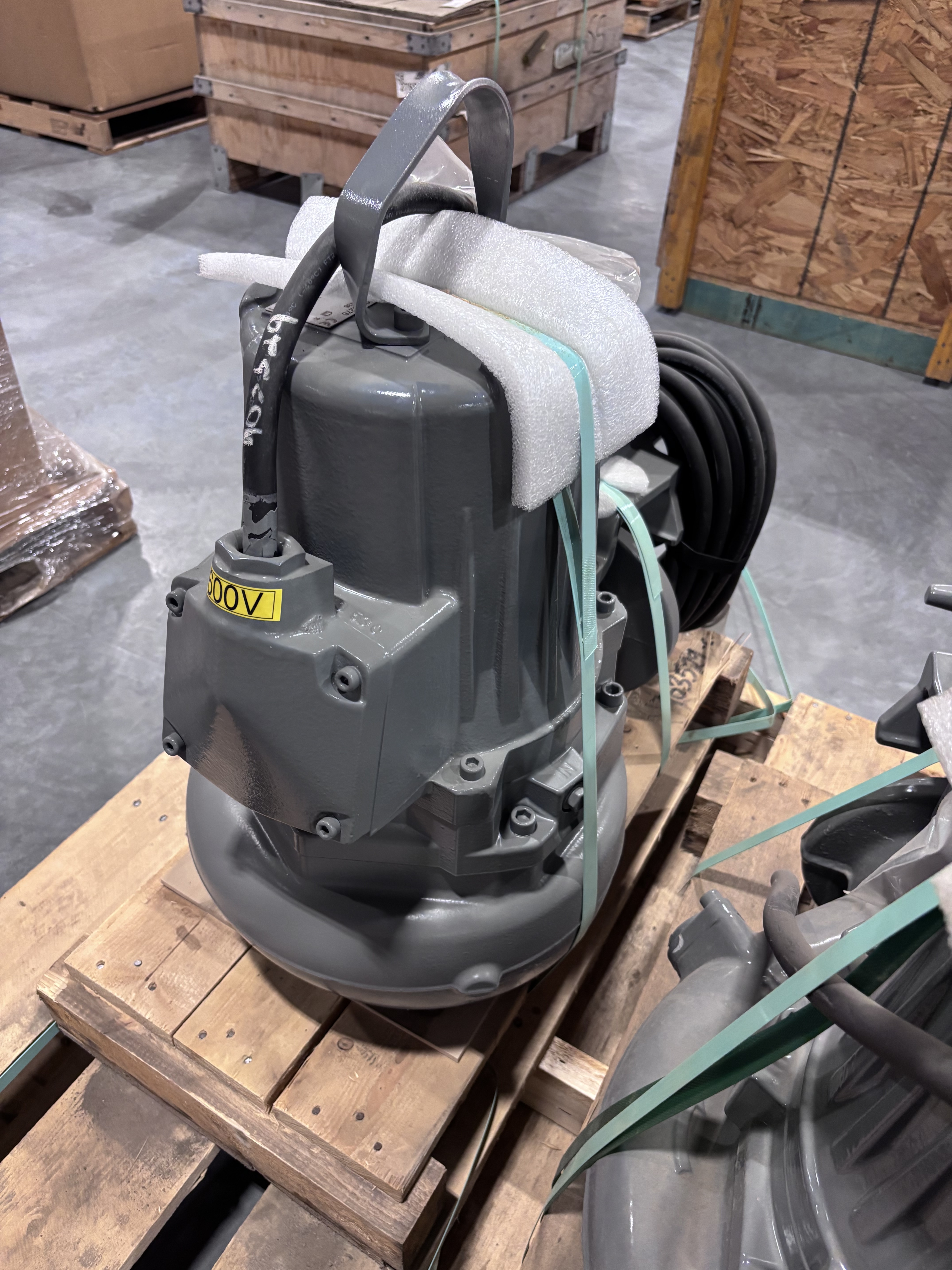

Available are two Xylem Flygt NP 3127 MT submersible pumps from the 3127.060 family. Both are heavy-duty, 10 HP / 7.5 kW, 600 V, three-phase units supplied on individual pallets with factory-style lifting handles, attached power cables, and enclosed Xylem/Flygt documentation as photographed.
Xylem describes the Flygt N 3127 family as a small-capacity wastewater pump range for low-to-medium flow applications. The two pumps offered here share the same basic NP 3127 MT family and electrical rating but carry different visible configuration codes. They should therefore be treated as two individually identified configurations, with the buyer confirming hydraulic, mechanical, and electrical interchangeability before purchase.
Individual Pump Identification
| Pump | Nameplate configuration reference | Visible identifier | Visible configuration code | 60 Hz rating | Speed | Current | Nameplate weight |

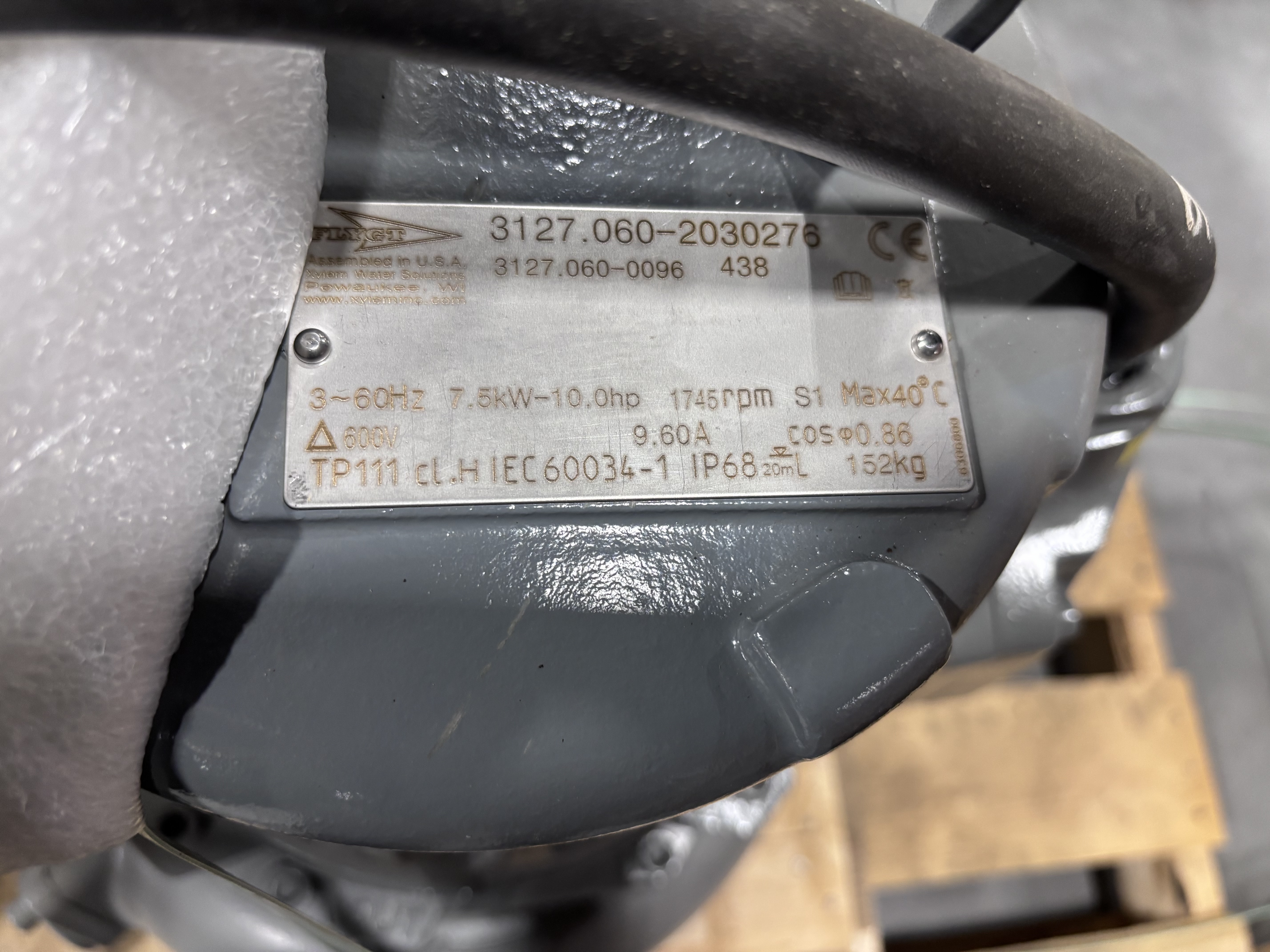

| Unit 1 | 3127.060-0096 | 3127.060-2030276 | 438 | 7.5 kW / 10 HP, 600 V, 3-phase | 1745 RPM | 9.60 A | 152 kg / 335 lb |

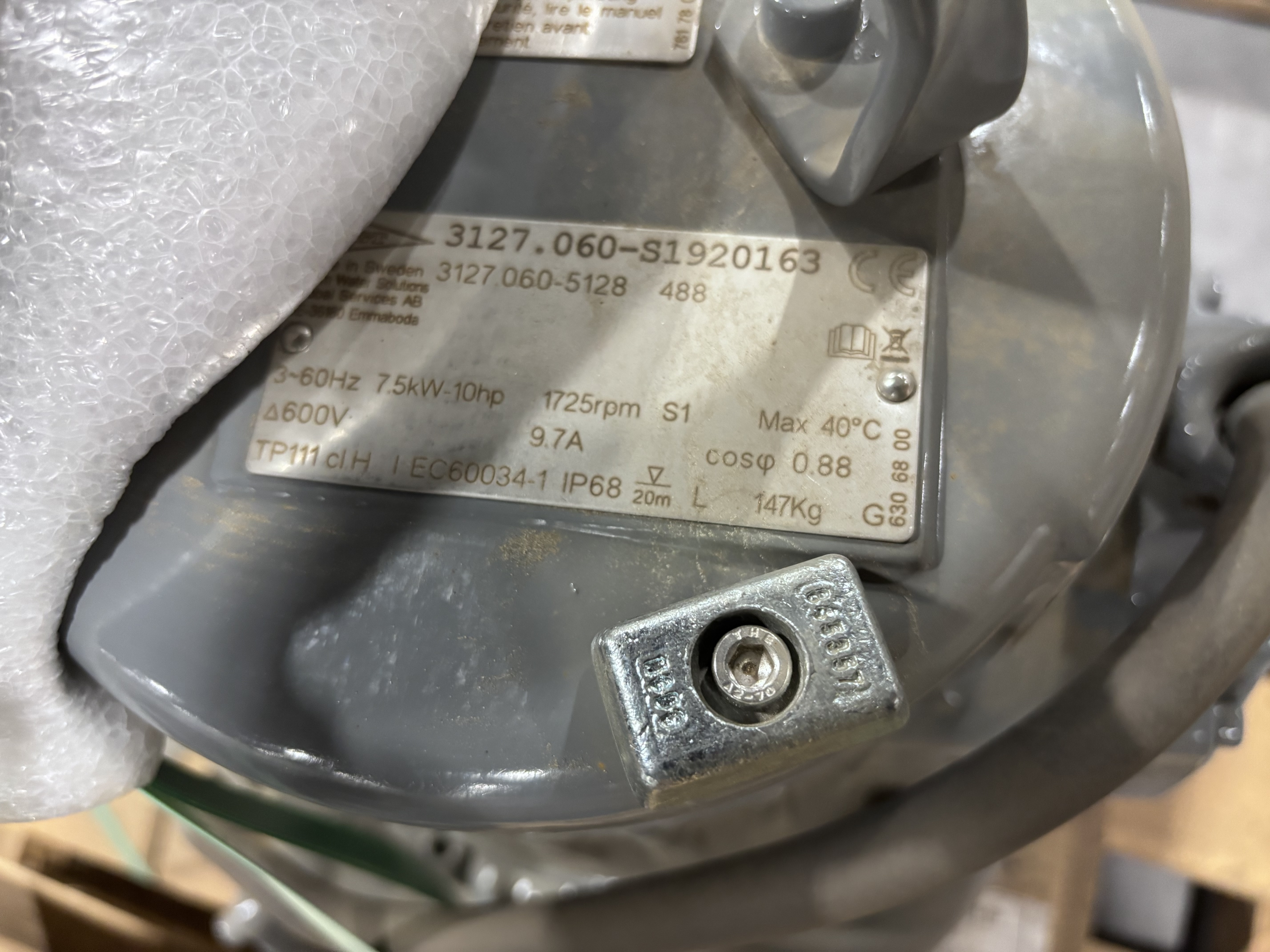

| Unit 2 | 3127.060-5128 | 3127.060-S1920163 | 488 | 7.5 kW / 10 HP, 600 V, 3-phase | 1725 RPM | 9.7 A | 147 kg / 324 lb |
Verified Nameplate Data
| Specification | Unit 1 | Unit 2 |
| Manufacturer / brand | Xylem Flygt | Xylem Flygt |
| Product family | NP 3127 MT / 3127.060 | NP 3127 MT / 3127.060 |
| Frequency | 60 Hz | 60 Hz |
| Motor output | 7.5 kW / 10 HP | 7.5 kW / 10 HP |
| Supply | 600 V, three-phase | 600 V, three-phase |
| Duty | S1 | S1 |
| Maximum ambient marking | 40°C | 40°C |
| Thermal / insulation marking | TP111, Class H, IEC 60034-1 | TP111, Class H, IEC 60034-1 |
| Ingress-protection marking | IP68 / 20 m marking | IP68 / 20 m marking |
| Power factor | 0.86 | 0.88 |
