Shell & Tube Exchanger
Thermal Transfer Products B-1002-C4-F-BR-B Shell-and-Tube Heat Exchanger
Description

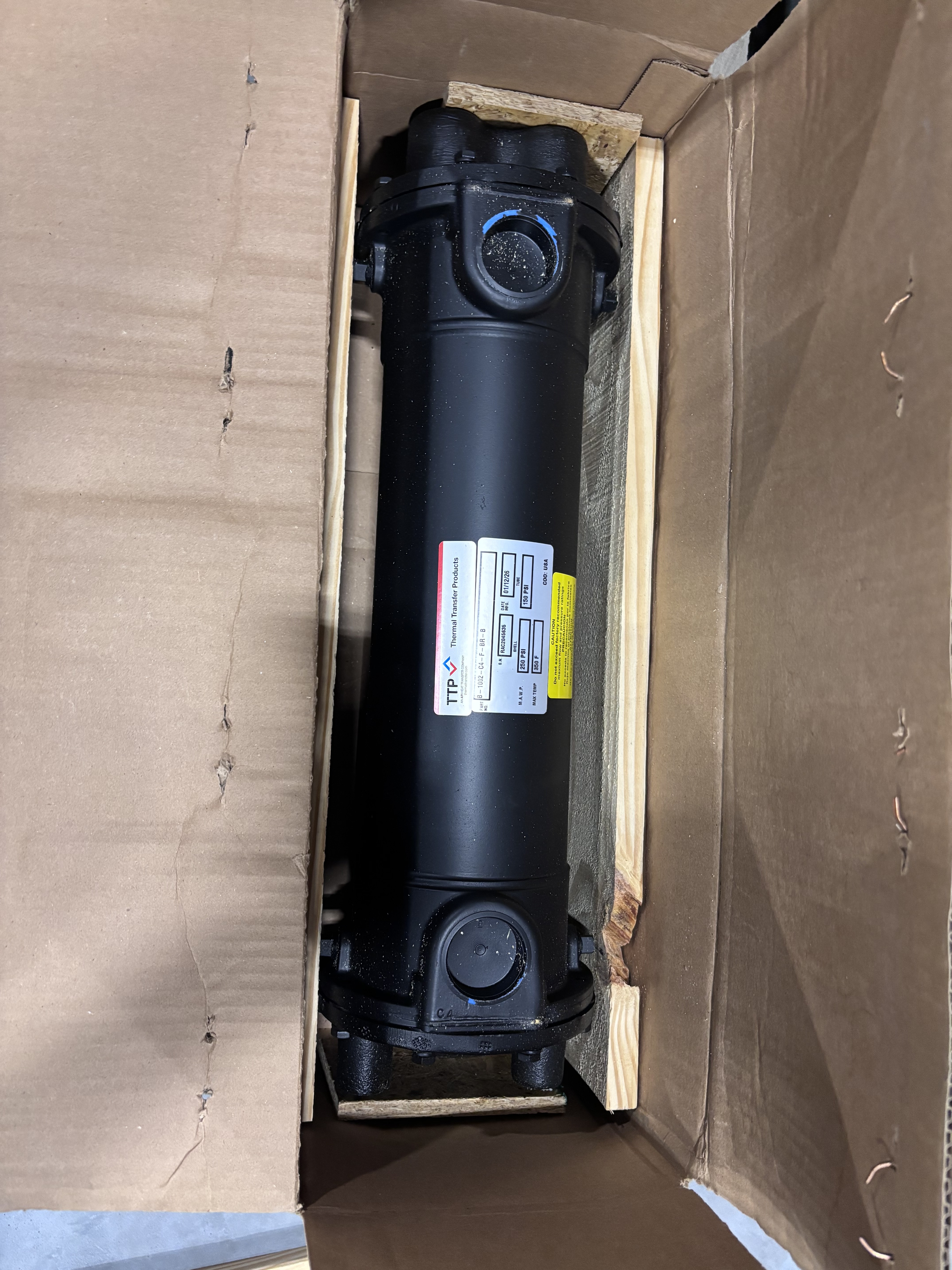

Available is one TTP Thermal Transfer Products B-1002-C4-F-BR-B shell-and-tube heat exchanger. The unit is supplied in its protective wood-framed shipping package, with the exchanger visible inside the opened outer carton. Protective port covers are present as shown.

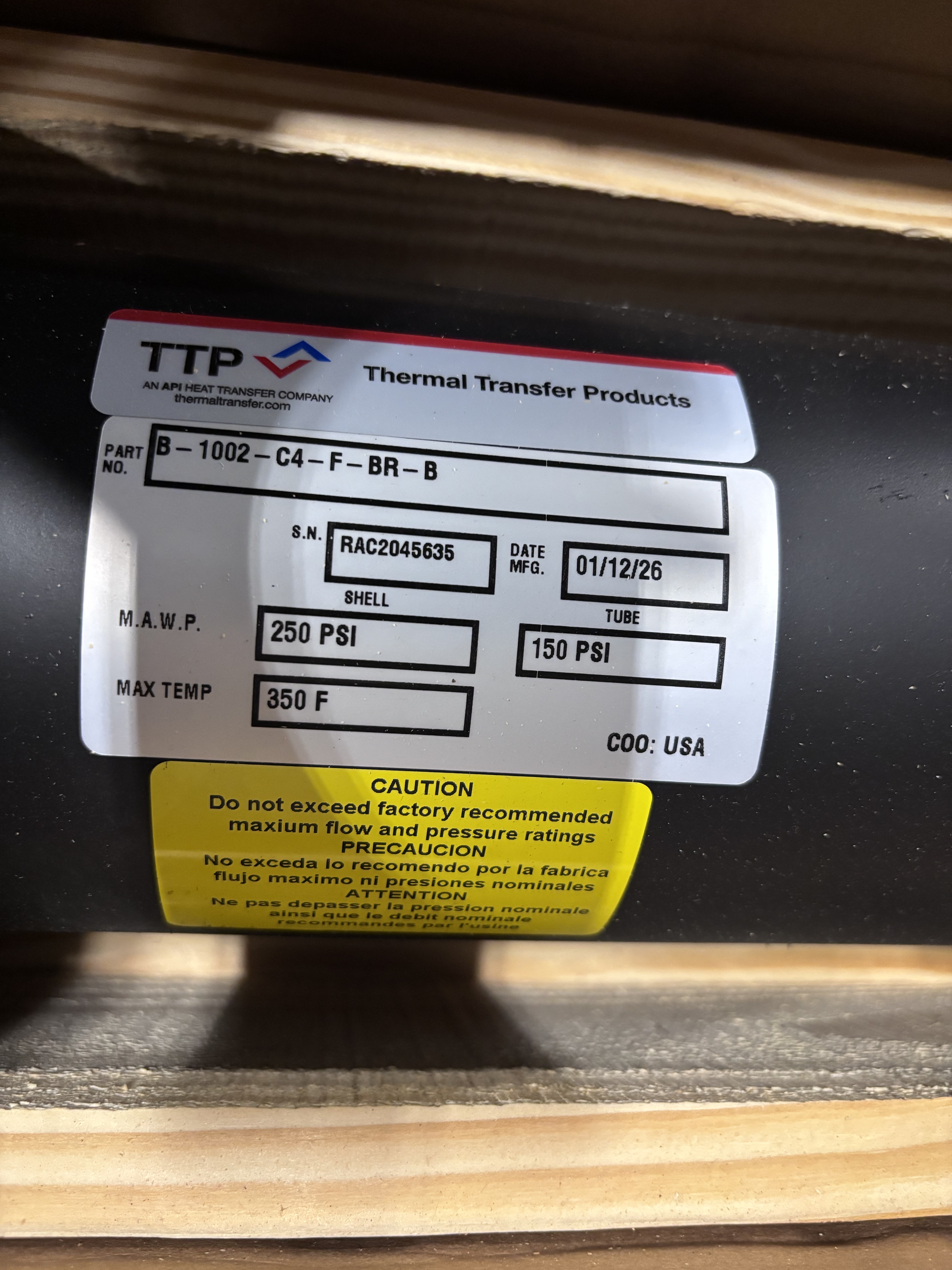

The physical nameplate identifies the exact part number, serial number, maximum shell-side and tube-side pressure ratings, maximum temperature, and USA country-of-origin marking. Published reference information for this exact part number identifies it as a four-pass shell-and-tube heat exchanger intended for fluid-cooling applications.
Verified Nameplate Data
| Specification | Details |
| Manufacturer / brand | TTP — Thermal Transfer Products |
| Part number / model | B-1002-C4-F-BR-B |
| Serial number | RAC2045635 |
| Nameplate date marking | 01/12/26 |
| Shell-side maximum working pressure | 250 psi |
| Tube-side maximum working pressure | 150 psi |
| Maximum temperature | 350 °F |
| Country of origin | USA |
Configuration and Application Reference
Published information for the exact B-1002-C4-F-BR-B designation describes a four-pass shell-and-tube unit. The related B-1002-C4-F-BR product reference identifies the same core B-1002/C4/F/BR configuration as a shell-and-tube exchanger for water-to-oil or water-to-water service.
